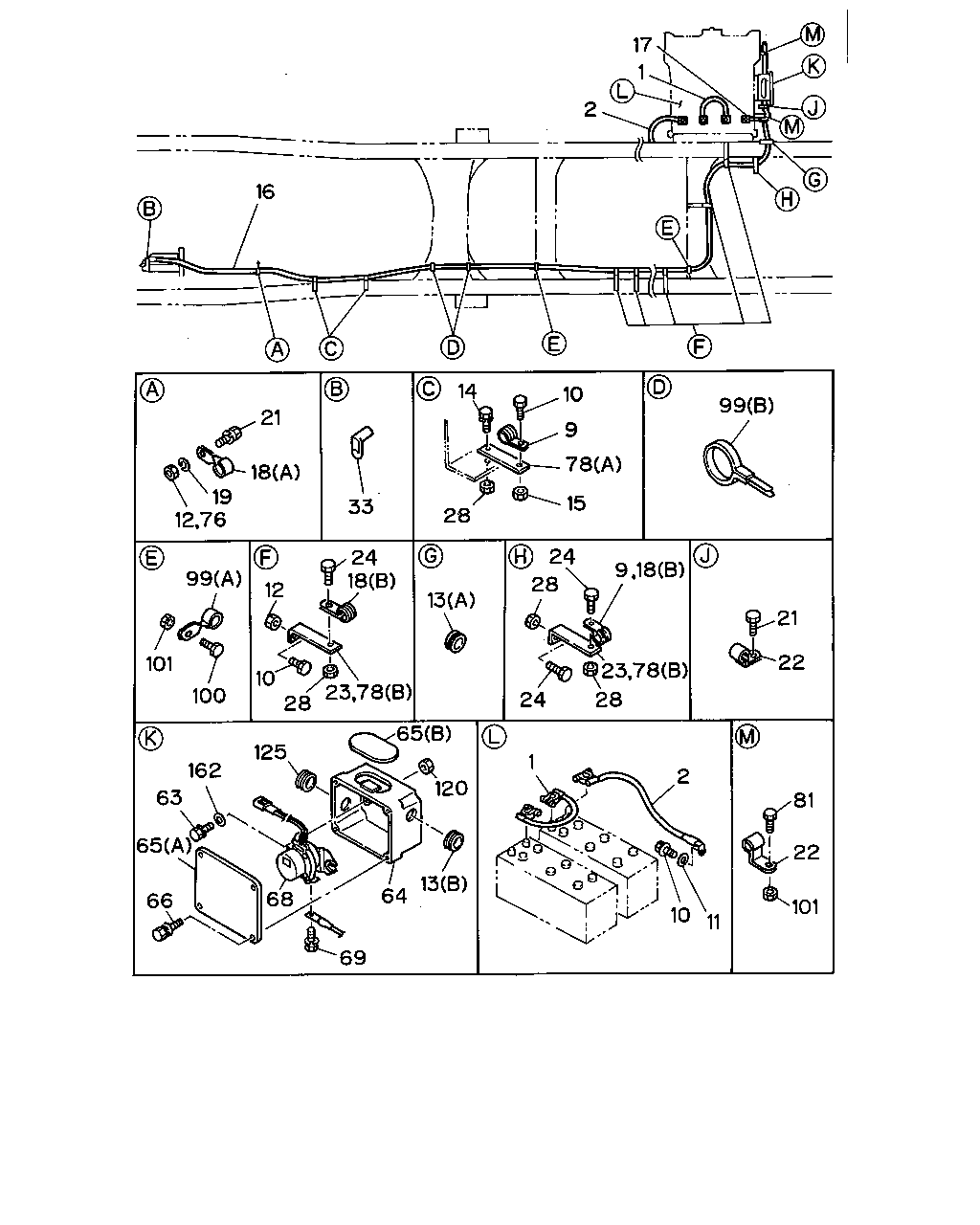

0-61A — BATTERY AND ENGINE ELECTRICAL PARTS (#452) — 92 parça

17 2 1 16 21 18 19 12 76 33 14 10 9 78 28 15 99 99 101 100 12 24 18 10 28 23 78 13 24 28 9 18 78 23 28 24 21 22 125 65 120 13 64 69 68 162 63 65 66 1 2 10 11 81 22 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CABLE; BATTERY L=500	1-82650-130-0	01	1	8712-9003	●	●	●
1	CABLE; BATTERY L=500	1-82650-124-0	01	1	9004-	●	●
2	CABLE; BATTERY L=290	1-82652-432-0	01	1	8712-8802	●	●	●
2	CABLE; BATTERY L=290	1-82650-151-0	01	1	8803-	●	●	●
9	CLIP; BATTERY CABLE ID=19 L=40	9-09525-876-0	02	1	8712-9001	●	●	●
9	CLIP; BATTERY CABLE ID=18 L=40	1-09701-111-0	02	1	9002-	●	●
9	CLIP; BATTERY CABLE ID=18 L=40	1-09701-111-0	02	1	9002-9306	●	●
10	BOLT; BATTERY CABLE CLIP M8X20 W/LK WASHER	9-01900-820-0	02	1	8712-9001	●	●	●
10	BOLT; BATTERY CABLE CLIP M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●	●
10	BOLT; BATTERY CABLE CLIP M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302	●	●
10	BOLT; BATTERY CABLE CLIP M8X20 FLANGE	0-28080-820-0	02	1	9303-9306	●	●
10	BOLT; BATTERY CABLE CLIP M10X20 W/LK WASHER	9-01911-020-0	01	1	9002-9002	●	●
10	BOLT; BATTERY CABLE CLIP M10X20 W/LK WASHER	0-50041-020-0	01	1	9003-	●	●
11	WASHER; BATTERY CABLE EARTH ID=10.5 OD=26	9-09160-710-0	01	1	8712-	●	●	●
12	NUT; BATTERY CABLE CLIP M8	9-09110-408-0	07	1	8712-9306	●	●
12	NUT; BATTERY CABLE CLIP M8	9-09110-408-0	05	1	8803-	●	●
12	NUT; BATTERY CABLE CLIP M10	9-09110-510-0	01	1	8803-	●	●
12	NUT; BATTERY CABLE CLIP M8	9-09110-408-0	07	1	9307-	●	●
13	GROMMET; BATTERY CABLE (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	8712-	●	●	●
13	GROMMET; BATTERY CABLE (A) ID=28 H=45 L=30	1-09333-061-0	01	1	8712-9001	●	●	●
13	GROMMET; BATTERY CABLE (A) ID=26	1-09333-140-0	01	1	9002-	●	●
14	BOLT; BRKT CLIP M8X30 W/LK WASHER	9-01900-830-0	02	1	9002-9204	●	●
14	BOLT; BRKT CLIP M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9302	●	●
14	BOLT; BRKT CLIP M8X30 FLANGE	0-28080-830-0	02	1	9303-	●	●
14	BOLT; BRKT CLIP M8X30 FLANGE	0-28080-830-0	05	1	9307-	●	●
15	NUT; BRKT CLIP M8	9-09110-408-0	02	1	8712-	●	●	●
15	NUT; BRKT CLIP M8	9-09110-408-0	05	1	9307-	●	●
16	CABLE; STARTER TO RELAY L=5650	1-82652-329-0	01	1	8712-9001	●	●	●
16	CABLE; STARTER TO RELAY L=5700	1-82652-519-2	01	1	9002-	●	●
17	CABLE; BATTERY (+) TO RELAY L=240	1-82650-123-1	01	1	8712-9001	●	●	●
17	CABLE; BATTERY (+) TO RELAY L=250	1-82652-510-0	01	1	9002-	●	●
18	CLIP; BATTERY CABLE (A) ID=19 L=80	1-09700-593-0	01	1	8712-9001	●	●	●
18	CLIP; BATTERY CABLE (B) ID=19 L=40	9-09525-876-0	05	1	8712-9001	●	●	●
18	CLIP; BATTERY CABLE (B) ID=18 L=40	1-09701-111-0	05	1	9002-9306	●	●
18	CLIP; BATTERY CABLE (A) ID=18 L=80	1-09701-069-0	01	1	9002-	●	●
18	CLIP; BATTERY CABLE (B) ID=18 L=40	1-09701-111-0	07	1	9307-	●	●
19	WASHER; LK ID=10.2	9-09150-510-0	01	1	8712-	●	●	●
21	BOLT; CLIP CABLE M8X20 W/LK WASHER	9-01900-820-0	05	1	8712-9204	●	●	●
21	BOLT; CLIP CABLE M8X20 W/LK WASHER	0-50040-820-0	05	1	9205-9302	●	●
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28080-820-0	05	1	9303-9306	●	●
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28080-820-0	07	1	9307-	●	●
22	CLIP; BATTERY CABLE ID=18 H=23 L=28	1-09700-860-0	02	1	8712-9001	●	●	●
22	CLIP; BATTERY CABLE ID=18 L=28 H=30	1-09701-110-0	02	1	9002-9306	●	●
22	CLIP; BATTERY CABLE ID=18 H=23 L=28	1-09701-070-0	02	1	9307-		●
23	BRACKET; CABLE CLIP TO FRAME L=95	1-82699-085-0	05	1	8712-9306	●	●	●
24	BOLT; BRKT TO FRAME M8X25 W/LK WASHER	9-01900-825-0	05	1	8712-9204	●	●	●
24	BOLT; BRKT TO FRAME M8X25 W/LK WASHER	0-50040-825-0	05	1	9205-9302	●	●
24	BOLT; BRKT TO FRAME M8X25 FLANGE	0-28080-825-0	05	1	9303-9306	●	●
28	NUT; BRKT TO FRAME M8	9-09110-408-0	05	1	8712-9306	●	●	●
33	CAP; INSULATOR	1-82699-022-0	01	1	8712-8804	●	●	●
33	CAP; INSULATOR	1-82699-206-0	01	1	8805-	●	●	●
63	BOLT; RELAY BATTERY M8X35 W/LK&PL WASHER	1-09030-025-0	02	1	8712-	●	●	●
64	BOX; BATTERY RELAY	1-81809-012-2	01	1	8712-9001	●	●	●
64	BOX; BATTERY RELAY	1-82699-352-2	01	1	9002-	●	●
65	COVER; BATTERY RELAY (A)	1-82699-353-1	01	1	9002-	●	●
65	COVER; BATTERY RELAY (B)	1-82699-354-2	01	1	9002-	●	●
66	BOLT; COVER,BATTERY RELAY M6X16 W/LK&PL WASHER	9-01960-616-0	04	1	9002-9204	●	●
66	BOLT; COVER,BATTERY RELAY M6X16 W/LK&PL WASHER	0-50140-616-0	04	1	9205-	●	●
68	RELAY; BATTERY	1-82550-118-2	01	1	8712-8802	●	●	●
68	RELAY; BATTERY	1-82550-226-0	01	1	8803-8909	●	●	●
68	RELAY; BATTERY	1-82550-248-0	01	1	8910-9001	●	●	●
68	RELAY; BATTERY	1-82550-228-2	01	1	9002-	●	●
69	BOLT; CABLE BATTERY M8X18 W/LK WASHER	9-01900-818-0	02	1	8712-8802	●	●	●
69	BOLT; CABLE BATTERY M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●	●
69	BOLT; CABLE BATTERY M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302	●	●
69	BOLT; CABLE BATTERY M8X20 FLANGE	0-28080-820-0	02	1	9303-9401	●	●
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9402-	●	●
76	NUT; BATTERY CABLE M8	9-09110-408-0	01	1	8712-	●	●	●
76	NUT; BATTERY CABLE M8	9-09110-408-0	02	1	9012-9306	●	●
78	BRACKET; CLIP BATTERY (A)	1-22133-053-0	02	1	8712-	●	●	●
78	BRACKET; CLIP BATTERY (B) L=95	1-82699-085-0	05	1	9307-	●	●
81	BOLT; BATTERY CABLE M8X22	9-01900-822-0	03	1	8712-8910	●	●	●
81	BOLT; BATTERY CABLE M8X22	9-01900-822-0	02	1	8911-9204	●	●	●
81	BOLT; BATTERY CABLE M8X22 W/LK WASHER	0-50040-822-0	02	1	9205-9302	●	●
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28080-825-0	02	1	9303-9306	●	●
81	BOLT; BATTERY CABLE M8X20 FLANGE	0-28080-820-0	02	1	9307-	●	●
99	CLIP; BATTERY CABLE (A) ID=19	1-09700-487-0	02	1	8712-9001	●	●	●
99	CLIP; BATTERY CABLE (B) ID=18 L=48	9-09917-429-0	02	1	8712-9001	●	●	●
99	CLIP; BATTERY CABLE (A) ID=18 L=54	1-09701-068-0	02	1	9002-	●	●
99	CLIP; BATTERY CABLE (B) ID=16 L=46	9-09917-428-0	02	1	9002-	●	●
100	BOLT; BATTERY CABLE CLIP M6X20 W/LK WASHER	9-01900-620-0	02	1	8712-9008	●	●	●
100	BOLT; BATTERY CABLE CLIP M8X20 W/LK WASHER	9-01900-820-0	02	1	9009-9204	●	●	●
100	BOLT; BATTERY CABLE CLIP M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302	●	●	●
100	BOLT; BATTERY CABLE CLIP M8X20 FLANGE	0-28080-820-0	02	1	9303-	●	●
100	BOLT; BATTERY CABLE CLIP EXC. HONG KONG EQUIPMENT(PQ1) M6X20 W/LK WASHER	9-01900-620-0	02	1	8712-9001	●	●	●
101	NUT; BATTERY CABLE CLIP M6	9-09110-406-0	02	1	8712-9008	●	●	●
101	NUT; BATTERY CABLE CLIP M8	9-09110-408-0	02	1	9009-	●	●
120	NUT; RELAY BATTERY M8	9-09110-408-0	02	1	8712-8805	●	●	●
125	GROMMET; CABLE BATTERY ID=28 H=45 L=30	1-09333-061-0	01	1	8712-8910	●	●	●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=22	9-09160-708-0	04	1	8712-9001	●	●	●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=22	9-09160-708-0	02	1	9002-9401	●	●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	9-09164-608-0	02	1	9402-		●
