Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11429 - FXZ(AUST)JNLT05
▶
5 - Frame, Cab Mounting
▶
5-15 - CAB MOUNTING; CAB SIDE
▶
5-15 — CAB MOUNTING; CAB SIDE
(#45194) — 71 parça
Tümü
A - FGY5MX
B - FGZ5MX
◀

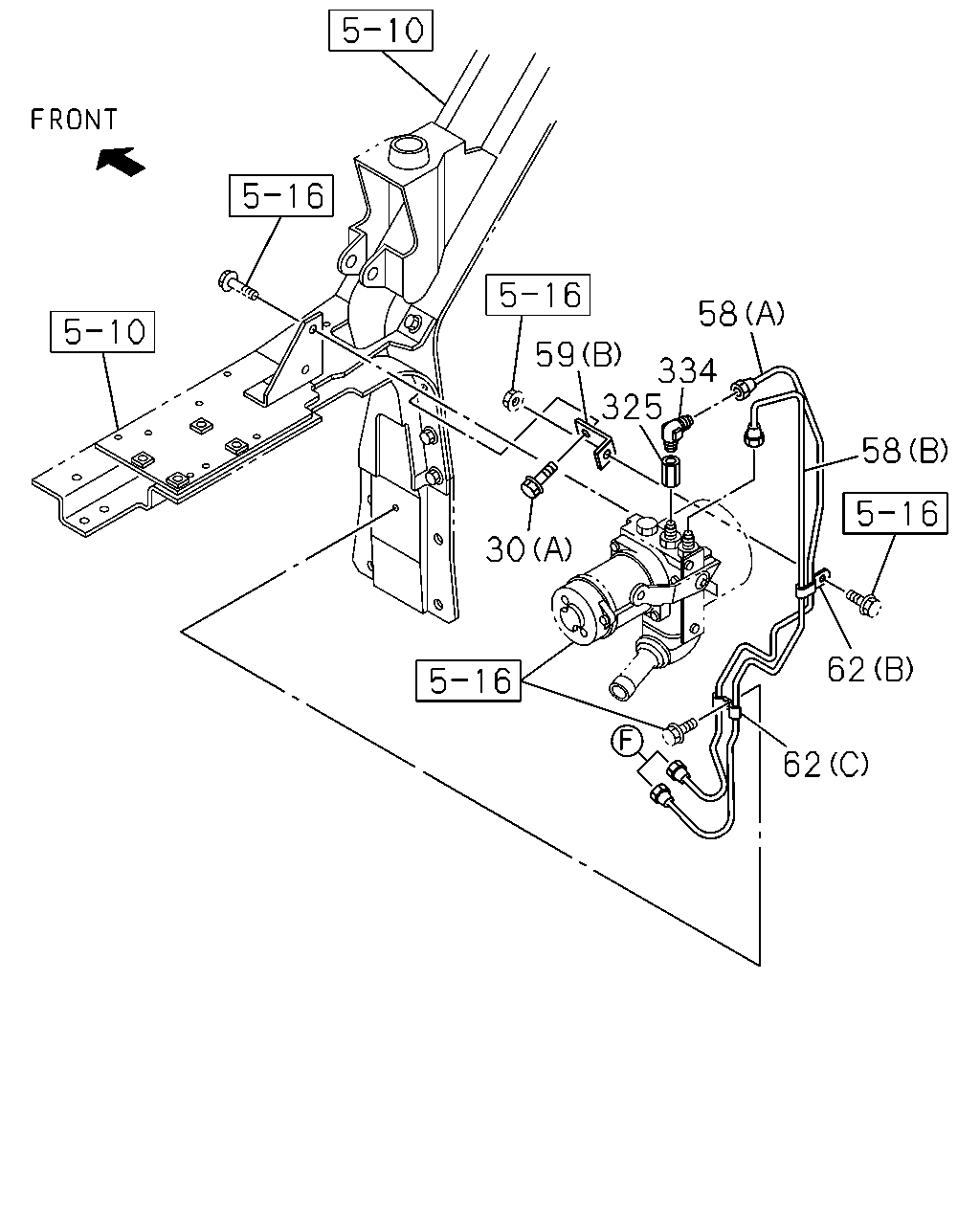

[515A] CAB TILT PIPING;CAB MTG MBR SIDE (22 parça)

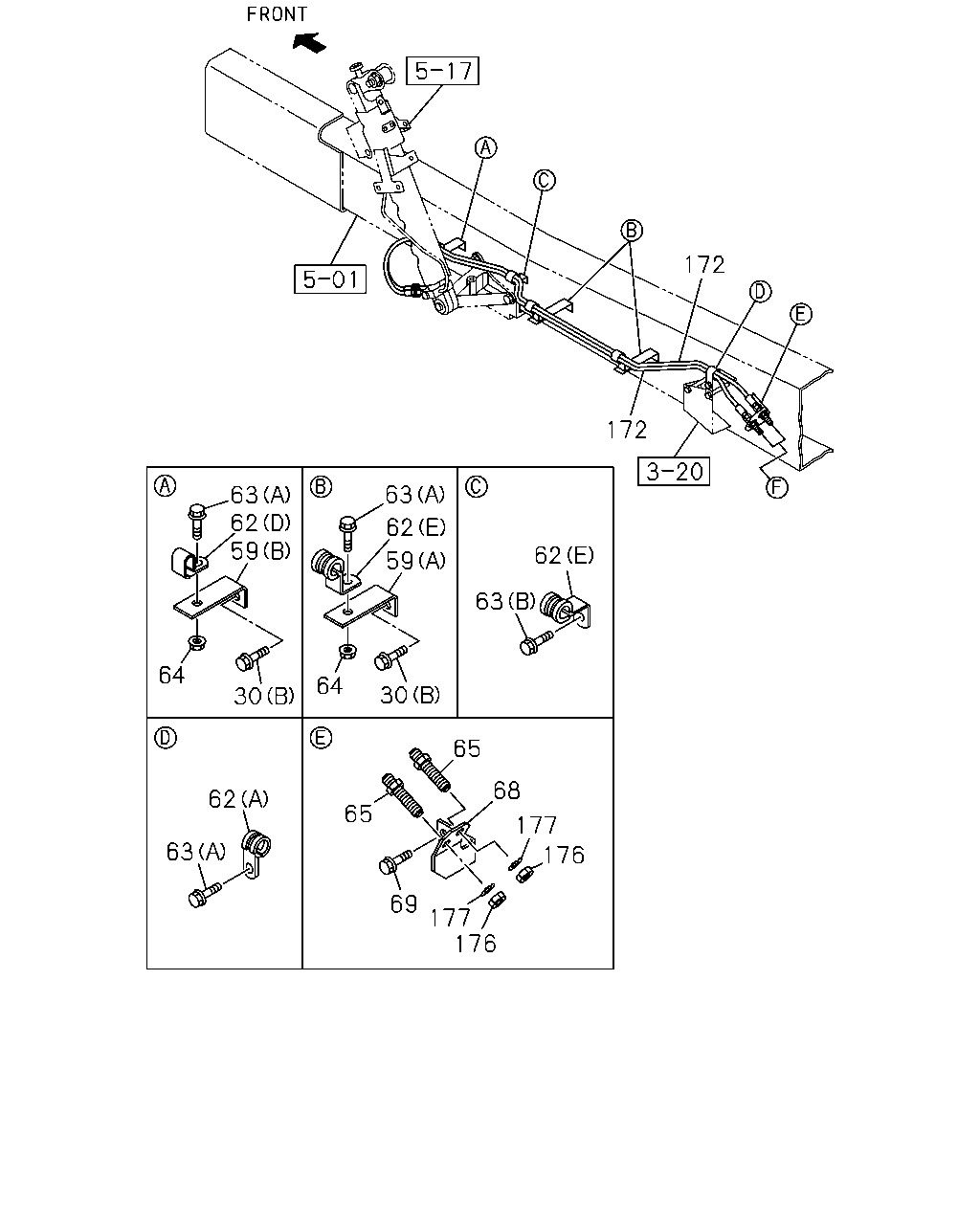

[515A] CAB TILT PIPING;FRAME SIDE (28 parça)

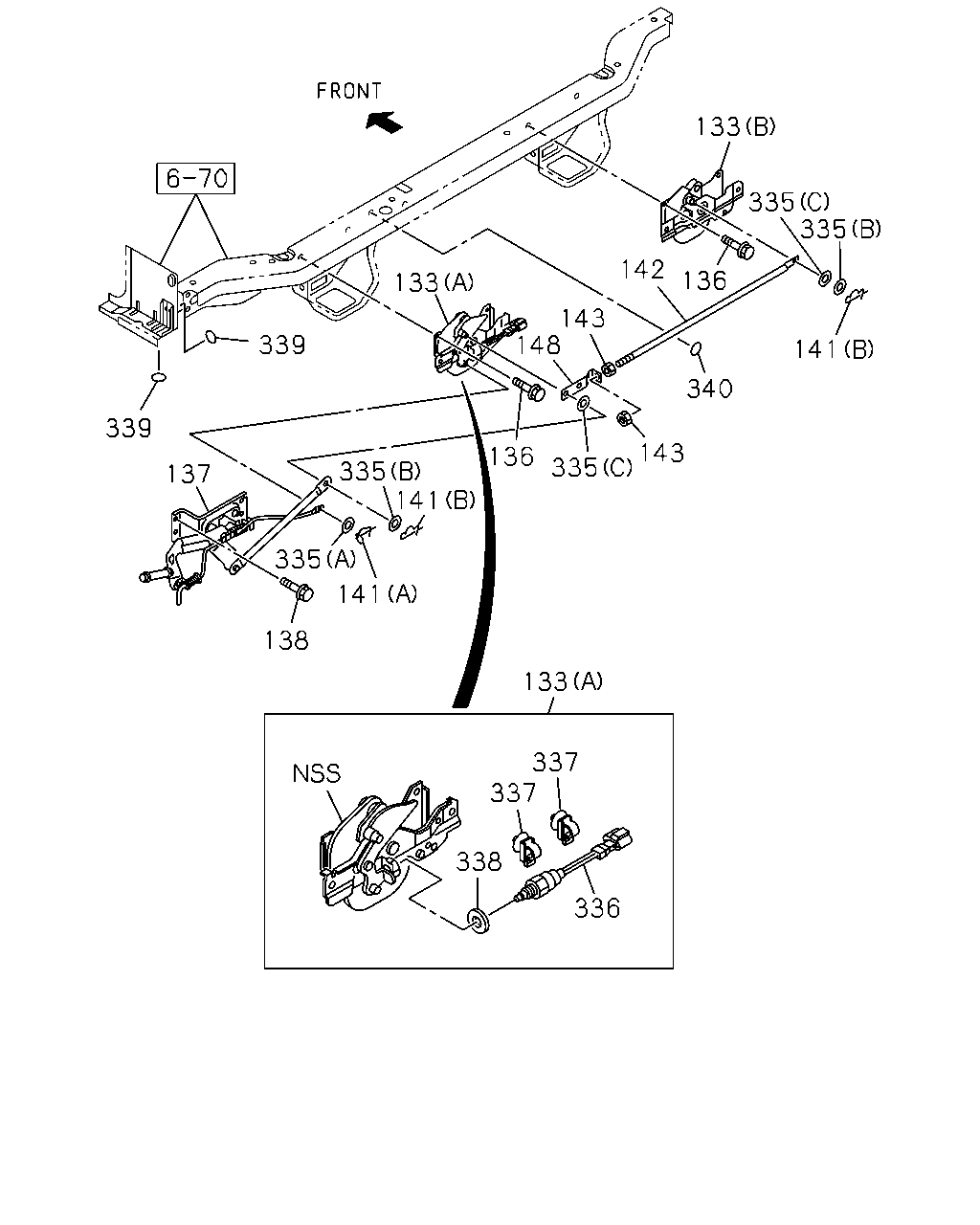

[515A] CAB REAR LOCK (18 parça)

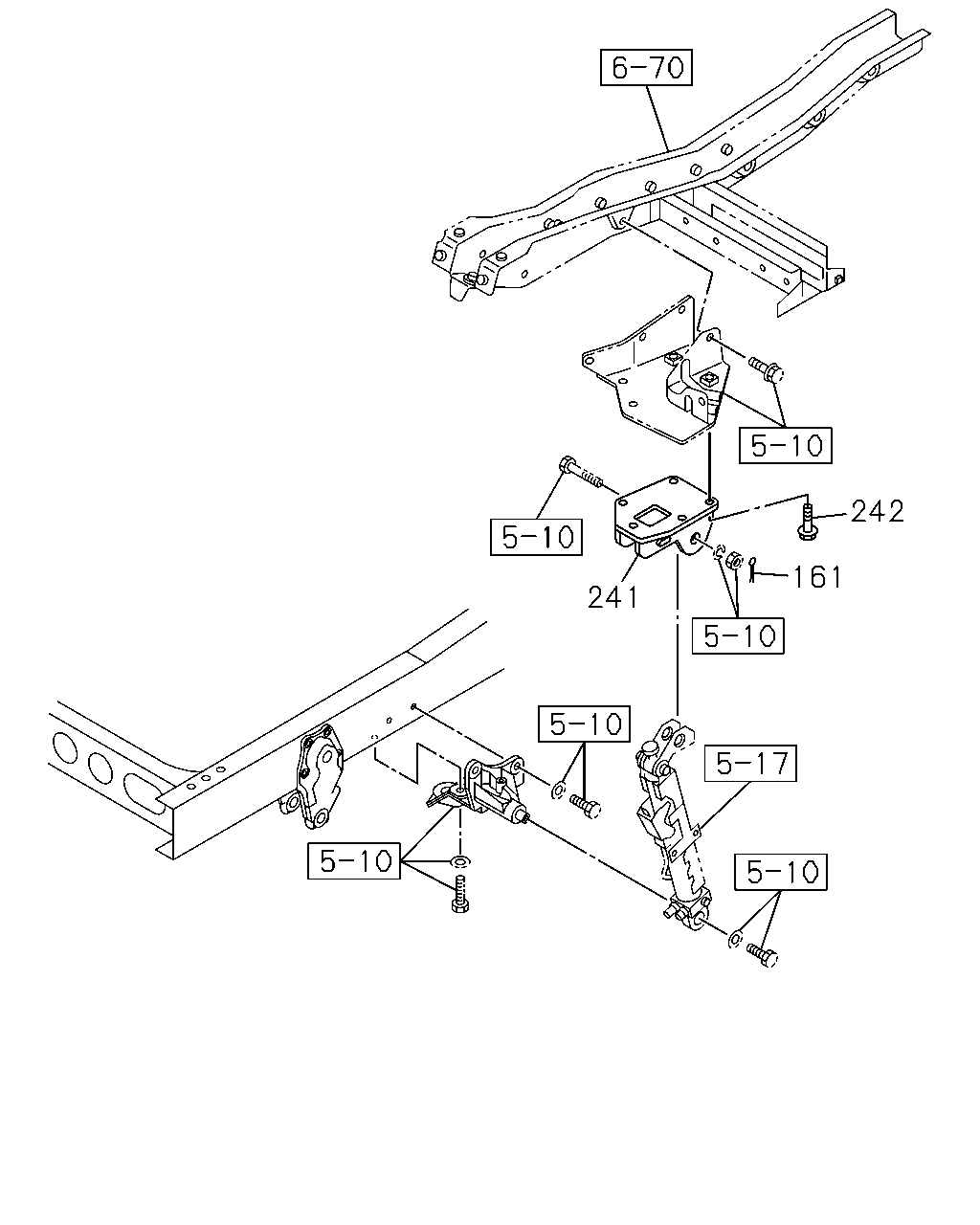

[515A] CAB TILT CYLINDER FIXING (3 parça)
▶
58
59
334
325
58
30
62
62
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
30
BOLT; BRKT FIX
(A) M8X20 FLANGE
0-28650-820-0
01
1
0801-
●
●
30
BOLT; BRKT FIX
(B) M8X30 FLANGE
0-28650-830-0
03
1
0801-
●
●
58
PIPE; OIL,POWER UNIT
(A) L=855 SERVICED BY L=900
1-47428-729-0
01
1
0801-0806
●
●
58
PIPE; OIL,POWER UNIT
(A) L=865 SERVICED BY L=900
1-47428-729-0
01
1
0807-
●
●
58
PIPE; OIL,POWER UNIT
(B) L=949 SERVICED BY L=1000
1-47428-730-0
01
1
0801-0806
●
●
58
PIPE; OIL,POWER UNIT
(B) L=983 SERVICED BY L=1000
1-47428-730-0
01
1
0807-
●
●
59
BRACKET; CLIP
(A) L=115 B=25
1-47476-758-0
02
1
0801-0803
●
●
59
BRACKET; CLIP
ANTILOCK BRAKE SYSTEM(BFA) (A) L=115 B=25
1-47476-758-0
02
1
0804-
●
●
59
BRACKET; CLIP
(B) L=75
1-47478-323-0
02
1
0801-0803
●
●
59
BRACKET; CLIP
(B) L=75
1-47478-323-0
01
1
0804-
●
●
59
BRACKET; CLIP
ANTILOCK BRAKE SYSTEM(BFA) (B) L=75
1-47478-323-0
01
1
0804-
●
●
59
BRACKET; CLIP
EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) L=115 B=25
1-47476-758-0
01
1
0804-
●
59
BRACKET; CLIP
EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) L=75
1-47478-323-0
02
1
0804-
●
62
CLIP; OIL PIPE
(B) ID=7X2 L=16
0-95324-625-0
01
1
0801-0806
●
●
62
CLIP; OIL PIPE
(B) ID=7X2 L=20
0-95324-635-0
01
1
0807-
●
●
62
CLIP; OIL PIPE
(C) ID=7 & 7 L=17.5 & 17.5
1-09700-745-0
01
1
0801-
●
●
62
CLIP; OIL PIPE
(D) ID=11X2 L=20
1-09700-871-0
01
1
0801-0806
●
●
62
CLIP; OIL PIPE
(D) ID=9 & 9 L=20
1-09701-321-0
01
1
0807-
●
●
62
CLIP; OIL PIPE
(E) ID=21 L=30 H=40
1-09700-991-1
03
1
0801-
●
●
62
CLIP; OIL PIPE
ANTILOCK BRAKE SYSTEM(BFA) (A) ID=24 L=27
1-09700-809-0
01
1
0801-
●
●
325
ADAPTER; PUMP
M12 & RC1/4 STRAIGHT
1-09660-885-0
01
1
0801-
●
●
334
CONNECTOR; PUMP
M12 & PT1/4 ELBOW
1-09650-430-0
01
1
0801-
●
●
172
172
63
63
62
59
62
62
59
63
64
64
30
30
65
68
62
65
177
63
176
69
177
176
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
30
BOLT; BRKT FIX
(A) M8X20 FLANGE
0-28650-820-0
01
1
0801-
●
●
30
BOLT; BRKT FIX
(B) M8X30 FLANGE
0-28650-830-0
03
1
0801-
●
●
59
BRACKET; CLIP
(A) L=115 B=25
1-47476-758-0
02
1
0801-0803
●
●
59
BRACKET; CLIP
ANTILOCK BRAKE SYSTEM(BFA) (A) L=115 B=25
1-47476-758-0
02
1
0804-
●
●
59
BRACKET; CLIP
(B) L=75
1-47478-323-0
02
1
0801-0803
●
●
59
BRACKET; CLIP
(B) L=75
1-47478-323-0
01
1
0804-
●
●
59
BRACKET; CLIP
ANTILOCK BRAKE SYSTEM(BFA) (B) L=75
1-47478-323-0
01
1
0804-
●
●
59
BRACKET; CLIP
EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) L=115 B=25
1-47476-758-0
01
1
0804-
●
59
BRACKET; CLIP
EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) L=75
1-47478-323-0
02
1
0804-
●
62
CLIP; OIL PIPE
(B) ID=7X2 L=16
0-95324-625-0
01
1
0801-0806
●
●
62
CLIP; OIL PIPE
(B) ID=7X2 L=20
0-95324-635-0
01
1
0807-
●
●
62
CLIP; OIL PIPE
(C) ID=7 & 7 L=17.5 & 17.5
1-09700-745-0
01
1
0801-
●
●
62
CLIP; OIL PIPE
(D) ID=11X2 L=20
1-09700-871-0
01
1
0801-0806
●
●
62
CLIP; OIL PIPE
(D) ID=9 & 9 L=20
1-09701-321-0
01
1
0807-
●
●
62
CLIP; OIL PIPE
(E) ID=21 L=30 H=40
1-09700-991-1
03
1
0801-
●
●
62
CLIP; OIL PIPE
ANTILOCK BRAKE SYSTEM(BFA) (A) ID=24 L=27
1-09700-809-0
01
1
0801-
●
●
63
BOLT; CLIP
(A) M8X20 FLANGE
0-28650-820-0
03
1
0801-
●
●
63
BOLT; CLIP
(B) M8X30 FLANGE
0-28650-830-0
01
1
0801-
●
●
63
BOLT; CLIP
ANTILOCK BRAKE SYSTEM(BFA) (A) M8X20 FLANGE
0-28650-820-0
01
1
0801-
●
●
64
NUT; CLIP
M8 FLANGE
0-91180-108-0
03
1
0801-
●
●
65
UNION; OIL PIPE
M12 L=66.5
0-92113-306-0
02
1
0801-
●
●
68
BRACKET; UNION
8-98109-453-0
01
1
0801-
●
●
69
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
02
1
0801-
●
●
172
HOSE; FLEX,OIL TILT
8-98086-335-0
02
1
0801-1201
●
●
172
HOSE; FLEX,OIL TILT
8-98086-335-0
01
1
1202-
●
●
172
HOSE; FLEX,OIL TILT
8-98086-335-0
01
1
1202-
●
●
176
NUT; UNION
M12
9-09840-280-0
02
1
0801-
●
●
177
WASHER; LK,UNION
ID=12.2
0-91510-512-0
02
1
0801-
●
●
133
335
335
142
136
133
143
148
339
141
340
339
143
335
136
335
141
137
335
141
138
133
337
337
338
336
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
133
LOCK ASM; CAB
(A)
8-98094-285-2
01
1
0801-
●
●
133
LOCK ASM; CAB
(B)
8-98061-489-1
01
1
0801-
●
●
136
BOLT; CAB LK
M8X20 FLANGE
0-28650-820-0
08
1
0801-
●
●
137
CONTROL UNIT; CAB LOCK
8-98053-683-2
01
1
0801-
●
●
138
BOLT; CAB LOCK CONT UNIT
M8X20 FLANGE
0-28650-820-0
04
1
0801-
●
●
141
PIN; SNAP,CAB LOCK ROD
(A) L=25.3
8-98039-045-1
01
1
0801-
●
●
141
PIN; SNAP,CAB LOCK ROD
(B) L=32.6
8-98062-280-0
02
1
0801-
●
●
142
ROD; HOOK TO HOOK
8-97587-990-0
01
1
0801-
●
●
143
NUT; JAW JOINT,HOOK TO HOOK
M10
0-91110-510-0
02
1
0801-
●
●
148
JOINT; JAW,HOOK TO HOOK
8-97410-736-0
01
1
0801-
●
●
335
WASHER; CAB LOCK ROD
(A) ID=8.4 OD=16
0-91610-508-0
01
1
0801-
●
●
335
WASHER; CAB LOCK ROD
(B) ID=12.5 OD=26
0-91610-612-0
02
1
0801-
●
●
335
WASHER; CAB LOCK ROD
(C) ID=13 OD=22
8-98060-839-0
02
1
0801-
●
●
336
SWITCH; CAB LOCK
8-98091-155-1
01
1
0801-
●
●
337
CLIP; CAB LOCK
L=155
8-97173-307-0
02
1
0801-1008
●
●
338
WASHER; CAB LOCK
ID=17 OD=30
0-91610-516-0
01
1
0801-
●
●
339
SEAL; TILT HANDLE
OD=25 BLACK
1-76798-019-0
04
1
0801-
●
●
340
SEAL; HOLE
OD=25 BLACK
1-76798-019-0
02
1
0801-
●
●
242
161
241
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
161
PIN; SPLIT
OD=2.8 L=25
0-81123-025-0
01
1
0801-
●
●
241
BRACKET; POWER CYL UPR,CAB TILT
8-98054-834-0
01
1
0801-
●
●
242
BOLT; POWER CYL BRKT,CAB TILT
M10X25 FLANGE
0-28051-025-0
05
1
0801-
●
●
