Sayfa 5-01 - Isuzu EPC

5-01 — FRAME AND OTHER PARTS (#45192) — 375 parça

130 131 86 79 132 57 19 194 197 21 71 21 148 2 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST	8-97623-017-2	01	1	0801-0808	●	●
2	MEMBER; CROSS,1ST	8-97623-017-3	01	1	0809-	●	●	●
19	MEMBER; CROSS,2ND	1-53174-231-1	01	1	0801-0808	●	●
19	MEMBER; CROSS,2ND	1-53174-231-1	01	1	0809-	●	●	●
21	GUSSET; 2ND CROSS	1-53164-226-0	01	1	0801-0808	●	●
21	GUSSET; 2ND CROSS	1-53164-226-1	01	1	0809-	●	●	●
21	GUSSET; 2ND CROSS	1-53164-227-0	01	1	0801-0808	●	●
21	GUSSET; 2ND CROSS	1-53164-227-1	01	1	0809-	●	●	●
57	MEMBER; CROSS,RR SUSP FRT	1-53181-319-8	01	1	0801-0804	●
57	MEMBER; CROSS,RR SUSP FRT LEAF SUS(FGZ***)	1-53181-319-8	01	1	0801-0804		●
57	MEMBER; CROSS,RR SUSP FRT	8-97625-336-0	01	1	0805-0808	●
57	MEMBER; CROSS,RR SUSP FRT LEAF SUS(FGZ***)	8-97625-336-0	01	1	0805-0808		●
57	MEMBER; CROSS,RR SUSP FRT	8-97625-336-0	01	1	0809-	●
57	MEMBER; CROSS,RR SUSP FRT LEAF SUS(FGZ***)	8-97625-336-0	01	1	0809-		●	●
57	MEMBER; CROSS,RR SUSP FRT AIR SUS(FGY***)	1-53181-937-3	01	1	0801-0808		●
57	MEMBER; CROSS,RR SUSP FRT AIR SUS(FGY***)	1-53181-937-3	01	1	0809-		●	●
71	NUT; 2ND C/MBR M14	0-91110-514-0	08	1	0801-0808	●	●
71	NUT; 2ND C/MBR M14	0-91110-514-0	08	1	0809-	●	●	●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-923-0	01	1	0801-0808	●
79	MEMBER; CROSS,TRUNNION ASM LEAF SUS(FGZ***)	1-53181-923-0	01	1	0801-0808		●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-923-0	01	1	0809-	●
79	MEMBER; CROSS,TRUNNION ASM LEAF SUS(FGZ***)	1-53181-923-0	01	1	0809-		●	●
86	MEMBER; CROSS,RR SUSP RR	8-97626-686-0	01	1	0801-	●
86	MEMBER; CROSS,RR SUSP RR AIR SUS(FGY***)	8-97623-455-1	01	1	0801-0808		●
86	MEMBER; CROSS,RR SUSP RR AIR SUS(FGY***)	8-97623-455-1	01	1	0809-		●	●
86	MEMBER; CROSS,RR SUSP RR LEAF SUS(FGZ***)	1-53181-646-7	01	1	0801-0808		●
86	MEMBER; CROSS,RR SUSP RR LEAF SUS(FGZ***)	1-53181-646-7	01	1	0809-		●	●
130	MEMBER; CROSS,END ENGINE REAR PTO(SV1)	1-53181-646-7	01	1	0801-	●
130	MEMBER; CROSS,END EXC. ENGINE REAR PTO(SV1)	1-53181-613-1	01	1	0801-0808	●
130	MEMBER; CROSS,END	1-53181-613-1	01	1	0801-0808		●
130	MEMBER; CROSS,END EXC. ENGINE REAR PTO(SV1)	1-53181-613-1	01	1	0809-	●
130	MEMBER; CROSS,END	1-53181-613-1	01	1	0809-		●	●
131	BOLT; END C/MBR EXC. ENGINE REAR PTO(SV1) M14X40	0-20951-440-0	04	1	0801-0808	●
131	BOLT; END C/MBR AIR SUS(FGY***) EXC. ENGINE REAR PTO(SV1) M14X40	0-20951-440-0	04	1	0801-0808		●
131	BOLT; END C/MBR EXC. ENGINE REAR PTO(SV1) M14X40	0-20951-440-0	04	1	0809-	●
131	BOLT; END C/MBR AIR SUS(FGY***) EXC. ENGINE REAR PTO(SV1) M14X40	0-20951-440-0	04	1	0809-		●	●
132	NUT; END C/MBR EXC. ENGINE REAR PTO(SV1) M14	0-91110-514-0	04	1	0801-0808	●
132	NUT; END C/MBR AIR SUS(FGY***) EXC. ENGINE REAR PTO(SV1) M14	0-91110-514-0	04	1	0801-0808		●
132	NUT; END C/MBR EXC. ENGINE REAR PTO(SV1) M14	0-91110-514-0	04	1	0809-	●
132	NUT; END C/MBR AIR SUS(FGY***) EXC. ENGINE REAR PTO(SV1) M14	0-91110-514-0	04	1	0809-		●	●
148	SPACER; C/MBR (A)	1-53168-400-1	02	1	0801-0808	●	●
148	SPACER; C/MBR (A)	1-53168-400-1	02	1	0809-	●	●	●
148	SPACER; C/MBR (B)	1-53168-403-1	02	1	0801-0808	●	●
148	SPACER; C/MBR (B)	1-53168-403-1	02	1	0809-	●	●	●
194	BOLT; 2ND C/MBR M14X60	0-20951-460-0	08	1	0801-0808	●
194	BOLT; 2ND C/MBR LEAF SUS(FGZ***) M14X60	0-20951-460-0	08	1	0801-0808		●
194	BOLT; 2ND C/MBR M14X60	0-20951-460-0	08	1	0809-	●
194	BOLT; 2ND C/MBR LEAF SUS(FGZ***) M14X60	0-20951-460-0	08	1	0809-		●	●
194	BOLT; 2ND C/MBR AIR SUS(FGY***) M14X50	0-20951-450-0	08	1	0801-0808		●
194	BOLT; 2ND C/MBR AIR SUS(FGY***) M14X50	0-20951-450-0	08	1	0809-		●	●
197	WASHER; PL,2ND C/MBR ID=15	8-98010-627-0	16	1	0801-0808	●
197	WASHER; PL,2ND C/MBR LEAF SUS(FGZ***) ID=15	8-98010-627-0	16	1	0801-0808		●
197	WASHER; PL,2ND C/MBR ID=15	8-98010-627-1	16	1	0809-	●
197	WASHER; PL,2ND C/MBR LEAF SUS(FGZ***) ID=15	8-98010-627-1	16	1	0809-		●	●
197	WASHER; PL,2ND C/MBR AIR SUS(FGY***) ID=15	8-98010-627-0	08	1	0801-0808		●
197	WASHER; PL,2ND C/MBR AIR SUS(FGY***) ID=15	8-98010-627-1	08	1	0809-		●	●

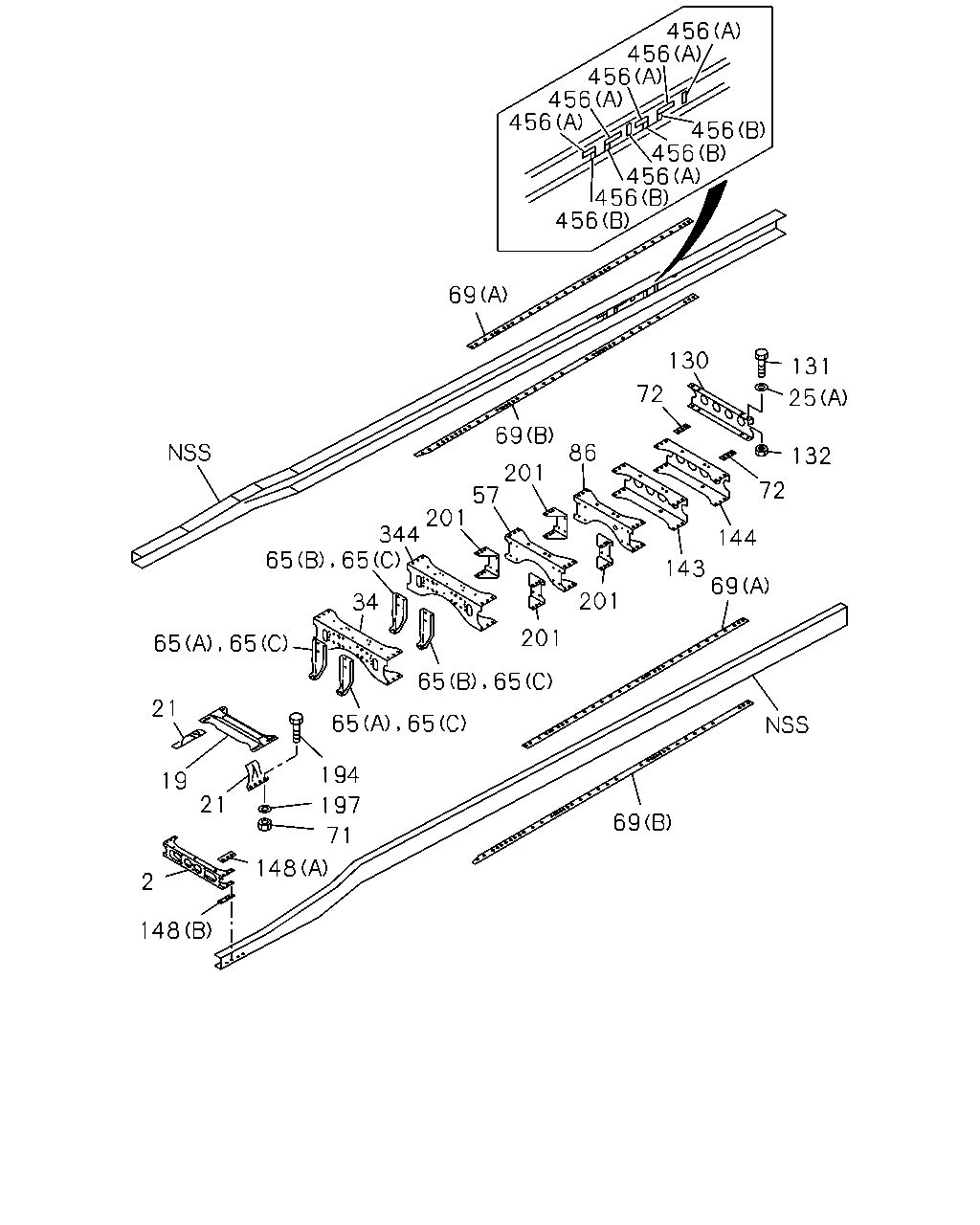

456 456 456 456 456 456 456 456 456 456 69 130 131 69 72 25 86 132 201 57 72 201 344 144 201 143 69 34 201 65 65 21 65 65 194 19 21 197 69 71 148 148 2 65 65 65 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST	8-97623-017-2	01	1	0801-0808	●	●
2	MEMBER; CROSS,1ST	8-97623-017-3	01	1	0809-	●	●	●
19	MEMBER; CROSS,2ND	1-53174-231-1	01	1	0801-0808	●	●
19	MEMBER; CROSS,2ND	1-53174-231-1	01	1	0809-	●	●	●
21	GUSSET; 2ND CROSS	1-53164-226-0	01	1	0801-0808	●	●
21	GUSSET; 2ND CROSS	1-53164-226-1	01	1	0809-	●	●	●
21	GUSSET; 2ND CROSS	1-53164-227-0	01	1	0801-0808	●	●
21	GUSSET; 2ND CROSS	1-53164-227-1	01	1	0809-	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	0801-0808	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	0809-	●	●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-0	08	1	0801-0808	●
25	WASHER; PL,BRKT LEAF SUS(FGZ***) (A) ID=15	8-98010-627-0	08	1	0801-0808		●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	08	1	0809-	●
25	WASHER; PL,BRKT LEAF SUS(FGZ***) (A) ID=15	8-98010-627-1	08	1	0809-		●	●
25	WASHER; PL,BRKT AIR SUS(FGY***) (A) ID=15	8-98010-627-0	20	1	0801-0808		●
25	WASHER; PL,BRKT AIR SUS(FGY***) (A) ID=15	8-98010-627-1	20	1	0809-		●	●
34	MEMBER; CROSS,3RD	1-53181-650-3	01	1	0801-0808		●
34	MEMBER; CROSS,3RD	1-53181-650-3	01	1	0809-		●	●
57	MEMBER; CROSS,RR SUSP FRT	1-53181-319-8	01	1	0801-0804	●
57	MEMBER; CROSS,RR SUSP FRT LEAF SUS(FGZ***)	1-53181-319-8	01	1	0801-0804		●
57	MEMBER; CROSS,RR SUSP FRT	8-97625-336-0	01	1	0805-0808	●
57	MEMBER; CROSS,RR SUSP FRT LEAF SUS(FGZ***)	8-97625-336-0	01	1	0805-0808		●
57	MEMBER; CROSS,RR SUSP FRT	8-97625-336-0	01	1	0809-	●
57	MEMBER; CROSS,RR SUSP FRT LEAF SUS(FGZ***)	8-97625-336-0	01	1	0809-		●	●
57	MEMBER; CROSS,RR SUSP FRT AIR SUS(FGY***)	1-53181-937-3	01	1	0801-0808		●
57	MEMBER; CROSS,RR SUSP FRT AIR SUS(FGY***)	1-53181-937-3	01	1	0809-		●	●
65	BRACKET; CENTER BRG AIR SUS(FGY***) (C)	8-97611-329-0	04	1	0801-		●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) (B)	8-97614-125-0	02	1	0801-		●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) (A)	8-97614-128-0	02	1	0801-0808		●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) (A)	8-97614-128-0	02	1	0809-		●
65	BRACKET; CENTER BRG (A)	8-97614-128-0	02	1	0809-			●
65	BRACKET; CENTER BRG (B) L=305	1-53271-390-0	02	1	0809-0810			●
65	BRACKET; CENTER BRG (B)	8-98120-236-0	02	1	0811-			●
69	GUSSET; RR SUSP,UPR AIR SUS(FGY***) (A)	1-53161-803-0	02	1	0801-0808		●
69	GUSSET; RR SUSP,UPR AIR SUS(FGY***) (A)	1-53161-803-0	02	1	0809-		●	●
69	GUSSET; RR SUSP,UPR AIR SUS(FGY***) (B)	8-97618-110-0	02	1	0801-		●
69	GUSSET; RR SUSP,UPR AIR SUS(FGY***) (B)	8-97623-449-1	02	1	0809-			●
71	NUT; 2ND C/MBR M14	0-91110-514-0	08	1	0801-0808	●	●
71	NUT; 2ND C/MBR M14	0-91110-514-0	08	1	0809-	●	●	●
72	SPACER; TRUNNION	1-53168-100-0	02	1	0801-0808		●
72	SPACER; TRUNNION	1-53168-100-0	02	1	0809-		●	●
86	MEMBER; CROSS,RR SUSP RR	8-97626-686-0	01	1	0801-	●
86	MEMBER; CROSS,RR SUSP RR AIR SUS(FGY***)	8-97623-455-1	01	1	0801-0808		●
86	MEMBER; CROSS,RR SUSP RR AIR SUS(FGY***)	8-97623-455-1	01	1	0809-		●	●
86	MEMBER; CROSS,RR SUSP RR LEAF SUS(FGZ***)	1-53181-646-7	01	1	0801-0808		●
86	MEMBER; CROSS,RR SUSP RR LEAF SUS(FGZ***)	1-53181-646-7	01	1	0809-		●	●
130	MEMBER; CROSS,END ENGINE REAR PTO(SV1)	1-53181-646-7	01	1	0801-	●
130	MEMBER; CROSS,END EXC. ENGINE REAR PTO(SV1)	1-53181-613-1	01	1	0801-0808	●
130	MEMBER; CROSS,END	1-53181-613-1	01	1	0801-0808		●
130	MEMBER; CROSS,END EXC. ENGINE REAR PTO(SV1)	1-53181-613-1	01	1	0809-	●
130	MEMBER; CROSS,END	1-53181-613-1	01	1	0809-		●	●
131	BOLT; END C/MBR EXC. ENGINE REAR PTO(SV1) M14X40	0-20951-440-0	04	1	0801-0808	●
131	BOLT; END C/MBR AIR SUS(FGY***) EXC. ENGINE REAR PTO(SV1) M14X40	0-20951-440-0	04	1	0801-0808		●
131	BOLT; END C/MBR EXC. ENGINE REAR PTO(SV1) M14X40	0-20951-440-0	04	1	0809-	●
131	BOLT; END C/MBR AIR SUS(FGY***) EXC. ENGINE REAR PTO(SV1) M14X40	0-20951-440-0	04	1	0809-		●	●
132	NUT; END C/MBR EXC. ENGINE REAR PTO(SV1) M14	0-91110-514-0	04	1	0801-0808	●
132	NUT; END C/MBR AIR SUS(FGY***) EXC. ENGINE REAR PTO(SV1) M14	0-91110-514-0	04	1	0801-0808		●
132	NUT; END C/MBR EXC. ENGINE REAR PTO(SV1) M14	0-91110-514-0	04	1	0809-	●
132	NUT; END C/MBR AIR SUS(FGY***) EXC. ENGINE REAR PTO(SV1) M14	0-91110-514-0	04	1	0809-		●	●
143	MEMBER; CROSS,7TH AIR SUS(FGY***)	1-53181-646-7	01	1	0801-0808		●
143	MEMBER; CROSS,7TH AIR SUS(FGY***)	1-53181-646-7	01	1	0809-		●	●
144	MEMBER; CROSS,8TH	1-53181-646-7	01	1	0801-0808		●
144	MEMBER; CROSS,8TH	1-53181-646-7	01	1	0809-		●	●
148	SPACER; C/MBR (A)	1-53168-400-1	02	1	0801-0808	●	●
148	SPACER; C/MBR (A)	1-53168-400-1	02	1	0809-	●	●	●
148	SPACER; C/MBR (B)	1-53168-403-1	02	1	0801-0808	●	●
148	SPACER; C/MBR (B)	1-53168-403-1	02	1	0809-	●	●	●
194	BOLT; 2ND C/MBR M14X60	0-20951-460-0	08	1	0801-0808	●
194	BOLT; 2ND C/MBR LEAF SUS(FGZ***) M14X60	0-20951-460-0	08	1	0801-0808		●
194	BOLT; 2ND C/MBR M14X60	0-20951-460-0	08	1	0809-	●
194	BOLT; 2ND C/MBR LEAF SUS(FGZ***) M14X60	0-20951-460-0	08	1	0809-		●	●
194	BOLT; 2ND C/MBR AIR SUS(FGY***) M14X50	0-20951-450-0	08	1	0801-0808		●
194	BOLT; 2ND C/MBR AIR SUS(FGY***) M14X50	0-20951-450-0	08	1	0809-		●	●
197	WASHER; PL,2ND C/MBR ID=15	8-98010-627-0	16	1	0801-0808	●
197	WASHER; PL,2ND C/MBR LEAF SUS(FGZ***) ID=15	8-98010-627-0	16	1	0801-0808		●
197	WASHER; PL,2ND C/MBR ID=15	8-98010-627-1	16	1	0809-	●
197	WASHER; PL,2ND C/MBR LEAF SUS(FGZ***) ID=15	8-98010-627-1	16	1	0809-		●	●
197	WASHER; PL,2ND C/MBR AIR SUS(FGY***) ID=15	8-98010-627-0	08	1	0801-0808		●
197	WASHER; PL,2ND C/MBR AIR SUS(FGY***) ID=15	8-98010-627-1	08	1	0809-		●	●
201	GUSSET; C/MBR AIR SUS(FGY***)	1-53167-544-1	04	1	0801-0808		●
201	GUSSET; C/MBR AIR SUS(FGY***)	1-53167-544-1	04	1	0809-		●	●
344	MEMBER; CROSS,4TH	1-53181-650-3	01	1	0801-0808		●
344	MEMBER; CROSS,4TH	1-53181-650-3	01	1	0809-		●	●
456	PATCH; STOPPER AIR SUS(FGY***) (A)	8-97642-212-0	12	1	1210-			●
456	PATCH; STOPPER AIR SUS(FGY***) (B)	8-97642-213-0	08	1	1210-			●
456	PATCH; STOPPER AIR SUS(FGY***) (A)	8-97611-248-0	12	1	0801-0808		●
456	PATCH; STOPPER AIR SUS(FGY***) (A)	8-97611-248-0	12	1	0809-1209		●	●
456	PATCH; STOPPER AIR SUS(FGY***) (A)	8-97611-248-0	12	1	1210-		●
456	PATCH; STOPPER AIR SUS(FGY***) (B)	8-97611-249-0	08	1	0801-0808		●
456	PATCH; STOPPER AIR SUS(FGY***) (B)	8-97611-249-0	08	1	0809-1209		●	●
456	PATCH; STOPPER AIR SUS(FGY***) (B)	8-97611-249-0	08	1	1210-		●

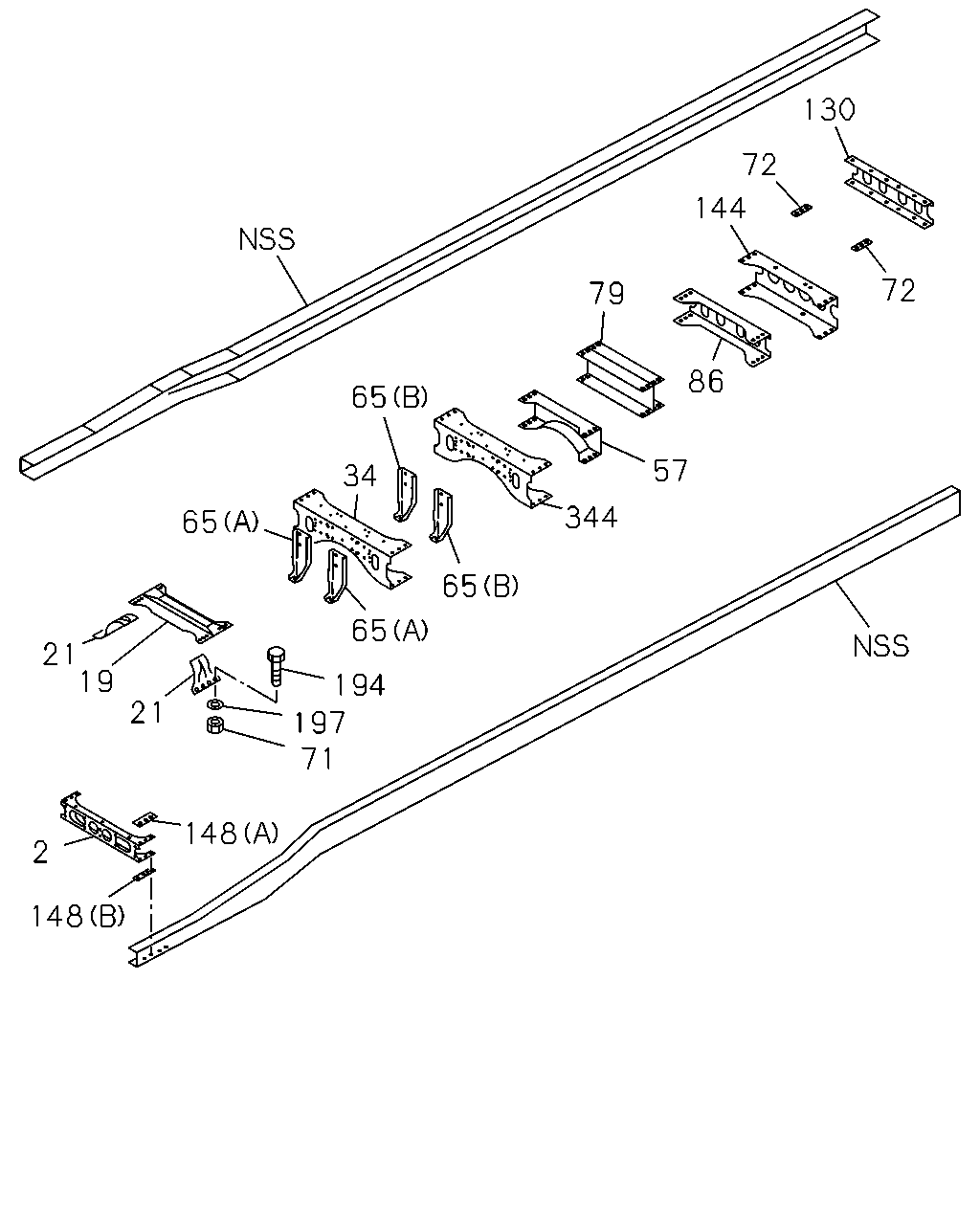

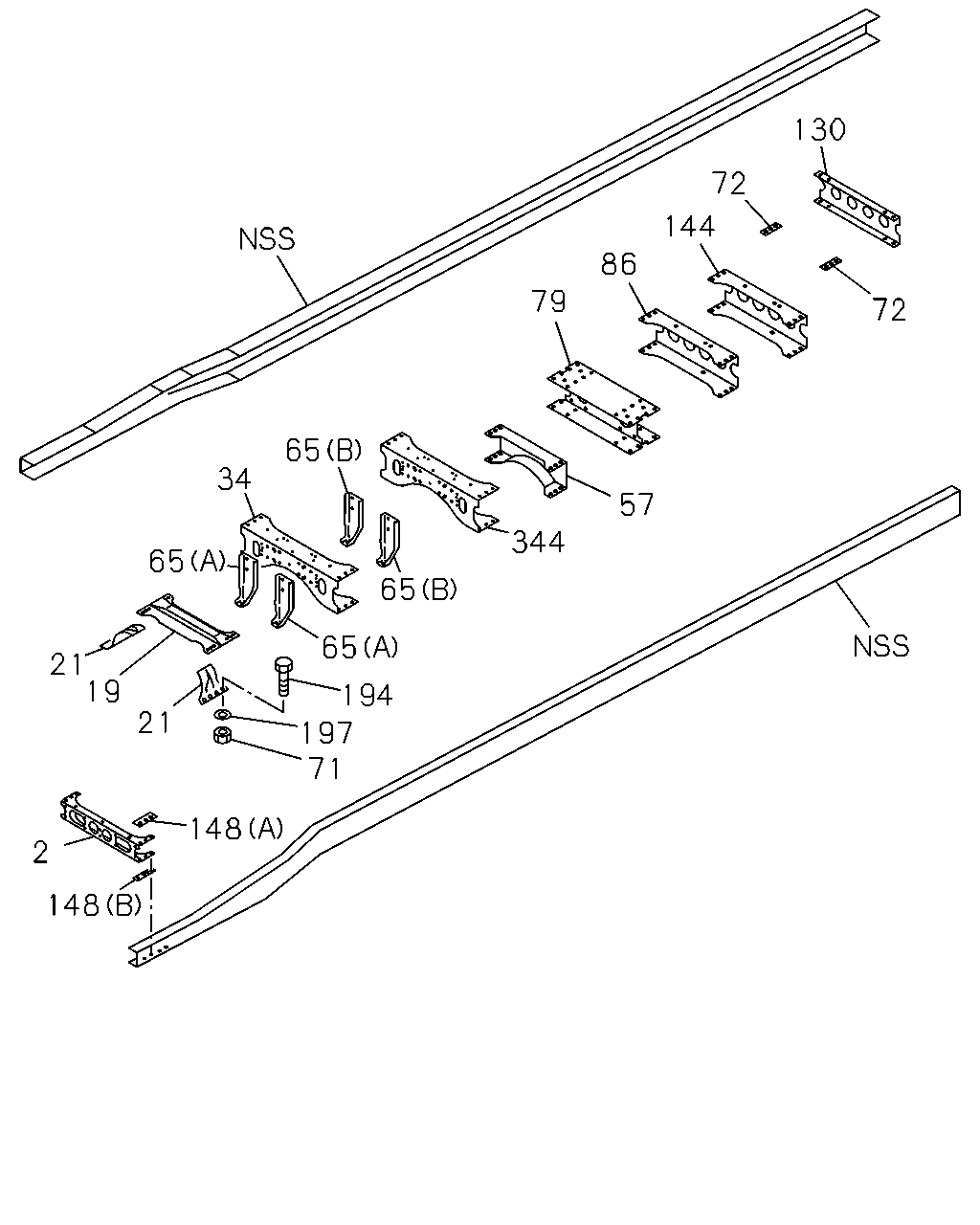

130 72 144 86 79 72 65 34 57 344 65 65 65 21 19 194 197 71 21 148 148 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST	8-97623-017-2	01	1	0801-0808	●	●
2	MEMBER; CROSS,1ST	8-97623-017-3	01	1	0809-	●	●	●
19	MEMBER; CROSS,2ND	1-53174-231-1	01	1	0801-0808	●	●
19	MEMBER; CROSS,2ND	1-53174-231-1	01	1	0809-	●	●	●
21	GUSSET; 2ND CROSS	1-53164-226-0	01	1	0801-0808	●	●
21	GUSSET; 2ND CROSS	1-53164-226-1	01	1	0809-	●	●	●
21	GUSSET; 2ND CROSS	1-53164-227-0	01	1	0801-0808	●	●
21	GUSSET; 2ND CROSS	1-53164-227-1	01	1	0809-	●	●	●
34	MEMBER; CROSS,3RD	1-53181-650-3	01	1	0801-0808		●
34	MEMBER; CROSS,3RD	1-53181-650-3	01	1	0809-		●	●
57	MEMBER; CROSS,RR SUSP FRT	1-53181-319-8	01	1	0801-0804	●
57	MEMBER; CROSS,RR SUSP FRT LEAF SUS(FGZ***)	1-53181-319-8	01	1	0801-0804		●
57	MEMBER; CROSS,RR SUSP FRT	8-97625-336-0	01	1	0805-0808	●
57	MEMBER; CROSS,RR SUSP FRT LEAF SUS(FGZ***)	8-97625-336-0	01	1	0805-0808		●
57	MEMBER; CROSS,RR SUSP FRT	8-97625-336-0	01	1	0809-	●
57	MEMBER; CROSS,RR SUSP FRT LEAF SUS(FGZ***)	8-97625-336-0	01	1	0809-		●	●
57	MEMBER; CROSS,RR SUSP FRT AIR SUS(FGY***)	1-53181-937-3	01	1	0801-0808		●
57	MEMBER; CROSS,RR SUSP FRT AIR SUS(FGY***)	1-53181-937-3	01	1	0809-		●	●
65	BRACKET; CENTER BRG AIR SUS(FGY***) (C)	8-97611-329-0	04	1	0801-		●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) (B)	8-97614-125-0	02	1	0801-		●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) (A)	8-97614-128-0	02	1	0801-0808		●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) (A)	8-97614-128-0	02	1	0809-		●
65	BRACKET; CENTER BRG (A)	8-97614-128-0	02	1	0809-			●
65	BRACKET; CENTER BRG (B) L=305	1-53271-390-0	02	1	0809-0810			●
65	BRACKET; CENTER BRG (B)	8-98120-236-0	02	1	0811-			●
71	NUT; 2ND C/MBR M14	0-91110-514-0	08	1	0801-0808	●	●
71	NUT; 2ND C/MBR M14	0-91110-514-0	08	1	0809-	●	●	●
72	SPACER; TRUNNION	1-53168-100-0	02	1	0801-0808		●
72	SPACER; TRUNNION	1-53168-100-0	02	1	0809-		●	●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-923-0	01	1	0801-0808	●
79	MEMBER; CROSS,TRUNNION ASM LEAF SUS(FGZ***)	1-53181-923-0	01	1	0801-0808		●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-923-0	01	1	0809-	●
79	MEMBER; CROSS,TRUNNION ASM LEAF SUS(FGZ***)	1-53181-923-0	01	1	0809-		●	●
86	MEMBER; CROSS,RR SUSP RR	8-97626-686-0	01	1	0801-	●
86	MEMBER; CROSS,RR SUSP RR AIR SUS(FGY***)	8-97623-455-1	01	1	0801-0808		●
86	MEMBER; CROSS,RR SUSP RR AIR SUS(FGY***)	8-97623-455-1	01	1	0809-		●	●
86	MEMBER; CROSS,RR SUSP RR LEAF SUS(FGZ***)	1-53181-646-7	01	1	0801-0808		●
86	MEMBER; CROSS,RR SUSP RR LEAF SUS(FGZ***)	1-53181-646-7	01	1	0809-		●	●
130	MEMBER; CROSS,END ENGINE REAR PTO(SV1)	1-53181-646-7	01	1	0801-	●
130	MEMBER; CROSS,END EXC. ENGINE REAR PTO(SV1)	1-53181-613-1	01	1	0801-0808	●
130	MEMBER; CROSS,END	1-53181-613-1	01	1	0801-0808		●
130	MEMBER; CROSS,END EXC. ENGINE REAR PTO(SV1)	1-53181-613-1	01	1	0809-	●
130	MEMBER; CROSS,END	1-53181-613-1	01	1	0809-		●	●
144	MEMBER; CROSS,8TH	1-53181-646-7	01	1	0801-0808		●
144	MEMBER; CROSS,8TH	1-53181-646-7	01	1	0809-		●	●
148	SPACER; C/MBR (A)	1-53168-400-1	02	1	0801-0808	●	●
148	SPACER; C/MBR (A)	1-53168-400-1	02	1	0809-	●	●	●
148	SPACER; C/MBR (B)	1-53168-403-1	02	1	0801-0808	●	●
148	SPACER; C/MBR (B)	1-53168-403-1	02	1	0809-	●	●	●
194	BOLT; 2ND C/MBR M14X60	0-20951-460-0	08	1	0801-0808	●
194	BOLT; 2ND C/MBR LEAF SUS(FGZ***) M14X60	0-20951-460-0	08	1	0801-0808		●
194	BOLT; 2ND C/MBR M14X60	0-20951-460-0	08	1	0809-	●
194	BOLT; 2ND C/MBR LEAF SUS(FGZ***) M14X60	0-20951-460-0	08	1	0809-		●	●
194	BOLT; 2ND C/MBR AIR SUS(FGY***) M14X50	0-20951-450-0	08	1	0801-0808		●
194	BOLT; 2ND C/MBR AIR SUS(FGY***) M14X50	0-20951-450-0	08	1	0809-		●	●
197	WASHER; PL,2ND C/MBR ID=15	8-98010-627-0	16	1	0801-0808	●
197	WASHER; PL,2ND C/MBR LEAF SUS(FGZ***) ID=15	8-98010-627-0	16	1	0801-0808		●
197	WASHER; PL,2ND C/MBR ID=15	8-98010-627-1	16	1	0809-	●
197	WASHER; PL,2ND C/MBR LEAF SUS(FGZ***) ID=15	8-98010-627-1	16	1	0809-		●	●
197	WASHER; PL,2ND C/MBR AIR SUS(FGY***) ID=15	8-98010-627-0	08	1	0801-0808		●
197	WASHER; PL,2ND C/MBR AIR SUS(FGY***) ID=15	8-98010-627-1	08	1	0809-		●	●
344	MEMBER; CROSS,4TH	1-53181-650-3	01	1	0801-0808		●
344	MEMBER; CROSS,4TH	1-53181-650-3	01	1	0809-		●	●

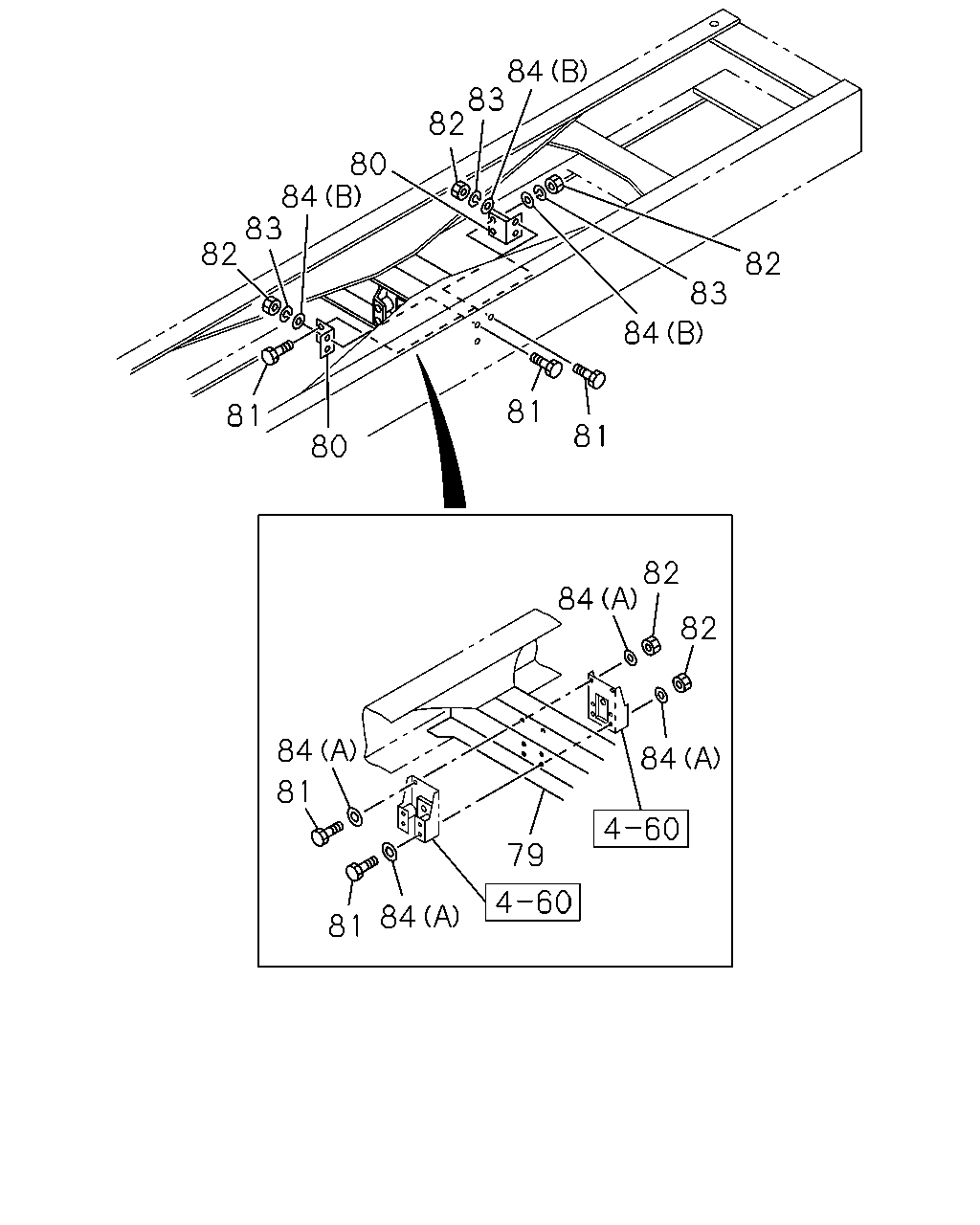

84 83 82 80 84 83 82 82 83 84 81 81 81 80 82 84 82 84 84 81 79 84 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
79	MEMBER; CROSS,TRUNNION ASM	1-53181-923-0	01	1	0801-0808	●
79	MEMBER; CROSS,TRUNNION ASM LEAF SUS(FGZ***)	1-53181-923-0	01	1	0801-0808		●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-923-0	01	1	0809-	●
79	MEMBER; CROSS,TRUNNION ASM LEAF SUS(FGZ***)	1-53181-923-0	01	1	0809-		●	●
80	BRACKET; C/MBR	1-53167-610-0	04	1	0801-0808	●
80	BRACKET; C/MBR LEAF SUS(FGZ***)	1-53167-610-0	04	1	0801-0808		●
80	BRACKET; C/MBR	1-53167-610-0	04	1	0809-	●
80	BRACKET; C/MBR LEAF SUS(FGZ***)	1-53167-610-0	04	1	0809-		●	●
81	BOLT; BRKT M14X40	0-20951-440-0	08	1	0801-0808	●
81	BOLT; BRKT LEAF SUS(FGZ***) M14X40	0-20951-440-0	08	1	0801-0808		●
81	BOLT; BRKT M14X40	0-20951-440-0	08	1	0809-	●
81	BOLT; BRKT LEAF SUS(FGZ***) M14X40	0-20951-440-0	08	1	0809-		●	●
81	BOLT; BRKT M14X55	9-91066-455-0	04	1	0801-0808	●
81	BOLT; BRKT LEAF SUS(FGZ***) M14X55	9-91066-455-0	04	1	0801-0808		●
81	BOLT; BRKT M14X55	9-91066-455-0	04	1	0809-	●
81	BOLT; BRKT LEAF SUS(FGZ***) M14X55	9-91066-455-0	04	1	0809-		●	●
81	BOLT; BRKT AIR SUS(FGY***) M14X50	0-20951-450-0	04	1	0801-0808		●
81	BOLT; BRKT AIR SUS(FGY***) M14X50	0-20951-450-0	04	1	0809-		●	●
82	NUT; BRKT M14	0-91110-514-0	04	1	0801-0808	●	●
82	NUT; BRKT M14	0-91110-514-0	04	1	0809-	●	●	●
82	NUT; BRKT LEAF SUS(FGZ***) M14	0-91110-514-0	12	1	0801-0904	●
82	NUT; BRKT M14	0-91110-514-0	12	1	0905-	●
82	NUT; BRKT LEAF SUS(FGZ***) M14	0-91110-514-0	12	1	0905-		●	●
83	WASHER; LK,BRKT LEAF SUS(FGZ***) ID=14.2	0-91510-614-0	12	1	0801-0904	●
83	WASHER; LK,BRKT ID=14.2	0-91510-614-0	12	1	0905-	●
83	WASHER; LK,BRKT LEAF SUS(FGZ***) ID=14.2	0-91510-614-0	12	1	0905-		●	●
84	WASHER; PL,BRKT (A) ID=15	8-98010-627-0	08	1	0801-0808	●
84	WASHER; PL,BRKT LEAF SUS(FGZ***) (A) ID=15	8-98010-627-0	08	1	0801-0808		●
84	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	08	1	0809-	●
84	WASHER; PL,BRKT LEAF SUS(FGZ***) (A) ID=15	8-98010-627-1	08	1	0809-		●	●
84	WASHER; PL,BRKT LEAF SUS(FGZ***) (B) ID=15 OD=26	9-09164-514-0	16	1	0801-0904	●
84	WASHER; PL,BRKT LEAF SUS(FGZ***) (B) ID=15 OD=26	9-09164-514-0	16	1	0905-1104	●	●	●
84	WASHER; PL,BRKT LEAF SUS(FGZ***) (B) ID=15 OD=26	0-91614-514-0	16	1	1105-	●	●	●

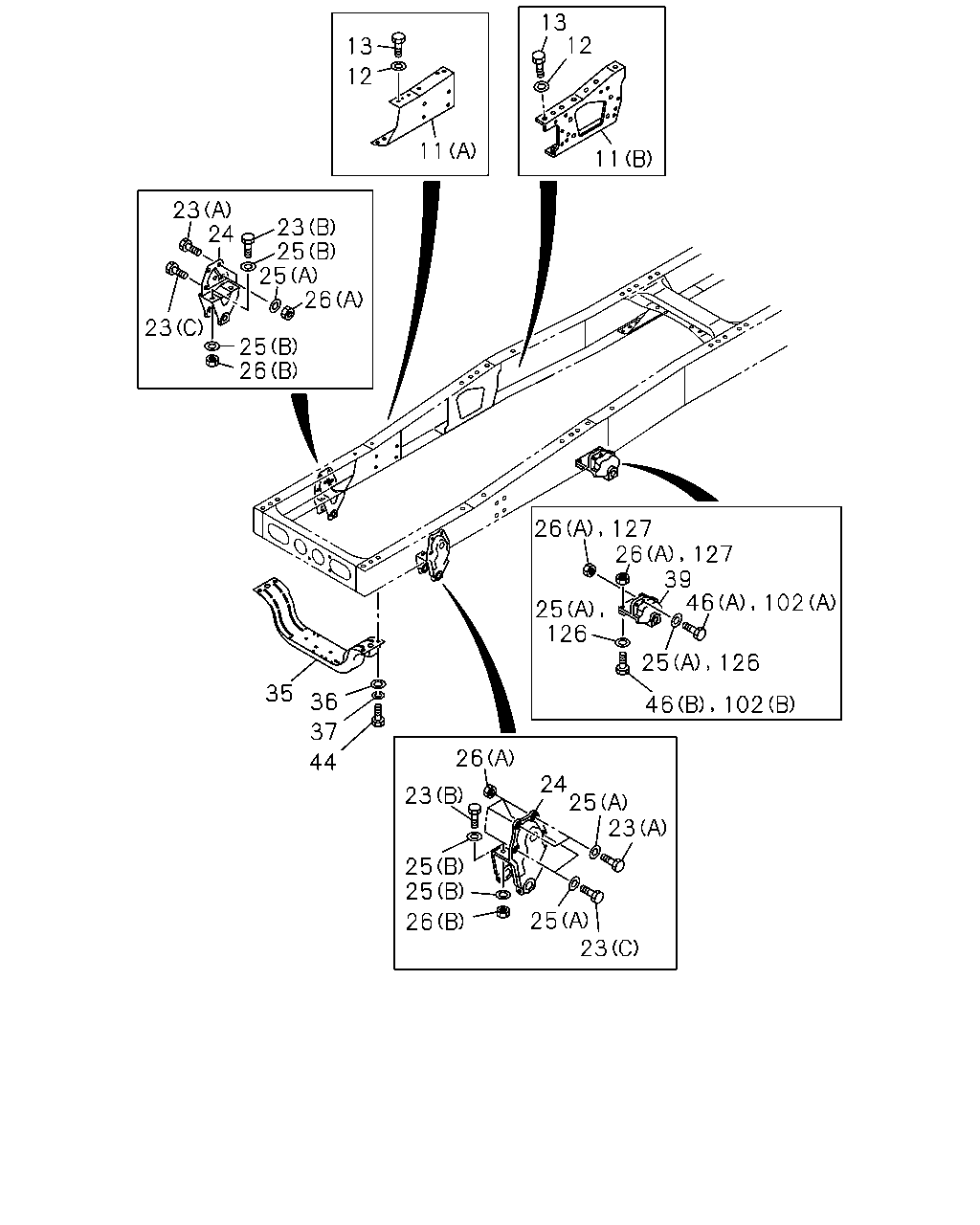

13 12 13 12 11 11 23 24 23 25 25 26 23 25 26 26 127 26 127 39 46 102 25 126 25 126 35 36 46 102 37 26 44 24 25 23 23 25 25 25 23 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
11	BRACKET; ENG MTG (B)	8-98055-432-1	01	1	0801-0808	●	●
11	BRACKET; ENG MTG (B)	8-98055-432-1	01	1	0809-	●	●	●
11	BRACKET; ENG MTG (B)	8-98055-433-0	01	1	0801-0808	●	●
11	BRACKET; ENG MTG (B)	8-98055-433-0	01	1	0809-	●	●	●
11	BRACKET; ENG MTG (A)	8-98059-445-1	01	1	0801-0808	●	●
11	BRACKET; ENG MTG (A)	8-98059-445-1	01	1	0809-	●	●	●
11	BRACKET; ENG MTG (A)	8-98059-446-1	01	1	0801-0808	●	●
11	BRACKET; ENG MTG (A)	8-98059-446-1	01	1	0809-	●	●	●
12	WASHER; PL,BRKT,ENG MTG ID=15	8-98010-627-0	14	1	0801-0808	●	●
12	WASHER; PL,BRKT,ENG MTG ID=15	8-98010-627-1	14	1	0809-	●	●	●
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	14	1	0801-0802	●	●
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	10	1	0803-0808	●	●
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	10	1	0809-	●	●	●
13	BOLT; BRKT,ENG MTG M14X35	0-20951-435-0	04	1	0803-0808	●	●
13	BOLT; BRKT,ENG MTG M14X35	0-20951-435-0	04	1	0809-	●	●	●
23	BOLT; BRKT,SPR (A) M14X40	0-20951-440-0	04	1	0801-0808	●	●
23	BOLT; BRKT,SPR (A) M14X40	0-20951-440-0	04	1	0809-	●	●	●
23	BOLT; BRKT,SPR (B) M16X50	0-20951-650-0	04	1	0801-0808	●	●
23	BOLT; BRKT,SPR (B) M16X50	0-20951-650-0	04	1	0809-	●	●	●
23	BOLT; BRKT,SPR (C) M14X43	8-98097-159-0	04	1	0801-0808	●	●
23	BOLT; BRKT,SPR (C) M14X43	8-98097-159-0	04	1	0809-	●	●	●
24	BRACKET; FRT SPR,FRT	8-98052-580-0	02	1	0801-0808	●	●
24	BRACKET; FRT SPR,FRT	8-98052-580-0	02	1	0809-	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	0801-0808	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	0809-	●	●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-0	08	1	0801-0808	●
25	WASHER; PL,BRKT LEAF SUS(FGZ***) (A) ID=15	8-98010-627-0	08	1	0801-0808		●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	08	1	0809-	●
25	WASHER; PL,BRKT LEAF SUS(FGZ***) (A) ID=15	8-98010-627-1	08	1	0809-		●	●
25	WASHER; PL,BRKT AIR SUS(FGY***) (A) ID=15	8-98010-627-0	20	1	0801-0808		●
25	WASHER; PL,BRKT AIR SUS(FGY***) (A) ID=15	8-98010-627-1	20	1	0809-		●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	08	1	0801-0808	●
26	NUT; BRKT,SPR LEAF SUS(FGZ***) (A) M14	0-91110-514-0	08	1	0801-0808		●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	08	1	0809-	●
26	NUT; BRKT,SPR LEAF SUS(FGZ***) (A) M14	0-91110-514-0	08	1	0809-		●	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	0801-0808	●	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	0809-	●	●	●
26	NUT; BRKT,SPR AIR SUS(FGY***) (A) M14	0-91110-514-0	12	1	0801-0808		●
26	NUT; BRKT,SPR AIR SUS(FGY***) (A) M14	0-91110-514-0	12	1	0809-		●	●
35	MEMBER; UNDER	1-53174-263-2	01	1	0801-	●	●	●
36	WASHER; PL,UNDER MBR ID=17	9-09164-516-0	04	1	0801-	●	●	●
37	WASHER; LK,UNDER MBR ID=16.2	0-91510-816-0	04	1	0801-	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-152-0	01	1	0801-0808	●	●
39	BRACKET; FRT SPR,RR	1-53352-152-0	01	1	0809-	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-153-0	01	1	0801-0808	●	●
39	BRACKET; FRT SPR,RR	1-53352-153-0	01	1	0809-	●	●	●
44	BOLT; UNDER MBR M16X60	0-20951-660-0	04	1	0801-0804	●	●
44	BOLT; UNDER MBR M16X50	0-20951-650-0	04	1	0805-0805	●	●
44	BOLT; UNDER MBR M16X60	0-20951-660-0	04	1	0806-	●	●	●
46	BOLT; BRKT FIX AIR SUS(FGY***) (A) M14X40	0-20951-440-0	04	1	0801-0808		●
46	BOLT; BRKT FIX AIR SUS(FGY***) (A) M14X40	0-20951-440-0	04	1	0809-		●	●
46	BOLT; BRKT FIX AIR SUS(FGY***) (B) M14X40	8-98097-157-0	04	1	0801-0808		●
46	BOLT; BRKT FIX AIR SUS(FGY***) (B) M14X40	8-98097-157-0	04	1	0809-		●	●
102	BOLT; BRKT,RR SPR (A) M14X40	0-20951-440-0	04	1	0801-0808	●
102	BOLT; BRKT,RR SPR LEAF SUS(FGZ***) (A) M14X40	0-20951-440-0	04	1	0801-0808		●
102	BOLT; BRKT,RR SPR (A) M14X40	0-20951-440-0	04	1	0809-	●
102	BOLT; BRKT,RR SPR LEAF SUS(FGZ***) (A) M14X40	0-20951-440-0	04	1	0809-		●	●
102	BOLT; BRKT,RR SPR (B) M14X40	8-98097-157-0	04	1	0801-0808	●
102	BOLT; BRKT,RR SPR LEAF SUS(FGZ***) (B) M14X40	8-98097-157-0	04	1	0801-0808		●
102	BOLT; BRKT,RR SPR (B) M14X40	8-98097-157-0	04	1	0809-	●
102	BOLT; BRKT,RR SPR LEAF SUS(FGZ***) (B) M14X40	8-98097-157-0	04	1	0809-		●	●
126	WASHER; PL,BRKT ID=15	8-98010-627-0	12	1	0801-0808	●
126	WASHER; PL,BRKT LEAF SUS(FGZ***) ID=15	8-98010-627-0	12	1	0801-0808		●
126	WASHER; PL,BRKT ID=15	8-98010-627-1	12	1	0809-	●
126	WASHER; PL,BRKT LEAF SUS(FGZ***) ID=15	8-98010-627-1	12	1	0809-		●	●
127	NUT; BRKT M14	0-91110-514-0	08	1	0801-0808	●
127	NUT; BRKT LEAF SUS(FGZ***) M14	0-91110-514-0	08	1	0801-0808		●
127	NUT; BRKT M14	0-91110-514-0	08	1	0809-	●
127	NUT; BRKT LEAF SUS(FGZ***) M14	0-91110-514-0	08	1	0809-		●	●

130 72 144 72 79 86 65 57 34 344 65 65 65 21 19 194 197 71 21 148 148 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST	8-97623-017-2	01	1	0801-0808	●	●
2	MEMBER; CROSS,1ST	8-97623-017-3	01	1	0809-	●	●	●
19	MEMBER; CROSS,2ND	1-53174-231-1	01	1	0801-0808	●	●
19	MEMBER; CROSS,2ND	1-53174-231-1	01	1	0809-	●	●	●
21	GUSSET; 2ND CROSS	1-53164-226-0	01	1	0801-0808	●	●
21	GUSSET; 2ND CROSS	1-53164-226-1	01	1	0809-	●	●	●
21	GUSSET; 2ND CROSS	1-53164-227-0	01	1	0801-0808	●	●
21	GUSSET; 2ND CROSS	1-53164-227-1	01	1	0809-	●	●	●
34	MEMBER; CROSS,3RD	1-53181-650-3	01	1	0801-0808		●
34	MEMBER; CROSS,3RD	1-53181-650-3	01	1	0809-		●	●
57	MEMBER; CROSS,RR SUSP FRT	1-53181-319-8	01	1	0801-0804	●
57	MEMBER; CROSS,RR SUSP FRT LEAF SUS(FGZ***)	1-53181-319-8	01	1	0801-0804		●
57	MEMBER; CROSS,RR SUSP FRT	8-97625-336-0	01	1	0805-0808	●
57	MEMBER; CROSS,RR SUSP FRT LEAF SUS(FGZ***)	8-97625-336-0	01	1	0805-0808		●
57	MEMBER; CROSS,RR SUSP FRT	8-97625-336-0	01	1	0809-	●
57	MEMBER; CROSS,RR SUSP FRT LEAF SUS(FGZ***)	8-97625-336-0	01	1	0809-		●	●
57	MEMBER; CROSS,RR SUSP FRT AIR SUS(FGY***)	1-53181-937-3	01	1	0801-0808		●
57	MEMBER; CROSS,RR SUSP FRT AIR SUS(FGY***)	1-53181-937-3	01	1	0809-		●	●
65	BRACKET; CENTER BRG AIR SUS(FGY***) (C)	8-97611-329-0	04	1	0801-		●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) (B)	8-97614-125-0	02	1	0801-		●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) (A)	8-97614-128-0	02	1	0801-0808		●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) (A)	8-97614-128-0	02	1	0809-		●
65	BRACKET; CENTER BRG (A)	8-97614-128-0	02	1	0809-			●
65	BRACKET; CENTER BRG (B) L=305	1-53271-390-0	02	1	0809-0810			●
65	BRACKET; CENTER BRG (B)	8-98120-236-0	02	1	0811-			●
71	NUT; 2ND C/MBR M14	0-91110-514-0	08	1	0801-0808	●	●
71	NUT; 2ND C/MBR M14	0-91110-514-0	08	1	0809-	●	●	●
72	SPACER; TRUNNION	1-53168-100-0	02	1	0801-0808		●
72	SPACER; TRUNNION	1-53168-100-0	02	1	0809-		●	●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-923-0	01	1	0801-0808	●
79	MEMBER; CROSS,TRUNNION ASM LEAF SUS(FGZ***)	1-53181-923-0	01	1	0801-0808		●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-923-0	01	1	0809-	●
79	MEMBER; CROSS,TRUNNION ASM LEAF SUS(FGZ***)	1-53181-923-0	01	1	0809-		●	●
86	MEMBER; CROSS,RR SUSP RR	8-97626-686-0	01	1	0801-	●
86	MEMBER; CROSS,RR SUSP RR AIR SUS(FGY***)	8-97623-455-1	01	1	0801-0808		●
86	MEMBER; CROSS,RR SUSP RR AIR SUS(FGY***)	8-97623-455-1	01	1	0809-		●	●
86	MEMBER; CROSS,RR SUSP RR LEAF SUS(FGZ***)	1-53181-646-7	01	1	0801-0808		●
86	MEMBER; CROSS,RR SUSP RR LEAF SUS(FGZ***)	1-53181-646-7	01	1	0809-		●	●
130	MEMBER; CROSS,END ENGINE REAR PTO(SV1)	1-53181-646-7	01	1	0801-	●
130	MEMBER; CROSS,END EXC. ENGINE REAR PTO(SV1)	1-53181-613-1	01	1	0801-0808	●
130	MEMBER; CROSS,END	1-53181-613-1	01	1	0801-0808		●
130	MEMBER; CROSS,END EXC. ENGINE REAR PTO(SV1)	1-53181-613-1	01	1	0809-	●
130	MEMBER; CROSS,END	1-53181-613-1	01	1	0809-		●	●
144	MEMBER; CROSS,8TH	1-53181-646-7	01	1	0801-0808		●
144	MEMBER; CROSS,8TH	1-53181-646-7	01	1	0809-		●	●
148	SPACER; C/MBR (A)	1-53168-400-1	02	1	0801-0808	●	●
148	SPACER; C/MBR (A)	1-53168-400-1	02	1	0809-	●	●	●
148	SPACER; C/MBR (B)	1-53168-403-1	02	1	0801-0808	●	●
148	SPACER; C/MBR (B)	1-53168-403-1	02	1	0809-	●	●	●
194	BOLT; 2ND C/MBR M14X60	0-20951-460-0	08	1	0801-0808	●
194	BOLT; 2ND C/MBR LEAF SUS(FGZ***) M14X60	0-20951-460-0	08	1	0801-0808		●
194	BOLT; 2ND C/MBR M14X60	0-20951-460-0	08	1	0809-	●
194	BOLT; 2ND C/MBR LEAF SUS(FGZ***) M14X60	0-20951-460-0	08	1	0809-		●	●
194	BOLT; 2ND C/MBR AIR SUS(FGY***) M14X50	0-20951-450-0	08	1	0801-0808		●
194	BOLT; 2ND C/MBR AIR SUS(FGY***) M14X50	0-20951-450-0	08	1	0809-		●	●
197	WASHER; PL,2ND C/MBR ID=15	8-98010-627-0	16	1	0801-0808	●
197	WASHER; PL,2ND C/MBR LEAF SUS(FGZ***) ID=15	8-98010-627-0	16	1	0801-0808		●
197	WASHER; PL,2ND C/MBR ID=15	8-98010-627-1	16	1	0809-	●
197	WASHER; PL,2ND C/MBR LEAF SUS(FGZ***) ID=15	8-98010-627-1	16	1	0809-		●	●
197	WASHER; PL,2ND C/MBR AIR SUS(FGY***) ID=15	8-98010-627-0	08	1	0801-0808		●
197	WASHER; PL,2ND C/MBR AIR SUS(FGY***) ID=15	8-98010-627-1	08	1	0809-		●	●
344	MEMBER; CROSS,4TH	1-53181-650-3	01	1	0801-0808		●
344	MEMBER; CROSS,4TH	1-53181-650-3	01	1	0809-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
