10695 - LV233(THAI)
▶
0 - Engine, Emission, Engine Electrical
▶
0-22 - ENGINE MOUNTING
▶

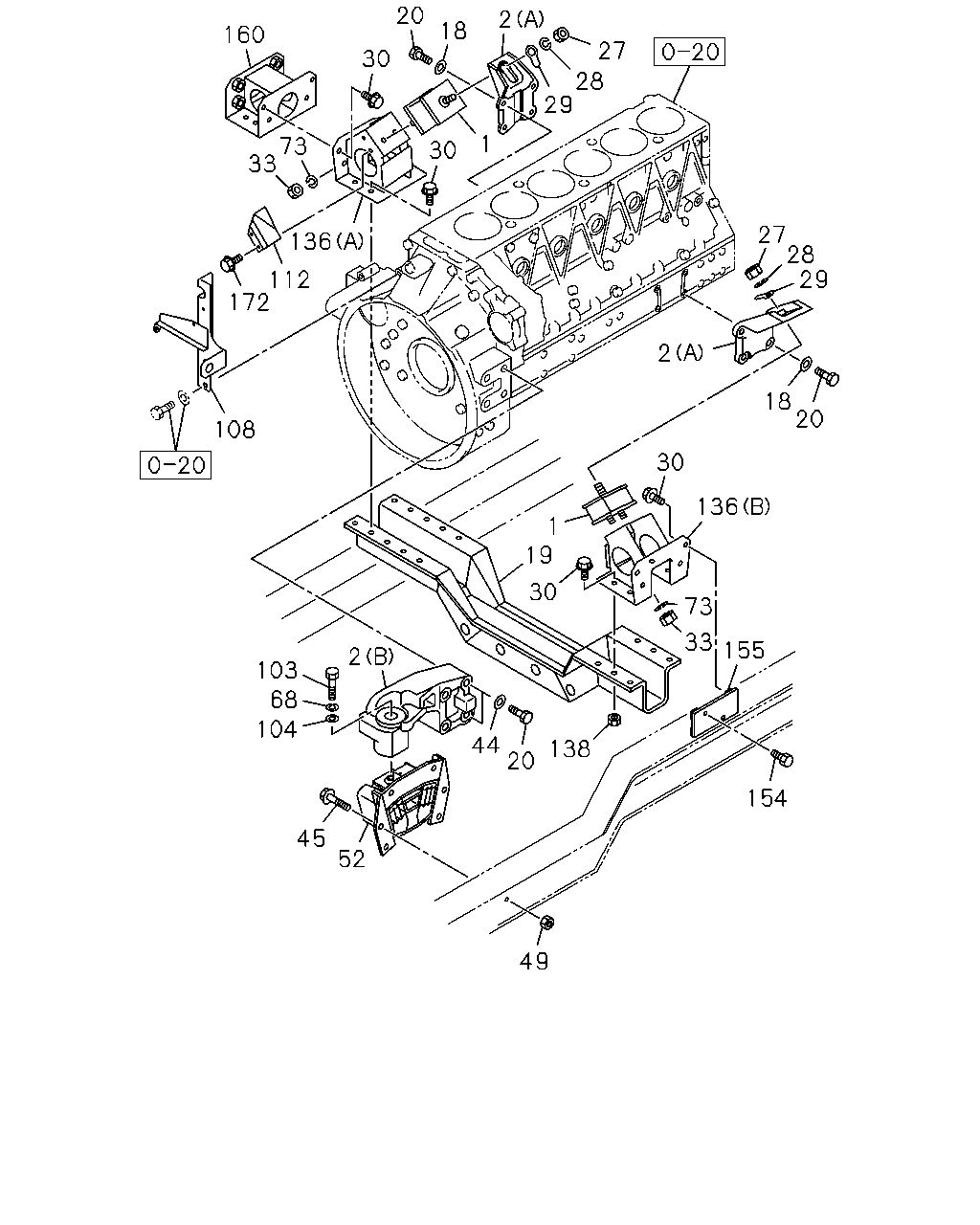

0-22 — ENGINE MOUNTING
(#4519) — 34 parça
20
2
18
160
27
30
28
29
73
33
1
30
27
28
29
136
112
172
2
18
20
108
30
136
1
19
30
73
33
155
2
103
68
104
44
20
138
154
45
52
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RUBBER; ENG FOOT,FRT
1-53215-131-1
02
1
9712-9801
1
RUBBER; ENG FOOT,FRT
1-53215-132-2
02
1
9802-9910
1
RUBBER; ENG FOOT,FRT
1-53215-220-0
02
1
9911-
2
FOOT; ENG
(A)
1-11771-172-0
02
1
9712-
2
FOOT; ENG
(B)
1-11777-178-1
01
1
9712-
2
FOOT; ENG
(B)
1-11777-179-0
01
1
9712-
18
WASHER; PL,ENG FOOT
ID=12.2
1-09503-008-0
08
1
9712-
19
MEMBER; ENG MTG CROSS
1-53211-246-0
01
1
9712-
20
BOLT; ENG FOOT
M12X28.5
1-09020-100-0
04
1
9712-
20
BOLT; ENG FOOT
M12X24
1-09020-101-0
04
1
9712-
20
BOLT; ENG FOOT
M16X78
1-09020-113-0
08
1
9712-
27
NUT; CUSHION RUBBER TO ENG FOOT
M18
9-99110-518-0
02
1
9712-
28
WASHER; LK,SUPPORT BRKT
ID=18.2
9-09150-518-0
02
1
9712-
29
PLATE; LK,CUSHION RUBBER,FRT
1-53229-040-0
02
1
9712-
30
BOLT; BRKT TO FRAME
M12X35 FLANGE
0-28681-235-0
28
1
9712-
33
NUT; CUSHION RUBBER TO BRKT
M14
9-99110-414-0
04
1
9712-
44
WASHER; LK,ENG FOOT
ID=16.2
9-09851-672-2
08
1
9712-
45
BOLT; CUSHION RUBBER TO FRAME
M14X40 FLANGE
0-28691-440-0
12
1
9712-
49
NUT; CUSHION RUBBER TO FRAME
M14 FLANGE
0-91150-214-0
12
1
9712-
52
RUBBER; CUSHION,ENG MTG,RR
1-53225-342-0
02
1
9712-
68
WASHER; LK,CUSHION RUBBER
ID=22.5
9-09150-622-0
02
1
9712-
73
WASHER; LK,CUSHION RUBBER TO FRAME
ID=14.2
9-09150-514-0
04
1
9712-
103
BOLT; CUSHION RUBBER RR,LWR
M22X105
9-09804-230-1
02
1
9712-
104
WASHER; PL,CUSHION RUBBER
9-09164-622-0
02
1
9712-
108
HANGER; ENG FLYWHEEL HSG
1-11777-230-0
01
1
9712-
112
PROTECTOR; HEAT
1-53219-893-0
01
1
9712-
136
BRACKET; CUSHION RUBBER,FRT
(B)
1-53211-238-0
01
1
9712-
136
BRACKET; CUSHION RUBBER,FRT
(A)
1-53211-237-0
01
1
9712-
138
NUT; BRKT TO FRAME
M12 FLANGE
0-91150-212-0
20
1
9712-
154
BOLT; BRKT,C/MBR
M8X20 FLANGE
0-28080-820-0
02
1
9712-
155
PLATE; SUPPORT
1-53219-657-0
01
1
9712-
160
SPACER; ENG SUPPORT FRT
1-53456-264-0
01
1
9712-
172
BOLT; HEAT PROTECTOR
M8X16 FLANGE
0-28080-816-0
02
1
9712-
299
BOLT
M14X40 FLANGE
0-28691-440-0
20
1
9802-
