4-60 — REAR SUSPENSION (#45184) — 103 parça

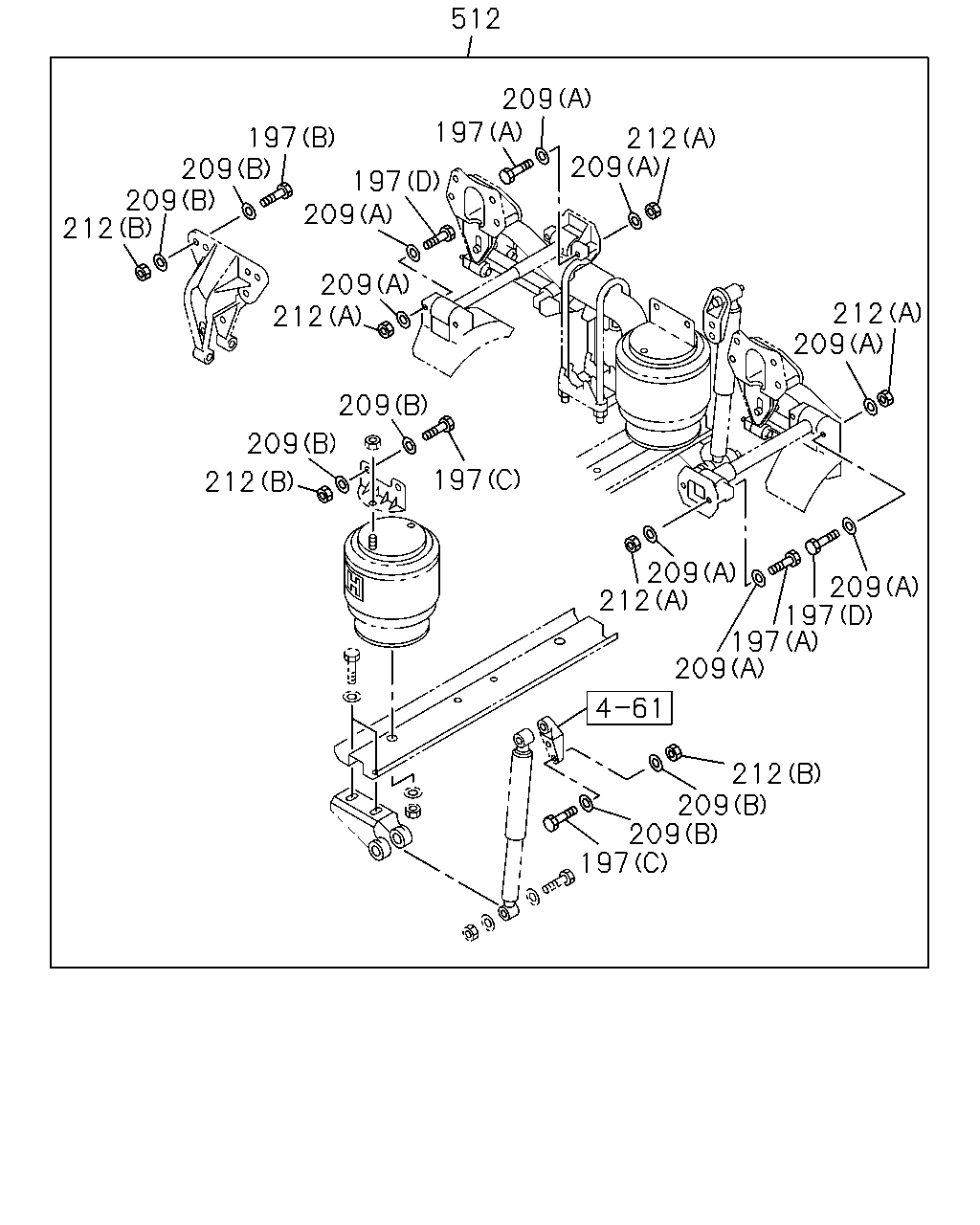

çizim 112888
512 209 197 197 209 209 212 212 209 197 209 209 212 212 209 209 209 197 212 209 212 209 197 197 209 212 209 209 197
BalonParca AdiParca NoAdetTipApplied Date A B
197 BOLT
(D) 		1-09000-767-0 04 1 0801- ●
197 BOLT
(A) 		1-09000-768-0 04 1 0801- ●
197 BOLT
(B) M20X65 		1-09000-769-0 24 1 0801- ●
197 BOLT
(C) 		1-09000-771-0 16 1 0801- ●
209 WASHER; PL
(A) ID=16 		1-09503-314-0 16 1 0801- ●
209 WASHER; PL
(B) ID=20 		1-09503-315-0 80 1 0801- ●
212 NUT
(A) M16 		1-09400-160-0 08 1 0801- ●
212 NUT
(B) M20 		1-09400-161-0 40 1 0801- ●
512 FIXING KIT; BRKT TO FRAME 8-98049-197-0 02 1 0801- ●

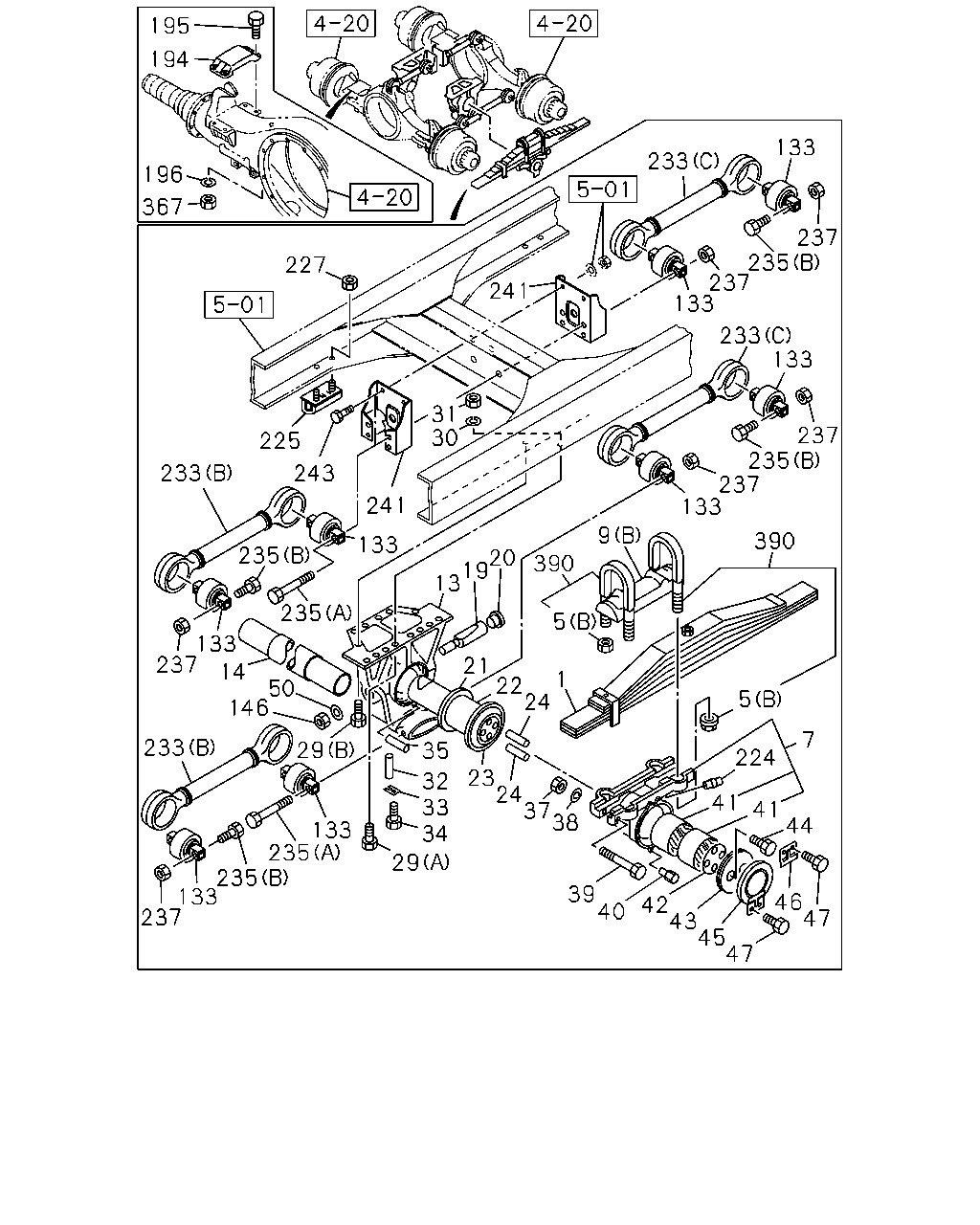

çizim 112890
195 194 133 233 196 367 237 235 237 133 227 241 233 133 31 30 237 235 237 133 225 233 243 241 9 390 133 235 20 19 13 390 235 5 133 237 21 14 1 22 24 50 146 5 7 233 29 35 224 23 24 37 38 41 32 33 34 41 44 133 235 235 133 237 29 39 40 46 47 42 43 45 47
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 		8-98102-211-1 02 1 0801- ●
5 NUT; U-BOLT,RR SPR
(A) 		1-52179-039-0 02 1 0801- ●
5 NUT; U-BOLT,RR SPR
(B) M27 FLANGE 		1-09440-058-0 08 1 0801- ●
7 SEAT; SPR,LWR 8-97614-049-2 02 1 0801- ●
9 PAD; U BOLT,RR SPR
(A) 		1-51372-073-0 04 1 0801- ●
9 PAD; U BOLT,RR SPR
(B) 		1-51372-019-1 02 1 0801-1010 ●
9 PAD; U BOLT,RR SPR
(B) 		8-98177-265-0 02 1 1011- ●
13 BRACKET; TRUNNION SHAFT 1-53361-079-0 02 1 0801- ●
14 PIPE; TRUNNION BRKT 1-51389-032-1 01 1 0801- ●
19 BOLT; KEY,SHAFT 1-51389-066-0 02 1 0801- ●
20 GROMMET; KEY BOLT 1-09333-057-0 02 1 0801- ●
21 WASHER; THRUST,TRUNNION SHAFT 1-51389-058-0 02 1 0801- ●
22 SHAFT; TRUNNION,RR SUSP 1-51381-022-3 02 1 0801- ●
23 SEAL; OIL,TRUNNION SHAFT 1-51389-005-0 02 1 0801- ●
24 PIN; SIDE PLATE TO SHAFT 1-09740-009-0 04 1 0801- ●
29 BOLT; BRKT TO FRAME
(A) M18X75 		8-98012-872-0 24 1 0801- ●
29 BOLT; BRKT TO FRAME
(B) M18X55 		9-92061-855-0 04 1 0801- ●
30 WASHER; PL,TRUNNION BRKT
ID=19 		1-09503-162-0 28 1 0801- ●
31 NUT; TRUNNION BRKT
M18 		0-91110-518-0 28 1 0801- ●
32 PIN; STRAIGHT 1-09740-027-0 04 1 0801- ●
33 PLATE; LK KNOCK PIN 1-53369-032-1 02 1 0801- ●
34 BOLT; LOCK PLATE
M10X16 FLANGE 		0-28051-016-0 02 1 0801- ●
35 PIN; TRUNNION SHAFT 1-09749-030-1 04 1 0801- ●
37 NUT; SPR SETTING
M22 		0-91110-522-0 04 1 0801- ●
38 WASHER; LK,SPR SETTING
ID=22.5 		0-91510-622-0 04 1 0801- ●
39 BOLT; SPR SETTING
M22X155 		9-09801-290-1 04 1 0801- ●
40 VALVE; GREASE ESCAPE 9-51389-010-0 02 1 0801- ●
41 BUSHING; TRUNNION SHAFT 1-51386-004-0 04 1 0801-0902 ●
41 BUSHING; TRUNNION SHAFT 8-98081-832-0 04 1 0903- ●
42 SHIM; SIDE PLATE TO SHAFT 1-51389-033-1 12 1 0801- ●
43 PLATE; SIDE,TRUNNION SHAFT 1-51382-010-4 02 1 0801- ●
44 BOLT; SIDE PLATE TO SHAFT
M18X48.5 FLANGE 		1-09044-038-2 04 1 0801- ●
45 COVER; SPR SEAT 1-51387-013-2 02 1 0801- ●
46 BRACKET; COVER 1-51387-015-2 02 1 0801- ●
47 BOLT; COVER TO SEAT
M8X12 FLANGE 		0-28050-812-0 08 1 0801- ●
50 WASHER; PL,TRUNNION SHAFT
ID=25 		8-98012-871-0 02 1 0801- ●
133 BUSHING; RUBBER,TORQUE ROD
OD=105 		1-51519-113-1 12 1 0801- ●
146 NUT; KEY BOLT
M24 		0-91110-524-0 02 1 0801- ●
194 PAD; CONTACT 1-42124-101-0 04 1 0801- ●
195 BOLT; PAD FIX
M14X40 		0-20951-440-0 16 1 0801- ●
196 WASHER; LK
ID=14.2 		0-91510-814-0 16 1 0801- ●
224 NIPPLE; GREASE,SPR SEAT
PT1/8 STRAIGHT 		0-90301-410-0 02 1 0801- ●
225 RUBBER; CUSHION,RR SPR
FORWARD 		1-53366-072-1 01 1 0801-0802 ●
225 RUBBER; CUSHION,RR SPR
REARWARD 		1-53366-077-2 01 1 0801-0802 ●
225 RUBBER; CUSHION,RR SPR
FORWARD RH,REARWARD LH 		1-53366-077-3 02 1 0803- ●
225 RUBBER; CUSHION,RR SPR
REARWARD 		1-53366-100-1 01 1 0801-0802 ●
225 RUBBER; CUSHION,RR SPR
FORWARD LH,REARWARD RH 		1-53366-100-2 02 1 0803- ●
225 RUBBER; CUSHION,RR SPR
FORWARD 		1-53366-143-0 01 1 0801-0802 ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 08 1 0801- ●
233 ROD ASM; TORQUE,RR SUSP
(A) L=366 		1-51510-855-0 04 1 0801- ●
233 ROD ASM; TORQUE,RR SUSP
(B) L=525 		1-51511-656-0 03 1 0801- ●
233 ROD ASM; TORQUE,RR SUSP
(C) L=550 		1-51511-659-0 03 1 0801- ●
235 BOLT; TORQUE ROD
(A) M18X265 		8-98012-875-0 06 1 0801- ●
235 BOLT; TORQUE ROD
(B) M18X102 		8-98012-877-0 12 1 0801- ●
237 NUT; TORQUE ROD
M18 		1-09464-011-0 18 1 0801- ●
241 BRACKET; TORQUE ROD 1-53363-031-2 02 1 0801- ●
243 BOLT; BRKT,TORQUE ROD
M14X50 		0-20951-450-0 02 1 0801- ●
243 BOLT; BRKT,TORQUE ROD
M14X205 		1-09000-147-0 02 1 0801- ●
367 NUT
M14 		0-91110-514-0 16 1 0801- ●
390 U-BOLT SET; RR SPRING
L=350 		1-87870-392-1 04 1 0801- ●

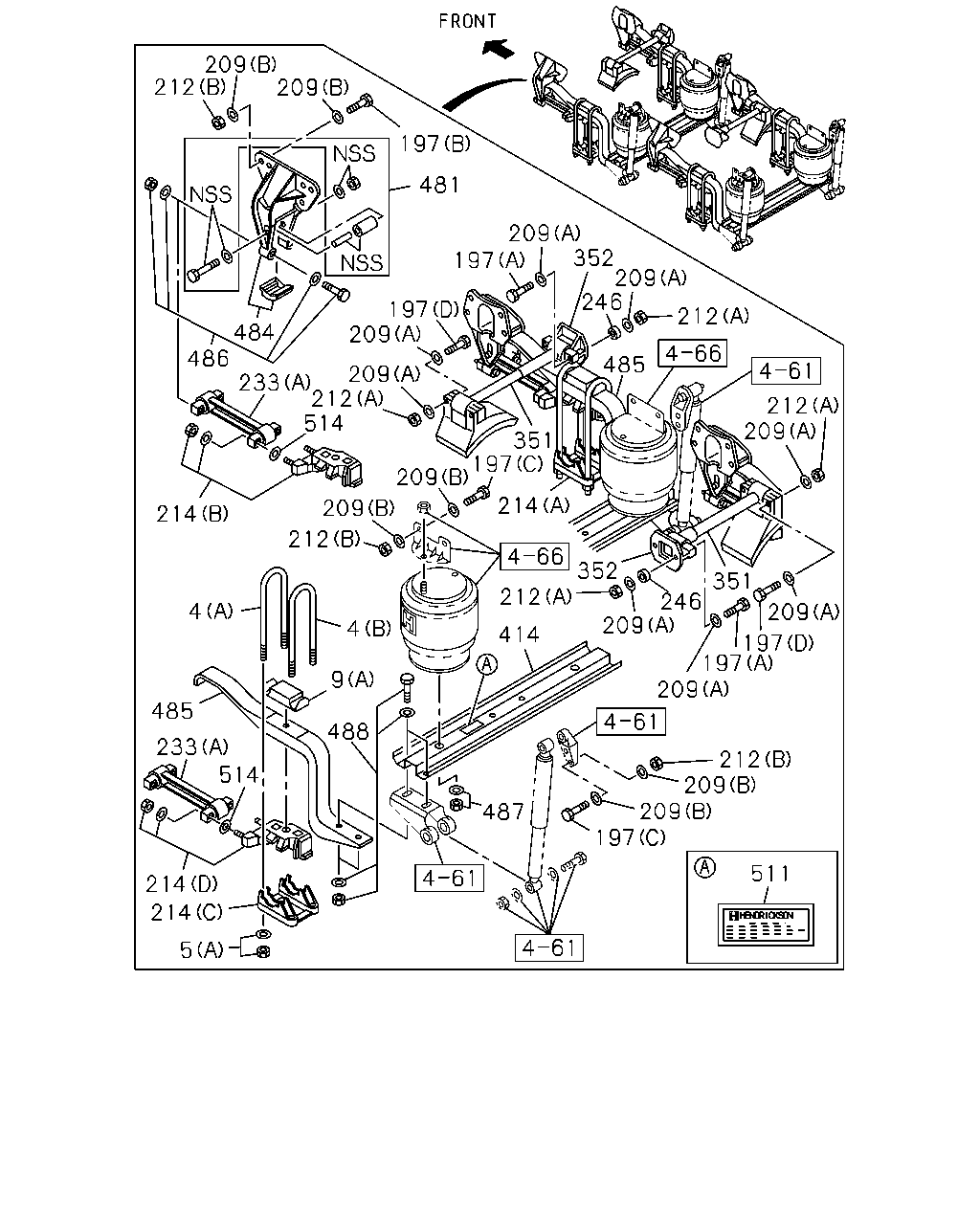

çizim 112957
209 212 209 197 481 209 197 352 209 246 197 209 212 484 486 233 485 209 212 514 212 209 351 197 209 214 209 214 212 352 351 212 246 209 4 209 4 414 197 197 209 9 485 488 233 514 212 209 209 197 487 511 214 214 5
BalonParca AdiParca NoAdetTipApplied Date A B
4 U-BOLT; RR SPR
(A) L=356 		1-51371-229-0 04 1 0801- ●
4 U-BOLT; RR SPR
(B) L=381 		1-51371-230-0 04 1 0801- ●
5 NUT; U-BOLT,RR SPR
(A) 		1-52179-039-0 02 1 0801- ●
5 NUT; U-BOLT,RR SPR
(B) M27 FLANGE 		1-09440-058-0 08 1 0801- ●
9 PAD; U BOLT,RR SPR
(A) 		1-51372-073-0 04 1 0801- ●
9 PAD; U BOLT,RR SPR
(B) 		1-51372-019-1 02 1 0801-1010 ●
9 PAD; U BOLT,RR SPR
(B) 		8-98177-265-0 02 1 1011- ●
197 BOLT
(D) 		1-09000-767-0 04 1 0801- ●
197 BOLT
(A) 		1-09000-768-0 04 1 0801- ●
197 BOLT
(B) M20X65 		1-09000-769-0 24 1 0801- ●
197 BOLT
(C) 		1-09000-771-0 16 1 0801- ●
209 WASHER; PL
(A) ID=16 		1-09503-314-0 16 1 0801- ●
209 WASHER; PL
(B) ID=20 		1-09503-315-0 80 1 0801- ●
212 NUT
(A) M16 		1-09400-160-0 08 1 0801- ●
212 NUT
(B) M20 		1-09400-161-0 40 1 0801- ●
214 SEAT; SPR
(A) 		1-51385-103-0 02 1 0801- ●
214 SEAT; SPR
(C) 		1-51385-104-0 02 1 0801- ●
214 SEAT; SPR
(B) 		1-51385-105-0 02 1 0801- ●
214 SEAT; SPR
(D) 		1-51385-106-0 02 1 0801- ●
233 ROD ASM; TORQUE,RR SUSP
(A) L=366 		1-51510-855-0 04 1 0801- ●
233 ROD ASM; TORQUE,RR SUSP
(B) L=525 		1-51511-656-0 03 1 0801- ●
233 ROD ASM; TORQUE,RR SUSP
(C) L=550 		1-51511-659-0 03 1 0801- ●
246 WASHER; TORQUE ROD 8-97372-224-0 04 1 1101- ●
351 ROD ASM; RADIUS 1-51510-867-0 02 1 0801- ●
352 BRACKET; RADIUS ROD,FRAME 1-53353-132-0 02 1 0801- ●
414 BEAM; AIR SPR 1-52172-036-0 02 1 0801- ●
481 ROLLER; REBOUND 1-53357-043-0 02 1 0801- ●
484 BRACKET; REAR SPRING 1-53353-131-0 04 1 0801- ●
485 SPRING; LEAF 1-51410-240-0 04 1 0801- ●
486 FIXING KIT; TORQUE ROD 1-52000-165-0 02 1 0801- ●
487 FIXING KIT; AIR SPRING 1-52000-163-0 02 1 0801- ●
488 FIXING KIT; BEAM 1-52000-164-0 02 1 0801- ●
511 LABEL 1-51399-034-0 02 1 0801- ●
514 SPACER; TORQUE ROD 1-09503-299-0 08 1 0801- ●
