Isuzu WW
▶
BUSES
▶
LV
▶
10695 - LV233(THAI)
▶
0 - Engine, Emission, Engine Electrical
▶
0-15 - CRANKSHAFT,PISTON AND FLYWHEEL
▶

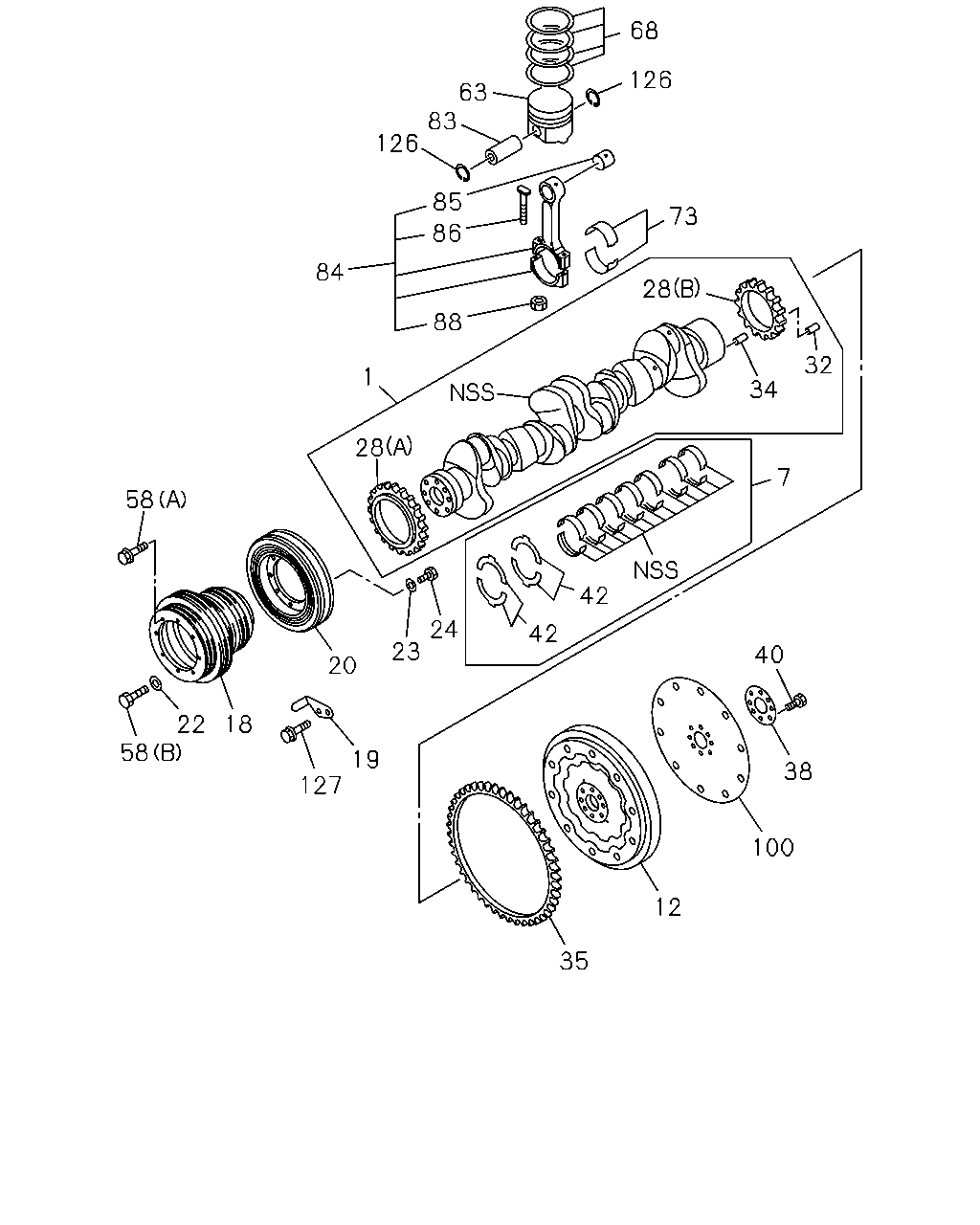

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL
(#4517) — 36 parça
68
126
63
83
126
85
73
86
84
28
88
32
1
34
28
7
58
42
24
23
42
40
20
22
58
18
19
38
127
100
12
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CRANKSHAFT
1-12310-668-0
01
1
9712-
7
METAL KIT; CRANKSHAFT,STANDARD
1-11510-087-0
01
1
9712-
12
FLYWHEEL
1-12331-342-2
01
1
9712-9807
12
FLYWHEEL
1-12331-358-0
01
1
9808-
18
PULLEY; CR/SHF
8-GROOVE
1-12371-440-0
01
1
9712-
19
POINTER; TIMING
1-11327-026-0
01
1
9712-
20
DAMPER; CR/SHF
1-12375-201-0
01
1
9712-
22
PLATE; PULLEY
ID=17 OD=30
9-09851-935-0
08
1
9712-
23
WASHER; DAMPER
ID=12.5
9-09851-682-0
08
1
9712-
24
BOLT; DAMPER
9-02361-220-0
08
1
9712-
28
GEAR; CR/SHF
(A) Z=53
1-12521-027-1
01
1
9712-
28
GEAR; CR/SHF
(B) Z=46
1-12521-053-0
01
1
9712-
32
PIN; FLYWHEEL
OD=8 L=16
9-08150-816-0
01
1
9712-
34
PIN; GEAR SETTING
OD=5 L=6
9-09878-626-0
01
1
9712-
35
GEAR; RING
Z=160
1-12333-011-1
01
1
9712-
36
PIN; FLYWHEEL
ID=6 L=12
9-08160-612-0
01
1
9808-
38
WASHER; FLYWHEEL
1-12336-019-1
01
1
9712-9807
38
WASHER; FLYWHEEL
1-12336-020-0
01
1
9808-
40
BOLT; FLYWHEEL
1-09070-134-1
08
1
9712-9902
40
BOLT; FLYWHEEL
1-09070-149-0
08
1
9903-
42
WASHER; THRUST,CR/SHF
1-11599-007-0
02
1
9712-
58
BOLT; CR/SHF PULLEY
(A)
1-09029-073-0
08
1
9712-
58
BOLT; CR/SHF PULLEY
(B) M16X45
9-92061-645-0
08
1
9712-
63
PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX
1-12111-842-0
06
1
9712-
63
PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX
1-12111-843-0
06
1
9712-
68
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
1-12121-137-1
06
1
9712-
73
METAL SET; CONN ROD,STANDARD
1-12271-068-0
06
1
9712-
83
PIN; PISTON
ALSO INCLUDED IN LINER SET.
1-12211-022-0
06
1
9712-
84
ROD ASM; CONN
1-12230-097-0
06
1
9712-
85
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
1-12251-021-1
06
1
9712-
86
BOLT; CONNROD
1-12235-025-1
12
1
9712-
88
NUT; CONNROD
1-09840-003-1
12
1
9712-
100
PLATE; FLEX
1-32213-066-0
04
1
9712-9807
100
PLATE; FLEX
1-32213-070-0
04
1
9808-
126
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET.
1-09587-065-0
12
1
9712-
127
BOLT; POINTER
M6X12 FLANGE
0-28080-612-0
02
1
9712-
