3-78 — FIXING PARTS; AIR PIPING (#45169) — 427 parça

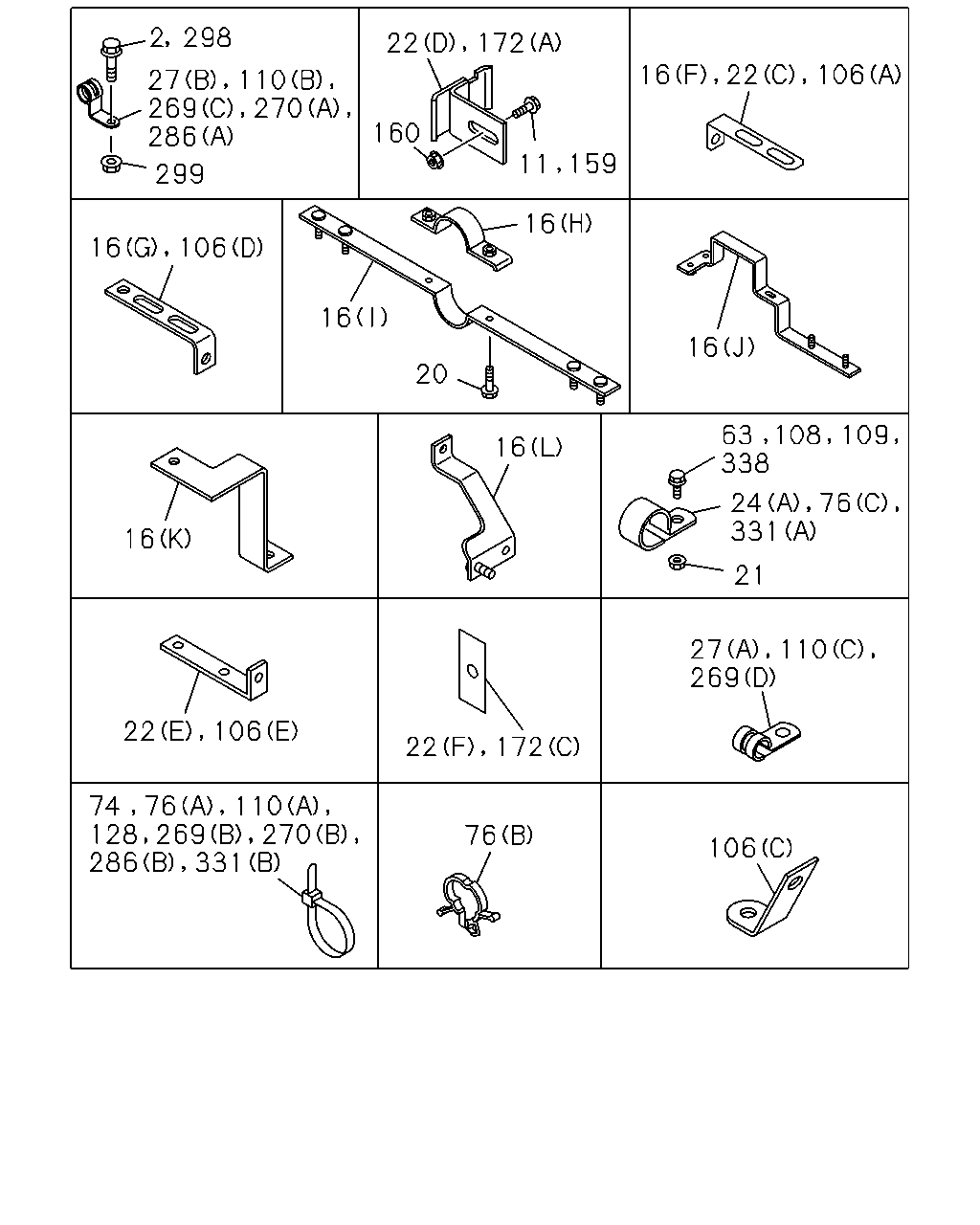

çizim 113233
2 298 22 172 106 27 110 286 160 159 11 299 16 16 106 16 16 20 338 109 16 331 16 21 27 110 269 22 106 22 172 76 106 16 22 269 270 74 76 110 128 269 270 286 331 24 76 63 108
BalonParca AdiParca NoAdetTipApplied Date A B
2 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 03 1 0801-0809 ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0801-0802 ● ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0801-0802 ●
11 BOLT; CLIP BRKT
WHEEL BASE 7100MM(71W) M8X25 FLANGE 		0-28650-825-0 01 1 0801-0802 ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0803-0803 ● ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0803-0803 ● ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0803-0803 ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0803-0805 ● ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0803-0805 ● ●
11 BOLT; CLIP BRKT
WHEEL BASE 7100MM(71W) M8X25 FLANGE 		0-28650-825-0 01 1 0803-0805 ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0806-0809 ● ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0806-0809 ● ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0806-0809 ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0810-1101 ● ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0810-1101 ● ●
11 BOLT; CLIP BRKT
WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) M8X25 FLANGE 		0-28650-825-0 01 1 0810-1101 ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1102- ● ●
11 BOLT; CLIP BRKT
WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) M8X25 FLANGE 		0-28650-825-0 01 1 1102- ● ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1102- ●
11 BOLT; CLIP BRKT
WHEEL BASE 4900MM(49W) M8X25 FLANGE 		0-28650-825-0 02 1 0801-0802 ●
11 BOLT; CLIP BRKT
WHEEL BASE 4900MM(49W) M8X25 FLANGE 		0-28650-825-0 02 1 0803-0805 ●
11 BOLT; CLIP BRKT
WHEEL BASE 4900MM(49W) M8X30 FLANGE 		0-28650-830-0 01 1 0810- ●
11 BOLT; CLIP BRKT
WHEEL BASE 7100MM(71W) M8X25 FLANGE 		0-28650-825-0 03 1 0801-0802 ●
16 BRACKET; PIPE CLIP
(A) 		1-34656-009-0 02 1 0801-0901 ●
16 BRACKET; PIPE CLIP
(A) 		1-34656-009-0 01 1 0902- ●
16 BRACKET; PIPE CLIP
(B) 		1-47476-699-2 01 1 0801- ●
16 BRACKET; PIPE CLIP
(F) L=100 H=30 		1-47477-645-2 01 1 0801- ●
16 BRACKET; PIPE CLIP
(C) 		1-47478-588-0 01 1 0801- ●
16 BRACKET; PIPE CLIP
(C) 		1-47478-588-0 01 1 0801- ●
16 BRACKET; PIPE CLIP
(D) 		1-47478-589-0 01 1 0801-0806 ●
16 BRACKET; PIPE CLIP
(D) 		1-47478-589-0 01 1 0801-0806 ●
16 BRACKET; PIPE CLIP
(D) 		1-47479-249-0 01 1 0807- ●
16 BRACKET; PIPE CLIP
(D) 		1-47479-249-0 01 1 0807- ●
16 BRACKET; PIPE CLIP
(G) 		1-47479-598-0 01 1 0801- ●
16 BRACKET; PIPE CLIP
(E) L=60 H=30 		1-47477-716-1 01 1 0801-0805 ●
16 BRACKET; PIPE CLIP
WHEEL BASE 7100MM(71W) (E) L=60 H=30 		1-47477-716-1 01 1 0806-0808 ●
16 BRACKET; PIPE CLIP
WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) (E) L=60 H=30 		1-47477-716-1 01 1 0809- ●
16 BRACKET; PIPE CLIP
(H) 		1-47479-546-0 02 1 0801- ●
16 BRACKET; PIPE CLIP
(I) 		1-47479-720-0 02 1 0801- ●
16 BRACKET; PIPE CLIP
(J) 		1-47479-901-0 02 1 0801- ●
16 BRACKET; PIPE CLIP
(K) 		8-98086-226-0 01 1 0801- ●
16 BRACKET; PIPE CLIP
(L) 		8-98110-074-0 01 1 0801- ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 03 1 0801-0901 ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0801-0901 ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0902- ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0902- ●
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0801- ● ●
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0801- ● ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0801-0901 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0902- ● ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0902- ● ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0902- ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0902- ●
21 NUT; CLIP
M8 		0-91110-508-0 01 1 0807- ●
21 NUT; CLIP
M8 		0-91110-508-0 01 1 0807- ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0801-0901 ● ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0801-0901 ● ●
22 BRACKET; CLIP
(B) L=145 		1-47475-655-0 01 1 0801- ● ●
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 01 1 0801-0803 ● ●
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 01 1 0801-0803 ● ●
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 02 1 0804-1101 ● ●
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 01 1 1102-1112 ● ●
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 01 1 1102-1112 ● ●
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 01 1 1201- ● ●
22 BRACKET; CLIP
(E) L=95 		1-82698-557-0 01 1 0801- ● ●
22 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 01 1 0801- ●
22 BRACKET; CLIP
(F) 		1-47479-554-0 01 1 0801- ●
22 BRACKET; CLIP
WHEEL BASE 7100MM(71W) (D) 		1-47479-693-0 01 1 0801-0802 ●
22 BRACKET; CLIP
(D) 		1-47479-693-0 01 1 0801-0802 ●
22 BRACKET; CLIP
WHEEL BASE 7100MM(71W) (D) 		1-47479-693-0 01 1 0801-0802 ●
22 BRACKET; CLIP
(D) 		1-47479-693-0 01 1 0803-0803 ●
22 BRACKET; CLIP
WHEEL BASE 4900MM(49W) (D) 		1-47479-693-0 02 1 0803-0805 ●
22 BRACKET; CLIP
(D) 		1-47479-693-0 01 1 0806- ●
22 BRACKET; CLIP
WHEEL BASE 7100MM(71W) (D) 		1-47479-693-0 01 1 0803-0805 ●
24 CLIP; PIPE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 0801- ● ●
24 CLIP; PIPE
EXC. ENGINE REAR PTO(SV1) (B) ID=25 L=50 		1-09701-019-0 03 1 0801-1101 ● ●
24 CLIP; PIPE
(B) ID=25 L=50 		1-09701-019-0 03 1 1102- ●
24 CLIP; PIPE
EXC. ENGINE REAR PTO(SV1) (B) ID=25 L=50 		1-09701-019-0 03 1 1102- ●
24 CLIP; PIPE
ENGINE REAR PTO(SV1) (B) ID=25 L=50 		1-09701-019-0 02 1 0801- ●
27 CLIP; FLEX HOSE
(A) ID=24 L=27 		1-09700-809-0 01 1 0801-0802 ● ●
27 CLIP; FLEX HOSE
(B) ID=25 H=30 L=35 		1-09700-875-0 01 1 0803- ● ●
63 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0801- ● ●
63 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0801-0802 ● ●
74 CLIP; NYLON TUBE
L=350 		1-09707-183-0 12 1 0801-0802 ●
74 CLIP; NYLON TUBE
L=350 		1-09707-183-0 02 1 0801-0802 ●
74 CLIP; NYLON TUBE
WHEEL BASE 4900MM(49W) L=350 		1-09707-183-0 07 1 0801- ●
74 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) L=350 		1-09707-183-0 11 1 0801-0808 ●
74 CLIP; NYLON TUBE
WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) L=350 		1-09707-183-0 11 1 0809- ●
76 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 08 1 0801-0808 ●
76 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) (A) L=350 		1-09707-183-0 08 1 0801-0808 ●
76 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 08 1 0809- ●
76 CLIP; NYLON TUBE
WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) (A) L=350 		1-09707-183-0 08 1 0809- ●
76 CLIP; NYLON TUBE
(B) ID=24-30 L=18 		1-09709-297-0 01 1 0801- ● ●
76 CLIP; NYLON TUBE
(C) ID=39 L=33 		8-98009-359-0 01 1 0801- ● ●
76 CLIP; NYLON TUBE
WHEEL BASE 4900MM(49W) (A) L=350 		1-09707-183-0 05 1 0801- ●
106 BRACKET; TUBE CLIP
(B) L=115 H=30 		1-47477-715-3 01 1 0801-0801 ●
106 BRACKET; TUBE CLIP
(B) L=115 H=30 		1-47477-715-3 01 1 0802-0808 ●
106 BRACKET; TUBE CLIP
WHEEL BASE 7100MM(71W) (B) L=115 H=30 		1-47477-715-3 01 1 0802-0808 ●
106 BRACKET; TUBE CLIP
(B) L=115 H=30 		1-47477-715-3 01 1 0809- ●
106 BRACKET; TUBE CLIP
WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) (B) L=115 H=30 		1-47477-715-3 01 1 0809- ●
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 03 1 0801-0802 ● ●
106 BRACKET; TUBE CLIP
EXC. ENGINE REAR PTO(SV1) (A) L=100 H=30 		1-47477-645-2 03 1 0803-0806 ● ●
106 BRACKET; TUBE CLIP
SHIFT PATTERN SINGLE-H<EDY> (A) L=100 H=30 		1-47477-645-2 01 1 0807- ● ●
106 BRACKET; TUBE CLIP
(E) L=90 		1-47477-755-1 02 1 0801- ● ●
106 BRACKET; TUBE CLIP
ENGINE REAR PTO(SV1) (A) L=100 H=30 		1-47477-645-2 01 1 0803-0803 ●
106 BRACKET; TUBE CLIP
TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (A) L=100 H=30 		1-47477-645-2 01 1 0804-0806 ●
106 BRACKET; TUBE CLIP
ENGINE REAR PTO(SV1) (D) 		1-47479-598-0 02 1 0803-0803 ●
106 BRACKET; TUBE CLIP
TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (D) 		1-47479-598-0 02 1 0804-0806 ●
106 BRACKET; TUBE CLIP
SHIFT PATTERN SINGLE-H<EDY> (D) 		1-47479-598-0 02 1 0807- ● ●
106 BRACKET; TUBE CLIP
WHEEL BASE 4900MM(49W) (C) 		1-47477-571-3 01 1 0801-0801 ●
106 BRACKET; TUBE CLIP
WHEEL BASE 4900MM(49W) (E) L=60 H=30 		1-47477-716-1 01 1 0802- ●
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0801- ● ●
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 04 1 0801-0802 ● ●
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 03 1 0803- ● ●
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 04 1 0801-0802 ● ●
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 03 1 0803- ● ●
110 CLIP; BAND,NYLON TUBE
(C) ID=19 L=20 		0-95235-836-0 02 1 0801- ● ●
110 CLIP; BAND,NYLON TUBE
(B) ID=21 L=30 H=40 		1-09700-991-1 01 1 0801-0802 ● ●
110 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 10 1 0801-0802 ● ●
110 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 11 1 0803-0803 ● ●
110 CLIP; BAND,NYLON TUBE
ANTILOCK BRAKE SYSTEM(BFA) (A) L=350 		1-09707-183-0 10 1 0804- ● ●
110 CLIP; BAND,NYLON TUBE
EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) L=350 		1-09707-183-0 09 1 0804- ●
128 CLIP; NYLON TUBE
L=350 		1-09707-183-0 08 1 0801-0808 ●
128 CLIP; NYLON TUBE
WHEEL BASE 6600MM(66W) L=350 		1-09707-183-0 07 1 0809- ●
128 CLIP; NYLON TUBE
WHEEL BASE 4900MM(49W) ENGINE REAR PTO(SV1) L=350 		1-09707-183-0 07 1 0809- ●
128 CLIP; NYLON TUBE
L=350 		1-09707-183-0 02 1 0801-0802 ●
128 CLIP; NYLON TUBE
WHEEL BASE 4900MM(49W) L=350 		1-09707-183-0 07 1 0803-0805 ●
128 CLIP; NYLON TUBE
WHEEL BASE 4900MM(49W) ENGINE REAR PTO(SV1) L=350 		1-09707-183-0 07 1 0806-0808 ●
128 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) L=350 		1-09707-183-0 08 1 0809- ●
128 CLIP; NYLON TUBE
WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1) L=350 		1-09707-183-0 06 1 0806- ●
128 CLIP; NYLON TUBE
WHEEL BASE 6600MM(66W) L=350 		1-09707-183-0 10 1 0809- ●
128 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) L=350 		1-09707-183-0 04 1 0801-0802 ●
128 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) L=350 		1-09707-183-0 11 1 0803- ●
159 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0801-0802 ●
160 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 0801-0802 ●
160 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 0801- ●
172 BRACKET; TUBE CLIP
(B) L=60 H=30 		1-47477-716-1 01 1 0801-0802 ●
172 BRACKET; TUBE CLIP
(A) 		1-47479-693-0 01 1 0801-0802 ●
172 BRACKET; TUBE CLIP
(C) 		1-47479-554-0 01 1 0801- ●
269 CLIP; BAND,NYLON TUBE
(D) ID=35 L=35 		1-09700-895-0 03 1 0801-0801 ●
269 CLIP; BAND,NYLON TUBE
(D) ID=35 L=33 		1-09700-945-0 05 1 0802-0806 ●
269 CLIP; BAND,NYLON TUBE
(D) ID=28 L=40 		1-09701-261-0 05 1 0807-0901 ●
269 CLIP; BAND,NYLON TUBE
(D) ID=28 L=40 		1-09701-261-0 01 1 0902- ● ●
269 CLIP; BAND,NYLON TUBE
DIFF LOCK<C3N> (D) ID=28 L=40 		1-09701-261-0 01 1 0902- ●
269 CLIP; BAND,NYLON TUBE
(D) ID=32 L=35 		1-09701-244-0 02 1 0801-0801 ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 25 1 0801-0802 ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 43 1 0803-0806 ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 04 1 0807- ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 03 1 0801-0806 ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 37 1 0807-0808 ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 05 1 0809- ●
269 CLIP; BAND,NYLON TUBE
DIFF LOCK<C3N> (D) ID=35 L=33 		1-09700-945-0 01 1 0902-0910 ●
269 CLIP; BAND,NYLON TUBE
DIFF LOCK<C3N> (D) ID=33 L=30 		8-97619-250-0 01 1 0911- ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 6600MM(66W) (B) L=350 		1-09707-183-0 32 1 0809-0901 ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 6600MM(66W) (B) L=350 		1-09707-183-0 31 1 0902- ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 7100MM(71W) (B) L=350 		1-09707-183-0 31 1 0902- ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 7100MM(71W) (B) L=350 		1-09707-183-0 33 1 0809-0901 ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 6600MM(66W) (B) L=350 		1-09707-183-0 33 1 0809-0901 ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 7100MM(71W) (B) L=350 		1-09707-183-0 32 1 0902- ●
269 CLIP; BAND,NYLON TUBE
(C) ID=28 H=45 L=30 		1-09700-948-0 02 1 0801- ● ●
269 CLIP; BAND,NYLON TUBE
(D) ID=28 L=40 		1-09701-261-0 01 1 0801-0901 ● ●
269 CLIP; BAND,NYLON TUBE
(D) ID=28 L=40 		1-09701-261-0 02 1 0902- ●
269 CLIP; BAND,NYLON TUBE
EXC. DIFF LOCK<C3N> (D) ID=28 L=40 		1-09701-261-0 02 1 0902- ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 06 1 0801-0802 ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 01 1 0803-0803 ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 4900MM(49W) (B) L=350 		1-09707-183-0 02 1 0803-0805 ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 4900MM(49W) (B) L=350 		1-09707-183-0 21 1 0806-1101 ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 03 1 1102- ●
269 CLIP; BAND,NYLON TUBE
(A) ID=39 L=33 		8-98009-359-0 06 1 0801- ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 4900MM(49W) (B) L=350 		1-09707-183-0 20 1 0801-0805 ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 4900MM(49W),WHEEL BASE 7100MM(71W) (B) L=350 		1-09707-183-0 01 1 0806-0809 ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 4900MM(49W),WHEEL BASE 7100MM(71W) (B) L=350 		1-09707-183-0 03 1 0810-1101 ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 7100MM(71W) (B) L=350 		1-09707-183-0 32 1 0801-0802 ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 7100MM(71W) (B) L=350 		1-09707-183-0 31 1 0803-0901 ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 6600MM(66W) (B) L=350 		1-09707-183-0 33 1 0902-1101 ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 6600MM(66W) (B) L=350 		1-09707-183-0 30 1 1102- ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 7100MM(71W) (B) L=350 		1-09707-183-0 01 1 0803-0805 ●
270 CLIP; NYLON TUBE
(A) ID=16 H=25 L=25 		1-09701-162-0 03 1 0801-0809 ●
270 CLIP; NYLON TUBE
DIFF LOCK<C3N> (B) L=350 		1-09707-183-0 01 1 0809- ●
286 CLIP; NYLON TUBE
(A) ID=21 L=30 H=40 		1-09700-991-1 03 1 0801-0805 ●
286 CLIP; NYLON TUBE
EXC. ENGINE REAR PTO(SV1) (A) ID=21 L=30 H=40 		1-09700-991-1 03 1 0801-0805 ●
286 CLIP; NYLON TUBE
(A) ID=21 L=30 H=40 		1-09700-991-1 03 1 0806-0808 ●
286 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) (A) ID=21 L=30 H=40 		1-09700-991-1 03 1 0806-0808 ●
286 CLIP; NYLON TUBE
(A) ID=21 L=30 H=40 		1-09700-991-1 03 1 0809- ●
286 CLIP; NYLON TUBE
WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) (A) ID=21 L=30 H=40 		1-09700-991-1 03 1 0809- ●
286 CLIP; NYLON TUBE
(B) L=350 		1-09707-183-0 02 1 0801-0805 ●
286 CLIP; NYLON TUBE
EXC. ENGINE REAR PTO(SV1) (B) L=350 		1-09707-183-0 02 1 0801-0805 ●
286 CLIP; NYLON TUBE
(B) L=350 		1-09707-183-0 02 1 0806-0808 ●
286 CLIP; NYLON TUBE
WHEEL BASE 7100MM(71W) (B) L=350 		1-09707-183-0 02 1 0806-0808 ●
286 CLIP; NYLON TUBE
(B) L=350 		1-09707-183-0 02 1 0809- ●
286 CLIP; NYLON TUBE
WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) (B) L=350 		1-09707-183-0 02 1 0809- ●
286 CLIP; NYLON TUBE
WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1) (A) ID=21 L=30 H=40 		1-09700-991-1 02 1 0806- ●
286 CLIP; NYLON TUBE
WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1) (B) L=350 		1-09707-183-0 03 1 0806- ●
298 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 03 1 0801-0805 ●
298 BOLT; CLIP
EXC. ENGINE REAR PTO(SV1) M8X25 FLANGE 		0-28650-825-0 03 1 0801-0805 ●
298 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 03 1 0806-0808 ●
298 BOLT; CLIP
WHEEL BASE 7100MM(71W) M8X25 FLANGE 		0-28650-825-0 03 1 0806-0808 ●
298 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 03 1 0809- ●
298 BOLT; CLIP
WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) M8X25 FLANGE 		0-28650-825-0 03 1 0809- ●
298 BOLT; CLIP
WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1) M8X25 FLANGE 		0-28650-825-0 02 1 0806- ●
299 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0801-0805 ●
299 NUT; CLIP
EXC. ENGINE REAR PTO(SV1) M8 FLANGE 		0-91180-108-0 03 1 0801-0805 ●
299 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0806-0808 ●
299 NUT; CLIP
WHEEL BASE 7100MM(71W) M8 FLANGE 		0-91180-108-0 03 1 0806-0808 ●
299 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0809- ●
299 NUT; CLIP
WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) M8 FLANGE 		0-91180-108-0 03 1 0809- ●
299 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0801- ● ●
299 NUT; CLIP
WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1) M8 FLANGE 		0-91180-108-0 02 1 0806- ●
331 CLIP; NYLON TUBE
(A) ID=6 H=20 L=20 		1-09700-603-0 01 1 0801- ● ●
331 CLIP; NYLON TUBE
(B) L=350 		1-09707-183-0 03 1 0801- ● ●
338 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0801- ● ●

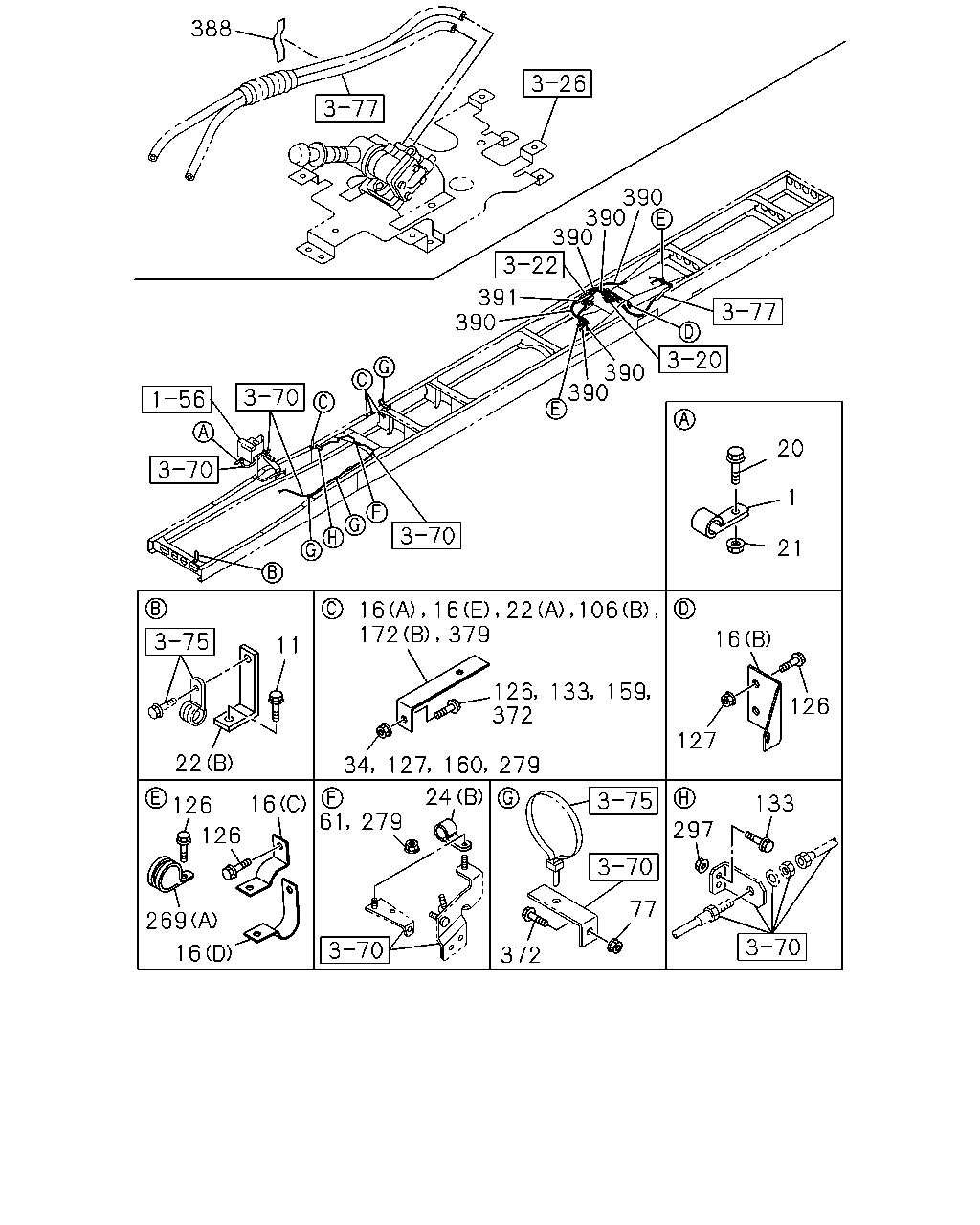

çizim 113247
388 390 390 390 391 390 390 390 20 1 21 16 106 16 11 126 372 133 159 126 127 22 34 127 160 279 24 61 133 16 126 279 297 126 77 269 16 372 16 22 172 379
BalonParca AdiParca NoAdetTipApplied Date A B
1 CLIP; AIR PIPE
ID=7 L=40 		0-95234-675-0 01 1 0801- ● ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0801-0802 ● ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0801-0802 ●
11 BOLT; CLIP BRKT
WHEEL BASE 7100MM(71W) M8X25 FLANGE 		0-28650-825-0 01 1 0801-0802 ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0803-0803 ● ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0803-0803 ● ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0803-0803 ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0803-0805 ● ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0803-0805 ● ●
11 BOLT; CLIP BRKT
WHEEL BASE 7100MM(71W) M8X25 FLANGE 		0-28650-825-0 01 1 0803-0805 ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0806-0809 ● ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0806-0809 ● ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0806-0809 ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0810-1101 ● ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0810-1101 ● ●
11 BOLT; CLIP BRKT
WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) M8X25 FLANGE 		0-28650-825-0 01 1 0810-1101 ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1102- ● ●
11 BOLT; CLIP BRKT
WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) M8X25 FLANGE 		0-28650-825-0 01 1 1102- ● ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1102- ●
11 BOLT; CLIP BRKT
WHEEL BASE 4900MM(49W) M8X25 FLANGE 		0-28650-825-0 02 1 0801-0802 ●
11 BOLT; CLIP BRKT
WHEEL BASE 4900MM(49W) M8X25 FLANGE 		0-28650-825-0 02 1 0803-0805 ●
11 BOLT; CLIP BRKT
WHEEL BASE 4900MM(49W) M8X30 FLANGE 		0-28650-830-0 01 1 0810- ●
11 BOLT; CLIP BRKT
WHEEL BASE 7100MM(71W) M8X25 FLANGE 		0-28650-825-0 03 1 0801-0802 ●
16 BRACKET; PIPE CLIP
(A) 		1-34656-009-0 02 1 0801-0901 ●
16 BRACKET; PIPE CLIP
(A) 		1-34656-009-0 01 1 0902- ●
16 BRACKET; PIPE CLIP
(B) 		1-47476-699-2 01 1 0801- ●
16 BRACKET; PIPE CLIP
(F) L=100 H=30 		1-47477-645-2 01 1 0801- ●
16 BRACKET; PIPE CLIP
(C) 		1-47478-588-0 01 1 0801- ●
16 BRACKET; PIPE CLIP
(C) 		1-47478-588-0 01 1 0801- ●
16 BRACKET; PIPE CLIP
(D) 		1-47478-589-0 01 1 0801-0806 ●
16 BRACKET; PIPE CLIP
(D) 		1-47478-589-0 01 1 0801-0806 ●
16 BRACKET; PIPE CLIP
(D) 		1-47479-249-0 01 1 0807- ●
16 BRACKET; PIPE CLIP
(D) 		1-47479-249-0 01 1 0807- ●
16 BRACKET; PIPE CLIP
(G) 		1-47479-598-0 01 1 0801- ●
16 BRACKET; PIPE CLIP
(E) L=60 H=30 		1-47477-716-1 01 1 0801-0805 ●
16 BRACKET; PIPE CLIP
WHEEL BASE 7100MM(71W) (E) L=60 H=30 		1-47477-716-1 01 1 0806-0808 ●
16 BRACKET; PIPE CLIP
WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) (E) L=60 H=30 		1-47477-716-1 01 1 0809- ●
16 BRACKET; PIPE CLIP
(H) 		1-47479-546-0 02 1 0801- ●
16 BRACKET; PIPE CLIP
(I) 		1-47479-720-0 02 1 0801- ●
16 BRACKET; PIPE CLIP
(J) 		1-47479-901-0 02 1 0801- ●
16 BRACKET; PIPE CLIP
(K) 		8-98086-226-0 01 1 0801- ●
16 BRACKET; PIPE CLIP
(L) 		8-98110-074-0 01 1 0801- ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 03 1 0801-0901 ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0801-0901 ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0902- ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0902- ●
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0801- ● ●
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0801- ● ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0801-0901 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0902- ● ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0902- ● ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0902- ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0902- ●
21 NUT; CLIP
M8 		0-91110-508-0 01 1 0807- ●
21 NUT; CLIP
M8 		0-91110-508-0 01 1 0807- ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0801-0901 ● ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0801-0901 ● ●
22 BRACKET; CLIP
(B) L=145 		1-47475-655-0 01 1 0801- ● ●
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 01 1 0801-0803 ● ●
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 01 1 0801-0803 ● ●
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 02 1 0804-1101 ● ●
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 01 1 1102-1112 ● ●
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 01 1 1102-1112 ● ●
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 01 1 1201- ● ●
22 BRACKET; CLIP
(E) L=95 		1-82698-557-0 01 1 0801- ● ●
22 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 01 1 0801- ●
22 BRACKET; CLIP
(F) 		1-47479-554-0 01 1 0801- ●
22 BRACKET; CLIP
WHEEL BASE 7100MM(71W) (D) 		1-47479-693-0 01 1 0801-0802 ●
22 BRACKET; CLIP
(D) 		1-47479-693-0 01 1 0801-0802 ●
22 BRACKET; CLIP
WHEEL BASE 7100MM(71W) (D) 		1-47479-693-0 01 1 0801-0802 ●
22 BRACKET; CLIP
(D) 		1-47479-693-0 01 1 0803-0803 ●
22 BRACKET; CLIP
WHEEL BASE 4900MM(49W) (D) 		1-47479-693-0 02 1 0803-0805 ●
22 BRACKET; CLIP
(D) 		1-47479-693-0 01 1 0806- ●
22 BRACKET; CLIP
WHEEL BASE 7100MM(71W) (D) 		1-47479-693-0 01 1 0803-0805 ●
24 CLIP; PIPE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 0801- ● ●
24 CLIP; PIPE
EXC. ENGINE REAR PTO(SV1) (B) ID=25 L=50 		1-09701-019-0 03 1 0801-1101 ● ●
24 CLIP; PIPE
(B) ID=25 L=50 		1-09701-019-0 03 1 1102- ●
24 CLIP; PIPE
EXC. ENGINE REAR PTO(SV1) (B) ID=25 L=50 		1-09701-019-0 03 1 1102- ●
24 CLIP; PIPE
ENGINE REAR PTO(SV1) (B) ID=25 L=50 		1-09701-019-0 02 1 0801- ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0801- ● ●
61 NUT; CLIP FIX
EXC. ENGINE REAR PTO(SV1) M8 FLANGE 		0-91180-108-0 03 1 0801-1101 ● ●
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 03 1 1102- ●
61 NUT; CLIP FIX
EXC. ENGINE REAR PTO(SV1) M8 FLANGE 		0-91180-108-0 03 1 1102- ●
61 NUT; CLIP FIX
ENGINE REAR PTO(SV1) M8 FLANGE 		0-91180-108-0 02 1 0801- ●
77 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 0801-0808 ●
77 NUT; CLIP BRKT
WHEEL BASE 7100MM(71W) M8 FLANGE 		0-91180-108-0 01 1 0801-0808 ●
77 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 0809- ●
77 NUT; CLIP BRKT
WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) M8 FLANGE 		0-91180-108-0 01 1 0809- ●
106 BRACKET; TUBE CLIP
(B) L=115 H=30 		1-47477-715-3 01 1 0801-0801 ●
106 BRACKET; TUBE CLIP
(B) L=115 H=30 		1-47477-715-3 01 1 0802-0808 ●
106 BRACKET; TUBE CLIP
WHEEL BASE 7100MM(71W) (B) L=115 H=30 		1-47477-715-3 01 1 0802-0808 ●
106 BRACKET; TUBE CLIP
(B) L=115 H=30 		1-47477-715-3 01 1 0809- ●
106 BRACKET; TUBE CLIP
WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) (B) L=115 H=30 		1-47477-715-3 01 1 0809- ●
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 03 1 0801-0802 ● ●
106 BRACKET; TUBE CLIP
EXC. ENGINE REAR PTO(SV1) (A) L=100 H=30 		1-47477-645-2 03 1 0803-0806 ● ●
106 BRACKET; TUBE CLIP
SHIFT PATTERN SINGLE-H<EDY> (A) L=100 H=30 		1-47477-645-2 01 1 0807- ● ●
106 BRACKET; TUBE CLIP
(E) L=90 		1-47477-755-1 02 1 0801- ● ●
106 BRACKET; TUBE CLIP
ENGINE REAR PTO(SV1) (A) L=100 H=30 		1-47477-645-2 01 1 0803-0803 ●
106 BRACKET; TUBE CLIP
TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (A) L=100 H=30 		1-47477-645-2 01 1 0804-0806 ●
106 BRACKET; TUBE CLIP
ENGINE REAR PTO(SV1) (D) 		1-47479-598-0 02 1 0803-0803 ●
106 BRACKET; TUBE CLIP
TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (D) 		1-47479-598-0 02 1 0804-0806 ●
106 BRACKET; TUBE CLIP
SHIFT PATTERN SINGLE-H<EDY> (D) 		1-47479-598-0 02 1 0807- ● ●
106 BRACKET; TUBE CLIP
WHEEL BASE 4900MM(49W) (C) 		1-47477-571-3 01 1 0801-0801 ●
106 BRACKET; TUBE CLIP
WHEEL BASE 4900MM(49W) (E) L=60 H=30 		1-47477-716-1 01 1 0802- ●
126 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0801-0901 ●
126 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0801-0901 ●
126 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 0902- ●
126 BOLT; CLIP BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 0801-0806 ● ●
126 BOLT; CLIP BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 0801-0806 ●
126 BOLT; CLIP BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0807- ●
126 BOLT; CLIP BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0807- ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0801-0805 ● ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0806- ● ●
126 BOLT; CLIP BRKT
WHEEL BASE 4900MM(49W) M8X25 FLANGE 		0-28650-825-0 02 1 0806- ●
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28050-812-0 04 1 0801- ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 03 1 0801-0805 ●
126 BOLT; CLIP BRKT
WHEEL BASE 7100MM(71W) M8X25 FLANGE 		0-28650-825-0 03 1 0806-0808 ●
126 BOLT; CLIP BRKT
WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) M8X25 FLANGE 		0-28650-825-0 03 1 0809- ●
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 0801- ●
126 BOLT; CLIP BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 0807- ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 0801-0901 ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 05 1 0902- ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 04 1 0801-0805 ● ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 04 1 0801-0805 ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 04 1 0806-0808 ● ●
127 NUT; CLIP BRKT
WHEEL BASE 7100MM(71W) M8 FLANGE 		0-91180-108-0 04 1 0806-0808 ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 04 1 0809-0901 ● ●
127 NUT; CLIP BRKT
WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) M8 FLANGE 		0-91180-108-0 04 1 0809-0901 ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 04 1 0902- ●
127 NUT; CLIP BRKT
WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) M8 FLANGE 		0-91180-108-0 04 1 0902- ●
127 NUT; CLIP BRKT
WHEEL BASE 4900MM(49W) M8 FLANGE 		0-91180-108-0 03 1 0806- ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 05 1 0801-0803 ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0804- ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0801- ● ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 04 1 0801- ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 03 1 0804- ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28050-825-0 01 1 0801- ●
159 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0801-0802 ●
160 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 0801-0802 ●
160 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 0801- ●
172 BRACKET; TUBE CLIP
(B) L=60 H=30 		1-47477-716-1 01 1 0801-0802 ●
172 BRACKET; TUBE CLIP
(A) 		1-47479-693-0 01 1 0801-0802 ●
172 BRACKET; TUBE CLIP
(C) 		1-47479-554-0 01 1 0801- ●
269 CLIP; BAND,NYLON TUBE
(D) ID=35 L=35 		1-09700-895-0 03 1 0801-0801 ●
269 CLIP; BAND,NYLON TUBE
(D) ID=35 L=33 		1-09700-945-0 05 1 0802-0806 ●
269 CLIP; BAND,NYLON TUBE
(D) ID=28 L=40 		1-09701-261-0 05 1 0807-0901 ●
269 CLIP; BAND,NYLON TUBE
(D) ID=28 L=40 		1-09701-261-0 01 1 0902- ● ●
269 CLIP; BAND,NYLON TUBE
DIFF LOCK<C3N> (D) ID=28 L=40 		1-09701-261-0 01 1 0902- ●
269 CLIP; BAND,NYLON TUBE
(D) ID=32 L=35 		1-09701-244-0 02 1 0801-0801 ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 25 1 0801-0802 ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 43 1 0803-0806 ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 04 1 0807- ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 03 1 0801-0806 ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 37 1 0807-0808 ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 05 1 0809- ●
269 CLIP; BAND,NYLON TUBE
DIFF LOCK<C3N> (D) ID=35 L=33 		1-09700-945-0 01 1 0902-0910 ●
269 CLIP; BAND,NYLON TUBE
DIFF LOCK<C3N> (D) ID=33 L=30 		8-97619-250-0 01 1 0911- ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 6600MM(66W) (B) L=350 		1-09707-183-0 32 1 0809-0901 ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 6600MM(66W) (B) L=350 		1-09707-183-0 31 1 0902- ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 7100MM(71W) (B) L=350 		1-09707-183-0 31 1 0902- ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 7100MM(71W) (B) L=350 		1-09707-183-0 33 1 0809-0901 ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 6600MM(66W) (B) L=350 		1-09707-183-0 33 1 0809-0901 ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 7100MM(71W) (B) L=350 		1-09707-183-0 32 1 0902- ●
269 CLIP; BAND,NYLON TUBE
(C) ID=28 H=45 L=30 		1-09700-948-0 02 1 0801- ● ●
269 CLIP; BAND,NYLON TUBE
(D) ID=28 L=40 		1-09701-261-0 01 1 0801-0901 ● ●
269 CLIP; BAND,NYLON TUBE
(D) ID=28 L=40 		1-09701-261-0 02 1 0902- ●
269 CLIP; BAND,NYLON TUBE
EXC. DIFF LOCK<C3N> (D) ID=28 L=40 		1-09701-261-0 02 1 0902- ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 06 1 0801-0802 ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 01 1 0803-0803 ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 4900MM(49W) (B) L=350 		1-09707-183-0 02 1 0803-0805 ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 4900MM(49W) (B) L=350 		1-09707-183-0 21 1 0806-1101 ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 03 1 1102- ●
269 CLIP; BAND,NYLON TUBE
(A) ID=39 L=33 		8-98009-359-0 06 1 0801- ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 4900MM(49W) (B) L=350 		1-09707-183-0 20 1 0801-0805 ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 4900MM(49W),WHEEL BASE 7100MM(71W) (B) L=350 		1-09707-183-0 01 1 0806-0809 ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 4900MM(49W),WHEEL BASE 7100MM(71W) (B) L=350 		1-09707-183-0 03 1 0810-1101 ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 7100MM(71W) (B) L=350 		1-09707-183-0 32 1 0801-0802 ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 7100MM(71W) (B) L=350 		1-09707-183-0 31 1 0803-0901 ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 6600MM(66W) (B) L=350 		1-09707-183-0 33 1 0902-1101 ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 6600MM(66W) (B) L=350 		1-09707-183-0 30 1 1102- ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 7100MM(71W) (B) L=350 		1-09707-183-0 01 1 0803-0805 ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 0801-0801 ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 0802-0803 ●
279 NUT; BRKT
WHEEL BASE 7100MM(71W) M8 FLANGE 		0-91180-108-0 05 1 0802-0803 ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 0804-0809 ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 0810- ●
279 NUT; BRKT
WHEEL BASE 7100MM(71W) M8 FLANGE 		0-91180-108-0 05 1 0810- ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0801- ● ●
279 NUT; BRKT
WHEEL BASE 4900MM(49W) M8 FLANGE 		0-91180-108-0 06 1 0801-0803 ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 06 1 0804-0809 ●
279 NUT; BRKT
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 06 1 0810- ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0801- ● ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0801- ● ●
297 NUT; BRKT
EXC. ENGINE REAR PTO(SV1) M8 FLANGE 		0-91180-108-0 02 1 0801- ●
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0801-0808 ●
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0801-0808 ●
372 BOLT; CLIP BRKT
EXC. ENGINE REAR PTO(SV1) M8X25 FLANGE 		0-28650-825-0 02 1 0801-0808 ●
372 BOLT; CLIP BRKT
WHEEL BASE 7100MM(71W) M8X25 FLANGE 		0-28650-825-0 02 1 0801-0808 ●
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0809-0809 ●
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0809-0809 ●
372 BOLT; CLIP BRKT
EXC. ENGINE REAR PTO(SV1) M8X25 FLANGE 		0-28650-825-0 02 1 0809-0809 ●
372 BOLT; CLIP BRKT
WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) M8X25 FLANGE 		0-28650-825-0 02 1 0809-0809 ●
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0810- ●
372 BOLT; CLIP BRKT
WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) M8X25 FLANGE 		0-28650-825-0 02 1 0810- ●
372 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0810- ●
372 BOLT; CLIP BRKT
EXC. ENGINE REAR PTO(SV1) M8X30 FLANGE 		0-28650-830-0 02 1 0810- ●
379 BRACKET; NYLON TUBE
L=60 H=30 		1-47477-716-1 02 1 0801- ●
379 BRACKET; NYLON TUBE
EXC. ENGINE REAR PTO(SV1) L=60 H=30 		1-47477-716-1 02 1 0801- ●
388 SEAL
100X40 		1-72498-022-1 03 1 0801- ● ●
390 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0801- ● ●
390 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0801- ● ●
390 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0801- ● ●
390 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0801- ● ●
391 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0801- ● ●
391 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0801- ● ●
391 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 0801- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
