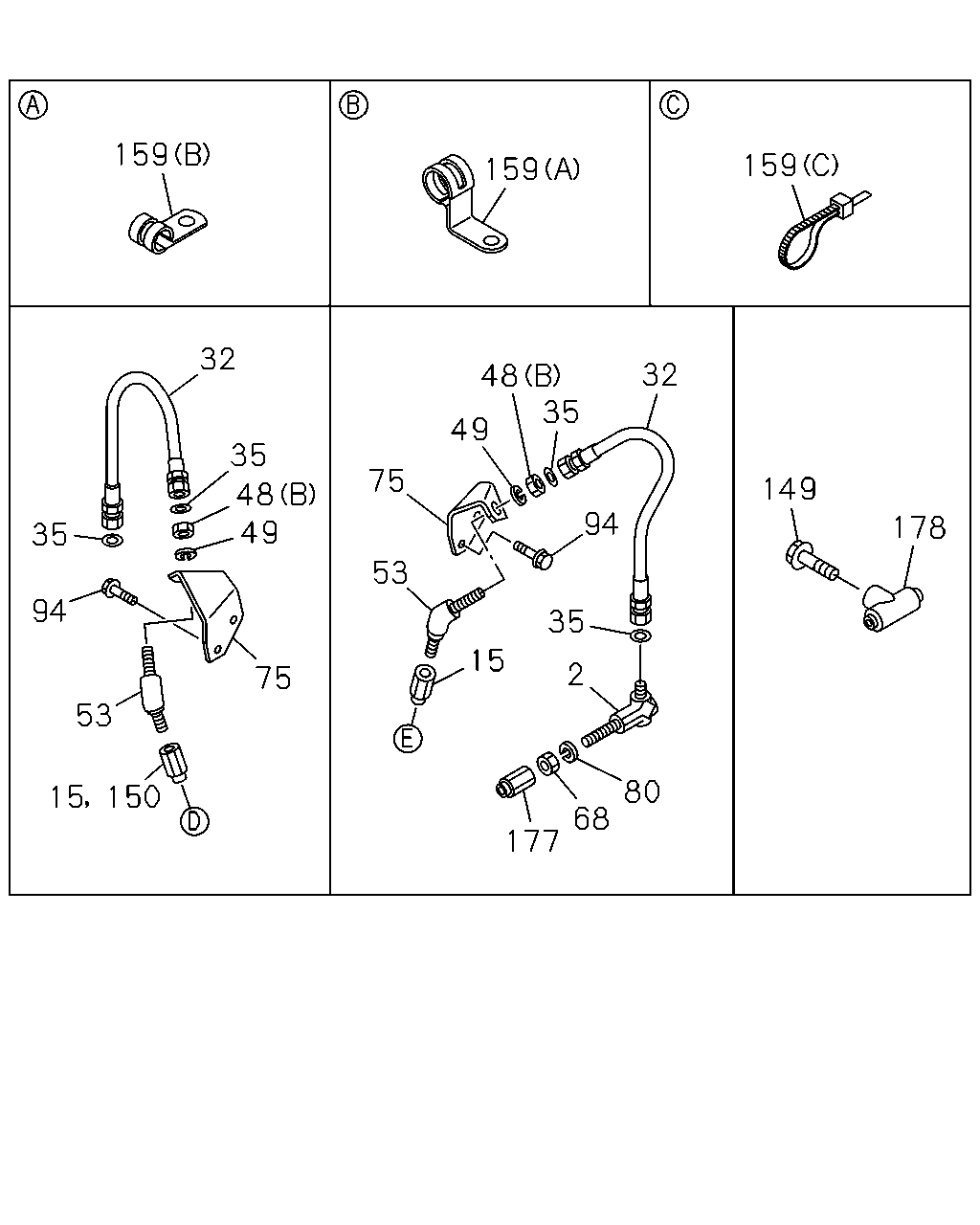

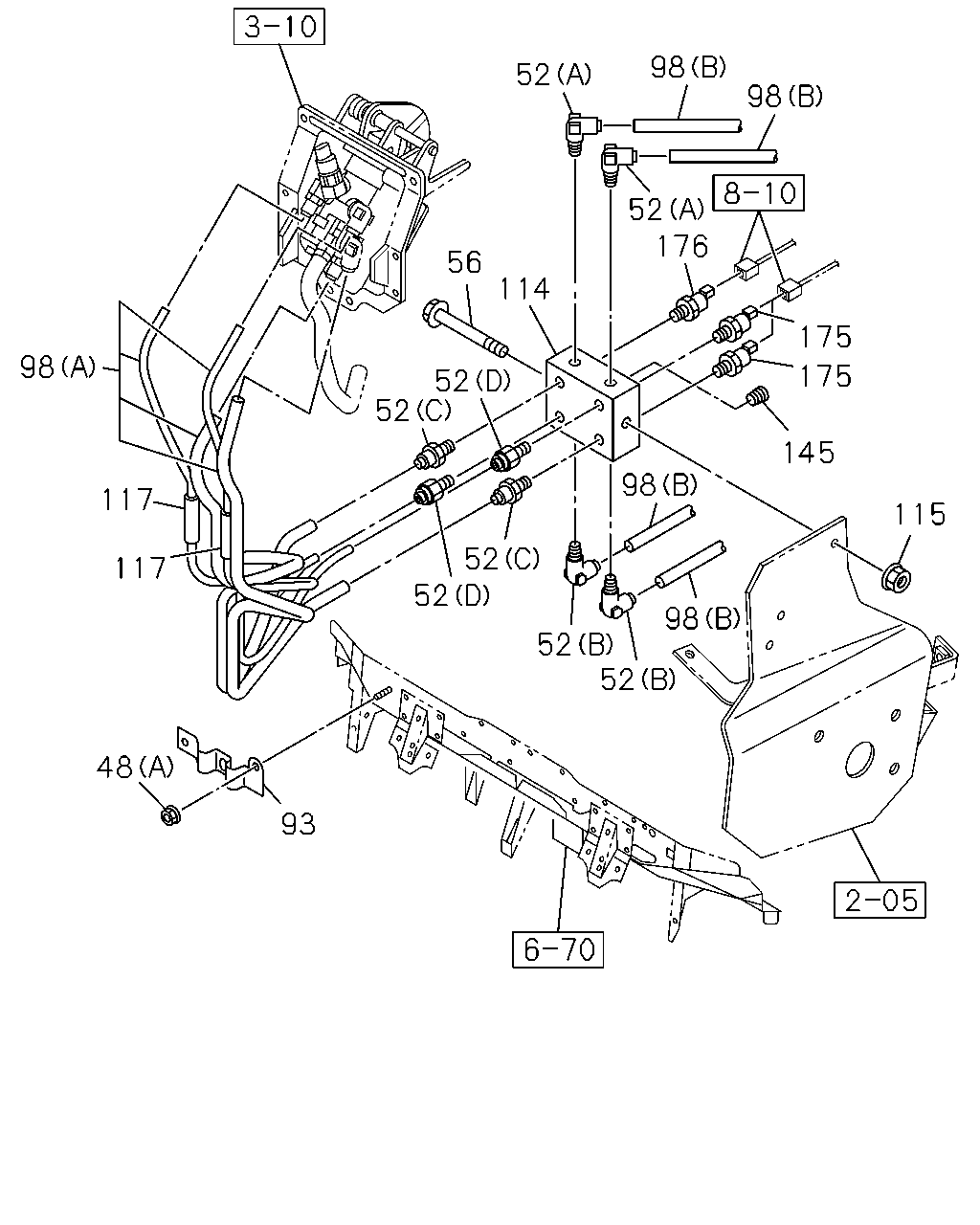

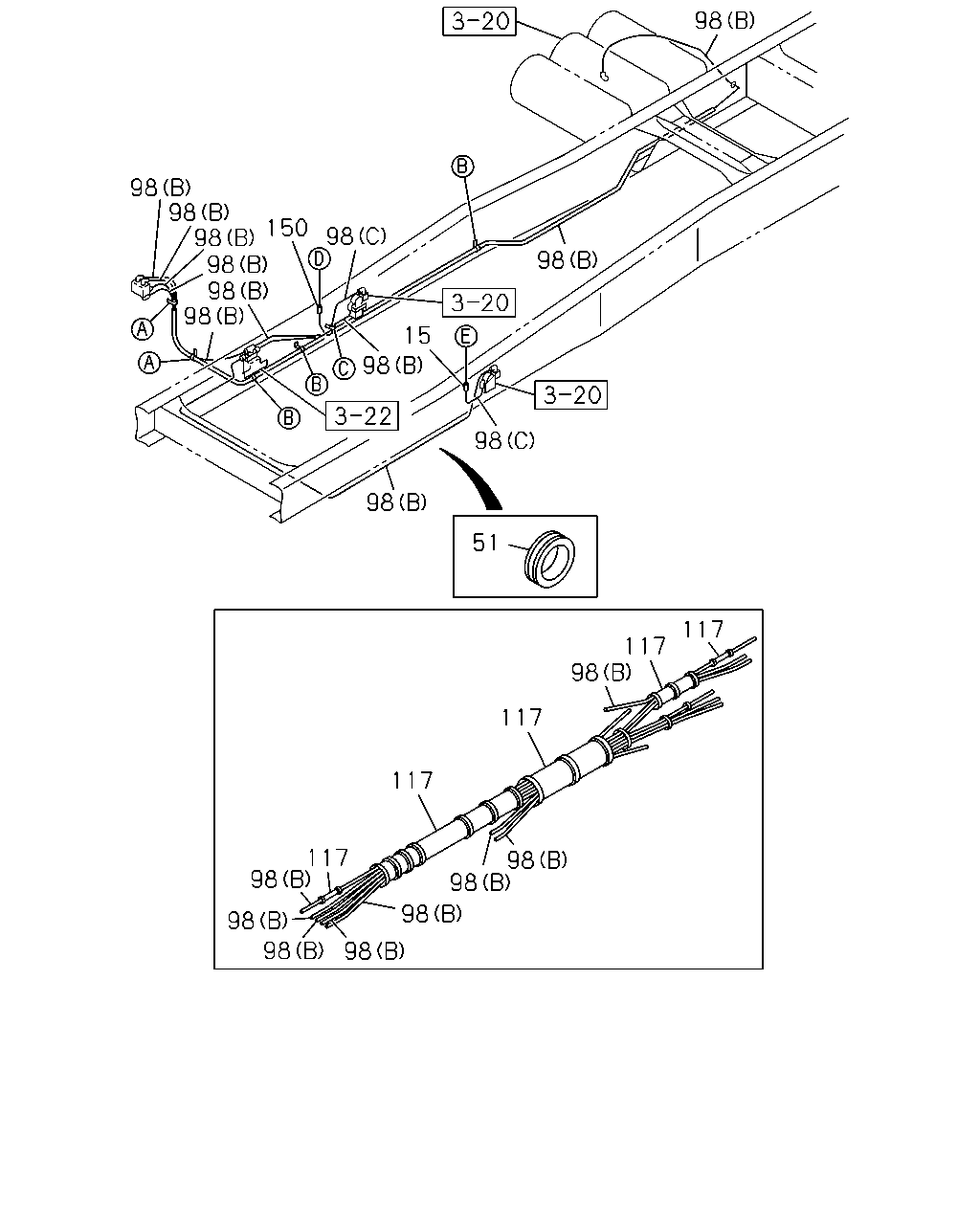

3-75 — BRAKE PIPING; AIR,FRONT (#45167) — 102 parça

159 159 159 32 32 48 35 49 35 75 149 48 49 94 178 35 53 94 35 15 2 75 53 80 15 150 68 177

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	UNION; AIR PIPE M20 & M20 ELBOW	1-09654-128-1	02	1	0801-	●	●
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0801-0805	●	●
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0806-1201	●	●
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1202-	●	●
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1202-	●	●
32	HOSE; FLEX,FRT	0-87847-470-1	02	1	0801-	●	●
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	0801-	●	●
48	NUT; UNION BRKT (B) M20	0-91111-520-0	01	1	0801-	●	●
48	NUT; UNION BRKT (A) M6 FLANGE	0-91180-106-0	02	1	0801-	●	●
49	WASHER; LK,UNION BRKT ID=20.2	0-91510-520-0	01	1	0801-	●	●
53	UNION; ELBOW M20	1-09654-199-2	02	1	0801-	●	●
68	NUT; UNION M20	0-91111-520-0	01	1	0801-	●	●
68	NUT; UNION M20	0-91111-520-0	02	1	0801-	●	●
75	BRACKET; UNION	8-98111-429-0	01	1	0801-	●	●
75	BRACKET; UNION	8-98111-430-0	01	1	0801-	●	●
80	WASHER; LK,UNION ID=20.2	0-91510-520-0	01	1	0801-	●	●
80	WASHER; LK,UNION ID=20.2	0-91510-520-0	02	1	0801-	●	●
94	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	04	1	0801-	●	●
149	BOLT; UNION EXC. ANTILOCK BRAKE SYSTEM(BFA) M8X20 FLANGE	0-28650-820-0	01	1	0804-		●
149	BOLT; UNION EXC. ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE	0-28650-825-0	01	1	0804-		●
150	ADAPTER; CONT,NEUTRAL BUS STOP DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0801-0805	●	●
159	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	15	1	0801-0802	●
159	CLIP; NYLON TUBE WHEEL BASE 4900MM(49W),WHEEL BASE 7100MM(71W) (C) L=350	1-09707-183-0	15	1	0801-0802		●
159	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	15	1	0803-0808	●
159	CLIP; NYLON TUBE WHEEL BASE 7100MM(71W) (C) L=350	1-09707-183-0	15	1	0803-0808		●
159	CLIP; NYLON TUBE WHEEL BASE 6600MM(66W) (C) L=350	1-09707-183-0	14	1	0809-0901	●
159	CLIP; NYLON TUBE WHEEL BASE 4900MM(49W) (C) L=350	1-09707-183-0	14	1	0809-0901		●
159	CLIP; NYLON TUBE WHEEL BASE 6600MM(66W) (C) L=350	1-09707-183-0	15	1	0902-0910	●
159	CLIP; NYLON TUBE WHEEL BASE 6600MM(66W) (C) L=350	1-09707-183-0	16	1	0911-	●
159	CLIP; NYLON TUBE WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) (C) L=350	1-09707-183-0	16	1	0911-		●
159	CLIP; NYLON TUBE (B) ID=35 L=33	1-09700-945-0	01	1	0801-0801	●	●
159	CLIP; NYLON TUBE (B) ID=39 L=33	8-98009-359-0	01	1	0802-	●	●
159	CLIP; NYLON TUBE (A) ID=21 L=30 H=40	1-09700-991-1	01	1	0801-0802	●	●
159	CLIP; NYLON TUBE (A) ID=31 H=30 L=35	1-09700-994-0	02	1	0801-	●	●
159	CLIP; NYLON TUBE (B) ID=26 L=26	1-09701-236-0	01	1	0801-	●	●
159	CLIP; NYLON TUBE (B) ID=29 L=35	5-09700-293-1	01	1	0801-	●	●
159	CLIP; NYLON TUBE WHEEL BASE 4900MM(49W) (C) L=350	1-09707-183-0	16	1	0803-0804		●
159	CLIP; NYLON TUBE WHEEL BASE 4900MM(49W) (C) L=350	1-09707-183-0	14	1	0805-0808		●
159	CLIP; NYLON TUBE WHEEL BASE 7100MM(71W) (C) L=350	1-09707-183-0	15	1	0809-0901	●
159	CLIP; NYLON TUBE WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) (C) L=350	1-09707-183-0	15	1	0809-0901		●
159	CLIP; NYLON TUBE WHEEL BASE 7100MM(71W) (C) L=350	1-09707-183-0	16	1	0902-0910	●
159	CLIP; NYLON TUBE WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) (C) L=350	1-09707-183-0	16	1	0902-0910		●
159	CLIP; NYLON TUBE WHEEL BASE 7100MM(71W) (C) L=350	1-09707-183-0	17	1	0911-	●
159	CLIP; NYLON TUBE WHEEL BASE 4900MM(49W) (C) L=350	1-09707-183-0	14	1	0902-		●
177	CONNECTOR DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0801-	●	●
178	UNION EXC. ANTILOCK BRAKE SYSTEM(BFA) DIN7.5X2 & M8 2WAY	1-09661-128-0	02	1	0804-		●

98 52 98 52 176 56 114 175 98 175 52 52 145 98 117 115 52 52 117 98 52 52 48 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	NUT; UNION BRKT (B) M20	0-91111-520-0	01	1	0801-	●	●
48	NUT; UNION BRKT (A) M6 FLANGE	0-91180-106-0	02	1	0801-	●	●
52	CONNECTOR; NYLON TUBE (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0801-	●	●
52	CONNECTOR; NYLON TUBE (B) DIN12 & R1/4 ELBOW	1-09660-958-0	02	1	0801-	●	●
52	CONNECTOR; NYLON TUBE (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	02	1	0801-	●	●
52	CONNECTOR; NYLON TUBE (C) DIN12 & R1/4 STRAIGHT	1-09660-967-0	02	1	0801-	●	●
56	BOLT; UNION BRKT M8X100 FLANGE	0-28050-800-0	01	1	0801-	●	●
93	BRACKET; UNION,TUBE	8-98044-013-0	01	1	0801-1201	●	●
93	BRACKET; UNION,TUBE	8-98186-924-0	01	1	1202-	●	●
98	TUBE; NYLON (A)	8-98091-307-0	01	1	0801-	●	●
98	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (C) L=240 OD=12	8-98096-505-0	02	1	0801-	●	●
98	TUBE; NYLON EXC. ANTILOCK BRAKE SYSTEM(BFA) (C)	8-98086-217-0	01	1	0804-		●
98	TUBE; NYLON EXC. ANTILOCK BRAKE SYSTEM(BFA) (C)	8-98106-552-0	01	1	0804-		●
98	TUBE; NYLON (B) SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	0801-	●	●
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0801-	●	●
98	TUBE; NYLON (B) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0801-	●	●
98	TUBE; NYLON (B) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0801-	●	●
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0801-	●	●
98	TUBE; NYLON (B) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0801-	●	●
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0801-	●	●
114	UNION; NYLON TUBE	8-98057-394-1	01	1	0801-	●	●
115	NUT; TUBE UNION M8 FLANGE	0-91180-108-0	02	1	0801-0802	●	●
115	NUT; TUBE UNION M8 FLANGE	0-91180-108-0	01	1	0803-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0801-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0801-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=13	1-87411-023-0	AR	1	0801-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	0801-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	0801-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0801-	●	●
145	PLUG PT1/4	9-99204-513-0	01	1	0801-	●	●
175	SENSOR; AIR PRESS THREAD R1/4	1-80220-023-1	02	1	0801-	●	●
176	SWITCH; AIR PRESS STAMP 0.3	8-98010-857-0	01	1	0801-	●	●

98 98 98 98 98 98 98 150 98 98 15 98 98 98 51 117 117 98 117 117 117 98 98 98 98 98 98 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0801-0805	●	●
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0806-1201	●	●
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1202-	●	●
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1202-	●	●
51	GROMMET; NYLON TUBE EXC. ANTILOCK BRAKE SYSTEM(BFA) ID=28 OD=35 T=25	1-09332-011-1	01	1	0804-		●
51	GROMMET; NYLON TUBE EXC. ANTILOCK BRAKE SYSTEM(BFA) ID=28 OD=35 T=17	9-09956-256-2	01	1	0804-		●
98	TUBE; NYLON (A)	8-98091-307-0	01	1	0801-	●	●
98	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (C) L=240 OD=12	8-98096-505-0	02	1	0801-	●	●
98	TUBE; NYLON EXC. ANTILOCK BRAKE SYSTEM(BFA) (C)	8-98086-217-0	01	1	0804-		●
98	TUBE; NYLON EXC. ANTILOCK BRAKE SYSTEM(BFA) (C)	8-98106-552-0	01	1	0804-		●
98	TUBE; NYLON (B) SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	0801-	●	●
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0801-	●	●
98	TUBE; NYLON (B) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0801-	●	●
98	TUBE; NYLON (B) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0801-	●	●
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0801-	●	●
98	TUBE; NYLON (B) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0801-	●	●
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0801-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0801-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0801-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=13	1-87411-023-0	AR	1	0801-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	0801-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	0801-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0801-	●	●
150	ADAPTER; CONT,NEUTRAL BUS STOP DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0801-0805	●	●
