3-70 — BRAKE PIPING; AIR,AIR MASTER (#45166) — 118 parça

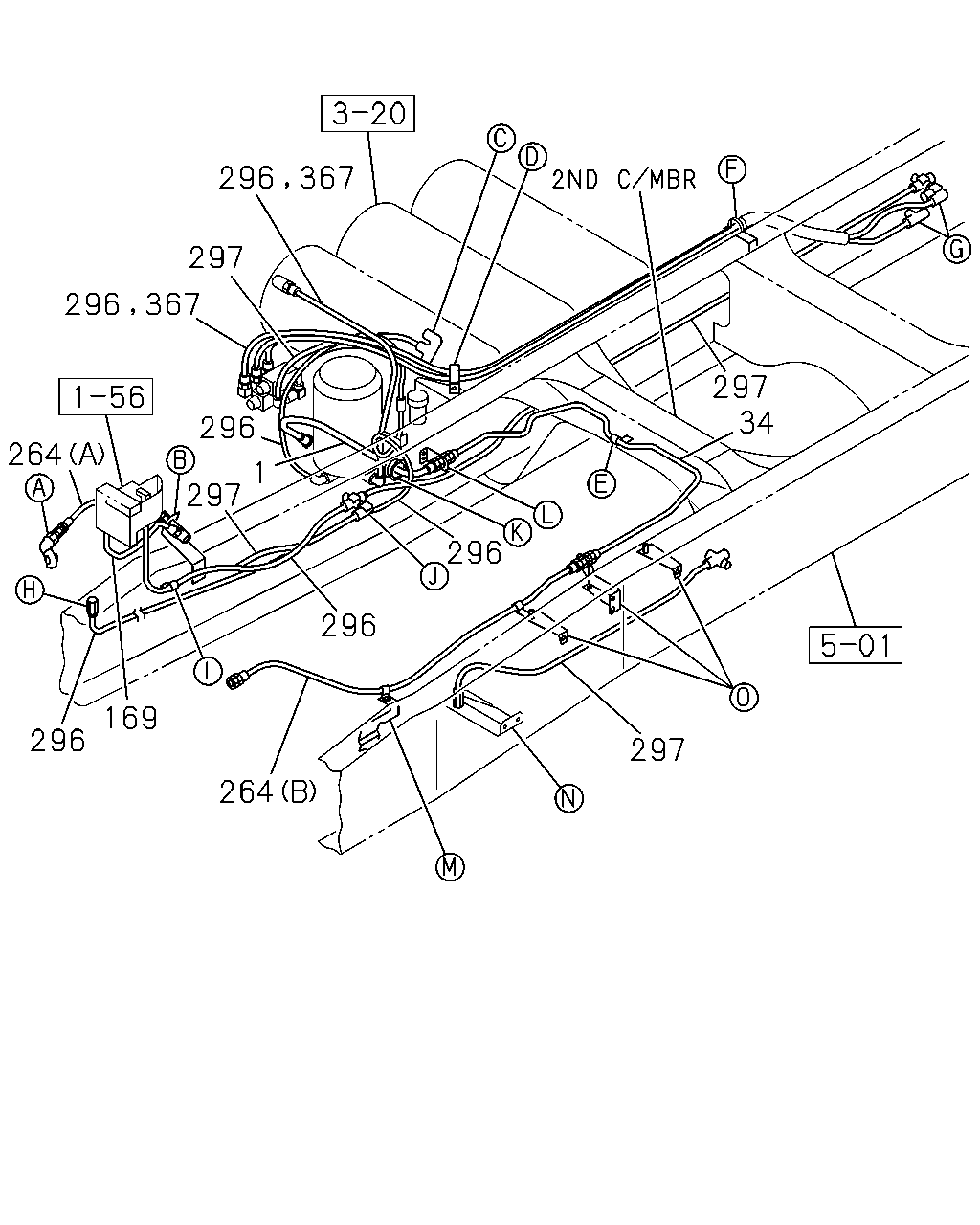

çizim 113223
297 297 34 296 297 264 1 296 296 169 296 297 264 296 367 296 367
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK 8-98100-332-0 01 1 0801- ● ●
34 PIPE; AIR
L=1258 		8-97618-580-0 01 1 0801- ● ●
169 PIPE; AIR,UNION TO FLEX HOSE
L=630 SERVICED BY L=650 		1-47428-810-0 01 1 0801- ● ●
264 HOSE; FLEX
(A) L=360 		1-09363-637-0 01 1 0801- ● ●
264 HOSE; FLEX
EXC. ENGINE REAR PTO(SV1) (B) L=1150 		1-09363-791-0 01 1 0801-1101 ● ●
264 HOSE; FLEX
(B) L=1150 		1-09363-791-0 01 1 1102- ●
264 HOSE; FLEX
EXC. ENGINE REAR PTO(SV1) (B) L=1150 		1-09363-791-0 01 1 1102- ●
264 HOSE; FLEX
ENGINE REAR PTO(SV1) (B) L=1000 		1-09363-794-0 01 1 0801- ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0801- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0801- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0801- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0801- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0801- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0801- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0801- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0801- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0801- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0801- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 0801- ● ●

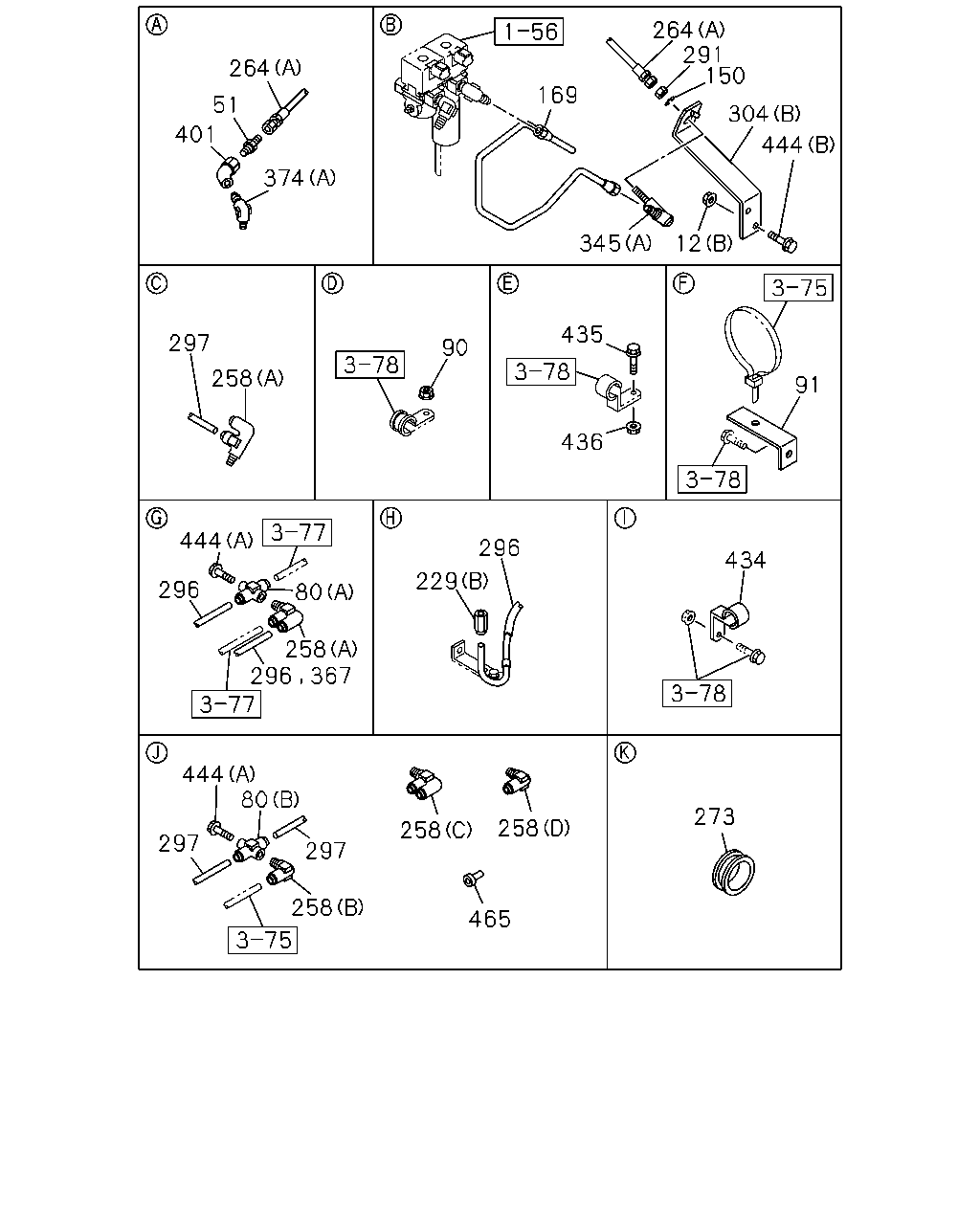

çizim 113230
264 291 150 264 169 51 304 401 444 374 345 12 435 297 90 258 91 436 444 296 434 80 229 296 258 444 80 273 258 258 297 297 258 465 296 367
BalonParca AdiParca NoAdetTipApplied Date A B
12 NUT; UNION
(A) M22 		0-91111-522-0 01 1 0801- ● ●
12 NUT; UNION
(B) M8 FLANGE 		0-91180-108-0 02 1 0801- ● ●
51 UNION
M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0801- ● ●
80 UNION; 3 WAY
(A) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0801- ●
80 UNION; 3 WAY
(B) DIN12X2 & R3/8 3WAY 		1-09661-131-0 01 1 0801-0901 ●
80 UNION; 3 WAY
TRANSMISSION-FULLER RTO11908(Y5L) (B) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0801-0803 ● ●
80 UNION; 3 WAY
(B) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0801-0803 ●
80 UNION; 3 WAY
ZF9S1310 M/T(Y5K) (B) DIN8 & RC3/8 3WAY 		1-09661-129-0 02 1 0801-0803 ● ●
80 UNION; 3 WAY
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (B) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0804- ● ●
80 UNION; 3 WAY
(B) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0804- ● ●
80 UNION; 3 WAY
(B) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0804- ●
90 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0801- ● ●
91 BRACKET; TUBE CLIP
L=60 H=30 		1-47477-716-1 02 1 0801-0808 ●
91 BRACKET; TUBE CLIP
WHEEL BASE 7100MM(71W) L=60 H=30 		1-47477-716-1 02 1 0801-0808 ●
91 BRACKET; TUBE CLIP
L=60 H=30 		1-47477-716-1 02 1 0809- ●
91 BRACKET; TUBE CLIP
WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) L=60 H=30 		1-47477-716-1 02 1 0809- ●
150 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 01 1 0801- ● ●
169 PIPE; AIR,UNION TO FLEX HOSE
L=630 SERVICED BY L=650 		1-47428-810-0 01 1 0801- ● ●
229 ADAPTER; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0801- ● ●
229 ADAPTER; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0801- ● ●
258 CONNECTOR; NYLON TUBE
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0801-0901 ●
258 CONNECTOR; NYLON TUBE
(A) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0801- ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN6 & R3/8 ELBOW 		1-09661-234-0 01 1 0801- ● ●
258 CONNECTOR; NYLON TUBE
ZF9S1310 M/T(Y5K) (C) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0801-0803 ● ●
258 CONNECTOR; NYLON TUBE
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (C) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0804- ● ●
264 HOSE; FLEX
(A) L=360 		1-09363-637-0 01 1 0801- ● ●
264 HOSE; FLEX
EXC. ENGINE REAR PTO(SV1) (B) L=1150 		1-09363-791-0 01 1 0801-1101 ● ●
264 HOSE; FLEX
(B) L=1150 		1-09363-791-0 01 1 1102- ●
264 HOSE; FLEX
EXC. ENGINE REAR PTO(SV1) (B) L=1150 		1-09363-791-0 01 1 1102- ●
264 HOSE; FLEX
ENGINE REAR PTO(SV1) (B) L=1000 		1-09363-794-0 01 1 0801- ●
273 GROMMET
ID=32 OD=40 T=18 		1-09891-003-0 01 1 0801- ● ●
291 NUT; UNION
M12 		9-09840-280-0 01 1 0801- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0801- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0801- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0801- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0801- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0801- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0801- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0801- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0801- ● ●
304 BRACKET; UNION
(A) 		8-97610-362-1 01 1 0801- ● ●
304 BRACKET; UNION
(B) 		8-97615-626-3 01 1 0801- ● ●
345 UNION; AIR PIPE
(B) DIN12X2 & R3/8 3WAY 		1-09661-131-0 01 1 0902- ●
345 UNION; AIR PIPE
(A) M12 ELBOW 		0-92125-206-0 01 1 0801- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0801- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0801- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 0801- ● ●
374 CONNECTOR
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0902- ●
374 CONNECTOR
(A) PT1/4 & PT1/4 2WAY 		1-09660-693-0 01 1 0801- ● ●
401 CONNECTOR; FLEX HOSE
R1/4 & RC1/4 		1-09664-211-0 01 1 0801- ● ●
434 CLIP
ID=8 H=20 L=20 		1-09700-604-0 01 1 0801- ● ●
435 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0801- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0801- ● ●
444 BOLT; UNION
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0801-0803 ● ●
444 BOLT; UNION
TRANSMISSION-FULLER RTO11908(Y5L) (A) M8X20 FLANGE 		0-28650-820-0 01 1 0801-0803 ● ●
444 BOLT; UNION
TRANSMISSION-FULLER RTO11908(Y5L) (A) M8X20 FLANGE 		0-28650-820-0 01 1 0804- ● ●
444 BOLT; UNION
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0804- ● ●
444 BOLT; UNION
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0804- ●
444 BOLT; UNION
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0801- ● ●
444 BOLT; UNION
ZF9S1310 M/T(Y5K) (A) M8X20 FLANGE 		0-28650-820-0 02 1 0801- ● ●
465 PLUG
ZF9S1310 M/T(Y5K) OD=8 PLASTIC 		1-09661-616-0 01 1 0801- ● ●

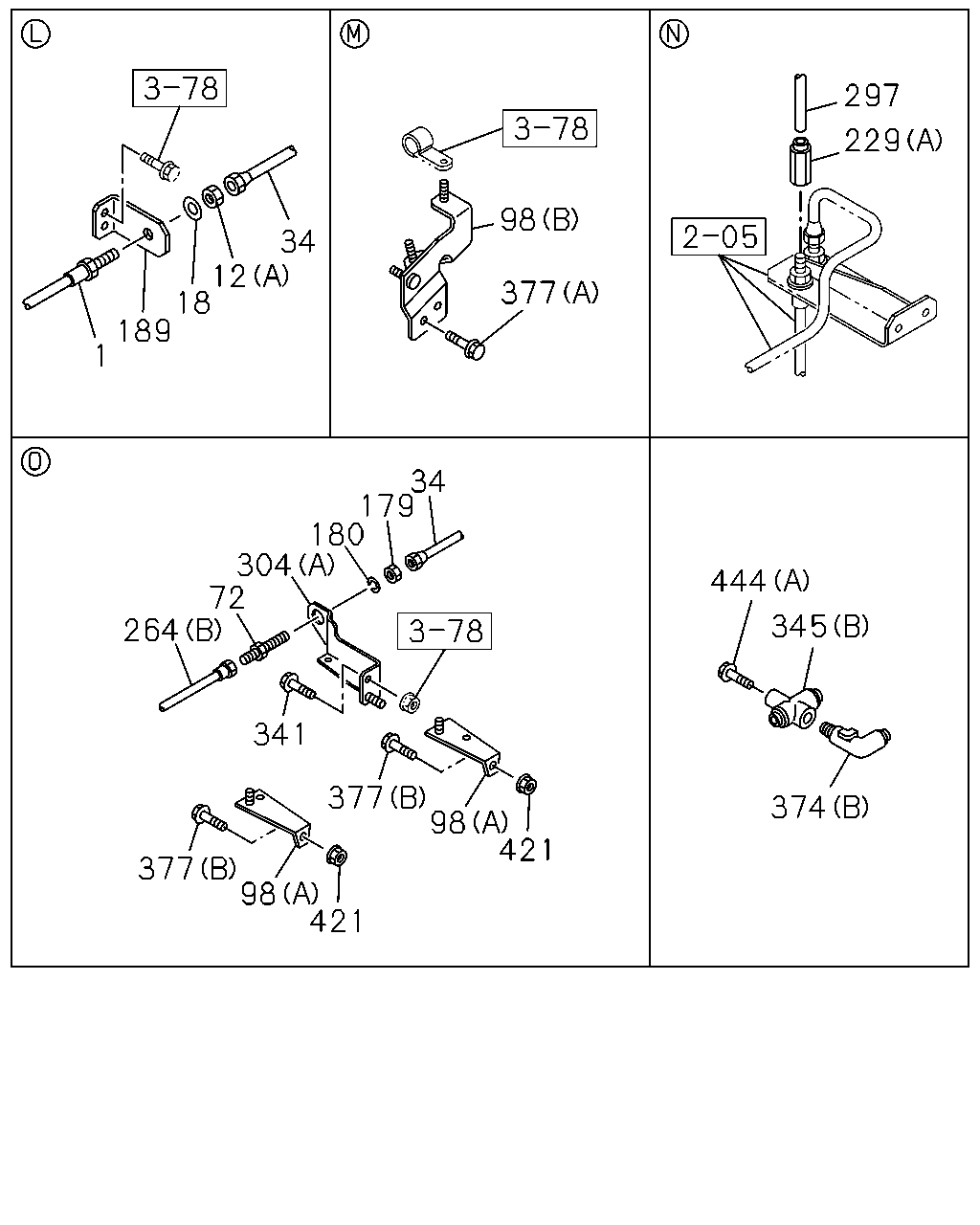

çizim 113234
297 229 98 34 12 18 189 377 1 34 179 180 304 72 264 444 345 341 377 98 374 421 377 98 421
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK 8-98100-332-0 01 1 0801- ● ●
12 NUT; UNION
(A) M22 		0-91111-522-0 01 1 0801- ● ●
12 NUT; UNION
(B) M8 FLANGE 		0-91180-108-0 02 1 0801- ● ●
18 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 01 1 0801- ● ●
34 PIPE; AIR
L=1258 		8-97618-580-0 01 1 0801- ● ●
72 UNION; AIR PIPE
M22 		0-92123-315-0 01 1 0801- ● ●
98 BRACKET; AIR PIPE
(A) 		8-97609-096-0 02 1 0801- ● ●
98 BRACKET; AIR PIPE
(B) 		8-97610-999-0 01 1 0801- ● ●
179 NUT; UNION
M22 		0-91111-522-0 01 1 0801- ● ●
180 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 01 1 0801- ● ●
189 BRACKET; FLEX HOSE 1-47479-473-0 01 1 0801- ● ●
229 ADAPTER; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0801- ● ●
229 ADAPTER; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0801- ● ●
264 HOSE; FLEX
(A) L=360 		1-09363-637-0 01 1 0801- ● ●
264 HOSE; FLEX
EXC. ENGINE REAR PTO(SV1) (B) L=1150 		1-09363-791-0 01 1 0801-1101 ● ●
264 HOSE; FLEX
(B) L=1150 		1-09363-791-0 01 1 1102- ●
264 HOSE; FLEX
EXC. ENGINE REAR PTO(SV1) (B) L=1150 		1-09363-791-0 01 1 1102- ●
264 HOSE; FLEX
ENGINE REAR PTO(SV1) (B) L=1000 		1-09363-794-0 01 1 0801- ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0801- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0801- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0801- ● ●
304 BRACKET; UNION
(A) 		8-97610-362-1 01 1 0801- ● ●
304 BRACKET; UNION
(B) 		8-97615-626-3 01 1 0801- ● ●
341 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0801- ● ●
345 UNION; AIR PIPE
(B) DIN12X2 & R3/8 3WAY 		1-09661-131-0 01 1 0902- ●
345 UNION; AIR PIPE
(A) M12 ELBOW 		0-92125-206-0 01 1 0801- ● ●
374 CONNECTOR
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0902- ●
374 CONNECTOR
(A) PT1/4 & PT1/4 2WAY 		1-09660-693-0 01 1 0801- ● ●
377 BOLT; BRKT FIX
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0801- ● ●
377 BOLT; BRKT FIX
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0801- ● ●
421 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0801- ● ●
444 BOLT; UNION
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0801-0803 ● ●
444 BOLT; UNION
TRANSMISSION-FULLER RTO11908(Y5L) (A) M8X20 FLANGE 		0-28650-820-0 01 1 0801-0803 ● ●
444 BOLT; UNION
TRANSMISSION-FULLER RTO11908(Y5L) (A) M8X20 FLANGE 		0-28650-820-0 01 1 0804- ● ●
444 BOLT; UNION
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0804- ● ●
444 BOLT; UNION
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0804- ●
444 BOLT; UNION
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0801- ● ●
444 BOLT; UNION
ZF9S1310 M/T(Y5K) (A) M8X20 FLANGE 		0-28650-820-0 02 1 0801- ● ●
