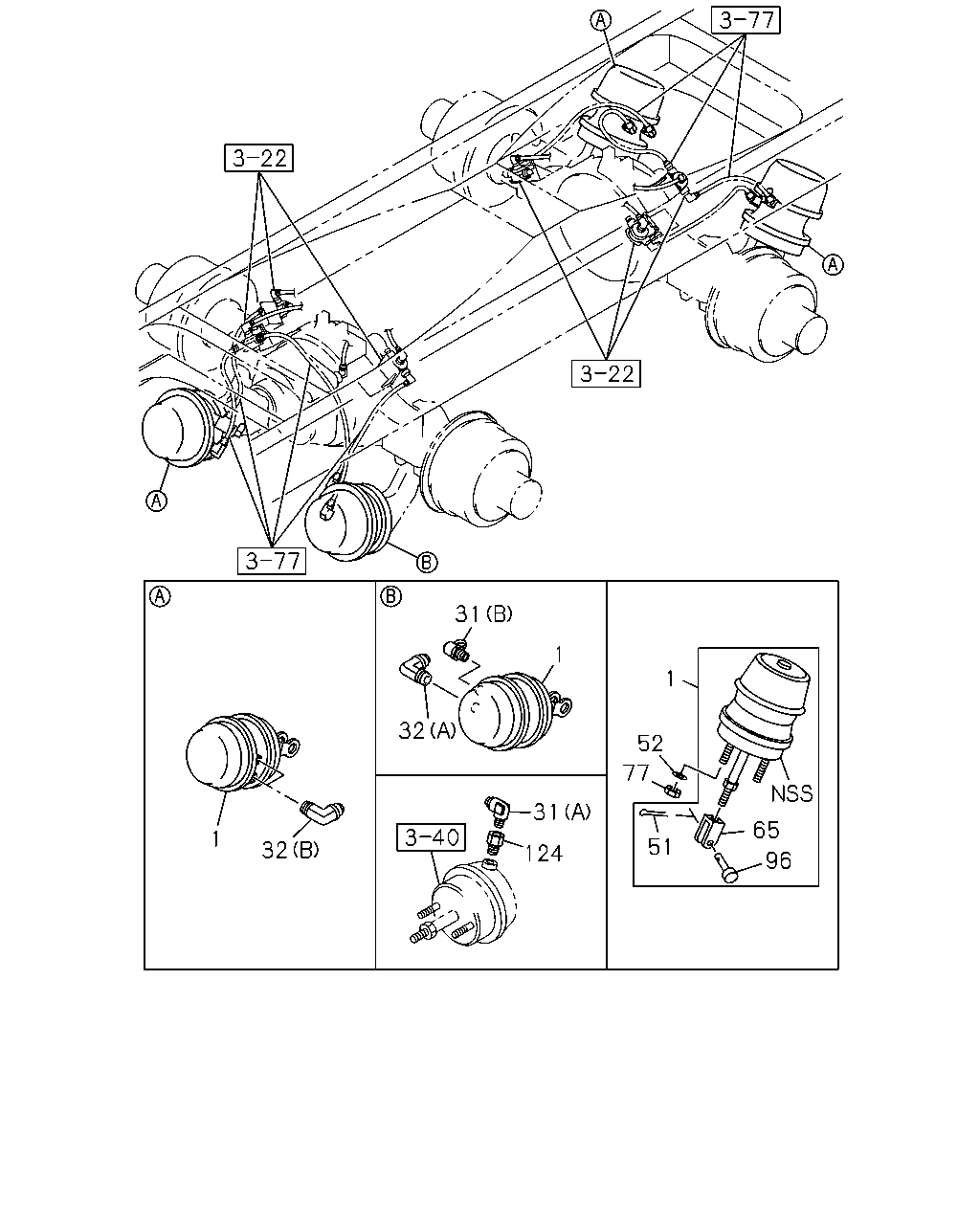

3-41 — REAR BRAKE POWER CHAMBER (#45162) — 24 parça

31 1 1 32 52 77 31 65 1 51 32 124 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-48250-943-0	01	1	0801-1206	●	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-48250-943-0	01	1	0801-1206	●	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-48250-957-0	01	1	1207-	●	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-48250-957-0	01	1	1207-	●	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-48250-944-0	01	1	0801-1206	●	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-48250-944-0	01	1	0801-1206	●	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-48250-958-0	01	1	1207-	●	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-48250-958-0	01	1	1207-	●	●
31	CONNECTOR (B) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0801-	●	●
31	CONNECTOR (A) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	02	1	0801-	●	●
32	CONNECTOR; SPR CHAMBER (A) DIN12 & NPTF3/8 & RC1/4 3WAY	1-09660-804-0	01	1	0801-	●	●
32	CONNECTOR; SPR CHAMBER (B) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	07	1	0801-	●	●
51	PIN; SPLIT	1-48259-275-0	02	1	0801-	●	●
51	PIN; SPLIT	1-48259-275-0	02	1	0801-	●	●
52	WASHER; PL	1-41519-038-0	04	1	0801-	●	●
52	WASHER; PL	1-41519-038-0	04	1	0801-	●	●
65	JOINT; JAW	1-48259-321-0	02	1	0801-	●	●
65	JOINT; JAW	1-48259-321-0	02	1	0801-	●	●
77	NUT; SPR CHAMBER BRK	1-87050-052-0	04	1	0801-	●	●
77	NUT; SPR CHAMBER BRK	1-87050-052-0	04	1	0801-	●	●
96	PIN; JAW JOINT	1-48259-273-0	02	1	0801-	●	●
96	PIN; JAW JOINT	1-48259-273-0	02	1	0801-	●	●
124	ADAPTER ANTILOCK BRAKE SYSTEM(BFA)	1-09660-547-0	01	1	0801-0805	●	●
124	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) R1/4 & PT3/8	8-98113-889-0	01	1	0806-	●	●
