Isuzu WW
▶
BUSES
▶
LV
▶
10695 - LV233(THAI)
▶
0 - Engine, Emission, Engine Electrical
▶
0-14 - CAMSHAFT AND VALVE
▶

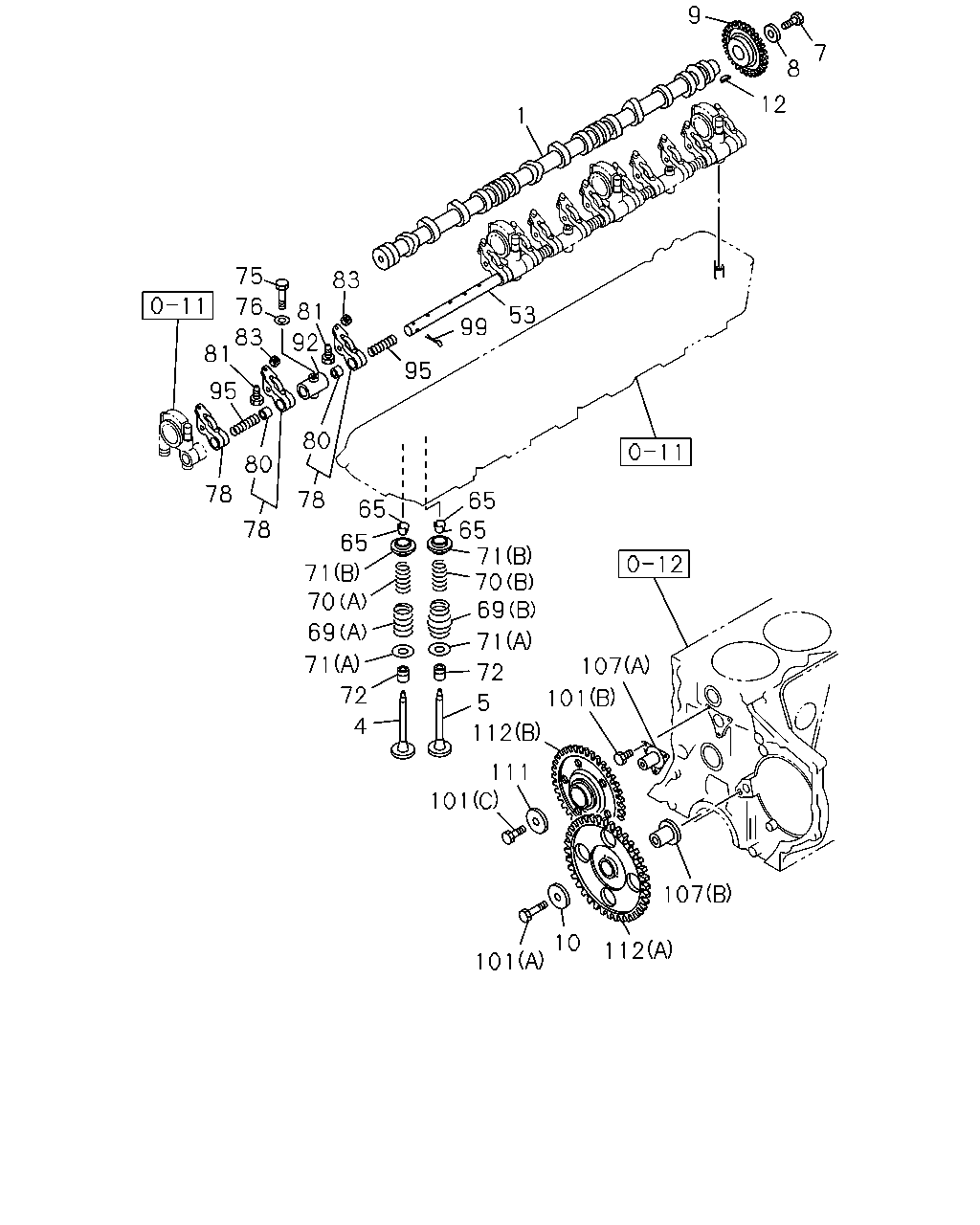

0-14 — CAMSHAFT AND VALVE
(#4516) — 40 parça
9
7
8
12
1
75
83
76
81
92
53
99
83
81
95
95
80
80
78
78
65
78
65
71
70
69
65
71
70
69
71
71
107
72
72
101
5
4
112
111
101
107
10
112
101
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CAMSHAFT
1-12511-249-1
01
1
9712-
4
VALVE; INL
1-12551-126-1
06
1
9712-
5
VALVE; EXH
1-12552-085-0
06
1
9712-9902
5
VALVE; EXH
1-12552-108-0
06
1
9903-
7
BOLT; CM/SHF GEAR
M14X28
9-92061-428-0
01
1
9712-
8
WASHER; CM/SHF GEAR
ID=14.5
9-09851-850-3
01
1
9712-
9
GEAR; CM/SHF
Z=36
1-12522-037-1
01
1
9712-
10
PLATE; THRUST
1-12535-021-0
01
1
9712-
12
KEY; CAM GEAR SET
9-08055-516-0
01
1
9712-
53
SHAFT; ROCKER ARM
1-12621-084-1
01
1
9712-
65
COLLAR; SPLIT
1-12565-007-0
24
1
9712-
69
SPRING; VLV,OUTER
(A)
1-12561-051-0
06
1
9712-
69
SPRING; VLV,OUTER
(B)
1-12561-072-0
06
1
9712-
70
SPRING; VLV,INNER
(A)
1-12561-073-0
06
1
9712-
70
SPRING; VLV,INNER
(B)
1-12562-032-0
06
1
9712-
71
SEAT; SPR
(B)
1-12563-033-1
12
1
9712-0009
71
SEAT; SPR
1-12563-059-1
12
1
0010-
71
SEAT; SPR
(A)
9-12563-231-0
12
1
9712-
72
SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-12569-017-0
12
1
9712-
75
BOLT; BRKT
M8X55
9-01065-855-0
03
1
9712-
76
WASHER; PL,BRKT
9-09851-430-0
03
1
9712-
78
ARM; ROCKER
1-12610-045-1
12
1
9712-
80
BUSHING; ROCKER ARM
1-12615-013-1
12
1
9712-
81
SCREW; ADJ,ROCKER ARM
1-12616-038-0
12
1
9712-
83
NUT; ADJ SCREW,LK
M8 FLANGE
9-09844-574-0
12
1
9712-
92
BRACKET; ROCKER ARM
1-12628-045-0
03
1
9712-
95
SPRING; ROCKER SHAFT
1-09580-335-0
06
1
9712-
99
PIN; SPLIT,ROCKER ARM SHAFT
OD=1.8 L=25
9-08112-025-0
02
1
9712-
101
BOLT; THRUST COLLAR
(B) M8X14 FLANGE
0-28080-814-0
03
1
9712-
101
BOLT; THRUST COLLAR
(C) M14X16
1-09000-284-0
01
1
9712-
101
BOLT; THRUST COLLAR
(A) M12X57
1-09070-127-0
01
1
9712-
107
SHAFT; IDLE GEAR
(A)
1-12531-054-1
01
1
9712-0011
107
SHAFT; IDLE GEAR
1-12531-097-2
01
1
0012-
107
SHAFT; IDLE GEAR
(B)
1-12531-064-0
01
1
9712-0011
107
SHAFT; IDLE GEAR
1-12531-099-0
01
1
0012-
111
COLLAR; THRUST,IDLE GEAR
ID=14.5 OD=46
8-94370-688-0
01
1
9712-
112
GEAR; IDLE
(A) Z=69-27
1-12523-241-0
01
1
9712-0011
112
GEAR; IDLE
Z=69-27
1-12523-346-0
01
1
0012-
112
GEAR; IDLE
(B) Z=62
1-12523-242-0
01
1
9712-0011
112
GEAR; IDLE
Z=62
1-12523-347-0
01
1
0012-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
