Sayfa 3-22 - Isuzu EPC

3-22 — AIR CONTROL PARTS (#45158) — 204 parça

8 73 12 56 2 4 12 55 12 2 8 12 5 55 12 12 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	VALVE; RELAY	1-48210-997-0	02	1	0801-	●	●
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28651-035-0	02	1	0902-	●
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28651-035-0	04	1	0801-		●
5	NUT M10 FLANGE	0-91180-210-0	02	1	0902-	●
5	NUT M10 FLANGE	0-91180-210-0	04	1	0801-		●
8	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M10X35 FLANGE	0-28651-035-0	04	1	0801-	●
8	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE	0-28650-825-0	04	1	0801-		●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0801-	●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0801-	●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (D) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0801-	●
12	CONNECTOR; RELAY VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0801-	●	●
12	CONNECTOR; RELAY VLV (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0801-		●
12	CONNECTOR; RELAY VLV (C) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0801-		●
55	PLUG; SUPPLY PT3/8	9-09204-517-0	02	1	0801-	●	●
56	BRACKET; RELAY VLV (B)	8-98031-257-0	01	1	0902-	●
56	BRACKET; RELAY VLV (A)	1-47479-937-0	01	1	0801-		●
73	NUT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M10 FLANGE	0-91180-210-0	04	1	0801-	●
73	NUT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	04	1	0801-		●

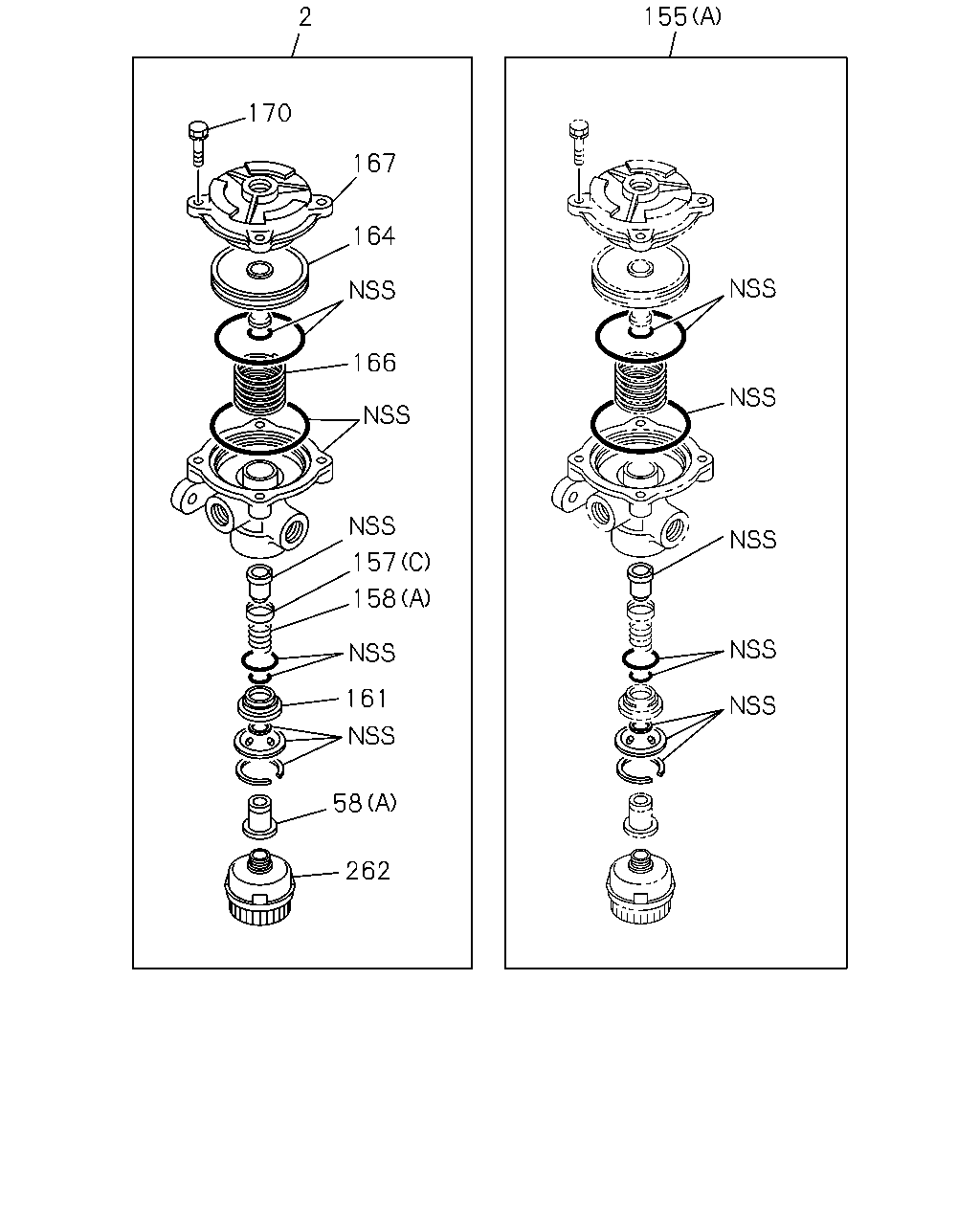

12 52 55 56 73 12 2 8 4 12 12 55 2 12 12 55 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	VALVE; RELAY	1-48210-997-0	02	1	0801-	●	●
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28651-035-0	02	1	0902-	●
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28651-035-0	04	1	0801-		●
5	NUT M10 FLANGE	0-91180-210-0	02	1	0902-	●
5	NUT M10 FLANGE	0-91180-210-0	04	1	0801-		●
8	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M10X35 FLANGE	0-28651-035-0	04	1	0801-	●
8	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE	0-28650-825-0	04	1	0801-		●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0801-	●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (E) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0801-	●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (D) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0801-	●
12	CONNECTOR; RELAY VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0801-	●	●
12	CONNECTOR; RELAY VLV (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0801-		●
12	CONNECTOR; RELAY VLV (C) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0801-		●
52	CONNECTOR; RELAY VLV DIN8 & R3/8 & RC1/4 3WAY	8-97620-116-0	01	1	0801-		●
55	PLUG; SUPPLY PT3/8	9-09204-517-0	02	1	0801-	●	●
56	BRACKET; RELAY VLV (B)	8-98031-257-0	01	1	0902-	●
56	BRACKET; RELAY VLV (A)	1-47479-937-0	01	1	0801-		●
73	NUT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M10 FLANGE	0-91180-210-0	04	1	0801-	●
73	NUT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	04	1	0801-		●

240

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	240	REPAIR KIT; AIR CONT GOV	1-85576-467-0	01	1	0801-	●	●

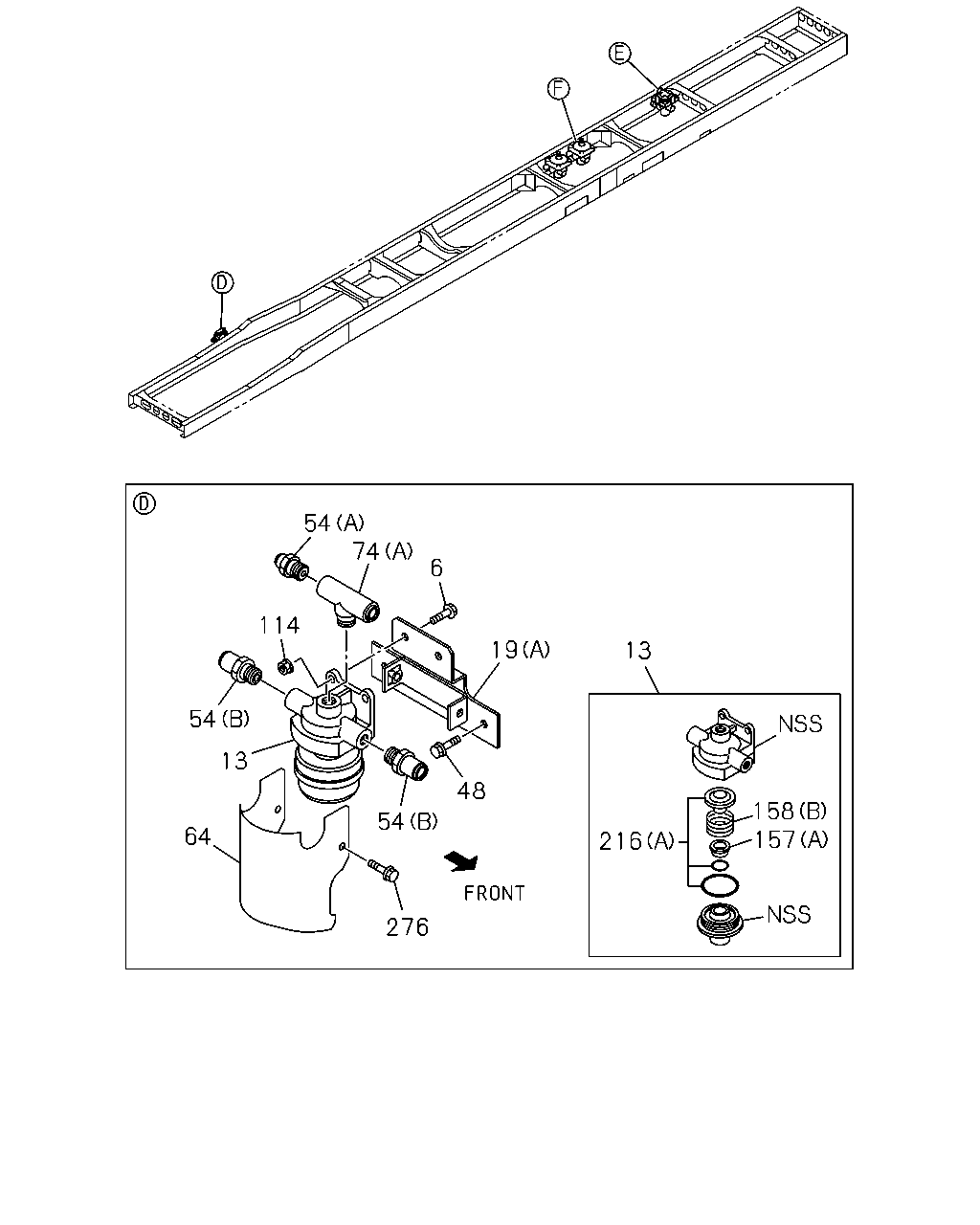

54 74 6 114 19 13 54 13 48 158 157 54 64 216 276

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	BOLT; VLV M8X30 FLANGE	0-28650-830-0	02	1	0807-	●
6	BOLT; VLV M8X25 FLANGE	0-28650-825-0	04	1	0801-0806	●	●
6	BOLT; VLV M8X25 FLANGE	0-28650-825-0	02	1	0807-	●	●
6	BOLT; VLV M8X25 FLANGE	0-28650-825-0	02	1	0807-		●
13	VALVE ASM; QUICK RELEASE FRONT	1-48410-726-1	01	1	0801-	●	●
13	VALVE ASM; QUICK RELEASE REAR	1-48410-733-0	02	1	0801-1008	●	●
13	VALVE ASM; QUICK RELEASE REAR	8-98170-207-0	02	1	1009-	●	●
19	BRACKET; QUICK RELEASE VLV (B) REARWARD	8-98033-795-0	01	1	0801-	●
19	BRACKET; QUICK RELEASE VLV (C) FORWARD	8-98069-343-0	01	1	0801-	●
19	BRACKET; QUICK RELEASE VLV (A)	1-47471-014-0	01	1	0801-	●	●
19	BRACKET; QUICK RELEASE VLV (D)	8-98033-795-0	02	1	0801-		●
48	BOLT; QUICK RELEASE VLV M8X30 FLANGE	0-28650-830-0	02	1	0801-	●	●
54	CONNECTOR; QUICK RELEASE VLV (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0801-	●	●
54	CONNECTOR; QUICK RELEASE VLV (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	04	1	0801-0802	●	●
54	CONNECTOR; QUICK RELEASE VLV (C) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0801-	●	●
54	CONNECTOR; QUICK RELEASE VLV (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0803-	●	●
54	CONNECTOR; QUICK RELEASE VLV (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0803-	●	●
64	PROTECTOR; QUICK RELEASE VALVE	8-98043-421-0	01	1	0801-	●	●
74	CONNECTOR; 3WAY (A) DIN12 & R3/8 & RC3/8 3WAY	1-09661-232-0	01	1	0801-	●	●
74	CONNECTOR; 3WAY (B) DIN8 & R3/8 & RC1/4 3WAY	1-09661-536-0	01	1	0801-		●
114	NUT; VLV M8 FLANGE	0-91180-108-0	02	1	0801-	●	●
157	RETAINER; VALVE (A)	1-48419-020-0	01	1	0801-	●	●
157	RETAINER; VALVE (B)	1-48419-036-0	02	1	0801-1008	●	●
157	RETAINER; VALVE (B)	1-48419-020-0	02	1	1009-	●	●
157	RETAINER; VALVE (C)	1-48213-002-0	02	1	0801-	●	●
158	SPRING; VALVE (B)	9-48419-003-0	01	1	0801-	●	●
158	SPRING; VALVE (B)	9-48419-003-0	02	1	0801-	●	●
158	SPRING; VALVE (A)	1-47819-089-0	02	1	0801-	●	●
216	REPAIR KIT; QUICK RELEASE VLV (A)	1-85576-235-0	01	1	0801-1109	●	●
216	REPAIR KIT; QUICK RELEASE VLV (A)	1-85576-484-0	01	1	1110-	●	●
216	REPAIR KIT; QUICK RELEASE VLV (B)	1-85579-062-0	02	1	0801-1008	●	●
216	REPAIR KIT; QUICK RELEASE VLV (B)	8-98171-596-0	02	1	1009-	●	●
276	BOLT; PROTECTOR M8X20 FLANGE	0-28650-820-0	02	1	0801-	●	●

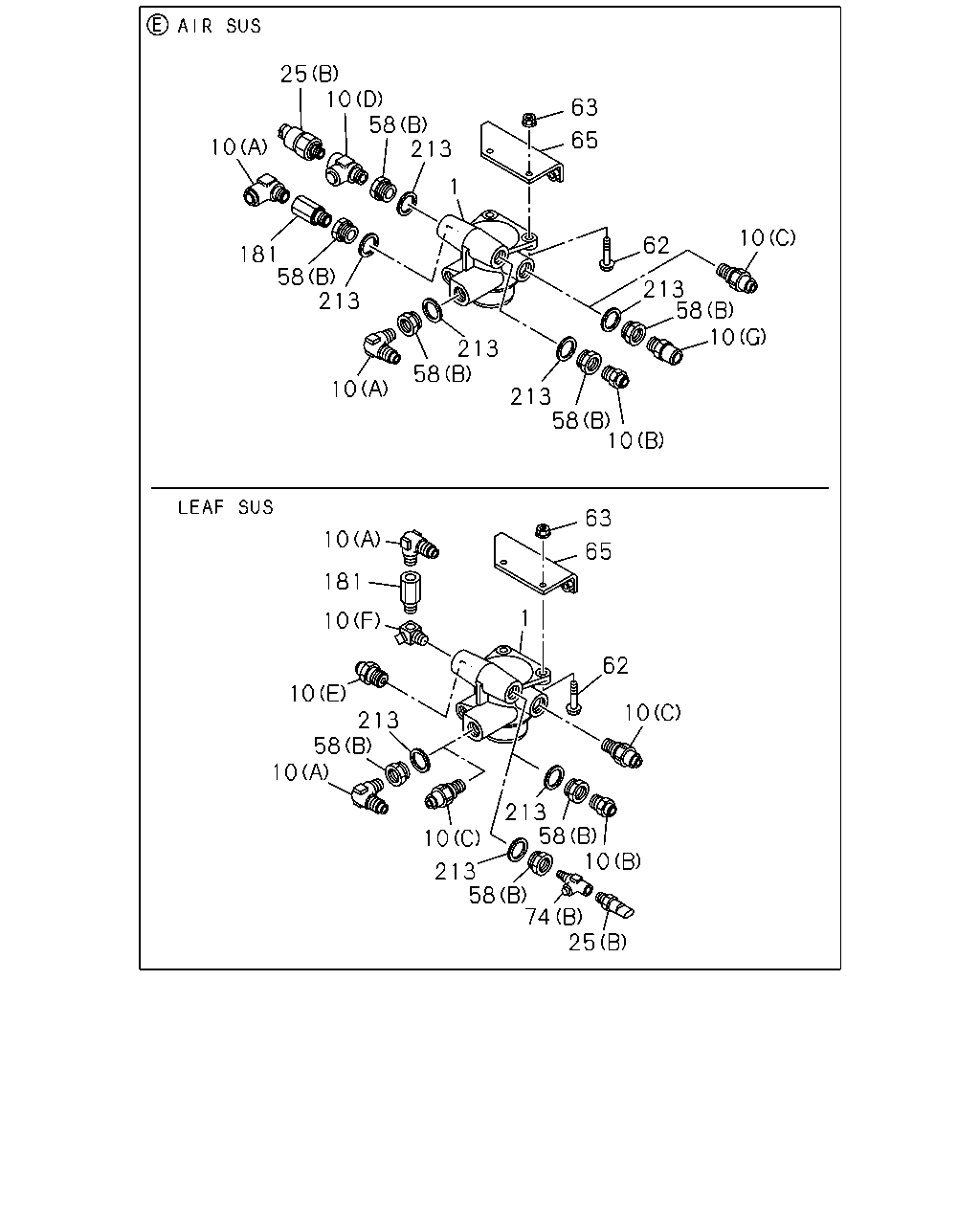

25 10 58 213 63 65 10 1 10 62 181 58 213 213 58 10 213 58 10 213 58 10 63 10 65 181 1 10 62 10 10 13 58 10 213 58 10 10 213 58 74 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; RELAY RWD RR	1-48240-354-1	01	1	0801-	●	●
10	CONNECTOR (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0801-	●
10	CONNECTOR (G) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0801-0805	●
10	CONNECTOR (D) DIN8 & R3/8 & RC1/4 3WAY	1-09661-536-0	01	1	0801-	●
10	CONNECTOR (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0801-0802	●	●
10	CONNECTOR (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0803-0808	●
10	CONNECTOR WHEEL BASE 7100MM(71W) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0803-0808		●
10	CONNECTOR (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0809-	●
10	CONNECTOR WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0809-		●
10	CONNECTOR (F) PT3/8 ELBOW	1-09660-696-0	01	1	0801-		●
10	CONNECTOR (C) DIN12 & M22 STRAIGHT	1-09661-050-0	01	1	0801-0802		●
10	CONNECTOR WHEEL BASE 4900MM(49W) (C) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	0803-		●
10	CONNECTOR (E) DIN8 & M22 STRAIGHT	1-09661-091-0	01	1	0801-		●
10	CONNECTOR WHEEL BASE 4900MM(49W) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0803-		●
10	CONNECTOR WHEEL BASE 7100MM(71W) (C) DIN12 & M22 STRAIGHT	1-09661-050-0	01	1	0803-0805		●
10	CONNECTOR (C) DIN12 & M22 STRAIGHT	1-09661-050-0	01	1	0806-0808	●
10	CONNECTOR WHEEL BASE 7100MM(71W) (C) DIN12 & M22 STRAIGHT	1-09661-050-0	01	1	0806-0808		●
10	CONNECTOR (C) DIN12 & M22 STRAIGHT	1-09661-050-0	01	1	0809-	●
10	CONNECTOR WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) (C) DIN12 & M22 STRAIGHT	1-09661-050-0	01	1	0809-		●
13	VALVE ASM; QUICK RELEASE FRONT	1-48410-726-1	01	1	0801-	●	●
13	VALVE ASM; QUICK RELEASE REAR	1-48410-733-0	02	1	0801-1008	●	●
13	VALVE ASM; QUICK RELEASE REAR	8-98170-207-0	02	1	1009-	●	●
25	SWITCH; PRESSURE (A) STAMP 5.5	8-97609-249-0	01	1	0801-	●	●
25	SWITCH; PRESSURE (B) STAMP 2.0	8-98010-856-1	01	1	0801-	●	●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	05	1	0801-0805	●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	0806-	●
58	ADAPTER (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0801-	●	●
58	ADAPTER (A) M22 ADAPTER	1-48219-154-0	02	1	0801-	●	●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	0801-0805		●
58	ADAPTER WHEEL BASE 4900MM(49W) (B) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	0806-		●
58	ADAPTER WHEEL BASE 7100MM(71W) (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	0806-0808		●
58	ADAPTER WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	0809-		●
62	BOLT; BRKT FIX M8X30 FLANGE	0-28650-830-0	02	1	0801-	●	●
63	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	02	1	0801-	●	●
65	BRACKET; RELAY VLV RR	1-47471-032-0	01	1	0801-	●
65	BRACKET; RELAY VLV RR	8-98105-921-0	01	1	0801-		●
74	CONNECTOR; 3WAY (A) DIN12 & R3/8 & RC3/8 3WAY	1-09661-232-0	01	1	0801-	●	●
74	CONNECTOR; 3WAY (B) DIN8 & R3/8 & RC1/4 3WAY	1-09661-536-0	01	1	0801-		●
181	ADAPTER; PRESSURE SW PT3/8	1-48319-058-0	01	1	0801-	●	●
213	GASKET ID=22.5	9-09571-422-0	05	1	0801-0805	●
213	GASKET ID=22.5	9-09571-422-0	04	1	0806-	●
213	GASKET ID=22.5	9-09571-422-0	03	1	0801-0805		●
213	GASKET WHEEL BASE 4900MM(49W) ID=22.5	9-09571-422-0	02	1	0806-		●
213	GASKET WHEEL BASE 7100MM(71W) ID=22.5	9-09571-422-0	03	1	0806-0808		●
213	GASKET WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) ID=22.5	9-09571-422-0	03	1	0809-		●

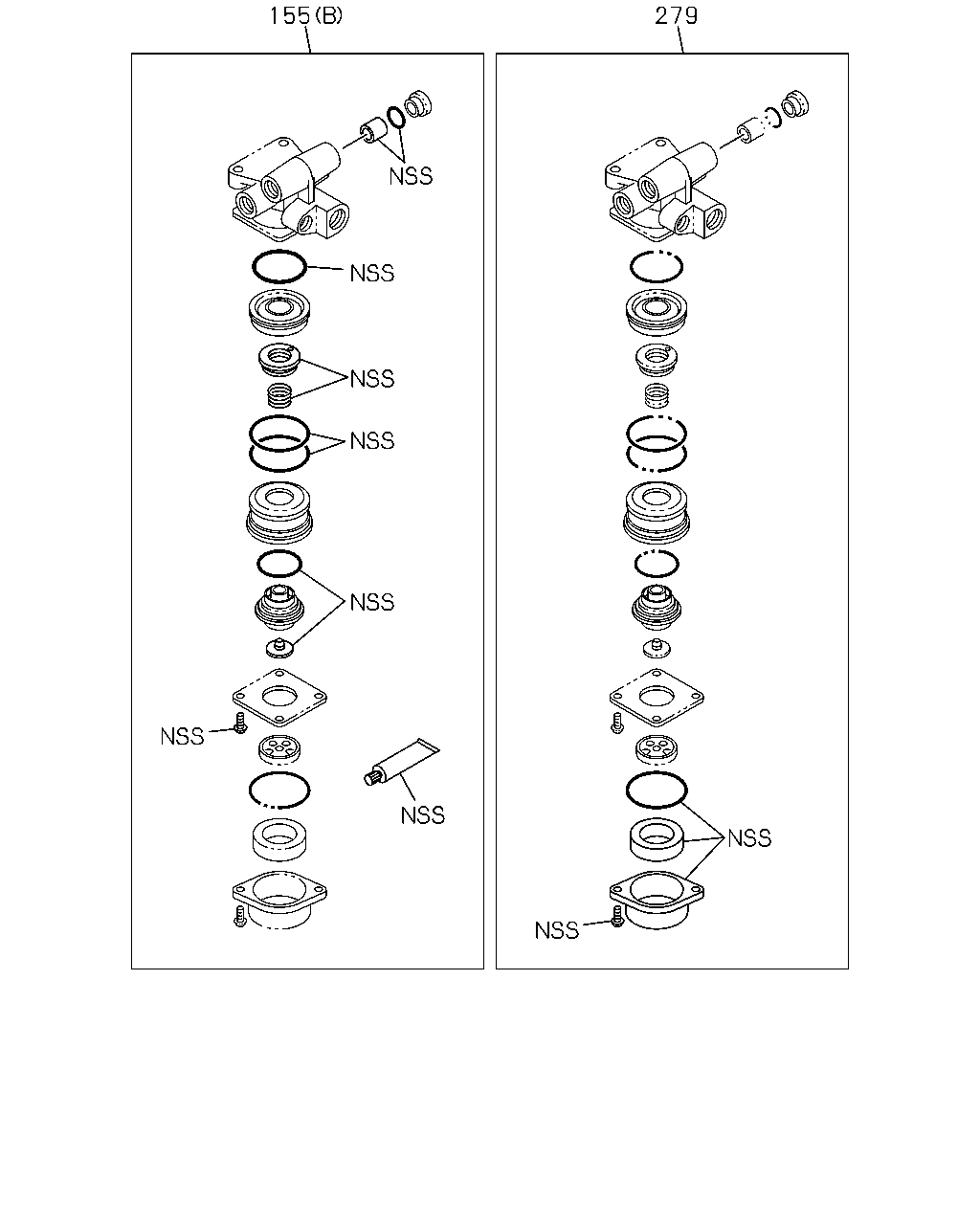

155 279

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
155	REPAIR KIT; RELAY VALVE (B)	1-85576-408-0	01	1	0801-	●	●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-294-0	02	1	0801-	●	●
279	REPAIR KIT; SILENCER	1-85576-409-0	01	1	0801-	●	●

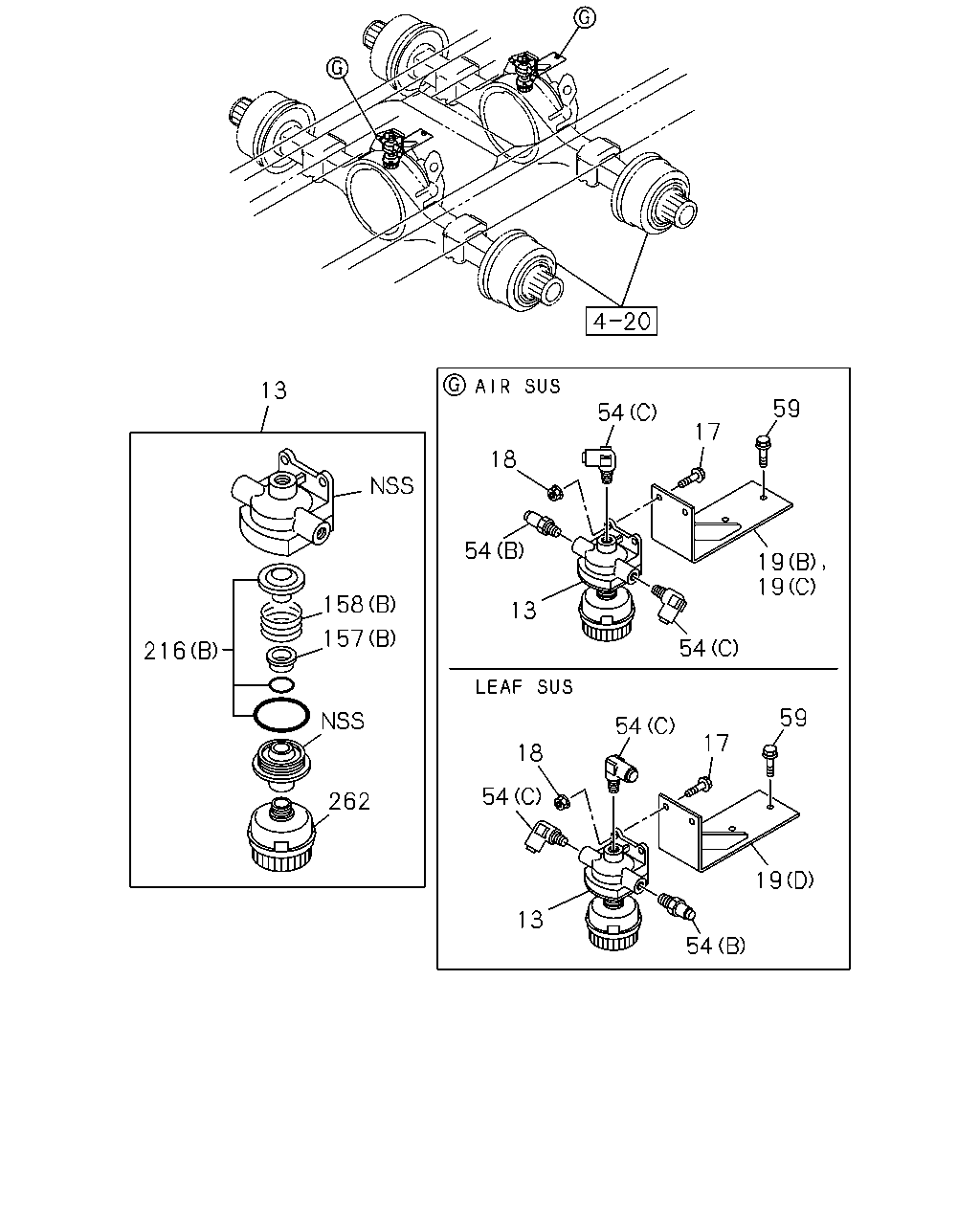

13 59 54 17 18 54 19 19 158 13 157 54 216 59 54 17 18 54 262 19 13 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	VALVE ASM; QUICK RELEASE FRONT	1-48410-726-1	01	1	0801-	●	●
13	VALVE ASM; QUICK RELEASE REAR	1-48410-733-0	02	1	0801-1008	●	●
13	VALVE ASM; QUICK RELEASE REAR	8-98170-207-0	02	1	1009-	●	●
17	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	0801-	●	●
18	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0801-	●	●
19	BRACKET; QUICK RELEASE VLV (B) REARWARD	8-98033-795-0	01	1	0801-	●
19	BRACKET; QUICK RELEASE VLV (C) FORWARD	8-98069-343-0	01	1	0801-	●
19	BRACKET; QUICK RELEASE VLV (A)	1-47471-014-0	01	1	0801-	●	●
19	BRACKET; QUICK RELEASE VLV (D)	8-98033-795-0	02	1	0801-		●
54	CONNECTOR; QUICK RELEASE VLV (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0801-	●	●
54	CONNECTOR; QUICK RELEASE VLV (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	04	1	0801-0802	●	●
54	CONNECTOR; QUICK RELEASE VLV (C) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0801-	●	●
54	CONNECTOR; QUICK RELEASE VLV (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0803-	●	●
54	CONNECTOR; QUICK RELEASE VLV (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0803-	●	●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28050-816-0	04	1	0801-	●	●
157	RETAINER; VALVE (A)	1-48419-020-0	01	1	0801-	●	●
157	RETAINER; VALVE (B)	1-48419-036-0	02	1	0801-1008	●	●
157	RETAINER; VALVE (B)	1-48419-020-0	02	1	1009-	●	●
157	RETAINER; VALVE (C)	1-48213-002-0	02	1	0801-	●	●
158	SPRING; VALVE (B)	9-48419-003-0	01	1	0801-	●	●
158	SPRING; VALVE (B)	9-48419-003-0	02	1	0801-	●	●
158	SPRING; VALVE (A)	1-47819-089-0	02	1	0801-	●	●
216	REPAIR KIT; QUICK RELEASE VLV (A)	1-85576-235-0	01	1	0801-1109	●	●
216	REPAIR KIT; QUICK RELEASE VLV (A)	1-85576-484-0	01	1	1110-	●	●
216	REPAIR KIT; QUICK RELEASE VLV (B)	1-85579-062-0	02	1	0801-1008	●	●
216	REPAIR KIT; QUICK RELEASE VLV (B)	8-98171-596-0	02	1	1009-	●	●
262	SILENCER; RELAY VALVE	1-48219-149-0	02	1	0801-	●	●
262	SILENCER; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA)	1-48219-149-0	02	1	0801-	●	●
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	0801-	●	●

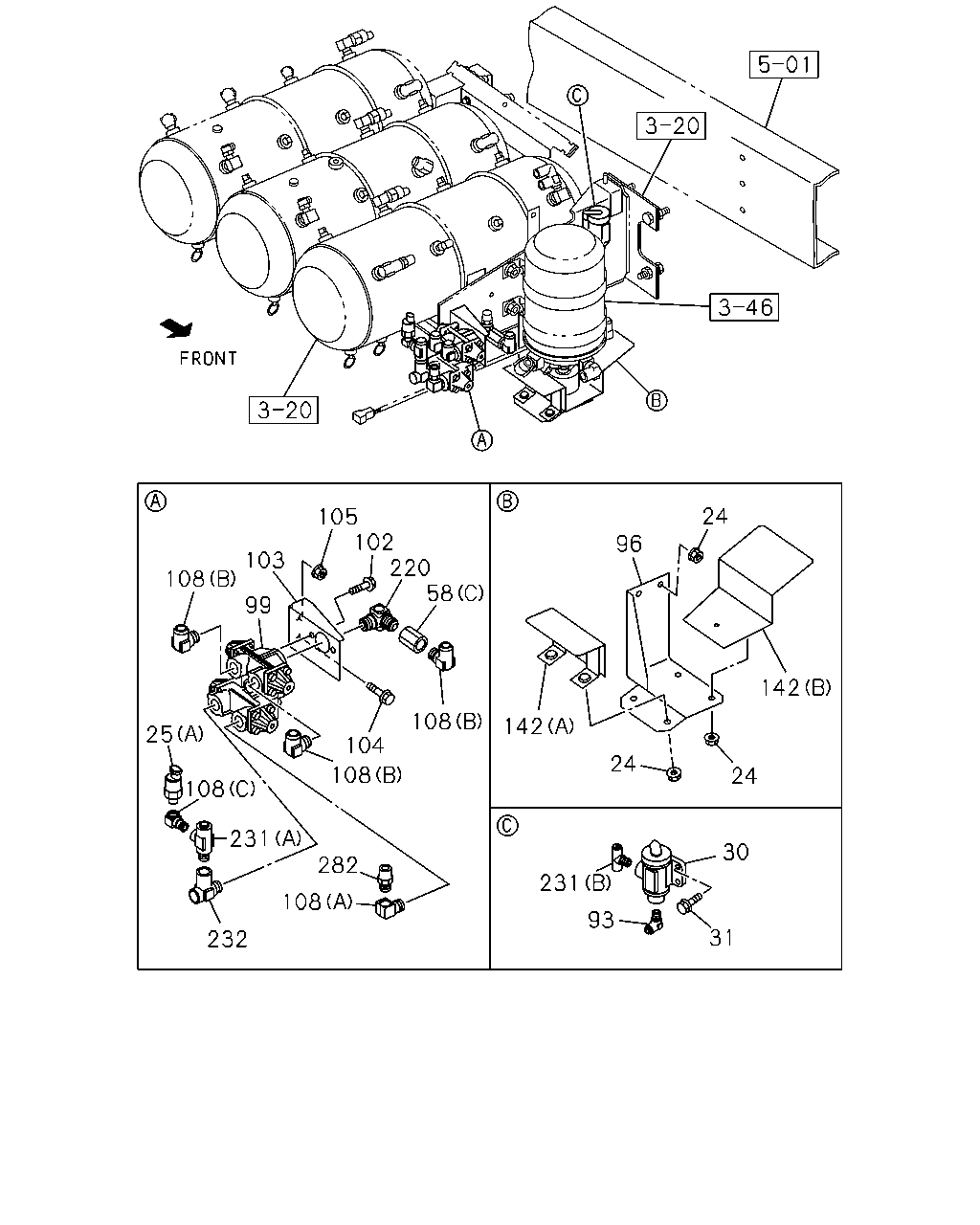

24 105 102 220 58 96 103 108 99 142 108 142 25 104 24 108 24 108 231 30 282 231 108 93 31 232

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	NUT M8 FLANGE	0-91180-108-0	06	1	0801-	●	●
25	SWITCH; PRESSURE (A) STAMP 5.5	8-97609-249-0	01	1	0801-	●	●
25	SWITCH; PRESSURE (B) STAMP 2.0	8-98010-856-1	01	1	0801-	●	●
30	GOVERNOR; AIR CONT	1-48350-063-2	01	1	0801-	●	●
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28650-830-0	02	1	0801-	●	●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	05	1	0801-0805	●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	0806-	●
58	ADAPTER (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0801-	●	●
58	ADAPTER (A) M22 ADAPTER	1-48219-154-0	02	1	0801-	●	●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	0801-0805		●
58	ADAPTER WHEEL BASE 4900MM(49W) (B) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	0806-		●
58	ADAPTER WHEEL BASE 7100MM(71W) (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	0806-0808		●
58	ADAPTER WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	0809-		●
93	CONNECTOR; GOV DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0801-	●	●
96	BRACKET	8-98093-436-0	01	1	0801-	●	●
99	VALVE; PROTECTION	1-48110-294-2	01	1	0801-	●	●
102	BOLT; PROTECTION VALVE M8X16 FLANGE	0-28050-816-0	02	1	0801-	●	●
103	BRACKET; PROTECTION VALVE	8-98093-563-0	01	1	0801-	●	●
104	BOLT; BRKT,VALVE M10X20 FLANGE	0-28651-020-0	01	1	0801-	●	●
105	NUT; BRKT,VALVE M10 FLANGE	0-91180-210-0	01	1	0801-	●	●
108	CONNECTOR; ELBOW (C) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	0801-	●	●
108	CONNECTOR; ELBOW (A) PT3/8 ELBOW	1-09660-696-0	01	1	0801-	●	●
108	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0801-	●	●
142	PROTECTOR; HEAT (A)	8-98093-437-1	01	1	0801-	●	●
142	PROTECTOR; HEAT (B)	8-98093-438-1	01	1	0801-	●	●
220	CONNECTOR; 3WAY DIN17 & RC3/8 & R1/2 3WAY	8-98031-238-0	01	1	0801-	●	●
231	CONNECTOR; NYLON TUBE (A) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	01	1	0801-	●	●
231	CONNECTOR; NYLON TUBE (B)	1-09661-073-0	01	1	0801-	●	●
232	VALVE; CHECK DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	0801-	●	●
282	CONNECTOR; STRAIGHT DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0801-	●	●

2 155 170 167 164 166 157 158 161 58 262

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	VALVE; RELAY	1-48210-997-0	02	1	0801-	●	●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	05	1	0801-0805	●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	0806-	●
58	ADAPTER (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0801-	●	●
58	ADAPTER (A) M22 ADAPTER	1-48219-154-0	02	1	0801-	●	●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	0801-0805		●
58	ADAPTER WHEEL BASE 4900MM(49W) (B) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	0806-		●
58	ADAPTER WHEEL BASE 7100MM(71W) (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	0806-0808		●
58	ADAPTER WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	0809-		●
155	REPAIR KIT; RELAY VALVE (B)	1-85576-408-0	01	1	0801-	●	●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-294-0	02	1	0801-	●	●
157	RETAINER; VALVE (A)	1-48419-020-0	01	1	0801-	●	●
157	RETAINER; VALVE (B)	1-48419-036-0	02	1	0801-1008	●	●
157	RETAINER; VALVE (B)	1-48419-020-0	02	1	1009-	●	●
157	RETAINER; VALVE (C)	1-48213-002-0	02	1	0801-	●	●
158	SPRING; VALVE (B)	9-48419-003-0	01	1	0801-	●	●
158	SPRING; VALVE (B)	9-48419-003-0	02	1	0801-	●	●
158	SPRING; VALVE (A)	1-47819-089-0	02	1	0801-	●	●
161	GUIDE; VALVE	1-48129-014-0	02	1	0801-	●	●
164	PISTON; RELAY VALVE	1-48219-071-0	02	1	0801-	●	●
166	SPRING; PISTON	1-47819-090-0	02	1	0801-	●	●
167	COVER; VALVE	1-48219-070-0	02	1	0801-	●	●
170	SCREW; COVER TO BODY	1-48219-039-0	08	1	0801-	●	●
262	SILENCER; RELAY VALVE	1-48219-149-0	02	1	0801-	●	●
262	SILENCER; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA)	1-48219-149-0	02	1	0801-	●	●
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	0801-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
