Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#45157) — 595 parça

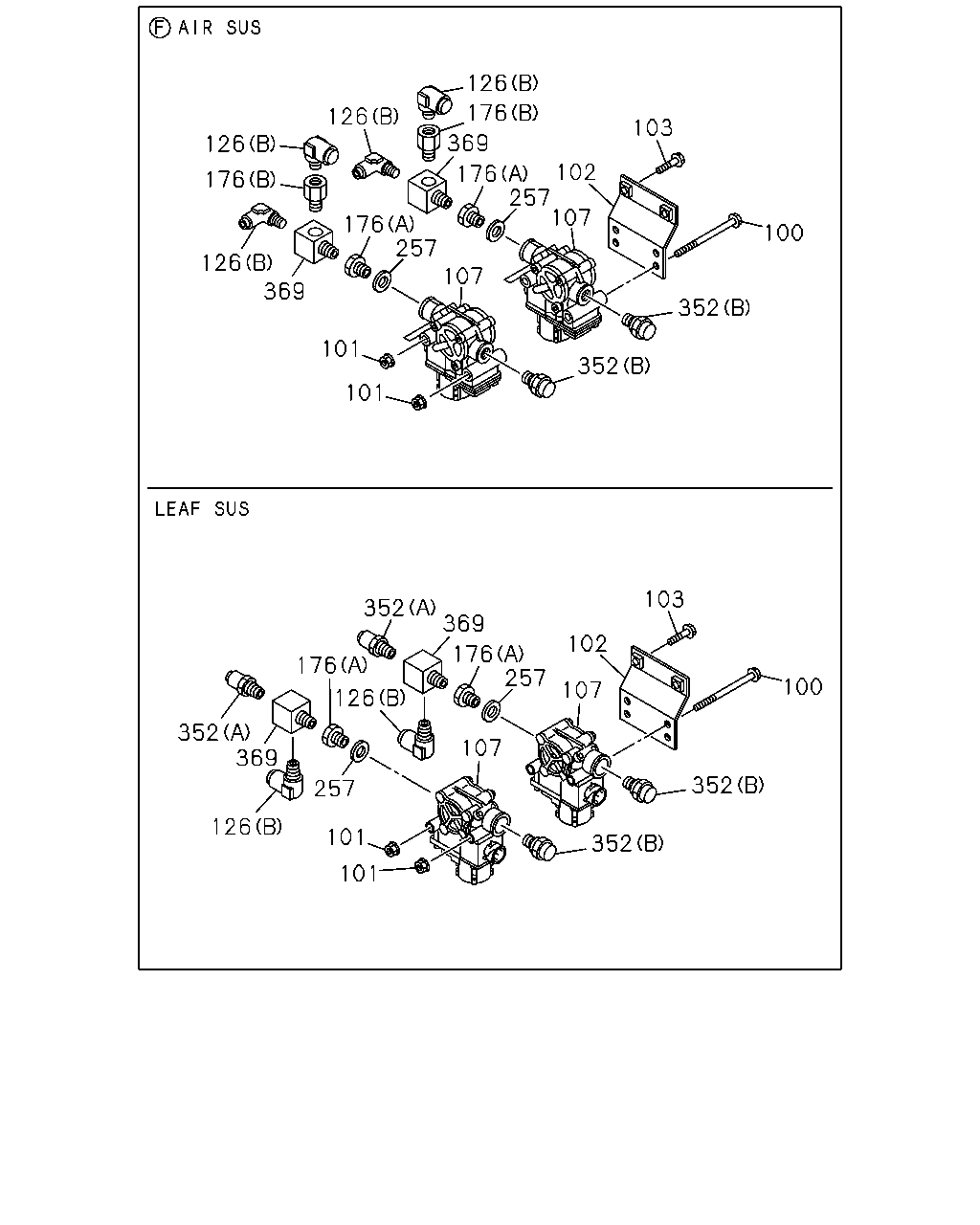

126 176 126 103 369 126 176 102 257 107 176 176 257 100 126 107 369 352 101 352 101 103 352 369 102 176 257 176 100 107 126 352 369 107 352 257 126 101 352 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
100	BOLT; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE	0-28050-880-0	04	1	0801-	●	●
100	BOLT; MODULATOR M8X140 FLANGE	0-28055-814-0	02	1	0801-	●	●
101	NUT; MODULATOR M8 FLANGE	0-91180-108-0	02	1	0801-	●	●
102	BRACKET; MODULATOR	8-98034-539-2	01	1	0801-	●	●
103	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0801-	●	●
103	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	04	1	0801-0803	●	●
103	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	0804-	●	●
103	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE	0-28650-825-0	02	1	0801-	●	●
107	MODULATOR; RR	1-48240-115-0	02	1	0801-	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	0801-	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	0801-	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	0801-	●	●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0801-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW	1-09660-696-0	02	1	0801-	●	●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0801-0901	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0902-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0902-	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0801-0901	●	●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0902-		●
126	CONNECTOR; ELBOW TRANSMISSION-FULLER RTO11908(Y5L) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0801-	●	●
126	CONNECTOR; ELBOW ZF9S1310 M/T(Y5K) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0801-0803	●	●
126	CONNECTOR; ELBOW (D) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	0804-	●	●
126	CONNECTOR; ELBOW ENGINE REAR PTO(SV1) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0801-		●
176	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (B) PT3/8	1-09664-210-0	02	1	0801-	●
176	ADAPTER (A) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	0801-	●	●
176	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (A) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	0801-	●	●
257	GASKET; PLUG ID=22.5	9-09571-422-0	02	1	0801-	●	●
352	CONNECTOR; STRAIGHT (C) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0804-	●	●
352	CONNECTOR; STRAIGHT (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0801-0901	●	●
352	CONNECTOR; STRAIGHT (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0902-		●
352	CONNECTOR; STRAIGHT (B) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	0801-	●	●
369	CONNECTOR; 3WAY PT3/8 3WAY	1-09661-300-0	02	1	0801-	●	●

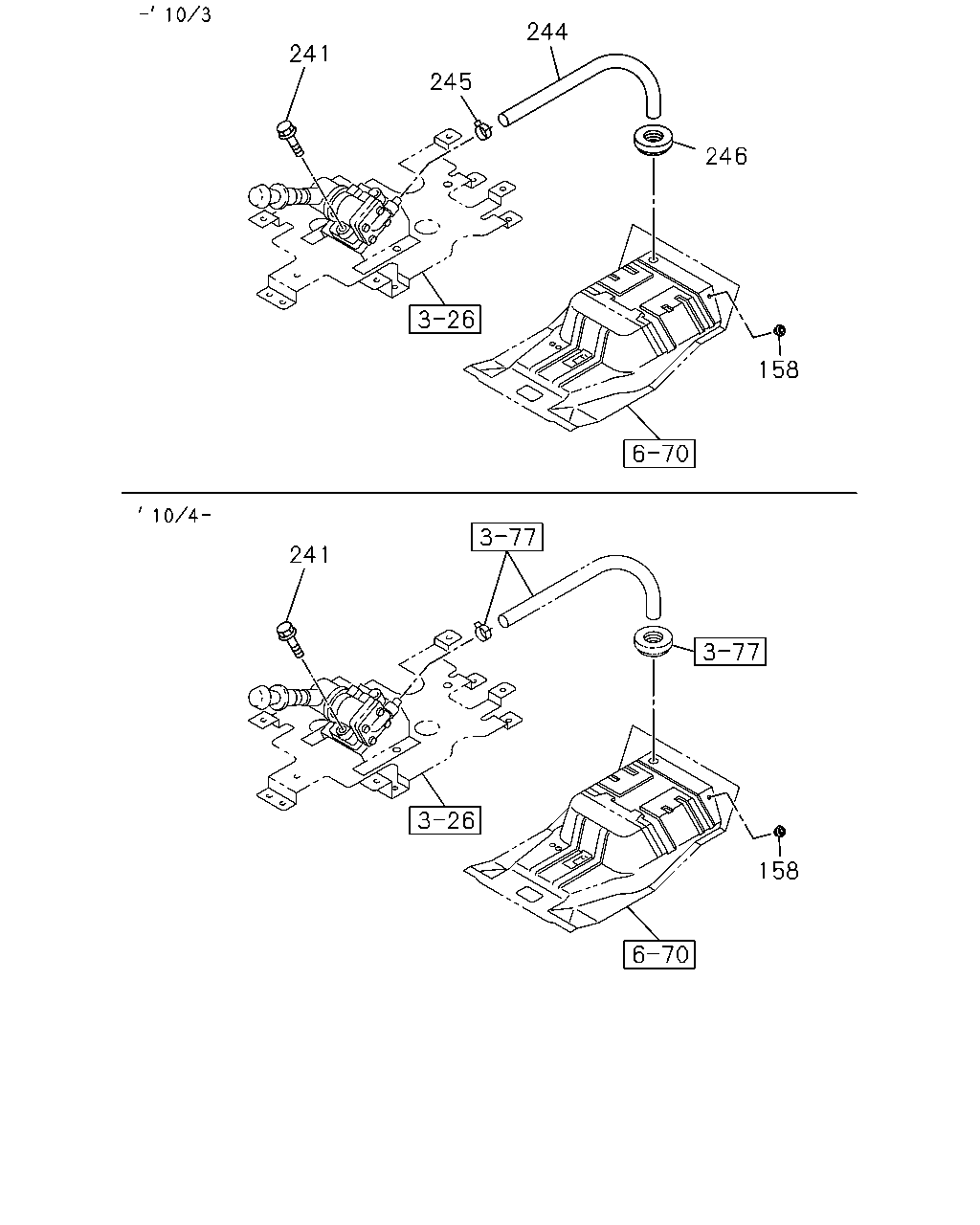

244 241 245 246 158 241 158

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
158	GROMMET; PIPE OD=35	8-94122-971-0	01	1	0801-	●	●
241	BOLT; SET,CONT VLV M8X70 FLANGE	0-28050-870-0	02	1	0801-	●	●
244	PIPE; VINYL,EXH L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	0801-1003	●	●
245	CLIP; VINYL PIPE ID=14	8-94238-572-0	01	1	0801-1003	●	●
246	GROMMET; VINYL PIPE OD=24	9-61166-007-0	01	1	0801-1003	●	●

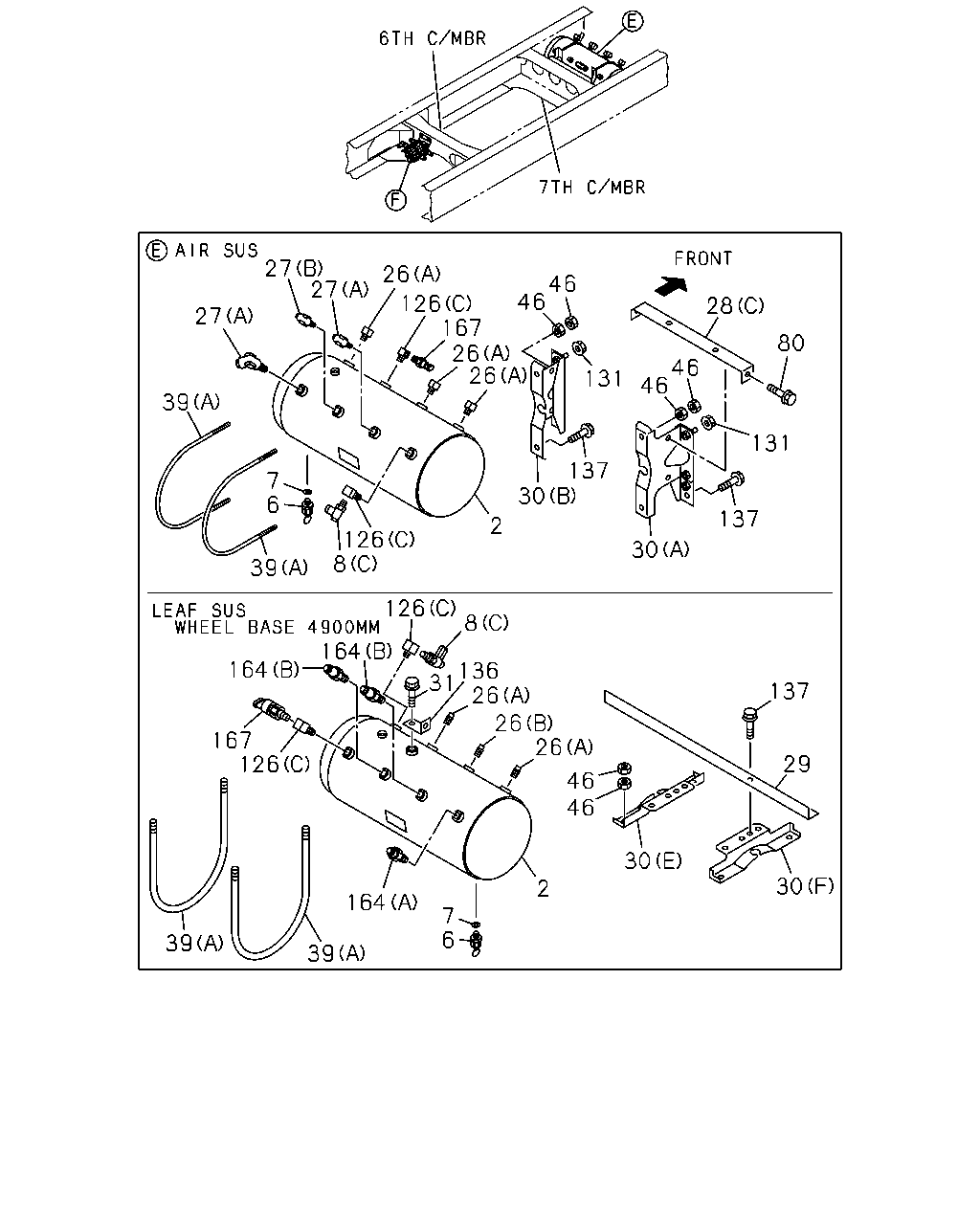

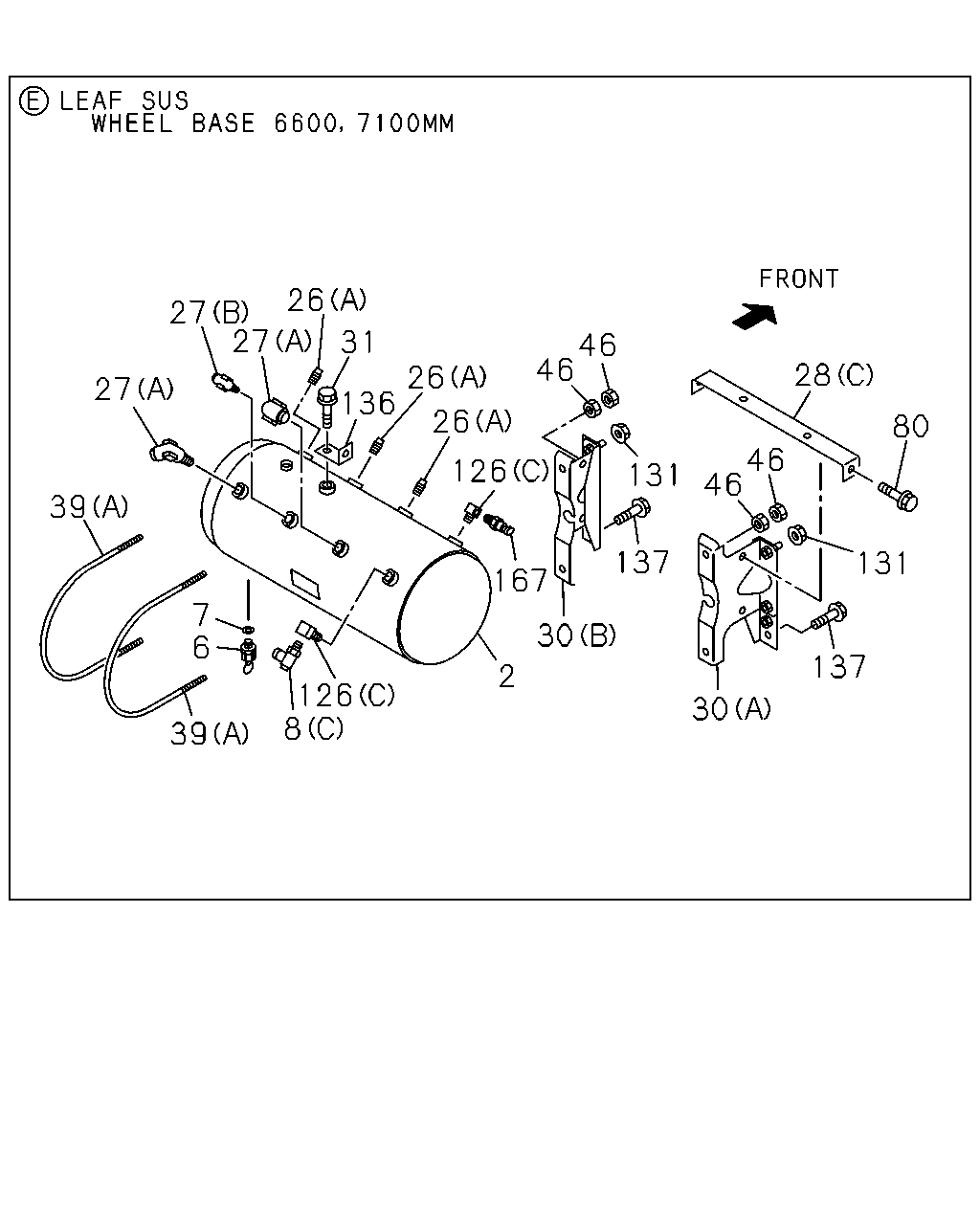

27 27 26 46 46 126 167 26 26 28 27 80 46 46 131 39 131 137 30 7 6 137 2 126 8 30 39 126 8 164 164 136 31 26 26 26 137 167 126 29 46 46 30 30 2 164 7 6 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	TANK; AIR	8-97617-855-1	01	1	0801-1106	●	●
2	TANK; AIR	8-98187-713-0	01	1	1107-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	02	1	0801-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0801-0808	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0801-0808	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0801-0808	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0801-0808	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 7100MM(71W)	1-48312-015-0	01	1	0801-0808	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1)	1-48312-015-0	01	1	0801-0808		●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0809-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0809-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0809-	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W)	1-48312-015-0	01	1	0809-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0809-	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1)	1-48312-015-0	01	1	0809-		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	0801-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0801-0808	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0801-0808	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0801-0808	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0801-0808	●	●
7	GASKET; DRAIN COCK WHEEL BASE 7100MM(71W) ID=14	1-09630-145-0	01	1	0801-0808	●	●
7	GASKET; DRAIN COCK WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1) ID=14	1-09630-145-0	01	1	0801-0808		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0809-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0809-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0809-	●	●
7	GASKET; DRAIN COCK WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) ID=14	1-09630-145-0	01	1	0809-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0809-	●	●
7	GASKET; DRAIN COCK WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1) ID=14	1-09630-145-0	01	1	0809-		●
8	CONNECTOR; AIR TANK (B) PT3/8X2 & PT1/4 3WAY	1-09656-708-0	01	1	0801-	●
8	CONNECTOR; AIR TANK EXC. ENGINE REAR PTO(SV1) (B) PT3/8X2 & PT1/4 3WAY	1-09656-708-0	01	1	0801-		●
8	CONNECTOR; AIR TANK (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0801-	●	●
8	CONNECTOR; AIR TANK (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0801-	●	●
8	CONNECTOR; AIR TANK (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0801-	●	●
8	CONNECTOR; AIR TANK (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0801-	●	●
26	PLUG; SUB AIR TANK TRANSMISSION-FULLER RTO11908(Y5L) (A) PT3/8	9-09204-517-0	01	1	0801-	●	●
26	PLUG; SUB AIR TANK WHEEL BASE 7100MM(71W) (A) PT3/8	9-09204-517-0	03	1	0801-0808	●	●
26	PLUG; SUB AIR TANK WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) (A) PT3/8	9-09204-517-0	03	1	0809-	●	●
26	PLUG; SUB AIR TANK ZF9S1310 M/T(Y5K) (A) PT3/8	9-09204-517-0	02	1	0801-	●	●
26	PLUG; SUB AIR TANK WHEEL BASE 4900MM(49W) (A) PT3/8	9-09204-517-0	02	1	0801-		●
26	PLUG; SUB AIR TANK WHEEL BASE 4900MM(49W) (B) PT1/4	9-99204-513-0	01	1	0801-		●
27	UNION; ELBOW,AIR TANK WHEEL BASE 7100MM(71W) (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0801-0808	●	●
27	UNION; ELBOW,AIR TANK WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0809-	●	●
27	UNION; ELBOW,AIR TANK WHEEL BASE 7100MM(71W) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0801-0808	●	●
27	UNION; ELBOW,AIR TANK WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0809-	●	●
28	BRACKET; AIR TANK (A)	8-97618-088-1	01	1	0801-	●	●
28	BRACKET; AIR TANK (B)	8-97620-996-0	01	1	0801-0806	●	●
28	BRACKET; AIR TANK (B)	8-98112-257-0	01	1	0807-	●	●
28	BRACKET; AIR TANK (D)	8-98092-756-1	01	1	0801-	●	●
28	BRACKET; AIR TANK (E)	8-98093-562-1	01	1	0801-	●	●
28	BRACKET; AIR TANK (F)	8-98100-984-0	01	1	0801-	●	●
28	BRACKET; AIR TANK WHEEL BASE 7100MM(71W) (C)	8-97621-120-1	01	1	0801-0808	●	●
28	BRACKET; AIR TANK WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) (C)	8-97621-120-1	01	1	0809-1010	●	●
28	BRACKET; AIR TANK WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) (C)	8-97621-120-1	01	1	1011-	●
29	BRACKET; AIR TANK WHEEL BASE 4900MM(49W)	1-48316-054-0	01	1	0801-0806		●
29	BRACKET; AIR TANK WHEEL BASE 4900MM(49W)	8-97620-998-0	01	1	0807-		●
30	BRACKET; AIR TANK,SUB (C)	8-97618-393-0	01	1	0801-	●
30	BRACKET; AIR TANK,SUB EXC. ENGINE REAR PTO(SV1) (C)	8-97618-393-0	01	1	0801-		●
30	BRACKET; AIR TANK,SUB (D)	8-97618-394-0	02	1	0801-	●
30	BRACKET; AIR TANK,SUB EXC. ENGINE REAR PTO(SV1) (D)	8-97618-394-0	02	1	0801-		●
30	BRACKET; AIR TANK,SUB WHEEL BASE 7100MM(71W) (A)	8-97618-390-1	01	1	0801-0808	●	●
30	BRACKET; AIR TANK,SUB WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) (A)	8-97618-390-1	01	1	0809-	●	●
30	BRACKET; AIR TANK,SUB WHEEL BASE 7100MM(71W) (B)	8-97618-391-1	01	1	0801-0808	●	●
30	BRACKET; AIR TANK,SUB WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) (B)	8-97618-391-1	01	1	0809-	●	●
30	BRACKET; AIR TANK,SUB WHEEL BASE 4900MM(49W) (E)	8-98100-865-0	01	1	0801-		●
30	BRACKET; AIR TANK,SUB WHEEL BASE 4900MM(49W) (F)	8-98100-866-0	01	1	0801-		●
31	BOLT; BRKT TO FRAME M8X20 FLANGE	0-28650-820-0	01	1	0801-	●	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	06	1	0801-	●	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	0801-	●	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	0801-	●
39	U-BOLT; AIR TANK EXC. ENGINE REAR PTO(SV1) (A) L=253	1-48317-248-1	02	1	0801-		●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	0801-	●	●
46	NUT; U-BOLT M8	0-91110-508-0	24	1	0801-	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0801-	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0801-	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0801-	●
46	NUT; U-BOLT EXC. ENGINE REAR PTO(SV1) M8	0-91110-508-0	08	1	0801-		●
80	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0801-	●	●
80	BOLT; BRKT WHEEL BASE 7100MM(71W) M8X20 FLANGE	0-28650-820-0	02	1	0801-0808	●	●
80	BOLT; BRKT WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) M8X20 FLANGE	0-28650-820-0	02	1	0809-1010	●	●
80	BOLT; BRKT WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) M8X20 FLANGE	0-28650-820-0	02	1	1011-	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	0801-	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	0801-	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	0801-	●	●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0801-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW	1-09660-696-0	02	1	0801-	●	●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0801-0901	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0902-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0902-	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0801-0901	●	●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0902-		●
126	CONNECTOR; ELBOW TRANSMISSION-FULLER RTO11908(Y5L) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0801-	●	●
126	CONNECTOR; ELBOW ZF9S1310 M/T(Y5K) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0801-0803	●	●
126	CONNECTOR; ELBOW (D) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	0804-	●	●
126	CONNECTOR; ELBOW ENGINE REAR PTO(SV1) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0801-		●
131	NUT; BRKT FIX M12 FLANGE	0-91180-212-0	02	1	0801-0808	●
131	NUT; BRKT FIX WHEEL BASE 7100MM(71W) M12 FLANGE	0-91180-212-0	02	1	0801-0808		●
131	NUT; BRKT FIX M12 FLANGE	0-91180-212-0	02	1	0809-	●
131	NUT; BRKT FIX WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) M12 FLANGE	0-91180-212-0	02	1	0809-		●
131	NUT; BRKT FIX WHEEL BASE 4900MM(49W) M12 FLANGE	0-91180-212-0	03	1	0801-		●
136	BRACKET; CLIP L=55 B=25	1-47478-439-0	01	1	0801-	●	●
137	BOLT; BRKT M12X30 FLANGE	0-28651-230-0	02	1	0801-0808	●
137	BOLT; BRKT WHEEL BASE 7100MM(71W) M12X30 FLANGE	0-28651-230-0	02	1	0801-0808		●
137	BOLT; BRKT M12X30 FLANGE	0-28651-230-0	02	1	0809-	●
137	BOLT; BRKT WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) M12X30 FLANGE	0-28651-230-0	02	1	0809-		●
137	BOLT; BRKT WHEEL BASE 4900MM(49W) M12X30 FLANGE	0-28651-230-0	04	1	0801-		●
164	CONNECTOR; SUB AIR TANK WHEEL BASE 4900MM(49W) (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0801-		●
164	CONNECTOR; SUB AIR TANK WHEEL BASE 4900MM(49W) (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0801-		●
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB STAMP 5.5	8-97609-249-0	01	1	0801-	●	●

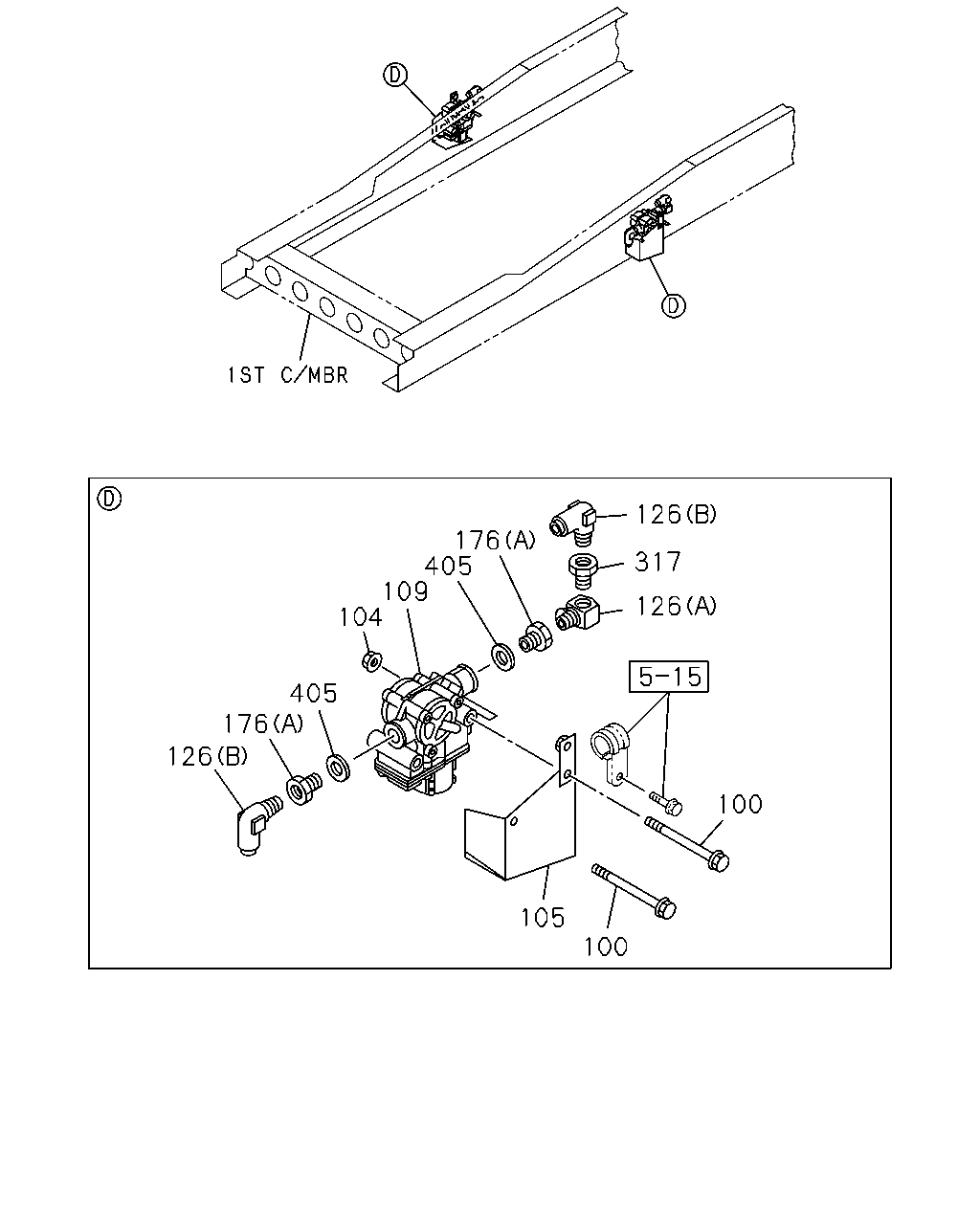

126 176 405 109 104 317 126 405 176 126 100 105 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
100	BOLT; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE	0-28050-880-0	04	1	0801-	●	●
100	BOLT; MODULATOR M8X140 FLANGE	0-28055-814-0	02	1	0801-	●	●
104	NUT; BRKT M10	0-91110-510-0	04	1	0801-	●	●
104	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0801-	●	●
104	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	0801-	●	●
104	NUT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	02	1	0801-0809		●
105	COVER; MODULATOR ANTILOCK BRAKE SYSTEM(BFA)	1-47471-388-0	01	1	0801-0810	●	●
105	COVER; MODULATOR ANTILOCK BRAKE SYSTEM(BFA)	8-98061-815-0	01	1	0811-	●	●
105	COVER; MODULATOR ANTILOCK BRAKE SYSTEM(BFA)	8-98049-454-0	01	1	0801-0803	●	●
105	COVER; MODULATOR ANTILOCK BRAKE SYSTEM(BFA)	8-98081-578-0	01	1	0804-	●	●
109	MODULATOR; FRT ANTILOCK BRAKE SYSTEM(BFA)	1-48240-115-0	02	1	0801-	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	0801-	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	0801-	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	0801-	●	●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0801-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW	1-09660-696-0	02	1	0801-	●	●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0801-0901	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0902-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0902-	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0801-0901	●	●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0902-		●
126	CONNECTOR; ELBOW TRANSMISSION-FULLER RTO11908(Y5L) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0801-	●	●
126	CONNECTOR; ELBOW ZF9S1310 M/T(Y5K) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0801-0803	●	●
126	CONNECTOR; ELBOW (D) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	0804-	●	●
126	CONNECTOR; ELBOW ENGINE REAR PTO(SV1) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0801-		●
176	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (B) PT3/8	1-09664-210-0	02	1	0801-	●
176	ADAPTER (A) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	0801-	●	●
176	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) (A) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	0801-	●	●
317	CONNECTOR; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) PT3/8	1-09664-210-0	01	1	0804-	●	●
405	GASKET ANTILOCK BRAKE SYSTEM(BFA) ID=22.5	9-09571-422-0	04	1	0801-	●	●

26 27 27 31 46 46 28 26 136 27 26 80 46 46 126 131 39 137 131 167 7 6 30 137 2 126 8 30 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	TANK; AIR	8-97617-855-1	01	1	0801-1106	●	●
2	TANK; AIR	8-98187-713-0	01	1	1107-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	02	1	0801-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0801-0808	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0801-0808	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0801-0808	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0801-0808	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 7100MM(71W)	1-48312-015-0	01	1	0801-0808	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1)	1-48312-015-0	01	1	0801-0808		●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0809-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0809-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0809-	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W)	1-48312-015-0	01	1	0809-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0809-	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1)	1-48312-015-0	01	1	0809-		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	0801-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0801-0808	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0801-0808	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0801-0808	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0801-0808	●	●
7	GASKET; DRAIN COCK WHEEL BASE 7100MM(71W) ID=14	1-09630-145-0	01	1	0801-0808	●	●
7	GASKET; DRAIN COCK WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1) ID=14	1-09630-145-0	01	1	0801-0808		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0809-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0809-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0809-	●	●
7	GASKET; DRAIN COCK WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) ID=14	1-09630-145-0	01	1	0809-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0809-	●	●
7	GASKET; DRAIN COCK WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1) ID=14	1-09630-145-0	01	1	0809-		●
8	CONNECTOR; AIR TANK (B) PT3/8X2 & PT1/4 3WAY	1-09656-708-0	01	1	0801-	●
8	CONNECTOR; AIR TANK EXC. ENGINE REAR PTO(SV1) (B) PT3/8X2 & PT1/4 3WAY	1-09656-708-0	01	1	0801-		●
8	CONNECTOR; AIR TANK (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0801-	●	●
8	CONNECTOR; AIR TANK (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0801-	●	●
8	CONNECTOR; AIR TANK (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0801-	●	●
8	CONNECTOR; AIR TANK (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0801-	●	●
26	PLUG; SUB AIR TANK TRANSMISSION-FULLER RTO11908(Y5L) (A) PT3/8	9-09204-517-0	01	1	0801-	●	●
26	PLUG; SUB AIR TANK WHEEL BASE 7100MM(71W) (A) PT3/8	9-09204-517-0	03	1	0801-0808	●	●
26	PLUG; SUB AIR TANK WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) (A) PT3/8	9-09204-517-0	03	1	0809-	●	●
26	PLUG; SUB AIR TANK ZF9S1310 M/T(Y5K) (A) PT3/8	9-09204-517-0	02	1	0801-	●	●
26	PLUG; SUB AIR TANK WHEEL BASE 4900MM(49W) (A) PT3/8	9-09204-517-0	02	1	0801-		●
26	PLUG; SUB AIR TANK WHEEL BASE 4900MM(49W) (B) PT1/4	9-99204-513-0	01	1	0801-		●
27	UNION; ELBOW,AIR TANK WHEEL BASE 7100MM(71W) (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0801-0808	●	●
27	UNION; ELBOW,AIR TANK WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0809-	●	●
27	UNION; ELBOW,AIR TANK WHEEL BASE 7100MM(71W) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0801-0808	●	●
27	UNION; ELBOW,AIR TANK WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0809-	●	●
28	BRACKET; AIR TANK (A)	8-97618-088-1	01	1	0801-	●	●
28	BRACKET; AIR TANK (B)	8-97620-996-0	01	1	0801-0806	●	●
28	BRACKET; AIR TANK (B)	8-98112-257-0	01	1	0807-	●	●
28	BRACKET; AIR TANK (D)	8-98092-756-1	01	1	0801-	●	●
28	BRACKET; AIR TANK (E)	8-98093-562-1	01	1	0801-	●	●
28	BRACKET; AIR TANK (F)	8-98100-984-0	01	1	0801-	●	●
28	BRACKET; AIR TANK WHEEL BASE 7100MM(71W) (C)	8-97621-120-1	01	1	0801-0808	●	●
28	BRACKET; AIR TANK WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) (C)	8-97621-120-1	01	1	0809-1010	●	●
28	BRACKET; AIR TANK WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) (C)	8-97621-120-1	01	1	1011-	●
30	BRACKET; AIR TANK,SUB (C)	8-97618-393-0	01	1	0801-	●
30	BRACKET; AIR TANK,SUB EXC. ENGINE REAR PTO(SV1) (C)	8-97618-393-0	01	1	0801-		●
30	BRACKET; AIR TANK,SUB (D)	8-97618-394-0	02	1	0801-	●
30	BRACKET; AIR TANK,SUB EXC. ENGINE REAR PTO(SV1) (D)	8-97618-394-0	02	1	0801-		●
30	BRACKET; AIR TANK,SUB WHEEL BASE 7100MM(71W) (A)	8-97618-390-1	01	1	0801-0808	●	●
30	BRACKET; AIR TANK,SUB WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) (A)	8-97618-390-1	01	1	0809-	●	●
30	BRACKET; AIR TANK,SUB WHEEL BASE 7100MM(71W) (B)	8-97618-391-1	01	1	0801-0808	●	●
30	BRACKET; AIR TANK,SUB WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) (B)	8-97618-391-1	01	1	0809-	●	●
30	BRACKET; AIR TANK,SUB WHEEL BASE 4900MM(49W) (E)	8-98100-865-0	01	1	0801-		●
30	BRACKET; AIR TANK,SUB WHEEL BASE 4900MM(49W) (F)	8-98100-866-0	01	1	0801-		●
31	BOLT; BRKT TO FRAME M8X20 FLANGE	0-28650-820-0	01	1	0801-	●	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	06	1	0801-	●	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	0801-	●	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	0801-	●
39	U-BOLT; AIR TANK EXC. ENGINE REAR PTO(SV1) (A) L=253	1-48317-248-1	02	1	0801-		●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	0801-	●	●
46	NUT; U-BOLT M8	0-91110-508-0	24	1	0801-	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0801-	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0801-	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0801-	●
46	NUT; U-BOLT EXC. ENGINE REAR PTO(SV1) M8	0-91110-508-0	08	1	0801-		●
80	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0801-	●	●
80	BOLT; BRKT WHEEL BASE 7100MM(71W) M8X20 FLANGE	0-28650-820-0	02	1	0801-0808	●	●
80	BOLT; BRKT WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) M8X20 FLANGE	0-28650-820-0	02	1	0809-1010	●	●
80	BOLT; BRKT WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) M8X20 FLANGE	0-28650-820-0	02	1	1011-	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	0801-	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	0801-	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	0801-	●	●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0801-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW	1-09660-696-0	02	1	0801-	●	●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0801-0901	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0902-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0902-	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0801-0901	●	●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0902-		●
126	CONNECTOR; ELBOW TRANSMISSION-FULLER RTO11908(Y5L) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0801-	●	●
126	CONNECTOR; ELBOW ZF9S1310 M/T(Y5K) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0801-0803	●	●
126	CONNECTOR; ELBOW (D) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	0804-	●	●
126	CONNECTOR; ELBOW ENGINE REAR PTO(SV1) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0801-		●
131	NUT; BRKT FIX M12 FLANGE	0-91180-212-0	02	1	0801-0808	●
131	NUT; BRKT FIX WHEEL BASE 7100MM(71W) M12 FLANGE	0-91180-212-0	02	1	0801-0808		●
131	NUT; BRKT FIX M12 FLANGE	0-91180-212-0	02	1	0809-	●
131	NUT; BRKT FIX WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) M12 FLANGE	0-91180-212-0	02	1	0809-		●
131	NUT; BRKT FIX WHEEL BASE 4900MM(49W) M12 FLANGE	0-91180-212-0	03	1	0801-		●
136	BRACKET; CLIP L=55 B=25	1-47478-439-0	01	1	0801-	●	●
137	BOLT; BRKT M12X30 FLANGE	0-28651-230-0	02	1	0801-0808	●
137	BOLT; BRKT WHEEL BASE 7100MM(71W) M12X30 FLANGE	0-28651-230-0	02	1	0801-0808		●
137	BOLT; BRKT M12X30 FLANGE	0-28651-230-0	02	1	0809-	●
137	BOLT; BRKT WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) M12X30 FLANGE	0-28651-230-0	02	1	0809-		●
137	BOLT; BRKT WHEEL BASE 4900MM(49W) M12X30 FLANGE	0-28651-230-0	04	1	0801-		●
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB STAMP 5.5	8-97609-249-0	01	1	0801-	●	●

39 10 39 10 5 10 10 10 381 342 5 10 10 1 30 37 30 10 7 46 46 30 6 46 46 37 126 126 39 39 26 372 28 104 103 46 46 352 104 7 6 126 26 104 104 28 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR (A)	8-97617-854-0	01	1	0801-1106	●	●
1	TANK ASM; AIR (A)	8-98187-712-0	01	1	1107-	●	●
1	TANK ASM; AIR (B)	8-97617-855-1	01	1	0801-0808	●	●
1	TANK ASM; AIR (B)	8-97617-855-1	01	1	0801-0808	●	●
1	TANK ASM; AIR (B)	8-97617-855-1	01	1	0801-0808	●
1	TANK ASM; AIR WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1) (B)	8-97617-855-1	01	1	0801-0808		●
1	TANK ASM; AIR WHEEL BASE 7100MM(71W) (B)	8-97617-855-1	01	1	0801-0808		●
1	TANK ASM; AIR (B)	8-97617-855-1	01	1	0809-1106	●	●
1	TANK ASM; AIR (B)	8-97617-855-1	01	1	0809-1106	●	●
1	TANK ASM; AIR (B)	8-97617-855-1	01	1	0809-1106	●
1	TANK ASM; AIR WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1) (B)	8-97617-855-1	01	1	0809-1106		●
1	TANK ASM; AIR WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) (B)	8-97617-855-1	01	1	0809-1106		●
1	TANK ASM; AIR (B)	8-98187-713-0	01	1	1107-	●	●
1	TANK ASM; AIR (B)	8-98187-713-0	01	1	1107-	●	●
1	TANK ASM; AIR (B)	8-98187-713-0	01	1	1107-	●
1	TANK ASM; AIR WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) (B)	8-98187-713-0	01	1	1107-		●
1	TANK ASM; AIR WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1) (B)	8-98187-713-0	01	1	1107-		●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0801-0808	●
5	UNION; AIR TANK WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0801-0808		●
5	UNION; AIR TANK WHEEL BASE 7100MM(71W) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0801-0808		●
5	UNION; AIR TANK ENGINE REAR PTO(SV1) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0801-0808		●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0809-	●
5	UNION; AIR TANK WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0809-		●
5	UNION; AIR TANK WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0809-		●
5	UNION; AIR TANK ENGINE REAR PTO(SV1) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0809-		●
5	UNION; AIR TANK (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0801-	●	●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0801-	●	●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0801-	●
5	UNION; AIR TANK EXC. ENGINE REAR PTO(SV1) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0801-		●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0801-	●	●
5	UNION; AIR TANK (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0801-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	02	1	0801-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0801-0808	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0801-0808	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0801-0808	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0801-0808	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 7100MM(71W)	1-48312-015-0	01	1	0801-0808	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1)	1-48312-015-0	01	1	0801-0808		●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0809-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0809-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0809-	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W)	1-48312-015-0	01	1	0809-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0809-	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1)	1-48312-015-0	01	1	0809-		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	0801-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0801-0808	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0801-0808	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0801-0808	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0801-0808	●	●
7	GASKET; DRAIN COCK WHEEL BASE 7100MM(71W) ID=14	1-09630-145-0	01	1	0801-0808	●	●
7	GASKET; DRAIN COCK WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1) ID=14	1-09630-145-0	01	1	0801-0808		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0809-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0809-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0809-	●	●
7	GASKET; DRAIN COCK WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) ID=14	1-09630-145-0	01	1	0809-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0809-	●	●
7	GASKET; DRAIN COCK WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1) ID=14	1-09630-145-0	01	1	0809-		●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	06	1	0801-0808	●
10	PLUG; AIR TANK WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1) (A) PT3/8	9-09204-517-0	06	1	0801-0808		●
10	PLUG; AIR TANK WHEEL BASE 7100MM(71W) (A) PT3/8	9-09204-517-0	06	1	0801-0808		●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	06	1	0809-	●
10	PLUG; AIR TANK WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1) (A) PT3/8	9-09204-517-0	06	1	0809-		●
10	PLUG; AIR TANK WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) (A) PT3/8	9-09204-517-0	06	1	0809-		●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	03	1	0801-0803	●	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	03	1	0801-0803	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	03	1	0804-0808	●	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	03	1	0804-0808	●	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	03	1	0809-	●	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	03	1	0809-	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	01	1	0801-	●	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	0801-0803	●	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	0801-0803	●	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	0801-0803	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	0801-0803	●
10	PLUG; AIR TANK WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1) (B) PT1/4	9-99204-513-0	01	1	0801-0803		●
10	PLUG; AIR TANK WHEEL BASE 7100MM(71W) (B) PT1/4	9-99204-513-0	01	1	0801-0803		●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	0804-0808	●	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	0804-0808	●	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	0804-0808	●	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	0804-0808	●
10	PLUG; AIR TANK WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1) (B) PT1/4	9-99204-513-0	01	1	0804-0808		●
10	PLUG; AIR TANK WHEEL BASE 7100MM(71W) (B) PT1/4	9-99204-513-0	01	1	0804-0808		●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	0809-	●	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	0809-	●	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	0809-	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	0809-	●
10	PLUG; AIR TANK WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1) (B) PT1/4	9-99204-513-0	01	1	0809-		●
10	PLUG; AIR TANK WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) (B) PT1/4	9-99204-513-0	01	1	0809-		●
26	PLUG; SUB AIR TANK TRANSMISSION-FULLER RTO11908(Y5L) (A) PT3/8	9-09204-517-0	01	1	0801-	●	●
26	PLUG; SUB AIR TANK WHEEL BASE 7100MM(71W) (A) PT3/8	9-09204-517-0	03	1	0801-0808	●	●
26	PLUG; SUB AIR TANK WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) (A) PT3/8	9-09204-517-0	03	1	0809-	●	●
26	PLUG; SUB AIR TANK ZF9S1310 M/T(Y5K) (A) PT3/8	9-09204-517-0	02	1	0801-	●	●
26	PLUG; SUB AIR TANK WHEEL BASE 4900MM(49W) (A) PT3/8	9-09204-517-0	02	1	0801-		●
26	PLUG; SUB AIR TANK WHEEL BASE 4900MM(49W) (B) PT1/4	9-99204-513-0	01	1	0801-		●
28	BRACKET; AIR TANK (A)	8-97618-088-1	01	1	0801-	●	●
28	BRACKET; AIR TANK (B)	8-97620-996-0	01	1	0801-0806	●	●
28	BRACKET; AIR TANK (B)	8-98112-257-0	01	1	0807-	●	●
28	BRACKET; AIR TANK (D)	8-98092-756-1	01	1	0801-	●	●
28	BRACKET; AIR TANK (E)	8-98093-562-1	01	1	0801-	●	●
28	BRACKET; AIR TANK (F)	8-98100-984-0	01	1	0801-	●	●
28	BRACKET; AIR TANK WHEEL BASE 7100MM(71W) (C)	8-97621-120-1	01	1	0801-0808	●	●
28	BRACKET; AIR TANK WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) (C)	8-97621-120-1	01	1	0809-1010	●	●
28	BRACKET; AIR TANK WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) (C)	8-97621-120-1	01	1	1011-	●
30	BRACKET; AIR TANK,SUB (C)	8-97618-393-0	01	1	0801-	●
30	BRACKET; AIR TANK,SUB EXC. ENGINE REAR PTO(SV1) (C)	8-97618-393-0	01	1	0801-		●
30	BRACKET; AIR TANK,SUB (D)	8-97618-394-0	02	1	0801-	●
30	BRACKET; AIR TANK,SUB EXC. ENGINE REAR PTO(SV1) (D)	8-97618-394-0	02	1	0801-		●
30	BRACKET; AIR TANK,SUB WHEEL BASE 7100MM(71W) (A)	8-97618-390-1	01	1	0801-0808	●	●
30	BRACKET; AIR TANK,SUB WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) (A)	8-97618-390-1	01	1	0809-	●	●
30	BRACKET; AIR TANK,SUB WHEEL BASE 7100MM(71W) (B)	8-97618-391-1	01	1	0801-0808	●	●
30	BRACKET; AIR TANK,SUB WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) (B)	8-97618-391-1	01	1	0809-	●	●
30	BRACKET; AIR TANK,SUB WHEEL BASE 4900MM(49W) (E)	8-98100-865-0	01	1	0801-		●
30	BRACKET; AIR TANK,SUB WHEEL BASE 4900MM(49W) (F)	8-98100-866-0	01	1	0801-		●
37	BOLT; AIR TANK M10X20 FLANGE	0-28651-020-0	08	1	0801-0802	●
37	BOLT; AIR TANK EXC. ENGINE REAR PTO(SV1) M10X20 FLANGE	0-28651-020-0	08	1	0801-0802		●
37	BOLT; AIR TANK M10X25 FLANGE	0-28651-025-0	08	1	0803-	●
37	BOLT; AIR TANK EXC. ENGINE REAR PTO(SV1) M10X25 FLANGE	0-28651-025-0	08	1	0803-		●
37	BOLT; AIR TANK M10X40 FLANGE	0-28651-040-0	04	1	0801-0803	●
37	BOLT; AIR TANK EXC. ENGINE REAR PTO(SV1) M10X40 FLANGE	0-28651-040-0	04	1	0801-0803		●
37	BOLT; AIR TANK M10X40 FLANGE	0-28651-040-0	02	1	0804-	●
37	BOLT; AIR TANK EXC. ENGINE REAR PTO(SV1) M10X40 FLANGE	0-28651-040-0	02	1	0804-		●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	06	1	0801-	●	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	0801-	●	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	0801-	●
39	U-BOLT; AIR TANK EXC. ENGINE REAR PTO(SV1) (A) L=253	1-48317-248-1	02	1	0801-		●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	0801-	●	●
46	NUT; U-BOLT M8	0-91110-508-0	24	1	0801-	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0801-	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0801-	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0801-	●
46	NUT; U-BOLT EXC. ENGINE REAR PTO(SV1) M8	0-91110-508-0	08	1	0801-		●
103	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0801-	●	●
103	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	04	1	0801-0803	●	●
103	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	0804-	●	●
103	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE	0-28650-825-0	02	1	0801-	●	●
104	NUT; BRKT M10	0-91110-510-0	04	1	0801-	●	●
104	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0801-	●	●
104	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	0801-	●	●
104	NUT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	02	1	0801-0809		●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	0801-	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	0801-	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	0801-	●	●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0801-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW	1-09660-696-0	02	1	0801-	●	●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0801-0901	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0902-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0902-	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0801-0901	●	●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0902-		●
126	CONNECTOR; ELBOW TRANSMISSION-FULLER RTO11908(Y5L) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0801-	●	●
126	CONNECTOR; ELBOW ZF9S1310 M/T(Y5K) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0801-0803	●	●
126	CONNECTOR; ELBOW (D) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	0804-	●	●
126	CONNECTOR; ELBOW ENGINE REAR PTO(SV1) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0801-		●
342	STUD M10X30 L=45	8-98035-675-0	02	1	0801-	●
342	STUD EXC. ENGINE REAR PTO(SV1) M10X30 L=45	8-98035-675-0	02	1	0801-		●
352	CONNECTOR; STRAIGHT (C) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0804-	●	●
352	CONNECTOR; STRAIGHT (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0801-0901	●	●
352	CONNECTOR; STRAIGHT (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0902-		●
352	CONNECTOR; STRAIGHT (B) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	0801-	●	●
372	TANK; AIR,ACCESORY	8-98090-803-1	01	1	0801-	●	●
381	NUT; SUB TANK M10 FLANGE	0-91180-210-0	04	1	0801-0803	●
381	NUT; SUB TANK EXC. ENGINE REAR PTO(SV1) M10 FLANGE	0-91180-210-0	04	1	0801-0803		●
381	NUT; SUB TANK M10 FLANGE	0-91180-210-0	02	1	0804-	●
381	NUT; SUB TANK EXC. ENGINE REAR PTO(SV1) M10 FLANGE	0-91180-210-0	02	1	0804-		●

184 28 51 51 57 192 126 5 39 28 51 166 10 10 39 119 5 5 5 36 49 11 36 39 10 166 126 10 5 5 10 39 10 126 166 10 8 126 1 7 6 104 278 184 28 39 10 10 8 126 5 10 1 7 6 166 8 5 1 39 3 7 6 5 57 192 8 164 11 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR (A)	8-97617-854-0	01	1	0801-1106	●	●
1	TANK ASM; AIR (A)	8-98187-712-0	01	1	1107-	●	●
1	TANK ASM; AIR (B)	8-97617-855-1	01	1	0801-0808	●	●
1	TANK ASM; AIR (B)	8-97617-855-1	01	1	0801-0808	●	●
1	TANK ASM; AIR (B)	8-97617-855-1	01	1	0801-0808	●
1	TANK ASM; AIR WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1) (B)	8-97617-855-1	01	1	0801-0808		●
1	TANK ASM; AIR WHEEL BASE 7100MM(71W) (B)	8-97617-855-1	01	1	0801-0808		●
1	TANK ASM; AIR (B)	8-97617-855-1	01	1	0809-1106	●	●
1	TANK ASM; AIR (B)	8-97617-855-1	01	1	0809-1106	●	●
1	TANK ASM; AIR (B)	8-97617-855-1	01	1	0809-1106	●
1	TANK ASM; AIR WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1) (B)	8-97617-855-1	01	1	0809-1106		●
1	TANK ASM; AIR WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) (B)	8-97617-855-1	01	1	0809-1106		●
1	TANK ASM; AIR (B)	8-98187-713-0	01	1	1107-	●	●
1	TANK ASM; AIR (B)	8-98187-713-0	01	1	1107-	●	●
1	TANK ASM; AIR (B)	8-98187-713-0	01	1	1107-	●
1	TANK ASM; AIR WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) (B)	8-98187-713-0	01	1	1107-		●
1	TANK ASM; AIR WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1) (B)	8-98187-713-0	01	1	1107-		●
3	VALVE; CHECK,AIR TANK	1-48320-031-1	01	1	0801-	●	●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0801-0808	●
5	UNION; AIR TANK WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0801-0808		●
5	UNION; AIR TANK WHEEL BASE 7100MM(71W) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0801-0808		●
5	UNION; AIR TANK ENGINE REAR PTO(SV1) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0801-0808		●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0809-	●
5	UNION; AIR TANK WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0809-		●
5	UNION; AIR TANK WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0809-		●
5	UNION; AIR TANK ENGINE REAR PTO(SV1) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0809-		●
5	UNION; AIR TANK (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0801-	●	●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0801-	●	●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0801-	●
5	UNION; AIR TANK EXC. ENGINE REAR PTO(SV1) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0801-		●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0801-	●	●
5	UNION; AIR TANK (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0801-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	02	1	0801-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0801-0808	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0801-0808	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0801-0808	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0801-0808	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 7100MM(71W)	1-48312-015-0	01	1	0801-0808	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1)	1-48312-015-0	01	1	0801-0808		●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0809-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0809-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0809-	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W)	1-48312-015-0	01	1	0809-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	0809-	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1)	1-48312-015-0	01	1	0809-		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	0801-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0801-0808	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0801-0808	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0801-0808	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0801-0808	●	●
7	GASKET; DRAIN COCK WHEEL BASE 7100MM(71W) ID=14	1-09630-145-0	01	1	0801-0808	●	●
7	GASKET; DRAIN COCK WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1) ID=14	1-09630-145-0	01	1	0801-0808		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0809-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0809-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0809-	●	●
7	GASKET; DRAIN COCK WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) ID=14	1-09630-145-0	01	1	0809-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	0809-	●	●
7	GASKET; DRAIN COCK WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1) ID=14	1-09630-145-0	01	1	0809-		●
8	CONNECTOR; AIR TANK (B) PT3/8X2 & PT1/4 3WAY	1-09656-708-0	01	1	0801-	●
8	CONNECTOR; AIR TANK EXC. ENGINE REAR PTO(SV1) (B) PT3/8X2 & PT1/4 3WAY	1-09656-708-0	01	1	0801-		●
8	CONNECTOR; AIR TANK (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0801-	●	●
8	CONNECTOR; AIR TANK (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0801-	●	●
8	CONNECTOR; AIR TANK (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0801-	●	●
8	CONNECTOR; AIR TANK (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0801-	●	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	06	1	0801-0808	●
10	PLUG; AIR TANK WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1) (A) PT3/8	9-09204-517-0	06	1	0801-0808		●
10	PLUG; AIR TANK WHEEL BASE 7100MM(71W) (A) PT3/8	9-09204-517-0	06	1	0801-0808		●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	06	1	0809-	●
10	PLUG; AIR TANK WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1) (A) PT3/8	9-09204-517-0	06	1	0809-		●
10	PLUG; AIR TANK WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) (A) PT3/8	9-09204-517-0	06	1	0809-		●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	03	1	0801-0803	●	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	03	1	0801-0803	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	03	1	0804-0808	●	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	03	1	0804-0808	●	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	03	1	0809-	●	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	03	1	0809-	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	01	1	0801-	●	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	0801-0803	●	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	0801-0803	●	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	0801-0803	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	0801-0803	●
10	PLUG; AIR TANK WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1) (B) PT1/4	9-99204-513-0	01	1	0801-0803		●
10	PLUG; AIR TANK WHEEL BASE 7100MM(71W) (B) PT1/4	9-99204-513-0	01	1	0801-0803		●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	0804-0808	●	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	0804-0808	●	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	0804-0808	●	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	0804-0808	●
10	PLUG; AIR TANK WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1) (B) PT1/4	9-99204-513-0	01	1	0804-0808		●
10	PLUG; AIR TANK WHEEL BASE 7100MM(71W) (B) PT1/4	9-99204-513-0	01	1	0804-0808		●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	0809-	●	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	0809-	●	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	0809-	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	0809-	●
10	PLUG; AIR TANK WHEEL BASE 4900MM(49W) EXC. ENGINE REAR PTO(SV1) (B) PT1/4	9-99204-513-0	01	1	0809-		●
10	PLUG; AIR TANK WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) (B) PT1/4	9-99204-513-0	01	1	0809-		●
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	0801-	●	●
28	BRACKET; AIR TANK (A)	8-97618-088-1	01	1	0801-	●	●
28	BRACKET; AIR TANK (B)	8-97620-996-0	01	1	0801-0806	●	●
28	BRACKET; AIR TANK (B)	8-98112-257-0	01	1	0807-	●	●
28	BRACKET; AIR TANK (D)	8-98092-756-1	01	1	0801-	●	●
28	BRACKET; AIR TANK (E)	8-98093-562-1	01	1	0801-	●	●
28	BRACKET; AIR TANK (F)	8-98100-984-0	01	1	0801-	●	●
28	BRACKET; AIR TANK WHEEL BASE 7100MM(71W) (C)	8-97621-120-1	01	1	0801-0808	●	●
28	BRACKET; AIR TANK WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) (C)	8-97621-120-1	01	1	0809-1010	●	●
28	BRACKET; AIR TANK WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) (C)	8-97621-120-1	01	1	1011-	●
36	STAY; MAIN TANK	8-97618-091-1	02	1	0801-	●	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	06	1	0801-	●	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	0801-	●	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	0801-	●
39	U-BOLT; AIR TANK EXC. ENGINE REAR PTO(SV1) (A) L=253	1-48317-248-1	02	1	0801-		●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	0801-	●	●
49	BRACKET; AIR TANK	8-98110-683-0	01	1	0801-	●	●
51	BOLT; STAY TO BRKT M8X20 FLANGE	0-28650-820-0	10	1	0801-	●	●
57	BOLT; BRKT,AIR TANK TO FRAME M14X45	1-09000-764-0	04	1	0801-	●	●
80	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0801-	●	●
80	BOLT; BRKT WHEEL BASE 7100MM(71W) M8X20 FLANGE	0-28650-820-0	02	1	0801-0808	●	●
80	BOLT; BRKT WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) M8X20 FLANGE	0-28650-820-0	02	1	0809-1010	●	●
80	BOLT; BRKT WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) M8X20 FLANGE	0-28650-820-0	02	1	1011-	●
104	NUT; BRKT M10	0-91110-510-0	04	1	0801-	●	●
104	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0801-	●	●
104	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	0801-	●	●
104	NUT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	02	1	0801-0809		●
119	BOLT; STAY (A) M8X20 FLANGE	0-28650-820-0	04	1	0801-	●	●
119	BOLT; STAY (B) M8X25 FLANGE	0-28650-825-0	03	1	0801-	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	0801-	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	0801-	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	0801-	●	●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0801-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW	1-09660-696-0	02	1	0801-	●	●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0801-0901	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0902-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0902-	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0801-0901	●	●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0902-		●
126	CONNECTOR; ELBOW TRANSMISSION-FULLER RTO11908(Y5L) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0801-	●	●
126	CONNECTOR; ELBOW ZF9S1310 M/T(Y5K) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0801-0803	●	●
126	CONNECTOR; ELBOW (D) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	0804-	●	●
126	CONNECTOR; ELBOW ENGINE REAR PTO(SV1) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0801-		●
164	CONNECTOR; SUB AIR TANK WHEEL BASE 4900MM(49W) (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0801-		●
164	CONNECTOR; SUB AIR TANK WHEEL BASE 4900MM(49W) (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0801-		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	01	1	0801-0803	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	01	1	0801-0803	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	01	1	0801-0803	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	01	1	0804-0808	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	01	1	0804-0808	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	01	1	0804-0808	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	01	1	0809-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	01	1	0809-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	01	1	0809-	●
184	NUT; BRKT M14	1-09440-072-0	04	1	0801-	●	●
192	WASHER; LK,BRKT ID=14.2	0-91510-514-0	08	1	0801-	●	●
278	BRACKET; CONNECTOR L=75	1-47478-323-0	01	1	0801-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
