2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#45151) — 10 parça

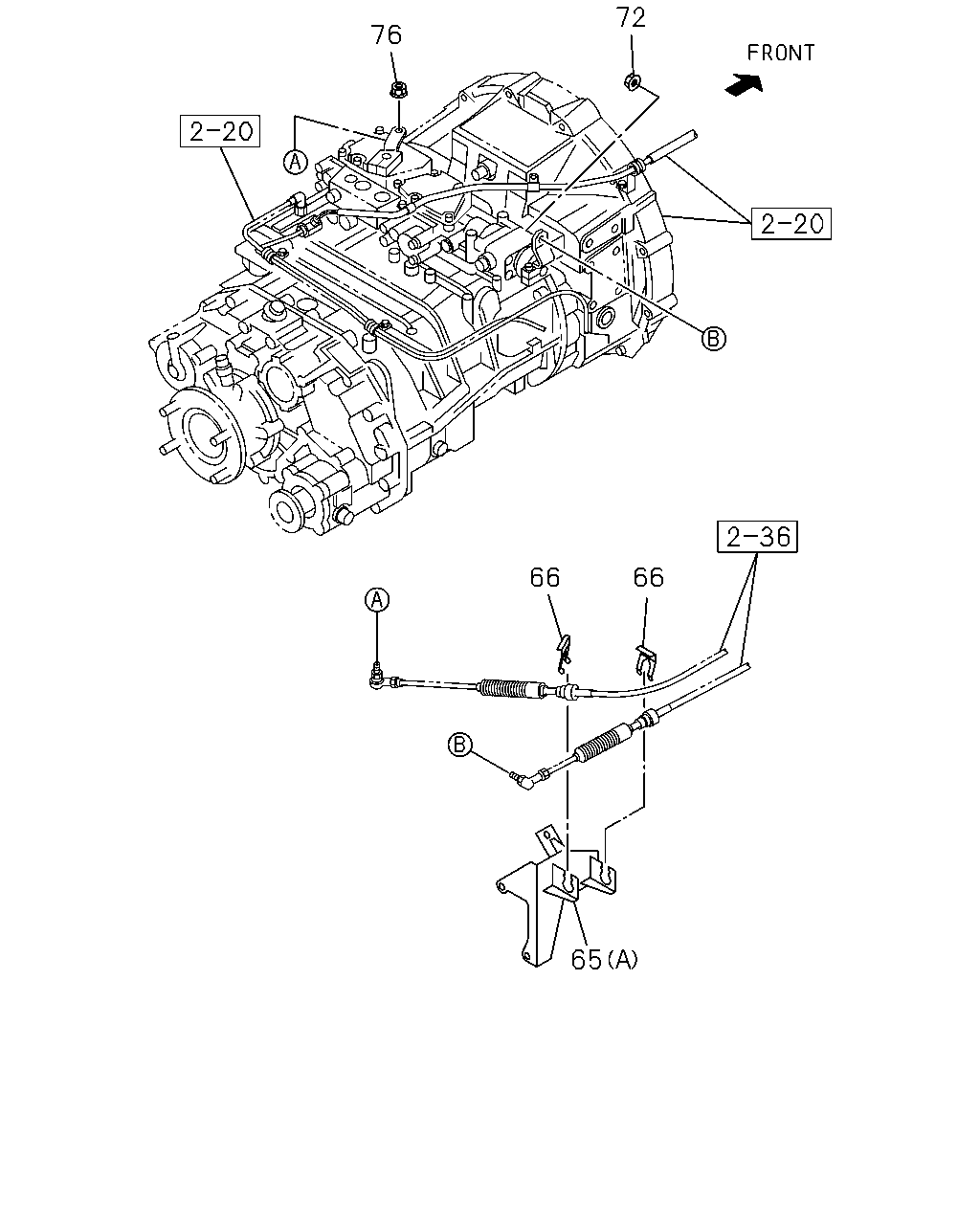

çizim 113187

72 76 66 66 65

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	65	BRACKET; SHIFT TO SELECT,TRANS CONT TRANSMISSION-FULLER RTO11908(Y5L) (B)	8-98055-457-2	01	1	0801-	●	●
	65	BRACKET; SHIFT TO SELECT,TRANS CONT ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (A)	8-98079-344-1	01	1	0801-	●	●
	66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	0801-	●	●
	72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-062-1	01	1	0801-	●	●
	76	NUT; BALL JOINT,SELECT WIRE M10 FLANGE	1-09440-061-0	01	1	0801-	●	●

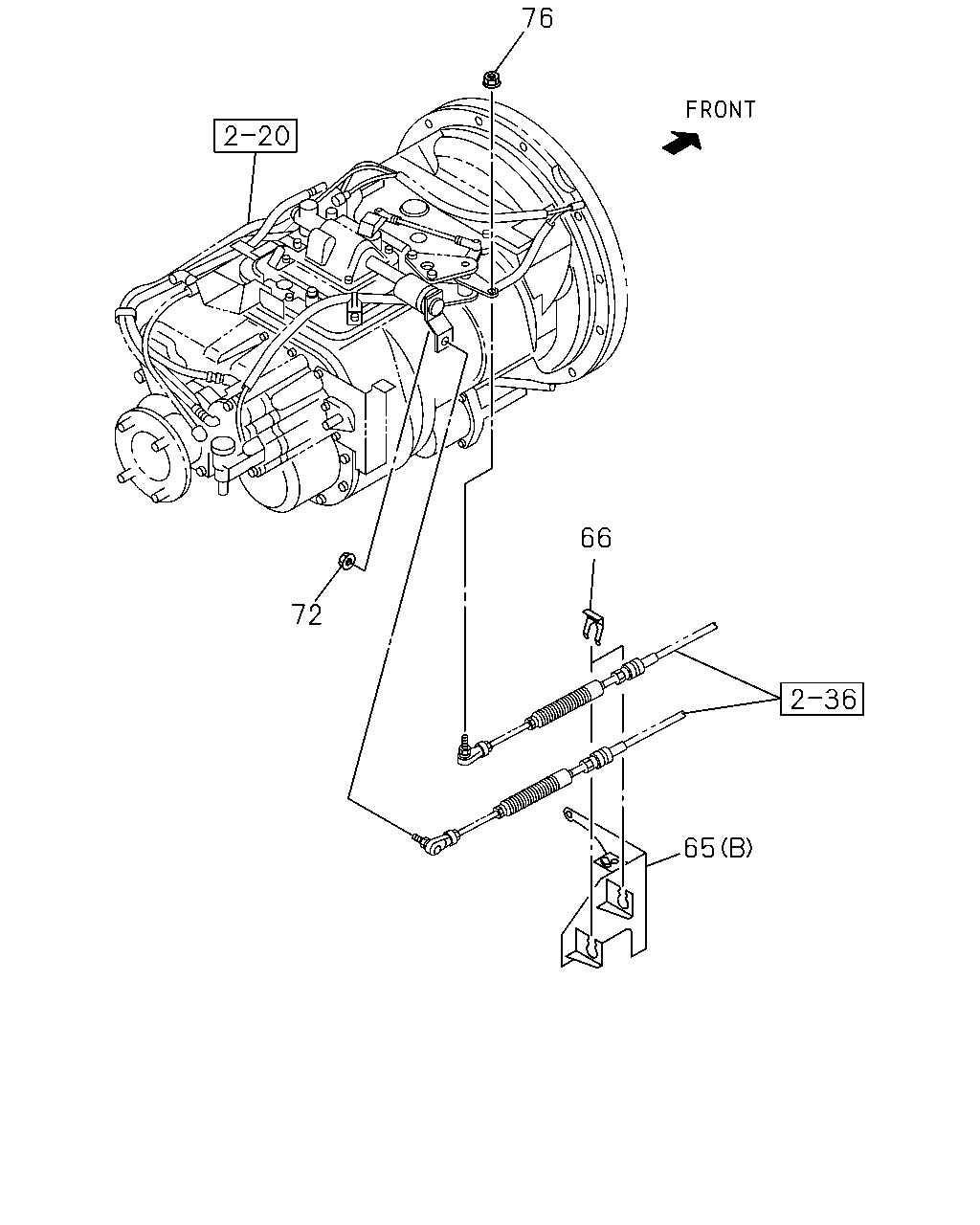

çizim 113191

76 66 72 65

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	65	BRACKET; SHIFT TO SELECT,TRANS CONT TRANSMISSION-FULLER RTO11908(Y5L) (B)	8-98055-457-2	01	1	0801-	●	●
	65	BRACKET; SHIFT TO SELECT,TRANS CONT ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (A)	8-98079-344-1	01	1	0801-	●	●
	66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	0801-	●	●
	72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-062-1	01	1	0801-	●	●
	76	NUT; BALL JOINT,SELECT WIRE M10 FLANGE	1-09440-061-0	01	1	0801-	●	●
