◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11429 - FXZ(AUST)JNLT05 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#45150) — 179 parça
çizim 113177
296 3 316 3 474 1 221 225 199 1 296 296 3 310 310 474 474 1 316 474 300 310 49 6 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) L=3460 		8-98054-891-4 01 1 0801-1101 ● ●
1 CABLE; SHIFT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) L=3460 		8-98054-891-4 01 1 1102-1311 ●
1 CABLE; SHIFT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) L=3460 		8-98246-041-0 01 1 1312- ●
1 CABLE; SHIFT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) L=3345 		8-98054-890-4 01 1 0801-1101 ● ●
1 CABLE; SHIFT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) L=3345 		8-98054-890-4 01 1 1102-1311 ●
1 CABLE; SHIFT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) L=3345 		8-98054-890-4 01 1 1102-1311 ●
1 CABLE; SHIFT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) L=3345 		8-98246-046-0 01 1 1312- ●
1 CABLE; SHIFT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) L=3345 		8-98246-046-0 01 1 1312- ●
1 CABLE; SHIFT,TRANS CONT
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> L=3205 		8-98054-888-2 01 1 0801-1101 ● ●
1 CABLE; SHIFT,TRANS CONT
ZF9S1310 M/T(Y5K) L=3205 		8-98054-888-2 01 1 1102-1311 ●
1 CABLE; SHIFT,TRANS CONT
ZF9S1310 M/T(Y5K) EXC. ENGINE REAR PTO(SV1) L=3205 		8-98054-888-2 01 1 1102-1311 ●
1 CABLE; SHIFT,TRANS CONT
ZF9S1310 M/T(Y5K) L=3205 		8-98246-040-0 01 1 1312- ●
1 CABLE; SHIFT,TRANS CONT
ZF9S1310 M/T(Y5K) EXC. ENGINE REAR PTO(SV1) L=3205 		8-98246-040-0 01 1 1312- ●
1 CABLE; SHIFT,TRANS CONT
ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) L=3320 		8-98079-363-3 01 1 1102-1311 ●
1 CABLE; SHIFT,TRANS CONT
ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) L=2839 		8-98246-043-0 01 1 1312- ●
3 CABLE; SELECT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) L=3350 		8-98054-897-6 01 1 0801-1101 ● ●
3 CABLE; SELECT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) L=3350 		8-98054-897-6 01 1 1102- ●
3 CABLE; SELECT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) L=3235 		8-98054-896-6 01 1 0801-1101 ● ●
3 CABLE; SELECT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) L=3235 		8-98054-896-6 01 1 1102- ●
3 CABLE; SELECT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) L=3235 		8-98054-896-6 01 1 1102- ●
3 CABLE; SELECT,TRANS CONT
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> L=3105 		8-98054-894-3 01 1 0801-1101 ● ●
3 CABLE; SELECT,TRANS CONT
ZF9S1310 M/T(Y5K) L=3105 		8-98054-894-3 01 1 1102- ●
3 CABLE; SELECT,TRANS CONT
ZF9S1310 M/T(Y5K) EXC. ENGINE REAR PTO(SV1) L=3105 		8-98054-894-3 01 1 1102- ●
3 CABLE; SELECT,TRANS CONT
ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) L=3320 		8-98079-364-3 01 1 1102- ●
6 CLIP; CABLE
(A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0801- ● ●
6 CLIP; CABLE
(B) ID=10 & 10 M8 		1-09701-220-0 01 1 0801- ● ●
49 WASHER; LK
ID=14.2 		0-91510-614-0 01 1 0806- ● ●
199 WASHER; PL,SELECT
ID=8.4 OD=16 		0-91614-508-0 01 1 0801- ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-049-0 01 1 0801-1011 ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1012- ● ●
225 PIN; SELECT CABLE
L=27.7 		8-94111-137-0 01 1 0801- ● ●
296 BOLT; CLIP,SHIFT & SELECT
M8X20 FLANGE 		0-28050-820-0 03 1 0801- ● ●
300 BOLT; CLIP
M8X20 FLANGE 		0-28050-820-0 01 1 0801- ● ●
310 CLIP; TUBE
TRANSMISSION-FULLER RTO11908(Y5L) (D) ID=6 & 10-13 		8-97069-515-0 02 1 0801- ● ●
310 CLIP; TUBE
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (A) L=100 		5-09707-036-1 01 1 0801- ● ●
310 CLIP; TUBE
TRANSMISSION-FULLER RTO11908(Y5L) (A) L=100 		5-09707-036-1 01 1 0801- ● ●
310 CLIP; TUBE
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (B) ID=12 		8-94218-436-0 01 1 0801- ● ●
310 CLIP; TUBE
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (C) ID=6 & 10-13 		8-97069-515-0 01 1 0801- ● ●
316 BRACKET; CLIP
(A) 		8-98055-446-1 01 1 0801- ● ●
316 BRACKET; CLIP
(B) 		8-98056-946-0 01 1 0801- ● ●
474 BOLT; BRKT
(A) M14X45 		0-20801-445-0 01 1 0801- ● ●
474 BOLT; BRKT
(B) M8X20 FLANGE 		0-28050-820-0 02 1 0801- ● ●
474 BOLT; BRKT
(C) M8X30 FLANGE 		0-28050-830-0 01 1 0801- ● ●
474 BOLT; BRKT
(D) M8X25 W/WASHER 		0-51640-825-0 01 1 0801- ● ●
çizim 113180
296 3 316 3 474 1 221 225 199 1 296 296 3 310 474 474 1 316 474 300 49 310 6 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) L=3460 		8-98054-891-4 01 1 0801-1101 ● ●
1 CABLE; SHIFT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) L=3460 		8-98054-891-4 01 1 1102-1311 ●
1 CABLE; SHIFT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) L=3460 		8-98246-041-0 01 1 1312- ●
1 CABLE; SHIFT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) L=3345 		8-98054-890-4 01 1 0801-1101 ● ●
1 CABLE; SHIFT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) L=3345 		8-98054-890-4 01 1 1102-1311 ●
1 CABLE; SHIFT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) L=3345 		8-98054-890-4 01 1 1102-1311 ●
1 CABLE; SHIFT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) L=3345 		8-98246-046-0 01 1 1312- ●
1 CABLE; SHIFT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) L=3345 		8-98246-046-0 01 1 1312- ●
1 CABLE; SHIFT,TRANS CONT
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> L=3205 		8-98054-888-2 01 1 0801-1101 ● ●
1 CABLE; SHIFT,TRANS CONT
ZF9S1310 M/T(Y5K) L=3205 		8-98054-888-2 01 1 1102-1311 ●
1 CABLE; SHIFT,TRANS CONT
ZF9S1310 M/T(Y5K) EXC. ENGINE REAR PTO(SV1) L=3205 		8-98054-888-2 01 1 1102-1311 ●
1 CABLE; SHIFT,TRANS CONT
ZF9S1310 M/T(Y5K) L=3205 		8-98246-040-0 01 1 1312- ●
1 CABLE; SHIFT,TRANS CONT
ZF9S1310 M/T(Y5K) EXC. ENGINE REAR PTO(SV1) L=3205 		8-98246-040-0 01 1 1312- ●
1 CABLE; SHIFT,TRANS CONT
ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) L=3320 		8-98079-363-3 01 1 1102-1311 ●
1 CABLE; SHIFT,TRANS CONT
ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) L=2839 		8-98246-043-0 01 1 1312- ●
3 CABLE; SELECT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) L=3350 		8-98054-897-6 01 1 0801-1101 ● ●
3 CABLE; SELECT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) L=3350 		8-98054-897-6 01 1 1102- ●
3 CABLE; SELECT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) L=3235 		8-98054-896-6 01 1 0801-1101 ● ●
3 CABLE; SELECT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) L=3235 		8-98054-896-6 01 1 1102- ●
3 CABLE; SELECT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) L=3235 		8-98054-896-6 01 1 1102- ●
3 CABLE; SELECT,TRANS CONT
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> L=3105 		8-98054-894-3 01 1 0801-1101 ● ●
3 CABLE; SELECT,TRANS CONT
ZF9S1310 M/T(Y5K) L=3105 		8-98054-894-3 01 1 1102- ●
3 CABLE; SELECT,TRANS CONT
ZF9S1310 M/T(Y5K) EXC. ENGINE REAR PTO(SV1) L=3105 		8-98054-894-3 01 1 1102- ●
3 CABLE; SELECT,TRANS CONT
ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) L=3320 		8-98079-364-3 01 1 1102- ●
6 CLIP; CABLE
(A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0801- ● ●
6 CLIP; CABLE
(B) ID=10 & 10 M8 		1-09701-220-0 01 1 0801- ● ●
49 WASHER; LK
ID=14.2 		0-91510-614-0 01 1 0806- ● ●
199 WASHER; PL,SELECT
ID=8.4 OD=16 		0-91614-508-0 01 1 0801- ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-049-0 01 1 0801-1011 ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1012- ● ●
225 PIN; SELECT CABLE
L=27.7 		8-94111-137-0 01 1 0801- ● ●
296 BOLT; CLIP,SHIFT & SELECT
M8X20 FLANGE 		0-28050-820-0 03 1 0801- ● ●
300 BOLT; CLIP
M8X20 FLANGE 		0-28050-820-0 01 1 0801- ● ●
310 CLIP; TUBE
TRANSMISSION-FULLER RTO11908(Y5L) (D) ID=6 & 10-13 		8-97069-515-0 02 1 0801- ● ●
310 CLIP; TUBE
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (A) L=100 		5-09707-036-1 01 1 0801- ● ●
310 CLIP; TUBE
TRANSMISSION-FULLER RTO11908(Y5L) (A) L=100 		5-09707-036-1 01 1 0801- ● ●
310 CLIP; TUBE
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (B) ID=12 		8-94218-436-0 01 1 0801- ● ●
310 CLIP; TUBE
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (C) ID=6 & 10-13 		8-97069-515-0 01 1 0801- ● ●
316 BRACKET; CLIP
(A) 		8-98055-446-1 01 1 0801- ● ●
316 BRACKET; CLIP
(B) 		8-98056-946-0 01 1 0801- ● ●
474 BOLT; BRKT
(A) M14X45 		0-20801-445-0 01 1 0801- ● ●
474 BOLT; BRKT
(B) M8X20 FLANGE 		0-28050-820-0 02 1 0801- ● ●
474 BOLT; BRKT
(C) M8X30 FLANGE 		0-28050-830-0 01 1 0801- ● ●
474 BOLT; BRKT
(D) M8X25 W/WASHER 		0-51640-825-0 01 1 0801- ● ●

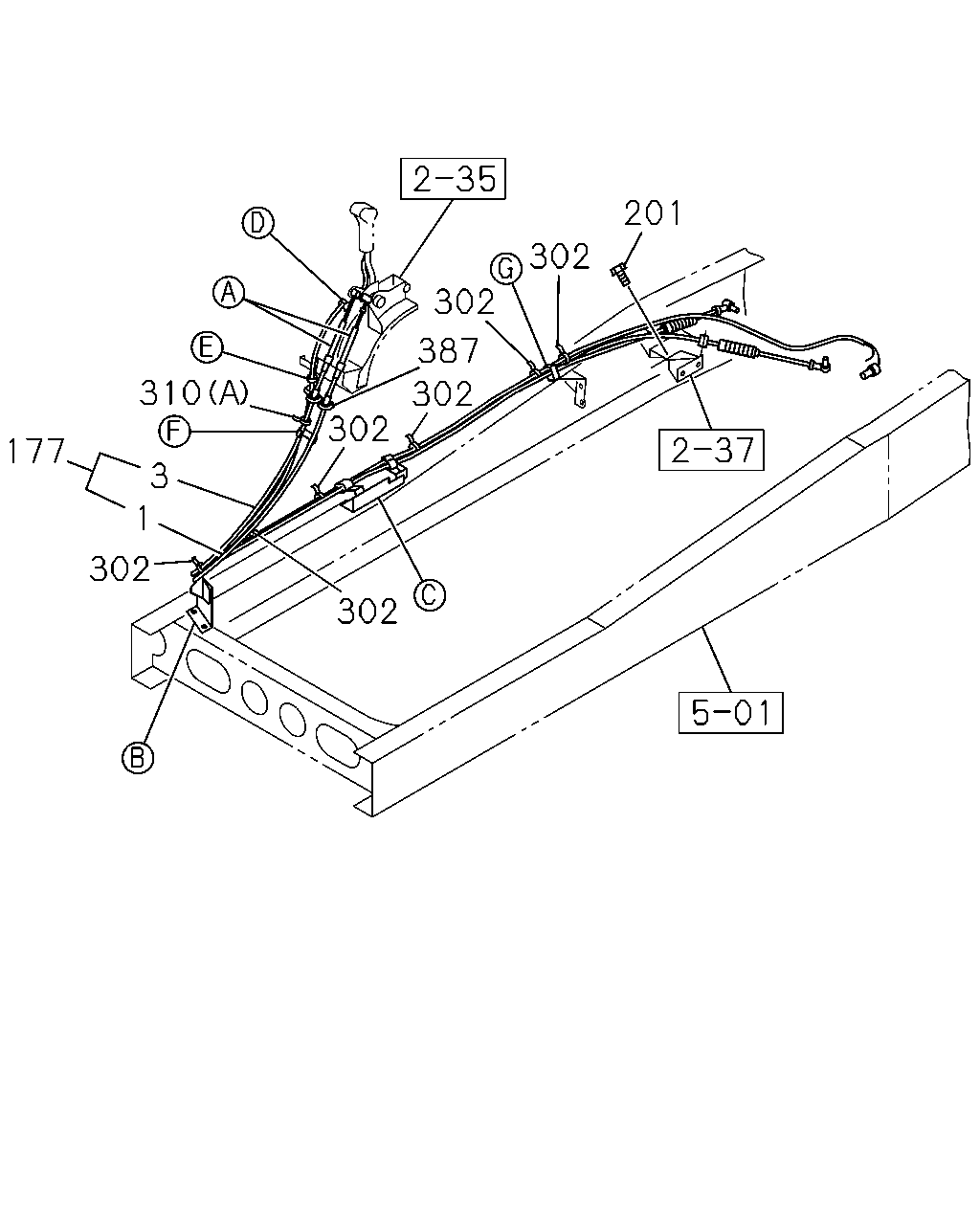

çizim 113183
201 302 302 387 310 302 302 177 3 1 302 302
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) L=3460 		8-98054-891-4 01 1 0801-1101 ● ●
1 CABLE; SHIFT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) L=3460 		8-98054-891-4 01 1 1102-1311 ●
1 CABLE; SHIFT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) L=3460 		8-98246-041-0 01 1 1312- ●
1 CABLE; SHIFT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) L=3345 		8-98054-890-4 01 1 0801-1101 ● ●
1 CABLE; SHIFT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) L=3345 		8-98054-890-4 01 1 1102-1311 ●
1 CABLE; SHIFT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) L=3345 		8-98054-890-4 01 1 1102-1311 ●
1 CABLE; SHIFT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) L=3345 		8-98246-046-0 01 1 1312- ●
1 CABLE; SHIFT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) L=3345 		8-98246-046-0 01 1 1312- ●
1 CABLE; SHIFT,TRANS CONT
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> L=3205 		8-98054-888-2 01 1 0801-1101 ● ●
1 CABLE; SHIFT,TRANS CONT
ZF9S1310 M/T(Y5K) L=3205 		8-98054-888-2 01 1 1102-1311 ●
1 CABLE; SHIFT,TRANS CONT
ZF9S1310 M/T(Y5K) EXC. ENGINE REAR PTO(SV1) L=3205 		8-98054-888-2 01 1 1102-1311 ●
1 CABLE; SHIFT,TRANS CONT
ZF9S1310 M/T(Y5K) L=3205 		8-98246-040-0 01 1 1312- ●
1 CABLE; SHIFT,TRANS CONT
ZF9S1310 M/T(Y5K) EXC. ENGINE REAR PTO(SV1) L=3205 		8-98246-040-0 01 1 1312- ●
1 CABLE; SHIFT,TRANS CONT
ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) L=3320 		8-98079-363-3 01 1 1102-1311 ●
1 CABLE; SHIFT,TRANS CONT
ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) L=2839 		8-98246-043-0 01 1 1312- ●
3 CABLE; SELECT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) L=3350 		8-98054-897-6 01 1 0801-1101 ● ●
3 CABLE; SELECT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) L=3350 		8-98054-897-6 01 1 1102- ●
3 CABLE; SELECT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) L=3235 		8-98054-896-6 01 1 0801-1101 ● ●
3 CABLE; SELECT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) L=3235 		8-98054-896-6 01 1 1102- ●
3 CABLE; SELECT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) L=3235 		8-98054-896-6 01 1 1102- ●
3 CABLE; SELECT,TRANS CONT
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> L=3105 		8-98054-894-3 01 1 0801-1101 ● ●
3 CABLE; SELECT,TRANS CONT
ZF9S1310 M/T(Y5K) L=3105 		8-98054-894-3 01 1 1102- ●
3 CABLE; SELECT,TRANS CONT
ZF9S1310 M/T(Y5K) EXC. ENGINE REAR PTO(SV1) L=3105 		8-98054-894-3 01 1 1102- ●
3 CABLE; SELECT,TRANS CONT
ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) L=3320 		8-98079-364-3 01 1 1102- ●
177 CABLE ASM; SHIFT & SELECT
TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) 		8-98072-014-6 01 1 0801-1101 ● ●
177 CABLE ASM; SHIFT & SELECT
TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) 		8-98072-014-6 01 1 1102-1311 ●
177 CABLE ASM; SHIFT & SELECT
TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) 		8-98060-278-6 01 1 0801-1101 ● ●
177 CABLE ASM; SHIFT & SELECT
TRANSMISSION-FULLER RTO11908(Y5L) 		8-98060-278-6 01 1 1102-1311 ●
177 CABLE ASM; SHIFT & SELECT
TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) 		8-98060-278-6 01 1 1102-1311 ●
201 BOLT; BRKT
TRANSMISSION-FULLER RTO11908(Y5L) M12X25 FLANGE 		0-28151-225-0 01 1 0801-0805 ● ●
201 BOLT; BRKT
TRANSMISSION-FULLER RTO11908(Y5L) M12X30 FLANGE 		0-28151-230-0 01 1 0806-0808 ● ●
201 BOLT; BRKT
TRANSMISSION-FULLER RTO11908(Y5L) M12X35 FLANGE 		0-28151-235-0 01 1 0809- ● ●
201 BOLT; BRKT
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> M8X16 FLANGE 		0-28050-816-0 01 1 0801-1101 ● ●
201 BOLT; BRKT
ZF9S1310 M/T(Y5K) M8X16 FLANGE 		0-28050-816-0 01 1 1102- ●
201 BOLT; BRKT
ZF9S1310 M/T(Y5K) EXC. ENGINE REAR PTO(SV1) M8X16 FLANGE 		0-28050-816-0 01 1 1102- ●
201 BOLT; BRKT
ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) M8X16 FLANGE 		0-28050-816-0 02 1 1102- ●
302 CLIP; BAND
TRANSMISSION-FULLER RTO11908(Y5L) L=140 		5-09707-031-1 10 1 0801- ● ●
302 CLIP; BAND
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> L=140 		5-09707-031-1 07 1 0801- ● ●
310 CLIP; TUBE
TRANSMISSION-FULLER RTO11908(Y5L) (D) ID=6 & 10-13 		8-97069-515-0 02 1 0801- ● ●
310 CLIP; TUBE
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (A) L=100 		5-09707-036-1 01 1 0801- ● ●
310 CLIP; TUBE
TRANSMISSION-FULLER RTO11908(Y5L) (A) L=100 		5-09707-036-1 01 1 0801- ● ●
310 CLIP; TUBE
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (B) ID=12 		8-94218-436-0 01 1 0801- ● ●
310 CLIP; TUBE
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (C) ID=6 & 10-13 		8-97069-515-0 01 1 0801- ● ●
387 GROMMET; CONT TUBE,FULLER
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> 		1-09332-135-0 01 1 0801- ● ●
387 GROMMET; CONT TUBE,FULLER
TRANSMISSION-FULLER RTO11908(Y5L) 		1-09332-135-0 01 1 0801- ● ●

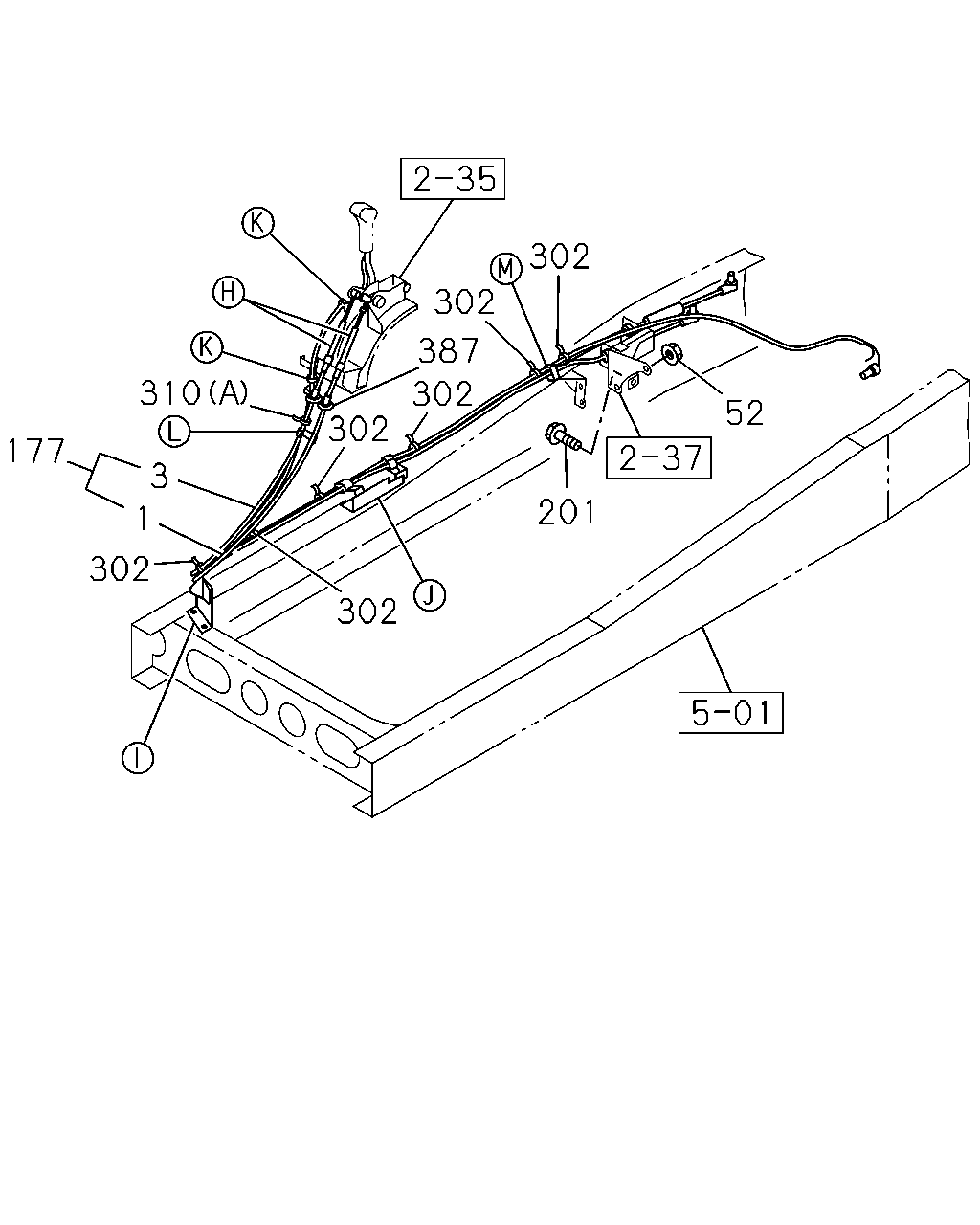

çizim 113189
302 302 387 310 302 52 302 177 3 201 1 302 302
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) L=3460 		8-98054-891-4 01 1 0801-1101 ● ●
1 CABLE; SHIFT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) L=3460 		8-98054-891-4 01 1 1102-1311 ●
1 CABLE; SHIFT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) L=3460 		8-98246-041-0 01 1 1312- ●
1 CABLE; SHIFT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) L=3345 		8-98054-890-4 01 1 0801-1101 ● ●
1 CABLE; SHIFT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) L=3345 		8-98054-890-4 01 1 1102-1311 ●
1 CABLE; SHIFT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) L=3345 		8-98054-890-4 01 1 1102-1311 ●
1 CABLE; SHIFT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) L=3345 		8-98246-046-0 01 1 1312- ●
1 CABLE; SHIFT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) L=3345 		8-98246-046-0 01 1 1312- ●
1 CABLE; SHIFT,TRANS CONT
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> L=3205 		8-98054-888-2 01 1 0801-1101 ● ●
1 CABLE; SHIFT,TRANS CONT
ZF9S1310 M/T(Y5K) L=3205 		8-98054-888-2 01 1 1102-1311 ●
1 CABLE; SHIFT,TRANS CONT
ZF9S1310 M/T(Y5K) EXC. ENGINE REAR PTO(SV1) L=3205 		8-98054-888-2 01 1 1102-1311 ●
1 CABLE; SHIFT,TRANS CONT
ZF9S1310 M/T(Y5K) L=3205 		8-98246-040-0 01 1 1312- ●
1 CABLE; SHIFT,TRANS CONT
ZF9S1310 M/T(Y5K) EXC. ENGINE REAR PTO(SV1) L=3205 		8-98246-040-0 01 1 1312- ●
1 CABLE; SHIFT,TRANS CONT
ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) L=3320 		8-98079-363-3 01 1 1102-1311 ●
1 CABLE; SHIFT,TRANS CONT
ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) L=2839 		8-98246-043-0 01 1 1312- ●
3 CABLE; SELECT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) L=3350 		8-98054-897-6 01 1 0801-1101 ● ●
3 CABLE; SELECT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) L=3350 		8-98054-897-6 01 1 1102- ●
3 CABLE; SELECT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) L=3235 		8-98054-896-6 01 1 0801-1101 ● ●
3 CABLE; SELECT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) L=3235 		8-98054-896-6 01 1 1102- ●
3 CABLE; SELECT,TRANS CONT
TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) L=3235 		8-98054-896-6 01 1 1102- ●
3 CABLE; SELECT,TRANS CONT
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> L=3105 		8-98054-894-3 01 1 0801-1101 ● ●
3 CABLE; SELECT,TRANS CONT
ZF9S1310 M/T(Y5K) L=3105 		8-98054-894-3 01 1 1102- ●
3 CABLE; SELECT,TRANS CONT
ZF9S1310 M/T(Y5K) EXC. ENGINE REAR PTO(SV1) L=3105 		8-98054-894-3 01 1 1102- ●
3 CABLE; SELECT,TRANS CONT
ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) L=3320 		8-98079-364-3 01 1 1102- ●
52 NUT; BRKT
TRANSMISSION-FULLER RTO11908(Y5L) M10 FLANGE 		0-91180-210-0 02 1 0801- ● ●
177 CABLE ASM; SHIFT & SELECT
TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) 		8-98072-014-6 01 1 0801-1101 ● ●
177 CABLE ASM; SHIFT & SELECT
TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) 		8-98072-014-6 01 1 1102-1311 ●
177 CABLE ASM; SHIFT & SELECT
TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) 		8-98060-278-6 01 1 0801-1101 ● ●
177 CABLE ASM; SHIFT & SELECT
TRANSMISSION-FULLER RTO11908(Y5L) 		8-98060-278-6 01 1 1102-1311 ●
177 CABLE ASM; SHIFT & SELECT
TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) 		8-98060-278-6 01 1 1102-1311 ●
201 BOLT; BRKT
TRANSMISSION-FULLER RTO11908(Y5L) M12X25 FLANGE 		0-28151-225-0 01 1 0801-0805 ● ●
201 BOLT; BRKT
TRANSMISSION-FULLER RTO11908(Y5L) M12X30 FLANGE 		0-28151-230-0 01 1 0806-0808 ● ●
201 BOLT; BRKT
TRANSMISSION-FULLER RTO11908(Y5L) M12X35 FLANGE 		0-28151-235-0 01 1 0809- ● ●
201 BOLT; BRKT
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> M8X16 FLANGE 		0-28050-816-0 01 1 0801-1101 ● ●
201 BOLT; BRKT
ZF9S1310 M/T(Y5K) M8X16 FLANGE 		0-28050-816-0 01 1 1102- ●
201 BOLT; BRKT
ZF9S1310 M/T(Y5K) EXC. ENGINE REAR PTO(SV1) M8X16 FLANGE 		0-28050-816-0 01 1 1102- ●
201 BOLT; BRKT
ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) M8X16 FLANGE 		0-28050-816-0 02 1 1102- ●
302 CLIP; BAND
TRANSMISSION-FULLER RTO11908(Y5L) L=140 		5-09707-031-1 10 1 0801- ● ●
302 CLIP; BAND
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> L=140 		5-09707-031-1 07 1 0801- ● ●
310 CLIP; TUBE
TRANSMISSION-FULLER RTO11908(Y5L) (D) ID=6 & 10-13 		8-97069-515-0 02 1 0801- ● ●
310 CLIP; TUBE
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (A) L=100 		5-09707-036-1 01 1 0801- ● ●
310 CLIP; TUBE
TRANSMISSION-FULLER RTO11908(Y5L) (A) L=100 		5-09707-036-1 01 1 0801- ● ●
310 CLIP; TUBE
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (B) ID=12 		8-94218-436-0 01 1 0801- ● ●
310 CLIP; TUBE
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (C) ID=6 & 10-13 		8-97069-515-0 01 1 0801- ● ●
387 GROMMET; CONT TUBE,FULLER
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> 		1-09332-135-0 01 1 0801- ● ●
387 GROMMET; CONT TUBE,FULLER
TRANSMISSION-FULLER RTO11908(Y5L) 		1-09332-135-0 01 1 0801- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
