◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11429 - FXZ(AUST)JNLT05 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#45149) — 93 parça
çizim 113168
538 173 173 34 537 536 364 535
BalonParca AdiParca NoAdetTipApplied Date A B
34 NUT
TRANSMISSION-FULLER RTO11908(Y5L) (A) 		1-33619-809-0 01 1 0801- ● ●
34 NUT
TRANSMISSION-FULLER RTO11908(Y5L) (B) 		1-87061-098-0 01 1 0801- ● ●
173 SCREW; COVER
TRANSMISSION-FULLER RTO11908(Y5L) 		1-33619-813-0 02 1 0801- ● ●
364 GASKET; COVER
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87060-993-0 02 1 0801- ● ●
535 REPAIR KIT; MASTER VALVE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-33619-812-0 01 1 0801- ● ●
536 CONNECTOR ASM; ROADRANGER VALVE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-33619-814-0 04 1 0801- ● ●
537 UNION
TRANSMISSION-FULLER RTO11908(Y5L) 		1-33619-815-0 01 1 0801- ● ●
538 VALVE ASM; ROADRANGER
TRANSMISSION-FULLER RTO11908(Y5L) 		1-33619-816-0 01 1 0801- ● ●

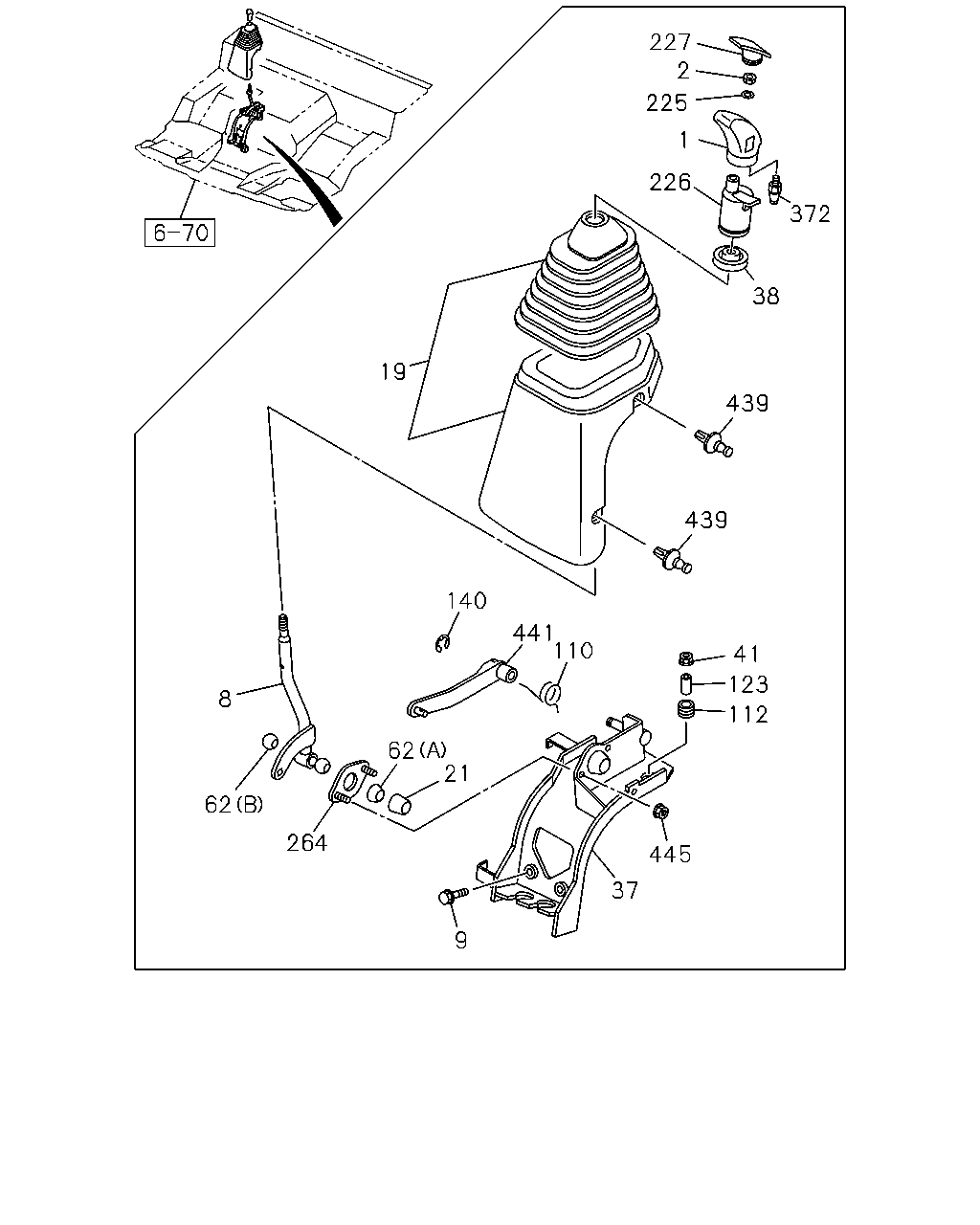

çizim 113172
227 2 225 1 226 372 38 19 439 439 140 441 110 41 123 8 112 62 21 62 264 445 37 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 KNOB; CHANGE LEVER
TRANSMISSION-FULLER RTO11908(Y5L) 		1-33611-110-0 01 1 0801-1401 ● ●
1 KNOB; CHANGE LEVER
TRANSMISSION-FULLER RTO11908(Y5L) 		8-98224-292-0 01 1 1402- ● ●
1 KNOB; CHANGE LEVER
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> 		1-33611-038-0 01 1 0801- ● ●
2 NUT; KNOB
TRANSMISSION-FULLER RTO11908(Y5L) 1/2-13UNC 		1-33619-033-0 01 1 0801- ● ●
2 NUT; KNOB
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> M10 FLANGE 		0-91180-210-0 01 1 0801- ● ●
8 LEVER; CHANGE
TRANSMISSION-FULLER RTO11908(Y5L) 		8-98079-301-0 01 1 0801- ● ●
8 LEVER; CHANGE
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> 		8-98079-300-0 01 1 0801- ● ●
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 0801- ● ●
19 COVER; CHANGE LEVER
GRAY 		8-97413-102-0 01 1 0801-0806 ● ●
19 COVER; CHANGE LEVER
TRANSMISSION-FULLER RTO11908(Y5L) GRAY 		8-97413-102-0 01 1 0807-0901 ● ●
19 COVER; CHANGE LEVER
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> GRAY 		8-97413-102-0 01 1 0807-0901 ● ●
19 COVER; CHANGE LEVER
GRAY 		8-97416-183-2 01 1 0902- ● ●
21 SEAT; CHANGE LEVER
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> 		1-33619-429-0 01 1 0801- ● ●
21 SEAT; CHANGE LEVER
TRANSMISSION-FULLER RTO11908(Y5L) 		1-33619-429-0 01 1 0801- ● ●
37 BRACKET; CHANGE LEVER SUPPORT
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> 		8-98079-298-0 01 1 0801-1311 ● ●
37 BRACKET; CHANGE LEVER SUPPORT
TRANSMISSION-FULLER RTO11908(Y5L) 		8-98079-298-0 01 1 0801-1311 ● ●
37 BRACKET; CHANGE LEVER SUPPORT
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> 		8-98245-920-0 01 1 1312- ● ●
37 BRACKET; CHANGE LEVER SUPPORT
TRANSMISSION-FULLER RTO11908(Y5L) 		8-98245-920-0 01 1 1312- ● ●
38 HOLDER; BOOT CHANGE LEVER
FULLER M/T<X9B> 		1-79996-383-0 01 1 0801- ● ●
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 0801- ● ●
62 SEAT; BALL,CHANGE LEVER
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (A) 		1-33619-427-0 01 1 0801- ● ●
62 SEAT; BALL,CHANGE LEVER
TRANSMISSION-FULLER RTO11908(Y5L) (A) 		1-33619-427-0 01 1 0801- ● ●
62 SEAT; BALL,CHANGE LEVER
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (B) 		8-97049-147-0 01 1 0801- ● ●
62 SEAT; BALL,CHANGE LEVER
TRANSMISSION-FULLER RTO11908(Y5L) (B) 		8-97049-147-0 01 1 0801- ● ●
110 SPRING; RETURN,CHANGE LEVER
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> 		1-33619-435-0 01 1 0801- ● ●
110 SPRING; RETURN,CHANGE LEVER
TRANSMISSION-FULLER RTO11908(Y5L) 		1-33619-435-0 01 1 0801- ● ●
112 RUBBER; CUSHION
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> 		1-33619-442-0 04 1 0801- ● ●
112 RUBBER; CUSHION
TRANSMISSION-FULLER RTO11908(Y5L) 		1-33619-442-0 04 1 0801- ● ●
123 COLLAR; DIST,CHANGE LEVER
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> 		1-33619-443-0 04 1 0801- ● ●
123 COLLAR; DIST,CHANGE LEVER
TRANSMISSION-FULLER RTO11908(Y5L) 		1-33619-443-0 04 1 0801- ● ●
140 RING; SNAP
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> ID=10 		0-91805-510-0 01 1 0801- ● ●
140 RING; SNAP
TRANSMISSION-FULLER RTO11908(Y5L) ID=10 		0-91805-510-0 01 1 0801- ● ●
225 WASHER; PL,KNOB
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> ID=10.5 OD=22 T=1.6 		0-91610-610-0 01 1 0801- ● ●
226 VALVE; SELECTOR
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> 		1-33710-008-0 01 1 0801- ● ●
227 COVER; KNOB
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> 		8-98013-168-0 01 1 0801- ● ●
264 PLATE; COVER
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> 		1-33619-430-0 01 1 0801- ● ●
264 PLATE; COVER
TRANSMISSION-FULLER RTO11908(Y5L) 		1-33619-430-0 01 1 0801- ● ●
372 CONNECTOR; CHANGE LEVER
TRANSMISSION-FULLER RTO11908(Y5L) 		8-97500-148-0 04 1 0801-0804 ● ●
372 CONNECTOR; CHANGE LEVER
TRANSMISSION-FULLER RTO11908(Y5L) 		8-98114-396-0 04 1 0805- ● ●
439 FASTENER; COVER
GRAY 		8-97407-955-0 04 1 0801- ● ●
441 LEVER; SELECT
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> 		8-98079-302-0 01 1 0801- ● ●
441 LEVER; SELECT
TRANSMISSION-FULLER RTO11908(Y5L) 		8-98079-302-0 01 1 0801- ● ●
445 NUT; PLATE
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> M6 FLANGE 		0-91180-106-0 02 1 0801- ● ●
445 NUT; PLATE
TRANSMISSION-FULLER RTO11908(Y5L) M6 FLANGE 		0-91180-106-0 02 1 0801- ● ●

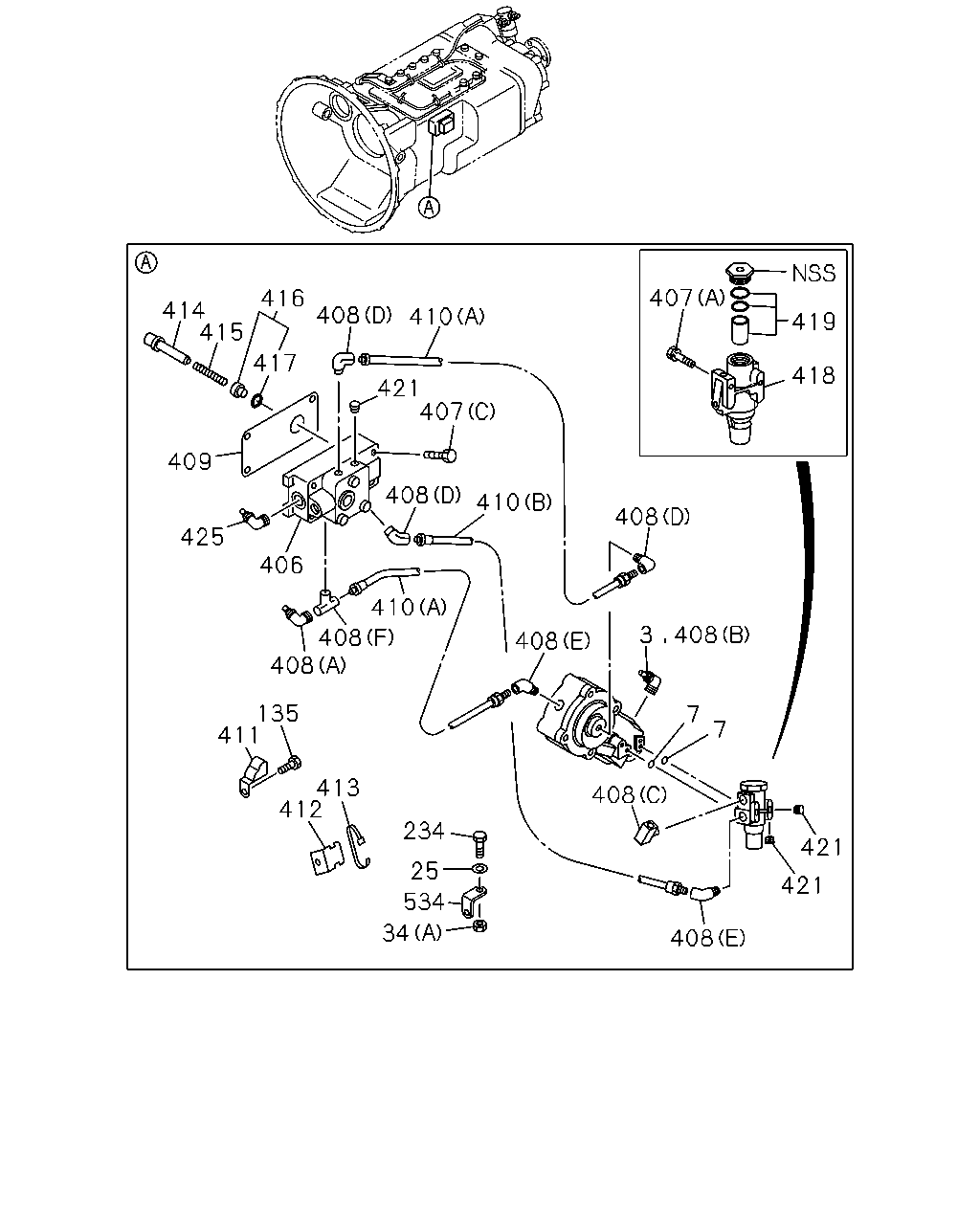

çizim 113178
407 416 414 415 408 410 419 417 418 421 407 409 408 410 408 425 406 410 3 408 408 408 408 135 411 7 7 413 412 408 234 421 25 421 534 34 408
BalonParca AdiParca NoAdetTipApplied Date A B
3 CONNECTOR; CONT TUBE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-33619-533-0 01 1 0801- ● ●
7 GASKET; CONNECTOR
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87060-996-0 02 1 0801- ● ●
25 WASHER
TRANSMISSION-FULLER RTO11908(Y5L) 		1-33619-808-0 01 1 0801- ● ●
34 NUT
TRANSMISSION-FULLER RTO11908(Y5L) (A) 		1-33619-809-0 01 1 0801- ● ●
34 NUT
TRANSMISSION-FULLER RTO11908(Y5L) (B) 		1-87061-098-0 01 1 0801- ● ●
135 BOLT
TRANSMISSION-FULLER RTO11908(Y5L) 		1-33619-806-0 01 1 0801- ● ●
234 BOLT; BRKT
TRANSMISSION-FULLER RTO11908(Y5L) 		1-33619-807-0 01 1 0801- ● ●
406 VALVE ASM; SLAVE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87061-508-0 02 1 0801- ● ●
407 BOLT; VALVE
TRANSMISSION-FULLER RTO11908(Y5L) (A) 		1-87061-096-0 02 1 0801- ● ●
407 BOLT; VALVE
TRANSMISSION-FULLER RTO11908(Y5L) (B) 		1-87061-533-0 03 1 0801- ● ●
407 BOLT; VALVE
TRANSMISSION-FULLER RTO11908(Y5L) (C) 		1-87061-539-0 04 1 0801- ● ●
408 CONNECTOR; AIR HOSE
TRANSMISSION-FULLER RTO11908(Y5L) (A) 		1-33619-532-0 06 1 0801- ● ●
408 CONNECTOR; AIR HOSE
TRANSMISSION-FULLER RTO11908(Y5L) (B) 		1-33619-533-0 01 1 0801- ● ●
408 CONNECTOR; AIR HOSE
TRANSMISSION-FULLER RTO11908(Y5L) (C) 		1-33619-810-0 01 1 0801- ● ●
408 CONNECTOR; AIR HOSE
TRANSMISSION-FULLER RTO11908(Y5L) (D) 		1-87061-113-0 06 1 0801- ● ●
408 CONNECTOR; AIR HOSE
TRANSMISSION-FULLER RTO11908(Y5L) (E) 		1-87061-114-0 02 1 0801- ● ●
408 CONNECTOR; AIR HOSE
TRANSMISSION-FULLER RTO11908(Y5L) (F) 		1-87061-186-0 01 1 0801- ● ●
409 GASKET; SLAVE VALVE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87061-170-0 01 1 0801- ● ●
410 HOSE; AIR
TRANSMISSION-FULLER RTO11908(Y5L) (A) 		1-33619-805-0 02 1 0801- ● ●
410 HOSE; AIR
TRANSMISSION-FULLER RTO11908(Y5L) (B) 		1-87061-067-0 01 1 0801- ● ●
411 CLAMP; AIR HOSE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87061-045-0 01 1 0801- ● ●
412 BRACKET; AIR HOSE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87061-044-0 01 1 0801- ● ●
413 CLIP; AIR HOSE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87061-043-0 01 1 0801- ● ●
414 PIN; SLAVE VALVE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87061-185-0 01 1 0801- ● ●
415 SPRING; SLAVE VALVE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87061-187-0 01 1 0801- ● ●
416 SLEEVE; SLAVE VALVE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-33619-748-0 01 1 0801- ● ●
417 GASKET; SLEEVE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-33619-747-0 01 1 0801- ● ●
418 VALVE ASM; AIR FILTER REG
TRANSMISSION-FULLER RTO11908(Y5L) 		1-33549-543-0 01 1 0801- ● ●
419 ELEMENT KIT; REG VLV
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87061-100-0 02 1 0801- ● ●
421 PLUG; REG VLV
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87061-090-0 03 1 0801- ● ●
425 ADAPTER; CONNECTER
TRANSMISSION-FULLER RTO11908(Y5L) 		1-33619-291-0 03 1 0801- ● ●
534 EYE; LIFTING
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87060-783-0 01 1 0801- ● ●
çizim 113194
406 420 546 407 516 539 515
BalonParca AdiParca NoAdetTipApplied Date A B
406 VALVE ASM; SLAVE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87061-508-0 02 1 0801- ● ●
407 BOLT; VALVE
TRANSMISSION-FULLER RTO11908(Y5L) (A) 		1-87061-096-0 02 1 0801- ● ●
407 BOLT; VALVE
TRANSMISSION-FULLER RTO11908(Y5L) (B) 		1-87061-533-0 03 1 0801- ● ●
407 BOLT; VALVE
TRANSMISSION-FULLER RTO11908(Y5L) (C) 		1-87061-539-0 04 1 0801- ● ●
420 PLUG; VALVE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87061-473-0 01 1 0801- ● ●
515 REPAIR KIT; SLAVE VALVE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87061-512-0 01 1 0801- ● ●
516 PISTON; SLAVE VALVE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87061-472-0 01 1 0801- ● ●
539 CAP; SLAVE VALVE
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87061-016-0 01 1 0801- ● ●
546 CAP; ASM
TRANSMISSION-FULLER RTO11908(Y5L) 		1-87061-516-0 01 1 0801- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
