0-12 — CYLINDER BLOCK (#4514) — 47 parça

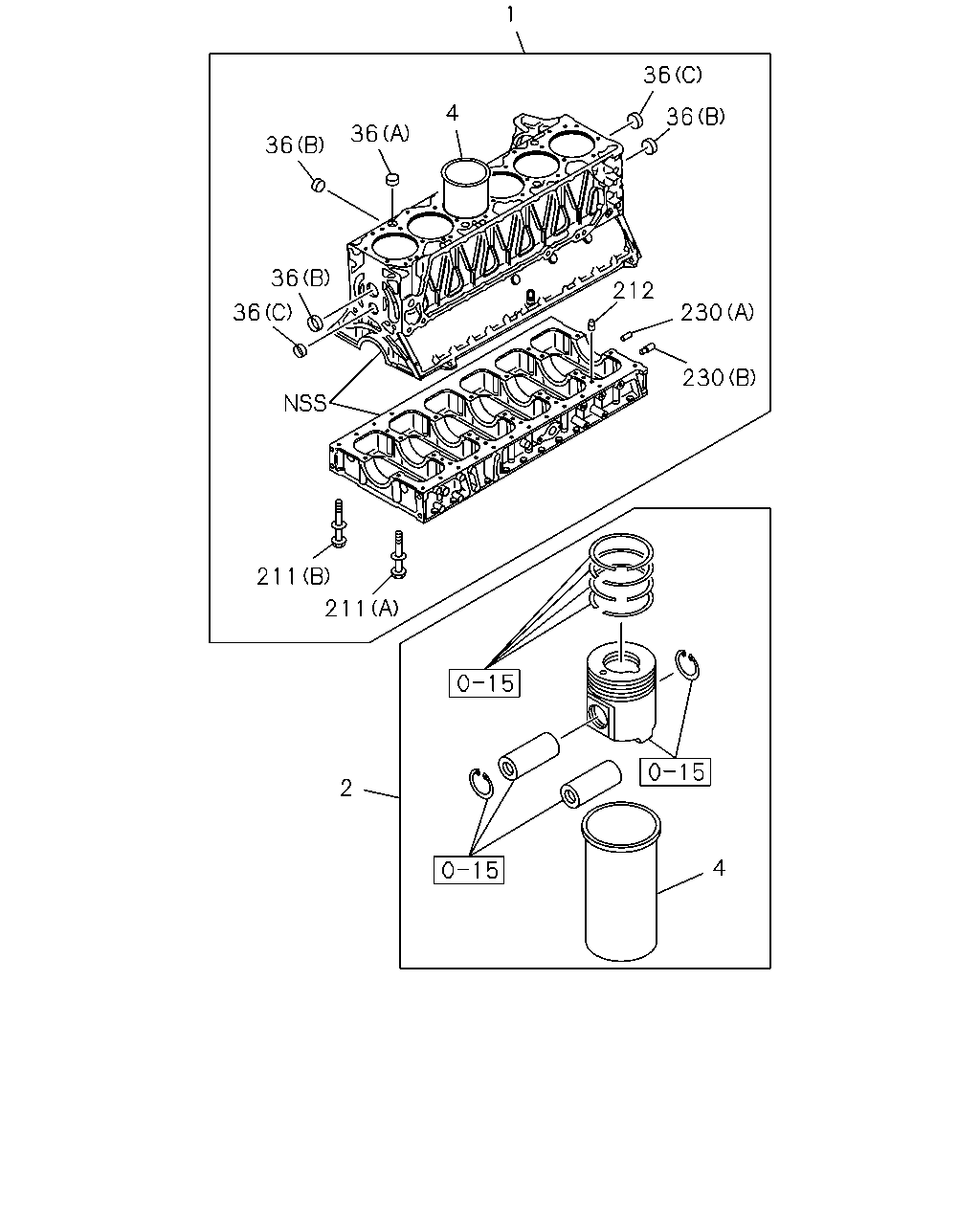

1 36 4 36 36 36 36 212 230 36 230 211 211 2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BLOCK ASM; CYL	1-11210-620-3	01	1	9712-
2	LINER SET; ENG CYL GRADE=1X	1-87811-426-1	06	1	9712-
2	LINER SET; ENG CYL GRADE=3X	1-87811-427-1	06	1	9712-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	1-11261-298-0	06	1	9712-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	1-11261-299-0	06	1	9712-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	1-11261-300-0	06	1	9712-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	1-11261-301-0	06	1	9712-
36	CUP; SEALING,WATER JACKET (A) OD=25	1-09600-016-0	05	1	9712-
36	CUP; SEALING,WATER JACKET (B) OD=45	1-09600-058-0	07	1	9712-
36	CUP; SEALING,WATER JACKET (C) OD=32	1-09600-059-0	02	1	9712-
211	BOLT; CRANKCASE (A) M14X125 FLANGE W/PL WASHER	1-09070-043-1	14	1	9712-
211	BOLT; CRANKCASE (B) M10X98 FLANGE W/PL WASHER	1-09070-061-0	24	1	9712-
212	PIN; CRANKCASE	1-09740-031-0	02	1	9712-
230	PIN; THRUST METAL,CR/SHF (B) L=25	1-09749-025-1	02	1	9712-
230	PIN; THRUST METAL,CR/SHF (A) OD=5 L=10	9-08160-510-0	02	1	9712-

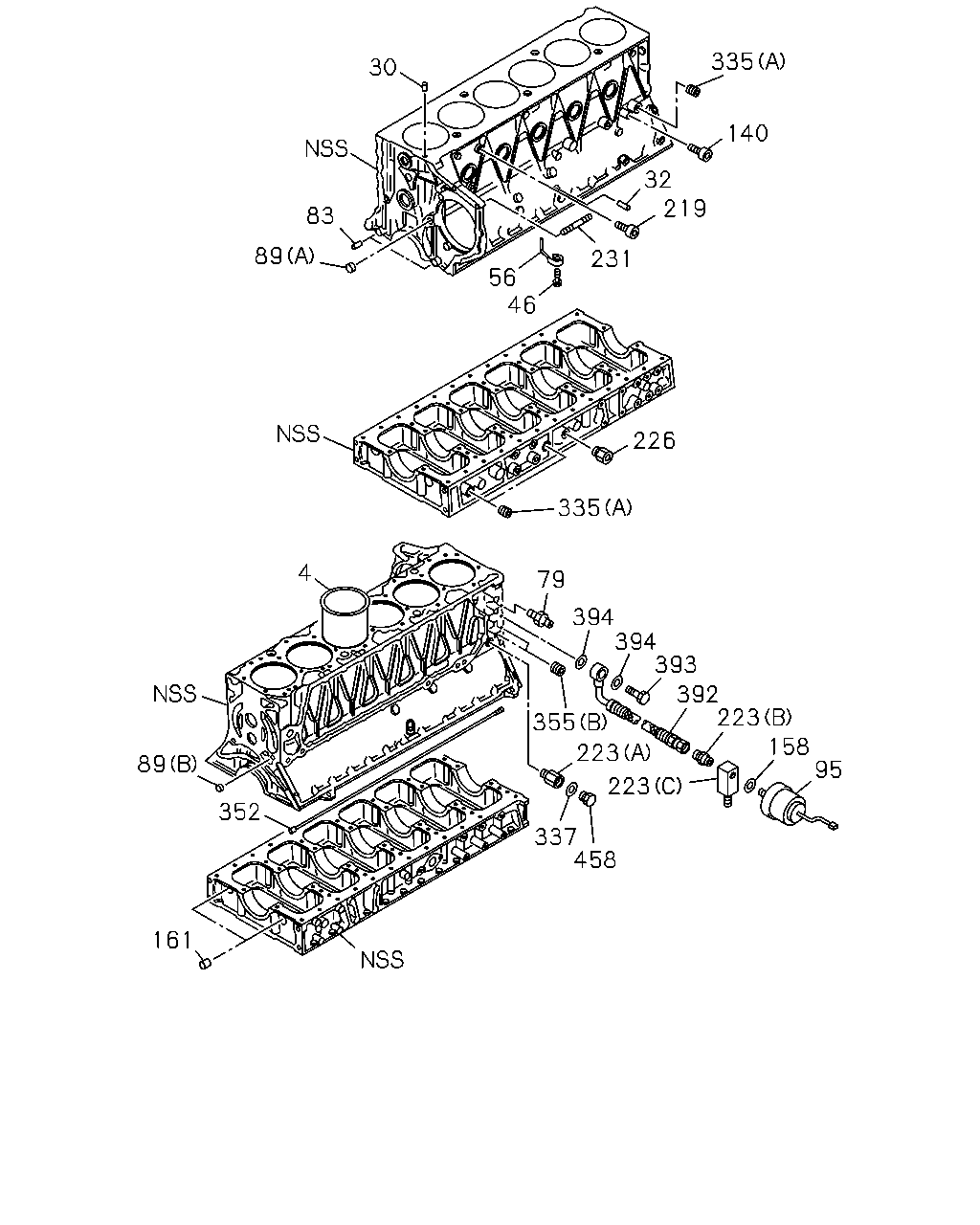

335 30 140 32 219 83 89 231 56 46 226 335 4 79 394 394 393 392 223 355 158 95 223 89 223 352 337 458 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	1-11261-298-0	06	1	9712-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	1-11261-299-0	06	1	9712-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	1-11261-300-0	06	1	9712-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	1-11261-301-0	06	1	9712-
30	PIN; CYL HD GASKET SETTING OD=8 L=16	9-08150-816-0	03	1	9712-
32	PIN; INJ PUMP BRKT OD=8 L=16	9-08150-816-0	02	1	9712-
46	BOLT; JOINT,OIL JET,PISTON COOLING	1-09675-105-1	06	1	9712-
56	JET; OIL,PISTON COOLING	1-13342-127-0	06	1	9712-
79	NIPPLE; OIL FEED,TURBOCHARGER M16 & PT1/4 STRAIGHT	1-09650-210-1	01	1	9712-
83	PIN; FLYWHEEL HSG	9-08151-025-0	02	1	9712-
89	CUP; SEALING,OIL GALLERY (A) OD=16	9-11129-081-0	01	1	9712-
89	CUP; SEALING,OIL GALLERY (B) OD=20	9-11219-192-0	02	1	9712-
95	PRESSURE UNIT; OIL	1-83151-041-0	01	1	9712-
140	NIPPLE; INJ PUMP	1-09660-155-0	01	1	9712-
158	GASKET; OIL PRESS UNIT ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	9712-
161	DOWEL; FRT COVER	1-11229-012-1	02	1	9712-
219	NIPPLE; AIR CMPR,WATER	1-09660-408-0	01	1	9712-
223	CONNECTOR; OIL PRESSURE (B) M16 & PT1/4 STRAIGHT	1-09660-129-0	01	1	9712-
223	CONNECTOR; OIL PRESSURE (A)	1-09660-526-0	01	1	9712-
223	CONNECTOR; OIL PRESSURE (C)	1-09664-236-0	01	1	9712-
226	CONNECTOR; INJ PUMP,RETURN	1-09660-408-0	01	1	9712-
231	STUD; AIR CMPR M12X67 L=82	1-09302-112-0	04	1	9712-
335	PLUG; C/BL,SIDE (A) PT1/4	1-09605-019-0	06	1	9712-
335	PLUG; C/BL,SIDE (B) PT1/8	1-09605-050-0	03	1	9712-9801
335	PLUG; C/BL,SIDE (B) PT1/8	1-09605-050-0	02	1	9802-
337	GASKET; PLUG ID=14.2 OD=19.2	1-09630-085-0	01	1	9712-9712
337	GASKET; PLUG ID=14.2 OD=25	1-09630-141-0	01	1	9801-
352	GASKET; C/BL TO CRANKCASE ALSO INCLUDED IN GASKET SET(ENGINE).	1-11219-166-0	02	1	9712-
392	HOSE; FLEX,OIL PRESS UNIT	1-09365-001-0	01	1	9712-
393	BOLT; EYE,FLEX HOSE M14X27 FLANGE	1-09675-086-0	01	1	9712-
394	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	9712-
458	PLUG; CONNECTOR M14X9	9-99202-314-0	01	1	9712-
