Sayfa 2-05 - Isuzu EPC

2-05 — CLUTCH PIPING (#45139) — 177 parça

235 101 210 16 42 206 30 207 206 207 42 16 16 210 106 51 107 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; FLEX HOSE (B) ID=16 L=28	1-09700-872-0	02	1	0801-0801	●	●
16	CLIP; FLEX HOSE (B) ID=16 L=28	1-09700-872-0	01	1	0802-1201	●	●
16	CLIP; FLEX HOSE (B) ID=16 L=28	1-09700-872-0	03	1	1202-	●	●
16	CLIP; FLEX HOSE (A) ID=18 L=28 H=30	1-09701-110-0	01	1	0802-1201	●	●
27	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	0801-0805	●	●
27	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	0806-	●	●
27	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	03	1	0801-	●	●
30	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0801-	●	●
30	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0801-	●	●
30	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	0801-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-98091-266-1	01	1	0801-1402	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-98255-490-0	01	1	1403-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (C)	8-98091-280-1	01	1	0801-1201	●	●
42	BRACKET; FLEX HOSE,CLU CONT (C)	8-98179-878-0	01	1	1202-	●	●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (D)	8-98099-829-0	01	1	0801-1101	●	●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) (D)	8-98099-829-0	01	1	1102-	●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (D)	8-98099-829-0	01	1	1102-		●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K) (A)	1-47476-912-1	01	1	0801-	●	●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (D)	8-98105-674-0	01	1	0801-0910		●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) EXC. FUEL TANK 400L<SDH> (D)	8-98105-674-0	01	1	0911-		●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) FUEL TANK 400L<SDH> ENGINE REAR PTO(SV1) (D)	8-98161-856-0	01	1	0911-		●
51	WASHER; LK ID=14.2	0-91510-514-0	01	1	0801-	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE	8-98103-346-1	01	1	0801-1201	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE	8-98180-779-0	01	1	1202-	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	0801-0805	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	0806-	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	0806-	●	●
106	UNION; OIL PIPE (B)	1-09654-191-1	01	1	0801-	●	●
107	NUT; UNION,OIL PIPE M14	0-91111-514-0	01	1	0801-	●	●
206	CLIP; TUBE (B) ID=16 H=25 L=25	1-09701-162-0	01	1	0801-	●	●
206	CLIP; TUBE (A) L=350	1-09707-183-0	01	1	0801-	●	●
207	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	0801-	●	●
207	BOLT; CLIP (A) M8X30 FLANGE	0-28650-830-0	01	1	0801-	●	●
210	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0801-	●	●
210	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0801-1201	●	●
210	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	1202-	●	●
235	GASKET; FLEX HOSE ID=10.2 OD=16.0	9-09571-410-0	01	1	0801-	●	●

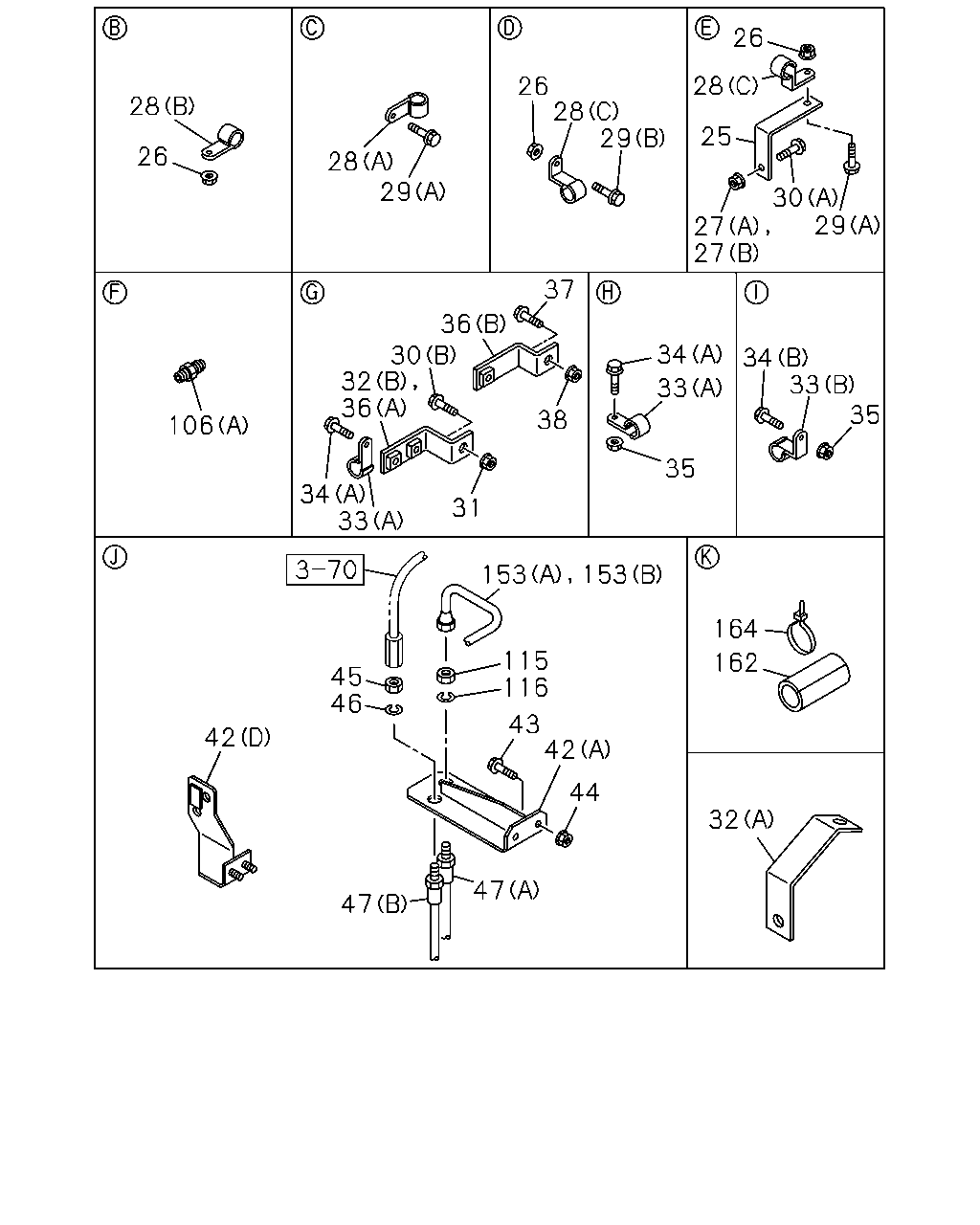

26 28 26 28 29 28 25 26 28 29 30 29 27 27 37 36 30 32 36 34 34 33 35 33 38 106 35 34 33 31 153 153 164 115 116 162 45 46 43 42 42 44 32 47 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	BRACKET; OIL PIPE	8-98105-075-0	02	1	0801-0805	●	●
25	BRACKET; OIL PIPE	8-98123-057-0	01	1	0806-	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	04	1	0801-0805	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0806-	●	●
27	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	0801-0805	●	●
27	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	0806-	●	●
27	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	03	1	0801-	●	●
28	CLIP; OIL PIPE (A) ID=9 L=20	0-95234-835-0	02	1	0801-	●	●
28	CLIP; OIL PIPE (B) ID=9 L=40	0-95234-875-0	01	1	0801-	●	●
28	CLIP; OIL PIPE (C) ID=8 H=20 L=20	1-09700-604-0	03	1	0801-0805	●	●
28	CLIP; OIL PIPE (C) ID=8 H=20 L=20	1-09700-604-0	01	1	0806-	●	●
29	BOLT; CLIP,OIL PIPE (A) M8X25 FLANGE	0-28650-825-0	04	1	0801-0801	●	●
29	BOLT; CLIP,OIL PIPE (A) M8X20 FLANGE	0-28650-820-0	04	1	0802-0805	●	●
29	BOLT; CLIP,OIL PIPE (A) M8X20 FLANGE	0-28650-820-0	02	1	0806-	●	●
29	BOLT; CLIP,OIL PIPE (B) M8X30 FLANGE	0-28650-830-0	01	1	0801-	●	●
30	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0801-	●	●
30	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0801-	●	●
30	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	0801-	●	●
31	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0801-0805	●	●
31	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0806-	●	●
31	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0806-	●	●
32	BRACKET; CLIP OIL PIPE (B)	1-47479-482-0	01	1	0806-	●	●
32	BRACKET; CLIP OIL PIPE (A)	8-98123-057-0	01	1	0806-	●	●
33	CLIP; OIL PIPE (A) ID=9 L=20	0-95234-835-0	02	1	0801-0805	●	●
33	CLIP; OIL PIPE (A) ID=9 L=20	0-95234-835-0	04	1	0806-	●	●
33	CLIP; OIL PIPE (B) ID=8 H=20 L=20	1-09700-604-0	02	1	0801-0802	●	●
33	CLIP; OIL PIPE (B) ID=8 H=20 L=20	1-09700-604-0	03	1	0803-0803	●	●
33	CLIP; OIL PIPE ZF9S1310 M/T(Y5K) (B) ID=8 H=20 L=20	1-09700-604-0	02	1	0804-1101	●	●
33	CLIP; OIL PIPE ZF9S1310 M/T(Y5K) (B) ID=8 H=20 L=20	1-09700-604-0	02	1	1102-	●
33	CLIP; OIL PIPE ZF9S1310 M/T(Y5K) EXC. ENGINE REAR PTO(SV1) (B) ID=8 H=20 L=20	1-09700-604-0	02	1	1102-		●
33	CLIP; OIL PIPE TRANSMISSION-FULLER RTO11908(Y5L) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	0804-1101	●	●
33	CLIP; OIL PIPE TRANSMISSION-FULLER RTO11908(Y5L) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	1102-	●	●
33	CLIP; OIL PIPE ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	1102-		●
33	CLIP; OIL PIPE TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (B) ID=8 H=20 L=20	1-09700-604-0	01	1	0801-		●
34	BOLT; PIPE CLIP (A) M8X25 FLANGE	0-28650-825-0	02	1	0801-0801	●	●
34	BOLT; PIPE CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	0802-0805	●	●
34	BOLT; PIPE CLIP (A) M8X20 FLANGE	0-28650-820-0	04	1	0806-	●	●
34	BOLT; PIPE CLIP (B) M8X30 FLANGE	0-28650-830-0	02	1	0801-0802	●	●
34	BOLT; PIPE CLIP (B) M8X30 FLANGE	0-28650-830-0	03	1	0803-0803	●	●
34	BOLT; PIPE CLIP ZF9S1310 M/T(Y5K) (B) M8X30 FLANGE	0-28650-830-0	02	1	0804-	●	●
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTO11908(Y5L) (B) M8X30 FLANGE	0-28650-830-0	03	1	0804-	●	●
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (B) M8X30 FLANGE	0-28650-830-0	01	1	0801-		●
34	BOLT; PIPE CLIP ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) (B) M8X16 FLANGE	0-28050-816-0	01	1	1102-		●
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	03	1	0801-0802	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	04	1	0803-0803	●	●
35	NUT; PIPE CLIP ZF9S1310 M/T(Y5K) M8 FLANGE	0-91180-108-0	03	1	0804-0805	●	●
35	NUT; PIPE CLIP ZF9S1310 M/T(Y5K) M8 FLANGE	0-91180-108-0	02	1	0806-	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	02	1	0806-	●	●
35	NUT; PIPE CLIP TRANSMISSION-FULLER RTO11908(Y5L) M8 FLANGE	0-91180-108-0	04	1	0804-0805	●	●
35	NUT; PIPE CLIP TRANSMISSION-FULLER RTO11908(Y5L) M8 FLANGE	0-91180-108-0	03	1	0806-	●	●
35	NUT; PIPE CLIP TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) M8 FLANGE	0-91180-108-0	01	1	0801-		●
36	BRACKET; CLIP (A)	1-47479-482-0	01	1	0801-0802	●	●
36	BRACKET; CLIP (A)	8-97624-332-0	01	1	0803-0805	●	●
36	BRACKET; CLIP ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) (B) L=80 H=20	1-82699-304-0	01	1	1102-		●
37	BOLT; CLIP BRKT ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) M8X30 FLANGE	0-28650-830-0	01	1	1102-		●
38	NUT; CLIP BRKT ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) M8 FLANGE	0-91180-108-0	01	1	1102-		●
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-98091-266-1	01	1	0801-1402	●	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-98255-490-0	01	1	1403-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (C)	8-98091-280-1	01	1	0801-1201	●	●
42	BRACKET; FLEX HOSE,CLU CONT (C)	8-98179-878-0	01	1	1202-	●	●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (D)	8-98099-829-0	01	1	0801-1101	●	●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) (D)	8-98099-829-0	01	1	1102-	●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (D)	8-98099-829-0	01	1	1102-		●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K) (A)	1-47476-912-1	01	1	0801-	●	●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (D)	8-98105-674-0	01	1	0801-0910		●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) EXC. FUEL TANK 400L<SDH> (D)	8-98105-674-0	01	1	0911-		●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) FUEL TANK 400L<SDH> ENGINE REAR PTO(SV1) (D)	8-98161-856-0	01	1	0911-		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ZF9S1310 M/T(Y5K) M8X30 FLANGE	0-28650-830-0	02	1	0801-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0801-	●	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	0801-	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	01	1	0801-	●	●
47	HOSE; FLEX,CLU CONT EXC. ENGINE REAR PTO(SV1) (B) L=370	8-98072-331-0	01	1	0801-1101	●	●
47	HOSE; FLEX,CLU CONT (B) L=370	8-98072-331-0	01	1	1102-	●
47	HOSE; FLEX,CLU CONT EXC. ENGINE REAR PTO(SV1) (B) L=370	8-98072-331-0	01	1	1102-		●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (A) L=400	1-09363-606-0	01	1	0801-0802	●	●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (A) L=380	1-09363-884-0	01	1	0803-1101	●	●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) (A) L=380	1-09363-884-0	01	1	1102-	●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (A) L=380	1-09363-884-0	01	1	1102-		●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) (A) L=350	1-09363-624-0	01	1	0801-1101	●	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) (A) L=350	1-09363-624-0	01	1	1102-	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) EXC. ENGINE REAR PTO(SV1) (A) L=350	1-09363-624-0	01	1	1102-		●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (A) L=490	1-09363-632-0	01	1	0801-0802		●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (A) L=470	1-09363-682-0	01	1	0803-		●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (B) L=460	8-98072-345-0	01	1	0801-0802		●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (B) L=430	8-98072-326-0	01	1	0803-		●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) (A) L=430	1-09363-623-0	01	1	1102-		●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) (B) L=460	8-98072-345-0	01	1	1102-		●
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	0801-0805	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	0806-	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	0806-	●	●
106	UNION; OIL PIPE (B)	1-09654-191-1	01	1	0801-	●	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0801-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0801-	●	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (A) L=2320 SERVICED BY L=2400	1-47428-771-0	01	1	0801-0805	●	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (B) L=1433 SERVICED BY L=1550	1-47428-766-0	01	1	0806-1101	●	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTO11908(Y5L) (B) L=1433 SERVICED BY L=1550	1-47428-766-0	01	1	1102-	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (B) L=1433 SERVICED BY L=1550	1-47428-766-0	01	1	1102-		●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T(Y5K) (A) L=2038 SERVICED BY L=2150	1-47428-770-0	01	1	0801-0805	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T(Y5K) (B) L=1155 SERVICED BY L=1250	1-47428-764-0	01	1	0806-1101	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T(Y5K) (B) L=1155 SERVICED BY L=1250	1-47428-764-0	01	1	1102-	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T(Y5K) EXC. ENGINE REAR PTO(SV1) (B) L=1155 SERVICED BY L=1250	1-47428-764-0	01	1	1102-		●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (A) L=2682 SERVICED BY L=2700	1-47428-772-0	01	1	0801-0805		●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (B) L=1800 SERVICED BY L=1800	1-47428-768-0	01	1	0806-0910		●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) EXC. FUEL TANK 400L<SDH> (B) L=1800 SERVICED BY L=1800	1-47428-768-0	01	1	0911-		●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTO11908(Y5L) FUEL TANK 400L<SDH> ENGINE REAR PTO(SV1) (B) L=1784 SERVICED BY L=1800	1-47428-768-0	01	1	0911-		●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) (B) L=1514	8-98183-263-0	01	1	1102-		●
162	COVER; RUBBER,FLEX HOSE L=175	1-09707-178-0	01	1	0801-	●	●
164	CLIP; BAND,FLEX HOSE L=350	1-09707-183-0	01	1	0801-	●	●

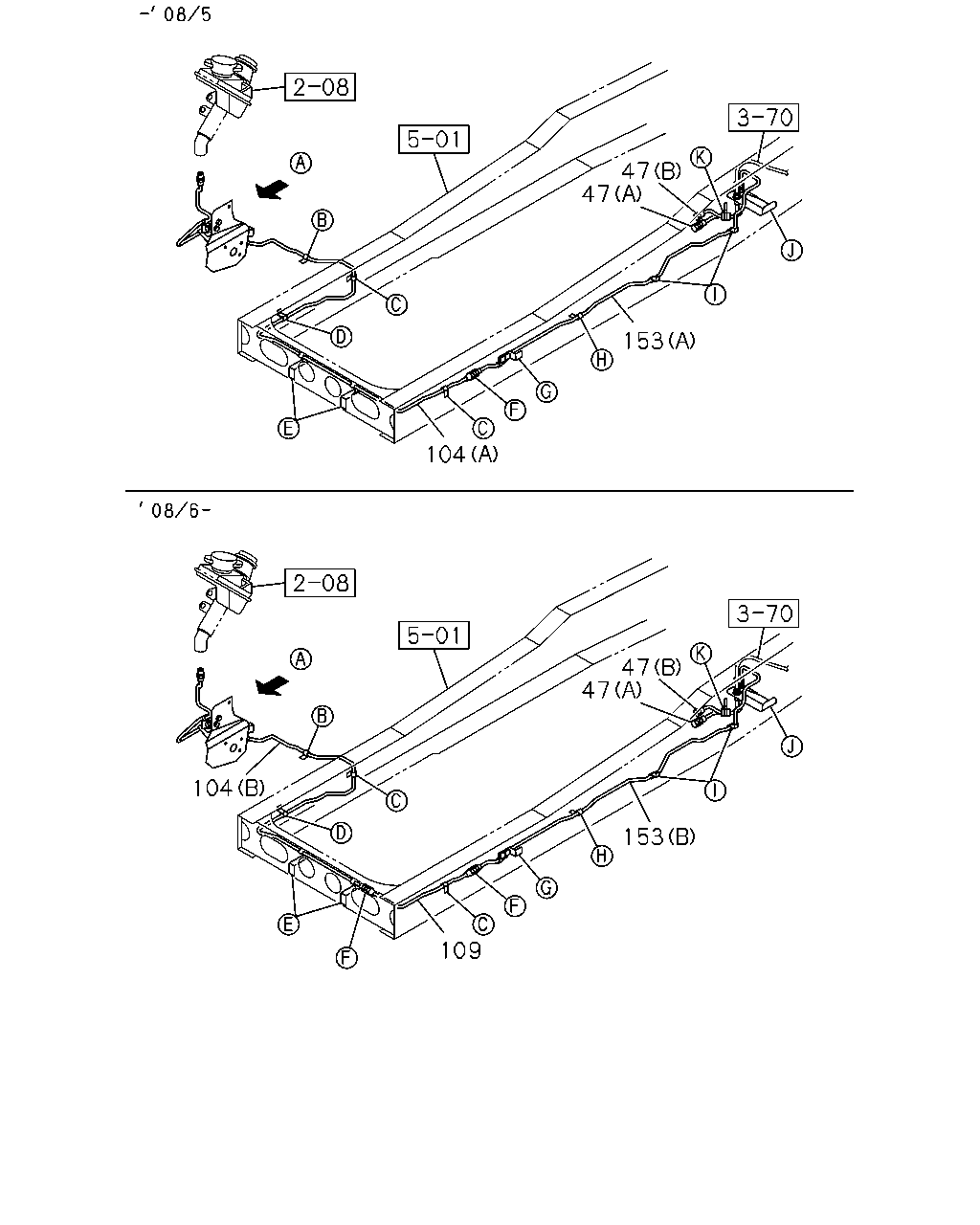

47 47 153 104 47 47 104 153 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	HOSE; FLEX,CLU CONT EXC. ENGINE REAR PTO(SV1) (B) L=370	8-98072-331-0	01	1	0801-1101	●	●
47	HOSE; FLEX,CLU CONT (B) L=370	8-98072-331-0	01	1	1102-	●
47	HOSE; FLEX,CLU CONT EXC. ENGINE REAR PTO(SV1) (B) L=370	8-98072-331-0	01	1	1102-		●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (A) L=400	1-09363-606-0	01	1	0801-0802	●	●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (A) L=380	1-09363-884-0	01	1	0803-1101	●	●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) (A) L=380	1-09363-884-0	01	1	1102-	●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (A) L=380	1-09363-884-0	01	1	1102-		●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) (A) L=350	1-09363-624-0	01	1	0801-1101	●	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) (A) L=350	1-09363-624-0	01	1	1102-	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) EXC. ENGINE REAR PTO(SV1) (A) L=350	1-09363-624-0	01	1	1102-		●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (A) L=490	1-09363-632-0	01	1	0801-0802		●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (A) L=470	1-09363-682-0	01	1	0803-		●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (B) L=460	8-98072-345-0	01	1	0801-0802		●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (B) L=430	8-98072-326-0	01	1	0803-		●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) (A) L=430	1-09363-623-0	01	1	1102-		●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) (B) L=460	8-98072-345-0	01	1	1102-		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR (A) L=2570 SERVICED BY L=2700	1-47428-772-0	01	1	0801-0805	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR (B) L=1747 SERVICED BY L=1800	1-47428-768-0	01	1	0806-	●	●
109	PIPE; AIR,UNION TO UNION L=1680 SERVICED BY L=1700	1-47428-767-0	01	1	0806-	●	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (A) L=2320 SERVICED BY L=2400	1-47428-771-0	01	1	0801-0805	●	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (B) L=1433 SERVICED BY L=1550	1-47428-766-0	01	1	0806-1101	●	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTO11908(Y5L) (B) L=1433 SERVICED BY L=1550	1-47428-766-0	01	1	1102-	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (B) L=1433 SERVICED BY L=1550	1-47428-766-0	01	1	1102-		●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T(Y5K) (A) L=2038 SERVICED BY L=2150	1-47428-770-0	01	1	0801-0805	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T(Y5K) (B) L=1155 SERVICED BY L=1250	1-47428-764-0	01	1	0806-1101	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T(Y5K) (B) L=1155 SERVICED BY L=1250	1-47428-764-0	01	1	1102-	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T(Y5K) EXC. ENGINE REAR PTO(SV1) (B) L=1155 SERVICED BY L=1250	1-47428-764-0	01	1	1102-		●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (A) L=2682 SERVICED BY L=2700	1-47428-772-0	01	1	0801-0805		●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (B) L=1800 SERVICED BY L=1800	1-47428-768-0	01	1	0806-0910		●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) EXC. FUEL TANK 400L<SDH> (B) L=1800 SERVICED BY L=1800	1-47428-768-0	01	1	0911-		●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTO11908(Y5L) FUEL TANK 400L<SDH> ENGINE REAR PTO(SV1) (B) L=1784 SERVICED BY L=1800	1-47428-768-0	01	1	0911-		●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) (B) L=1514	8-98183-263-0	01	1	1102-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
