1-50 — EXHAUST PIPE AND SILENCER (#45133) — 102 parça
çizim 113137
81 52 121 60 226 56 226 226 264 62 168 226 121 60 45 70 70 75 56 81 62 62 75 121 226 56 81 60 62 226 60 70
BalonParca AdiParca NoAdetTipApplied Date A B
45 BOLT; BRKT
(A) M10X40 FLANGE 		0-28051-040-0 02 1 0801- ● ●
45 BOLT; BRKT
(B) M10X60 FLANGE 		0-28051-060-0 02 1 0801- ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 12 1 0801- ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-97616-511-0 01 1 0801- ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-97616-549-1 01 1 0801- ● ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98055-099-0 01 1 0801- ● ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98055-100-3 01 1 0801- ● ●
56 BRACKET; CLAMP,EXH PIPE
(E) 		8-98099-664-0 01 1 0801- ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98055-095-1 01 1 0801- ● ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98055-097-0 01 1 0801- ● ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98055-103-1 01 1 0801- ● ●
60 BRACKET; FRAME TO BRKT
(D) 		8-98059-845-1 01 1 0801- ● ●
62 TUBE; DIST,BRKT
(A) L=22 		1-22159-392-0 02 1 0801-0909 ● ●
62 TUBE; DIST,BRKT
(B) L=37.5 		9-22151-217-0 04 1 0801- ● ●
62 TUBE; DIST,BRKT
(C) L=22 		9-22159-024-0 01 1 0801-0909 ● ●
62 TUBE; DIST,BRKT
(C) L=22 		9-22159-024-0 03 1 0910- ● ●
70 BOLT; BRKT
(A) M10X50 FLANGE 		0-28051-050-0 02 1 0801- ● ●
70 BOLT; BRKT
(B) M10X60 FLANGE 		0-28051-060-0 04 1 0801- ● ●
75 RUBBER; SUPPORT,BRKT
OD=40 		1-22159-094-0 06 1 0801- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 07 1 0801- ● ●
121 WASHER; PL,BRKT
(A) 		8-97616-543-1 04 1 0801- ● ●
121 WASHER; PL,BRKT
(B) OD=55 		9-09852-169-0 02 1 0801- ● ●
168 BRACKET; EXH PIPE,FRT 8-98055-093-0 01 1 0801- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 06 1 0801- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 06 1 0801- ● ●
264 TUBE; DIST,SUPPORT RUBBER
L=37.5 		9-22151-217-0 02 1 0801- ● ●

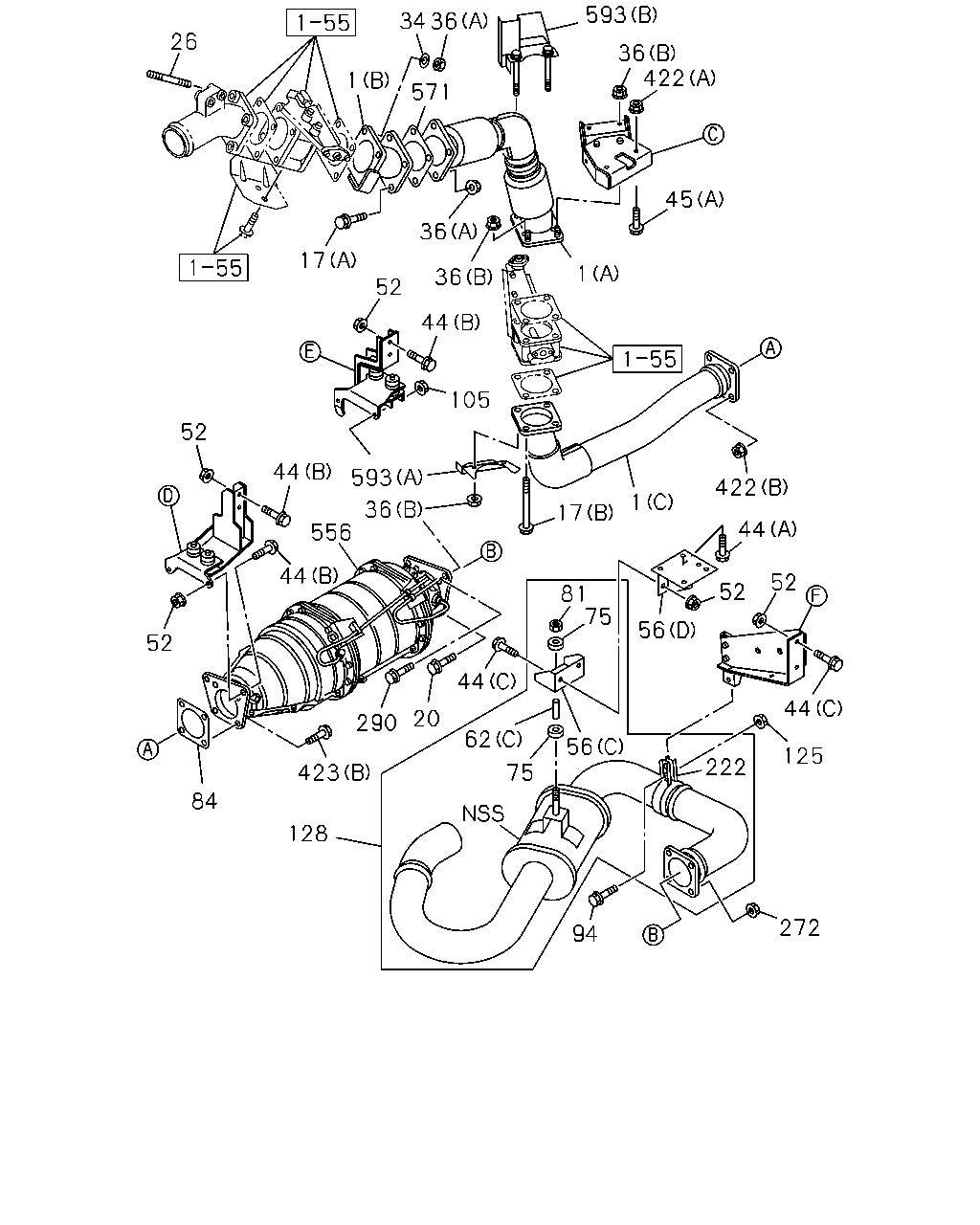

çizim 113149
593 26 36 422 1 571 45 36 17 1 36 52 44 105 52 44 593 422 1 36 17 44 556 44 52 52 81 75 56 52 44 44 20 290 56 75 62 125 222 423 84 128 272 94 34 36
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
(A) 		8-97623-354-1 01 1 0801- ● ●
1 PIPE; EXH
(B) 		8-97624-441-0 01 1 0801- ● ●
1 PIPE; EXH
(C) 		8-97625-311-0 01 1 0801- ● ●
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		0-28051-235-0 04 1 0801- ● ●
17 BOLT; EXH PIPE
(B) M12X120 FLANGE 		0-28056-212-0 02 1 0801- ● ●
20 BOLT; FLANGE,EXH PIPE
M12X35 FLANGE 		0-28051-235-0 04 1 0801- ● ●
26 STUD; EXH MANIF
M12X125 L=145 		8-97617-265-0 04 1 0801-1402 ● ●
26 STUD; EXH MANIF
M12X125 L=145 		8-97648-063-0 04 1 1403- ● ●
34 WASHER; EXH PIPE
ID=13 OD=26 		1-09556-020-0 04 1 0801- ● ●
36 NUT; EXH PIPE
(A) M12 FLANGE 		0-91180-212-0 08 1 0801- ● ●
36 NUT; EXH PIPE
(B) M12 		1-09400-131-0 04 1 0801- ● ●
44 BOLT; BRKT
(A) M8X25 FLANGE 		0-28050-825-0 04 1 0801- ● ●
44 BOLT; BRKT
(B) M10X35 FLANGE 		0-28051-035-0 06 1 0801- ● ●
44 BOLT; BRKT
(C) M10X40 FLANGE 		0-28051-040-0 04 1 0801-0803 ● ●
44 BOLT; BRKT
(C) M10X40 FLANGE 		0-28051-040-0 03 1 0804- ● ●
45 BOLT; BRKT
(A) M10X40 FLANGE 		0-28051-040-0 02 1 0801- ● ●
45 BOLT; BRKT
(B) M10X60 FLANGE 		0-28051-060-0 02 1 0801- ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 12 1 0801- ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-97616-511-0 01 1 0801- ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-97616-549-1 01 1 0801- ● ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98055-099-0 01 1 0801- ● ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98055-100-3 01 1 0801- ● ●
56 BRACKET; CLAMP,EXH PIPE
(E) 		8-98099-664-0 01 1 0801- ● ●
62 TUBE; DIST,BRKT
(A) L=22 		1-22159-392-0 02 1 0801-0909 ● ●
62 TUBE; DIST,BRKT
(B) L=37.5 		9-22151-217-0 04 1 0801- ● ●
62 TUBE; DIST,BRKT
(C) L=22 		9-22159-024-0 01 1 0801-0909 ● ●
62 TUBE; DIST,BRKT
(C) L=22 		9-22159-024-0 03 1 0910- ● ●
75 RUBBER; SUPPORT,BRKT
OD=40 		1-22159-094-0 06 1 0801- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 07 1 0801- ● ●
84 GASKET; EXH PIPE 1-22116-030-0 01 1 0801- ● ●
94 BOLT; CLAMP
M8X40 FLANGE 		0-28650-840-0 02 1 0801- ● ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 0801- ● ●
125 NUT; CLAMP
M8 FLANGE 		0-91180-108-0 02 1 0801- ● ●
128 PIPE; EXH,RR 8-98055-098-2 01 1 0801- ● ●
222 CLAMP; EXH PIPE 8-97621-090-0 01 1 0801- ● ●
272 NUT; FLANGE
M12 FLANGE 		0-91180-212-0 04 1 0801- ● ●
290 BOLT; CLAMP
M10X35 FLANGE 		0-28051-035-0 02 1 0801- ● ●
422 NUT; PIPE
(C) M8 FLANGE 		0-91180-108-0 24 1 0801- ● ●
422 NUT; PIPE
(A) M10 FLANGE 		0-91180-210-0 02 1 0801- ● ●
422 NUT; PIPE
(B) M12 FLANGE 		0-91180-212-0 04 1 0801- ● ●
423 BOLT; PIPE
(B) M12X35 FLANGE 		0-28051-235-0 04 1 0801- ● ●
423 BOLT; PIPE
(A) M8X35 FLANGE 		0-28650-835-0 24 1 0801- ● ●
556 DPD ASM 8-98027-418-2 01 1 0801-0909 ● ●
556 DPD ASM 8-98084-613-5 01 1 0910- ● ●
571 GASKET
ID=100 		1-14145-175-0 01 1 0801- ● ●
593 COVER; EXH THROTTLE
(A) 		8-97621-937-0 01 1 0801- ● ●
593 COVER; EXH THROTTLE
(B) 		8-98073-719-0 01 1 0801- ● ●

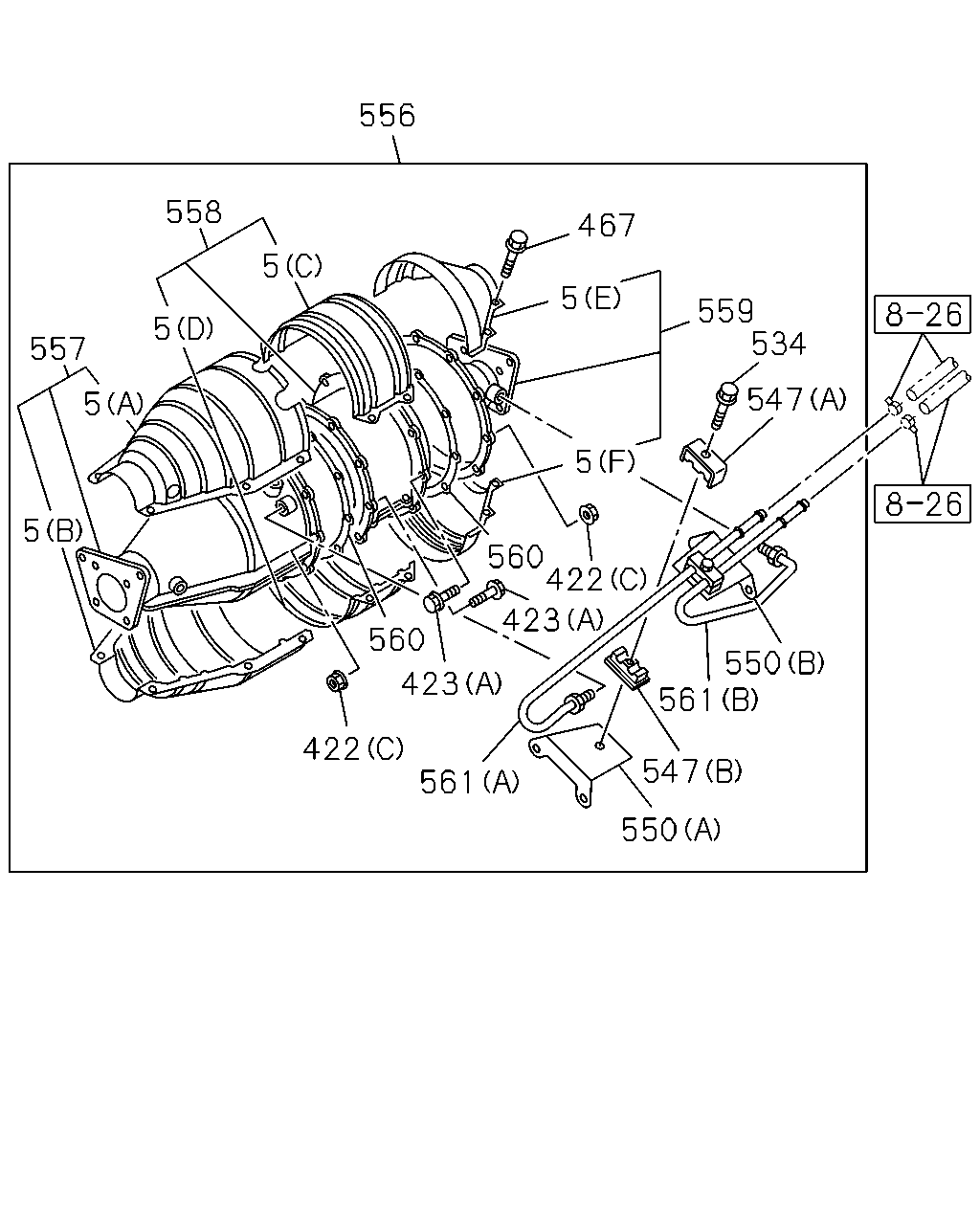

çizim 113157
556 558 467 5 5 559 534 5 557 547 5 5 5 560 422 423 560 550 561 423 422 547 561 550
BalonParca AdiParca NoAdetTipApplied Date A B
5 PROTECTOR; HEAT
(A) 		8-98027-443-0 01 1 0801- ● ●
5 PROTECTOR; HEAT
(B) 		8-98027-444-0 01 1 0801- ● ●
5 PROTECTOR; HEAT
(C) 		8-98027-445-0 01 1 0801- ● ●
5 PROTECTOR; HEAT
(D) 		8-98027-446-0 01 1 0801- ● ●
5 PROTECTOR; HEAT
(E) 		8-98027-447-0 01 1 0801- ● ●
5 PROTECTOR; HEAT
(F) 		8-98027-448-0 01 1 0801- ● ●
422 NUT; PIPE
(C) M8 FLANGE 		0-91180-108-0 24 1 0801- ● ●
422 NUT; PIPE
(A) M10 FLANGE 		0-91180-210-0 02 1 0801- ● ●
422 NUT; PIPE
(B) M12 FLANGE 		0-91180-212-0 04 1 0801- ● ●
423 BOLT; PIPE
(B) M12X35 FLANGE 		0-28051-235-0 04 1 0801- ● ●
423 BOLT; PIPE
(A) M8X35 FLANGE 		0-28650-835-0 24 1 0801- ● ●
467 BOLT; PROTECTOR
M6X16 		8-98019-179-0 15 1 0801-0909 ● ●
467 BOLT; PROTECTOR
M6X16 		8-98019-179-0 14 1 0910- ● ●
534 BOLT; CLIP
M6X35 FLANGE 		0-28650-635-0 02 1 0801- ● ●
547 CLIP; PIPE
(A) ID=7 & 7 L=22 		8-97381-635-0 02 1 0801- ● ●
547 CLIP; PIPE
(B) ID=7 & 7 L=22 		8-97381-636-0 02 1 0801- ● ●
550 BRACKET; DPD
(A) 		8-98027-440-0 01 1 0801- ● ●
550 BRACKET; DPD
(B) 		8-98027-442-0 01 1 0801- ● ●
556 DPD ASM 8-98027-418-2 01 1 0801-0909 ● ●
556 DPD ASM 8-98084-613-5 01 1 0910- ● ●
557 CATALYST ASM 8-98027-419-4 01 1 0801- ● ●
558 FILTER ASM 8-98027-420-4 01 1 0801- ● ●
559 COVER; RR 8-98027-421-0 01 1 0801-0909 ● ●
559 COVER; RR 8-98084-615-0 01 1 0910- ● ●
560 GASKET; DPD 8-98027-449-0 02 1 0801- ● ●
561 PIPE; DPD
(A) 		8-98027-437-0 01 1 0801-0909 ● ●
561 PIPE; DPD
(A) 		8-98084-616-1 01 1 0910- ● ●
561 PIPE; DPD
(B) 		8-98027-439-0 01 1 0801-0909 ● ●
561 PIPE; DPD
(B) 		8-98084-617-1 01 1 0910- ● ●
