Sayfa 1-41 - Isuzu EPC

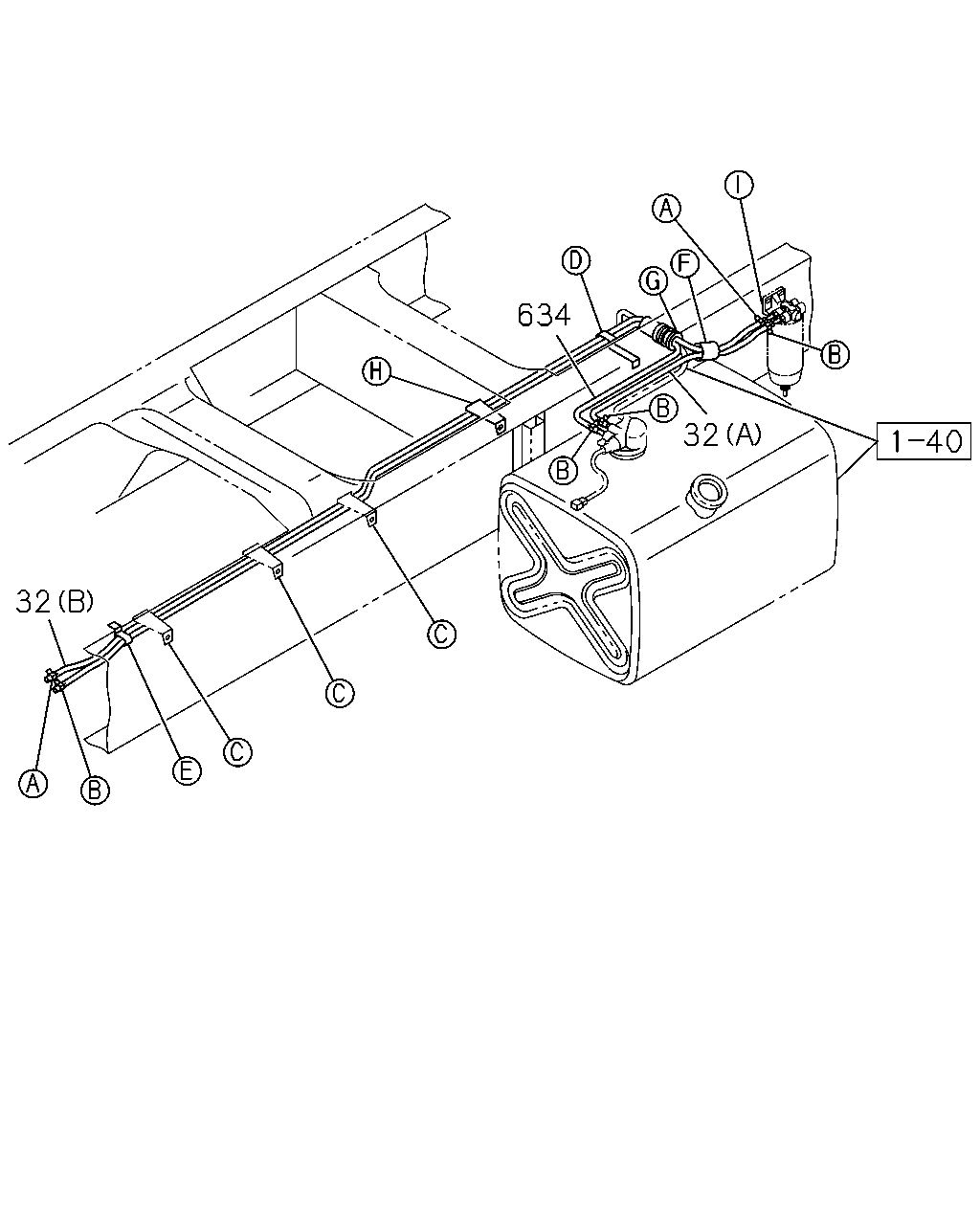

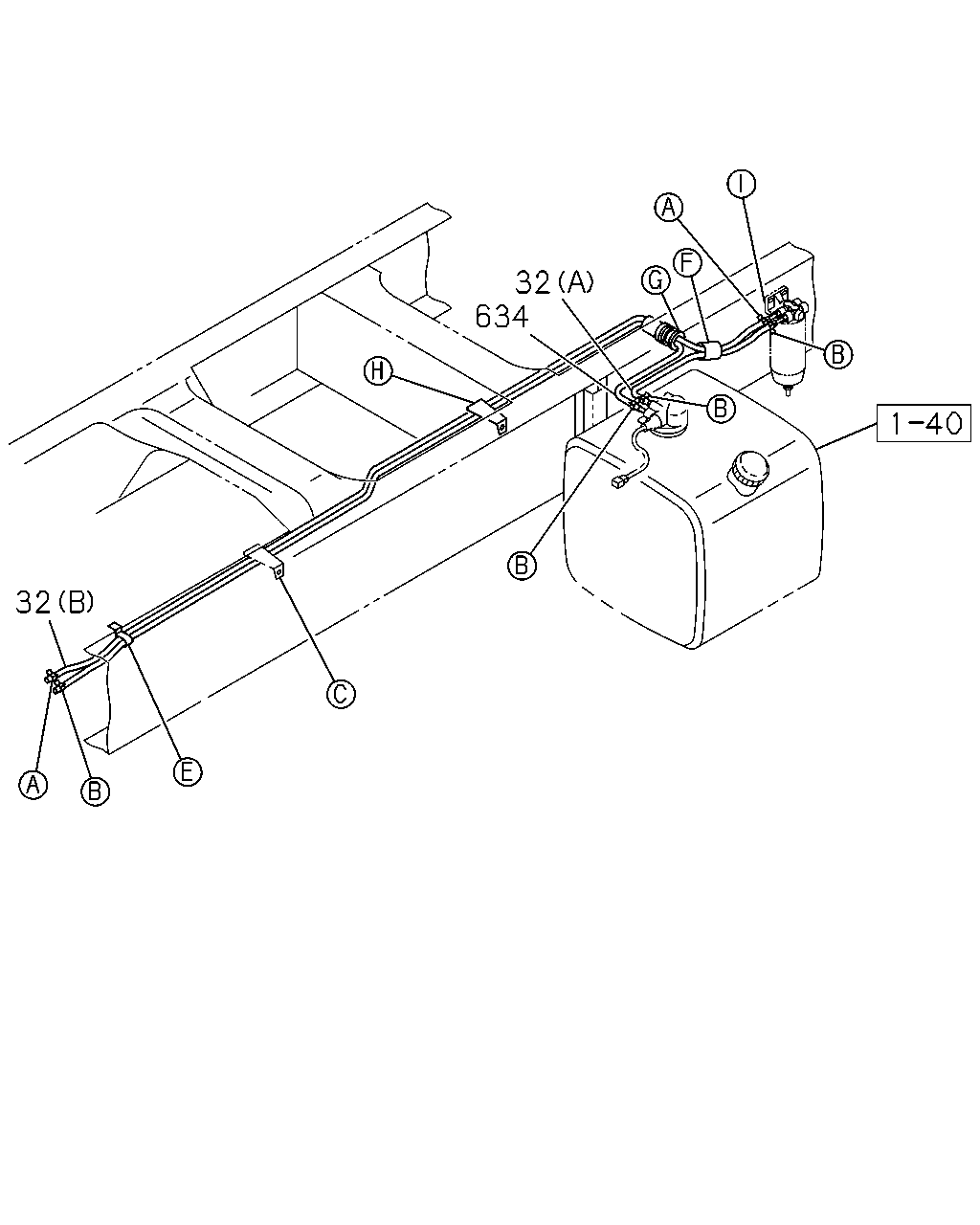

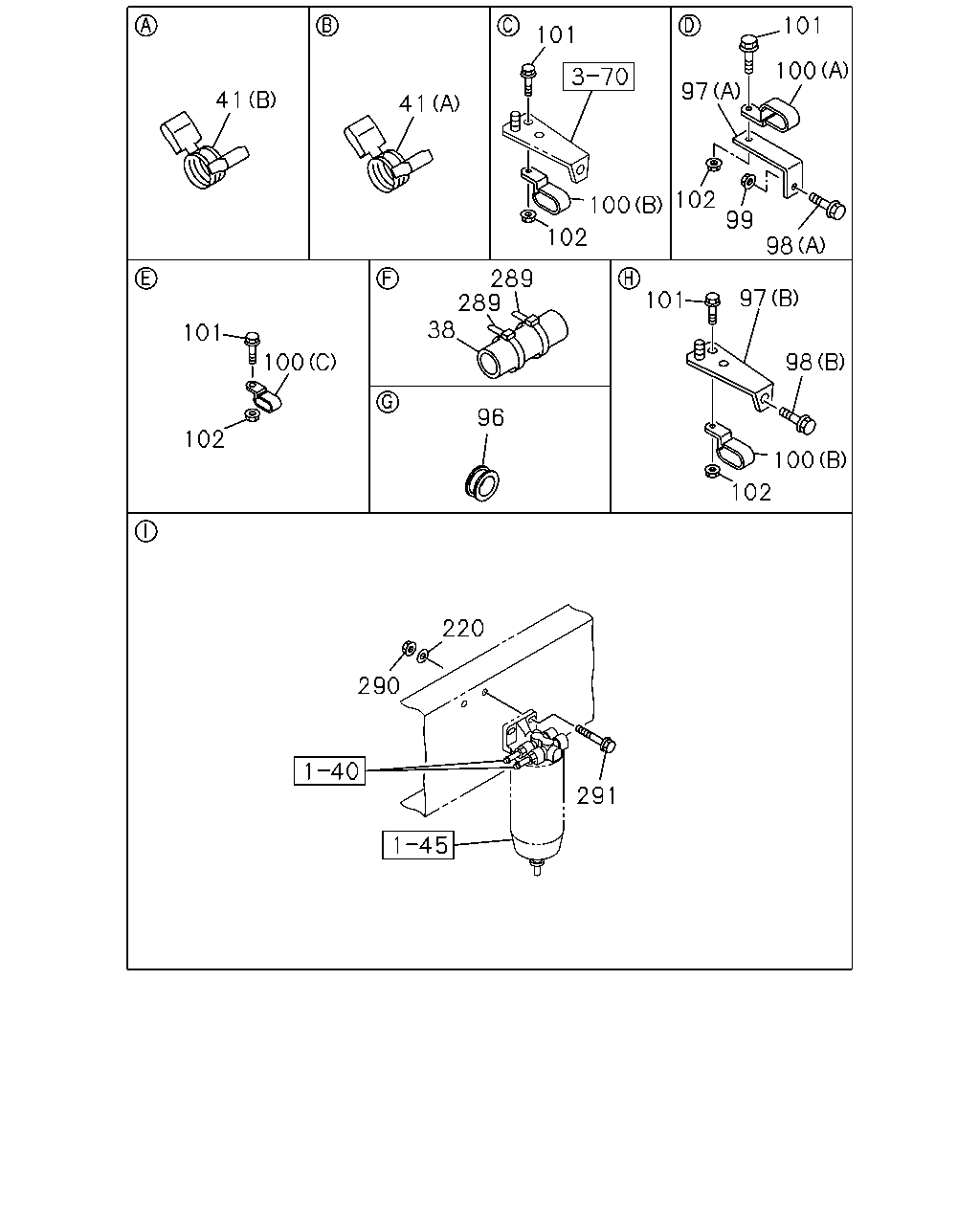

1-41 — FUEL PIPING; CHASSIS (#45131) — 50 parça

101 101 100 97 41 41 102 100 99 102 98 289 289 38 97 101 101 98 100 96 102 100 102 220 290 291

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0801-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	04	1	0801-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=19	8-94238-569-0	02	1	0801-	●	●
96	GROMMET; PIPE,FUEL TANK ID=32 OD=40 T=18	1-09891-003-0	01	1	0801-	●	●
97	BRACKET; CLIP (A)	1-47475-927-0	01	1	0801-1010	●
97	BRACKET; CLIP FUEL TANK 400L<SDH> (A)	1-47475-927-0	01	1	0801-1010		●
97	BRACKET; CLIP (A) L=68	1-47475-525-0	01	1	1011-	●
97	BRACKET; CLIP FUEL TANK 400L<SDH> (A) L=68	1-47475-525-0	01	1	1011-		●
97	BRACKET; CLIP (B)	8-97609-096-0	01	1	0801-	●
97	BRACKET; CLIP FUEL TANK 400L<SDH> (B)	8-97609-096-0	01	1	0801-		●
98	BOLT; BRKT,FUEL PIPE (A) M8X25 FLANGE	0-28650-825-0	01	1	0801-	●
98	BOLT; BRKT,FUEL PIPE FUEL TANK 400L<SDH> (A) M8X25 FLANGE	0-28650-825-0	01	1	0801-		●
98	BOLT; BRKT,FUEL PIPE (B) M8X30 FLANGE	0-28650-830-0	01	1	0801-	●
98	BOLT; BRKT,FUEL PIPE FUEL TANK 400L<SDH> (B) M8X30 FLANGE	0-28650-830-0	01	1	0801-		●
99	NUT; BRKT,CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	01	1	0801-	●
99	NUT; BRKT,CLIP,FUEL TANK FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	0801-		●
100	CLIP; FUEL PIPE (A) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0801-	●
100	CLIP; FUEL PIPE FUEL TANK 400L<SDH> (A) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0801-		●
100	CLIP; FUEL PIPE (B) ID=19X32 H=17.5 L=50.5	1-09701-320-0	04	1	0801-	●
100	CLIP; FUEL PIPE FUEL TANK 400L<SDH> (B) ID=19X32 H=17.5 L=50.5	1-09701-320-0	04	1	0801-		●
100	CLIP; FUEL PIPE (C) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	0801-	●	●
100	CLIP; FUEL PIPE FUEL TANK 200L AL<THF> (B) ID=19X32 H=17.5 L=50.5	1-09701-320-0	01	1	0801-		●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28650-820-0	05	1	0801-	●
101	BOLT; CLIP,FUEL PIPE FUEL TANK 400L<SDH> M8X20 FLANGE	0-28650-820-0	05	1	0801-		●
101	BOLT; CLIP,FUEL PIPE FUEL TANK 200L AL<THF> M8X20 FLANGE	0-28650-820-0	01	1	0801-		●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	06	1	0801-	●
102	NUT; CLIP,FUEL PIPE FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	06	1	0801-		●
102	NUT; CLIP,FUEL PIPE FUEL TANK 200L AL<THF> M8 FLANGE	0-91180-108-0	02	1	0801-		●
220	WASHER; PL ID=10.5 OD=26	0-91614-710-0	02	1	0801-	●	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	04	1	0801-1302	●	●
290	NUT; FILTER TO BRKT M10 FLANGE	0-91180-210-0	02	1	0801-	●	●
291	BOLT; FILER TO BRKT M10X60 FLANGE	0-28051-060-0	02	1	0801-	●	●

32 634 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	PIPE; DELIVERY,FUEL TANK (A) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	0801-	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> (A) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	0801-		●
32	PIPE; DELIVERY,FUEL TANK (B) L=2400 SERVICED BY L=3000	0-01262-300-0	01	1	0801-	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> (B) L=2400 SERVICED BY L=3000	0-01262-300-0	01	1	0801-		●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L AL<THF> (A) L=500 SERVICED BY L=3000	0-01260-300-0	01	1	0801-		●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L AL<THF> (B) L=1300 SERVICED BY L=3000	0-01262-300-0	01	1	0801-		●
634	HOSE; RUBBER RETURN L=1800 SERVICED BY L=3000	0-01260-300-0	01	1	0801-	●
634	HOSE; RUBBER RETURN FUEL TANK 400L<SDH> L=1800 SERVICED BY L=3000	0-01260-300-0	01	1	0801-		●
634	HOSE; RUBBER RETURN FUEL TANK 200L AL<THF> L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	0801-		●

634 32 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	PIPE; DELIVERY,FUEL TANK (A) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	0801-	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> (A) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	0801-		●
32	PIPE; DELIVERY,FUEL TANK (B) L=2400 SERVICED BY L=3000	0-01262-300-0	01	1	0801-	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> (B) L=2400 SERVICED BY L=3000	0-01262-300-0	01	1	0801-		●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L AL<THF> (A) L=500 SERVICED BY L=3000	0-01260-300-0	01	1	0801-		●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L AL<THF> (B) L=1300 SERVICED BY L=3000	0-01262-300-0	01	1	0801-		●
634	HOSE; RUBBER RETURN L=1800 SERVICED BY L=3000	0-01260-300-0	01	1	0801-	●
634	HOSE; RUBBER RETURN FUEL TANK 400L<SDH> L=1800 SERVICED BY L=3000	0-01260-300-0	01	1	0801-		●
634	HOSE; RUBBER RETURN FUEL TANK 200L AL<THF> L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	0801-		●
