8-45 — HEATER PIPING (#45130) — 48 parça

104

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F

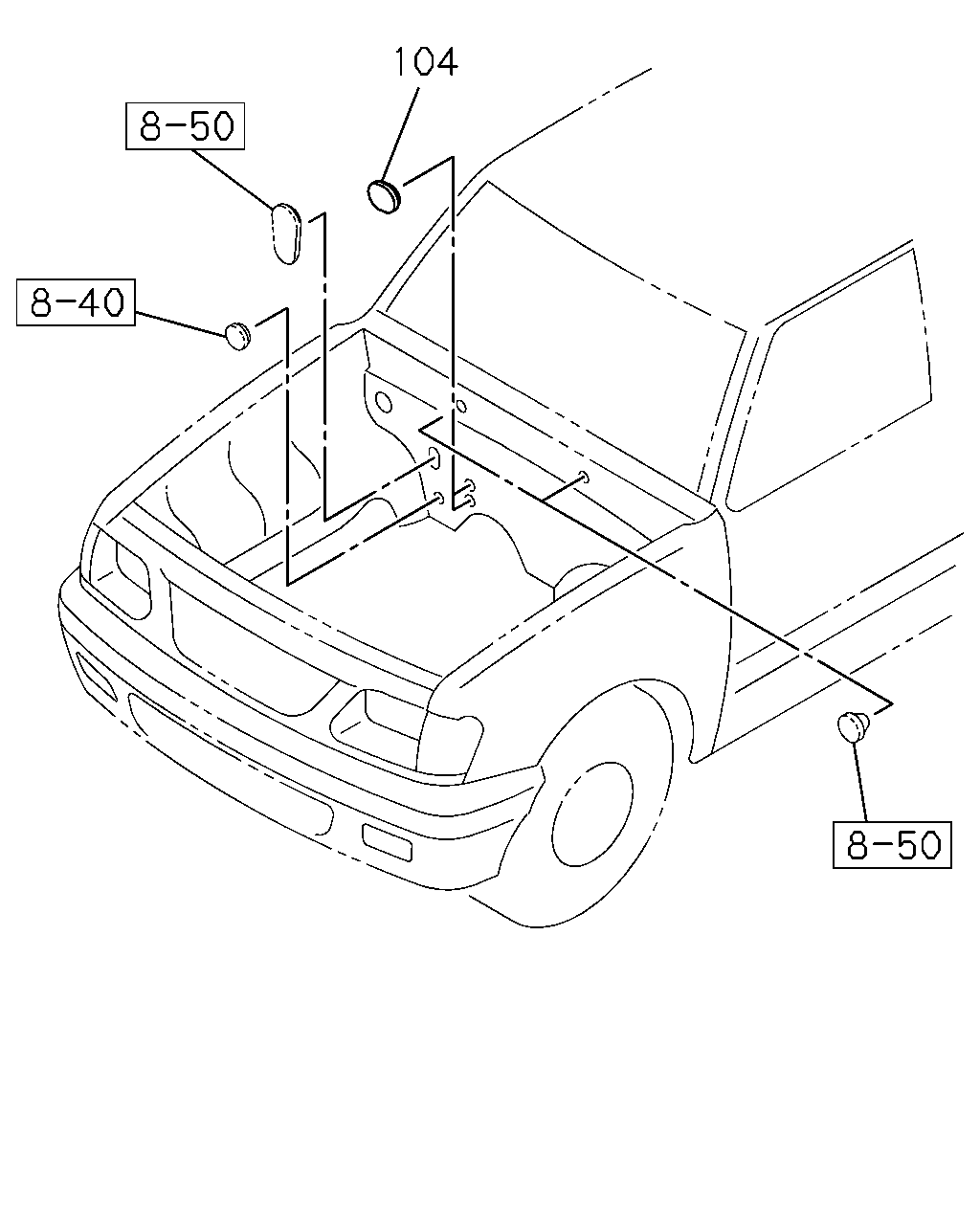

	104	16.550 PLUG; RUBBER,HTR HOSE HOLE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97125-023-0	02	1	9804-	●	●	●	●	●	●

23 23 9 11 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F

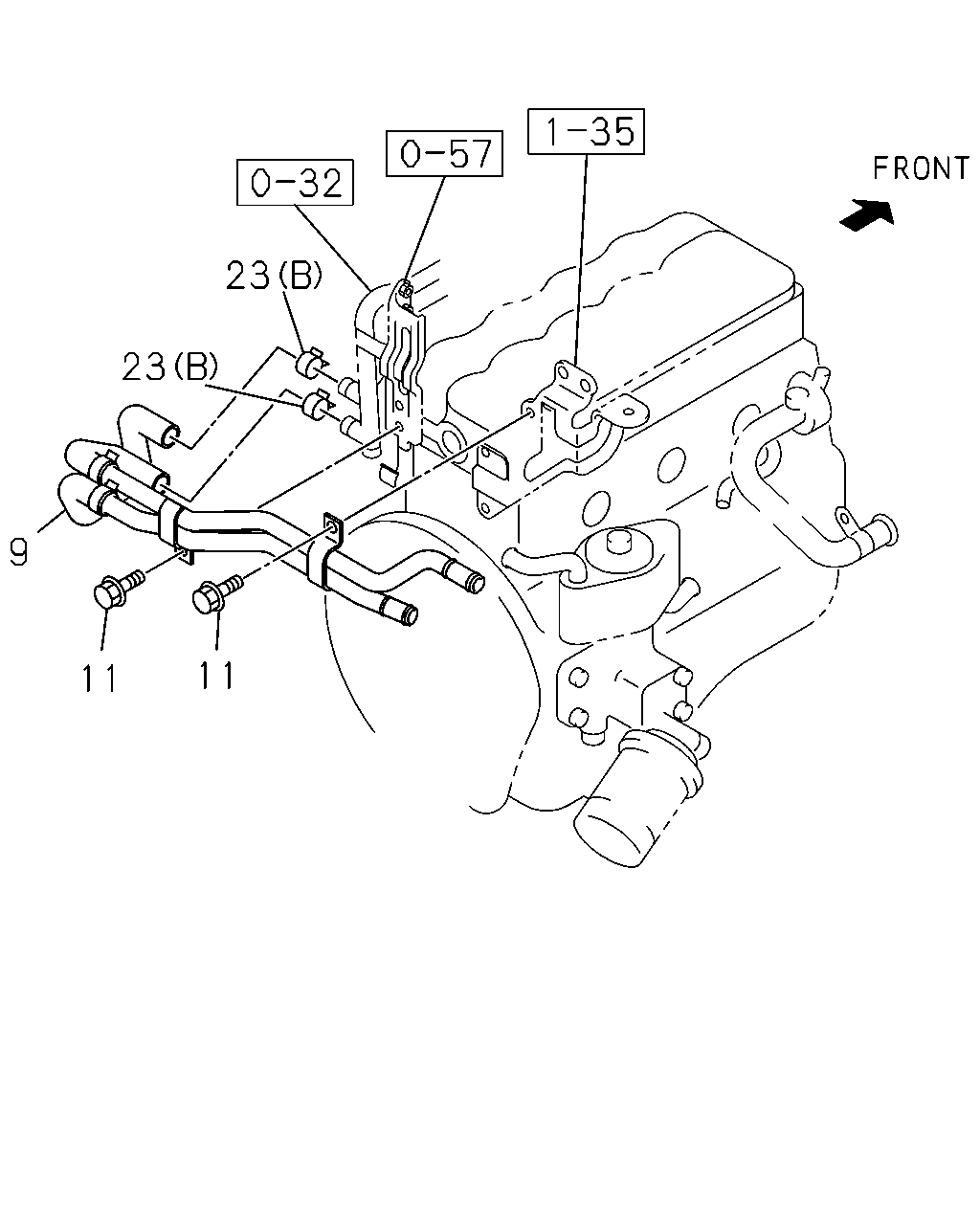

9	08.846 PIPE; HTR CHARGE AIR COOLER<6PL>	8-97312-853-0	01	1	0108-	●	●	●	●	●	●
11	08.845 BOLT; HTR PIPE CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0108-	●	●	●	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR (A)	8-94338-298-0	01	1	9804-9805	●	●	●	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> (A)	8-94338-298-1	01	1	9806-0107	●	●	●	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> (A)	8-94338-298-1	01	1	0108-		●	●		●	●
23	08.846 CLIP; WATER HOSE,DASH LWR CHARGE AIR COOLER<6PL> (B) ID=22	8-94382-401-0	02	1	0108-	●	●	●	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-94338-298-1	02	1	9806-0107	●	●	●	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51> (A)	8-94338-298-1	02	1	0108-0108		●	●		●	●
23	08.846 CLIP; WATER HOSE,DASH LWR 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-94338-298-1	02	1	0109-		●	●		●	●

82 27 82 27 13 13 13 13 23 23 25 23 13 13 25 13 25 13 13 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=25	8-94369-726-0	02	1	9804-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22	8-94382-401-0	03	1	9804-0107	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> (B) ID=22	8-94382-401-0	01	1	0108-0108		●	●		●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> ID=22	8-94382-401-0	01	1	0109-		●	●		●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22	8-94382-401-0	02	1	0108-	●	●	●	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR (A)	8-94338-298-0	01	1	9804-9805	●	●	●	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> (A)	8-94338-298-1	01	1	9806-0107	●	●	●	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> (A)	8-94338-298-1	01	1	0108-		●	●		●	●
23	08.846 CLIP; WATER HOSE,DASH LWR CHARGE AIR COOLER<6PL> (B) ID=22	8-94382-401-0	02	1	0108-	●	●	●	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-94338-298-1	02	1	9806-0107	●	●	●	●	●	●
23	08.846 CLIP; WATER HOSE,DASH LWR 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51> (A)	8-94338-298-1	02	1	0108-0108		●	●		●	●
23	08.846 CLIP; WATER HOSE,DASH LWR 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-94338-298-1	02	1	0109-		●	●		●	●

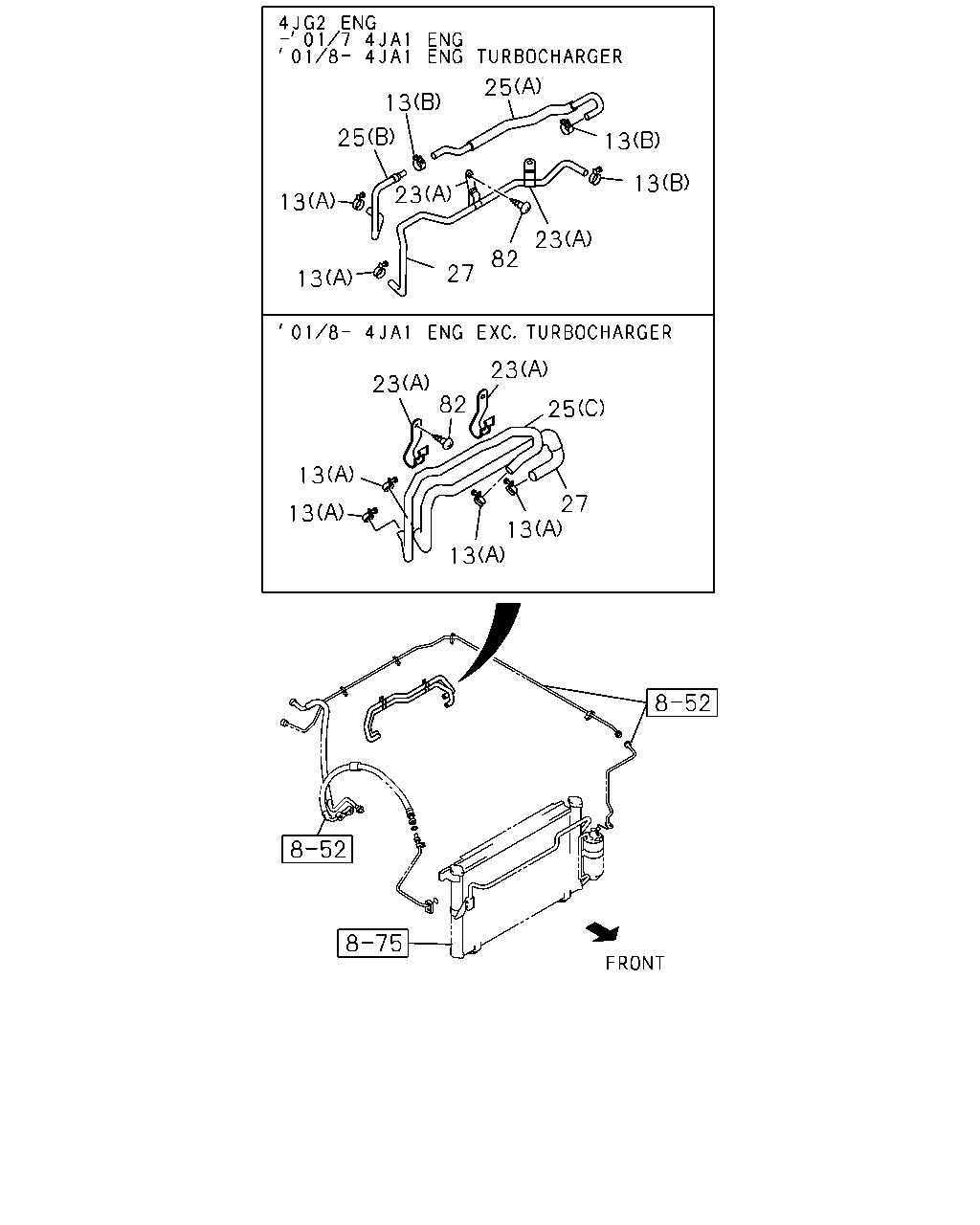

25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97176-376-0	01	1	0109-		●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT (A)	8-97070-690-2	01	1	9804-9805	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> (A)	8-97070-690-2	01	1	9806-0107	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> (A)	8-97070-690-2	01	1	0108-		●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97081-556-1	01	1	9804-9906	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT (B)	8-97081-556-1	01	1	9907-0107	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> (B)	8-97081-556-1	01	1	0108-0108		●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JG2 ENG(RJC),4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97081-556-1	01	1	0109-		●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> (A)	8-97176-376-0	01	1	9806-0107	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> (B)	8-97312-764-0	01	1	0108-0108	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL>	8-97312-764-0	01	1	0109-	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51> (C)	8-94435-214-5	01	1	0108-		●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL>	8-97176-375-0	01	1	0109-		●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI	8-97070-691-2	01	1	9804-9805	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51>	8-97070-691-2	01	1	9806-0107	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51>	8-97070-691-2	01	1	0108-		●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51>	8-97176-375-0	01	1	9806-0107	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51>	8-97312-766-0	01	1	0108-0108	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL>	8-97312-766-0	01	1	0109-	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51>	8-94435-211-6	01	1	0108-		●	●		●	●
82	08.866 SCREW; HTR HOSE CLIP TO DASH 02.343	8-94470-854-1	01	1	9804-9805	●	●	●	●	●	●
82	08.866 SCREW; HTR HOSE CLIP TO DASH 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> 02.343	8-94470-854-1	01	1	9806-0107	●	●	●	●	●	●
82	08.866 SCREW; HTR HOSE CLIP TO DASH 4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> 02.343	8-94470-854-1	01	1	0108-		●	●		●	●
82	08.866 SCREW; HTR HOSE CLIP TO DASH 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.343	8-94470-854-1	02	1	9806-0107	●	●	●	●	●	●
82	08.866 SCREW; HTR HOSE CLIP TO DASH 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51> 02.343	8-94470-854-1	02	1	0108-0108		●	●		●	●
82	08.866 SCREW; HTR HOSE CLIP TO DASH 4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 02.343	8-94470-854-1	02	1	0109-		●	●		●	●
