Sayfa 8-40 - Isuzu EPC

8-40 — HEATER SYSTEM (#45128) — 28 parça

348 194

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F

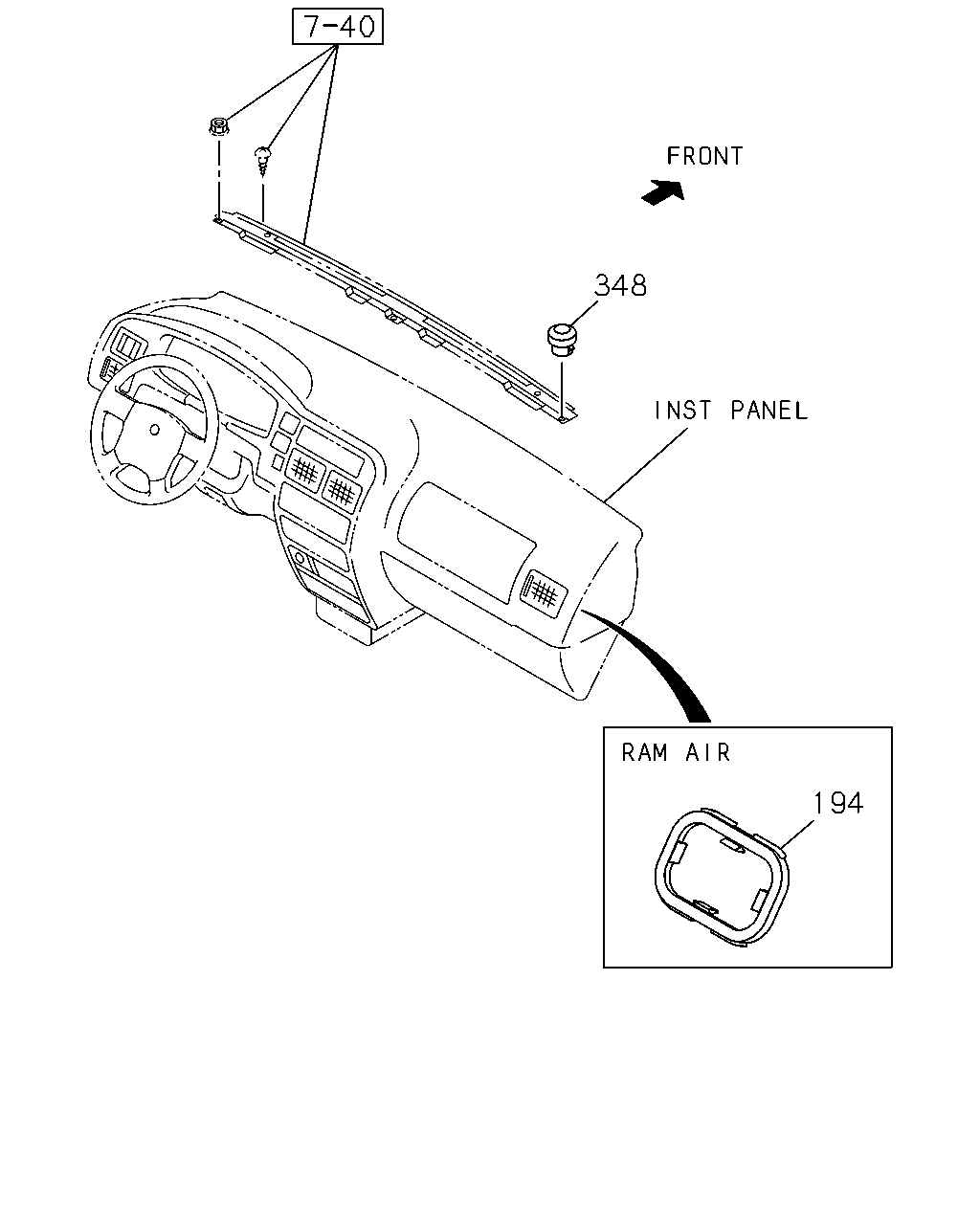

	194	09.262 COVER; HOLE,RAM AIR	8-94435-191-1	02	1	9804-	●	●	●	●	●	●
	348	08.850 COVER; SUN SENSOR	8-97121-843-1	01	1	9804-0112	●	●	●	●	●	●

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F

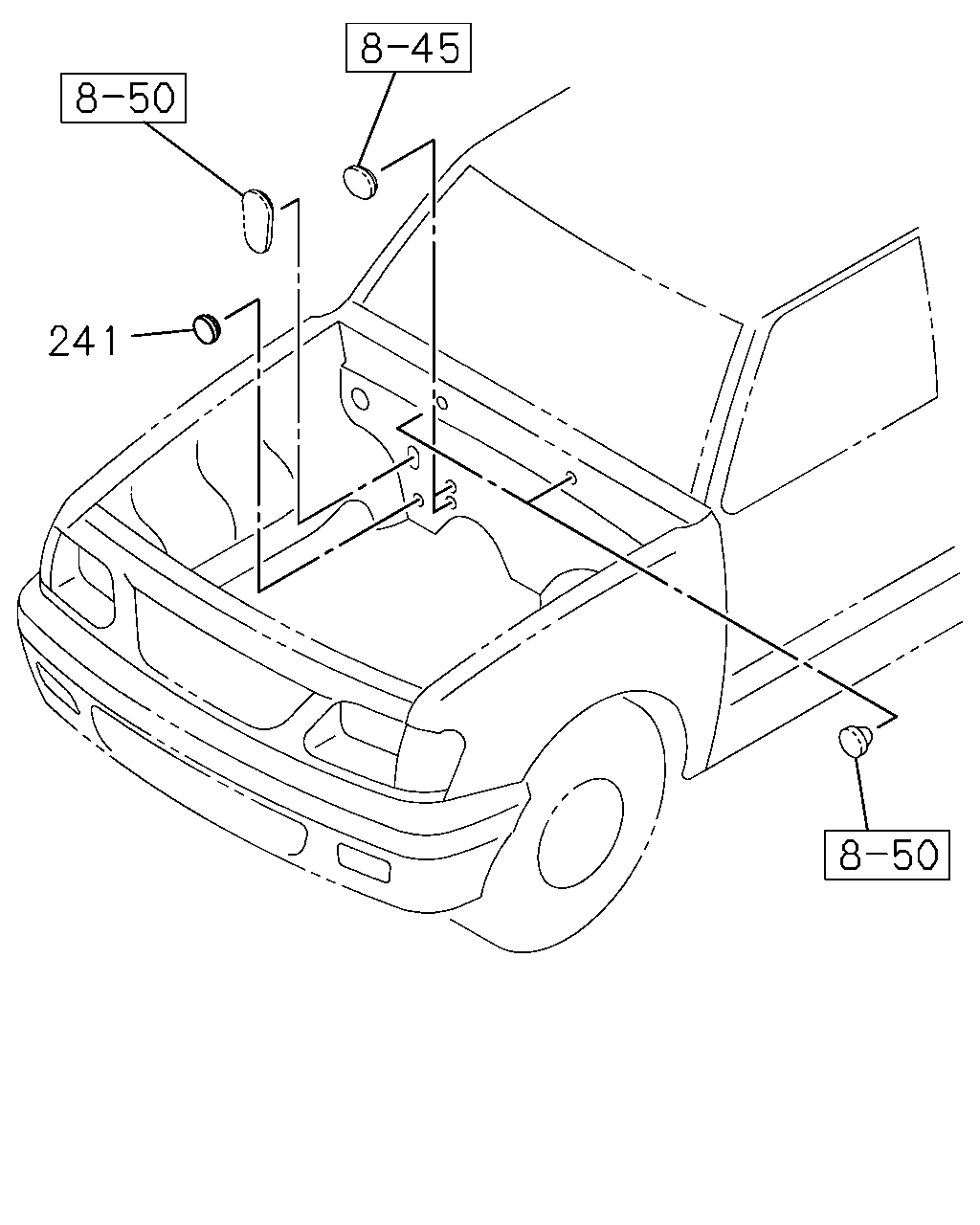

	241	16.550 PLUG; RUBBER,EVAP DRAIN HOLE EXC. AIR CONDITIONER MANUAL CONT(C60) 00.206	8-94222-309-1	01	1	9804-	●	●	●	●	●	●

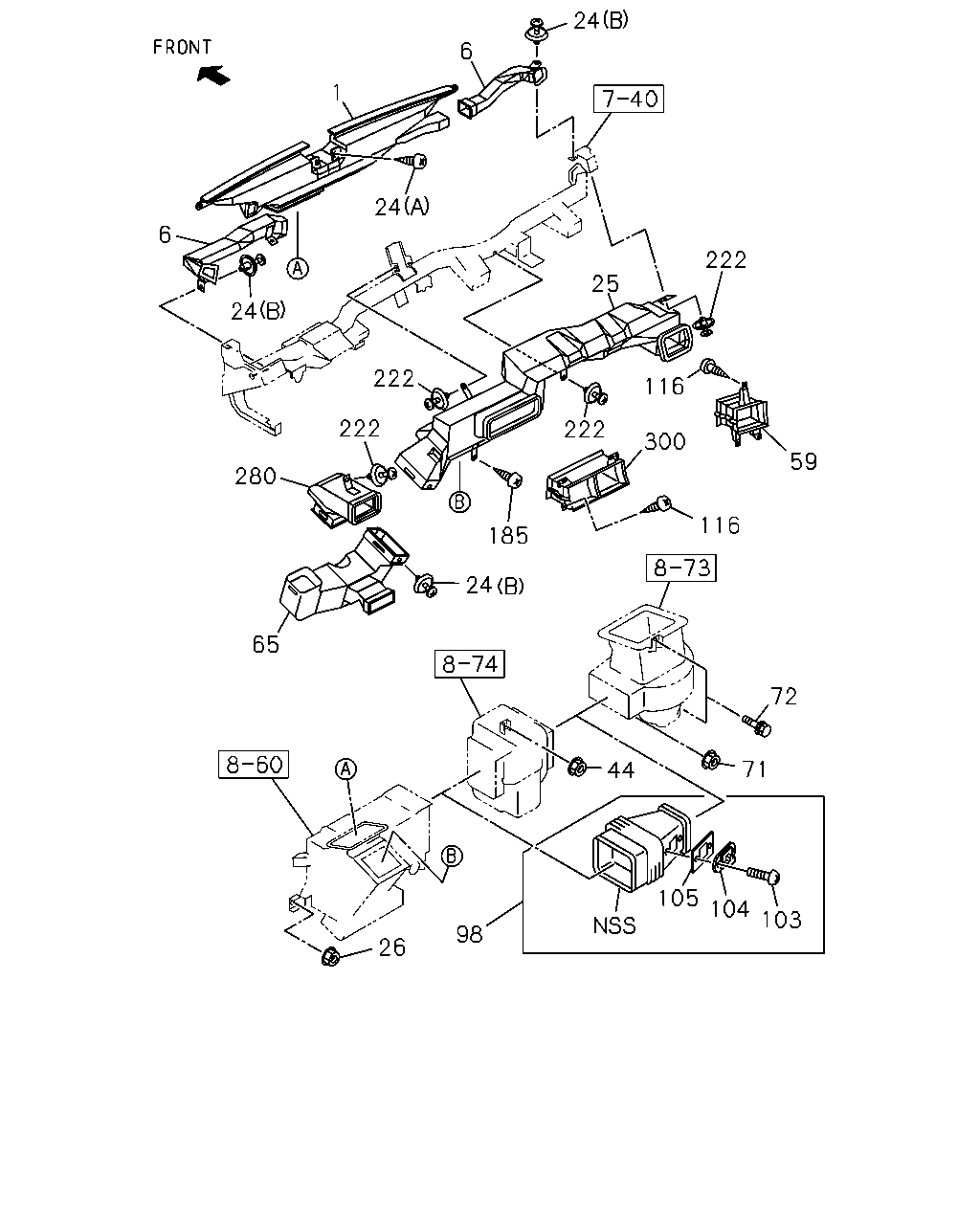

24 6 1 24 6 222 25 24 222 116 222 222 300 59 280 116 185 24 65 72 71 44 105 104 103 98 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	09.779 NOZZLE; DEFROSTER,INST PNL HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97107-800-0	01	1	9804-	●	●	●	●	●	●
6	09.779 DUCT; SIDE DEFROSTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97119-906-1	01	1	9804-	●	●	●	●	●	●
6	09.779 DUCT; SIDE DEFROSTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97100-190-0	01	1	9804-	●	●	●	●	●	●
24	03.890 SCREW; NOZZLE TO INST PNL HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 15.222 (A) M5X16 TAPPING W/PL WASHER	0-74315-516-0	04	1	9804-	●	●	●	●	●	●
24	03.890 SCREW; NOZZLE TO INST PNL HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.760 (B)	8-94243-190-0	05	1	9804-0112	●	●	●	●	●	●
24	03.890 SCREW; NOZZLE TO INST PNL HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787 (B)	8-97326-594-0	05	1	0201-	●	●	●	●	●	●
25	09.786 DUCT; CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97100-192-1	01	1	9804-	●	●	●	●	●	●
26	08.845 NUT; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 07.833 M6 FLANGE	8-97063-399-0	04	1	9804-	●	●	●	●	●	●
44	09.222 NUT; EVAP AIR CONDITIONER MANUAL CONT(C60) 07.833 M6 FLANGE	8-97063-399-0	02	1	9804-	●	●	●	●	●	●
59	09.786 DUCT; VENT,ASSIST SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97101-305-0	01	1	9804-	●	●	●	●	●	●
65	09.786 DUCT; VENT,DRIVER SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97100-193-0	01	1	9804-	●	●	●	●	●	●
71	08.845 NUT; BLOWER UNIT TO DASH HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 07.833 M6 FLANGE	8-97063-399-0	01	1	9804-	●	●	●	●	●	●
72	08.857 BOLT; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 10.701 M6X16 W/LK&PLWASHER	8-94206-784-0	02	1	9804-	●	●	●	●	●	●
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT HEATER & DEFROSTER(C41)	8-94376-106-0	01	1	9804-	●	●	●	●	●	●
103	08.855 SCREW; TAPPING,RESISTOR FIX HEATER & DEFROSTER(C41) 09.789 M4X16 TAPPING	1-83579-114-0	02	1	9804-	●	●	●	●	●	●
104	08.855 RESISTOR; HTR DUCT HEATER & DEFROSTER(C41)	8-97045-850-0	01	1	9804-	●	●	●	●	●	●
105	08.856 PLATE; HTR DUCT HEATER & DEFROSTER(C41) 00.030	8-97045-851-0	01	1	9804-	●	●	●	●	●	●
116	08.845 SCREW; TAP AIR DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.085 M5X16 TAPPING	9-09829-323-1	07	1	9804-	●	●	●	●	●	●
185	09.262 SCREW; VENT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 15.222 M5X16 TAPPING W/PL WASHER	0-74315-516-0	01	1	9804-	●	●	●	●	●	●
222	09.787 FASTENER; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.760	8-94243-190-0	02	1	0203-	●	●	●	●	●	●
222	09.787 FASTENER; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.760	8-94243-190-0	05	1	9804-0112	●	●	●	●	●	●
222	09.787 FASTENER; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97326-594-0	05	1	0201-0202	●	●	●	●	●	●
222	09.787 FASTENER; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97326-594-0	03	1	0203-	●	●	●	●	●	●
280	09.264 DUCT; VENT,DRIVER SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97100-194-0	01	1	9804-	●	●	●	●	●	●
300	09.264 DUCT; VENT,CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97118-559-1	01	1	9804-	●	●	●	●	●	●
