◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50802 - TFR/TFS(EUROPE)-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#45127) — 32 parça

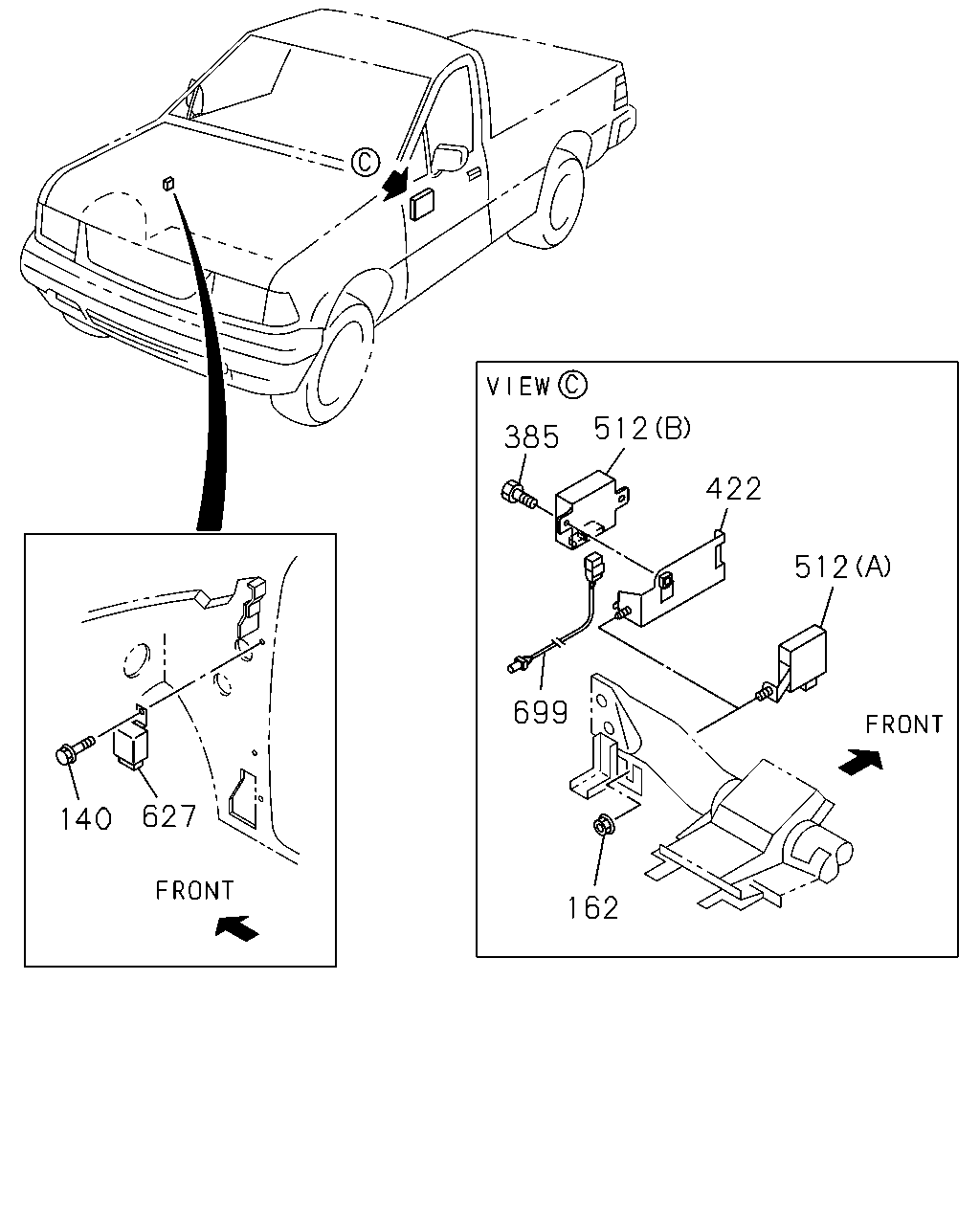

çizim 63954
512 385 422 512 699 627 140 162
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
140 16.263 BOLT; CONTROLLER
SHIFT ON THE FLY(7EX) 06.635 M6X16 FLANGE 		0-28480-616-0 01 1 0108- ● ● ●
162 03.415 NUT; ECM BRKT
04.594 M6 FLANGE 		0-91150-106-0 01 1 0101- ● ● ● ● ● ●
385 03.670 BOLT; CONT UNIT
CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0108- ● ● ● ● ● ●
422 03.415 BRACKET; CONT UNIT
CHARGE AIR COOLER<6PL> 		8-97263-118-0 01 1 0108- ● ● ● ● ● ●
512 16.263 CONTROL UNIT; IMMOBILIZER
(A) 		8-97228-183-2 01 1 0101-0107 ● ● ● ● ● ●
512 16.263 CONTROL UNIT; IMMOBILIZER
EXC. CHARGE AIR COOLER<6PL> (A) 		8-97228-183-2 01 1 0108- ● ● ● ● ●
512 16.263 CONTROL UNIT; IMMOBILIZER
CHARGE AIR COOLER<6PL> (B) 		8-97234-671-0 01 1 0108- ● ● ● ● ● ●
627 02.440 CONTROLLER; SHIFT ON THE FLY
SHIFT ON THE FLY(7EX) 		8-97215-990-1 01 1 0108-0301 ● ● ●
627 02.440 CONTROLLER; SHIFT ON THE FLY
SHIFT ON THE FLY(7EX) 		8-97364-910-0 01 1 0302- ● ● ●
699 01.150 HARNESS; EXT
CHARGE AIR COOLER<6PL> 		8-97303-923-0 01 1 0108- ● ● ● ● ● ●

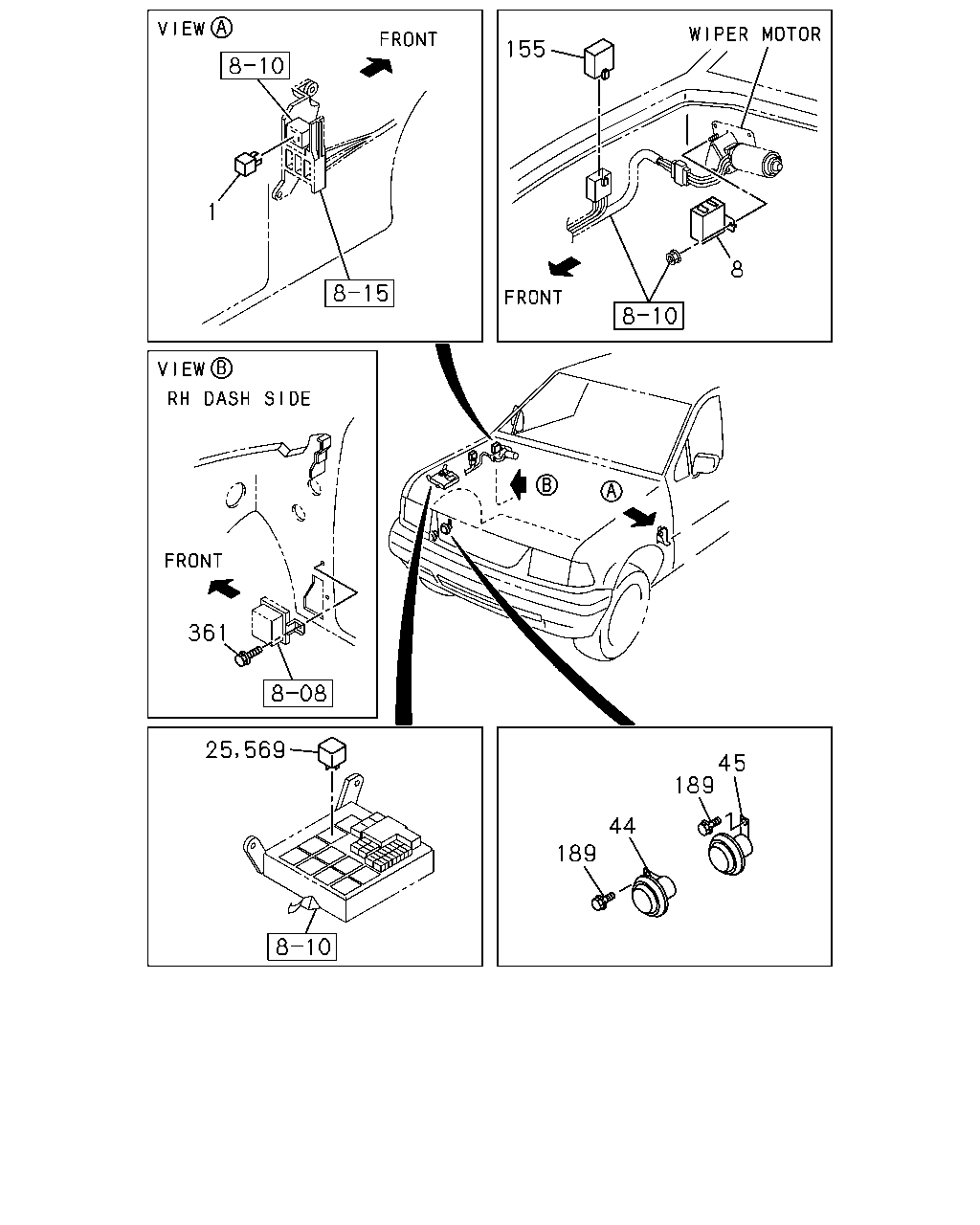

çizim 63972
155 1 8 361 45 189 44 189 25 569
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.575 UNIT; FLASHER
DENSO 		8-97038-317-0 01 1 9804-9902 ● ● ● ● ● ●
1 02.575 UNIT; FLASHER
DENSO 		8-97202-225-1 01 1 9903- ● ● ● ● ● ●
1 02.575 UNIT; FLASHER
VALEO 		8-97105-453-0 01 1 9804-0110 ● ● ● ● ● ●
8 16.067 RELAY; WIPER 8-97096-762-1 01 1 9804-0012 ● ● ● ● ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> 		8-97096-762-1 01 1 0101- ● ● ● ● ● ●
25 02.100 RELAY; TAIL LAMP
08.852 12V 20A 		8-97060-926-1 01 1 9804-9906 ● ● ● ● ● ●
25 02.100 RELAY; TAIL LAMP
12V 20A 		8-97173-039-1 01 1 9907- ● ● ● ● ● ●
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN<U05> 		8-97138-273-0 01 1 9804-9906 ● ● ● ● ● ●
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN<U05> 		8-97218-380-2 01 1 9907- ● ● ● ● ● ●
45 02.810 HORN; LOW NOTE 8-97138-270-0 01 1 9804-9906 ● ● ● ● ● ●
45 02.810 HORN; LOW NOTE 8-97218-382-2 01 1 9907- ● ● ● ● ● ●
155 16.067 CONNECTOR; SHORT
EXC. INTERMITTENT WIPER<C13> 02.559 		8-97114-443-0 01 1 0101- ● ● ● ●
189 02.812 BOLT; HORN
DUAL TONE HORN<U05> 02.343 M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 9804- ● ● ● ● ● ●
189 02.812 BOLT; HORN
EXC. DUAL TONE HORN<U05> 02.343 M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9804- ● ● ● ● ● ●
361 02.559 BOLT; CONNECTOR
HEADLAMP WASHER<CE3> 06.635 M6X16 FLANGE 		0-28480-616-0 01 1 9804- ● ● ● ● ● ●
569 02.485 RELAY; IMMOBILIZER
02.100 12V 20A 		8-97173-039-1 01 1 0101- ● ● ● ● ● ●

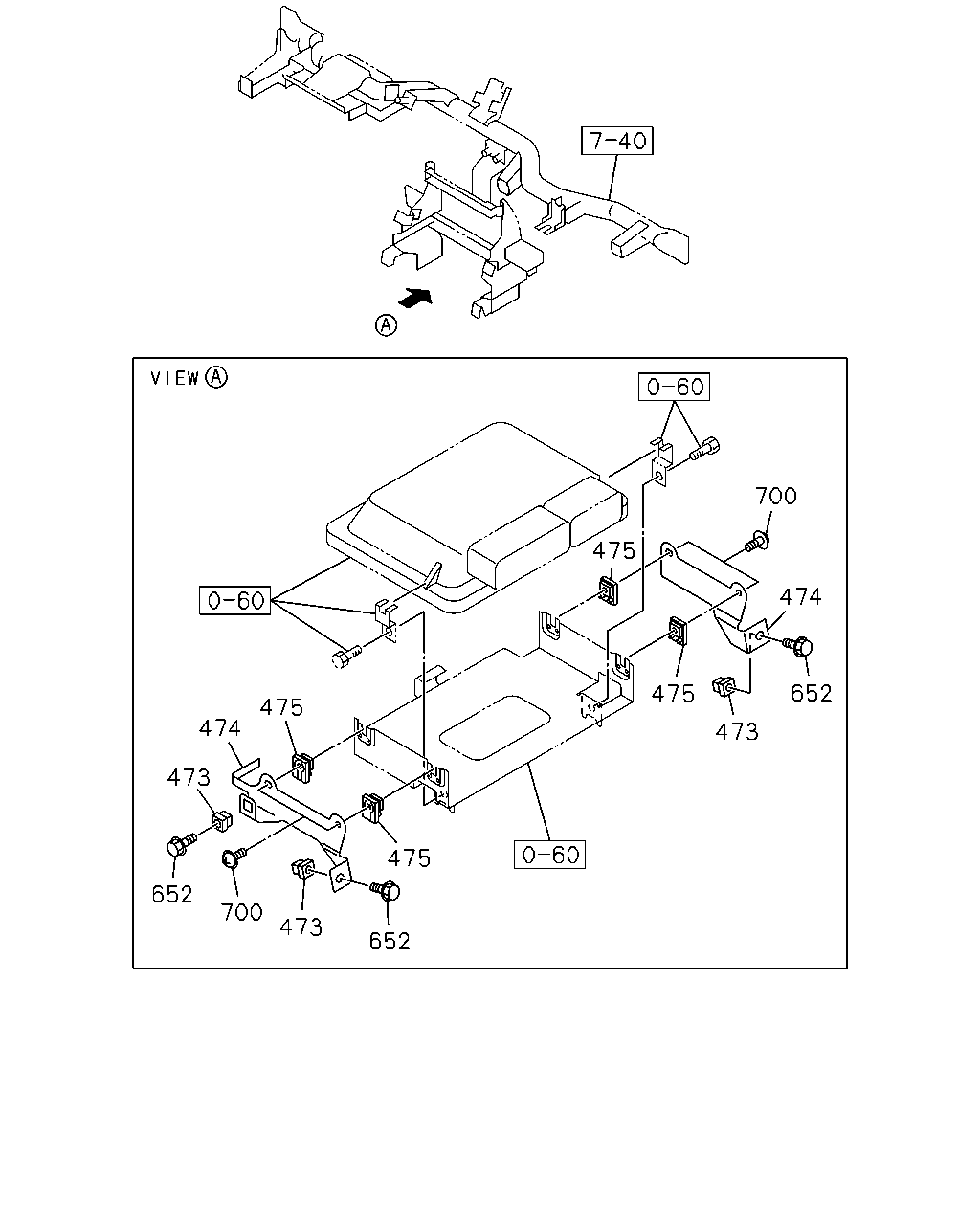

çizim 64439
700 475 474 652 475 475 474 473 473 475 652 700 473 652
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
473 02.487 NUT; PCM
CHARGE AIR COOLER<6PL> 09.190 D=9.7X9.7 L=8 		8-94222-314-0 03 1 0108- ● ● ● ● ● ●
474 09.766 BRACKET; PCM
CHARGE AIR COOLER<6PL> 		8-97101-906-0 01 1 0108- ● ● ● ● ● ●
474 09.766 BRACKET; PCM
CHARGE AIR COOLER<6PL> 		8-97289-527-0 01 1 0108- ● ● ● ● ● ●
475 09.765 GROMMET; PCM
CHARGE AIR COOLER<6PL> 04.342 		8-97110-216-1 04 1 0108- ● ● ● ● ● ●
652 09.765 BOLT; BRKT,PCM
CHARGE AIR COOLER<6PL> 16.585 M6X14 W/PL WASHER 		9-03900-614-0 03 1 0108- ● ● ● ● ● ●
700 16.067 SCREW; PCM
CHARGE AIR COOLER<6PL> 06.514 M4X10 TAPPING W/PL WASHER 		0-74100-410-0 04 1 0108- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
