◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50802 - TFR/TFS(EUROPE)-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-27 - SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM ▶
8-27 — SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM (#45126) — 12 parça

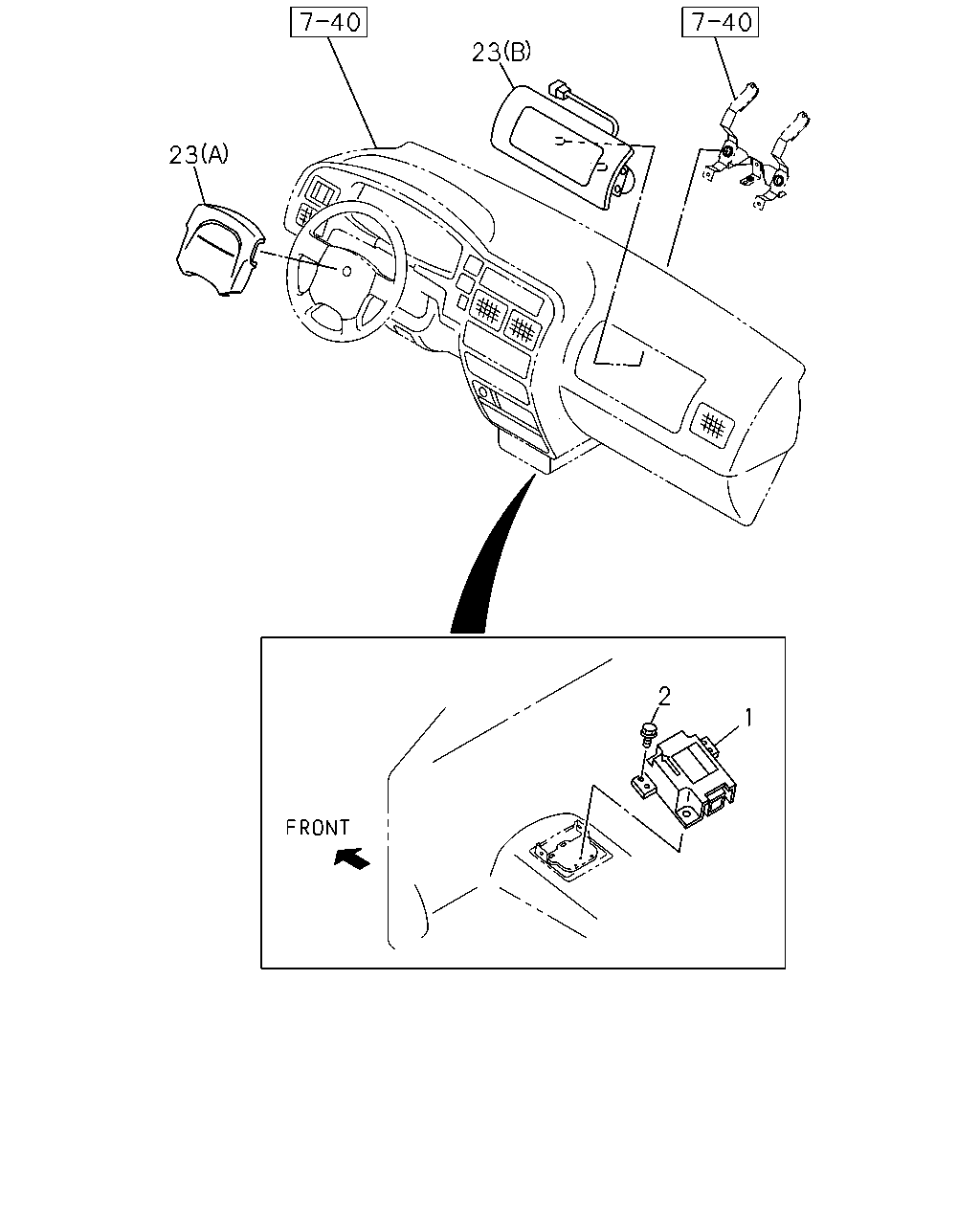

çizim 18230
23 23 2 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.559 CONTROL UNIT; SIR
AIR BAG DRIVER(AJ3) 		8-09373-909-2 01 1 9907- ● ● ● ● ● ●
2 06.870 BOLT; CONT UNIT,SIR
AIR BAG DRIVER(AJ3) M6X18 W/PL WASHER 		8-97105-796-0 03 1 9907- ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER(AJ3) AIR BAG PASSENGER(7FA) (B) GRAY 		8-97155-571-2 01 1 9907- ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER(AJ3) SWEDEN EQUIPMENT(EY8),GERMANY EQUIPMENT(X68),PORTUGAL EQUIPMENT(6JK) STRG WHEEL URETHANE<NK4> (A) BLACK 		8-97198-666-0 01 1 9907-0001 ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER(AJ3) SWEDEN EQUIPMENT(EY8),GERMANY EQUIPMENT(X68),PORTUGAL EQUIPMENT(6JK),SPANI SH EQUIPMENT(8DN) STRG WHEEL URETHANE<NK4> (A) BLACK 		8-97198-666-1 01 1 0002-0012 ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER(AJ3) STRG WHEEL LEATHER<NK3>,STRG WHEEL URETHANE<NK4> OPEL BRAND<6XX> (A) BLACK 		8-97198-666-1 01 1 0101-0204 ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER(AJ3) ITALY EQUIPMENT(RWS),CANARY ISLANDS SPEC(6KF),ISRAEL EQUIPMENT(7LX) STRG WHEEL URETHANE<NK4> (A) BLACK 		8-97198-663-1 01 1 9907-0009 ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER(AJ3) ITALY EQUIPMENT(RWS),TURKISH EQUIPMENT(S6S),CANARY ISLANDS SPEC(6KF),ISRAE L EQUIPMENT(7LX) STRG WHEEL URETHANE<NK4> (A) BLACK 		8-97198-663-1 01 1 0010-0012 ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER(AJ3) STRG WHEEL LEATHER<NK3>,STRG WHEEL URETHANE<NK4> EXC. OPEL BRAND<6XX> (A) BLACK 		8-97198-663-4 01 1 0101-0112 ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER(AJ3) STRG WHEEL LEATHER<NK3>,STRG WHEEL URETHANE<NK4> EXC. CHEVROLET BRAND(RWE),OPEL BRAND<6XX> (A) BLACK 		8-97198-663-4 01 1 0201-0204 ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER(AJ3) STRG WHEEL LEATHER<NK3>,STRG WHEEL URETHANE<NK4> EXC. CHEVROLET BRAND(RWE) BLACK 		8-97198-663-4 01 1 0205- ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER(AJ3) STRG WHEEL LEATHER<NK3>,STRG WHEEL URETHANE<NK4> CHEVROLET BRAND(RWE) (A) BLACK 		8-97199-799-4 01 1 0201- ● ● ● ● ● ●
