◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50802 - TFR/TFS(EUROPE)-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#45125) — 38 parça
çizim 63774
101 204 153 106 305
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
101 04.115 CONTROL UNIT; ELEC,A/T
4JG2 ENG(RJC) A/T AISIN(RMD) 		8-97224-024-0 01 1 9907-9907 ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JG2 ENG(RJC) A/T AISIN(RMD) 		8-97231-238-0 01 1 9908-0004 ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JG2 ENG(RJC) A/T AISIN(RMD) 		8-97257-061-0 01 1 0005- ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JG2 ENG(RJC) A/T AISIN(RMD) 		8-97210-455-0 01 1 9806-0004 ●
101 04.115 CONTROL UNIT; ELEC,A/T
4JG2 ENG(RJC) A/T AISIN(RMD) 		8-97257-060-0 01 1 0005- ●
106 04.115 NUT; ELEC CONT UNIT
4JG2 ENG(RJC) A/T AISIN(RMD) 07.633 M8 FLANGE 		0-91150-108-0 02 1 9806-9906 ●
106 04.115 NUT; ELEC CONT UNIT
4JG2 ENG(RJC) A/T AISIN(RMD) 07.633 M8 FLANGE 		0-91150-108-0 02 1 9907-0107 ● ●
153 16.085 BOLT; BUZZER FIX
06.635 M6X16 FLANGE 		0-28480-616-0 01 1 9804- ● ● ● ● ● ●
204 02.195 BUZZER; KEY REMIND
02.485 		8-94100-124-0 01 1 9804- ● ● ● ● ● ●
305 08.915 NUT; CONT UNIT
A/T AISIN(RMD) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0108- ● ●

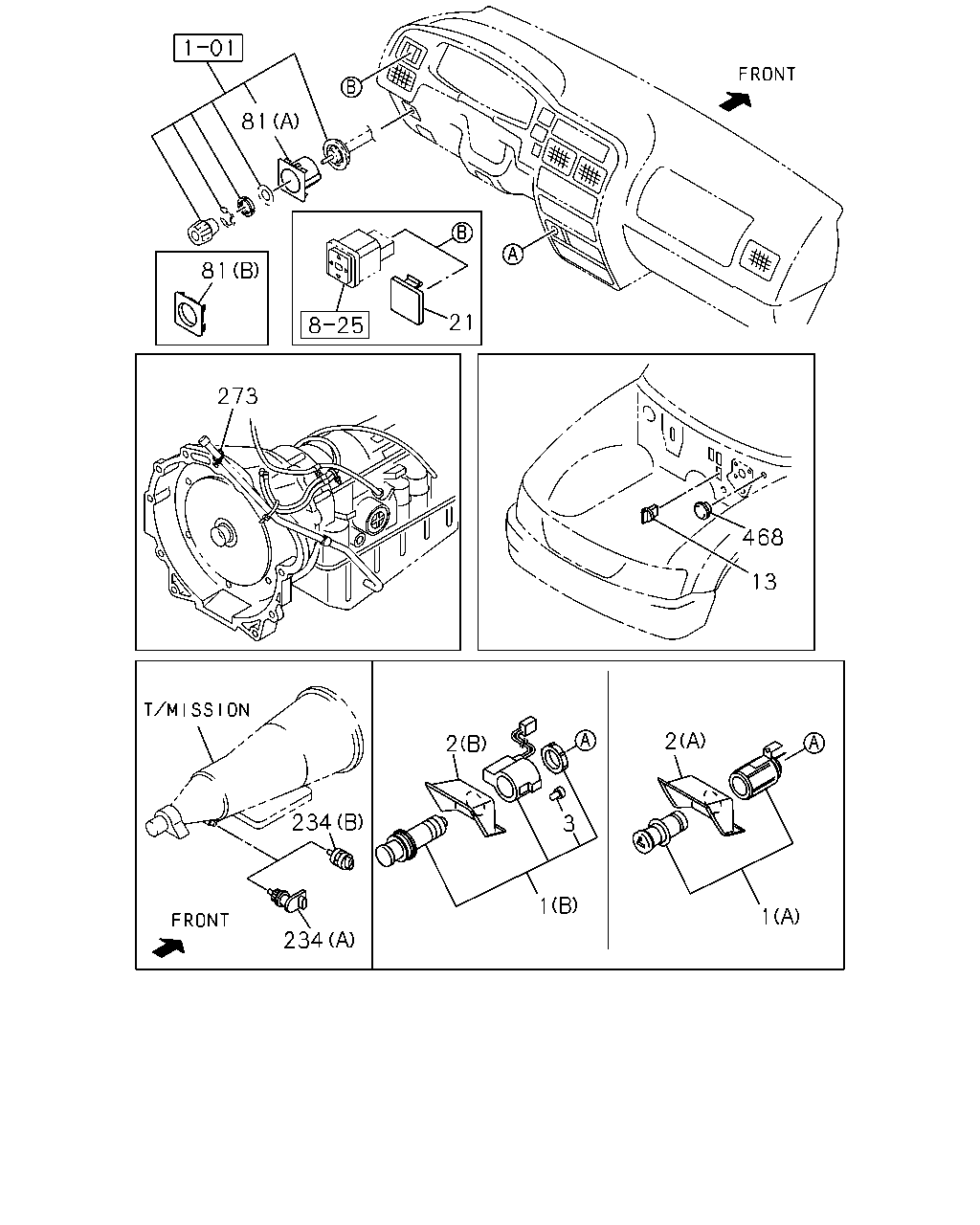

çizim 63973
81 81 21 273 468 13 2 234 3 1 234 2 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.709 LIGHTER; CIGAR
(A) 		8-97100-029-0 01 1 9804-9906 ● ● ● ● ● ●
1 09.709 LIGHTER; CIGAR
(A) 		8-97100-029-0 01 1 9907-0107 ● ●
1 09.709 LIGHTER; CIGAR
GRADE S(RBA) (A) 		8-97100-029-0 01 1 9907-0107 ● ● ● ●
1 09.709 LIGHTER; CIGAR
(A) 		8-97100-029-0 01 1 0108-0206 ● ● ● ● ● ●
1 09.709 LIGHTER; CIGAR
(A) 		8-97314-003-0 01 1 0207- ● ● ● ● ● ●
1 09.709 LIGHTER; CIGAR
GRADE LS(RBD) (B) 		8-97094-468-2 01 1 9907-0107 ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER
(A) BLACK 		8-94333-793-0 01 1 9804-9906 ● ● ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER
(A) BLACK 		8-94333-793-0 01 1 9907-0107 ● ●
2 09.709 BEZEL; CIGAR LIGHTER
GRADE S(RBA) (A) BLACK 		8-94333-793-0 01 1 9907-0107 ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER
(A) BLACK 		8-94333-793-0 01 1 0108-0206 ● ● ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER
BLACK 		8-97000-043-0 01 1 0207- ● ● ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER
GRADE LS(RBD) (B) BLACK 		8-97000-043-0 01 1 9907-0107 ● ● ● ●
3 08.991 BULB; CIGAR LIGHTER
GRADE LS(RBD) 14V 1.4W WO/CAP 		5-82194-026-0 01 1 9907-0107 ● ● ● ●
13 03.880 PLUG; CONTROLLER,CRUISE
12.804 		8-94147-164-1 01 1 9804- ● ● ● ● ● ●
21 09.744 COVER; HOLE
BLACK 		8-97154-764-0 01 1 9907- ● ●
21 09.744 COVER; HOLE
EXC. DOOR MIRROR ELECTRIC CONT BRIGHT <7HX> BLACK 		8-97154-764-0 01 1 9907- ● ● ● ●
81 03.451 BEZEL; IDLE CONT
(A) 		8-97065-377-3 01 1 9804-0107 ● ● ● ● ● ●
81 03.451 BEZEL; IDLE CONT
EXC. CHARGE AIR COOLER<6PL> (A) 		8-97065-377-3 01 1 0108- ● ● ● ● ●
81 03.451 BEZEL; IDLE CONT
CHARGE AIR COOLER<6PL> (B) 		8-97165-448-0 01 1 0108- ● ● ● ● ● ●
234 03.682 SENSOR; VEHICLE SPD
M/T MSG 5 SPEED(M75) (A) 		8-97129-727-0 01 1 9804-0107 ● ● ● ● ● ●
234 03.682 SENSOR; VEHICLE SPD
M/T MSG 5 SPEED(M75) (A) 		8-97129-727-0 01 1 0108-0302 ● ● ● ●
234 03.682 SENSOR; VEHICLE SPD
M/T MSG 5 SPEED(M75) (A) 		8-97365-743-0 01 1 0303- ● ● ● ●
234 03.682 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED(RMN) (B) 4 PULSE PPS RESIN BLACK 		8-97129-704-0 01 1 9804-9810 ● ● ● ● ● ●
234 03.682 SENSOR; VEHICLE SPD
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) (B) 4 PULSE PPS RESIN BLACK 		8-97129-704-0 01 1 9811- ● ● ● ● ● ●
273 02.559 CLIP; HARNESS
4JG2 ENG(RJC) A/T AISIN(RMD) 03.162 L=140 		5-09707-031-1 02 1 9809-9906 ●
273 02.559 CLIP; HARNESS
4JG2 ENG(RJC) A/T AISIN(RMD) 03.162 L=140 		5-09707-031-1 02 1 9907-0004 ● ●
273 02.559 CLIP; HARNESS
4JG2 ENG(RJC) A/T AISIN(RMD) 03.162 L=140 		5-09707-031-1 01 1 0005-0009 ● ●
468 04.342 GROMMET; HOLE,METER CABLE
16.585 OD=31.6 		8-94198-177-0 01 1 9804- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
