8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#45124) — 115 parça

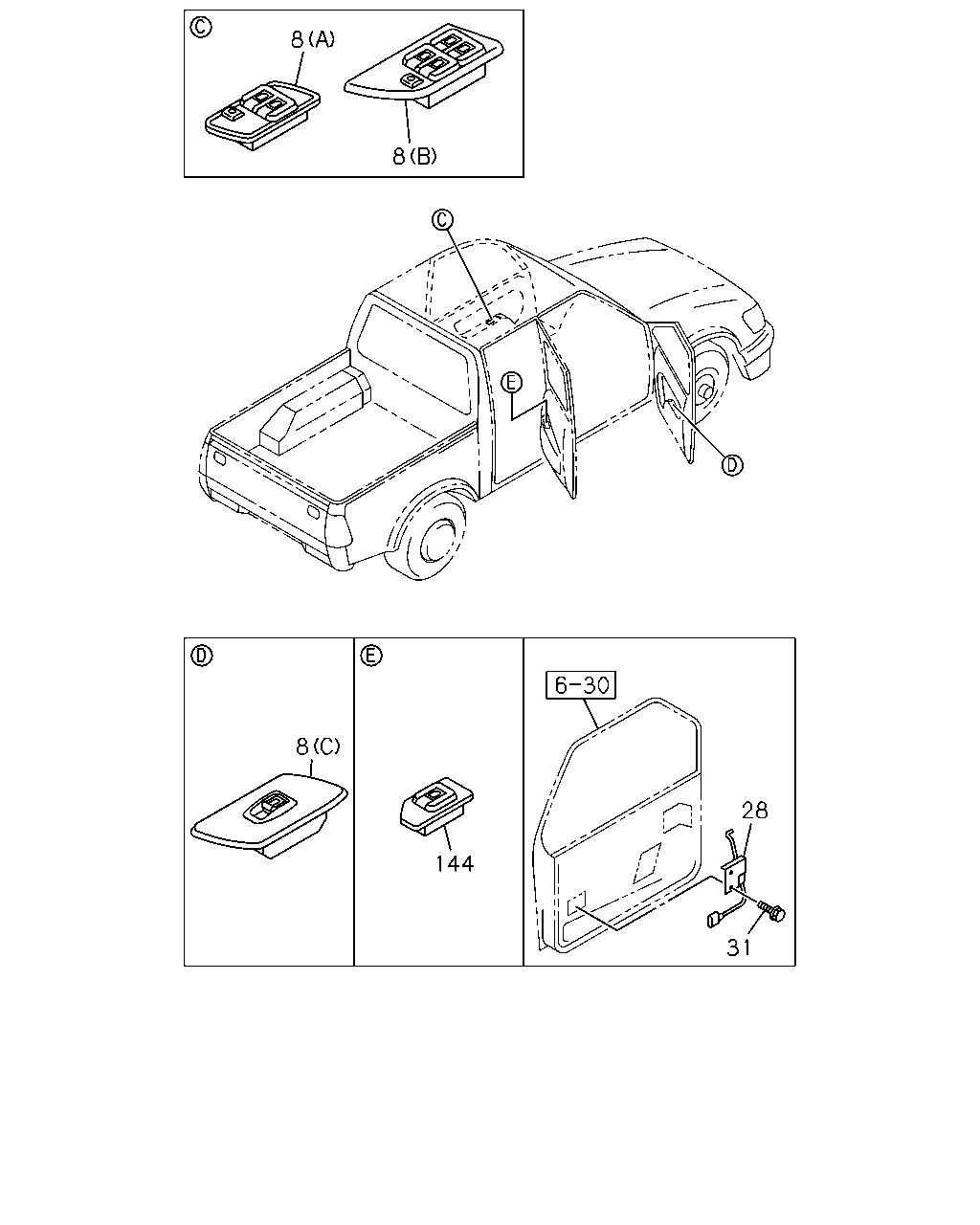

çizim 16215
8 8 8 28 144 31
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW<A30> (C) BLACK 		8-97155-249-1 01 1 9907-0012 ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW<A30> (C) BLACK 		8-97155-249-1 01 1 0101- ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW<A30> (B) BLACK 		8-97155-246-0 01 1 9907- ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW<A30> (A) BLACK 		8-97155-248-1 01 1 9907-0012 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW<A30> (A) BLACK 		8-97155-248-1 01 1 0101- ● ● ● ●
28 16.341 SWITCH ASM; DOOR LOCK
AUTO DOOR LOCK<AU4> 03.611 		8-94450-809-1 01 1 9907- ● ● ● ●
31 16.342 BOLT; DOOR LK SW
AUTO DOOR LOCK<AU4> 10.701 M6X8 		8-94155-893-0 02 1 9907- ● ● ● ●
144 16.283 SWITCH; POWER WINDOW,RR
POWER WINDOW<A30> BLACK 		8-97098-342-3 01 1 9907- ● ●
144 16.283 SWITCH; POWER WINDOW,RR
POWER WINDOW<A30> BLACK 		8-97098-341-3 01 1 9907- ● ●

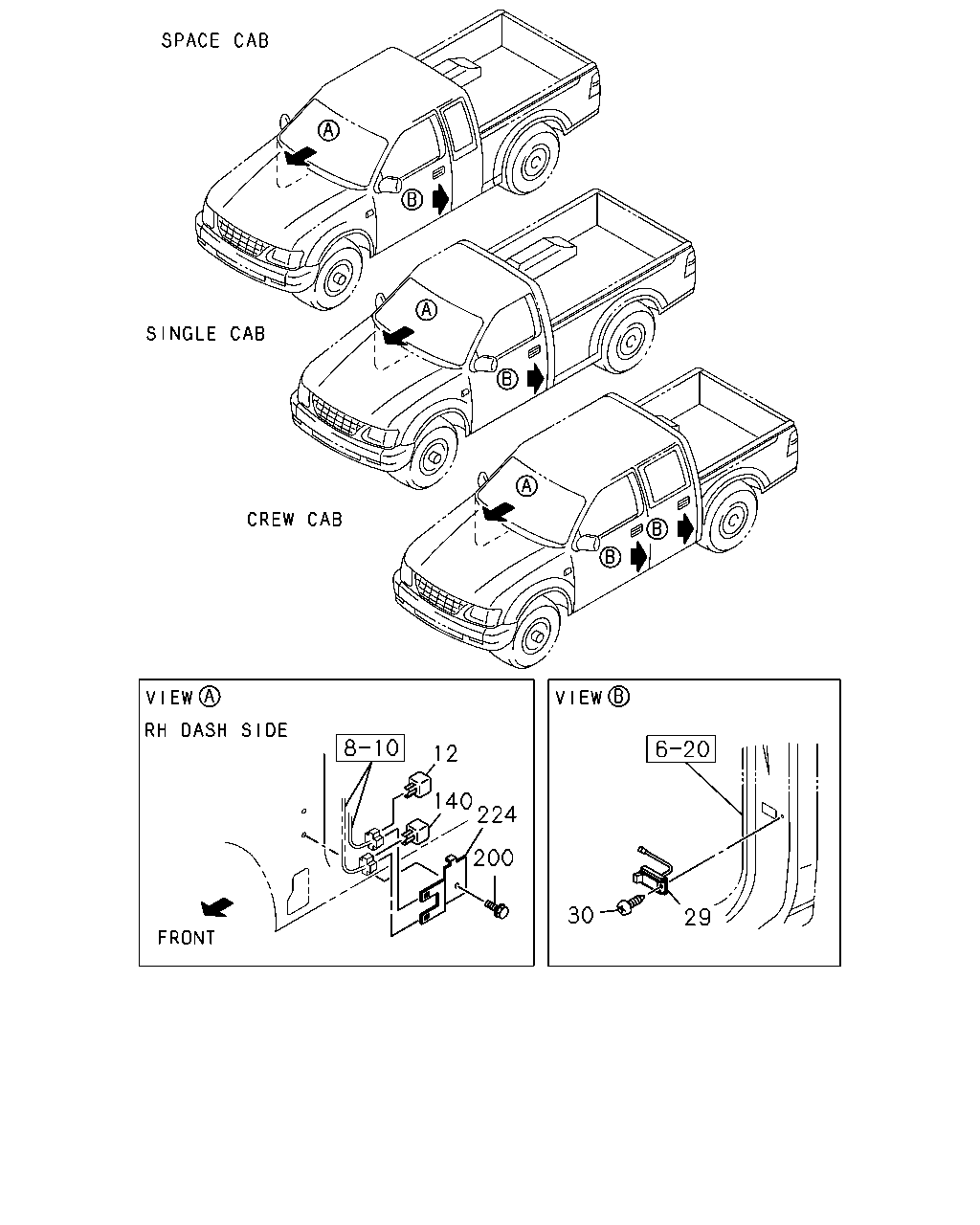

çizim 16378
12 140 224 200 29 30
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 08.852 RELAY; POWER WINDOW
POWER WINDOW<A30> 12V 20A 		8-97060-926-1 01 1 9907-0012 ● ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW<A30> 12V 20A 		8-97060-926-1 01 1 0101- ● ● ● ● ● ●
29 16.263 SWITCH; DOOR 8-97146-196-0 02 1 9804- ● ● ● ●
29 16.263 SWITCH; DOOR 8-97146-196-0 04 1 9804- ● ●
30 16.263 SCREW; DOOR SW
10.240 M5X14 		8-94120-095-0 02 1 9804- ● ● ● ●
30 16.263 SCREW; DOOR SW
10.240 M5X14 		8-94120-095-0 04 1 9804- ● ●
140 09.778 RELAY; RR DEFOGGER
REAR DEFOGGER<C49> 08.852 12V 20A 		8-97060-926-1 01 1 9804- ● ● ● ●
200 09.277 BOLT; RELAY BRKT
06.635 M6X16 FLANGE 		0-28480-616-0 01 1 9804- ● ● ● ● ● ●
224 02.510 BRACKET; RELAY
REAR DEFOGGER<C49> 		8-97161-132-0 01 1 9804-9906 ● ● ● ●
224 02.510 BRACKET; RELAY
REAR DEFOGGER<C49> 		8-97161-132-0 01 1 9907-0012 ●
224 02.510 BRACKET; RELAY
POWER WINDOW<A30> 		8-97161-132-0 01 1 9907-0012 ● ● ● ●
224 02.510 BRACKET; RELAY
REAR DEFOGGER<C49> EXC. POWER WINDOW<A30> 		8-97161-132-0 01 1 9907-0012 ● ● ●
224 02.510 BRACKET; RELAY
POWER WINDOW<A30> EXC. REAR DEFOGGER<C49> 		8-97161-132-0 01 1 0101- ● ● ● ● ● ●
224 02.510 BRACKET; RELAY
REAR DEFOGGER<C49> 		8-97161-132-0 01 1 0101- ● ● ● ●

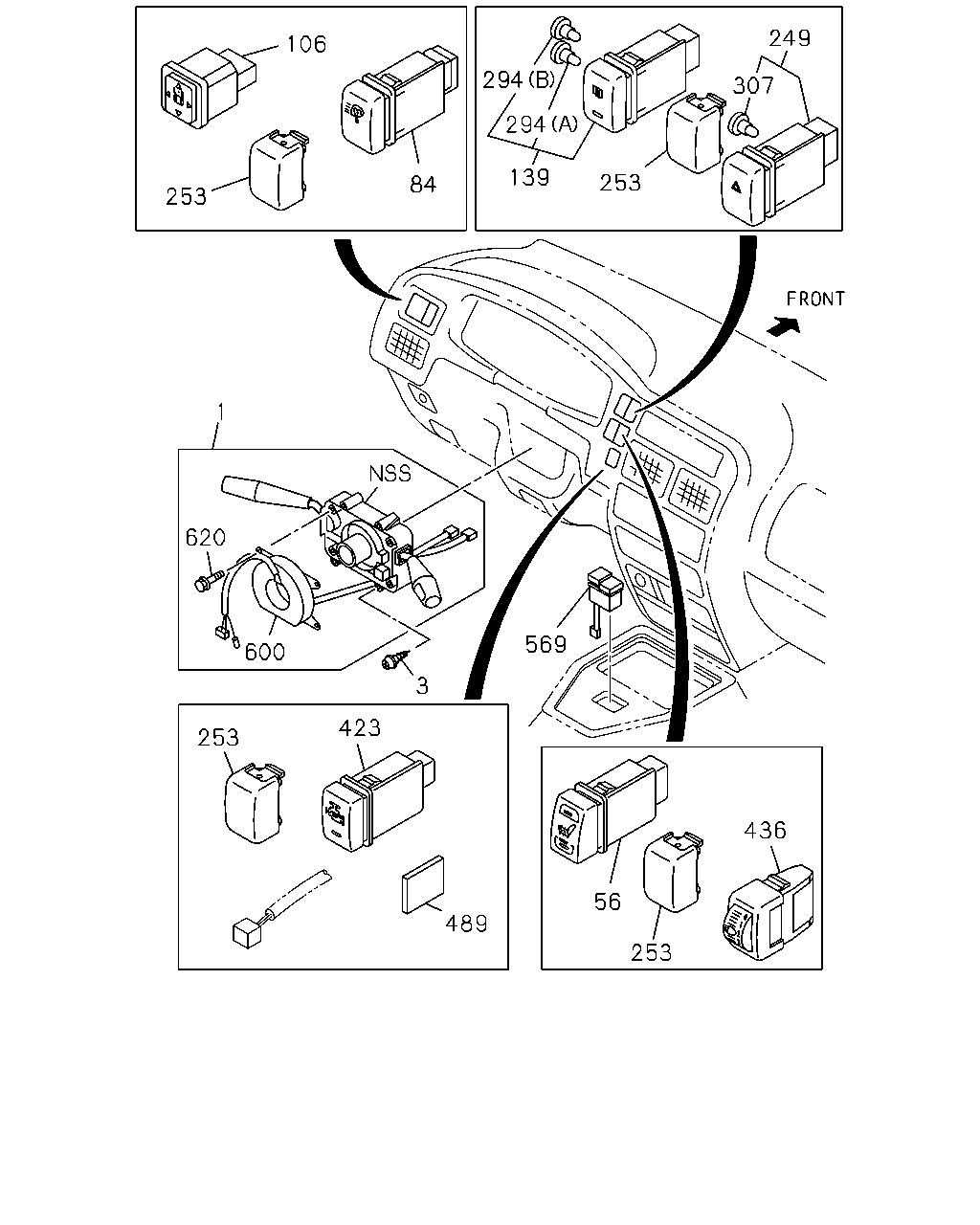

çizim 63769
249 106 294 307 294 139 253 84 253 1 620 569 600 3 423 253 436 56 489 253
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.895 SWITCH; COMB
AIR BAG DRIVER(AJ3) RR FOG LAMP<T79> 		8-97216-207-0 01 1 9907-0012 ● ● ● ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER(AJ3) RR FOG LAMP<T79> 		8-97216-207-3 01 1 0101- ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER(AJ3) INTERMITTENT WIPER<C13> RR FOG LAMP<T79> 		8-97216-207-3 01 1 0101- ● ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER(AJ3) EXC. RR FOG LAMP<T79> 		8-97216-206-0 01 1 9907-0012 ● ● ● ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER(AJ3) INTERMITTENT WIPER<C13> EXC. RR FOG LAMP<T79> 		8-97216-206-3 01 1 0101- ● ● ● ● ● ●
1 02.895 SWITCH; COMB
RR FOG LAMP<T79> 		8-97137-621-1 01 1 9804-9906 ● ● ● ● ● ●
1 02.895 SWITCH; COMB
RR FOG LAMP<T79> EXC. AIR BAG DRIVER(AJ3) 		8-97137-621-1 01 1 9907-0012 ● ● ● ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> RR FOG LAMP<T79> EXC. AIR BAG DRIVER(AJ3) 		8-97137-621-4 01 1 0101- ● ● ● ● ● ●
1 02.895 SWITCH; COMB
EXC. RR FOG LAMP<T79> 		8-97111-495-1 01 1 9804-9906 ● ● ● ● ● ●
1 02.895 SWITCH; COMB
EXC. AIR BAG DRIVER(AJ3),RR FOG LAMP<T79> 		8-97111-495-1 01 1 9907-0012 ● ● ● ● ● ●
1 02.895 SWITCH; COMB
EXC. AIR BAG DRIVER(AJ3),RR FOG LAMP<T79> 		8-97111-495-4 01 1 0101- ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER(AJ3),RR FOG LAMP<T79> 		8-97111-495-4 01 1 0101- ● ● ● ●
1 02.895 SWITCH; COMB
EXC. AIR BAG DRIVER(AJ3), INTERMITTENTWIPER<C13>,RR FOG LAMP<T79> 		8-97111-494-4 01 1 0101- ● ● ● ●
1 02.895 SWITCH; COMB
RR FOG LAMP<T79> EXC. AIR BAG DRIVER(AJ3), INTERMITTENTWIPER<C13> 		8-97304-081-3 01 1 0101-0207 ● ● ● ●
3 02.897 SCREW; COMB SW
06.512 M5X14 W/LK WASHER 		9-03910-514-0 04 1 9804- ● ● ● ● ● ●
56 08.840 SWITCH; SEAT HTR
HEATER IN SEAT<6QQ> 		8-97093-963-1 01 1 9804-0208 ● ● ● ● ● ●
84 02.780 SWITCH; WASHER,HEADLAMP
HEADLAMP WASHER<CE3> 		8-97111-491-0 01 1 9804- ● ● ● ● ● ●
106 10.186 SWITCH; REMOTE CONT MIRROR
DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> 		8-97131-293-1 01 1 9907- ● ● ● ●
139 09.778 SWITCH; RR DEFOGGER
REAR DEFOGGER<C49> 		8-97094-074-2 01 1 9804- ● ● ● ●
249 02.485 SWITCH; HAZARD 8-97093-961-1 01 1 9804- ● ● ● ● ● ●
253 16.081 COVER; SW HOLE 8-97081-617-1 01 1 9804-9906 ● ● ● ● ● ●
253 16.081 COVER; SW HOLE
EXC. HEATER IN SEAT<6QQ> 		8-97081-617-1 01 1 9804-9906 ● ● ● ● ● ●
253 16.081 COVER; SW HOLE
EXC. HEADLAMP WASHER<CE3> 		8-97081-617-1 01 1 9804-9906 ● ● ● ● ● ●
253 16.081 COVER; SW HOLE 8-97081-617-1 01 1 9804-9906 ● ● ● ● ● ●
253 16.081 COVER; SW HOLE
EXC. REAR DEFOGGER<C49> 		8-97081-617-1 01 1 9804-9906 ● ● ● ●
253 16.081 COVER; SW HOLE 8-97081-617-1 01 1 9804-9906 ● ●
253 16.081 COVER; SW HOLE
EXC. HEADLAMP WASHER<CE3> 		8-97081-617-1 01 1 9907-0011 ● ● ● ● ● ●
253 16.081 COVER; SW HOLE
EXC. HEATER IN SEAT<6QQ> 		8-97081-617-1 01 1 9907-0011 ● ● ● ● ● ●
253 16.081 COVER; SW HOLE
EXC. REAR DEFOGGER<C49> 		8-97081-617-1 01 1 9907-0011 ● ● ● ●
253 16.081 COVER; SW HOLE 8-97081-617-1 01 1 9907-0011 ● ●
253 16.081 COVER; SW HOLE
EXC. HEADLAMP WASHER<CE3> 		8-97081-617-1 01 1 0012-0012 ● ● ● ● ● ●
253 16.081 COVER; SW HOLE
EXC. HEATER IN SEAT<6QQ> 		8-97081-617-1 01 1 0012-0012 ● ● ● ● ● ●
253 16.081 COVER; SW HOLE
EXC. REAR DEFOGGER<C49> 		8-97081-617-1 01 1 0012-0012 ● ● ● ●
253 16.081 COVER; SW HOLE 8-97081-617-1 01 1 0012-0012 ● ●
253 16.081 COVER; SW HOLE
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97081-617-1 01 1 0012-0012 ●
253 16.081 COVER; SW HOLE
EXC. HEADLAMP WASHER<CE3> 		8-97081-617-1 01 1 0101-0101 ● ● ● ● ● ●
253 16.081 COVER; SW HOLE
EXC. HEATER IN SEAT<6QQ> 		8-97081-617-1 01 1 0101-0101 ● ● ● ● ● ●
253 16.081 COVER; SW HOLE
EXC. REAR DEFOGGER<C49> 		8-97081-617-1 01 1 0101-0101 ● ● ● ●
253 16.081 COVER; SW HOLE 8-97081-617-1 01 1 0101-0101 ● ●
253 16.081 COVER; SW HOLE
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97081-617-1 01 1 0101-0101 ● ● ● ●
253 16.081 COVER; SW HOLE
EXC. HEADLAMP WASHER<CE3> 		8-97081-617-1 01 1 0101-0107 ● ● ● ● ● ●
253 16.081 COVER; SW HOLE
EXC. HEATER IN SEAT<6QQ> 		8-97081-617-1 01 1 0101-0107 ● ● ● ● ● ●
253 16.081 COVER; SW HOLE
EXC. REAR DEFOGGER<C49> 		8-97081-617-1 01 1 0101-0107 ● ● ● ●
253 16.081 COVER; SW HOLE
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97081-617-1 01 1 0101-0107 ● ● ● ● ●
253 16.081 COVER; SW HOLE 8-97081-617-1 01 1 0101-0107 ● ●
253 16.081 COVER; SW HOLE
EXC. HEADLAMP WASHER<CE3> 		8-97081-617-1 01 1 0108-0208 ● ● ● ● ● ●
253 16.081 COVER; SW HOLE
EXC. HEATER IN SEAT<6QQ> 		8-97081-617-1 01 1 0108-0208 ● ● ● ● ● ●
253 16.081 COVER; SW HOLE
EXC. ENG QUICK WARM UP SYSTEM<6JZ> 		8-97081-617-1 01 1 0108-0208 ● ● ● ● ● ●
253 16.081 COVER; SW HOLE
EXC. REAR DEFOGGER<C49> 		8-97081-617-1 01 1 0108-0208 ● ● ● ●
253 16.081 COVER; SW HOLE
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97081-617-1 01 1 0108-0208 ● ● ● ●
253 16.081 COVER; SW HOLE 8-97081-617-1 01 1 0108-0208 ● ●
253 16.081 COVER; SW HOLE
EXC. HEADLAMP WASHER<CE3> 		8-97081-617-1 01 1 0209- ● ● ● ● ● ●
253 16.081 COVER; SW HOLE
EXC. ENG QUICK WARM UP SYSTEM<6JZ> 		8-97081-617-1 01 1 0209- ● ● ● ● ● ●
253 16.081 COVER; SW HOLE 8-97081-617-1 01 1 0209- ● ● ● ● ● ●
253 16.081 COVER; SW HOLE
EXC. REAR DEFOGGER<C49> 		8-97081-617-1 01 1 0209- ● ● ● ●
253 16.081 COVER; SW HOLE
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97081-617-1 01 1 0209- ● ● ● ●
253 16.081 COVER; SW HOLE 8-97081-617-1 01 1 0209- ● ●
294 08.991 BULB; DEFOGGER SW
REAR DEFOGGER<C49> 10.186 (A) 14V 0.84W 		8-97102-440-0 01 1 9804- ● ● ● ●
294 08.991 BULB; DEFOGGER SW
REAR DEFOGGER<C49> (B) 14V 0.84W 		8-97117-108-0 01 1 9804- ● ● ● ●
307 08.991 BULB ASM; SW 8-97130-932-0 01 1 9804- ● ● ● ● ● ●
423 03.883 SWITCH; ENG WARMING 8-97127-439-0 01 1 9804-9906 ● ● ● ● ● ●
423 03.883 SWITCH; ENG WARMING 8-97093-964-2 01 1 9907-0106 ● ● ● ● ● ●
423 03.883 SWITCH; ENG WARMING 8-97314-019-0 01 1 0107-0107 ● ● ● ● ● ●
423 03.883 SWITCH; ENG WARMING
ENG QUICK WARM UP SYSTEM<6JZ> 		8-97314-019-0 01 1 0108- ● ● ● ● ● ●
423 03.883 SWITCH; ENG WARMING
4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> 		8-97314-019-0 01 1 0108- ● ● ● ●
436 02.485 SWITCH; HEADLAMP LEVELING 8-97081-614-1 01 1 9804-0011 ● ● ● ● ● ●
436 02.485 SWITCH; HEADLAMP LEVELING 8-97081-614-1 01 1 0012-0012 ● ● ● ● ●
436 02.485 SWITCH; HEADLAMP LEVELING
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97081-614-1 01 1 0012-0012 ●
436 02.485 SWITCH; HEADLAMP LEVELING
EXC. HALOGEN HEAD LAMPS MULTI REFLECT OR<7YW> 		8-97081-614-1 01 1 0101- ● ● ● ● ● ●
489 16.494 TAPE; SEALING
EXC. ENG QUICK WARM UP SYSTEM<6JZ> 02.559 130X80 		8-94137-549-0 01 1 0108-0109 ●
489 16.494 TAPE; SEALING
4JA1 ENG(RLE) EXC. ENG QUICK WARM UP SYSTEM<6JZ> 02.559 130X80 		8-94137-549-0 01 1 0108-0109 ● ● ● ● ●
489 16.494 TAPE; SEALING
4JG2 ENG(RJC),4JA1 ENG(RLE) EXC. ENG QUICK WARM UP SYSTEM<6JZ> 02.559 130X80 		8-94137-549-0 01 1 0110-0110 ● ● ● ● ● ●
489 16.494 TAPE; SEALING
4JG2 ENG(RJC),4JA1 ENG(RLE) EXC. ENG QUICK WARM UP SYSTEM<6JZ> 02.559 130X80 		8-97304-373-0 01 1 0111-0203 ● ● ● ● ● ●
489 16.494 TAPE; SEALING
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. ENG QUICK WARM UP SYSTEM<6JZ> 02.559 130X80 		8-97304-373-0 01 1 0204- ● ● ● ● ● ●
489 16.494 TAPE; SEALING
02.559 130X80 		8-97304-373-0 01 1 0204- ● ● ● ●
569 16.283 SWITCH; POWER-NORMAL
A/T AISIN(RMD) 		8-97101-782-0 01 1 9806-9906 ●
569 16.283 SWITCH; POWER-NORMAL
A/T AISIN(RMD) 		8-97101-782-1 01 1 9907- ● ●
600 02.895 COIL ASM; SIR
AIR BAG DRIVER(AJ3) 		8-97218-243-0 01 1 9907-0012 ● ● ● ● ● ●
600 02.895 COIL ASM; SIR
AIR BAG DRIVER(AJ3) INTERMITTENT WIPER<C13> 		8-97218-243-0 01 1 0101- ● ● ● ● ● ●
620 02.895 SCREW; COIL,COMB SW
AIR BAG DRIVER(AJ3) 		8-97289-540-0 04 1 9907-0012 ● ● ● ● ● ●
620 02.895 SCREW; COIL,COMB SW
AIR BAG DRIVER(AJ3) INTERMITTENT WIPER<C13> 		8-97289-540-0 04 1 0101- ● ● ● ● ● ●

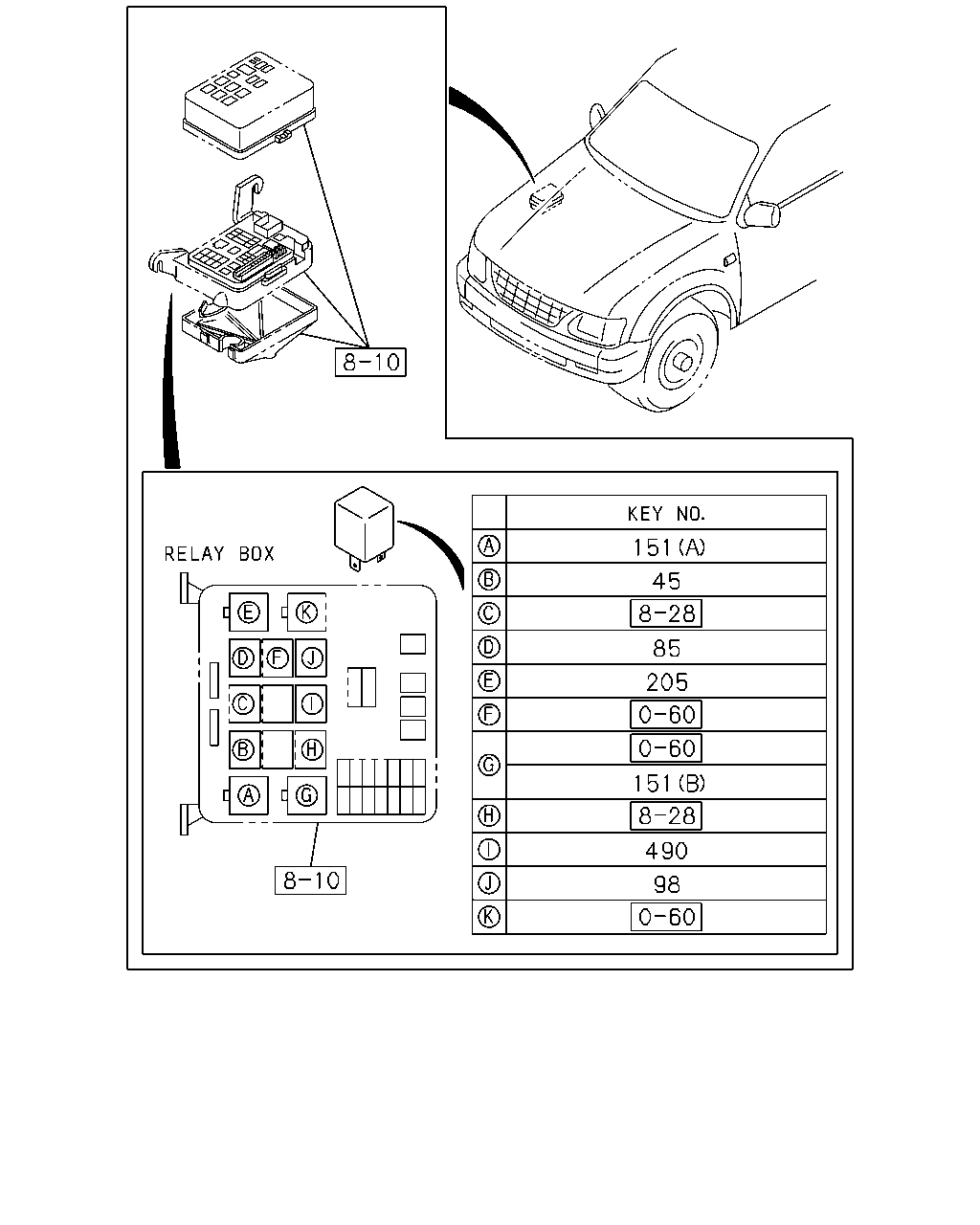

çizim 63775
151 45 85 205 151 490 98
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
45 02.252 RELAY; HORN
08.852 12V 20A 		8-97060-926-1 01 1 9804-9906 ● ● ● ● ● ●
45 02.252 RELAY; HORN
02.100 12V 20A 		8-97173-039-1 01 1 9907- ● ● ● ● ● ●
85 02.485 RELAY; HEADLAMP
08.852 12V 20A 		8-97060-926-1 01 1 9804-9906 ● ● ● ● ● ●
85 02.485 RELAY; HEADLAMP
02.100 12V 20A 		8-97173-039-1 01 1 9907- ● ● ● ● ● ●
98 02.485 RELAY; RR FOG LAMP
RR FOG LAMP<T79> 08.852 12V 20A 		8-97060-926-1 01 1 9804-9906 ● ● ● ● ● ●
98 02.485 RELAY; RR FOG LAMP
RR FOG LAMP<T79> 02.100 12V 20A 		8-97173-039-1 01 1 9907- ● ● ● ● ● ●
151 09.277 RELAY; HTR & A/C
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 (A) 12V 20A 		8-97060-926-1 01 1 9804- ● ● ● ● ● ●
151 09.277 RELAY; HTR & A/C
4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60) 02.100 (B) 12V 20A 		8-97173-039-1 01 1 0108- ● ● ● ● ● ●
205 02.510 RELAY; DIMMER DIP
08.852 12V 20A 		8-97060-926-1 01 1 9804- ● ● ● ● ● ●
490 09.277 RELAY; THERMO
AIR CONDITIONER MANUAL CONT(C60) 08.852 12V 20A 		8-97060-926-1 01 1 9804-9906 ● ● ● ● ● ●
490 09.277 RELAY; THERMO
AIR CONDITIONER MANUAL CONT(C60) 02.100 12V 20A 		8-97173-039-1 01 1 9907- ● ● ● ● ● ●
