◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50802 - TFR/TFS(EUROPE)-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#45123) — 291 parça

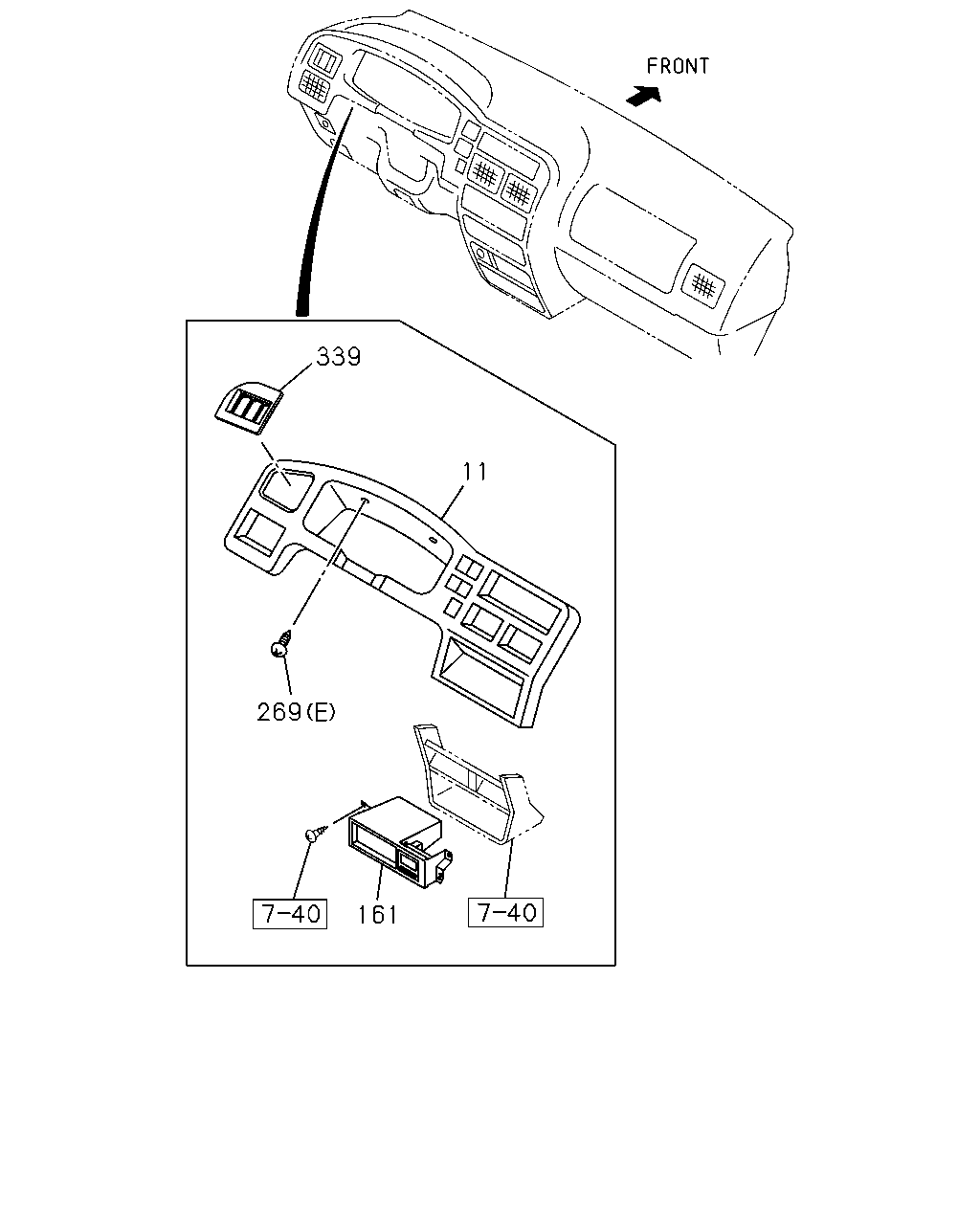

çizim 63917
339 11 269 161
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
11 09.743 CLUSTER ASM; METER
INST PANEL FOR DIN E SIZE AUDIO(7QL) BLACK 		8-97154-763-4 01 1 9804- ● ● ● ● ● ●
11 09.743 CLUSTER ASM; METER
EXC. INST PANEL FOR DIN E SIZE AUDIO(7QL) BLACK 		8-97154-709-3 01 1 9804- ● ● ● ● ● ●
161 09.772 CLOCK; CLUSTER METER
DIGITAL CLOCK<UE8> 		8-97122-058-1 01 1 9804- ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16>,CHARGE AIR COOLER<6PL> 09.744 		8-97069-348-0 02 1 0111- ● ● ● ●
269 09.743 SCREW; METER CLUSTER
09.744 (A) 		8-97045-595-0 04 1 9804- ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
16.085 (E) M5X16 TAPPING 		9-09829-323-1 03 1 9804- ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> 09.744 (B) 		8-97069-347-0 03 1 9804- ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> 09.744 (C) 		8-97069-348-0 08 1 9804-9805 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> 09.744 (C) 		8-97069-348-0 08 1 9806-9906 ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) TACHOMETER<U16> 09.744 (C) 		8-97069-348-0 08 1 9806-9906 ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> 09.744 (C) 		8-97069-348-0 08 1 9907-0110 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> EXC. CHARGE AIR COOLER<6PL> 09.744 		8-97069-348-0 08 1 0111- ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
EXC. TACHOMETER<U16> 09.744 (D) M3X31 		8-94326-740-0 06 1 9804-0012 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 09.744 (D) M3X31 		8-94326-740-0 06 1 0101- ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
EXC. TACHOMETER<U16> 09.744 (C) 		8-97069-348-0 02 1 9804-0012 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 09.744 (C) 		8-97069-348-0 02 1 0101-0110 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> CHARGE AIR COOLER<6PL> 09.744 		8-97069-348-0 06 1 0111- ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
A/T AISIN(RMD) TACHOMETER<U16> 09.744 (C) 		8-97069-348-0 06 1 9806-9906 ●
269 09.743 SCREW; METER CLUSTER
AIR BAG DRIVER(AJ3) EXC. TACHOMETER<U16> 08.977 (E) M4 TAPPING 		8-94325-271-0 01 1 9907-0012 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AIR BAG DRIVER(AJ3) TACHOMETER<U16> 08.977 (E) M4 TAPPING 		8-94325-271-0 01 1 9907-0012 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
A/T AISIN(RMD) TACHOMETER<U16> 08.977 (E) M4 TAPPING 		8-94325-271-0 01 1 9907-0012 ● ●
269 09.743 SCREW; METER CLUSTER
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AIR BAG DRIVER(AJ3) TACHOMETER<U16> 08.977 (E) M4 TAPPING 		8-94325-271-0 01 1 0101-0209 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
A/T AISIN(RMD) TACHOMETER<U16> 08.977 (E) M4 TAPPING 		8-94325-271-0 01 1 0101-0209 ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> 08.977 M4 TAPPING 		8-94325-271-0 01 1 0210- ● ● ● ● ● ●
339 09.743 BEZEL; SW,CLUSTER METER 8-97107-569-0 01 1 9804-9906 ● ● ● ● ● ●
339 09.743 BEZEL; SW,CLUSTER METER 8-97115-521-0 01 1 9907- ● ● ● ● ● ●

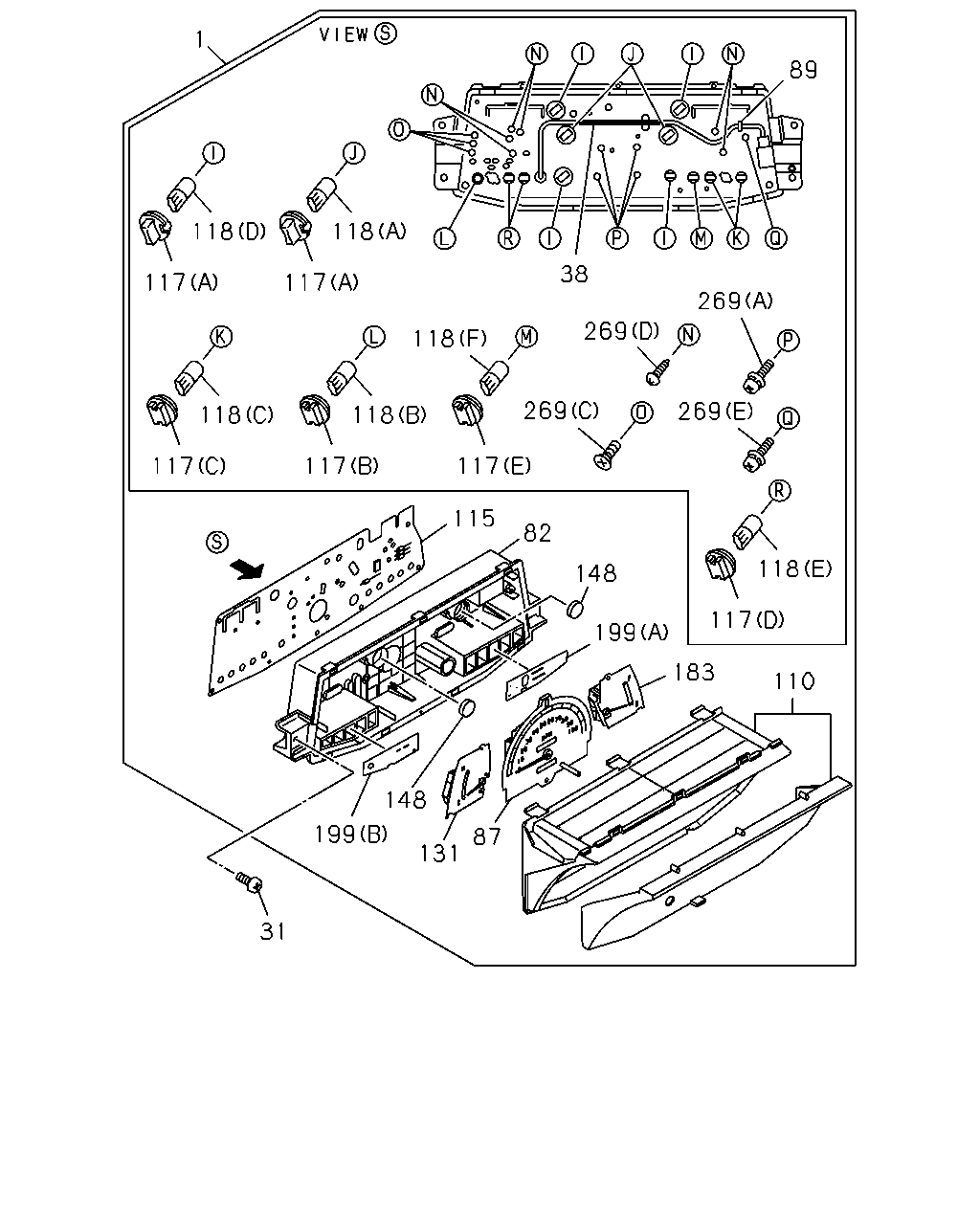

çizim 63921
1 89 118 118 38 117 117 269 269 118 269 269 118 118 117 117 117 115 82 118 148 117 199 183 110 148 199 87 131 31
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.735 METER COMPL; CLUSTER
EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 		8-97219-037-1 01 1 9907-0012 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 		8-97260-951-1 01 1 0101-0107 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JA1 ENG(RLE) EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16>,CHARGE AIR COOLER<6PL> 		8-97260-951-2 01 1 0108-0304 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16>,CHARGE AIR COOLER<6PL> 		8-97370-160-0 01 1 0305- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
CHARGE AIR COOLER<6PL> EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 		8-97308-605-2 01 1 0108- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> 		8-97112-472-4 01 1 9804-9805 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> 		8-97112-472-4 01 1 9806-9906 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) TACHOMETER<U16> 		8-97112-472-4 01 1 9806-9906 ●
1 09.735 METER COMPL; CLUSTER
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AIR BAG DRIVER(AJ3) TACHOMETER<U16> 		8-97216-212-1 01 1 9907-0012 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AIR BAG DRIVER(AJ3) TACHOMETER<U16> 		8-97260-960-1 01 1 0101-0107 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AIR BAG DRIVER(AJ3) TACHOMETER<U16> EXC. CHARGE AIR COOLER<6PL> 		8-97260-960-1 01 1 0108-0209 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> EXC. CHARGE AIR COOLER<6PL> 		8-97260-960-1 01 1 0210-0304 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> EXC. CHARGE AIR COOLER<6PL> 		8-97370-162-0 01 1 0305- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
EXC. TACHOMETER<U16> 		8-97112-471-3 01 1 9804-9906 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
AIR BAG DRIVER(AJ3) EXC. TACHOMETER<U16> 		8-97216-211-1 01 1 9907-0012 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
AIR BAG DRIVER(AJ3) TACHOMETER<U16> 		8-97301-120-2 01 1 0108-0209 ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE) AIR BAG DRIVER(AJ3) TACHOMETER<U16> CHARGE AIR COOLER<6PL> 		8-97301-120-2 01 1 0108-0209 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE) AIR BAG DRIVER(AJ3) TACHOMETER<U16> 		8-97301-120-2 01 1 0108-0209 ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> CHARGE AIR COOLER<6PL> 		8-97301-120-2 01 1 0210-0304 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> CHARGE AIR COOLER<6PL> 		8-97370-164-0 01 1 0305- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> EXC. AIR BAG DRIVER(AJ3) 		8-97301-121-2 01 1 0108-0209 ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE) TACHOMETER<U16> CHARGE AIR COOLER<6PL> EXC. AIR BAG DRIVER(AJ3) 		8-97301-121-2 01 1 0108-0209 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE) TACHOMETER<U16> EXC. AIR BAG DRIVER(AJ3) 		8-97301-121-2 01 1 0108-0209 ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC) A/T AISIN(RMD) TACHOMETER<U16> 		8-97217-083-1 01 1 9907-0012 ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC) A/T AISIN(RMD) TACHOMETER<U16> 		8-97261-656-1 01 1 0101- ● ●
1 09.735 METER COMPL; CLUSTER
A/T AISIN(RMD) TACHOMETER<U16> 		8-97209-172-0 01 1 9806-9906 ●
1 09.735 METER COMPL; CLUSTER
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) TACHOMETER<U16> EXC. AIR BAG DRIVER(AJ3) 		8-97219-045-1 01 1 9907-0012 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) TACHOMETER<U16> EXC. AIR BAG DRIVER(AJ3) 		8-97260-961-1 01 1 0101-0107 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) TACHOMETER<U16> EXC. AIR BAG DRIVER(AJ3),CHARGE AIR COOLER<6PL> 		8-97260-961-1 01 1 0108-0209 ● ● ● ●
31 09.761 SCREW; METER,INST PANEL
02.726 M5X16 TAPPING W/PL WASHER 		0-74300-516-0 04 1 9804- ● ● ● ● ● ●
38 02.480 HARNESS; METER
AIR BAG DRIVER(AJ3) EXC. TACHOMETER<U16> 		8-97118-776-0 01 1 9907-0012 ● ● ● ● ● ●
38 02.480 HARNESS; METER
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AIR BAG DRIVER(AJ3) TACHOMETER<U16> 		8-97119-926-0 01 1 9907-0209 ● ● ● ● ● ●
38 02.480 HARNESS; METER
A/T AISIN(RMD) TACHOMETER<U16> 		8-97119-926-0 01 1 9907-0209 ● ●
38 02.480 HARNESS; METER
TACHOMETER<U16> 		8-97119-926-0 01 1 0210- ● ● ● ● ● ●
82 09.743 CASE ASM; CLUSTER METER
TACHOMETER<U16> 		8-97104-695-0 01 1 9804- ● ● ● ● ● ●
82 09.743 CASE ASM; CLUSTER METER
EXC. TACHOMETER<U16> 		8-97118-775-0 01 1 9804-0012 ● ● ● ● ● ●
82 09.743 CASE ASM; CLUSTER METER
EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 		8-97118-775-0 01 1 0101- ● ● ● ● ● ●
87 09.761 SPEEDOMETER
CHARGE AIR COOLER<6PL> EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 		8-97132-254-2 01 1 0108- ● ● ● ● ● ●
87 09.761 SPEEDOMETER
TACHOMETER<U16> 		8-97132-260-3 01 1 9804-0107 ● ● ● ● ● ●
87 09.761 SPEEDOMETER
TACHOMETER<U16> EXC. CHARGE AIR COOLER<6PL> 		8-97132-260-3 01 1 0108- ● ● ● ● ● ●
87 09.761 SPEEDOMETER
TACHOMETER<U16> CHARGE AIR COOLER<6PL> 		8-97132-259-3 01 1 0108- ● ● ● ● ● ●
87 09.761 SPEEDOMETER
EXC. TACHOMETER<U16> 		8-97132-255-2 01 1 9804-0012 ● ● ● ● ● ●
87 09.761 SPEEDOMETER
EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 		8-97132-255-2 01 1 0101-0107 ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4JG2 ENG(RJC),4JA1 ENG(RLE) EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16>,CHARGE AIR COOLER<6PL> 		8-97132-255-2 01 1 0108- ● ● ● ●
89 09.761 CLIP; HARNESS
AIR BAG DRIVER(AJ3) EXC. TACHOMETER<U16> 		8-97104-698-0 01 1 9907-0012 ● ● ● ● ● ●
89 09.761 CLIP; HARNESS
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AIR BAG DRIVER(AJ3) TACHOMETER<U16> 		8-97104-698-0 01 1 9907-0012 ● ● ● ● ● ●
89 09.761 CLIP; HARNESS
A/T AISIN(RMD) TACHOMETER<U16> 		8-97104-698-0 01 1 9907-0012 ● ●
89 09.761 CLIP; HARNESS
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AIR BAG DRIVER(AJ3) TACHOMETER<U16> 		8-97104-698-0 01 1 0101-0209 ● ● ● ● ● ●
89 09.761 CLIP; HARNESS
A/T AISIN(RMD) TACHOMETER<U16> 		8-97104-698-0 01 1 0101-0209 ● ●
89 09.761 CLIP; HARNESS
TACHOMETER<U16> 		8-97104-698-0 01 1 0210- ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
TACHOMETER<U16> 		8-97080-609-0 01 1 9804- ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
EXC. TACHOMETER<U16> 		8-97171-067-0 01 1 9804-0012 ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 		8-97171-067-0 01 1 0101- ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
CHARGE AIR COOLER<6PL> EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 		8-97309-380-0 01 1 0108- ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<U16> 		8-97132-275-1 01 1 9804-9805 ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<U16> 		8-97132-275-1 01 1 9806-9906 ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) TACHOMETER<U16> 		8-97132-275-1 01 1 9806-9906 ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) TACHOMETER<U16> 		8-97224-834-1 01 1 9907-0012 ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JG2 ENG(RJC),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) TACHOMETER<U16> 		8-97262-867-0 01 1 0101-0107 ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<U16> EXC. CHARGE AIR COOLER<6PL> 		8-97262-867-0 01 1 0108- ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<U16> CHARGE AIR COOLER<6PL> 		8-97309-379-0 01 1 0108- ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
EXC. TACHOMETER<U16> 		8-97132-325-1 01 1 9804-9906 ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
EXC. TACHOMETER<U16> 		8-97224-826-1 01 1 9907-0012 ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 		8-97262-868-0 01 1 0101-0107 ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JG2 ENG(RJC),4JA1 ENG(RLE) EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16>,CHARGE AIR COOLER<6PL> 		8-97262-868-0 01 1 0108- ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JG2 ENG(RJC) A/T AISIN(RMD) TACHOMETER<U16> 		8-97288-173-0 01 1 0101- ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
A/T AISIN(RMD) TACHOMETER<U16> 		8-97209-173-0 01 1 9806-9906 ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JG2 ENG(RJC) A/T AISIN(RMD) TACHOMETER<U16> 		8-97224-836-1 01 1 9907-0012 ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
09.765 (A) 12V 3.4W 		5-82188-001-0 AR 1 9804- ● ● ● ● ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
02.892 (C) 12V 1.4W BLACK 		8-94114-138-0 AR 1 9804- ● ● ● ● ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
(D) 24V 3W GREEN 		8-97045-599-0 AR 1 9804- ● ● ● ● ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
09.765 (B) 14V 3W 		8-97104-703-0 AR 1 9804- ● ● ● ● ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
(E) 12V 2W GRAY 		8-97031-180-0 AR 1 9907- ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
TACHOMETER<U16> EXC. CHARGE AIR COOLER<6PL> 12V 1.4W 		8-94152-313-0 13 1 0305- ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
4JG2 ENG(RJC) A/T AISIN(RMD) TACHOMETER<U16> 12V 1.4W 		8-94152-313-0 01 1 0305- ● ●
118 08.991 BULB; CLUSTER METER
4JG2 ENG(RJC) A/T AISIN(RMD) TACHOMETER<U16> 12V 2W 		8-97031-178-0 01 1 0305- ● ●
118 08.991 BULB; CLUSTER METER
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AIR BAG DRIVER(AJ3) TACHOMETER<U16> 12V 2W 		8-97031-178-0 01 1 0111-0209 ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
A/T AISIN(RMD) TACHOMETER<U16> 12V 2W 		8-97031-178-0 01 1 0111-0209 ● ●
118 08.991 BULB; CLUSTER METER
TACHOMETER<U16> 12V 2W 		8-97031-178-0 01 1 0210-0304 ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) TACHOMETER<U16> 12V 2W 		8-97031-178-0 02 1 0305- ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
TACHOMETER<U16> 12V 1.4W 		8-94152-313-0 01 1 0111-0304 ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
TACHOMETER<U16> CHARGE AIR COOLER<6PL> 12V 1.4W 		8-94152-313-0 12 1 0305- ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(A) 14V 3.4W W/CAP 		5-82194-024-0 AR 1 9804- ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(C) 12V 1.4W 		8-94152-313-0 AR 1 9804- ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
09.765 (B) 14V 3W 		8-97104-702-0 AR 1 9804- ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(E) 14V 3.4W W/CAP 		8-97171-066-0 AR 1 9804- ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(D) 12V 3.4W 		9-82691-397-0 AR 1 9804- ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(F) 12V 2W 		8-97031-178-0 AR 1 9907- ● ● ● ● ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
TACHOMETER<U16> 		8-97139-580-1 01 1 9804- ● ● ● ● ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
EXC. TACHOMETER<U16> 		8-97109-304-2 01 1 9804-0012 ● ● ● ● ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 		8-97109-304-2 01 1 0101- ● ● ● ● ● ●
148 09.748 LENS; PILOT,TURN SIGNAL,CLUSTER
EXC. TACHOMETER<U16> 		8-94325-264-0 02 1 9804-0012 ● ● ● ● ● ●
148 09.748 LENS; PILOT,TURN SIGNAL,CLUSTER
EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 		8-94325-264-0 02 1 0101- ● ● ● ● ● ●
183 03.107 GAUGE; FUEL
TACHOMETER<U16> 		8-97139-581-1 01 1 9804- ● ● ● ● ● ●
183 03.107 GAUGE; FUEL
EXC. TACHOMETER<U16> 		8-97109-306-4 01 1 9804-0012 ● ● ● ● ● ●
183 03.107 GAUGE; FUEL
EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 		8-97109-306-5 01 1 0101- ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
TACHOMETER<U16> (A) 		8-97104-686-0 01 1 9804-9808 ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
TACHOMETER<U16> (A) 		8-97214-726-0 01 1 9809-0012 ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
TACHOMETER<U16> (B) 		8-97139-582-1 01 1 9804-9805 ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
TACHOMETER<U16> (B) 		8-97139-582-2 01 1 9806-9906 ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) TACHOMETER<U16> (B) 		8-97139-582-2 01 1 9806-9906 ●
199 09.772 LENS; WARNING LAMP
4JG2 ENG(RJC),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) TACHOMETER<U16> (B) 		8-97139-582-2 01 1 9907-0107 ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) TACHOMETER<U16> (B) 		8-97139-582-2 01 1 0108- ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
TACHOMETER<U16> (A) 		8-97287-763-0 01 1 0101- ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
EXC. TACHOMETER<U16> (A) 		8-97132-283-1 01 1 9804-0012 ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> (A) 		8-97132-283-1 01 1 0101- ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
EXC. TACHOMETER<U16> (B) 		8-97139-534-2 01 1 9804-0012 ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> (B) 		8-97262-869-0 01 1 0101- ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
A/T AISIN(RMD) TACHOMETER<U16> (A) 		8-97209-175-1 01 1 9806-9906 ●
199 09.772 LENS; WARNING LAMP
4JG2 ENG(RJC) A/T AISIN(RMD) TACHOMETER<U16> (A) 		8-97209-175-1 01 1 9907- ● ●
269 09.743 SCREW; METER CLUSTER
EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16>,CHARGE AIR COOLER<6PL> 09.744 		8-97069-348-0 02 1 0111- ● ● ● ●
269 09.743 SCREW; METER CLUSTER
09.744 (A) 		8-97045-595-0 04 1 9804- ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
16.085 (E) M5X16 TAPPING 		9-09829-323-1 03 1 9804- ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> 09.744 (B) 		8-97069-347-0 03 1 9804- ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> 09.744 (C) 		8-97069-348-0 08 1 9804-9805 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> 09.744 (C) 		8-97069-348-0 08 1 9806-9906 ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) TACHOMETER<U16> 09.744 (C) 		8-97069-348-0 08 1 9806-9906 ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> 09.744 (C) 		8-97069-348-0 08 1 9907-0110 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> EXC. CHARGE AIR COOLER<6PL> 09.744 		8-97069-348-0 08 1 0111- ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
EXC. TACHOMETER<U16> 09.744 (D) M3X31 		8-94326-740-0 06 1 9804-0012 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 09.744 (D) M3X31 		8-94326-740-0 06 1 0101- ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
EXC. TACHOMETER<U16> 09.744 (C) 		8-97069-348-0 02 1 9804-0012 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 09.744 (C) 		8-97069-348-0 02 1 0101-0110 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> CHARGE AIR COOLER<6PL> 09.744 		8-97069-348-0 06 1 0111- ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
A/T AISIN(RMD) TACHOMETER<U16> 09.744 (C) 		8-97069-348-0 06 1 9806-9906 ●
269 09.743 SCREW; METER CLUSTER
AIR BAG DRIVER(AJ3) EXC. TACHOMETER<U16> 08.977 (E) M4 TAPPING 		8-94325-271-0 01 1 9907-0012 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AIR BAG DRIVER(AJ3) TACHOMETER<U16> 08.977 (E) M4 TAPPING 		8-94325-271-0 01 1 9907-0012 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
A/T AISIN(RMD) TACHOMETER<U16> 08.977 (E) M4 TAPPING 		8-94325-271-0 01 1 9907-0012 ● ●
269 09.743 SCREW; METER CLUSTER
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AIR BAG DRIVER(AJ3) TACHOMETER<U16> 08.977 (E) M4 TAPPING 		8-94325-271-0 01 1 0101-0209 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
A/T AISIN(RMD) TACHOMETER<U16> 08.977 (E) M4 TAPPING 		8-94325-271-0 01 1 0101-0209 ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> 08.977 M4 TAPPING 		8-94325-271-0 01 1 0210- ● ● ● ● ● ●

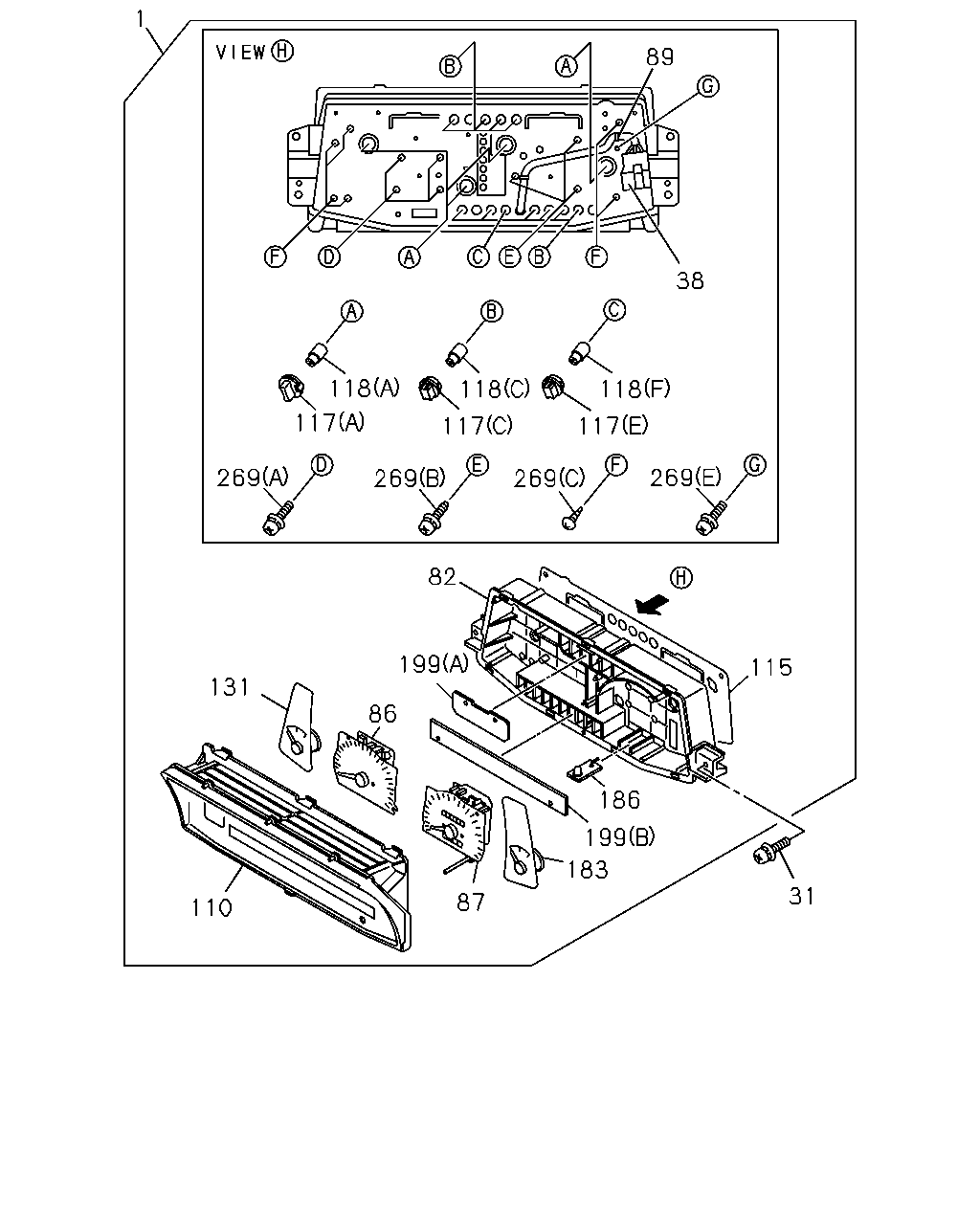

çizim 65518
1 89 38 118 117 118 117 118 117 269 269 269 269 82 199 115 131 86 186 199 183 31 87 110
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.735 METER COMPL; CLUSTER
EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 		8-97219-037-1 01 1 9907-0012 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 		8-97260-951-1 01 1 0101-0107 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JA1 ENG(RLE) EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16>,CHARGE AIR COOLER<6PL> 		8-97260-951-2 01 1 0108-0304 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16>,CHARGE AIR COOLER<6PL> 		8-97370-160-0 01 1 0305- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
CHARGE AIR COOLER<6PL> EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 		8-97308-605-2 01 1 0108- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> 		8-97112-472-4 01 1 9804-9805 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> 		8-97112-472-4 01 1 9806-9906 ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) TACHOMETER<U16> 		8-97112-472-4 01 1 9806-9906 ●
1 09.735 METER COMPL; CLUSTER
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AIR BAG DRIVER(AJ3) TACHOMETER<U16> 		8-97216-212-1 01 1 9907-0012 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AIR BAG DRIVER(AJ3) TACHOMETER<U16> 		8-97260-960-1 01 1 0101-0107 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AIR BAG DRIVER(AJ3) TACHOMETER<U16> EXC. CHARGE AIR COOLER<6PL> 		8-97260-960-1 01 1 0108-0209 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> EXC. CHARGE AIR COOLER<6PL> 		8-97260-960-1 01 1 0210-0304 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> EXC. CHARGE AIR COOLER<6PL> 		8-97370-162-0 01 1 0305- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
EXC. TACHOMETER<U16> 		8-97112-471-3 01 1 9804-9906 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
AIR BAG DRIVER(AJ3) EXC. TACHOMETER<U16> 		8-97216-211-1 01 1 9907-0012 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
AIR BAG DRIVER(AJ3) TACHOMETER<U16> 		8-97301-120-2 01 1 0108-0209 ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE) AIR BAG DRIVER(AJ3) TACHOMETER<U16> CHARGE AIR COOLER<6PL> 		8-97301-120-2 01 1 0108-0209 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE) AIR BAG DRIVER(AJ3) TACHOMETER<U16> 		8-97301-120-2 01 1 0108-0209 ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> CHARGE AIR COOLER<6PL> 		8-97301-120-2 01 1 0210-0304 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> CHARGE AIR COOLER<6PL> 		8-97370-164-0 01 1 0305- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
TACHOMETER<U16> EXC. AIR BAG DRIVER(AJ3) 		8-97301-121-2 01 1 0108-0209 ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE) TACHOMETER<U16> CHARGE AIR COOLER<6PL> EXC. AIR BAG DRIVER(AJ3) 		8-97301-121-2 01 1 0108-0209 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE) TACHOMETER<U16> EXC. AIR BAG DRIVER(AJ3) 		8-97301-121-2 01 1 0108-0209 ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC) A/T AISIN(RMD) TACHOMETER<U16> 		8-97217-083-1 01 1 9907-0012 ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC) A/T AISIN(RMD) TACHOMETER<U16> 		8-97261-656-1 01 1 0101- ● ●
1 09.735 METER COMPL; CLUSTER
A/T AISIN(RMD) TACHOMETER<U16> 		8-97209-172-0 01 1 9806-9906 ●
1 09.735 METER COMPL; CLUSTER
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) TACHOMETER<U16> EXC. AIR BAG DRIVER(AJ3) 		8-97219-045-1 01 1 9907-0012 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) TACHOMETER<U16> EXC. AIR BAG DRIVER(AJ3) 		8-97260-961-1 01 1 0101-0107 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JG2 ENG(RJC),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) TACHOMETER<U16> EXC. AIR BAG DRIVER(AJ3),CHARGE AIR COOLER<6PL> 		8-97260-961-1 01 1 0108-0209 ● ● ● ●
31 09.761 SCREW; METER,INST PANEL
02.726 M5X16 TAPPING W/PL WASHER 		0-74300-516-0 04 1 9804- ● ● ● ● ● ●
38 02.480 HARNESS; METER
AIR BAG DRIVER(AJ3) EXC. TACHOMETER<U16> 		8-97118-776-0 01 1 9907-0012 ● ● ● ● ● ●
38 02.480 HARNESS; METER
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AIR BAG DRIVER(AJ3) TACHOMETER<U16> 		8-97119-926-0 01 1 9907-0209 ● ● ● ● ● ●
38 02.480 HARNESS; METER
A/T AISIN(RMD) TACHOMETER<U16> 		8-97119-926-0 01 1 9907-0209 ● ●
38 02.480 HARNESS; METER
TACHOMETER<U16> 		8-97119-926-0 01 1 0210- ● ● ● ● ● ●
82 09.743 CASE ASM; CLUSTER METER
TACHOMETER<U16> 		8-97104-695-0 01 1 9804- ● ● ● ● ● ●
82 09.743 CASE ASM; CLUSTER METER
EXC. TACHOMETER<U16> 		8-97118-775-0 01 1 9804-0012 ● ● ● ● ● ●
82 09.743 CASE ASM; CLUSTER METER
EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 		8-97118-775-0 01 1 0101- ● ● ● ● ● ●
86 09.750 TACHOMETER; CLUSTER METER
TACHOMETER<U16> 		8-97135-890-2 01 1 9804-0107 ● ● ● ● ● ●
86 09.750 TACHOMETER; CLUSTER METER
TACHOMETER<U16> EXC. CHARGE AIR COOLER<6PL> 		8-97135-890-2 01 1 0108- ● ● ● ● ● ●
86 09.750 TACHOMETER; CLUSTER METER
TACHOMETER<U16> CHARGE AIR COOLER<6PL> 		8-97302-825-0 01 1 0108- ● ● ● ● ● ●
87 09.761 SPEEDOMETER
CHARGE AIR COOLER<6PL> EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 		8-97132-254-2 01 1 0108- ● ● ● ● ● ●
87 09.761 SPEEDOMETER
TACHOMETER<U16> 		8-97132-260-3 01 1 9804-0107 ● ● ● ● ● ●
87 09.761 SPEEDOMETER
TACHOMETER<U16> EXC. CHARGE AIR COOLER<6PL> 		8-97132-260-3 01 1 0108- ● ● ● ● ● ●
87 09.761 SPEEDOMETER
TACHOMETER<U16> CHARGE AIR COOLER<6PL> 		8-97132-259-3 01 1 0108- ● ● ● ● ● ●
87 09.761 SPEEDOMETER
EXC. TACHOMETER<U16> 		8-97132-255-2 01 1 9804-0012 ● ● ● ● ● ●
87 09.761 SPEEDOMETER
EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 		8-97132-255-2 01 1 0101-0107 ● ● ● ● ● ●
87 09.761 SPEEDOMETER
4JG2 ENG(RJC),4JA1 ENG(RLE) EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16>,CHARGE AIR COOLER<6PL> 		8-97132-255-2 01 1 0108- ● ● ● ●
89 09.761 CLIP; HARNESS
AIR BAG DRIVER(AJ3) EXC. TACHOMETER<U16> 		8-97104-698-0 01 1 9907-0012 ● ● ● ● ● ●
89 09.761 CLIP; HARNESS
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AIR BAG DRIVER(AJ3) TACHOMETER<U16> 		8-97104-698-0 01 1 9907-0012 ● ● ● ● ● ●
89 09.761 CLIP; HARNESS
A/T AISIN(RMD) TACHOMETER<U16> 		8-97104-698-0 01 1 9907-0012 ● ●
89 09.761 CLIP; HARNESS
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AIR BAG DRIVER(AJ3) TACHOMETER<U16> 		8-97104-698-0 01 1 0101-0209 ● ● ● ● ● ●
89 09.761 CLIP; HARNESS
A/T AISIN(RMD) TACHOMETER<U16> 		8-97104-698-0 01 1 0101-0209 ● ●
89 09.761 CLIP; HARNESS
TACHOMETER<U16> 		8-97104-698-0 01 1 0210- ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
TACHOMETER<U16> 		8-97080-609-0 01 1 9804- ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
EXC. TACHOMETER<U16> 		8-97171-067-0 01 1 9804-0012 ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 		8-97171-067-0 01 1 0101- ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
CHARGE AIR COOLER<6PL> EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 		8-97309-380-0 01 1 0108- ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<U16> 		8-97132-275-1 01 1 9804-9805 ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<U16> 		8-97132-275-1 01 1 9806-9906 ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) TACHOMETER<U16> 		8-97132-275-1 01 1 9806-9906 ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) TACHOMETER<U16> 		8-97224-834-1 01 1 9907-0012 ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JG2 ENG(RJC),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) TACHOMETER<U16> 		8-97262-867-0 01 1 0101-0107 ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<U16> EXC. CHARGE AIR COOLER<6PL> 		8-97262-867-0 01 1 0108- ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
TACHOMETER<U16> CHARGE AIR COOLER<6PL> 		8-97309-379-0 01 1 0108- ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
EXC. TACHOMETER<U16> 		8-97132-325-1 01 1 9804-9906 ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
EXC. TACHOMETER<U16> 		8-97224-826-1 01 1 9907-0012 ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 		8-97262-868-0 01 1 0101-0107 ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JG2 ENG(RJC),4JA1 ENG(RLE) EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16>,CHARGE AIR COOLER<6PL> 		8-97262-868-0 01 1 0108- ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JG2 ENG(RJC) A/T AISIN(RMD) TACHOMETER<U16> 		8-97288-173-0 01 1 0101- ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
A/T AISIN(RMD) TACHOMETER<U16> 		8-97209-173-0 01 1 9806-9906 ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JG2 ENG(RJC) A/T AISIN(RMD) TACHOMETER<U16> 		8-97224-836-1 01 1 9907-0012 ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
09.765 (A) 12V 3.4W 		5-82188-001-0 AR 1 9804- ● ● ● ● ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
02.892 (C) 12V 1.4W BLACK 		8-94114-138-0 AR 1 9804- ● ● ● ● ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
(D) 24V 3W GREEN 		8-97045-599-0 AR 1 9804- ● ● ● ● ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
09.765 (B) 14V 3W 		8-97104-703-0 AR 1 9804- ● ● ● ● ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
(E) 12V 2W GRAY 		8-97031-180-0 AR 1 9907- ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
TACHOMETER<U16> EXC. CHARGE AIR COOLER<6PL> 12V 1.4W 		8-94152-313-0 13 1 0305- ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
4JG2 ENG(RJC) A/T AISIN(RMD) TACHOMETER<U16> 12V 1.4W 		8-94152-313-0 01 1 0305- ● ●
118 08.991 BULB; CLUSTER METER
4JG2 ENG(RJC) A/T AISIN(RMD) TACHOMETER<U16> 12V 2W 		8-97031-178-0 01 1 0305- ● ●
118 08.991 BULB; CLUSTER METER
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AIR BAG DRIVER(AJ3) TACHOMETER<U16> 12V 2W 		8-97031-178-0 01 1 0111-0209 ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
A/T AISIN(RMD) TACHOMETER<U16> 12V 2W 		8-97031-178-0 01 1 0111-0209 ● ●
118 08.991 BULB; CLUSTER METER
TACHOMETER<U16> 12V 2W 		8-97031-178-0 01 1 0210-0304 ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) TACHOMETER<U16> 12V 2W 		8-97031-178-0 02 1 0305- ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
TACHOMETER<U16> 12V 1.4W 		8-94152-313-0 01 1 0111-0304 ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
TACHOMETER<U16> CHARGE AIR COOLER<6PL> 12V 1.4W 		8-94152-313-0 12 1 0305- ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(A) 14V 3.4W W/CAP 		5-82194-024-0 AR 1 9804- ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(C) 12V 1.4W 		8-94152-313-0 AR 1 9804- ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
09.765 (B) 14V 3W 		8-97104-702-0 AR 1 9804- ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(E) 14V 3.4W W/CAP 		8-97171-066-0 AR 1 9804- ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(D) 12V 3.4W 		9-82691-397-0 AR 1 9804- ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(F) 12V 2W 		8-97031-178-0 AR 1 9907- ● ● ● ● ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
TACHOMETER<U16> 		8-97139-580-1 01 1 9804- ● ● ● ● ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
EXC. TACHOMETER<U16> 		8-97109-304-2 01 1 9804-0012 ● ● ● ● ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 		8-97109-304-2 01 1 0101- ● ● ● ● ● ●
183 03.107 GAUGE; FUEL
TACHOMETER<U16> 		8-97139-581-1 01 1 9804- ● ● ● ● ● ●
183 03.107 GAUGE; FUEL
EXC. TACHOMETER<U16> 		8-97109-306-4 01 1 9804-0012 ● ● ● ● ● ●
183 03.107 GAUGE; FUEL
EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 		8-97109-306-5 01 1 0101- ● ● ● ● ● ●
186 09.765 LAMP; WARNING,MONITOR
A/T AISIN(RMD) TACHOMETER<U16> 		8-97209-813-1 01 1 9806-9906 ●
186 09.765 LAMP; WARNING,MONITOR
4JG2 ENG(RJC) A/T AISIN(RMD) TACHOMETER<U16> 		8-97221-090-0 01 1 9907- ● ●
199 09.772 LENS; WARNING LAMP
TACHOMETER<U16> (A) 		8-97104-686-0 01 1 9804-9808 ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
TACHOMETER<U16> (A) 		8-97214-726-0 01 1 9809-0012 ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
TACHOMETER<U16> (B) 		8-97139-582-1 01 1 9804-9805 ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
TACHOMETER<U16> (B) 		8-97139-582-2 01 1 9806-9906 ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) TACHOMETER<U16> (B) 		8-97139-582-2 01 1 9806-9906 ●
199 09.772 LENS; WARNING LAMP
4JG2 ENG(RJC),4JA1 ENG(RLE) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) TACHOMETER<U16> (B) 		8-97139-582-2 01 1 9907-0107 ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) TACHOMETER<U16> (B) 		8-97139-582-2 01 1 0108- ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
TACHOMETER<U16> (A) 		8-97287-763-0 01 1 0101- ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
EXC. TACHOMETER<U16> (A) 		8-97132-283-1 01 1 9804-0012 ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> (A) 		8-97132-283-1 01 1 0101- ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
EXC. TACHOMETER<U16> (B) 		8-97139-534-2 01 1 9804-0012 ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> (B) 		8-97262-869-0 01 1 0101- ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
A/T AISIN(RMD) TACHOMETER<U16> (A) 		8-97209-175-1 01 1 9806-9906 ●
199 09.772 LENS; WARNING LAMP
4JG2 ENG(RJC) A/T AISIN(RMD) TACHOMETER<U16> (A) 		8-97209-175-1 01 1 9907- ● ●
269 09.743 SCREW; METER CLUSTER
EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16>,CHARGE AIR COOLER<6PL> 09.744 		8-97069-348-0 02 1 0111- ● ● ● ●
269 09.743 SCREW; METER CLUSTER
09.744 (A) 		8-97045-595-0 04 1 9804- ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
16.085 (E) M5X16 TAPPING 		9-09829-323-1 03 1 9804- ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> 09.744 (B) 		8-97069-347-0 03 1 9804- ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> 09.744 (C) 		8-97069-348-0 08 1 9804-9805 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> 09.744 (C) 		8-97069-348-0 08 1 9806-9906 ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) TACHOMETER<U16> 09.744 (C) 		8-97069-348-0 08 1 9806-9906 ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> 09.744 (C) 		8-97069-348-0 08 1 9907-0110 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> EXC. CHARGE AIR COOLER<6PL> 09.744 		8-97069-348-0 08 1 0111- ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
EXC. TACHOMETER<U16> 09.744 (D) M3X31 		8-94326-740-0 06 1 9804-0012 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 09.744 (D) M3X31 		8-94326-740-0 06 1 0101- ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
EXC. TACHOMETER<U16> 09.744 (C) 		8-97069-348-0 02 1 9804-0012 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 09.744 (C) 		8-97069-348-0 02 1 0101-0110 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> CHARGE AIR COOLER<6PL> 09.744 		8-97069-348-0 06 1 0111- ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
A/T AISIN(RMD) TACHOMETER<U16> 09.744 (C) 		8-97069-348-0 06 1 9806-9906 ●
269 09.743 SCREW; METER CLUSTER
AIR BAG DRIVER(AJ3) EXC. TACHOMETER<U16> 08.977 (E) M4 TAPPING 		8-94325-271-0 01 1 9907-0012 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AIR BAG DRIVER(AJ3) TACHOMETER<U16> 08.977 (E) M4 TAPPING 		8-94325-271-0 01 1 9907-0012 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
A/T AISIN(RMD) TACHOMETER<U16> 08.977 (E) M4 TAPPING 		8-94325-271-0 01 1 9907-0012 ● ●
269 09.743 SCREW; METER CLUSTER
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AIR BAG DRIVER(AJ3) TACHOMETER<U16> 08.977 (E) M4 TAPPING 		8-94325-271-0 01 1 0101-0209 ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
A/T AISIN(RMD) TACHOMETER<U16> 08.977 (E) M4 TAPPING 		8-94325-271-0 01 1 0101-0209 ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> 08.977 M4 TAPPING 		8-94325-271-0 01 1 0210- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
