8-15 — FIXING PARTS; WIRING HARNESS (#45121) — 397 parça

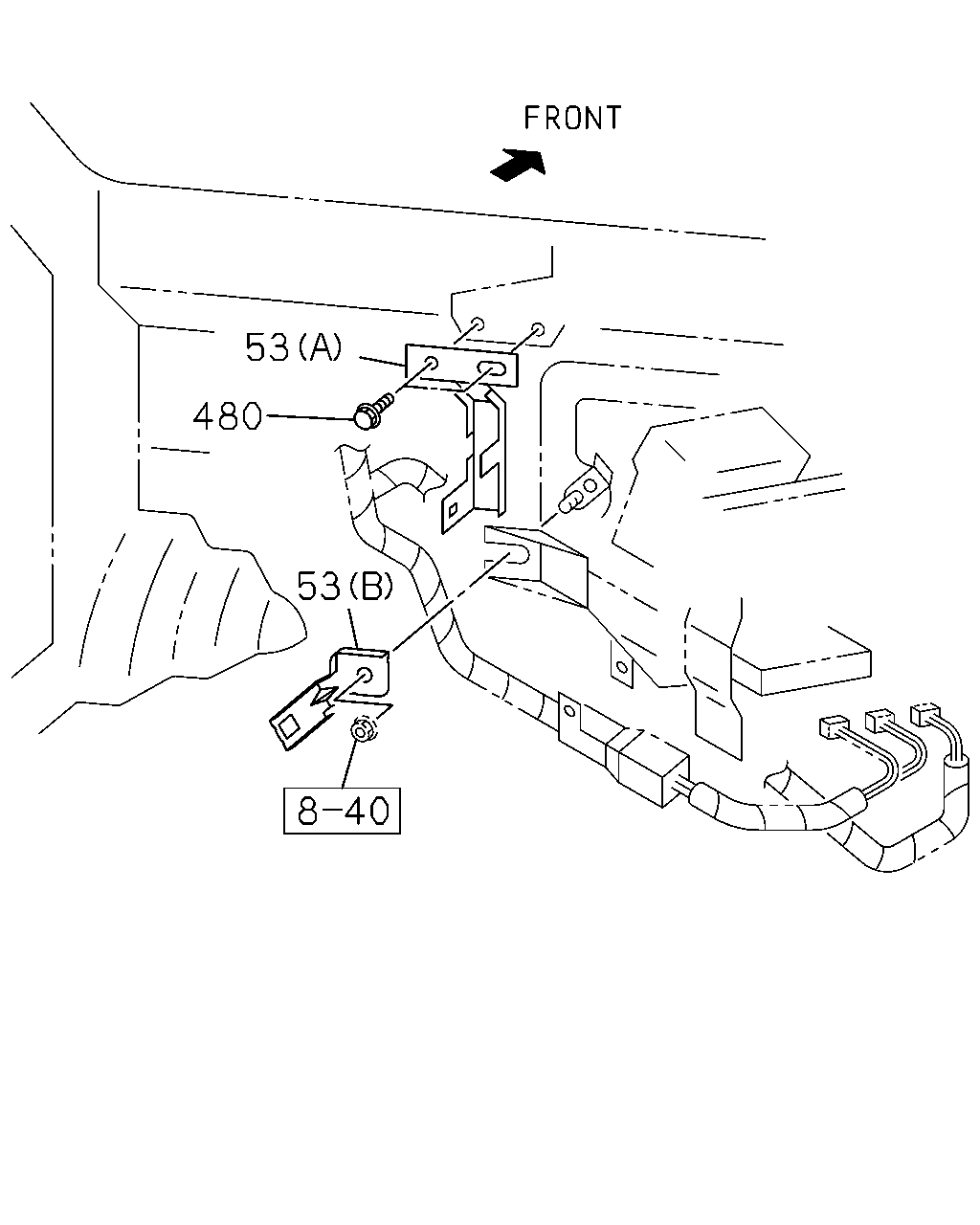

çizim 15767
53 480 53
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
53 02.483 BRACKET; HARNESS
CHARGE AIR COOLER<6PL> (B) 		8-97127-268-0 01 1 0108- ● ● ● ● ● ●
53 02.483 BRACKET; HARNESS
CHARGE AIR COOLER<6PL> (A) 		8-97319-036-0 01 1 0108- ● ● ● ● ● ●
480 02.483 BOLT; BRKT
CHARGE AIR COOLER<6PL> 03.704 M8X16 W/LK WASHER 		0-50040-816-0 02 1 0108- ● ● ● ● ● ●

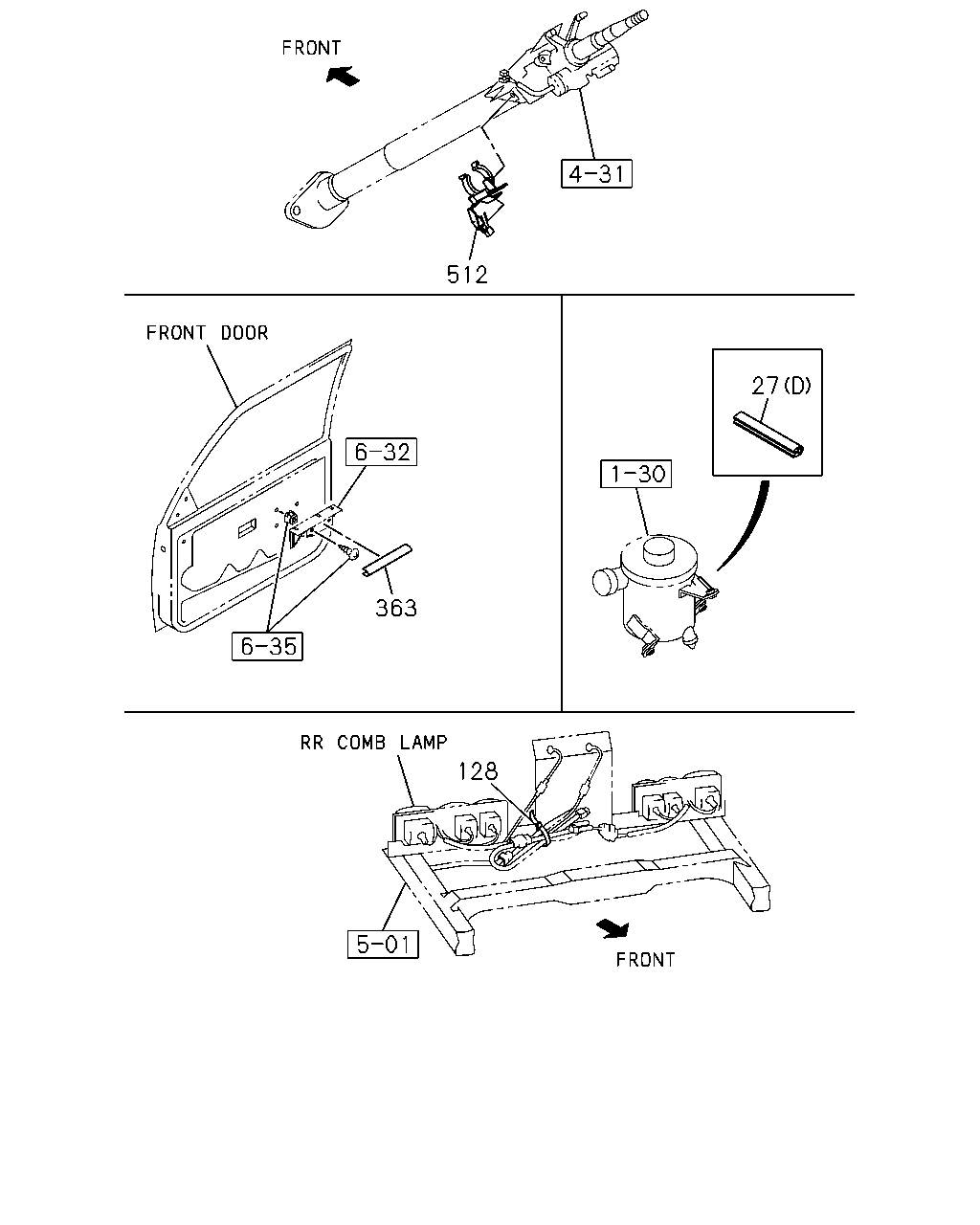

çizim 17462
512 27 128 363
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
27 02.559 PROTECTOR; EDGE
16.550 (A) L=250 SERVICED BY L=2040 		1-71997-513-1 02 1 9804- ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
03.162 (B) L=88 		8-97069-335-0 01 1 9804-0012 ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
02.530 (B) L=65 		8-94235-856-0 01 1 0101-0207 ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
CHARGE AIR COOLER<6PL> (E) 		1-76679-007-0 02 1 0108-0202 ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
(E) 		1-76679-007-0 02 1 0203- ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
4JG2 ENG(RJC) 16.225 (C) L=200 SERVICED BY L=3060 		9-65731-223-1 01 1 9804-0009 ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
4JG2 ENG(RJC) 16.225 (C) L=200 SERVICED BY L=3060 		9-65731-223-1 01 1 0010-0107 ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
4JG2 ENG(RJC) 04.785 (C) L=200 		8-97096-423-0 01 1 0108- ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
4JG2 ENG(RJC) 03.885 (D) L=50 		8-94270-377-1 01 1 9907-0107 ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
4JG2 ENG(RJC) 03.885 (D) L=50 		8-94270-377-1 01 1 0108- ● ● ● ●
128 02.559 CLIP; COMB SW HARNESS,STRG COLUM
EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) L=250 		5-09707-030-1 01 1 9804-9906 ● ● ● ● ● ●
128 02.559 CLIP; COMB SW HARNESS,STRG COLUM
EXC. RR BODY DBL WALL CTR PULL(6MW) L=250 		5-09707-030-1 01 1 9907-0204 ● ● ● ● ● ●
128 02.559 CLIP; COMB SW HARNESS,STRG COLUM
EXC. RR BODY DBL WALL CTR PULL(6MW) L=250 		5-09707-030-1 01 1 0205- ● ● ● ● ●
363 16.085 FINISHER; PROTECTOR
POWER WINDOW<A30> 16.570 SERVICED BY L=190 		1-71998-300-0 02 1 9907-0012 ● ● ● ●
363 16.085 FINISHER; PROTECTOR
POWER WINDOW<A30> 16.570 SERVICED BY L=190 		1-71998-300-0 02 1 0101- ● ● ● ● ● ●
512 02.559 PROTECTOR; HARNESS
06.518 		8-97109-628-2 01 1 9804- ● ● ● ● ● ●
çizim 63828
525 16 16 38 16 38
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
16 02.559 CLIP; HARNESS
01.152 (D) ID=8.5 		5-09700-275-0 01 1 9804- ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9804- ● ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-0 01 1 9804-9808 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-0 01 1 9804-9808 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 9804- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(F) L=60 		8-94457-053-0 02 1 9804-9906 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. POWER WINDOW<A30> (F) L=60 		8-94457-053-0 02 1 9907- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.152 (A) ENG BODY ID=18 L=44 		8-94225-185-0 03 1 9804-9906 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE) 01.152 (A) ENG BODY ID=18 L=44 		8-94225-185-0 03 1 9907-0107 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 01.152 (A) ENG BODY ID=18 L=44 		8-94225-185-0 03 1 0108-0302 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.152 (A) ENG BODY ID=18 L=44 		8-94225-185-0 03 1 0108-0302 ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 01.152 (A) ENG BODY ID=18 L=44 		8-94225-185-0 03 1 0108-0302 ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 02.313 (A) ENG BODY ID=18 L=44 		8-97367-985-0 03 1 0303- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.313 (A) ENG BODY ID=18 L=44 		8-97367-985-0 03 1 0303- ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 02.313 (A) ENG BODY ID=18 L=44 		8-97367-985-0 03 1 0303- ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E) L=135 		8-94473-399-0 01 1 9804- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (F) L=60 		8-94449-752-0 04 1 9907-0012 ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (F) L=60 		8-94449-752-0 04 1 0101- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (F) L=60 		8-94457-053-0 04 1 9907-0012 ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (F) L=60 		8-94457-053-0 04 1 0101- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC) A/T AISIN(RMD) 03.162 (B) L=140 		5-09707-031-0 02 1 9806-9808 ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-0 01 1 9809-9809 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-0 01 1 9809-9809 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
A/T AISIN(RMD) 03.162 (B) L=140 		5-09707-031-0 01 1 9809-9809 ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-1 01 1 9810-0004 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-1 01 1 9810-0004 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-1 01 1 0005-0012 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-1 01 1 0101-0107 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-1 01 1 0101-0107 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140 		5-09707-031-1 01 1 0108- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.162 (B) L=140 		5-09707-031-1 01 1 0108- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. CHARGE AIR COOLER<6PL> 03.162 (B) L=140 		5-09707-031-1 01 1 0108- ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140 		5-09707-031-1 01 1 0108- ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 03.162 (B) L=140 		5-09707-031-1 01 1 0108- ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC) A/T AISIN(RMD) (B) L=250 		5-09707-030-1 01 1 9810-9906 ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC) A/T AISIN(RMD) (B) L=250 		5-09707-030-1 01 1 9907- ● ●
38 02.559 BOLT; CLIP,HARNESS
01.428 (A) M6X12 FLANGE 		0-28080-612-0 01 1 9804- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
08.900 (B) M8X12 FLANGE 		0-28080-812-0 03 1 9804-9906 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE) 08.900 (B) M8X12 FLANGE 		0-28080-812-0 03 1 9907-0107 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 08.900 (B) M8X12 FLANGE 		0-28080-812-0 03 1 0108- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.900 (B) M8X12 FLANGE 		0-28080-812-0 03 1 0108- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 08.900 (B) M8X12 FLANGE 		0-28080-812-0 03 1 0108- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
10.240 (C) M5X14 		8-94120-095-0 01 1 9804- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
03.885 (D) M6X20 		8-94412-422-0 02 1 9804- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
M/T MUA 5 SPEED(RMN) 08.900 (E) SENSOR HARNESS M8X12 FLANGE 		0-28080-812-0 01 1 9804- ● ● ●
525 02.559 NUT; CLIP
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 07.833 M6 FLANGE 		8-97063-399-0 01 1 9804- ●
525 02.559 NUT; CLIP
4JA1 ENG(RLE) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 07.833 M6 FLANGE 		8-97063-399-0 01 1 9804- ● ● ● ● ●

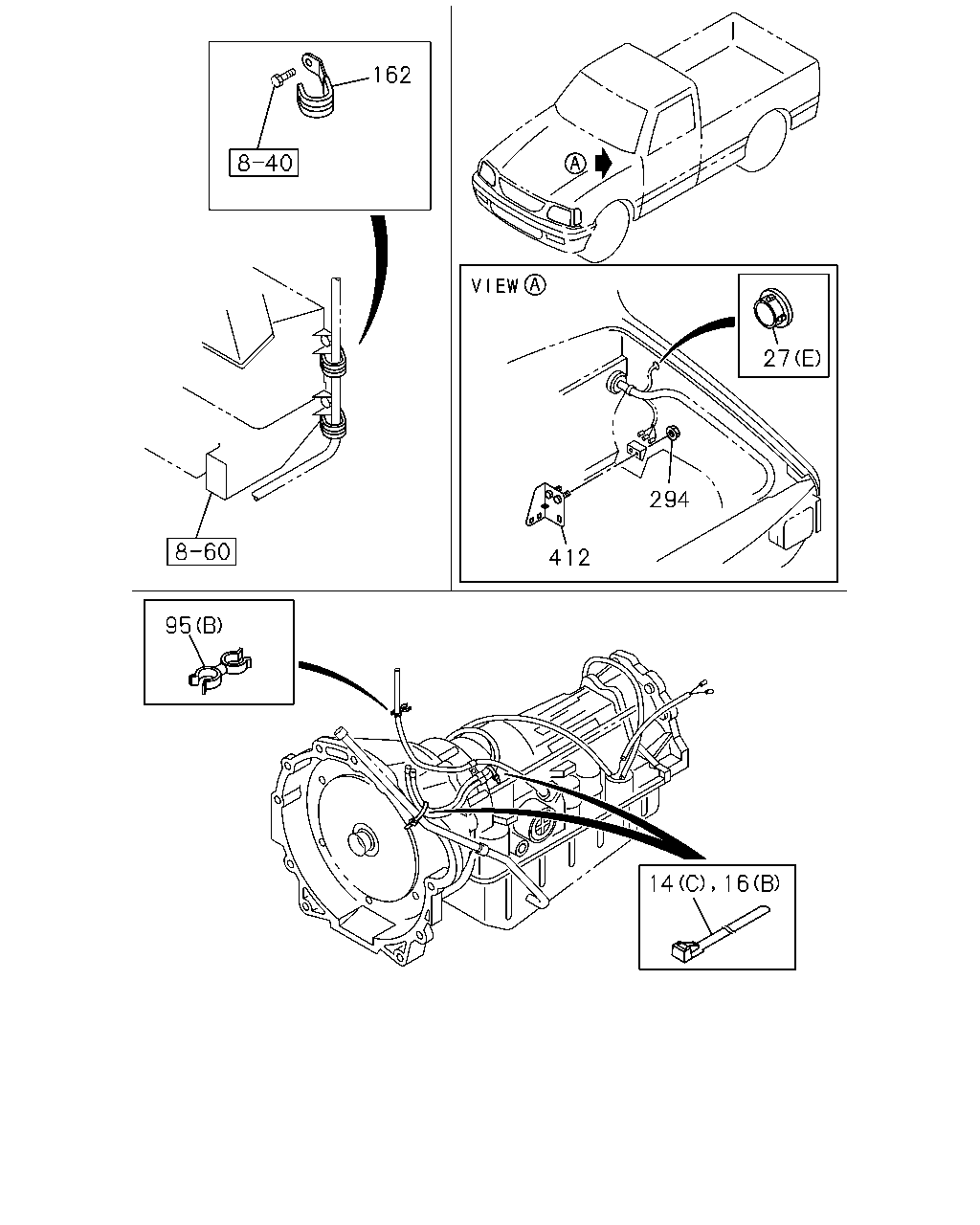

çizim 63840
162 27 294 412 95 14 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
14 02.559 CLIP; BAND,HARNESS
03.483 (A) ID=20.2 & 6 		8-94472-577-0 01 1 9804- ●
14 02.559 CLIP; BAND,HARNESS
4JA1 ENG(RLE) 03.483 (A) ID=20.2 & 6 		8-94472-577-0 01 1 9804- ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4JG2 ENG(RJC) 03.680 (A) ID=10.5 & 18 		8-94381-420-0 01 1 9804-0107 ● ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
03.680 (A) ID=10.5 & 18 		8-94381-420-0 01 1 0108- ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 11 1 9804- ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 10 1 9804- ● ●
14 02.559 CLIP; BAND,HARNESS
4JG2 ENG(RJC) A/T AISIN(RMD) 03.162 (C) L=140 		5-09707-031-1 03 1 0010-0104 ● ●
14 02.559 CLIP; BAND,HARNESS
4JG2 ENG(RJC) A/T AISIN(RMD) 03.162 (C) L=140 		5-09707-031-1 01 1 0105- ● ●
14 02.559 CLIP; BAND,HARNESS
4JG2 ENG(RJC) A/T AISIN(RMD) 03.162 (C) L=140 		5-09707-031-1 02 1 0105- ● ●
16 02.559 CLIP; HARNESS
01.152 (D) ID=8.5 		5-09700-275-0 01 1 9804- ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9804- ● ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-0 01 1 9804-9808 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-0 01 1 9804-9808 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 9804- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(F) L=60 		8-94457-053-0 02 1 9804-9906 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. POWER WINDOW<A30> (F) L=60 		8-94457-053-0 02 1 9907- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.152 (A) ENG BODY ID=18 L=44 		8-94225-185-0 03 1 9804-9906 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE) 01.152 (A) ENG BODY ID=18 L=44 		8-94225-185-0 03 1 9907-0107 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 01.152 (A) ENG BODY ID=18 L=44 		8-94225-185-0 03 1 0108-0302 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.152 (A) ENG BODY ID=18 L=44 		8-94225-185-0 03 1 0108-0302 ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 01.152 (A) ENG BODY ID=18 L=44 		8-94225-185-0 03 1 0108-0302 ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 02.313 (A) ENG BODY ID=18 L=44 		8-97367-985-0 03 1 0303- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.313 (A) ENG BODY ID=18 L=44 		8-97367-985-0 03 1 0303- ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 02.313 (A) ENG BODY ID=18 L=44 		8-97367-985-0 03 1 0303- ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E) L=135 		8-94473-399-0 01 1 9804- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (F) L=60 		8-94449-752-0 04 1 9907-0012 ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (F) L=60 		8-94449-752-0 04 1 0101- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (F) L=60 		8-94457-053-0 04 1 9907-0012 ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (F) L=60 		8-94457-053-0 04 1 0101- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC) A/T AISIN(RMD) 03.162 (B) L=140 		5-09707-031-0 02 1 9806-9808 ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-0 01 1 9809-9809 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-0 01 1 9809-9809 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
A/T AISIN(RMD) 03.162 (B) L=140 		5-09707-031-0 01 1 9809-9809 ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-1 01 1 9810-0004 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-1 01 1 9810-0004 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-1 01 1 0005-0012 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-1 01 1 0101-0107 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-1 01 1 0101-0107 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140 		5-09707-031-1 01 1 0108- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.162 (B) L=140 		5-09707-031-1 01 1 0108- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. CHARGE AIR COOLER<6PL> 03.162 (B) L=140 		5-09707-031-1 01 1 0108- ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140 		5-09707-031-1 01 1 0108- ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 03.162 (B) L=140 		5-09707-031-1 01 1 0108- ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC) A/T AISIN(RMD) (B) L=250 		5-09707-030-1 01 1 9810-9906 ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC) A/T AISIN(RMD) (B) L=250 		5-09707-030-1 01 1 9907- ● ●
27 02.559 PROTECTOR; EDGE
16.550 (A) L=250 SERVICED BY L=2040 		1-71997-513-1 02 1 9804- ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
03.162 (B) L=88 		8-97069-335-0 01 1 9804-0012 ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
02.530 (B) L=65 		8-94235-856-0 01 1 0101-0207 ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
CHARGE AIR COOLER<6PL> (E) 		1-76679-007-0 02 1 0108-0202 ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
(E) 		1-76679-007-0 02 1 0203- ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
4JG2 ENG(RJC) 16.225 (C) L=200 SERVICED BY L=3060 		9-65731-223-1 01 1 9804-0009 ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
4JG2 ENG(RJC) 16.225 (C) L=200 SERVICED BY L=3060 		9-65731-223-1 01 1 0010-0107 ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
4JG2 ENG(RJC) 04.785 (C) L=200 		8-97096-423-0 01 1 0108- ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
4JG2 ENG(RJC) 03.885 (D) L=50 		8-94270-377-1 01 1 9907-0107 ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
4JG2 ENG(RJC) 03.885 (D) L=50 		8-94270-377-1 01 1 0108- ● ● ● ●
95 02.559 CLIP; CABLE
AIR CONDITIONER MANUAL CONT(C60) 02.480 (A) ID=25 		8-94120-831-0 01 1 9804- ● ● ● ● ● ●
95 02.559 CLIP; CABLE
4JG2 ENG(RJC) A/T AISIN(RMD) (B) ID=10 & 12 		8-94155-296-0 01 1 9806-9808 ●
95 02.559 CLIP; CABLE
4JG2 ENG(RJC) A/T AISIN(RMD) 02.480 (B) ID=10.5 & 4.8 		8-97019-966-0 01 1 9806-9906 ●
95 02.559 CLIP; CABLE
4JG2 ENG(RJC) A/T AISIN(RMD) (B) ID=10 & 12 		8-94155-296-0 01 1 9907-0009 ● ●
162 02.559 CLIP; SW HARNESS
4JG2 ENG(RJC) A/T AISIN(RMD) 01.152 ID=8.5 		5-09700-275-0 02 1 9806-9906 ●
162 02.559 CLIP; SW HARNESS
4JG2 ENG(RJC) A/T AISIN(RMD) 01.152 ID=8.5 		5-09700-275-0 02 1 9907- ● ●
294 02.559 NUT
4JG2 ENG(RJC) A/T AISIN(RMD) 04.594 M6 FLANGE 		0-91150-106-0 01 1 9806-9807 ●
294 02.559 NUT
4JG2 ENG(RJC) A/T AISIN(RMD) 04.594 M6 FLANGE 		0-91150-106-0 02 1 9808-9906 ●
294 02.559 NUT
4JG2 ENG(RJC) A/T AISIN(RMD) 04.594 M6 FLANGE 		0-91150-106-0 02 1 9907- ● ●
412 02.559 BRACKET; HARNESS,TRANS
4JG2 ENG(RJC) A/T AISIN(RMD) 		8-97096-005-0 01 1 9806-9808 ●
412 02.559 BRACKET; HARNESS,TRANS
4JG2 ENG(RJC) A/T AISIN(RMD) 		8-97216-059-0 01 1 9809-9906 ●
412 02.559 BRACKET; HARNESS,TRANS
4JG2 ENG(RJC) A/T AISIN(RMD) 		8-97216-059-0 01 1 9907- ● ●

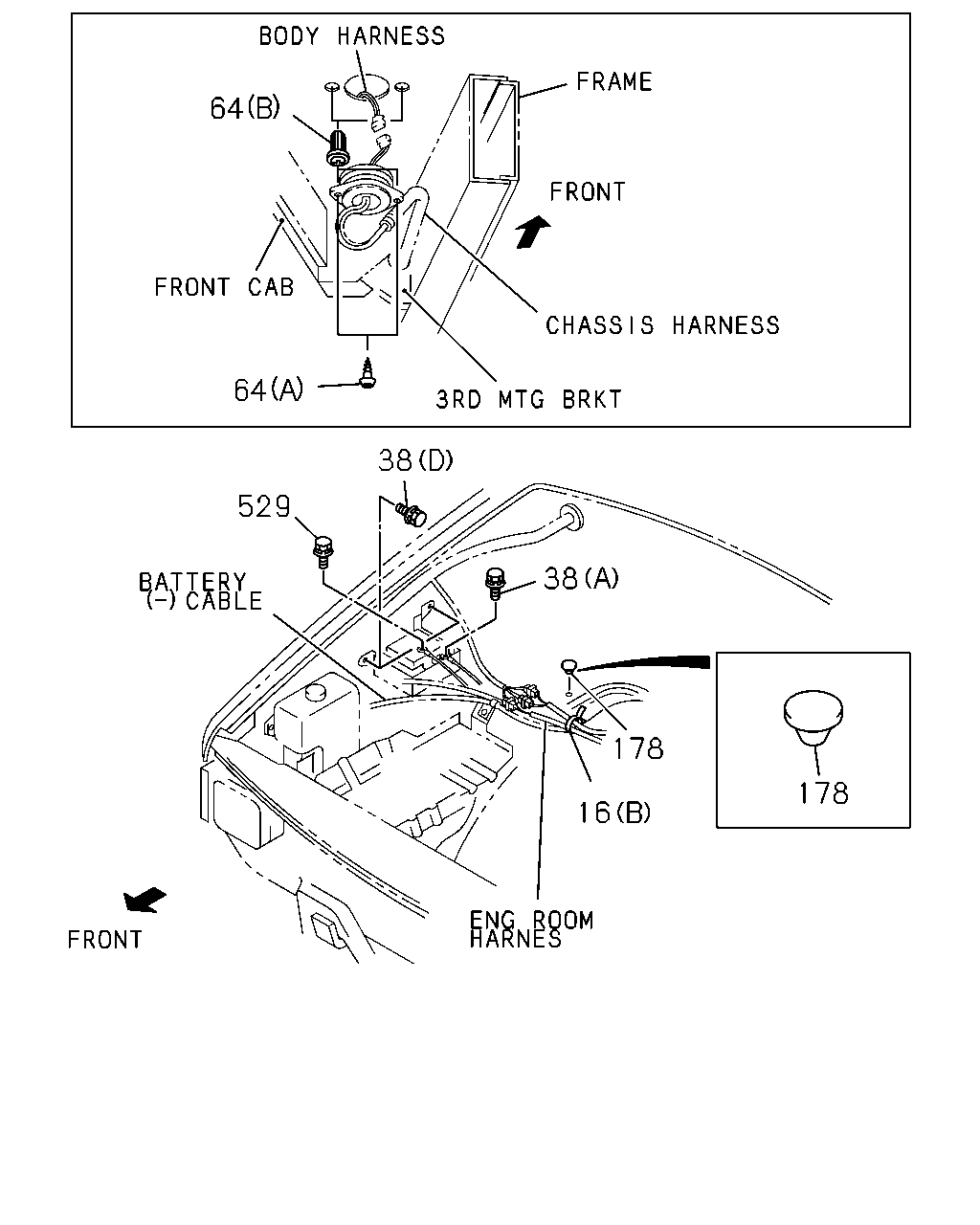

çizim 63858
64 64 38 529 38 178 178 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
16 02.559 CLIP; HARNESS
01.152 (D) ID=8.5 		5-09700-275-0 01 1 9804- ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9804- ● ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-0 01 1 9804-9808 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-0 01 1 9804-9808 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 9804- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(F) L=60 		8-94457-053-0 02 1 9804-9906 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. POWER WINDOW<A30> (F) L=60 		8-94457-053-0 02 1 9907- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.152 (A) ENG BODY ID=18 L=44 		8-94225-185-0 03 1 9804-9906 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE) 01.152 (A) ENG BODY ID=18 L=44 		8-94225-185-0 03 1 9907-0107 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 01.152 (A) ENG BODY ID=18 L=44 		8-94225-185-0 03 1 0108-0302 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.152 (A) ENG BODY ID=18 L=44 		8-94225-185-0 03 1 0108-0302 ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 01.152 (A) ENG BODY ID=18 L=44 		8-94225-185-0 03 1 0108-0302 ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 02.313 (A) ENG BODY ID=18 L=44 		8-97367-985-0 03 1 0303- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.313 (A) ENG BODY ID=18 L=44 		8-97367-985-0 03 1 0303- ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 02.313 (A) ENG BODY ID=18 L=44 		8-97367-985-0 03 1 0303- ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E) L=135 		8-94473-399-0 01 1 9804- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (F) L=60 		8-94449-752-0 04 1 9907-0012 ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (F) L=60 		8-94449-752-0 04 1 0101- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (F) L=60 		8-94457-053-0 04 1 9907-0012 ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (F) L=60 		8-94457-053-0 04 1 0101- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC) A/T AISIN(RMD) 03.162 (B) L=140 		5-09707-031-0 02 1 9806-9808 ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-0 01 1 9809-9809 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-0 01 1 9809-9809 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
A/T AISIN(RMD) 03.162 (B) L=140 		5-09707-031-0 01 1 9809-9809 ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-1 01 1 9810-0004 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-1 01 1 9810-0004 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-1 01 1 0005-0012 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-1 01 1 0101-0107 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-1 01 1 0101-0107 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140 		5-09707-031-1 01 1 0108- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.162 (B) L=140 		5-09707-031-1 01 1 0108- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. CHARGE AIR COOLER<6PL> 03.162 (B) L=140 		5-09707-031-1 01 1 0108- ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140 		5-09707-031-1 01 1 0108- ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 03.162 (B) L=140 		5-09707-031-1 01 1 0108- ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC) A/T AISIN(RMD) (B) L=250 		5-09707-030-1 01 1 9810-9906 ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC) A/T AISIN(RMD) (B) L=250 		5-09707-030-1 01 1 9907- ● ●
38 02.559 BOLT; CLIP,HARNESS
01.428 (A) M6X12 FLANGE 		0-28080-612-0 01 1 9804- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
08.900 (B) M8X12 FLANGE 		0-28080-812-0 03 1 9804-9906 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE) 08.900 (B) M8X12 FLANGE 		0-28080-812-0 03 1 9907-0107 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 08.900 (B) M8X12 FLANGE 		0-28080-812-0 03 1 0108- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.900 (B) M8X12 FLANGE 		0-28080-812-0 03 1 0108- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 08.900 (B) M8X12 FLANGE 		0-28080-812-0 03 1 0108- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
10.240 (C) M5X14 		8-94120-095-0 01 1 9804- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
03.885 (D) M6X20 		8-94412-422-0 02 1 9804- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
M/T MUA 5 SPEED(RMN) 08.900 (E) SENSOR HARNESS M8X12 FLANGE 		0-28080-812-0 01 1 9804- ● ● ●
64 02.559 SCREW; CLIP
10.240 (A) M5X14 		8-94120-095-0 02 1 9804- ● ● ● ● ● ●
64 02.559 SCREW; CLIP
02.679 (B) D=7.9X7.9 L=20 M5 		8-94441-539-0 02 1 9804- ● ● ● ● ● ●
178 02.559 GROMMET; HARNESS
4JG2 ENG(RJC) EXC. HEADLAMP WASHER<CE3> 16.550 OD=12 		9-09956-122-0 01 1 9804-0107 ● ● ● ● ● ●
178 02.559 GROMMET; HARNESS
4JA1 ENG(RLE) 16.550 OD=12 		9-09956-122-0 01 1 9804-0107 ● ● ● ● ● ●
178 02.559 GROMMET; HARNESS
16.550 OD=12 		9-09956-122-0 01 1 0108- ●
178 02.559 GROMMET; HARNESS
4JA1 ENG(RLE) 16.550 OD=12 		9-09956-122-0 01 1 0108- ● ● ● ● ●
178 02.559 GROMMET; HARNESS
4JG2 ENG(RJC) EXC. HEADLAMP WASHER<CE3> 16.550 OD=12 		9-09956-122-0 01 1 0108- ● ● ● ●
529 02.559 BOLT; RELAY BOX
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9907- ● ● ● ● ● ●

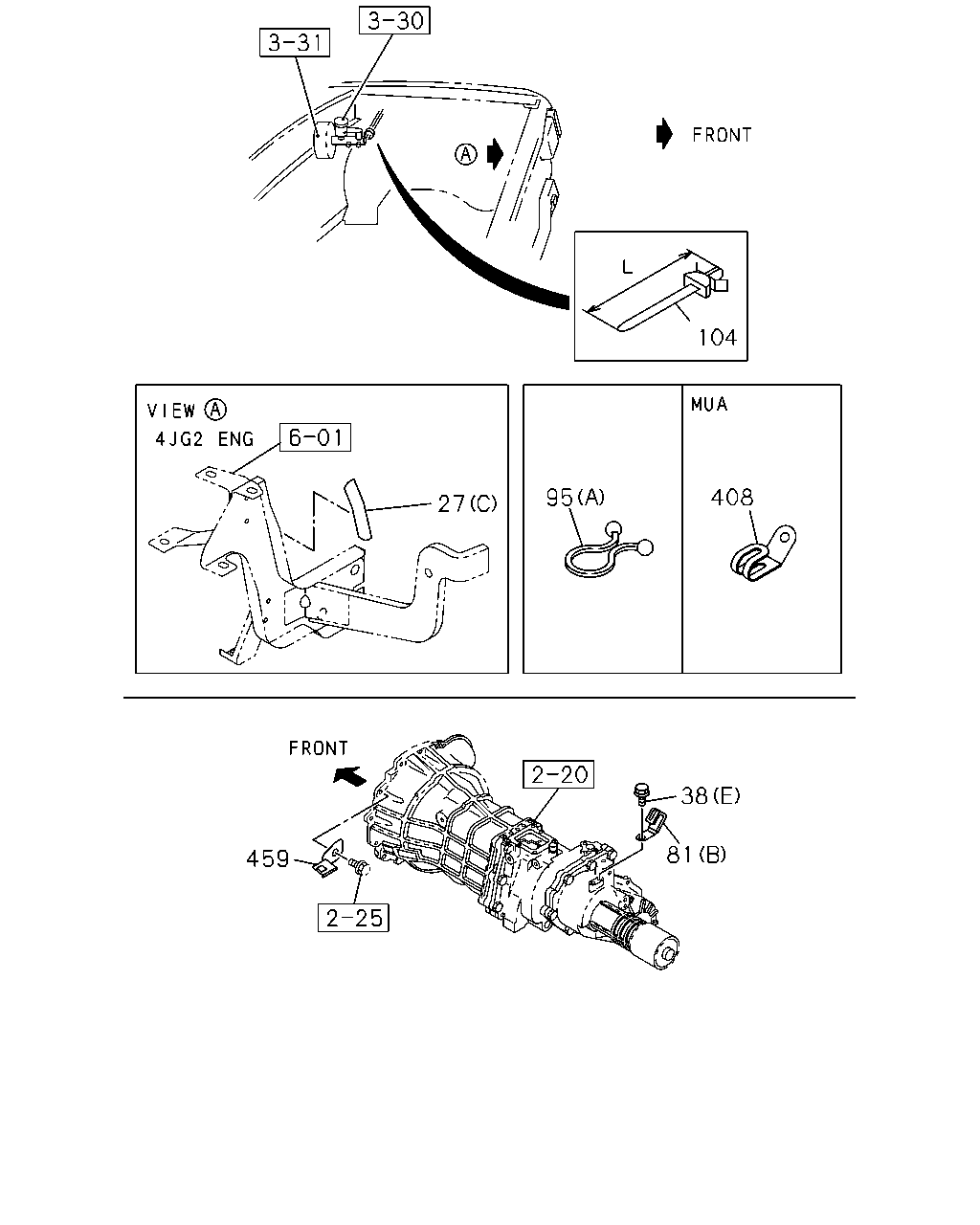

çizim 63916
104 408 95 27 38 81 459
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
27 02.559 PROTECTOR; EDGE
16.550 (A) L=250 SERVICED BY L=2040 		1-71997-513-1 02 1 9804- ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
03.162 (B) L=88 		8-97069-335-0 01 1 9804-0012 ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
02.530 (B) L=65 		8-94235-856-0 01 1 0101-0207 ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
CHARGE AIR COOLER<6PL> (E) 		1-76679-007-0 02 1 0108-0202 ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
(E) 		1-76679-007-0 02 1 0203- ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
4JG2 ENG(RJC) 16.225 (C) L=200 SERVICED BY L=3060 		9-65731-223-1 01 1 9804-0009 ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
4JG2 ENG(RJC) 16.225 (C) L=200 SERVICED BY L=3060 		9-65731-223-1 01 1 0010-0107 ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
4JG2 ENG(RJC) 04.785 (C) L=200 		8-97096-423-0 01 1 0108- ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
4JG2 ENG(RJC) 03.885 (D) L=50 		8-94270-377-1 01 1 9907-0107 ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
4JG2 ENG(RJC) 03.885 (D) L=50 		8-94270-377-1 01 1 0108- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
01.428 (A) M6X12 FLANGE 		0-28080-612-0 01 1 9804- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
08.900 (B) M8X12 FLANGE 		0-28080-812-0 03 1 9804-9906 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE) 08.900 (B) M8X12 FLANGE 		0-28080-812-0 03 1 9907-0107 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 08.900 (B) M8X12 FLANGE 		0-28080-812-0 03 1 0108- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.900 (B) M8X12 FLANGE 		0-28080-812-0 03 1 0108- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 08.900 (B) M8X12 FLANGE 		0-28080-812-0 03 1 0108- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
10.240 (C) M5X14 		8-94120-095-0 01 1 9804- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
03.885 (D) M6X20 		8-94412-422-0 02 1 9804- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
M/T MUA 5 SPEED(RMN) 08.900 (E) SENSOR HARNESS M8X12 FLANGE 		0-28080-812-0 01 1 9804- ● ● ●
81 02.483 CLIP; HARNESS
02.480 (A) 		8-94138-987-0 02 1 9804- ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
16.742 (C) LIGHT GRAY 		8-97153-254-0 01 1 9804-0111 ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
16.069 (C) OD=12 L=14.8 		8-94279-921-0 01 1 0112- ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
M/T MUA 5 SPEED(RMN) 00.446 (B) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9804- ● ● ●
95 02.559 CLIP; CABLE
AIR CONDITIONER MANUAL CONT(C60) 02.480 (A) ID=25 		8-94120-831-0 01 1 9804- ● ● ● ● ● ●
95 02.559 CLIP; CABLE
4JG2 ENG(RJC) A/T AISIN(RMD) (B) ID=10 & 12 		8-94155-296-0 01 1 9806-9808 ●
95 02.559 CLIP; CABLE
4JG2 ENG(RJC) A/T AISIN(RMD) 02.480 (B) ID=10.5 & 4.8 		8-97019-966-0 01 1 9806-9906 ●
95 02.559 CLIP; CABLE
4JG2 ENG(RJC) A/T AISIN(RMD) (B) ID=10 & 12 		8-94155-296-0 01 1 9907-0009 ● ●
104 02.559 CLIP; HEADLAMP HARNESS
02.587 L=172 		8-94232-620-0 02 1 9804- ● ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
M/T MUA 5 SPEED(RMN) 00.446 ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 9804- ● ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS 8-94315-284-0 01 1 9804-9805 ● ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94315-284-0 01 1 9806- ● ● ● ● ● ●

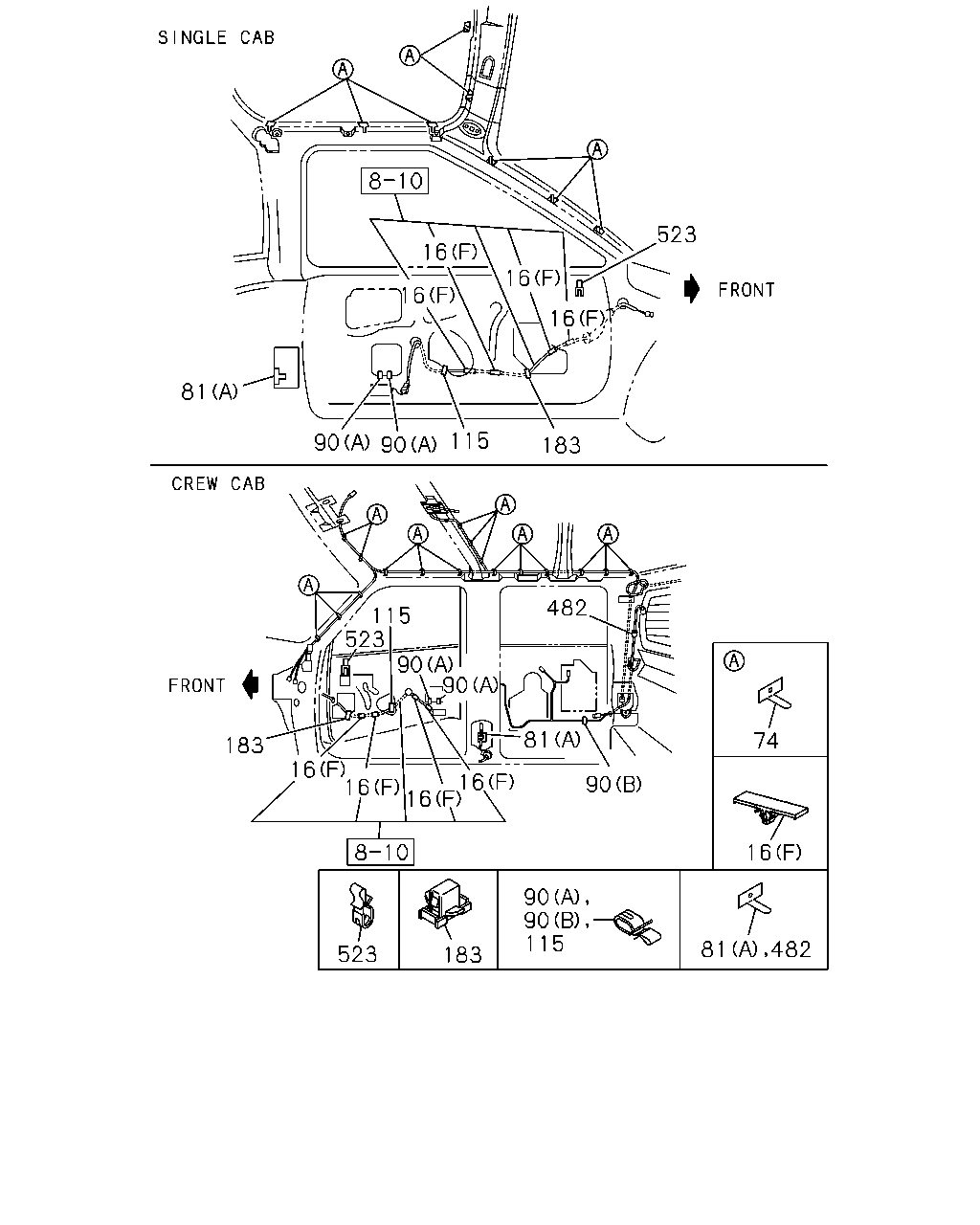

çizim 64093
523 16 16 16 16 81 115 90 90 183 482 115 523 90 81 74 183 16 16 16 16 90 16 90 90 115 81 482 523 183 90
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
16 02.559 CLIP; HARNESS
01.152 (D) ID=8.5 		5-09700-275-0 01 1 9804- ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9804- ● ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-0 01 1 9804-9808 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-0 01 1 9804-9808 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 9804- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(F) L=60 		8-94457-053-0 02 1 9804-9906 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. POWER WINDOW<A30> (F) L=60 		8-94457-053-0 02 1 9907- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.152 (A) ENG BODY ID=18 L=44 		8-94225-185-0 03 1 9804-9906 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE) 01.152 (A) ENG BODY ID=18 L=44 		8-94225-185-0 03 1 9907-0107 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 01.152 (A) ENG BODY ID=18 L=44 		8-94225-185-0 03 1 0108-0302 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.152 (A) ENG BODY ID=18 L=44 		8-94225-185-0 03 1 0108-0302 ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 01.152 (A) ENG BODY ID=18 L=44 		8-94225-185-0 03 1 0108-0302 ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 02.313 (A) ENG BODY ID=18 L=44 		8-97367-985-0 03 1 0303- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.313 (A) ENG BODY ID=18 L=44 		8-97367-985-0 03 1 0303- ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 02.313 (A) ENG BODY ID=18 L=44 		8-97367-985-0 03 1 0303- ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E) L=135 		8-94473-399-0 01 1 9804- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (F) L=60 		8-94449-752-0 04 1 9907-0012 ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (F) L=60 		8-94449-752-0 04 1 0101- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (F) L=60 		8-94457-053-0 04 1 9907-0012 ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (F) L=60 		8-94457-053-0 04 1 0101- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC) A/T AISIN(RMD) 03.162 (B) L=140 		5-09707-031-0 02 1 9806-9808 ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-0 01 1 9809-9809 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-0 01 1 9809-9809 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
A/T AISIN(RMD) 03.162 (B) L=140 		5-09707-031-0 01 1 9809-9809 ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-1 01 1 9810-0004 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-1 01 1 9810-0004 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-1 01 1 0005-0012 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-1 01 1 0101-0107 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-1 01 1 0101-0107 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140 		5-09707-031-1 01 1 0108- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.162 (B) L=140 		5-09707-031-1 01 1 0108- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. CHARGE AIR COOLER<6PL> 03.162 (B) L=140 		5-09707-031-1 01 1 0108- ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140 		5-09707-031-1 01 1 0108- ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 03.162 (B) L=140 		5-09707-031-1 01 1 0108- ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC) A/T AISIN(RMD) (B) L=250 		5-09707-030-1 01 1 9810-9906 ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC) A/T AISIN(RMD) (B) L=250 		5-09707-030-1 01 1 9907- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
REAR DEFOGGER<C49> MAP LAMP<UF3> 		8-94138-987-0 13 1 9804- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
REAR DEFOGGER<C49> EXC. MAP LAMP<UF3> 		8-94138-987-0 11 1 9804- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> EXC. REAR DEFOGGER<C49> 		8-94138-987-0 11 1 9804- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
EXC. REAR DEFOGGER<C49>,MAP LAMP<UF3> 		8-94138-987-0 09 1 9804- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> 		8-94138-987-0 08 1 9804- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
EXC. MAP LAMP<UF3> 		8-94138-987-0 06 1 9804- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
REAR DEFOGGER<C49> EXC. MAP LAMP<UF3> 		8-94138-987-0 17 1 9804- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
MAP LAMP<UF3> 		8-94138-987-0 17 1 9804- ● ●
74 02.480 CLIP; ROOM LAMP HARNESS
EXC. REAR DEFOGGER<C49>,MAP LAMP<UF3> 		8-94138-987-0 15 1 9804- ● ●
81 02.483 CLIP; HARNESS
02.480 (A) 		8-94138-987-0 02 1 9804- ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
16.742 (C) LIGHT GRAY 		8-97153-254-0 01 1 9804-0111 ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
16.069 (C) OD=12 L=14.8 		8-94279-921-0 01 1 0112- ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
M/T MUA 5 SPEED(RMN) 00.446 (B) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9804- ● ● ●
90 02.559 CLIP; HARNESS,DOOR LOCK
AUTO DOOR LOCK<AU4> 13.090 (A) ID=9 		8-94177-914-0 04 1 9907- ● ● ● ●
90 02.559 CLIP; HARNESS,DOOR LOCK
AUTO DOOR LOCK<AU4> (B) ID=12 		8-94423-045-0 02 1 9907- ● ●
115 02.559 CLIP; DOOR HARNESS
POWER WINDOW<A30> ID=12 		8-94423-045-0 02 1 9907-0012 ● ● ● ●
115 02.559 CLIP; DOOR HARNESS
POWER WINDOW<A30> ID=12 		8-94423-045-0 02 1 0101- ● ● ● ● ● ●
183 02.559 CLIP; CONNECTOR
POWER WINDOW<A30> L=15 		8-94315-436-1 02 1 9907-0012 ● ● ● ●
183 02.559 CLIP; CONNECTOR
POWER WINDOW<A30> L=15 		8-94315-436-1 02 1 0101- ● ● ● ● ● ●
482 02.559 CLIP; RR DEFOGGER HARNESS
REAR DEFOGGER<C49> 02.480 		8-94138-987-0 02 1 9804- ● ●
523 02.559 CLIP; HARNESS,WINDOW REG
POWER WINDOW<A30> EXC. DOOR MIRROR ELECTRIC CONT BRIGHT <7HX> 13.090 ID=9 		8-94177-914-0 02 1 9907-0012 ● ● ● ●
523 02.559 CLIP; HARNESS,WINDOW REG
DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> 13.090 ID=9 		8-94177-914-0 02 1 9907-0012 ● ● ● ●
523 02.559 CLIP; HARNESS,WINDOW REG
POWER WINDOW<A30> 13.090 ID=9 		8-94177-914-0 02 1 0101- ● ●
523 02.559 CLIP; HARNESS,WINDOW REG
POWER WINDOW<A30> EXC. DOOR MIRROR ELECTRIC CONT BRIGHT <7HX> 13.090 ID=9 		8-94177-914-0 02 1 0101- ● ● ● ●
523 02.559 CLIP; HARNESS,WINDOW REG
DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> 13.090 ID=9 		8-94177-914-0 02 1 0101- ● ● ● ●

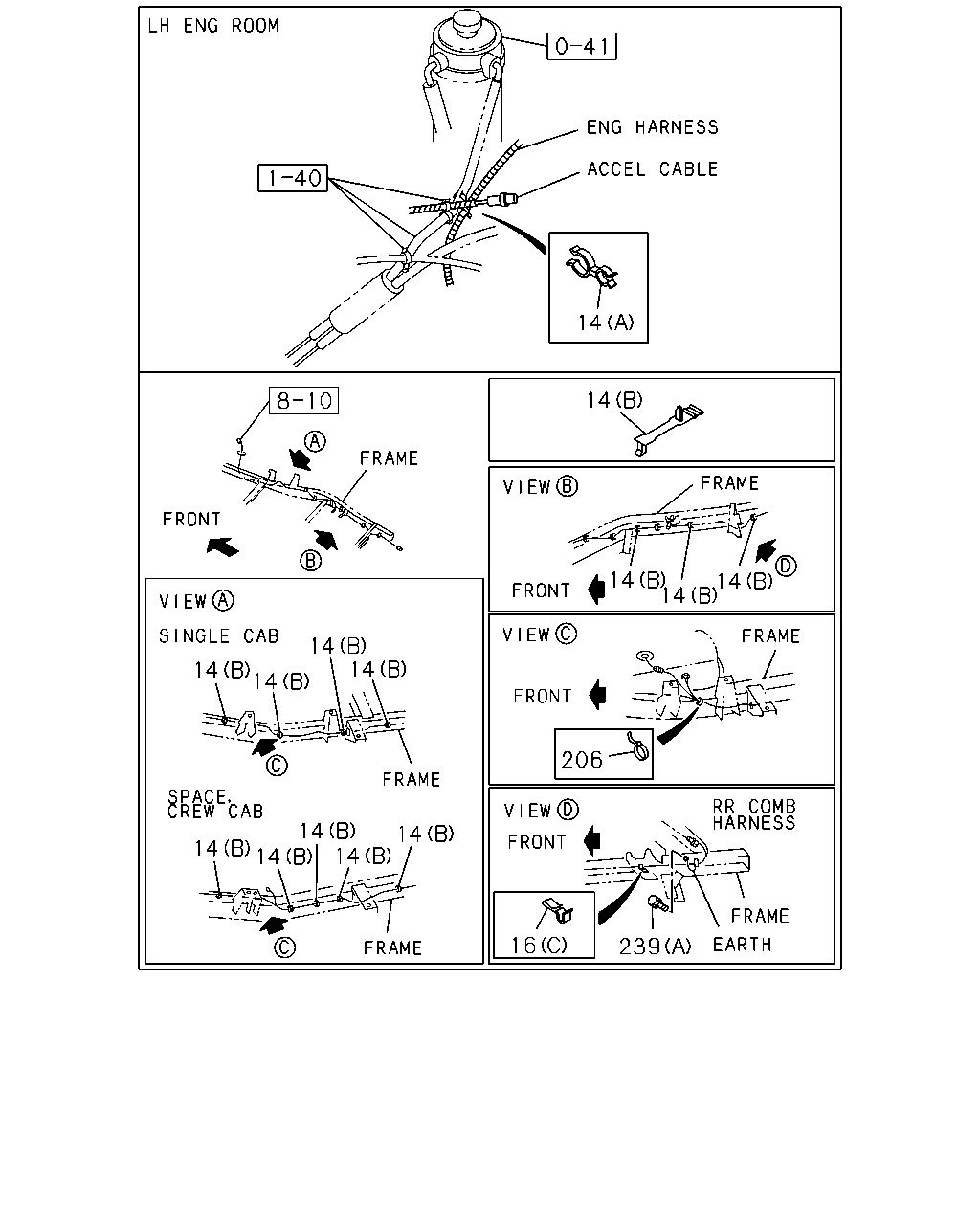

çizim 64094
14 14 14 14 14 14 14 14 14 206 14 14 14 14 14 16 239
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
14 02.559 CLIP; BAND,HARNESS
03.483 (A) ID=20.2 & 6 		8-94472-577-0 01 1 9804- ●
14 02.559 CLIP; BAND,HARNESS
4JA1 ENG(RLE) 03.483 (A) ID=20.2 & 6 		8-94472-577-0 01 1 9804- ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
4JG2 ENG(RJC) 03.680 (A) ID=10.5 & 18 		8-94381-420-0 01 1 9804-0107 ● ● ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
03.680 (A) ID=10.5 & 18 		8-94381-420-0 01 1 0108- ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 11 1 9804- ● ● ● ●
14 02.559 CLIP; BAND,HARNESS
(B) L=55 		8-94473-398-0 10 1 9804- ● ●
14 02.559 CLIP; BAND,HARNESS
4JG2 ENG(RJC) A/T AISIN(RMD) 03.162 (C) L=140 		5-09707-031-1 03 1 0010-0104 ● ●
14 02.559 CLIP; BAND,HARNESS
4JG2 ENG(RJC) A/T AISIN(RMD) 03.162 (C) L=140 		5-09707-031-1 01 1 0105- ● ●
14 02.559 CLIP; BAND,HARNESS
4JG2 ENG(RJC) A/T AISIN(RMD) 03.162 (C) L=140 		5-09707-031-1 02 1 0105- ● ●
16 02.559 CLIP; HARNESS
01.152 (D) ID=8.5 		5-09700-275-0 01 1 9804- ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9804- ● ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-0 01 1 9804-9808 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-0 01 1 9804-9808 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 9804- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(F) L=60 		8-94457-053-0 02 1 9804-9906 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. POWER WINDOW<A30> (F) L=60 		8-94457-053-0 02 1 9907- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.152 (A) ENG BODY ID=18 L=44 		8-94225-185-0 03 1 9804-9906 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE) 01.152 (A) ENG BODY ID=18 L=44 		8-94225-185-0 03 1 9907-0107 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 01.152 (A) ENG BODY ID=18 L=44 		8-94225-185-0 03 1 0108-0302 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.152 (A) ENG BODY ID=18 L=44 		8-94225-185-0 03 1 0108-0302 ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 01.152 (A) ENG BODY ID=18 L=44 		8-94225-185-0 03 1 0108-0302 ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 02.313 (A) ENG BODY ID=18 L=44 		8-97367-985-0 03 1 0303- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.313 (A) ENG BODY ID=18 L=44 		8-97367-985-0 03 1 0303- ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 02.313 (A) ENG BODY ID=18 L=44 		8-97367-985-0 03 1 0303- ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E) L=135 		8-94473-399-0 01 1 9804- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (F) L=60 		8-94449-752-0 04 1 9907-0012 ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (F) L=60 		8-94449-752-0 04 1 0101- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (F) L=60 		8-94457-053-0 04 1 9907-0012 ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (F) L=60 		8-94457-053-0 04 1 0101- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC) A/T AISIN(RMD) 03.162 (B) L=140 		5-09707-031-0 02 1 9806-9808 ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-0 01 1 9809-9809 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-0 01 1 9809-9809 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
A/T AISIN(RMD) 03.162 (B) L=140 		5-09707-031-0 01 1 9809-9809 ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-1 01 1 9810-0004 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-1 01 1 9810-0004 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-1 01 1 0005-0012 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-1 01 1 0101-0107 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-1 01 1 0101-0107 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140 		5-09707-031-1 01 1 0108- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.162 (B) L=140 		5-09707-031-1 01 1 0108- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. CHARGE AIR COOLER<6PL> 03.162 (B) L=140 		5-09707-031-1 01 1 0108- ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140 		5-09707-031-1 01 1 0108- ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 03.162 (B) L=140 		5-09707-031-1 01 1 0108- ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC) A/T AISIN(RMD) (B) L=250 		5-09707-030-1 01 1 9810-9906 ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC) A/T AISIN(RMD) (B) L=250 		5-09707-030-1 01 1 9907- ● ●
206 02.559 CLIP; FUEL TANK HARNESS
03.162 L=140 		5-09707-031-1 01 1 9804- ● ● ● ● ● ●
239 02.559 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 04 1 9804-0012 ● ● ● ● ● ●
239 02.559 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 05 1 0101- ● ● ● ● ● ●
239 02.559 BOLT; GRAND
02.343 (A) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9804-0004 ● ● ● ● ● ●

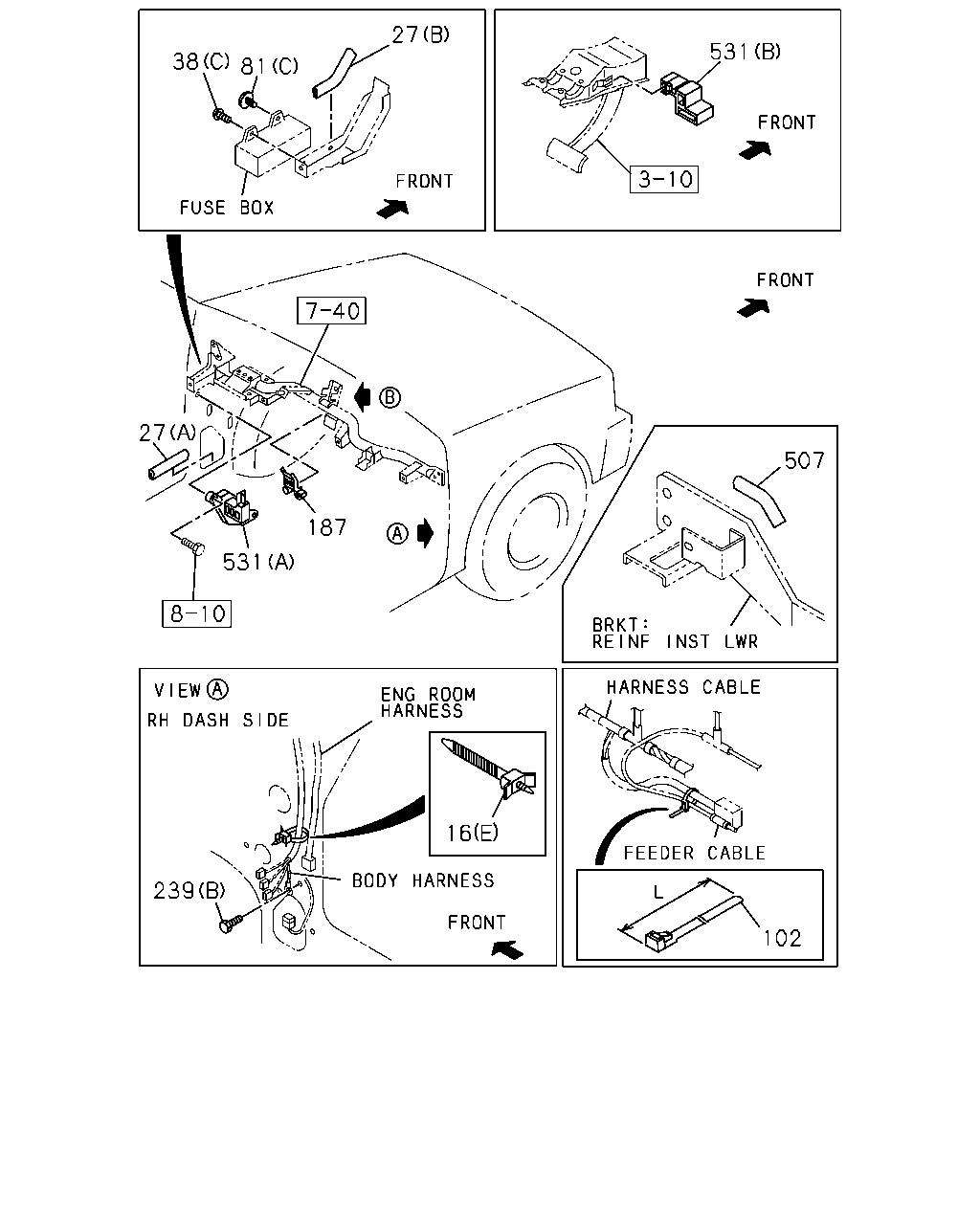

çizim 64096
27 531 38 81 27 507 187 531 16 239 102
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
16 02.559 CLIP; HARNESS
01.152 (D) ID=8.5 		5-09700-275-0 01 1 9804- ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE) 01.152 (D) ID=8.5 		5-09700-275-0 01 1 9804- ● ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-0 01 1 9804-9808 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-0 01 1 9804-9808 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) 		8-94318-781-0 01 1 9804- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
(F) L=60 		8-94457-053-0 02 1 9804-9906 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. POWER WINDOW<A30> (F) L=60 		8-94457-053-0 02 1 9907- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.152 (A) ENG BODY ID=18 L=44 		8-94225-185-0 03 1 9804-9906 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE) 01.152 (A) ENG BODY ID=18 L=44 		8-94225-185-0 03 1 9907-0107 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 01.152 (A) ENG BODY ID=18 L=44 		8-94225-185-0 03 1 0108-0302 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.152 (A) ENG BODY ID=18 L=44 		8-94225-185-0 03 1 0108-0302 ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 01.152 (A) ENG BODY ID=18 L=44 		8-94225-185-0 03 1 0108-0302 ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 02.313 (A) ENG BODY ID=18 L=44 		8-97367-985-0 03 1 0303- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.313 (A) ENG BODY ID=18 L=44 		8-97367-985-0 03 1 0303- ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 02.313 (A) ENG BODY ID=18 L=44 		8-97367-985-0 03 1 0303- ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E) L=135 		8-94473-399-0 01 1 9804- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (F) L=60 		8-94449-752-0 04 1 9907-0012 ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (F) L=60 		8-94449-752-0 04 1 0101- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (F) L=60 		8-94457-053-0 04 1 9907-0012 ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> (F) L=60 		8-94457-053-0 04 1 0101- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC) A/T AISIN(RMD) 03.162 (B) L=140 		5-09707-031-0 02 1 9806-9808 ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-0 01 1 9809-9809 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-0 01 1 9809-9809 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
A/T AISIN(RMD) 03.162 (B) L=140 		5-09707-031-0 01 1 9809-9809 ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-1 01 1 9810-0004 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-1 01 1 9810-0004 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-1 01 1 0005-0012 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-1 01 1 0101-0107 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
03.162 (B) L=140 		5-09707-031-1 01 1 0101-0107 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140 		5-09707-031-1 01 1 0108- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 03.162 (B) L=140 		5-09707-031-1 01 1 0108- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. CHARGE AIR COOLER<6PL> 03.162 (B) L=140 		5-09707-031-1 01 1 0108- ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140 		5-09707-031-1 01 1 0108- ● ● ● ● ●
16 02.559 CLIP; HARNESS
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 03.162 (B) L=140 		5-09707-031-1 01 1 0108- ● ● ● ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC) A/T AISIN(RMD) (B) L=250 		5-09707-030-1 01 1 9810-9906 ●
16 02.559 CLIP; HARNESS
4JG2 ENG(RJC) A/T AISIN(RMD) (B) L=250 		5-09707-030-1 01 1 9907- ● ●
27 02.559 PROTECTOR; EDGE
16.550 (A) L=250 SERVICED BY L=2040 		1-71997-513-1 02 1 9804- ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
03.162 (B) L=88 		8-97069-335-0 01 1 9804-0012 ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
02.530 (B) L=65 		8-94235-856-0 01 1 0101-0207 ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
CHARGE AIR COOLER<6PL> (E) 		1-76679-007-0 02 1 0108-0202 ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
(E) 		1-76679-007-0 02 1 0203- ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
4JG2 ENG(RJC) 16.225 (C) L=200 SERVICED BY L=3060 		9-65731-223-1 01 1 9804-0009 ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
4JG2 ENG(RJC) 16.225 (C) L=200 SERVICED BY L=3060 		9-65731-223-1 01 1 0010-0107 ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
4JG2 ENG(RJC) 04.785 (C) L=200 		8-97096-423-0 01 1 0108- ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
4JG2 ENG(RJC) 03.885 (D) L=50 		8-94270-377-1 01 1 9907-0107 ● ● ● ● ● ●
27 02.559 PROTECTOR; EDGE
4JG2 ENG(RJC) 03.885 (D) L=50 		8-94270-377-1 01 1 0108- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
01.428 (A) M6X12 FLANGE 		0-28080-612-0 01 1 9804- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
08.900 (B) M8X12 FLANGE 		0-28080-812-0 03 1 9804-9906 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JG2 ENG(RJC),4JA1 ENG(RLE) 08.900 (B) M8X12 FLANGE 		0-28080-812-0 03 1 9907-0107 ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) M/T MUA 5 SPEED(RMN) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 08.900 (B) M8X12 FLANGE 		0-28080-812-0 03 1 0108- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JG2 ENG(RJC) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.900 (B) M8X12 FLANGE 		0-28080-812-0 03 1 0108- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> EXC. CHARGE AIR COOLER<6PL> 08.900 (B) M8X12 FLANGE 		0-28080-812-0 03 1 0108- ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
10.240 (C) M5X14 		8-94120-095-0 01 1 9804- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
03.885 (D) M6X20 		8-94412-422-0 02 1 9804- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
M/T MUA 5 SPEED(RMN) 08.900 (E) SENSOR HARNESS M8X12 FLANGE 		0-28080-812-0 01 1 9804- ● ● ●
81 02.483 CLIP; HARNESS
02.480 (A) 		8-94138-987-0 02 1 9804- ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
16.742 (C) LIGHT GRAY 		8-97153-254-0 01 1 9804-0111 ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
16.069 (C) OD=12 L=14.8 		8-94279-921-0 01 1 0112- ● ● ● ● ● ●
81 02.483 CLIP; HARNESS
M/T MUA 5 SPEED(RMN) 00.446 (B) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9804- ● ● ●
102 02.559 CLIP; BAND
INST PANEL FOR DIN E SIZE AUDIO(7QL) 03.162 L=140 		5-09707-031-1 01 1 9804- ● ● ● ● ● ●
187 02.559 CLIP; CHAS HARN TO DASH 8-94474-013-2 01 1 9804- ● ● ● ● ● ●
239 02.559 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 04 1 9804-0012 ● ● ● ● ● ●
239 02.559 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 05 1 0101- ● ● ● ● ● ●
239 02.559 BOLT; GRAND
02.343 (A) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 9804-0004 ● ● ● ● ● ●
507 02.559 FINISHER
08.228 L=80 		1-71998-400-0 01 1 9804-9906 ● ● ● ● ● ●
507 02.559 FINISHER
L=80 		5-71997-133-0 01 1 9907-0103 ● ● ● ● ● ●
507 02.559 FINISHER
L=80 		5-71997-133-0 02 1 0104- ● ● ● ● ● ●
507 02.559 FINISHER
CHARGE AIR COOLER<6PL> L=105 		8-97109-036-0 01 1 0108- ● ● ● ● ● ●
531 02.559 HOLDER
02.483 (A) 		8-97102-731-2 01 1 9804- ● ● ● ● ● ●
531 02.559 HOLDER
02.483 (B) 		8-97110-341-1 01 1 9804- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
