◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50802 - TFR/TFS(EUROPE)-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#45120) — 224 parça

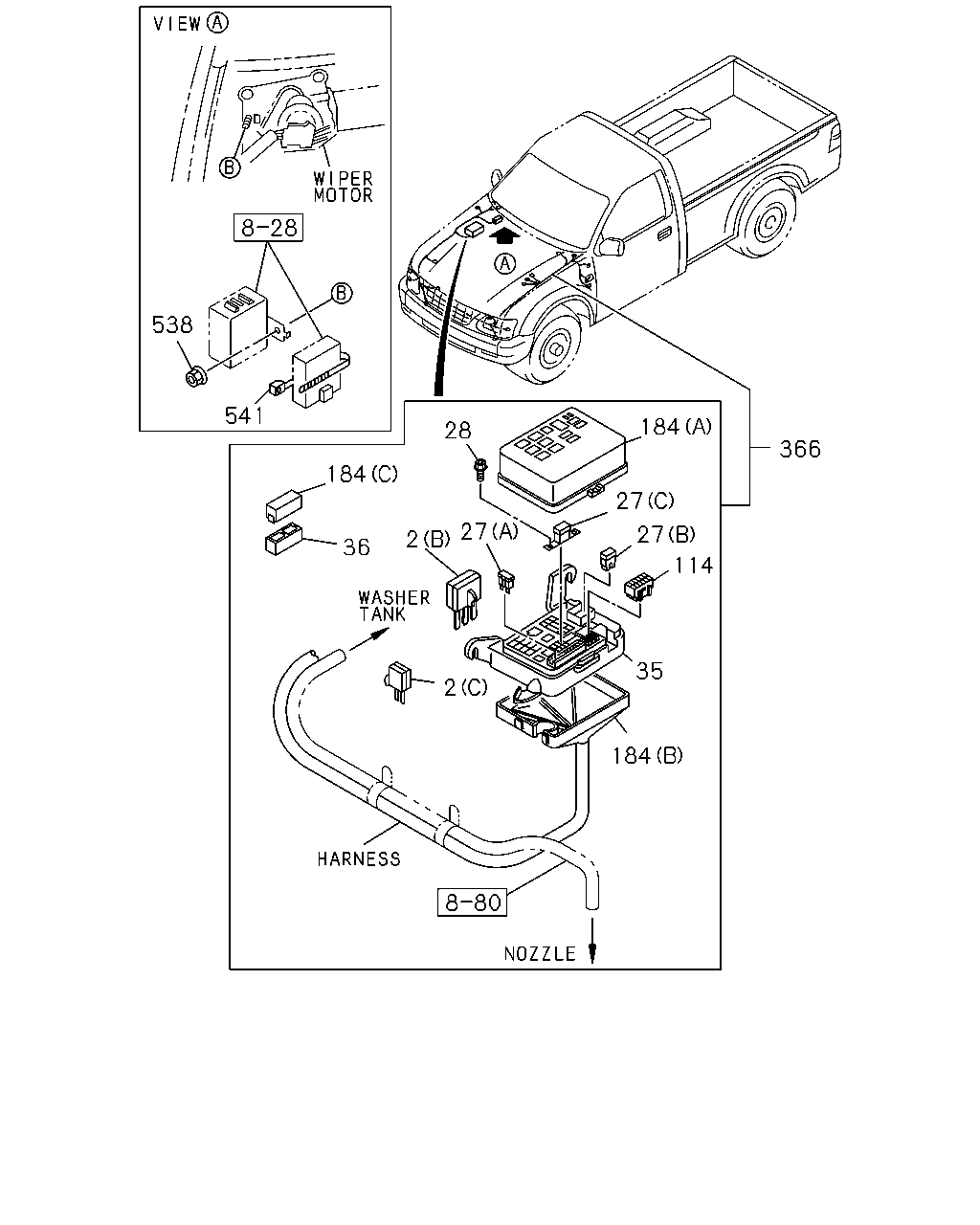

çizim 16992
538 541 184 28 366 184 27 27 2 27 36 114 35 2 184
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 AR 1 9804- ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 2P-2.0A 		8-97138-524-0 AR 1 9804- ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(C) BLACK 2P-1.5A 		8-94422-639-1 AR 1 0108- ● ● ● ● ● ●
27 08.965 FUSE UNIT
(C) 40A GREEN 		8-94388-301-0 AR 1 9804-9906 ● ● ● ● ● ●
27 08.965 FUSE UNIT
(C) 80A BLACK 		8-94388-305-0 AR 1 9804- ● ● ● ● ● ●
27 08.965 FUSE UNIT
(B) 30A PINK 		8-94468-661-0 AR 1 9804-9906 ● ● ● ● ● ●
27 08.965 FUSE UNIT
(B) 40A GREEN 		8-94468-662-0 AR 1 9804-9906 ● ● ● ● ● ●
27 08.965 FUSE UNIT
02.483 (B) 50A RED 		8-94468-663-0 AR 1 9804-9906 ● ● ● ● ● ●
27 08.965 FUSE UNIT
(A) 10A MINI RED 		8-97062-022-0 AR 1 9804- ● ● ● ● ● ●
27 08.965 FUSE UNIT
(A) 15A MINI BLUE 		8-97062-023-0 AR 1 9804- ● ● ● ● ● ●
27 08.965 FUSE UNIT
(A) 20A MINI YELLOW 		8-97062-024-0 AR 1 9804- ● ● ● ● ● ●
27 08.965 FUSE UNIT
(B) 30A PINK 		8-97183-643-0 AR 1 9907- ● ● ● ● ● ●
27 08.965 FUSE UNIT
(B) 40A GREEN 		8-97183-644-0 AR 1 9907- ● ● ● ● ● ●
27 08.965 FUSE UNIT
(B) 50A RED 		8-97183-645-0 AR 1 9907- ● ● ● ● ● ●
27 08.965 FUSE UNIT
(C) 100A BLUE 		8-94388-306-0 AR 1 0101- ● ● ● ● ● ●
27 08.965 FUSE UNIT
(C) 30A PINK 		8-94388-300-0 AR 1 0108- ● ● ● ● ● ●
27 08.965 FUSE UNIT
(B) 60A YELLOW 		8-97219-407-0 AR 1 0108- ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX 8-97249-192-0 02 1 9804-0107 ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
4JG2 ENG(RJC) HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97249-192-0 02 1 0108-0305 ● ● ● ●
28 02.483 SCREW; FUSE BOX
4JA1 ENG(RLE) 		8-97249-192-0 04 1 0108-0305 ● ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
4JG2 ENG(RJC) EXC. HALOGEN HEAD LAMPS MULTI REFLECT OR<7YW> 		8-97249-192-0 04 1 0108-0305 ● ● ● ●
28 02.483 SCREW; FUSE BOX 8-97249-192-0 04 1 0306- ● ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE 8-97104-108-2 01 1 9804-9906 ● ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE 8-97940-316-1 01 1 9907- ● ● ● ● ● ●
36 02.530 BOX; RELAY 8-97104-122-1 01 1 9907- ● ● ● ● ● ●
114 02.483 BOX ASM; FUSE 8-97104-121-0 01 1 9804-9906 ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
(B) 		8-97104-115-1 01 1 9804- ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
(A) 		8-97142-803-1 01 1 9804-9906 ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
(C) 		8-97104-131-0 01 1 9907- ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
(A) 		8-97180-242-1 01 1 9907-0012 ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
(A) 		8-97261-556-1 01 1 0101-0107 ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97261-556-1 01 1 0108- ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JG2 ENG(RJC) (A) 		8-97261-556-1 01 1 0108- ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
CHARGE AIR COOLER<6PL> (A) 		8-97300-902-1 01 1 0108- ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97319-562-0 01 1 0108-0305 ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) EXC. HALOGEN HEAD LAMPS MULTI REFLECT OR<7YW> 		8-97319-560-0 01 1 0108-0305 ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) 		8-97319-560-3 01 1 0306- ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) A/T AISIN(RMD) HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97319-563-0 01 1 0108-0305 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) A/T AISIN(RMD) EXC. HALOGEN HEAD LAMPS MULTI REFLECT OR<7YW> 		8-97319-561-0 01 1 0108-0305 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) A/T AISIN(RMD) 		8-97319-561-3 01 1 0306- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1 ENG(RLE) 		8-97188-197-2 01 1 9804-9906 ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1 ENG(RLE) 		8-97217-348-2 01 1 9907-0012 ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1 ENG(RLE) EXC. HALOGEN HEAD LAMPS MULTI REFLECT OR<7YW> 		8-97260-148-1 01 1 0101-0107 ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> 		8-97260-148-3 01 1 0108- ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) 		8-97165-605-3 01 1 9804-9805 ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) 		8-97165-605-3 01 1 9806-9906 ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) 		8-97217-358-3 01 1 9907-0012 ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) EXC. HALOGEN HEAD LAMPS MULTI REFLECT OR<7YW> 		8-97260-155-2 01 1 0101-0107 ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1 ENG(RLE) HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97305-055-0 01 1 0101-0107 ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. ENG QUICK WARM UP SYSTEM<6JZ>, SHIFT ON THE FLY(7EX) 		8-97311-398-2 01 1 0108- ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97305-057-0 01 1 0101-0107 ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> ENG QUICK WARM UP SYSTEM<6JZ> EXC. SHIFT ON THE FLY(7EX) 		8-97300-708-3 01 1 0108- ● ● ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) A/T AISIN(RMD) HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97305-058-0 01 1 0101-0107 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> ENG QUICK WARM UP SYSTEM<6JZ> SHIFT ON THE FLY(7EX) 		8-97300-709-3 01 1 0108- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> SHIFT ON THE FLY(7EX) EXC. ENG QUICK WARM UP SYSTEM<6JZ> 		8-97311-399-2 01 1 0108- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) A/T AISIN(RMD) 		8-97210-236-2 01 1 9806-9906 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) A/T AISIN(RMD) 		8-97217-359-3 01 1 9907-0012 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JG2 ENG(RJC) A/T AISIN(RMD) EXC. HALOGEN HEAD LAMPS MULTI REFLECT OR<7YW> 		8-97260-156-2 01 1 0101-0107 ● ●
538 02.483 NUT
10.147 M6 W/DISHED WASHER 		8-94423-325-0 01 1 9804-0012 ● ● ● ● ● ●
538 02.483 NUT
10.147 M6 W/DISHED WASHER 		8-94423-325-0 01 1 0101- ● ●
538 02.483 NUT
INTERMITTENT WIPER<C13> 10.147 M6 W/DISHED WASHER 		8-94423-325-0 01 1 0101- ● ● ● ●
541 02.483 CLIP
EXC. INTERMITTENT WIPER<C13> 02.559 L=219.5 		1-09987-136-0 01 1 0101- ● ● ● ●

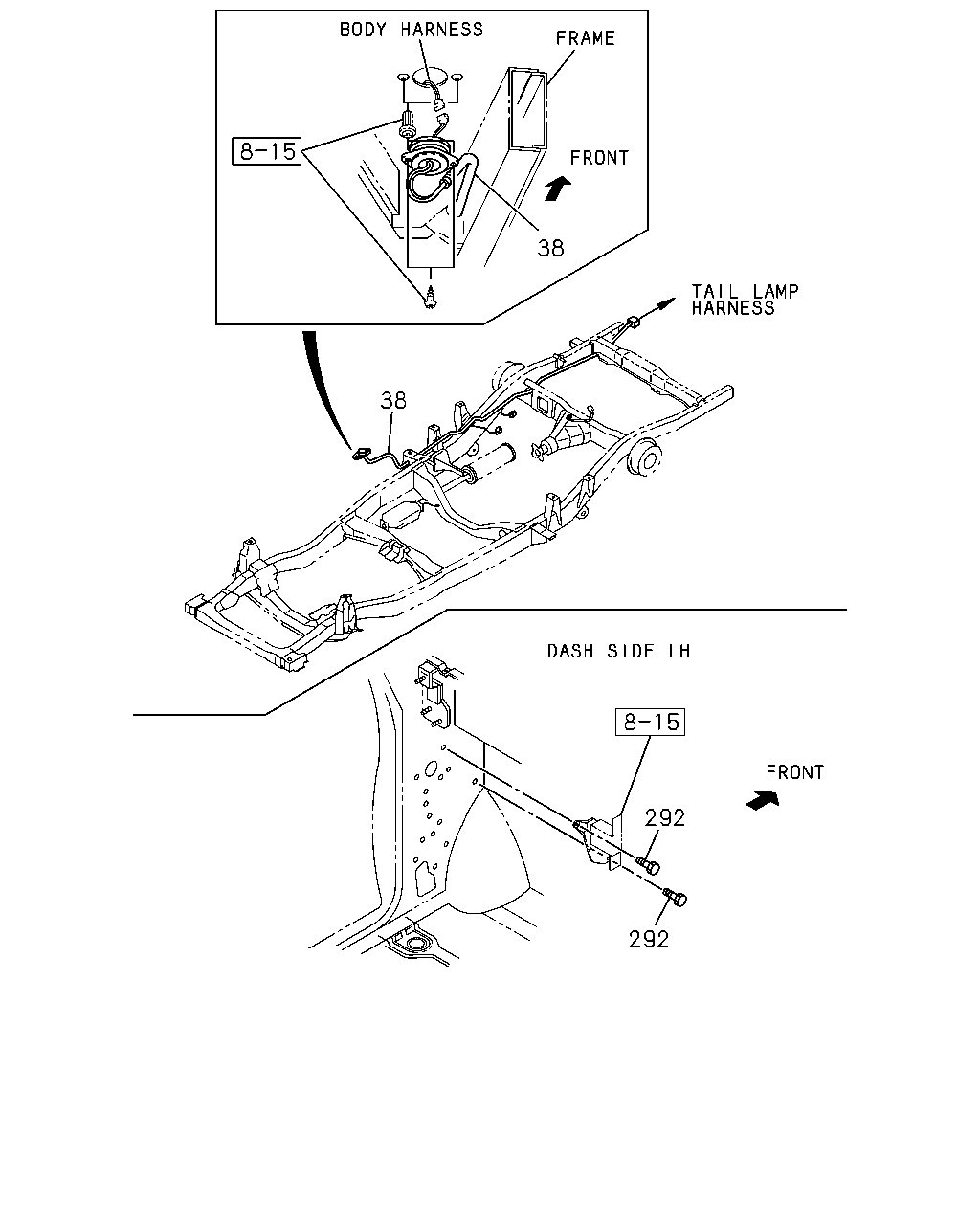

çizim 17461
38 38 292 292
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
38 02.480 HARNESS; CHAS 8-97139-746-2 01 1 9804-9906 ● ● ● ● ● ●
38 02.480 HARNESS; CHAS 8-97217-409-0 01 1 9907-0102 ● ● ● ● ● ●
38 02.480 HARNESS; CHAS
RR FOG LAMP<T79> 		8-97217-409-0 01 1 0103- ● ● ● ● ● ●
38 02.480 HARNESS; CHAS
EXC. RR FOG LAMP<T79> 		8-97217-407-0 01 1 0103- ● ● ● ● ● ●
292 02.483 BOLT; BOX
09.190 M6X30 FLANGE 		0-28680-630-0 02 1 9804- ● ● ● ● ● ●

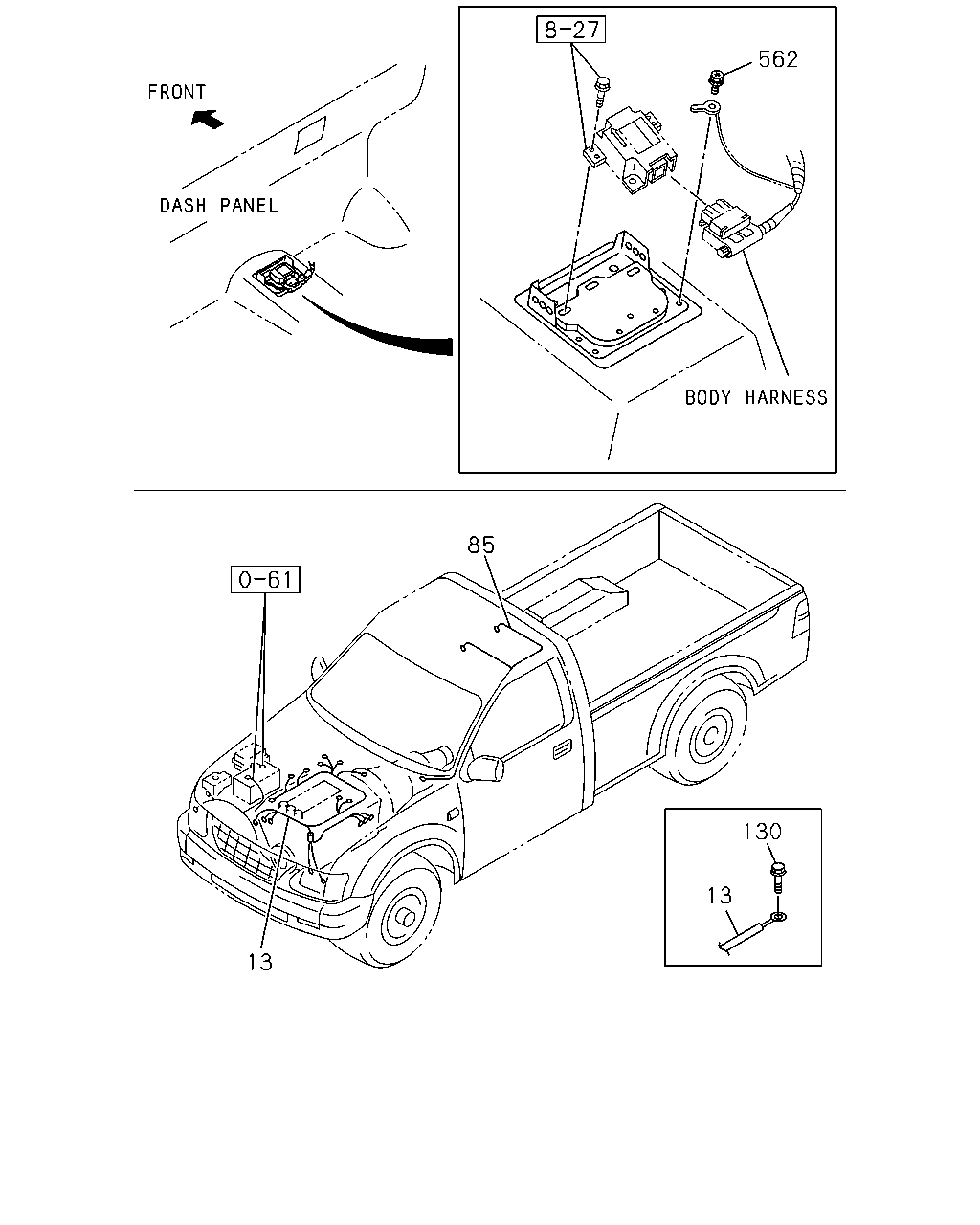

çizim 63923
562 85 130 13 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
13 02.525 HARNESS; ENG
4JA1 ENG(RLE) 		8-97165-596-1 01 1 9804-0012 ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4JA1 ENG(RLE) 		8-97261-563-1 01 1 0101-0107 ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4JA1 ENG(RLE) TURBOCHARGER<K51> M/T MSG 5 SPEED(M75) 		8-97261-563-1 01 1 0108- ● ● ● ●
13 02.525 HARNESS; ENG
4JA1 ENG(RLE) TURBOCHARGER<K51> M/T MUA 5 SPEED(RMN) 		8-97249-213-5 01 1 0108- ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) 		8-97160-415-2 01 1 9804-0012 ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) 		8-97261-551-1 01 1 0101-0107 ● ● ● ● ● ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) 		8-97261-551-1 01 1 0108- ● ● ● ● ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) A/T AISIN(RMD) 		8-97210-238-0 01 1 9806-9906 ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) A/T AISIN(RMD) 		8-97210-238-0 01 1 9907-0012 ● ●
13 02.525 HARNESS; ENG
4JG2 ENG(RJC) A/T AISIN(RMD) 		8-97261-552-2 01 1 0101- ● ●
85 06.495 HARNESS; ROOM LAMP
MAP LAMP<UF3> EXC. REAR DEFOGGER<C49> 		8-97132-558-1 01 1 9804- ● ● ● ●
85 06.495 HARNESS; ROOM LAMP
EXC. REAR DEFOGGER<C49>,MAP LAMP<UF3> 		8-97132-666-0 01 1 9804-9806 ● ● ● ●
85 06.495 HARNESS; ROOM LAMP
EXC. REAR DEFOGGER<C49>,MAP LAMP<UF3> 		8-97132-666-1 01 1 9807- ● ●
85 06.495 HARNESS; ROOM LAMP
REAR DEFOGGER<C49> MAP LAMP<UF3> 		8-97132-560-1 01 1 9804- ● ●
85 06.495 HARNESS; ROOM LAMP
REAR DEFOGGER<C49> EXC. MAP LAMP<UF3> 		8-97132-559-1 01 1 9804- ● ●
85 06.495 HARNESS; ROOM LAMP
EXC. MAP LAMP<UF3> 		8-97912-648-1 01 1 9807- ● ●
85 06.495 HARNESS; ROOM LAMP
MAP LAMP<UF3> EXC. REAR DEFOGGER<C49> 		8-97160-428-1 01 1 9804- ● ●
85 06.495 HARNESS; ROOM LAMP
REAR DEFOGGER<C49> 		8-97160-429-2 01 1 9804- ● ●
85 06.495 HARNESS; ROOM LAMP
EXC. REAR DEFOGGER<C49>,MAP LAMP<UF3> 		8-97139-705-1 01 1 9804- ● ●
130 02.559 BOLT; HARNESS EARTH
4JA1 ENG(RLE) TURBOCHARGER<K51> M/T MUA 5 SPEED(RMN) 00.662 M8X14 FLANGE 		0-28080-814-0 01 1 0108- ● ● ● ● ● ●
562 02.559 BOLT; GRAND,SRS
AIR BAG DRIVER(AJ3) M6X14 W/LK&PL WASHER 		8-97119-479-0 01 1 9907- ● ● ● ● ● ●

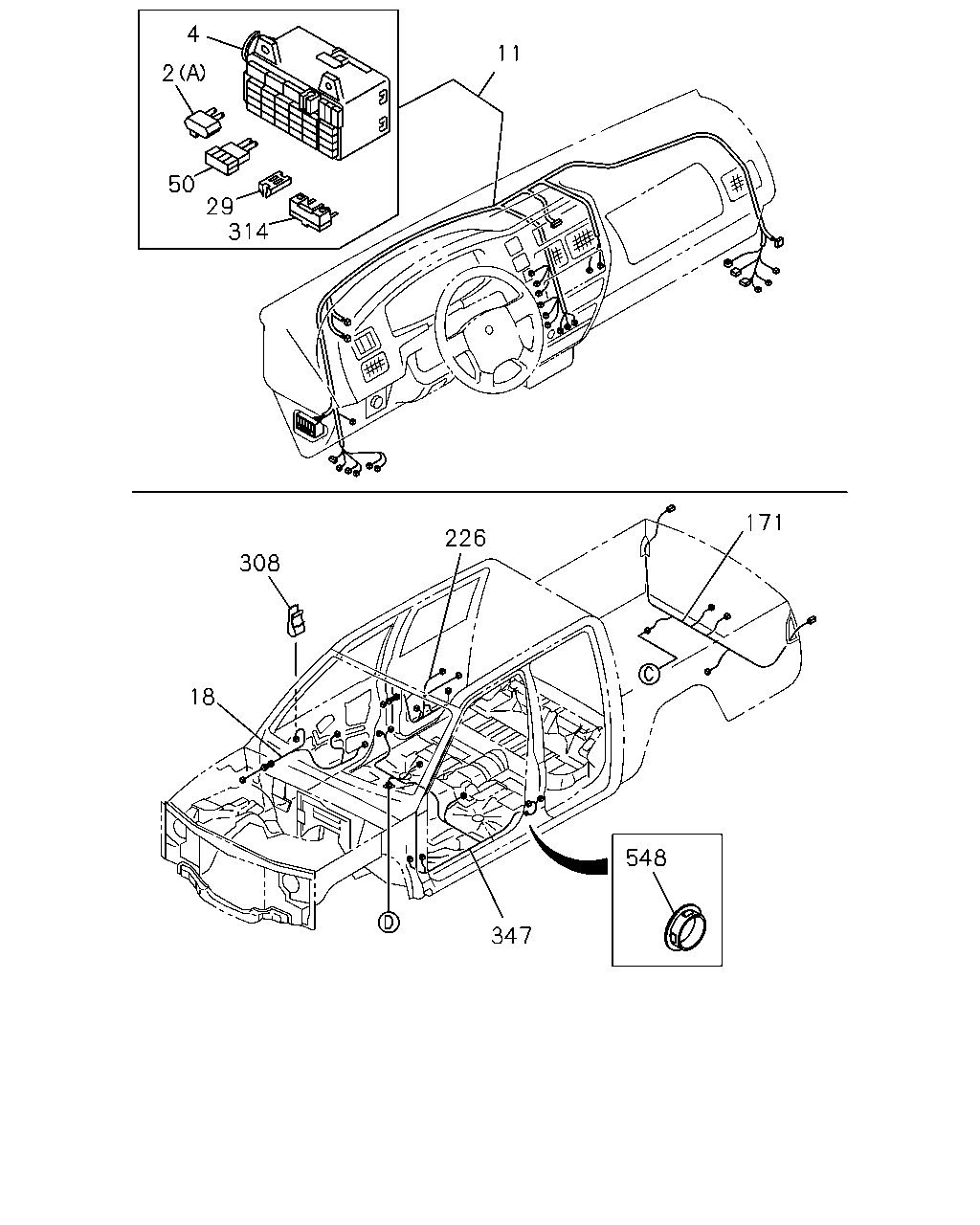

çizim 63924
4 11 2 50 29 314 171 226 308 18 548 347
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 AR 1 9804- ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 2P-2.0A 		8-97138-524-0 AR 1 9804- ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(C) BLACK 2P-1.5A 		8-94422-639-1 AR 1 0108- ● ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97102-735-4 01 1 9804- ● ● ● ● ● ●
11 02.480 HARNESS; BODY
GRADE S(RBA) AIR BAG DRIVER(AJ3) HEADLAMP WASHER<CE3> EXC. REAR DEFOGGER<C49>, TACHOMETER<U16>,HEATER IN SEAT<6QQ> 		8-97226-932-2 01 1 9907-0012 ● ● ● ● ● ●
11 02.480 HARNESS; BODY
GRADE S(RBA) AIR BAG DRIVER(AJ3) REAR DEFOGGER<C49> EXC. TACHOMETER<U16>,HEATER IN SEAT<6QQ> 		8-97226-932-2 01 1 9907-0012 ● ● ● ● ● ●
11 02.480 HARNESS; BODY
GRADE S(RBA) AIR BAG DRIVER(AJ3) HEATER IN SEAT<6QQ> EXC. TACHOMETER<U16> 		8-97226-932-2 01 1 9907-0012 ● ● ● ● ● ●
11 02.480 HARNESS; BODY
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) TACHOMETER<U16> HEATER IN SEAT<6QQ> EXC. AIR BAG DRIVER(AJ3),POWER WINDOW<A30> 		8-97260-843-1 01 1 0101-0208 ● ● ● ● ● ●
11 02.480 HARNESS; BODY
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) HEADLAMP WASHER<CE3> TACHOMETER<U16> EXC. AIR BAG DRIVER(AJ3),POWER WINDOW<A30>,REAR DEFOGGER<C49>,HEATER IN SE AT<6QQ> 		8-97260-843-1 01 1 0101-0208 ● ● ● ● ● ●
11 02.480 HARNESS; BODY
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) REAR DEFOGGER<C49> TACHOMETER<U16> EXC. AIR BAG DRIVER(AJ3),POWER WINDOW<A30>,HEATER IN SEAT<6QQ> 		8-97260-843-1 01 1 0101-0208 ● ● ● ●
11 02.480 HARNESS; BODY
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) HEADLAMP WASHER<CE3> TACHOMETER<U16> EXC. AIR BAG DRIVER(AJ3),POWER WINDOW<A30>,REAR DEFOGGER<C49> 		8-97260-843-1 01 1 0209- ● ● ● ● ● ●
11 02.480 HARNESS; BODY
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) REAR DEFOGGER<C49> TACHOMETER<U16> EXC. AIR BAG DRIVER(AJ3),POWER WINDOW<A30> 		8-97260-843-1 01 1 0209- ● ● ● ●
11 02.480 HARNESS; BODY
GRADE S(RBA) AIR BAG DRIVER(AJ3) HEADLAMP WASHER<CE3> TACHOMETER<U16> EXC. REAR DEFOGGER<C49>,HEATER IN SEAT<6QQ> 		8-97231-073-1 01 1 9907-0012 ● ● ● ● ● ●
11 02.480 HARNESS; BODY
GRADE S(RBA) AIR BAG DRIVER(AJ3) REAR DEFOGGER<C49> TACHOMETER<U16> EXC. HEATER IN SEAT<6QQ> 		8-97231-073-1 01 1 9907-0012 ● ● ● ● ● ●
11 02.480 HARNESS; BODY
GRADE S(RBA) AIR BAG DRIVER(AJ3) TACHOMETER<U16> HEATER IN SEAT<6QQ> 		8-97231-073-1 01 1 9907-0012 ● ● ● ● ● ●
11 02.480 HARNESS; BODY
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AIR BAG DRIVER(AJ3) TACHOMETER<U16> HEATER IN SEAT<6QQ> AIR BAG PASSENGER(7FA) EXC. POWER WINDOW<A30> 		8-97260-838-1 01 1 0101-0208 ● ● ● ● ● ●
11 02.480 HARNESS; BODY
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AIR BAG DRIVER(AJ3) HEADLAMP WASHER<CE3> TACHOMETER<U16> AIR BAG PASSENGER(7FA) EXC. POWER WINDOW<A30>,REAR DEFOGGER<C49>,HEATER IN SEAT<6QQ> 		8-97260-838-1 01 1 0101-0208 ● ● ● ● ● ●
11 02.480 HARNESS; BODY
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AIR BAG DRIVER(AJ3) REAR DEFOGGER<C49> TACHOMETER<U16> AIR BAG PASSENGER(7FA) EXC. POWER WINDOW<A30>,HEATER IN SEAT<6QQ> 		8-97260-838-1 01 1 0101-0208 ● ● ● ●
11 02.480 HARNESS; BODY
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AIR BAG DRIVER(AJ3) HEADLAMP WASHER<CE3> TACHOMETER<U16> AIR BAG PASSENGER(7FA) EXC. POWER WINDOW<A30>,REAR DEFOGGER<C49> 		8-97260-838-1 01 1 0209- ● ● ● ● ● ●
11 02.480 HARNESS; BODY
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AIR BAG DRIVER(AJ3) REAR DEFOGGER<C49> TACHOMETER<U16> AIR BAG PASSENGER(7FA) EXC. POWER WINDOW<A30> 		8-97260-838-1 01 1 0209- ● ● ● ●
11 02.480 HARNESS; BODY
GRADE S(RBA) AIR BAG DRIVER(AJ3) TACHOMETER<U16> EXC. HEADLAMP WASHER<CE3>,REAR DEFOGGER<C49>,HEATER IN SEAT<6QQ> 		8-97231-074-0 01 1 9907-0012 ● ● ● ● ● ●
11 02.480 HARNESS; BODY
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AIR BAG DRIVER(AJ3) POWER WINDOW<A30> TACHOMETER<U16> AIR BAG PASSENGER(7FA) 		8-97260-848-1 01 1 0101- ● ● ● ● ● ●
11 02.480 HARNESS; BODY
GRADE S(RBA) HEADLAMP WASHER<CE3> EXC. AIR BAG DRIVER(AJ3),REAR DEFOGGER<C49>,TACHOMETER<U16>,HEATER IN SEAT <6QQ> 		8-97227-183-1 01 1 9907-0012 ● ● ● ● ● ●
11 02.480 HARNESS; BODY
GRADE S(RBA) REAR DEFOGGER<C49> EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16>,HEATER IN SEAT<6QQ> 		8-97227-183-1 01 1 9907-0012 ● ● ● ● ● ●
11 02.480 HARNESS; BODY
GRADE S(RBA) HEATER IN SEAT<6QQ> EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 		8-97227-183-1 01 1 9907-0012 ● ● ● ● ● ●
11 02.480 HARNESS; BODY
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) HEATER IN SEAT<6QQ> EXC. AIR BAG DRIVER(AJ3),POWER WINDOW<A30>,TACHOMETER<U16> 		8-97260-842-1 01 1 0101-0208 ● ● ● ● ● ●
11 02.480 HARNESS; BODY
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) HEADLAMP WASHER<CE3> EXC. AIR BAG DRIVER(AJ3),POWER WINDOW<A30>,REAR DEFOGGER<C49>, TACHOMETER<U16>,HEATER IN SEAT<6QQ> 		8-97260-842-1 01 1 0101-0208 ● ● ● ● ● ●
11 02.480 HARNESS; BODY
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) REAR DEFOGGER<C49> EXC. AIR BAG DRIVER(AJ3),POWER WINDOW<A30>,TACHOMETER<U16>,HEATER IN SEAT<6QQ> 		8-97260-842-1 01 1 0101-0208 ● ● ● ●
11 02.480 HARNESS; BODY
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) HEADLAMP WASHER<CE3> EXC. AIR BAG DRIVER(AJ3),POWER WINDOW<A30>,REAR DEFOGGER<C49>, TACHOMETER<U16> 		8-97260-842-1 01 1 0209- ● ● ● ● ● ●
11 02.480 HARNESS; BODY
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) REAR DEFOGGER<C49> EXC. AIR BAG DRIVER(AJ3),POWER WINDOW<A30>,TACHOMETER<U16> 		8-97260-842-1 01 1 0209- ● ● ● ●
11 02.480 HARNESS; BODY
GRADE S(RBA) HEADLAMP WASHER<CE3> TACHOMETER<U16> EXC. AIR BAG DRIVER(AJ3),REAR DEFOGGER<C49>,HEATER IN SEAT<6QQ> 		8-97231-072-0 01 1 9907-0006 ● ● ● ● ● ●
11 02.480 HARNESS; BODY
GRADE S(RBA) REAR DEFOGGER<C49> TACHOMETER<U16> EXC. AIR BAG DRIVER(AJ3),HEATER IN SEAT<6QQ> 		8-97231-072-0 01 1 9907-0006 ● ● ● ● ● ●
11 02.480 HARNESS; BODY
GRADE S(RBA) TACHOMETER<U16> HEATER IN SEAT<6QQ> EXC. AIR BAG DRIVER(AJ3) 		8-97231-072-0 01 1 9907-0006 ● ● ● ● ● ●
11 02.480 HARNESS; BODY
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) GRADE S(RBA) TACHOMETER<U16> HEATER IN SEAT<6QQ> EXC. AIR BAG DRIVER(AJ3) 		8-97231-072-0 01 1 0007-0012 ● ● ● ● ● ●
11 02.480 HARNESS; BODY
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) GRADE S(RBA) HEADLAMP WASHER<CE3> TACHOMETER<U16> EXC. AIR BAG DRIVER(AJ3),REAR DEFOGGER<C49>,HEATER IN SEAT<6QQ> 		8-97231-072-0 01 1 0007-0012 ● ● ● ● ● ●
11 02.480 HARNESS; BODY
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) GRADE S(RBA) REAR DEFOGGER<C49> TACHOMETER<U16> EXC. AIR BAG DRIVER(AJ3),HEATER IN SEAT<6QQ> 		8-97231-072-0 01 1 0007-0012 ● ● ● ●
11 02.480 HARNESS; BODY
GRADE S(RBA) TACHOMETER<U16> EXC. AIR BAG DRIVER(AJ3),HEADLAMP WASHER<CE3>,REAR DEFOGGER<C49>,HEATER IN SEAT<6QQ> 		8-97231-071-1 01 1 9907-0012 ● ● ● ● ● ●
11 02.480 HARNESS; BODY
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AIR BAG DRIVER(AJ3) TACHOMETER<U16> AIR BAG PASSENGER(7FA) EXC. POWER WINDOW<A30>,HEADLAMP WASHER<CE3>,REAR DEFOGGER<C49>,HEATER IN S EAT<6QQ> 		8-97260-839-1 01 1 0101-0208 ● ● ● ● ● ●
11 02.480 HARNESS; BODY
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AIR BAG DRIVER(AJ3) TACHOMETER<U16> AIR BAG PASSENGER(7FA) EXC. POWER WINDOW<A30>,HEADLAMP WASHER<CE3>,REAR DEFOGGER<C49> 		8-97260-839-1 01 1 0209- ● ● ● ● ● ●
11 02.480 HARNESS; BODY
EXC. HEADLAMP WASHER<CE3>,REAR DEFOGGER<C49>,HEATER IN SEAT<6QQ> 		8-97165-637-0 01 1 9804-9805 ● ● ● ● ● ●
11 02.480 HARNESS; BODY
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. HEADLAMP WASHER<CE3>,REAR DEFOGGER<C49>,HEATER IN SEAT<6QQ> 		8-97165-637-0 01 1 9806-9906 ● ● ● ● ● ●
11 02.480 HARNESS; BODY
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) GRADE LS(RBD) EXC. HEADLAMP WASHER<CE3>,REAR DEFOGGER<C49>,CANARY ISLANDS SPEC(6KF),HEAT ER IN SEAT<6QQ> 		8-97226-935-1 01 1 9907-0009 ● ● ● ●
11 02.480 HARNESS; BODY
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AIR BAG DRIVER(AJ3) POWER WINDOW<A30> EXC. HEADLAMP WASHER<CE3>,REAR DEFOGGER<C49>,CANARY ISLANDS SPEC(6KF),HEAT ER IN SEAT<6QQ> 		8-97226-935-1 01 1 0010-0012 ● ● ● ●
11 02.480 HARNESS; BODY
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) POWER WINDOW<A30> EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 		8-97260-841-1 01 1 0101- ● ● ● ● ● ●
11 02.480 HARNESS; BODY
HEATER IN SEAT<6QQ> 		8-97165-636-1 01 1 9804-9805 ● ● ● ● ● ●
11 02.480 HARNESS; BODY
HEADLAMP WASHER<CE3> 		8-97165-636-1 01 1 9804-9805 ● ● ● ● ● ●
11 02.480 HARNESS; BODY
REAR DEFOGGER<C49> 		8-97165-636-1 01 1 9804-9805 ● ● ● ●
11 02.480 HARNESS; BODY
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) HEATER IN SEAT<6QQ> 		8-97165-636-1 01 1 9806-9906 ● ● ● ●
11 02.480 HARNESS; BODY
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) HEADLAMP WASHER<CE3> EXC. REAR DEFOGGER<C49>,HEATER IN SEAT<6QQ> 		8-97165-636-1 01 1 9806-9906 ● ● ● ●
11 02.480 HARNESS; BODY
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) REAR DEFOGGER<C49> EXC. HEATER IN SEAT<6QQ> 		8-97165-636-1 01 1 9806-9906 ● ● ●
11 02.480 HARNESS; BODY
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) GRADE LS(RBD) HEADLAMP WASHER<CE3> EXC. REAR DEFOGGER<C49>,CANARY ISLANDS SPEC(6KF),HEATER IN SEAT<6QQ> 		8-97226-934-2 01 1 9907-0009 ● ● ● ●
11 02.480 HARNESS; BODY
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) GRADE LS(RBD) HEATER IN SEAT<6QQ> EXC. CANARY ISLANDS SPEC(6KF) 		8-97226-934-2 01 1 9907-0009 ● ● ● ●
11 02.480 HARNESS; BODY
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) GRADE LS(RBD) REAR DEFOGGER<C49> EXC. CANARY ISLANDS SPEC(6KF),HEATER IN SEAT<6QQ> 		8-97226-934-2 01 1 9907-0009 ● ● ●
11 02.480 HARNESS; BODY
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AIR BAG DRIVER(AJ3) POWER WINDOW<A30> HEADLAMP WASHER<CE3> EXC. REAR DEFOGGER<C49>,CANARY ISLANDS SPEC(6KF),HEATER IN SEAT<6QQ> 		8-97226-934-2 01 1 0010-0012 ● ● ● ●
11 02.480 HARNESS; BODY
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AIR BAG DRIVER(AJ3) POWER WINDOW<A30> HEATER IN SEAT<6QQ> EXC. CANARY ISLANDS SPEC(6KF) 		8-97226-934-2 01 1 0010-0012 ● ● ● ●
11 02.480 HARNESS; BODY
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AIR BAG DRIVER(AJ3) POWER WINDOW<A30> REAR DEFOGGER<C49> EXC. CANARY ISLANDS SPEC(6KF),HEATER IN SEAT<6QQ> 		8-97226-934-2 01 1 0010-0012 ● ● ●
11 02.480 HARNESS; BODY
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) POWER WINDOW<A30> EXC. AIR BAG DRIVER(AJ3) 		8-97260-840-2 01 1 0010-0012 ● ● ● ●
11 02.480 HARNESS; BODY
A/T AISIN(RMD) GRADE S(RBA) 		8-97234-135-1 01 1 9910-0009 ● ●
11 02.480 HARNESS; BODY
4JG2 ENG(RJC) A/T AISIN(RMD) GRADE S(RBA) 		8-97234-135-1 01 1 0010-0012 ● ●
11 02.480 HARNESS; BODY
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) TACHOMETER<U16> EXC. AIR BAG DRIVER(AJ3),POWER WINDOW<A30>,HEADLAMP WASHER<CE3>,REAR DEFOG GER<C49>,HEATER IN SEAT<6QQ> 		8-97260-837-1 01 1 0101-0208 ● ● ● ● ● ●
11 02.480 HARNESS; BODY
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) TACHOMETER<U16> EXC. AIR BAG DRIVER(AJ3),POWER WINDOW<A30>,HEADLAMP WASHER<CE3>,REAR DEFOG GER<C49> 		8-97260-837-1 01 1 0209- ● ● ● ● ● ●
11 02.480 HARNESS; BODY
A/T AISIN(RMD) HEADLAMP WASHER<CE3> EXC. REAR DEFOGGER<C49>,HEATER IN SEAT<6QQ> 		8-97226-936-1 01 1 9907-9909 ● ●
11 02.480 HARNESS; BODY
A/T AISIN(RMD) REAR DEFOGGER<C49> EXC. HEATER IN SEAT<6QQ> 		8-97226-936-1 01 1 9907-9909 ● ●
11 02.480 HARNESS; BODY
A/T AISIN(RMD) HEATER IN SEAT<6QQ> 		8-97226-936-1 01 1 9907-9909 ● ●
11 02.480 HARNESS; BODY
A/T AISIN(RMD) GRADE LS(RBD) HEADLAMP WASHER<CE3> EXC. REAR DEFOGGER<C49>,HEATER IN SEAT<6QQ> 		8-97226-936-1 01 1 9910-0009 ● ●
11 02.480 HARNESS; BODY
A/T AISIN(RMD) GRADE LS(RBD) REAR DEFOGGER<C49> EXC. HEATER IN SEAT<6QQ> 		8-97226-936-1 01 1 9910-0009 ● ●
11 02.480 HARNESS; BODY
A/T AISIN(RMD) GRADE LS(RBD) HEATER IN SEAT<6QQ> 		8-97226-936-1 01 1 9910-0009 ● ●
11 02.480 HARNESS; BODY
4JG2 ENG(RJC) A/T AISIN(RMD) GRADE LS(RBD) HEADLAMP WASHER<CE3> EXC. REAR DEFOGGER<C49>,HEATER IN SEAT<6QQ> 		8-97226-936-1 01 1 0010-0012 ● ●
11 02.480 HARNESS; BODY
4JG2 ENG(RJC) A/T AISIN(RMD) GRADE LS(RBD) REAR DEFOGGER<C49> EXC. HEATER IN SEAT<6QQ> 		8-97226-936-1 01 1 0010-0012 ● ●
11 02.480 HARNESS; BODY
4JG2 ENG(RJC) A/T AISIN(RMD) GRADE LS(RBD) HEATER IN SEAT<6QQ> 		8-97226-936-1 01 1 0010-0012 ● ●
11 02.480 HARNESS; BODY
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. AIR BAG DRIVER(AJ3),POWER WINDOW<A30>,HEADLAMP WASHER<CE3>,REAR DEFOG GER<C49>,TACHOMETER<U16>,HEATER IN SEAT<6QQ> 		8-97260-836-1 01 1 0101-0208 ● ● ● ● ● ●
11 02.480 HARNESS; BODY
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. AIR BAG DRIVER(AJ3),POWER WINDOW<A30>,HEADLAMP WASHER<CE3>,REAR DEFOG GER<C49>,TACHOMETER<U16> 		8-97260-836-1 01 1 0209- ● ● ● ● ● ●
11 02.480 HARNESS; BODY
A/T AISIN(RMD) EXC. HEADLAMP WASHER<CE3>,REAR DEFOGGER<C49>,HEATER IN SEAT<6QQ> 		8-97226-937-1 01 1 9907-9909 ● ●
11 02.480 HARNESS; BODY
A/T AISIN(RMD) GRADE LS(RBD) EXC. HEADLAMP WASHER<CE3>,REAR DEFOGGER<C49>,HEATER IN SEAT<6QQ> 		8-97226-937-1 01 1 9910-0009 ● ●
11 02.480 HARNESS; BODY
4JG2 ENG(RJC) A/T AISIN(RMD) GRADE LS(RBD) EXC. HEADLAMP WASHER<CE3>,REAR DEFOGGER<C49>,HEATER IN SEAT<6QQ> 		8-97226-937-1 01 1 0010-0012 ● ●
11 02.480 HARNESS; BODY
4JG2 ENG(RJC) A/T AISIN(RMD) GRADE S(RBA) POWER WINDOW<A30> 		8-97260-844-1 01 1 0101- ● ●
11 02.480 HARNESS; BODY
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) GRADE LS(RBD) HEADLAMP WASHER<CE3> CANARY ISLANDS SPEC(6KF) EXC. REAR DEFOGGER<C49>,HEATER IN SEAT<6QQ> 		8-97228-004-2 01 1 9907-0009 ● ●
11 02.480 HARNESS; BODY
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) GRADE LS(RBD) REAR DEFOGGER<C49> CANARY ISLANDS SPEC(6KF) EXC. HEATER IN SEAT<6QQ> 		8-97228-004-2 01 1 9907-0009 ● ●
11 02.480 HARNESS; BODY
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) GRADE LS(RBD) CANARY ISLANDS SPEC(6KF) HEATER IN SEAT<6QQ> 		8-97228-004-2 01 1 9907-0009 ● ●
11 02.480 HARNESS; BODY
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AIR BAG DRIVER(AJ3) POWER WINDOW<A30> HEADLAMP WASHER<CE3> CANARY ISLANDS SPEC(6KF) EXC. REAR DEFOGGER<C49>,HEATER IN SEAT<6QQ> 		8-97228-004-2 01 1 0010-0012 ● ●
11 02.480 HARNESS; BODY
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AIR BAG DRIVER(AJ3) POWER WINDOW<A30> REAR DEFOGGER<C49> CANARY ISLANDS SPEC(6KF) EXC. HEATER IN SEAT<6QQ> 		8-97228-004-2 01 1 0010-0012 ● ●
11 02.480 HARNESS; BODY
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AIR BAG DRIVER(AJ3) POWER WINDOW<A30> CANARY ISLANDS SPEC(6KF) HEATER IN SEAT<6QQ> 		8-97228-004-2 01 1 0010-0012 ● ●
11 02.480 HARNESS; BODY
4JG2 ENG(RJC) A/T AISIN(RMD) GRADE S(RBA) EXC. POWER WINDOW<A30> 		8-97260-845-1 01 1 0101- ● ●
11 02.480 HARNESS; BODY
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) GRADE LS(RBD) CANARY ISLANDS SPEC(6KF) EXC. HEADLAMP WASHER<CE3>,REAR DEFOGGER<C49>,HEATER IN SEAT<6QQ> 		8-97228-006-1 01 1 9907-0009 ● ●
11 02.480 HARNESS; BODY
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AIR BAG DRIVER(AJ3) POWER WINDOW<A30> CANARY ISLANDS SPEC(6KF) EXC. HEADLAMP WASHER<CE3>,REAR DEFOGGER<C49>,HEATER IN SEAT<6QQ> 		8-97228-006-1 01 1 0010-0012 ● ●
11 02.480 HARNESS; BODY
4JG2 ENG(RJC) A/T AISIN(RMD) GRADE LS(RBD) 		8-97260-846-1 01 1 0101- ● ●
11 02.480 HARNESS; BODY
A/T AISIN(RMD) HEADLAMP WASHER<CE3> EXC. REAR DEFOGGER<C49>,HEATER IN SEAT<6QQ> 		8-97210-234-0 01 1 9806-9906 ●
11 02.480 HARNESS; BODY
A/T AISIN(RMD) REAR DEFOGGER<C49> EXC. HEATER IN SEAT<6QQ> 		8-97210-234-0 01 1 9806-9906 ●
11 02.480 HARNESS; BODY
A/T AISIN(RMD) HEATER IN SEAT<6QQ> 		8-97210-234-0 01 1 9806-9906 ●
11 02.480 HARNESS; BODY
GRADE S(RBA) AIR BAG DRIVER(AJ3) EXC. HEADLAMP WASHER<CE3>,REAR DEFOGGER<C49>,TACHOMETER<U16>,HEATER IN SEA T<6QQ> 		8-97226-933-1 01 1 9907-0012 ● ● ● ● ● ●
11 02.480 HARNESS; BODY
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AIR BAG DRIVER(AJ3) POWER WINDOW<A30> TACHOMETER<U16> EXC. AIR BAG PASSENGER(7FA) 		8-97260-850-1 01 1 0101- ● ● ● ● ● ●
11 02.480 HARNESS; BODY
A/T AISIN(RMD) EXC. HEADLAMP WASHER<CE3>,REAR DEFOGGER<C49>,HEATER IN SEAT<6QQ> 		8-97210-235-0 01 1 9806-9906 ●
11 02.480 HARNESS; BODY
GRADE S(RBA) EXC. AIR BAG DRIVER(AJ3),HEADLAMP WASHER<CE3>,REAR DEFOGGER<C49>,HEATER IN SEAT<6QQ> 		8-97217-394-1 01 1 9907-0012 ● ● ● ● ● ●
11 02.480 HARNESS; BODY
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) POWER WINDOW<A30> EXC. AIR BAG DRIVER(AJ3), TACHOMETER<U16> 		8-97260-840-2 01 1 0101-0107 ● ● ● ● ● ●
11 02.480 HARNESS; BODY
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) POWER WINDOW<A30> TACHOMETER<U16> EXC. AIR BAG DRIVER(AJ3) 		8-97260-840-2 01 1 0108- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR 8-97181-137-0 02 1 9804-9906 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW<A30> 		8-97181-137-1 02 1 9907- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> DRIVER SIDE 		8-97132-569-3 01 1 9907- ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW<A30> ASSIST SIDE 		8-97166-696-2 01 1 9907- ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW<A30> EXC. AUTO DOOR LOCK<AU4> DRIVER SIDE 		8-97149-915-0 01 1 9907-0012 ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW<A30> EXC. AUTO DOOR LOCK<AU4> DRIVER SIDE 		8-97149-915-2 01 1 0101- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW<A30> EXC. AUTO DOOR LOCK<AU4> ASSIST SIDE 		8-97149-916-0 01 1 9907-0012 ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW<A30> EXC. AUTO DOOR LOCK<AU4> ASSIST SIDE 		8-97149-916-2 01 1 0101- ● ● ● ● ● ●
29 02.483 COVER; FUSE BOX
GRADE S(RBA) AIR BAG DRIVER(AJ3) 		8-97103-389-1 01 1 9907-0009 ● ● ● ● ● ●
29 02.483 COVER; FUSE BOX
GRADE LS(RBD) 		8-97103-389-1 01 1 9907-0009 ● ● ● ● ● ●
29 02.483 COVER; FUSE BOX
GRADE S(RBA) AIR BAG DRIVER(AJ3) 		8-97103-389-1 01 1 0010-0012 ● ● ● ● ● ●
29 02.483 COVER; FUSE BOX
AIR BAG DRIVER(AJ3) POWER WINDOW<A30> 		8-97103-389-1 01 1 0010-0012 ● ● ● ●
29 02.483 COVER; FUSE BOX
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AIR BAG DRIVER(AJ3) TACHOMETER<U16> 		8-97103-389-1 01 1 0101- ● ● ● ● ● ●
29 02.483 COVER; FUSE BOX
A/T AISIN(RMD) GRADE LS(RBD) 		8-97103-389-1 01 1 0101- ● ●
50 08.965 FUSE; BODY HARNESS
10A MINI RED 		8-97062-022-0 AR 1 9804- ● ● ● ● ● ●
50 08.965 FUSE; BODY HARNESS
15A MINI BLUE 		8-97062-023-0 AR 1 9804- ● ● ● ● ● ●
50 08.965 FUSE; BODY HARNESS
20A MINI YELLOW 		8-97062-024-0 AR 1 9804- ● ● ● ● ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP
RR COMB LAMP VERTICAL<T98> 		8-97147-710-0 01 1 9804-9906 ● ● ● ● ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP
RR COMB LAMP VERTICAL<T98> 		8-97147-710-0 01 1 9907-0012 ● ● ● ● ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP
RR COMB LAMP VERTICAL<T98> 		8-97147-710-0 01 1 0101-0103 ● ● ● ● ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP
RR COMB LAMP VERTICAL<T98> RR FOG LAMP<T79> 		8-97147-710-0 01 1 0104- ● ● ● ● ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP
RR COMB LAMP VERTICAL<T98> EXC. RR FOG LAMP<T79> 		8-97147-711-0 01 1 0104- ● ● ● ● ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP
EXC. RR COMB LAMP VERTICAL<T98> 		8-97147-715-0 01 1 9804-0103 ● ● ● ● ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP
RR FOG LAMP<T79> EXC. RR COMB LAMP VERTICAL<T98> 		8-97147-715-0 01 1 0104-0204 ● ● ● ● ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP
RR FOG LAMP<T79> EXC. RR COMB LAMP VERTICAL<T98> 		8-97147-715-0 01 1 0205- ● ● ● ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP
EXC. RR FOG LAMP<T79>,RR COMB LAMP VERTICAL<T98> 		8-97147-712-0 01 1 0104-0204 ● ● ● ● ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP
EXC. RR FOG LAMP<T79>,RR COMB LAMP VERTICAL<T98> 		8-97147-712-0 01 1 0205- ● ● ● ● ●
226 02.480 HARNESS; RR DOOR
POWER WINDOW<A30> 		8-97188-858-1 02 1 9907- ● ●
308 02.559 BRACKET; CONNECTOR
POWER WINDOW<A30> 		8-97102-552-0 02 1 9907-0012 ● ● ● ●
308 02.559 BRACKET; CONNECTOR
POWER WINDOW<A30> 		8-97102-552-0 02 1 0101- ● ● ● ● ● ●
314 02.510 RESISTOR; HARNESS
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) GRADE LS(RBD) CANARY ISLANDS SPEC(6KF) 		8-97133-042-0 01 1 9907-0009 ● ●
314 02.510 RESISTOR; HARNESS
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AIR BAG DRIVER(AJ3) POWER WINDOW<A30> CANARY ISLANDS SPEC(6KF) 		8-97133-042-0 01 1 0010-0012 ● ●
314 02.510 RESISTOR; HARNESS
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AIR BAG DRIVER(AJ3) POWER WINDOW<A30> TACHOMETER<U16> EXC. AIR BAG PASSENGER(7FA) 		8-97133-042-0 01 1 0101- ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
HEATER IN SEAT<6QQ> 		8-97142-241-1 01 1 9804-9906 ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. POWER WINDOW<A30> 		8-97217-424-2 01 1 9907- ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. HEATER IN SEAT<6QQ> 		8-97141-738-1 01 1 9804-9906 ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
POWER WINDOW<A30> 		8-97217-422-3 01 1 9907- ● ●
347 02.480 HARNESS; CABLE,RR BODY
POWER WINDOW<A30> 		8-97231-010-0 01 1 9907-0012 ● ●
347 02.480 HARNESS; CABLE,RR BODY
POWER WINDOW<A30> 		8-97231-010-2 01 1 0101- ● ● ● ●
548 02.483 GROMMET
04.785 		8-94126-868-0 02 1 9804-9906 ● ●
548 02.483 GROMMET
EXC. POWER WINDOW<A30> 04.785 		8-94126-868-0 02 1 9907- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
