◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50802 - TFR/TFS(EUROPE)-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#45116) — 483 parça

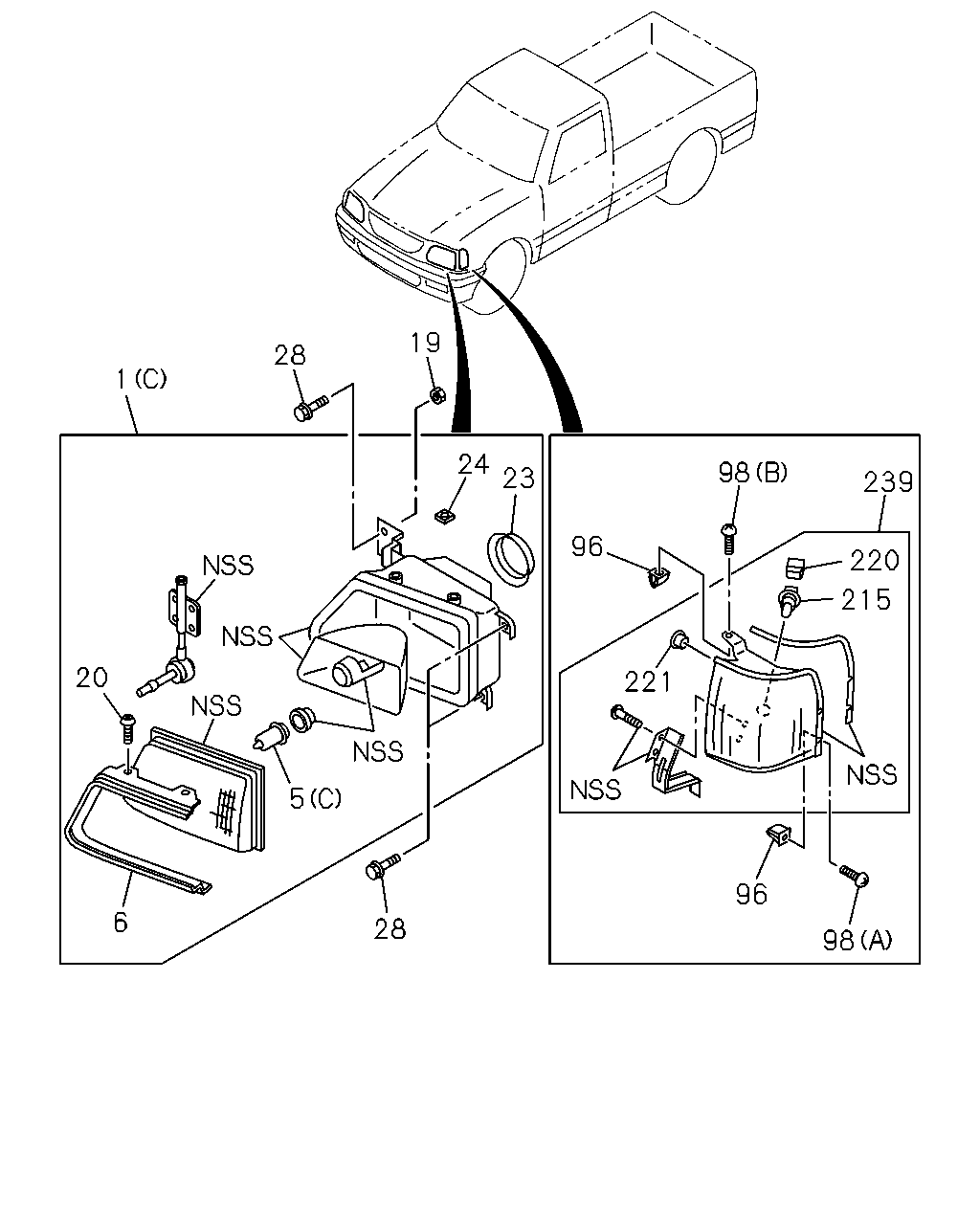

çizim 64029
19 28 1 24 23 98 239 96 220 215 20 221 5 96 6 28 98
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP<TT5> (A) 12V 60/55W 		8-97044-423-2 01 1 9804- ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP<TT5> (A) 12V 60/55W 		8-97044-422-3 01 1 9804- ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP<TT5>,YELLOW HEAD LAMP<T75> (A) 12V 45/40W 		8-97039-811-2 01 1 9804-0009 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,HALOGEN HEAD LAMP<TT5>,YELLOW HEADLAMP<T75> (A) 12V 45/40W 		8-97039-811-2 01 1 0010-0012 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP<TT5>,YELLOW HEAD LAMP<T75>,HALOGEN HEAD LAMPS MULTIREFLECTOR<7YW> (A) 12V 45/40W 		8-97039-811-2 01 1 0101-0205 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP<TT5>,HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 12V 45/40W 		8-97039-811-2 01 1 0206- ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP<TT5>,YELLOW HEAD LAMP<T75> (A) 12V 45/40W 		8-97039-810-3 01 1 9804-0009 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,HALOGEN HEAD LAMP<TT5>,YELLOW HEADLAMP<T75> (A) 12V 45/40W 		8-97039-810-3 01 1 0010-0012 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP<TT5>,YELLOW HEAD LAMP<T75>,HALOGEN HEAD LAMPS MULTIREFLECTOR<7YW> (A) 12V 45/40W 		8-97039-810-3 01 1 0101-0205 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP<TT5>,HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 12V 45/40W 		8-97039-810-3 01 1 0206- ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
YELLOW HEAD LAMP<T75> (A) 12V 45/40W 		8-97039-813-2 01 1 9804-0205 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
YELLOW HEAD LAMP<T75> (A) 12V 45/40W 		8-97039-812-3 01 1 9804-0205 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97213-008-0 01 1 0010-0012 ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (C) 		8-97246-507-1 01 1 0101-0101 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (C) 		8-97246-507-1 01 1 0101-0107 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (C) 		8-97246-507-1 01 1 0108-0108 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (C) 		8-97311-000-1 01 1 0109- ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97213-007-0 01 1 0010-0012 ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (C) 		8-97246-506-1 01 1 0101-0101 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (C) 		8-97246-506-1 01 1 0101-0107 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (C) 		8-97246-506-1 01 1 0108-0108 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (C) 		8-97311-001-1 01 1 0109- ● ● ● ●
5 02.727 BULB; HEADLAMP
HALOGEN HEAD LAMP<TT5> (B) 12V 60/55W 		1-88302-128-0 02 1 9804- ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
EXC. HALOGEN HEAD LAMP<TT5>,YELLOW HEAD LAMP<T75> 08.991 (A) 12V 45/50W 		5-82193-001-0 02 1 9804-0009 ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,HALOGEN HEAD LAMP<TT5>,YELLOW HEADLAMP<T75> 08.991 (A) 12V 45/50W 		5-82193-001-0 02 1 0010-0012 ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
EXC. HALOGEN HEAD LAMP<TT5>,YELLOW HEAD LAMP<T75>,HALOGEN HEAD LAMPS MULTIREFLECTOR<7YW> 08.991 (A) 12V 45/50W 		5-82193-001-0 02 1 0101-0205 ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
EXC. HALOGEN HEAD LAMP<TT5>,HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 08.991 12V 45/50W 		5-82193-001-0 02 1 0206- ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
YELLOW HEAD LAMP<T75> 08.991 (A) 12V 45/40W YELLOW 		5-82193-002-0 02 1 9804-0205 ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> (C) 12V 60/55W 		8-94217-817-0 02 1 0010-0012 ●
5 02.727 BULB; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (C) 12V 60/55W 		8-94217-817-0 02 1 0101-0101 ● ● ● ●
5 02.727 BULB; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (C) 12V 60/55W 		8-94217-817-0 02 1 0101-0107 ● ● ● ● ●
5 02.727 BULB; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (C) 12V 60/55W 		8-94217-817-0 02 1 0108- ● ● ● ●
6 02.728 RIM; HEADLAMP
02.731 		8-94228-905-0 02 1 9804-0009 ● ● ● ● ● ●
6 02.728 RIM; HEADLAMP
02.731 		8-94228-905-0 02 1 0010-0012 ● ● ● ● ●
6 02.728 RIM; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.731 		8-94228-905-0 02 1 0010-0012 ●
6 02.728 RIM; HEADLAMP
EXC. HALOGEN HEAD LAMPS MULTI REFLECT OR<7YW> 02.731 		8-94228-905-0 02 1 0101- ● ● ● ● ● ●
6 02.728 RIM; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97178-340-0 01 1 0010-0012 ●
6 02.728 RIM; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97178-340-0 01 1 0101-0101 ● ● ● ●
6 02.728 RIM; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97178-340-0 01 1 0101-0107 ● ● ● ● ●
6 02.728 RIM; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97178-340-0 01 1 0108- ● ● ● ●
6 02.728 RIM; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97178-339-0 01 1 0010-0012 ●
6 02.728 RIM; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97178-339-0 01 1 0101-0101 ● ● ● ●
6 02.728 RIM; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97178-339-0 01 1 0101-0107 ● ● ● ● ●
6 02.728 RIM; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97178-339-0 01 1 0108- ● ● ● ●
19 02.726 NUT; HEADLAMP 8-94324-115-0 02 1 9804-0009 ● ● ● ● ● ●
19 02.726 NUT; HEADLAMP 8-94324-115-0 02 1 0010-0012 ● ● ● ● ●
19 02.726 NUT; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-94324-115-0 02 1 0010-0012 ●
19 02.726 NUT; HEADLAMP
EXC. HALOGEN HEAD LAMPS MULTI REFLECT OR<7YW> 		8-94324-115-0 02 1 0101- ● ● ● ● ● ●
19 02.726 NUT; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0010-0012 ●
19 02.726 NUT; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0101-0101 ● ● ● ●
19 02.726 NUT; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0101-0107 ● ● ● ● ●
19 02.726 NUT; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0108- ● ● ● ●
19 02.726 NUT; HEADLAMP
COLOR KEYED BUMPER(S4H) EXC. HEADLAMP WASHER<CE3>,KD PREPARATORY PACK<6HF> 02.343 M5 FLANGE 		8-97068-819-0 04 1 0010-0107 ● ● ● ●
19 02.726 NUT; HEADLAMP
COLOR KEYED BUMPER(S4H) 02.343 M5 FLANGE 		8-97068-819-0 04 1 0108- ● ● ● ● ●
20 02.736 SCREW; HEADLAMP
02.737 		8-94324-114-0 12 1 9804-0009 ● ● ● ● ● ●
20 02.736 SCREW; HEADLAMP
02.737 		8-94324-114-0 12 1 0010-0012 ● ● ● ● ●
20 02.736 SCREW; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.737 		8-94324-114-0 12 1 0010-0012 ●
20 02.736 SCREW; HEADLAMP
EXC. HALOGEN HEAD LAMPS MULTI REFLECT OR<7YW> 02.737 		8-94324-114-0 12 1 0101- ● ● ● ● ● ●
20 02.736 SCREW; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97178-336-0 10 1 0010-0012 ●
20 02.736 SCREW; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97178-336-0 10 1 0101-0101 ● ● ● ●
20 02.736 SCREW; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97178-336-0 10 1 0101-0107 ● ● ● ● ●
20 02.736 SCREW; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97178-336-0 10 1 0108-0202 ● ● ● ●
20 02.736 SCREW; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97178-336-0 08 1 0203- ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97178-335-0 02 1 0010-0012 ●
23 02.727 COVER; BULB,HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97178-335-0 02 1 0101-0101 ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97178-335-0 02 1 0101-0107 ● ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97178-335-0 02 1 0108- ● ● ● ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97178-491-0 02 1 0010-0012 ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97178-491-0 02 1 0101-0101 ● ● ● ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97178-491-0 02 1 0101-0107 ● ● ● ● ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97178-491-0 02 1 0108- ● ● ● ●
28 02.762 BOLT; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> M6X20 W/LK&PL WASHER 		8-94279-203-0 01 1 0010-0012 ●
28 02.762 BOLT; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> M6X20 W/LK&PL WASHER 		8-94279-203-0 01 1 0101-0101 ● ● ● ●
28 02.762 BOLT; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> M6X20 W/LK&PL WASHER 		8-94279-203-0 01 1 0101-0107 ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> M6X20 W/LK&PL WASHER 		8-94279-203-0 01 1 0108- ● ● ● ●
28 02.762 BOLT; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.726 M6X18 TAPPING W/LK&PL WASHER 		8-94372-359-0 07 1 0010-0012 ●
28 02.762 BOLT; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 02.726 M6X18 TAPPING W/LK&PL WASHER 		8-94372-359-0 07 1 0101-0101 ● ● ● ●
28 02.762 BOLT; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 02.726 M6X18 TAPPING W/LK&PL WASHER 		8-94372-359-0 07 1 0101-0107 ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 02.726 M6X18 TAPPING W/LK&PL WASHER 		8-94372-359-0 07 1 0108- ● ● ● ●
96 02.575 GROMMET; SCREW,SIDE COMB LAMP
02.708 M4 		5-09470-002-0 04 1 9804- ● ● ● ● ● ●
98 02.895 SCREW; SIDE COMB LAMP
(B) M4X16 		8-97090-762-0 02 1 9804-9903 ● ● ● ● ● ●
98 02.895 SCREW; SIDE COMB LAMP
02.587 (B) M4X16 W/WASHER 		8-97809-122-0 02 1 9904- ● ● ● ● ● ●
98 02.895 SCREW; SIDE COMB LAMP
(A) M4X25 		8-97165-952-0 04 1 9804- ● ● ● ● ● ●
215 08.991 BULB; FRT CLEARANCE LAMP
12V 5W 		8-94124-595-0 02 1 9804- ● ● ● ● ● ●
220 02.586 SOCKET; CLEARANCE LAMP 8-97167-687-0 02 1 9804- ● ● ● ● ● ●
221 02.586 TUBE; COVER,CLEARANCE LAMP
02.689 		8-97166-174-0 02 1 9804- ● ● ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
02.585 		8-97111-855-0 01 1 9804-0012 ● ● ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
02.585 		8-97111-855-0 01 1 0101-0101 ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
EXC. HALOGEN HEAD LAMPS MULTI REFLECT OR<7YW> 02.585 		8-97111-855-0 01 1 0101-0101 ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
02.585 		8-97111-855-0 01 1 0101-0107 ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
EXC. HALOGEN HEAD LAMPS MULTI REFLECT OR<7YW> 02.585 		8-97111-855-0 01 1 0101-0107 ● ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
02.585 		8-97111-855-0 01 1 0108- ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
EXC. HALOGEN HEAD LAMPS MULTI REFLECT OR<7YW> 02.585 		8-97111-855-0 01 1 0108- ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
02.585 		8-97111-854-0 01 1 9804-0012 ● ● ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
02.585 		8-97111-854-0 01 1 0101-0101 ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
EXC. HALOGEN HEAD LAMPS MULTI REFLECT OR<7YW> 02.585 		8-97111-854-0 01 1 0101-0101 ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
02.585 		8-97111-854-0 01 1 0101-0107 ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
EXC. HALOGEN HEAD LAMPS MULTI REFLECT OR<7YW> 02.585 		8-97111-854-0 01 1 0101-0107 ● ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
02.585 		8-97111-854-0 01 1 0108- ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
EXC. HALOGEN HEAD LAMPS MULTI REFLECT OR<7YW> 02.585 		8-97111-854-0 01 1 0108- ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97249-039-0 01 1 0101-0101 ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97249-039-0 01 1 0101-0107 ● ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97249-039-0 01 1 0108- ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97249-038-0 01 1 0101-0101 ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97249-038-0 01 1 0101-0107 ● ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97249-038-0 01 1 0108- ● ● ● ●

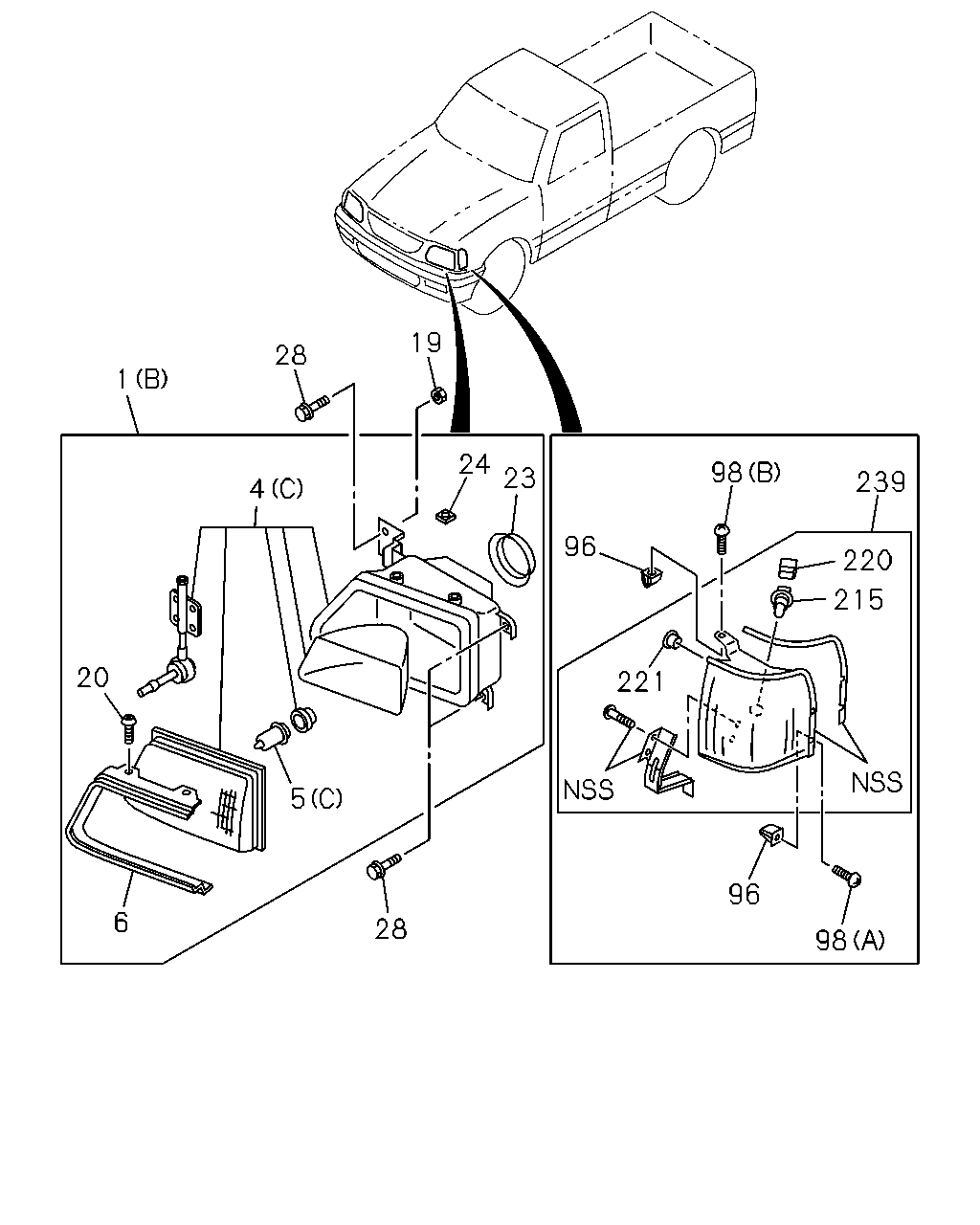

çizim 64181
19 28 1 24 23 98 239 4 96 220 215 20 221 5 96 6 28 98
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP<TT5> (A) 12V 60/55W 		8-97044-423-2 01 1 9804- ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP<TT5> (A) 12V 60/55W 		8-97044-422-3 01 1 9804- ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP<TT5>,YELLOW HEAD LAMP<T75> (A) 12V 45/40W 		8-97039-811-2 01 1 9804-0009 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,HALOGEN HEAD LAMP<TT5>,YELLOW HEADLAMP<T75> (A) 12V 45/40W 		8-97039-811-2 01 1 0010-0012 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP<TT5>,YELLOW HEAD LAMP<T75>,HALOGEN HEAD LAMPS MULTIREFLECTOR<7YW> (A) 12V 45/40W 		8-97039-811-2 01 1 0101-0205 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP<TT5>,HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 12V 45/40W 		8-97039-811-2 01 1 0206- ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP<TT5>,YELLOW HEAD LAMP<T75> (A) 12V 45/40W 		8-97039-810-3 01 1 9804-0009 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,HALOGEN HEAD LAMP<TT5>,YELLOW HEADLAMP<T75> (A) 12V 45/40W 		8-97039-810-3 01 1 0010-0012 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP<TT5>,YELLOW HEAD LAMP<T75>,HALOGEN HEAD LAMPS MULTIREFLECTOR<7YW> (A) 12V 45/40W 		8-97039-810-3 01 1 0101-0205 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP<TT5>,HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 12V 45/40W 		8-97039-810-3 01 1 0206- ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
YELLOW HEAD LAMP<T75> (A) 12V 45/40W 		8-97039-813-2 01 1 9804-0205 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
YELLOW HEAD LAMP<T75> (A) 12V 45/40W 		8-97039-812-3 01 1 9804-0205 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97213-008-0 01 1 0010-0012 ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (C) 		8-97246-507-1 01 1 0101-0101 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (C) 		8-97246-507-1 01 1 0101-0107 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (C) 		8-97246-507-1 01 1 0108-0108 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (C) 		8-97311-000-1 01 1 0109- ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97213-007-0 01 1 0010-0012 ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (C) 		8-97246-506-1 01 1 0101-0101 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (C) 		8-97246-506-1 01 1 0101-0107 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (C) 		8-97246-506-1 01 1 0108-0108 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (C) 		8-97311-001-1 01 1 0109- ● ● ● ●

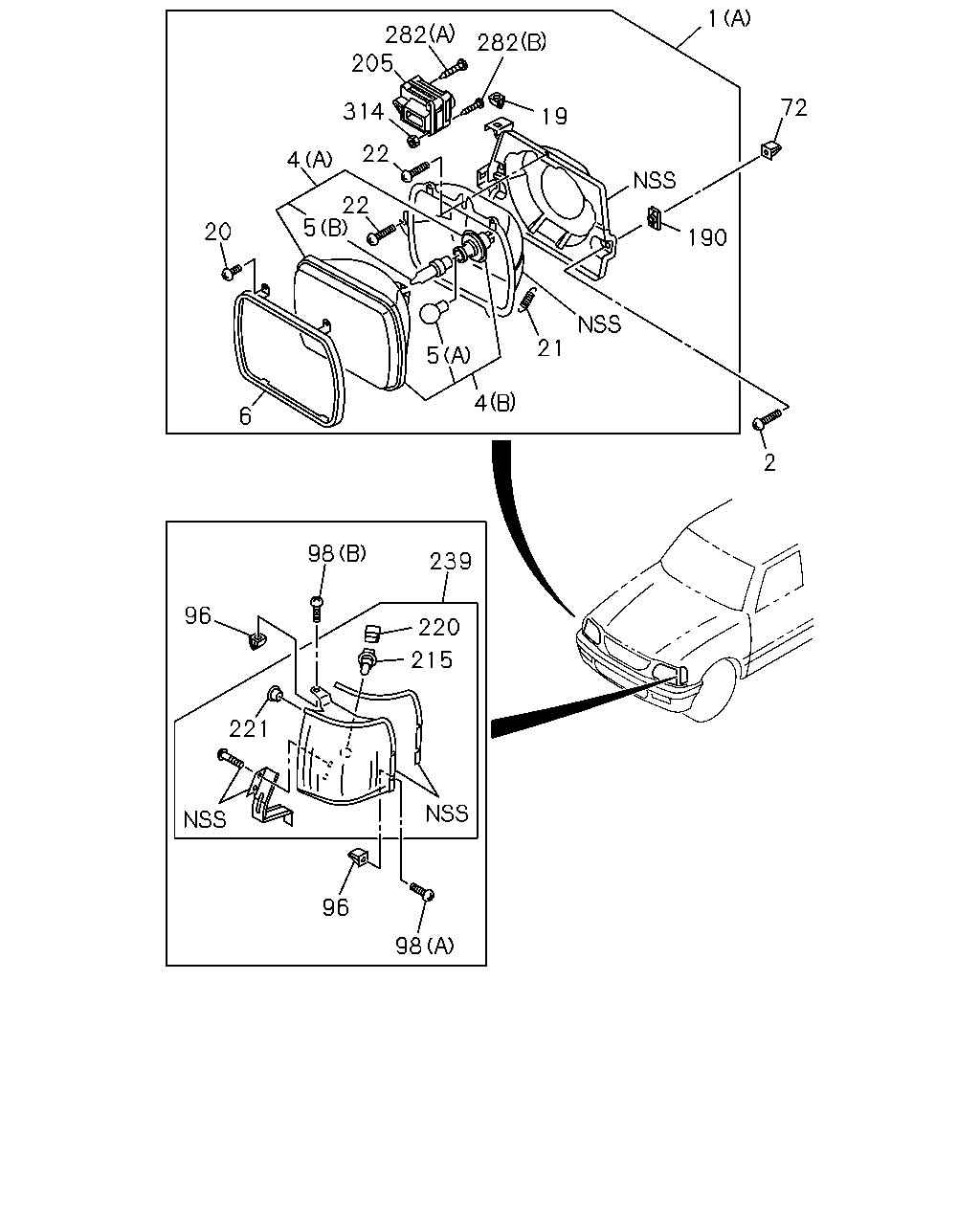

4 02.727 HEADLAMP UNIT
HALOGEN HEAD LAMP<TT5> (B) 		8-94334-632-1 02 1 9804- ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
EXC. HALOGEN HEAD LAMP<TT5>,YELLOW HEAD LAMP<T75> (A) 		8-94334-628-1 02 1 9804-0009 ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,HALOGEN HEAD LAMP<TT5>,YELLOW HEADLAMP<T75> (A) 		8-94334-628-1 02 1 0010-0012 ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
EXC. HALOGEN HEAD LAMP<TT5>,YELLOW HEAD LAMP<T75>,HALOGEN HEAD LAMPS MULTIREFLECTOR<7YW> (A) 		8-94334-628-1 02 1 0101-0205 ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
EXC. HALOGEN HEAD LAMP<TT5>,HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-94334-628-1 02 1 0206- ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
YELLOW HEAD LAMP<T75> (A) 		8-94334-630-1 02 1 9804-0205 ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.726 (C) 		8-97178-342-0 01 1 0010-0012 ●
4 02.727 HEADLAMP UNIT
HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.726 (C) 		8-97178-341-0 01 1 0010-0012 ●
5 02.727 BULB; HEADLAMP
HALOGEN HEAD LAMP<TT5> (B) 12V 60/55W 		1-88302-128-0 02 1 9804- ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
EXC. HALOGEN HEAD LAMP<TT5>,YELLOW HEAD LAMP<T75> 08.991 (A) 12V 45/50W 		5-82193-001-0 02 1 9804-0009 ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,HALOGEN HEAD LAMP<TT5>,YELLOW HEADLAMP<T75> 08.991 (A) 12V 45/50W 		5-82193-001-0 02 1 0010-0012 ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
EXC. HALOGEN HEAD LAMP<TT5>,YELLOW HEAD LAMP<T75>,HALOGEN HEAD LAMPS MULTIREFLECTOR<7YW> 08.991 (A) 12V 45/50W 		5-82193-001-0 02 1 0101-0205 ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
EXC. HALOGEN HEAD LAMP<TT5>,HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 08.991 12V 45/50W 		5-82193-001-0 02 1 0206- ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
YELLOW HEAD LAMP<T75> 08.991 (A) 12V 45/40W YELLOW 		5-82193-002-0 02 1 9804-0205 ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> (C) 12V 60/55W 		8-94217-817-0 02 1 0010-0012 ●
5 02.727 BULB; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (C) 12V 60/55W 		8-94217-817-0 02 1 0101-0101 ● ● ● ●
5 02.727 BULB; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (C) 12V 60/55W 		8-94217-817-0 02 1 0101-0107 ● ● ● ● ●
5 02.727 BULB; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (C) 12V 60/55W 		8-94217-817-0 02 1 0108- ● ● ● ●
6 02.728 RIM; HEADLAMP
02.731 		8-94228-905-0 02 1 9804-0009 ● ● ● ● ● ●
6 02.728 RIM; HEADLAMP
02.731 		8-94228-905-0 02 1 0010-0012 ● ● ● ● ●
6 02.728 RIM; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.731 		8-94228-905-0 02 1 0010-0012 ●
6 02.728 RIM; HEADLAMP
EXC. HALOGEN HEAD LAMPS MULTI REFLECT OR<7YW> 02.731 		8-94228-905-0 02 1 0101- ● ● ● ● ● ●
6 02.728 RIM; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97178-340-0 01 1 0010-0012 ●
6 02.728 RIM; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97178-340-0 01 1 0101-0101 ● ● ● ●
6 02.728 RIM; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97178-340-0 01 1 0101-0107 ● ● ● ● ●
6 02.728 RIM; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97178-340-0 01 1 0108- ● ● ● ●
6 02.728 RIM; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97178-339-0 01 1 0010-0012 ●
6 02.728 RIM; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97178-339-0 01 1 0101-0101 ● ● ● ●
6 02.728 RIM; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97178-339-0 01 1 0101-0107 ● ● ● ● ●
6 02.728 RIM; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97178-339-0 01 1 0108- ● ● ● ●
19 02.726 NUT; HEADLAMP 8-94324-115-0 02 1 9804-0009 ● ● ● ● ● ●
19 02.726 NUT; HEADLAMP 8-94324-115-0 02 1 0010-0012 ● ● ● ● ●
19 02.726 NUT; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-94324-115-0 02 1 0010-0012 ●
19 02.726 NUT; HEADLAMP
EXC. HALOGEN HEAD LAMPS MULTI REFLECT OR<7YW> 		8-94324-115-0 02 1 0101- ● ● ● ● ● ●
19 02.726 NUT; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0010-0012 ●
19 02.726 NUT; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0101-0101 ● ● ● ●
19 02.726 NUT; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0101-0107 ● ● ● ● ●
19 02.726 NUT; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0108- ● ● ● ●
19 02.726 NUT; HEADLAMP
COLOR KEYED BUMPER(S4H) EXC. HEADLAMP WASHER<CE3>,KD PREPARATORY PACK<6HF> 02.343 M5 FLANGE 		8-97068-819-0 04 1 0010-0107 ● ● ● ●
19 02.726 NUT; HEADLAMP
COLOR KEYED BUMPER(S4H) 02.343 M5 FLANGE 		8-97068-819-0 04 1 0108- ● ● ● ● ●
20 02.736 SCREW; HEADLAMP
02.737 		8-94324-114-0 12 1 9804-0009 ● ● ● ● ● ●
20 02.736 SCREW; HEADLAMP
02.737 		8-94324-114-0 12 1 0010-0012 ● ● ● ● ●
20 02.736 SCREW; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.737 		8-94324-114-0 12 1 0010-0012 ●
20 02.736 SCREW; HEADLAMP
EXC. HALOGEN HEAD LAMPS MULTI REFLECT OR<7YW> 02.737 		8-94324-114-0 12 1 0101- ● ● ● ● ● ●
20 02.736 SCREW; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97178-336-0 10 1 0010-0012 ●
20 02.736 SCREW; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97178-336-0 10 1 0101-0101 ● ● ● ●
20 02.736 SCREW; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97178-336-0 10 1 0101-0107 ● ● ● ● ●
20 02.736 SCREW; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97178-336-0 10 1 0108-0202 ● ● ● ●
20 02.736 SCREW; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97178-336-0 08 1 0203- ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97178-335-0 02 1 0010-0012 ●
23 02.727 COVER; BULB,HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97178-335-0 02 1 0101-0101 ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97178-335-0 02 1 0101-0107 ● ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97178-335-0 02 1 0108- ● ● ● ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97178-491-0 02 1 0010-0012 ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97178-491-0 02 1 0101-0101 ● ● ● ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97178-491-0 02 1 0101-0107 ● ● ● ● ●
24 02.737 MOUNTING; ADJ SCREW HD LAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97178-491-0 02 1 0108- ● ● ● ●
28 02.762 BOLT; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> M6X20 W/LK&PL WASHER 		8-94279-203-0 01 1 0010-0012 ●
28 02.762 BOLT; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> M6X20 W/LK&PL WASHER 		8-94279-203-0 01 1 0101-0101 ● ● ● ●
28 02.762 BOLT; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> M6X20 W/LK&PL WASHER 		8-94279-203-0 01 1 0101-0107 ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> M6X20 W/LK&PL WASHER 		8-94279-203-0 01 1 0108- ● ● ● ●
28 02.762 BOLT; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.726 M6X18 TAPPING W/LK&PL WASHER 		8-94372-359-0 07 1 0010-0012 ●
28 02.762 BOLT; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 02.726 M6X18 TAPPING W/LK&PL WASHER 		8-94372-359-0 07 1 0101-0101 ● ● ● ●
28 02.762 BOLT; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 02.726 M6X18 TAPPING W/LK&PL WASHER 		8-94372-359-0 07 1 0101-0107 ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 02.726 M6X18 TAPPING W/LK&PL WASHER 		8-94372-359-0 07 1 0108- ● ● ● ●
96 02.575 GROMMET; SCREW,SIDE COMB LAMP
02.708 M4 		5-09470-002-0 04 1 9804- ● ● ● ● ● ●
98 02.895 SCREW; SIDE COMB LAMP
(B) M4X16 		8-97090-762-0 02 1 9804-9903 ● ● ● ● ● ●
98 02.895 SCREW; SIDE COMB LAMP
02.587 (B) M4X16 W/WASHER 		8-97809-122-0 02 1 9904- ● ● ● ● ● ●
98 02.895 SCREW; SIDE COMB LAMP
(A) M4X25 		8-97165-952-0 04 1 9804- ● ● ● ● ● ●
215 08.991 BULB; FRT CLEARANCE LAMP
12V 5W 		8-94124-595-0 02 1 9804- ● ● ● ● ● ●
220 02.586 SOCKET; CLEARANCE LAMP 8-97167-687-0 02 1 9804- ● ● ● ● ● ●
221 02.586 TUBE; COVER,CLEARANCE LAMP
02.689 		8-97166-174-0 02 1 9804- ● ● ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
02.585 		8-97111-855-0 01 1 9804-0012 ● ● ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
02.585 		8-97111-855-0 01 1 0101-0101 ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
EXC. HALOGEN HEAD LAMPS MULTI REFLECT OR<7YW> 02.585 		8-97111-855-0 01 1 0101-0101 ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
02.585 		8-97111-855-0 01 1 0101-0107 ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
EXC. HALOGEN HEAD LAMPS MULTI REFLECT OR<7YW> 02.585 		8-97111-855-0 01 1 0101-0107 ● ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
02.585 		8-97111-855-0 01 1 0108- ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
EXC. HALOGEN HEAD LAMPS MULTI REFLECT OR<7YW> 02.585 		8-97111-855-0 01 1 0108- ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
02.585 		8-97111-854-0 01 1 9804-0012 ● ● ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
02.585 		8-97111-854-0 01 1 0101-0101 ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
EXC. HALOGEN HEAD LAMPS MULTI REFLECT OR<7YW> 02.585 		8-97111-854-0 01 1 0101-0101 ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
02.585 		8-97111-854-0 01 1 0101-0107 ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
EXC. HALOGEN HEAD LAMPS MULTI REFLECT OR<7YW> 02.585 		8-97111-854-0 01 1 0101-0107 ● ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
02.585 		8-97111-854-0 01 1 0108- ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
EXC. HALOGEN HEAD LAMPS MULTI REFLECT OR<7YW> 02.585 		8-97111-854-0 01 1 0108- ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97249-039-0 01 1 0101-0101 ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97249-039-0 01 1 0101-0107 ● ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97249-039-0 01 1 0108- ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97249-038-0 01 1 0101-0101 ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97249-038-0 01 1 0101-0107 ● ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97249-038-0 01 1 0108- ● ● ● ●

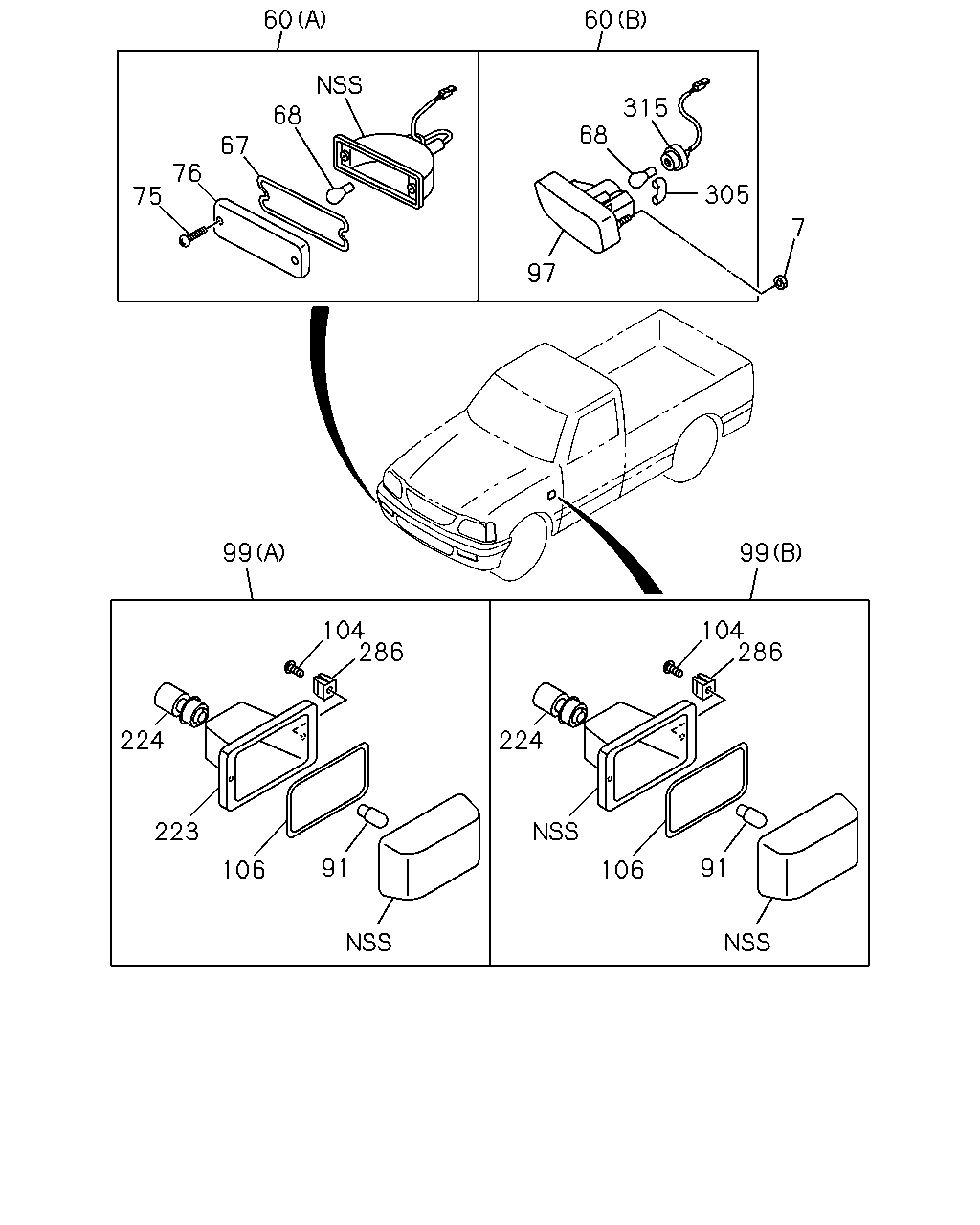

çizim 64188
60 60 68 315 68 67 76 75 305 7 97 99 99 104 286 104 286 224 224 223 91 91 106 106
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
7 02.587 NUT; FRT COMB LAMP
HEADLAMP WASHER<CE3> EXC. COLOR KEYED BUMPER(S4H),KD PREPARATORY PACK<6HF> 04.594 M6 FLANGE 		0-91150-106-0 04 1 0010-0012 ● ● ● ● ● ●
7 02.587 NUT; FRT COMB LAMP
HEADLAMP WASHER<CE3> EXC. COLOR KEYED BUMPER(S4H),FRONT BUMPER CHROME<V46>,KD PREPARATORY PACK<6HF> 04.594 M6 FLANGE 		0-91150-106-0 04 1 0101-0107 ● ● ● ● ● ●
7 02.587 NUT; FRT COMB LAMP
HEADLAMP WASHER<CE3> EXC. COLOR KEYED BUMPER(S4H),FRONT BUMPER CHROME<V46> 04.594 M6 FLANGE 		0-91150-106-0 04 1 0108- ● ● ● ● ● ●
7 02.587 NUT; FRT COMB LAMP
COLOR KEYED BUMPER(S4H) 02.343 M5 FLANGE 		8-97068-819-0 04 1 9907-0009 ● ● ● ●
7 02.587 NUT; FRT COMB LAMP
4JG2 ENG(RJC),4JA1 ENG(RLE) EXC. KD PREPARATORY PACK<6HF> 02.343 M5 FLANGE 		8-97068-819-0 04 1 0010-0010 ● ●
7 02.587 NUT; FRT COMB LAMP
COLOR KEYED BUMPER(S4H) KD PREPARATORY PACK<6HF> 02.343 M5 FLANGE 		8-97068-819-0 04 1 0010-0010 ● ● ● ●
7 02.587 NUT; FRT COMB LAMP
4JG2 ENG(RJC),4JA1 ENG(RLE) EXC. COLOR KEYED BUMPER(S4H),KD PREPARATORY PACK<6HF> 02.343 M5 FLANGE 		8-97068-819-0 04 1 0010-0010 ● ● ● ●
7 02.587 NUT; FRT COMB LAMP
COLOR KEYED BUMPER(S4H) KD PREPARATORY PACK<6HF> 02.343 M5 FLANGE 		8-97068-819-0 04 1 0011-0012 ● ● ● ●
7 02.587 NUT; FRT COMB LAMP
COLOR KEYED BUMPER(S4H) KD PREPARATORY PACK<6HF> 02.343 M5 FLANGE 		8-97068-819-0 04 1 0101-0107 ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
(A) 		8-97173-534-0 01 1 9804-9906 ● ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
(A) 		8-97173-534-0 01 1 9907-0012 ● ●
60 02.585 LAMP ASM; FRT COMB
EXC. COLOR KEYED BUMPER(S4H) (A) 		8-97173-534-0 01 1 9907-0012 ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
(A) 		8-97228-267-0 01 1 0101-0101 ● ●
60 02.585 LAMP ASM; FRT COMB
KD PREPARATORY PACK<6HF> EXC. COLOR KEYED BUMPER(S4H) (A) 		8-97228-267-0 01 1 0101-0101 ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
EXC. COLOR KEYED BUMPER(S4H),FRONT BUMPER CHROME<V46>,KD PREPARATORY PACK<6HF> (A) 		8-97228-267-0 01 1 0101-0101 ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
FRONT BUMPER CHROME<V46> EXC. HEADLAMP WASHER<CE3>,KD PREPARATORY PACK<6HF> (A) 		8-97228-267-0 01 1 0101-0101 ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
(A) 		8-97228-267-0 01 1 0101-0107 ●
60 02.585 LAMP ASM; FRT COMB
KD PREPARATORY PACK<6HF> EXC. COLOR KEYED BUMPER(S4H) (A) 		8-97228-267-0 01 1 0101-0107 ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
EXC. COLOR KEYED BUMPER(S4H),FRONT BUMPER CHROME<V46>,KD PREPARATORY PACK<6HF> (A) 		8-97228-267-0 01 1 0101-0107 ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
FRONT BUMPER CHROME<V46> EXC. HEADLAMP WASHER<CE3>,KD PREPARATORY PACK<6HF> (A) 		8-97228-267-0 01 1 0101-0107 ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
EXC. COLOR KEYED BUMPER(S4H) (A) 		8-97228-267-0 01 1 0108- ● ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
(A) 		8-97173-533-0 01 1 9804-9906 ● ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
(A) 		8-97173-533-0 01 1 9907-0012 ● ●
60 02.585 LAMP ASM; FRT COMB
EXC. COLOR KEYED BUMPER(S4H) (A) 		8-97173-533-0 01 1 9907-0012 ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
(A) 		8-97228-266-0 01 1 0101-0101 ● ●
60 02.585 LAMP ASM; FRT COMB
KD PREPARATORY PACK<6HF> EXC. COLOR KEYED BUMPER(S4H) (A) 		8-97228-266-0 01 1 0101-0101 ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
EXC. COLOR KEYED BUMPER(S4H),FRONT BUMPER CHROME<V46>,KD PREPARATORY PACK<6HF> (A) 		8-97228-266-0 01 1 0101-0101 ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
FRONT BUMPER CHROME<V46> EXC. HEADLAMP WASHER<CE3>,KD PREPARATORY PACK<6HF> (A) 		8-97228-266-0 01 1 0101-0101 ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
(A) 		8-97228-266-0 01 1 0101-0107 ●
60 02.585 LAMP ASM; FRT COMB
KD PREPARATORY PACK<6HF> EXC. COLOR KEYED BUMPER(S4H) (A) 		8-97228-266-0 01 1 0101-0107 ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
EXC. COLOR KEYED BUMPER(S4H),FRONT BUMPER CHROME<V46>,KD PREPARATORY PACK<6HF> (A) 		8-97228-266-0 01 1 0101-0107 ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
FRONT BUMPER CHROME<V46> EXC. HEADLAMP WASHER<CE3>,KD PREPARATORY PACK<6HF> (A) 		8-97228-266-0 01 1 0101-0107 ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
EXC. COLOR KEYED BUMPER(S4H) (A) 		8-97228-266-0 01 1 0108- ● ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
COLOR KEYED BUMPER(S4H) (B) 		8-97180-903-0 01 1 9907-9910 ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
COLOR KEYED BUMPER(S4H) (B) 		8-97248-150-0 01 1 9911-0012 ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
COLOR KEYED BUMPER(S4H) KD PREPARATORY PACK<6HF> (B) 		8-97228-271-0 01 1 0101-0101 ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
COLOR KEYED BUMPER(S4H) EXC. HEADLAMP WASHER<CE3>,KD PREPARATORY PACK<6HF> (B) 		8-97228-271-0 01 1 0101-0101 ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
COLOR KEYED BUMPER(S4H) KD PREPARATORY PACK<6HF> (B) 		8-97228-271-0 01 1 0101-0107 ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
COLOR KEYED BUMPER(S4H) EXC. HEADLAMP WASHER<CE3>,KD PREPARATORY PACK<6HF> (B) 		8-97228-271-0 01 1 0101-0107 ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
COLOR KEYED BUMPER(S4H) (B) 		8-97228-271-0 01 1 0108- ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
COLOR KEYED BUMPER(S4H) (B) 		8-97180-902-0 01 1 9907-9910 ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
COLOR KEYED BUMPER(S4H) (B) 		8-97248-149-0 01 1 9911-0012 ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
COLOR KEYED BUMPER(S4H) KD PREPARATORY PACK<6HF> (B) 		8-97228-270-0 01 1 0101-0101 ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
COLOR KEYED BUMPER(S4H) EXC. HEADLAMP WASHER<CE3>,KD PREPARATORY PACK<6HF> (B) 		8-97228-270-0 01 1 0101-0101 ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
COLOR KEYED BUMPER(S4H) KD PREPARATORY PACK<6HF> (B) 		8-97228-270-0 01 1 0101-0107 ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
COLOR KEYED BUMPER(S4H) EXC. HEADLAMP WASHER<CE3>,KD PREPARATORY PACK<6HF> (B) 		8-97228-270-0 01 1 0101-0107 ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB
COLOR KEYED BUMPER(S4H) (B) 		8-97228-270-0 01 1 0108- ● ● ● ● ●
67 02.590 GASKET; FRT COMB LAMP 8-94334-881-0 02 1 9804-9906 ● ● ● ● ● ●
67 02.590 GASKET; FRT COMB LAMP 8-94334-881-0 02 1 9907-0012 ● ●
67 02.590 GASKET; FRT COMB LAMP
EXC. COLOR KEYED BUMPER(S4H) 		8-94334-881-0 02 1 9907-0012 ● ● ● ●
67 02.590 GASKET; FRT COMB LAMP 8-94334-881-0 02 1 0101-0101 ● ●
67 02.590 GASKET; FRT COMB LAMP
KD PREPARATORY PACK<6HF> EXC. COLOR KEYED BUMPER(S4H) 		8-94334-881-0 02 1 0101-0101 ● ● ● ●
67 02.590 GASKET; FRT COMB LAMP
EXC. COLOR KEYED BUMPER(S4H),FRONT BUMPER CHROME<V46>,KD PREPARATORY PACK<6HF> 		8-94334-881-0 02 1 0101-0101 ● ● ● ●
67 02.590 GASKET; FRT COMB LAMP
FRONT BUMPER CHROME<V46> EXC. HEADLAMP WASHER<CE3>,KD PREPARATORY PACK<6HF> 		8-94334-881-0 02 1 0101-0101 ● ● ● ●
67 02.590 GASKET; FRT COMB LAMP 8-94334-881-0 02 1 0101-0107 ●
67 02.590 GASKET; FRT COMB LAMP
KD PREPARATORY PACK<6HF> EXC. COLOR KEYED BUMPER(S4H) 		8-94334-881-0 02 1 0101-0107 ● ● ● ● ●
67 02.590 GASKET; FRT COMB LAMP
EXC. COLOR KEYED BUMPER(S4H),FRONT BUMPER CHROME<V46>,KD PREPARATORY PACK<6HF> 		8-94334-881-0 02 1 0101-0107 ● ● ● ● ●
67 02.590 GASKET; FRT COMB LAMP
FRONT BUMPER CHROME<V46> EXC. HEADLAMP WASHER<CE3>,KD PREPARATORY PACK<6HF> 		8-94334-881-0 02 1 0101-0107 ● ● ● ●
67 02.590 GASKET; FRT COMB LAMP
EXC. COLOR KEYED BUMPER(S4H) 		8-94334-881-0 02 1 0108- ● ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
12V 21W 		8-94124-074-0 02 1 9804-0012 ● ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
12V 21W 		8-97304-590-0 02 1 0101- ● ● ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
08.977 		0-91190-435-0 04 1 9804-9906 ● ● ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
08.977 		0-91190-435-0 04 1 9907-0012 ● ●
75 02.587 SCREW; FRT COMB LAMP
EXC. COLOR KEYED BUMPER(S4H) 08.977 		0-91190-435-0 04 1 9907-0012 ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
08.977 		0-91190-435-0 04 1 0101-0101 ● ●
75 02.587 SCREW; FRT COMB LAMP
KD PREPARATORY PACK<6HF> EXC. COLOR KEYED BUMPER(S4H) 08.977 		0-91190-435-0 04 1 0101-0101 ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
EXC. COLOR KEYED BUMPER(S4H),FRONT BUMPER CHROME<V46>,KD PREPARATORY PACK<6HF> 08.977 		0-91190-435-0 04 1 0101-0101 ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
FRONT BUMPER CHROME<V46> EXC. HEADLAMP WASHER<CE3>,KD PREPARATORY PACK<6HF> 08.977 		0-91190-435-0 04 1 0101-0101 ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
08.977 		0-91190-435-0 04 1 0101-0107 ●
75 02.587 SCREW; FRT COMB LAMP
KD PREPARATORY PACK<6HF> EXC. COLOR KEYED BUMPER(S4H) 08.977 		0-91190-435-0 04 1 0101-0107 ● ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
EXC. COLOR KEYED BUMPER(S4H),FRONT BUMPER CHROME<V46>,KD PREPARATORY PACK<6HF> 08.977 		0-91190-435-0 04 1 0101-0107 ● ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
FRONT BUMPER CHROME<V46> EXC. HEADLAMP WASHER<CE3>,KD PREPARATORY PACK<6HF> 08.977 		0-91190-435-0 04 1 0101-0107 ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
EXC. COLOR KEYED BUMPER(S4H) 08.977 		0-91190-435-0 04 1 0108- ● ● ● ● ● ●
76 02.589 LENS; FRT COMB LAMP 8-94117-030-0 01 1 9804-9906 ● ● ● ● ● ●
76 02.589 LENS; FRT COMB LAMP 8-94117-030-0 01 1 9907-0012 ● ●
76 02.589 LENS; FRT COMB LAMP
EXC. COLOR KEYED BUMPER(S4H) 		8-94117-030-0 01 1 9907-0012 ● ● ● ●
76 02.589 LENS; FRT COMB LAMP 8-97304-592-0 01 1 0101-0101 ● ●
76 02.589 LENS; FRT COMB LAMP
KD PREPARATORY PACK<6HF> EXC. COLOR KEYED BUMPER(S4H) 		8-97304-592-0 01 1 0101-0101 ● ● ● ●
76 02.589 LENS; FRT COMB LAMP
EXC. COLOR KEYED BUMPER(S4H),FRONT BUMPER CHROME<V46>,KD PREPARATORY PACK<6HF> 		8-97304-592-0 01 1 0101-0101 ● ● ● ●
76 02.589 LENS; FRT COMB LAMP
FRONT BUMPER CHROME<V46> EXC. HEADLAMP WASHER<CE3>,KD PREPARATORY PACK<6HF> 		8-97304-592-0 01 1 0101-0101 ● ● ● ●
76 02.589 LENS; FRT COMB LAMP 8-97304-592-0 01 1 0101-0107 ●
76 02.589 LENS; FRT COMB LAMP
KD PREPARATORY PACK<6HF> EXC. COLOR KEYED BUMPER(S4H) 		8-97304-592-0 01 1 0101-0107 ● ● ● ● ●
76 02.589 LENS; FRT COMB LAMP
EXC. COLOR KEYED BUMPER(S4H),FRONT BUMPER CHROME<V46>,KD PREPARATORY PACK<6HF> 		8-97304-592-0 01 1 0101-0107 ● ● ● ● ●
76 02.589 LENS; FRT COMB LAMP
FRONT BUMPER CHROME<V46> EXC. HEADLAMP WASHER<CE3>,KD PREPARATORY PACK<6HF> 		8-97304-592-0 01 1 0101-0107 ● ● ● ●
76 02.589 LENS; FRT COMB LAMP
EXC. COLOR KEYED BUMPER(S4H) 		8-97304-592-0 01 1 0108- ● ● ● ● ● ●
76 02.589 LENS; FRT COMB LAMP 8-94112-723-0 01 1 9804-9906 ● ● ● ● ● ●
76 02.589 LENS; FRT COMB LAMP 8-94112-723-0 01 1 9907-0012 ● ●
76 02.589 LENS; FRT COMB LAMP
EXC. COLOR KEYED BUMPER(S4H) 		8-94112-723-0 01 1 9907-0012 ● ● ● ●
76 02.589 LENS; FRT COMB LAMP 8-97304-591-0 01 1 0101-0101 ● ●
76 02.589 LENS; FRT COMB LAMP
KD PREPARATORY PACK<6HF> EXC. COLOR KEYED BUMPER(S4H) 		8-97304-591-0 01 1 0101-0101 ● ● ● ●
76 02.589 LENS; FRT COMB LAMP
EXC. COLOR KEYED BUMPER(S4H),FRONT BUMPER CHROME<V46>,KD PREPARATORY PACK<6HF> 		8-97304-591-0 01 1 0101-0101 ● ● ● ●
76 02.589 LENS; FRT COMB LAMP
FRONT BUMPER CHROME<V46> EXC. HEADLAMP WASHER<CE3>,KD PREPARATORY PACK<6HF> 		8-97304-591-0 01 1 0101-0101 ● ● ● ●
76 02.589 LENS; FRT COMB LAMP 8-97304-591-0 01 1 0101-0107 ●
76 02.589 LENS; FRT COMB LAMP
KD PREPARATORY PACK<6HF> EXC. COLOR KEYED BUMPER(S4H) 		8-97304-591-0 01 1 0101-0107 ● ● ● ● ●
76 02.589 LENS; FRT COMB LAMP
EXC. COLOR KEYED BUMPER(S4H),FRONT BUMPER CHROME<V46>,KD PREPARATORY PACK<6HF> 		8-97304-591-0 01 1 0101-0107 ● ● ● ● ●
76 02.589 LENS; FRT COMB LAMP
FRONT BUMPER CHROME<V46> EXC. HEADLAMP WASHER<CE3>,KD PREPARATORY PACK<6HF> 		8-97304-591-0 01 1 0101-0107 ● ● ● ●
76 02.589 LENS; FRT COMB LAMP
EXC. COLOR KEYED BUMPER(S4H) 		8-97304-591-0 01 1 0108- ● ● ● ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
12V 5W 		8-94124-595-0 02 1 9804- ● ● ● ● ● ●
97 02.895 LAMP UNIT; COMB
COLOR KEYED BUMPER(S4H) 		8-97201-878-0 01 1 9907-0012 ● ● ● ●
97 02.895 LAMP UNIT; COMB
COLOR KEYED BUMPER(S4H) KD PREPARATORY PACK<6HF> 		8-97304-594-0 01 1 0101-0101 ● ● ● ●
97 02.895 LAMP UNIT; COMB
COLOR KEYED BUMPER(S4H) EXC. HEADLAMP WASHER<CE3>,KD PREPARATORY PACK<6HF> 		8-97304-594-0 01 1 0101-0101 ● ● ● ●
97 02.895 LAMP UNIT; COMB
COLOR KEYED BUMPER(S4H) KD PREPARATORY PACK<6HF> 		8-97304-594-0 01 1 0101-0107 ● ● ● ● ●
97 02.895 LAMP UNIT; COMB
COLOR KEYED BUMPER(S4H) EXC. HEADLAMP WASHER<CE3>,KD PREPARATORY PACK<6HF> 		8-97304-594-0 01 1 0101-0107 ● ● ● ● ●
97 02.895 LAMP UNIT; COMB
COLOR KEYED BUMPER(S4H) 		8-97304-594-0 01 1 0108- ● ● ● ● ●
97 02.895 LAMP UNIT; COMB
COLOR KEYED BUMPER(S4H) 		8-97201-877-0 01 1 9907-0012 ● ● ● ●
97 02.895 LAMP UNIT; COMB
COLOR KEYED BUMPER(S4H) KD PREPARATORY PACK<6HF> 		8-97304-593-0 01 1 0101-0101 ● ● ● ●
97 02.895 LAMP UNIT; COMB
COLOR KEYED BUMPER(S4H) EXC. HEADLAMP WASHER<CE3>,KD PREPARATORY PACK<6HF> 		8-97304-593-0 01 1 0101-0101 ● ● ● ●
97 02.895 LAMP UNIT; COMB
COLOR KEYED BUMPER(S4H) KD PREPARATORY PACK<6HF> 		8-97304-593-0 01 1 0101-0107 ● ● ● ● ●
97 02.895 LAMP UNIT; COMB
COLOR KEYED BUMPER(S4H) EXC. HEADLAMP WASHER<CE3>,KD PREPARATORY PACK<6HF> 		8-97304-593-0 01 1 0101-0107 ● ● ● ● ●
97 02.895 LAMP UNIT; COMB
COLOR KEYED BUMPER(S4H) 		8-97304-593-0 01 1 0108- ● ● ● ● ●
99 02.585 LAMP; SIDE FLASHER
(A) 		8-97131-931-0 02 1 9804-0012 ● ● ● ● ● ●
99 02.585 LAMP; SIDE FLASHER
(B) 		8-97228-275-0 02 1 0101- ● ● ● ● ● ●
104 02.587 SCREW; SIDE TURN SIGNAL
06.514 M3X10 TAPPING 		9-07076-310-0 02 1 9804- ● ● ● ● ● ●
106 02.590 GASKET; SIDE TURN SIGNAL 8-97032-884-0 02 1 9804- ● ● ● ● ● ●
223 02.575 UNIT; LAMP,SIDE FLASHER 8-97162-067-0 02 1 9804-0012 ● ● ● ● ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP 8-97162-068-0 02 1 9804- ● ● ● ● ● ●
286 02.587 CLIP; SIDE TURN SIGNAL 8-97032-883-0 02 1 9804- ● ● ● ● ● ●
305 02.596 COVER; FRT COMB LAMP
COLOR KEYED BUMPER(S4H) 		8-97201-881-0 02 1 9907-0012 ● ● ● ●
305 02.596 COVER; FRT COMB LAMP
COLOR KEYED BUMPER(S4H) KD PREPARATORY PACK<6HF> 		8-97201-881-0 02 1 0101-0101 ● ● ● ●
305 02.596 COVER; FRT COMB LAMP
COLOR KEYED BUMPER(S4H) EXC. HEADLAMP WASHER<CE3>,KD PREPARATORY PACK<6HF> 		8-97201-881-0 02 1 0101-0101 ● ● ● ●
305 02.596 COVER; FRT COMB LAMP
COLOR KEYED BUMPER(S4H) KD PREPARATORY PACK<6HF> 		8-97201-881-0 02 1 0101-0107 ● ● ● ● ●
305 02.596 COVER; FRT COMB LAMP
COLOR KEYED BUMPER(S4H) EXC. HEADLAMP WASHER<CE3>,KD PREPARATORY PACK<6HF> 		8-97201-881-0 02 1 0101-0107 ● ● ● ● ●
305 02.596 COVER; FRT COMB LAMP
COLOR KEYED BUMPER(S4H) 		8-97201-881-0 02 1 0108- ● ● ● ● ●
315 02.596 HARNESS; FRT COMB LAMP
COLOR KEYED BUMPER(S4H) 		8-97201-882-0 02 1 9907-0012 ● ● ● ●
315 02.596 HARNESS; FRT COMB LAMP
COLOR KEYED BUMPER(S4H) KD PREPARATORY PACK<6HF> 		8-97304-595-0 02 1 0101-0101 ● ● ● ●
315 02.596 HARNESS; FRT COMB LAMP
COLOR KEYED BUMPER(S4H) EXC. HEADLAMP WASHER<CE3>,KD PREPARATORY PACK<6HF> 		8-97304-595-0 02 1 0101-0101 ● ● ● ●
315 02.596 HARNESS; FRT COMB LAMP
COLOR KEYED BUMPER(S4H) KD PREPARATORY PACK<6HF> 		8-97304-595-0 02 1 0101-0107 ● ● ● ● ●
315 02.596 HARNESS; FRT COMB LAMP
COLOR KEYED BUMPER(S4H) EXC. HEADLAMP WASHER<CE3>,KD PREPARATORY PACK<6HF> 		8-97304-595-0 02 1 0101-0107 ● ● ● ● ●
315 02.596 HARNESS; FRT COMB LAMP
COLOR KEYED BUMPER(S4H) 		8-97304-595-0 02 1 0108- ● ● ● ● ●
çizim 65205
1 282 205 282 72 314 19 22 2 4 22 5 20 190 21 5 4 6 2 98 239 96 220 215 221 96 98
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP<TT5> (A) 12V 60/55W 		8-97044-423-2 01 1 9804- ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP<TT5> (A) 12V 60/55W 		8-97044-422-3 01 1 9804- ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP<TT5>,YELLOW HEAD LAMP<T75> (A) 12V 45/40W 		8-97039-811-2 01 1 9804-0009 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,HALOGEN HEAD LAMP<TT5>,YELLOW HEADLAMP<T75> (A) 12V 45/40W 		8-97039-811-2 01 1 0010-0012 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP<TT5>,YELLOW HEAD LAMP<T75>,HALOGEN HEAD LAMPS MULTIREFLECTOR<7YW> (A) 12V 45/40W 		8-97039-811-2 01 1 0101-0205 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP<TT5>,HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 12V 45/40W 		8-97039-811-2 01 1 0206- ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP<TT5>,YELLOW HEAD LAMP<T75> (A) 12V 45/40W 		8-97039-810-3 01 1 9804-0009 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,HALOGEN HEAD LAMP<TT5>,YELLOW HEADLAMP<T75> (A) 12V 45/40W 		8-97039-810-3 01 1 0010-0012 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP<TT5>,YELLOW HEAD LAMP<T75>,HALOGEN HEAD LAMPS MULTIREFLECTOR<7YW> (A) 12V 45/40W 		8-97039-810-3 01 1 0101-0205 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HALOGEN HEAD LAMP<TT5>,HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 12V 45/40W 		8-97039-810-3 01 1 0206- ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
YELLOW HEAD LAMP<T75> (A) 12V 45/40W 		8-97039-813-2 01 1 9804-0205 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
YELLOW HEAD LAMP<T75> (A) 12V 45/40W 		8-97039-812-3 01 1 9804-0205 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97213-008-0 01 1 0010-0012 ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (C) 		8-97246-507-1 01 1 0101-0101 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (C) 		8-97246-507-1 01 1 0101-0107 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (C) 		8-97246-507-1 01 1 0108-0108 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (C) 		8-97311-000-1 01 1 0109- ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) 		8-97213-007-0 01 1 0010-0012 ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (C) 		8-97246-506-1 01 1 0101-0101 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (C) 		8-97246-506-1 01 1 0101-0107 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (C) 		8-97246-506-1 01 1 0108-0108 ● ● ● ●
1 02.725 LAMP ASM; HEAD
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (C) 		8-97311-001-1 01 1 0109- ● ● ● ●
2 02.726 SCREW; BRKT,HEADLAMP
03.890 M5X16 TAPPING 		9-07076-516-0 08 1 9804-0009 ● ● ● ● ● ●
2 02.726 SCREW; BRKT,HEADLAMP
03.890 M5X16 TAPPING 		9-07076-516-0 08 1 0010-0012 ● ● ● ● ●
2 02.726 SCREW; BRKT,HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 03.890 M5X16 TAPPING 		9-07076-516-0 08 1 0010-0012 ●
2 02.726 SCREW; BRKT,HEADLAMP
EXC. HALOGEN HEAD LAMPS MULTI REFLECT OR<7YW> 03.890 M5X16 TAPPING 		9-07076-516-0 08 1 0101- ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
HALOGEN HEAD LAMP<TT5> (B) 		8-94334-632-1 02 1 9804- ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
EXC. HALOGEN HEAD LAMP<TT5>,YELLOW HEAD LAMP<T75> (A) 		8-94334-628-1 02 1 9804-0009 ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,HALOGEN HEAD LAMP<TT5>,YELLOW HEADLAMP<T75> (A) 		8-94334-628-1 02 1 0010-0012 ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
EXC. HALOGEN HEAD LAMP<TT5>,YELLOW HEAD LAMP<T75>,HALOGEN HEAD LAMPS MULTIREFLECTOR<7YW> (A) 		8-94334-628-1 02 1 0101-0205 ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
EXC. HALOGEN HEAD LAMP<TT5>,HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-94334-628-1 02 1 0206- ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
YELLOW HEAD LAMP<T75> (A) 		8-94334-630-1 02 1 9804-0205 ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.726 (C) 		8-97178-342-0 01 1 0010-0012 ●
4 02.727 HEADLAMP UNIT
HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.726 (C) 		8-97178-341-0 01 1 0010-0012 ●
5 02.727 BULB; HEADLAMP
HALOGEN HEAD LAMP<TT5> (B) 12V 60/55W 		1-88302-128-0 02 1 9804- ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
EXC. HALOGEN HEAD LAMP<TT5>,YELLOW HEAD LAMP<T75> 08.991 (A) 12V 45/50W 		5-82193-001-0 02 1 9804-0009 ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4>,HALOGEN HEAD LAMP<TT5>,YELLOW HEADLAMP<T75> 08.991 (A) 12V 45/50W 		5-82193-001-0 02 1 0010-0012 ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
EXC. HALOGEN HEAD LAMP<TT5>,YELLOW HEAD LAMP<T75>,HALOGEN HEAD LAMPS MULTIREFLECTOR<7YW> 08.991 (A) 12V 45/50W 		5-82193-001-0 02 1 0101-0205 ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
EXC. HALOGEN HEAD LAMP<TT5>,HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 08.991 12V 45/50W 		5-82193-001-0 02 1 0206- ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
YELLOW HEAD LAMP<T75> 08.991 (A) 12V 45/40W YELLOW 		5-82193-002-0 02 1 9804-0205 ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> (C) 12V 60/55W 		8-94217-817-0 02 1 0010-0012 ●
5 02.727 BULB; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (C) 12V 60/55W 		8-94217-817-0 02 1 0101-0101 ● ● ● ●
5 02.727 BULB; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (C) 12V 60/55W 		8-94217-817-0 02 1 0101-0107 ● ● ● ● ●
5 02.727 BULB; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> (C) 12V 60/55W 		8-94217-817-0 02 1 0108- ● ● ● ●
6 02.728 RIM; HEADLAMP
02.731 		8-94228-905-0 02 1 9804-0009 ● ● ● ● ● ●
6 02.728 RIM; HEADLAMP
02.731 		8-94228-905-0 02 1 0010-0012 ● ● ● ● ●
6 02.728 RIM; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.731 		8-94228-905-0 02 1 0010-0012 ●
6 02.728 RIM; HEADLAMP
EXC. HALOGEN HEAD LAMPS MULTI REFLECT OR<7YW> 02.731 		8-94228-905-0 02 1 0101- ● ● ● ● ● ●
6 02.728 RIM; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97178-340-0 01 1 0010-0012 ●
6 02.728 RIM; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97178-340-0 01 1 0101-0101 ● ● ● ●
6 02.728 RIM; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97178-340-0 01 1 0101-0107 ● ● ● ● ●
6 02.728 RIM; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97178-340-0 01 1 0108- ● ● ● ●
6 02.728 RIM; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97178-339-0 01 1 0010-0012 ●
6 02.728 RIM; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97178-339-0 01 1 0101-0101 ● ● ● ●
6 02.728 RIM; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97178-339-0 01 1 0101-0107 ● ● ● ● ●
6 02.728 RIM; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97178-339-0 01 1 0108- ● ● ● ●
19 02.726 NUT; HEADLAMP 8-94324-115-0 02 1 9804-0009 ● ● ● ● ● ●
19 02.726 NUT; HEADLAMP 8-94324-115-0 02 1 0010-0012 ● ● ● ● ●
19 02.726 NUT; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-94324-115-0 02 1 0010-0012 ●
19 02.726 NUT; HEADLAMP
EXC. HALOGEN HEAD LAMPS MULTI REFLECT OR<7YW> 		8-94324-115-0 02 1 0101- ● ● ● ● ● ●
19 02.726 NUT; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0010-0012 ●
19 02.726 NUT; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0101-0101 ● ● ● ●
19 02.726 NUT; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0101-0107 ● ● ● ● ●
19 02.726 NUT; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0108- ● ● ● ●
19 02.726 NUT; HEADLAMP
COLOR KEYED BUMPER(S4H) EXC. HEADLAMP WASHER<CE3>,KD PREPARATORY PACK<6HF> 02.343 M5 FLANGE 		8-97068-819-0 04 1 0010-0107 ● ● ● ●
19 02.726 NUT; HEADLAMP
COLOR KEYED BUMPER(S4H) 02.343 M5 FLANGE 		8-97068-819-0 04 1 0108- ● ● ● ● ●
20 02.736 SCREW; HEADLAMP
02.737 		8-94324-114-0 12 1 9804-0009 ● ● ● ● ● ●
20 02.736 SCREW; HEADLAMP
02.737 		8-94324-114-0 12 1 0010-0012 ● ● ● ● ●
20 02.736 SCREW; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.737 		8-94324-114-0 12 1 0010-0012 ●
20 02.736 SCREW; HEADLAMP
EXC. HALOGEN HEAD LAMPS MULTI REFLECT OR<7YW> 02.737 		8-94324-114-0 12 1 0101- ● ● ● ● ● ●
20 02.736 SCREW; HEADLAMP
HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97178-336-0 10 1 0010-0012 ●
20 02.736 SCREW; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97178-336-0 10 1 0101-0101 ● ● ● ●
20 02.736 SCREW; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97178-336-0 10 1 0101-0107 ● ● ● ● ●
20 02.736 SCREW; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97178-336-0 10 1 0108-0202 ● ● ● ●
20 02.736 SCREW; HEADLAMP
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97178-336-0 08 1 0203- ● ● ● ●
21 02.737 SPRING; ADJ HEADLAMP 8-97042-577-0 04 1 9804-0009 ● ● ● ● ● ●
21 02.737 SPRING; ADJ HEADLAMP 8-97042-577-0 04 1 0010-0012 ● ● ● ● ●
21 02.737 SPRING; ADJ HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97042-577-0 04 1 0010-0012 ●
21 02.737 SPRING; ADJ HEADLAMP
EXC. HALOGEN HEAD LAMPS MULTI REFLECT OR<7YW> 		8-97042-577-0 04 1 0101- ● ● ● ● ● ●
22 02.726 SCREW; ADJ,HEADLAMP
02.737 		8-97042-612-0 04 1 9804-0009 ● ● ● ● ● ●
22 02.726 SCREW; ADJ,HEADLAMP
02.737 		8-97042-612-0 04 1 0010-0012 ● ● ● ● ●
22 02.726 SCREW; ADJ,HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 02.737 		8-97042-612-0 04 1 0010-0012 ●
22 02.726 SCREW; ADJ,HEADLAMP
EXC. HALOGEN HEAD LAMPS MULTI REFLECT OR<7YW> 02.737 		8-97042-612-0 04 1 0101- ● ● ● ● ● ●
72 02.726 GROMMET; SCREW,HEADLAMP
D=7X7 L=7.5 		8-94291-927-0 08 1 9804-0009 ● ● ● ● ● ●
72 02.726 GROMMET; SCREW,HEADLAMP
D=7X7 L=7.5 		8-94291-927-0 08 1 0010-0012 ● ● ● ● ●
72 02.726 GROMMET; SCREW,HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> D=7X7 L=7.5 		8-94291-927-0 08 1 0010-0012 ●
72 02.726 GROMMET; SCREW,HEADLAMP
EXC. HALOGEN HEAD LAMPS MULTI REFLECT OR<7YW> D=7X7 L=7.5 		8-94291-927-0 08 1 0101- ● ● ● ● ● ●
96 02.575 GROMMET; SCREW,SIDE COMB LAMP
02.708 M4 		5-09470-002-0 04 1 9804- ● ● ● ● ● ●
98 02.895 SCREW; SIDE COMB LAMP
(B) M4X16 		8-97090-762-0 02 1 9804-9903 ● ● ● ● ● ●
98 02.895 SCREW; SIDE COMB LAMP
02.587 (B) M4X16 W/WASHER 		8-97809-122-0 02 1 9904- ● ● ● ● ● ●
98 02.895 SCREW; SIDE COMB LAMP
(A) M4X25 		8-97165-952-0 04 1 9804- ● ● ● ● ● ●
190 02.727 RETAINER; HEADLAMP 8-97042-578-0 02 1 9804-0009 ● ● ● ● ● ●
190 02.727 RETAINER; HEADLAMP 8-97042-578-0 02 1 0010-0012 ● ● ● ● ●
190 02.727 RETAINER; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97042-578-0 02 1 0010-0012 ●
190 02.727 RETAINER; HEADLAMP
EXC. HALOGEN HEAD LAMPS MULTI REFLECT OR<7YW> 		8-97042-578-0 02 1 0101- ● ● ● ● ● ●
205 02.727 ACTUATOR; HEADLAMP 8-97113-326-0 02 1 9804-0009 ● ● ● ● ● ●
205 02.727 ACTUATOR; HEADLAMP 8-97113-326-0 02 1 0010-0012 ● ● ● ● ●
205 02.727 ACTUATOR; HEADLAMP
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 		8-97113-326-0 02 1 0010-0012 ●
205 02.727 ACTUATOR; HEADLAMP
EXC. HALOGEN HEAD LAMPS MULTI REFLECT OR<7YW> 		8-97113-326-0 02 1 0101- ● ● ● ● ● ●
215 08.991 BULB; FRT CLEARANCE LAMP
12V 5W 		8-94124-595-0 02 1 9804- ● ● ● ● ● ●
220 02.586 SOCKET; CLEARANCE LAMP 8-97167-687-0 02 1 9804- ● ● ● ● ● ●
221 02.586 TUBE; COVER,CLEARANCE LAMP
02.689 		8-97166-174-0 02 1 9804- ● ● ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
02.585 		8-97111-855-0 01 1 9804-0012 ● ● ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
02.585 		8-97111-855-0 01 1 0101-0101 ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
EXC. HALOGEN HEAD LAMPS MULTI REFLECT OR<7YW> 02.585 		8-97111-855-0 01 1 0101-0101 ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
02.585 		8-97111-855-0 01 1 0101-0107 ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
EXC. HALOGEN HEAD LAMPS MULTI REFLECT OR<7YW> 02.585 		8-97111-855-0 01 1 0101-0107 ● ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
02.585 		8-97111-855-0 01 1 0108- ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
EXC. HALOGEN HEAD LAMPS MULTI REFLECT OR<7YW> 02.585 		8-97111-855-0 01 1 0108- ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
02.585 		8-97111-854-0 01 1 9804-0012 ● ● ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
02.585 		8-97111-854-0 01 1 0101-0101 ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
EXC. HALOGEN HEAD LAMPS MULTI REFLECT OR<7YW> 02.585 		8-97111-854-0 01 1 0101-0101 ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
02.585 		8-97111-854-0 01 1 0101-0107 ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
EXC. HALOGEN HEAD LAMPS MULTI REFLECT OR<7YW> 02.585 		8-97111-854-0 01 1 0101-0107 ● ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
02.585 		8-97111-854-0 01 1 0108- ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
EXC. HALOGEN HEAD LAMPS MULTI REFLECT OR<7YW> 02.585 		8-97111-854-0 01 1 0108- ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97249-039-0 01 1 0101-0101 ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97249-039-0 01 1 0101-0107 ● ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97249-039-0 01 1 0108- ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97249-038-0 01 1 0101-0101 ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97249-038-0 01 1 0101-0107 ● ● ● ● ●
239 02.575 LAMP; FRT,CLEARANCE & PARKING
HALOGEN HEAD LAMPS MULTI REFLECTOR<7YW> 		8-97249-038-0 01 1 0108- ● ● ● ●
282 02.726 SCREW; ACTUATOR
(A) 		8-97015-555-0 02 1 9804-0009 ● ● ● ● ● ●
282 02.726 SCREW; ACTUATOR
(A) 		8-97015-555-0 02 1 0010-0012 ● ● ● ● ●
282 02.726 SCREW; ACTUATOR
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (A) 		8-97015-555-0 02 1 0010-0012 ●
282 02.726 SCREW; ACTUATOR
EXC. HALOGEN HEAD LAMPS MULTI REFLECT OR<7YW> (A) 		8-97015-555-0 02 1 0101- ● ● ● ● ● ●
282 02.726 SCREW; ACTUATOR
(B) M4X35 		8-97042-611-0 04 1 9804-0009 ● ● ● ● ● ●
282 02.726 SCREW; ACTUATOR
(B) M4X35 		8-97042-611-0 04 1 0010-0012 ● ● ● ● ●
282 02.726 SCREW; ACTUATOR
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> (B) M4X35 		8-97042-611-0 04 1 0010-0012 ●
282 02.726 SCREW; ACTUATOR
EXC. HALOGEN HEAD LAMPS MULTI REFLECT OR<7YW> (B) M4X35 		8-97042-611-0 04 1 0101- ● ● ● ● ● ●
314 02.727 NUT; ACTUATOR
09.262 M4 		9-99111-404-0 04 1 9804-0011 ● ● ● ● ● ●
314 02.727 NUT; ACTUATOR
09.262 M4 		9-99111-404-0 04 1 0012-0012 ● ● ● ● ●
314 02.727 NUT; ACTUATOR
EXC. HALOGEN HEAD LAMP RECTANGULAR<TR4> 09.262 M4 		9-99111-404-0 04 1 0012-0012 ●
314 02.727 NUT; ACTUATOR
EXC. HALOGEN HEAD LAMPS MULTI REFLECT OR<7YW> 09.262 M4 		9-99111-404-0 04 1 0101- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
