7-50 — FRONT SEAT (#45113) — 256 parça
çizim 15780
28 28 67 67
BalonParca AdiParca NoAdetTipApplied Date A B
28 16.718 HOLDER; GUIDE,HD REST
CREW CAB(TF**W*) RR SEAT NON SPLIT BACK(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (A) FREE GRAY 		8-97152-906-1 04 1 9804- ● ●
28 16.718 HOLDER; GUIDE,HD REST
CREW CAB(TF**W*) RR SEAT NON SPLIT BACK(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (B) LOCK GRAY 		8-97152-907-1 04 1 9804- ● ●
28 16.718 HOLDER; GUIDE,HD REST
4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) RR SEAT NON SPLIT BACK(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (A) FREE GRAY 		8-97152-906-1 02 1 9804- ● ●
28 16.718 HOLDER; GUIDE,HD REST
4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) RR SEAT NON SPLIT BACK(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (B) LOCK GRAY 		8-97152-907-1 02 1 9804- ● ●
67 16.682 BOLT; FRT SEAT TO BODY
CREW CAB(TF**W*) RR SEAT NON SPLIT BACK(S3B) M10X19 		8-94427-095-2 10 1 9804-9906 ●
67 16.682 BOLT; FRT SEAT TO BODY
4X2 CREW CAB(TFB*W*) EXC. RR SEAT NON SPLIT BACK(S3B) M10X19 		8-94427-095-2 06 1 9804-9906 ●
67 16.682 BOLT; FRT SEAT TO BODY
4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) RR SEAT NON SPLIT BACK(S3B) M10X19 		8-94427-095-2 08 1 9804-9906 ●
67 16.682 BOLT; FRT SEAT TO BODY
RR SEAT NON SPLIT BACK(S3B) M10X19 		8-94427-095-2 08 1 9907- ●
67 16.682 BOLT; FRT SEAT TO BODY
4X2 SINGLE CAB(TFB*S*) EXC. RR SEAT NON SPLIT BACK(S3B) M10X19 		8-94427-095-2 04 1 9804-9906 ● ●
67 16.682 BOLT; FRT SEAT TO BODY
4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) EXC. RR SEAT NON SPLIT BACK(S3B) M10X19 		8-94427-095-2 04 1 9907- ● ●

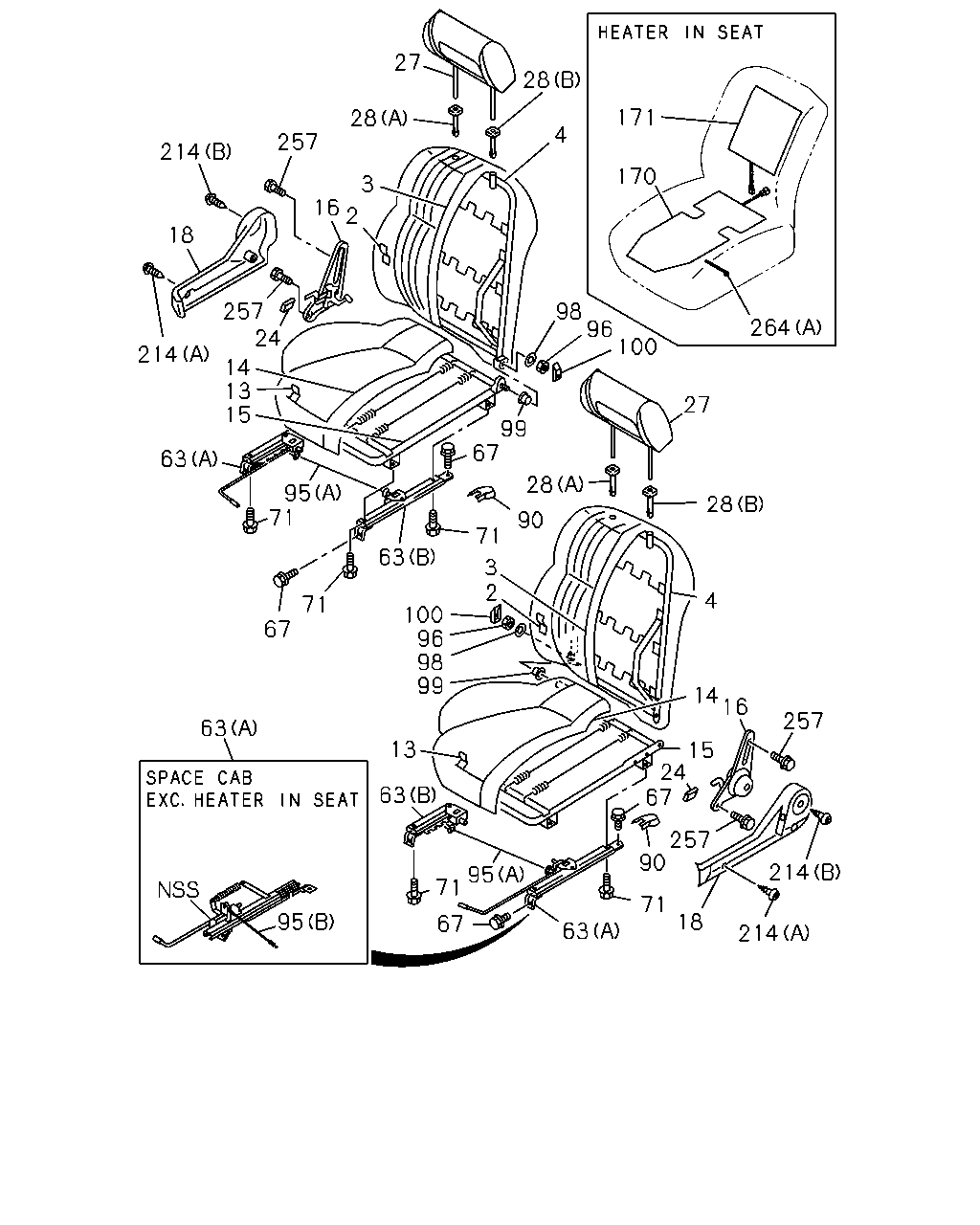

çizim 15781
27 28 171 28 4 257 214 170 3 16 2 18 257 24 14 13 15 98 96 100 264 214 99 67 27 63 28 95 71 28 90 71 3 2 63 4 71 67 100 96 98 99 14 16 257 63 13 15 24 67 63 257 90 214 95 71 71 95 18 67 63 214
BalonParca AdiParca NoAdetTipApplied Date A B
2 16.724 COVER; TRIM,FRT SEAT,BACK
CREW CAB(TF**W*) RR SEAT NON SPLIT BACK(S3B) GRAY 		8-97197-196-0 01 1 9804-9906 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
CREW CAB(TF**W*) RR SEAT NON SPLIT BACK(S3B) GRAY 		8-97197-196-0 01 1 9907-0012 ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
CREW CAB(TF**W*) RR SEAT NON SPLIT BACK(S3B) GRAY 		8-97297-097-1 01 1 0101-0107 ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
CREW CAB(TF**W*) RR SEAT NON SPLIT BACK(S3B) GRAY 		8-97197-193-0 01 1 9804-9906 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
CREW CAB(TF**W*) RR SEAT NON SPLIT BACK(S3B) GRAY 		8-97197-193-0 01 1 9907-0012 ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
CREW CAB(TF**W*) RR SEAT NON SPLIT BACK(S3B) GRAY 		8-97297-096-2 01 1 0101- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
4X2 CREW CAB(TFB*W*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97197-148-0 01 1 9804-9906 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
4X2 CREW CAB(TFB*W*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97197-148-0 01 1 9907-0012 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
4X2 CREW CAB(TFB*W*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97297-099-1 01 1 0101- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) RR SEAT NON SPLIT BACK(S3B) GRAY 		8-97197-168-0 01 1 9804-0012 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) RR SEAT NON SPLIT BACK(S3B) GRAY 		8-97297-095-1 01 1 0101-0107 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
RR SEAT NON SPLIT BACK(S3B) GRAY 		8-97297-095-2 01 1 0108- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) RR SEAT NON SPLIT BACK(S3B) GRAY 		8-97197-163-0 01 1 9804-0012 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) RR SEAT NON SPLIT BACK(S3B) GRAY 		8-97297-094-2 01 1 0101- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
4X2 SINGLE CAB(TFB*S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97197-215-0 01 1 9804-0012 ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
4X2 SINGLE CAB(TFB*S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97297-093-0 01 1 0101-0107 ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
4X2 SINGLE CAB(TFB*S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97297-093-1 01 1 0108- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
4X2 CREW CAB(TFB*W*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97297-098-0 01 1 0101-0107 ●
3 16.720 PAD; FRT SEAT BACK
RR SEAT NON SPLIT BACK(S3B) 		8-94328-161-2 02 1 9804- ● ●
4 16.720 FRAME ASM; FRT SEAT
RR SEAT NON SPLIT BACK(S3B) 		8-94317-775-1 01 1 9804- ● ●
4 16.720 FRAME ASM; FRT SEAT
RR SEAT NON SPLIT BACK(S3B) 		8-94317-774-1 01 1 9804- ● ●
4 16.720 FRAME ASM; FRT SEAT
4X2 CREW CAB(TFB*W*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-97137-726-1 01 1 9804- ●
4 16.720 FRAME ASM; FRT SEAT
4X2 SINGLE CAB(TFB*S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-94441-860-5 01 1 9804-0107 ● ●
4 16.720 FRAME ASM; FRT SEAT
4X2 SINGLE CAB(TFB*S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-94441-860-5 01 1 0108- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
RR SEAT NON SPLIT BACK(S3B) HEATER IN SEAT<6QQ> GRAY 		8-97197-182-0 01 1 9804-9906 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
RR SEAT NON SPLIT BACK(S3B) HEATER IN SEAT<6QQ> GRAY 		8-97197-182-0 01 1 9907-0012 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
RR SEAT NON SPLIT BACK(S3B) HEATER IN SEAT<6QQ> GRAY 		8-97297-089-1 01 1 0101-0208 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
RR SEAT NON SPLIT BACK(S3B) HEATER IN SEAT<6QQ> GRAY 		8-97197-178-0 01 1 9804-9906 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
RR SEAT NON SPLIT BACK(S3B) HEATER IN SEAT<6QQ> GRAY 		8-97197-178-0 01 1 9907-0012 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
RR SEAT NON SPLIT BACK(S3B) HEATER IN SEAT<6QQ> GRAY 		8-97297-088-1 01 1 0101-0208 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
RR SEAT NON SPLIT BACK(S3B) EXC. HEATER IN SEAT<6QQ> GRAY 		8-97197-170-0 01 1 9804-9906 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
RR SEAT NON SPLIT BACK(S3B) EXC. HEATER IN SEAT<6QQ> GRAY 		8-97197-170-0 01 1 9907-0012 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
RR SEAT NON SPLIT BACK(S3B) EXC. HEATER IN SEAT<6QQ> GRAY 		8-97297-087-1 01 1 0101-0208 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
RR SEAT NON SPLIT BACK(S3B) GRAY 		8-97297-087-1 01 1 0209- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
RR SEAT NON SPLIT BACK(S3B) EXC. HEATER IN SEAT<6QQ> GRAY 		8-97197-165-0 01 1 9804-9906 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
RR SEAT NON SPLIT BACK(S3B) EXC. HEATER IN SEAT<6QQ> GRAY 		8-97197-165-0 01 1 9907-0012 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
RR SEAT NON SPLIT BACK(S3B) EXC. HEATER IN SEAT<6QQ> GRAY 		8-97297-086-1 01 1 0101-0208 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
RR SEAT NON SPLIT BACK(S3B) GRAY 		8-97297-086-1 01 1 0209- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
4X2 CREW CAB(TFB*W*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) EXC. HEATER IN SEAT<6QQ> GRAY 		8-97197-155-0 01 1 9804-0012 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
4X2 CREW CAB(TFB*W*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) EXC. HEATER IN SEAT<6QQ> GRAY 		8-97297-090-1 01 1 0101-0208 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
4X2 CREW CAB(TFB*W*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97297-090-1 01 1 0209- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
4X2 CREW CAB(TFB*W*) HEATER IN SEAT<6QQ> BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97197-160-0 01 1 9804-0012 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
4X2 CREW CAB(TFB*W*) HEATER IN SEAT<6QQ> BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97297-091-1 01 1 0101-0208 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
4X2 SINGLE CAB(TFB*S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) EXC. HEATER IN SEAT<6QQ> GRAY 		8-97197-217-0 01 1 9804-0012 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
4X2 SINGLE CAB(TFB*S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) EXC. HEATER IN SEAT<6QQ> GRAY 		8-97297-084-1 01 1 0101-0208 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
4X2 SINGLE CAB(TFB*S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97297-084-1 01 1 0209- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
4X2 SINGLE CAB(TFB*S*) HEATER IN SEAT<6QQ> BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97197-222-0 01 1 9804-0012 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
4X2 SINGLE CAB(TFB*S*) HEATER IN SEAT<6QQ> BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97297-085-1 01 1 0101-0208 ● ●
14 16.716 PAD; FRT SEAT CUSHION
BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-97137-927-0 01 1 9804- ●
14 16.716 PAD; FRT SEAT CUSHION
RR SEAT NON SPLIT BACK(S3B) 		8-94473-493-4 02 1 9804- ● ●
15 16.716 FRAME; CUSHION,FRT SEAT
RR SEAT NON SPLIT BACK(S3B) 		8-94441-871-2 01 1 9804- ● ●
15 16.716 FRAME; CUSHION,FRT SEAT
RR SEAT NON SPLIT BACK(S3B) 		8-94441-872-2 01 1 9804- ● ●
15 16.716 FRAME; CUSHION,FRT SEAT
4X2 CREW CAB(TFB*W*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-97039-162-1 01 1 9804- ●
15 16.716 FRAME; CUSHION,FRT SEAT
4X2 SINGLE CAB(TFB*S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-97039-159-0 01 1 9804-0107 ● ●
15 16.716 FRAME; CUSHION,FRT SEAT
4X2 SINGLE CAB(TFB*S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-97039-159-1 01 1 0108- ● ●
16 16.682 ADJUSTER ASM; RECLINING
SPACE CAB(TF**C*) 		8-94473-509-3 01 1 9804- ● ●
16 16.682 ADJUSTER ASM; RECLINING
SPACE CAB(TF**C*) HEATER IN SEAT<6QQ> 		8-94473-669-2 01 1 9804-0208 ● ●
16 16.682 ADJUSTER ASM; RECLINING
4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB LONG(TFS6WF) RR SEAT NON SPLIT BACK(S3B) 		8-94473-669-2 01 1 9804-0208 ● ●
16 16.682 ADJUSTER ASM; RECLINING
4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB LONG(TFS6WF) RR SEAT NON SPLIT BACK(S3B) 		8-94473-669-2 01 1 0209- ● ●
16 16.682 ADJUSTER ASM; RECLINING
SPACE CAB(TF**C*) EXC. HEATER IN SEAT<6QQ> 		8-94327-320-2 01 1 9804-0208 ● ●
16 16.682 ADJUSTER ASM; RECLINING
SPACE CAB(TF**C*) 		8-94327-320-2 01 1 0209- ● ●
16 16.682 ADJUSTER ASM; RECLINING
4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB LONG(TFS6WF) RR SEAT NON SPLIT BACK(S3B) 		8-94473-497-2 01 1 9804- ● ●
18 16.682 COVER; RECLINING
RR SEAT NON SPLIT BACK(S3B) GRAY 		8-97152-921-4 01 1 9804- ● ●
18 16.682 COVER; RECLINING
RR SEAT NON SPLIT BACK(S3B) GRAY 		8-97152-913-4 01 1 9804- ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
RR SEAT NON SPLIT BACK(S3B) GRAY 		8-97152-920-0 01 1 9804- ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
RR SEAT NON SPLIT BACK(S3B) GRAY 		8-97152-912-0 01 1 9804- ● ●
27 16.718 REST; HD,FRT SEAT
RR SEAT NON SPLIT BACK(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97152-911-1 02 1 9804-0107 ● ●
27 16.718 REST; HD,FRT SEAT
4X2 SPACE CAB LONG(TFB6CF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB LONG(TFS6WF) GRAY 		8-97152-911-1 02 1 0108- ● ●
27 16.718 REST; HD,FRT SEAT
4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) RR SEAT NON SPLIT BACK(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97152-911-1 02 1 0108- ● ●
27 16.718 REST; HD,FRT SEAT
4X2 CREW CAB(TFB*W*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97155-404-0 02 1 0108-0208 ●
28 16.718 HOLDER; GUIDE,HD REST
CREW CAB(TF**W*) RR SEAT NON SPLIT BACK(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (A) FREE GRAY 		8-97152-906-1 04 1 9804- ● ●
28 16.718 HOLDER; GUIDE,HD REST
CREW CAB(TF**W*) RR SEAT NON SPLIT BACK(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (B) LOCK GRAY 		8-97152-907-1 04 1 9804- ● ●
28 16.718 HOLDER; GUIDE,HD REST
4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) RR SEAT NON SPLIT BACK(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (A) FREE GRAY 		8-97152-906-1 02 1 9804- ● ●
28 16.718 HOLDER; GUIDE,HD REST
4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) RR SEAT NON SPLIT BACK(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (B) LOCK GRAY 		8-97152-907-1 02 1 9804- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 SINGLE CAB(TFB*S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) EXC. HEATER IN SEAT<6QQ> (A) 		8-97130-689-0 01 1 0108-0208 ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 SINGLE CAB(TFB*S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (A) 		8-97130-689-0 01 1 0209- ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 SINGLE CAB(TFB*S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) EXC. HEATER IN SEAT<6QQ> (B) 		8-97130-691-0 01 1 0108-0208 ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 SINGLE CAB(TFB*S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (B) 		8-97130-691-0 01 1 0209- ●
63 16.682 ADJUSTER; SEAT SLIDE
BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (B) 		8-97130-690-0 01 1 9804-0012 ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 SINGLE CAB(TFB*S*) HEATER IN SEAT<6QQ> BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (B) 		8-97130-690-0 01 1 0101-0208 ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 CREW CAB(TFB*W*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (B) 		8-97130-690-0 01 1 0101-0208 ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 CREW CAB(TFB*W*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (B) 		8-97130-690-0 01 1 0209- ●
63 16.682 ADJUSTER; SEAT SLIDE
BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (A) 		8-97130-693-0 01 1 9804-0012 ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 SINGLE CAB(TFB*S*) HEATER IN SEAT<6QQ> BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (A) 		8-97130-693-0 01 1 0101-0208 ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 CREW CAB(TFB*W*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (A) 		8-97130-693-0 01 1 0101-0208 ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 CREW CAB(TFB*W*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (A) 		8-97130-693-0 01 1 0209- ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 SINGLE CAB(TFB*S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) EXC. HEATER IN SEAT<6QQ> (A) 		8-97130-689-0 01 1 0101-0107 ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 SINGLE CAB(TFB*S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) EXC. HEATER IN SEAT<6QQ> (B) 		8-97130-691-0 01 1 0101-0107 ●
63 16.682 ADJUSTER; SEAT SLIDE
SPACE CAB(TF**C*) (B) 		8-97127-471-1 01 1 9804- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SPACE CAB(TF**C*) (B) 		8-97127-470-1 01 1 9804- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SPACE CAB(TF**C*) (A) 		8-97127-473-1 01 1 9804- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SPACE CAB(TF**C*) HEATER IN SEAT<6QQ> (A) 		8-97130-694-0 01 1 9804-0208 ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SPACE CAB(TF**C*) EXC. HEATER IN SEAT<6QQ> (A) 		8-97127-472-1 01 1 9804-0208 ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SPACE CAB(TF**C*) (A) 		8-97127-472-1 01 1 0209- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB LONG(TFS6WF) RR SEAT NON SPLIT BACK(S3B) (B) 		8-97128-280-0 01 1 9804- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB LONG(TFS6WF) RR SEAT NON SPLIT BACK(S3B) (B) 		8-97128-279-0 01 1 9804- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB LONG(TFS6WF) RR SEAT NON SPLIT BACK(S3B) (A) 		8-97128-281-0 01 1 9804- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB LONG(TFS6WF) RR SEAT NON SPLIT BACK(S3B) (A) 		8-97128-282-0 01 1 9804- ● ●
67 16.682 BOLT; FRT SEAT TO BODY
CREW CAB(TF**W*) RR SEAT NON SPLIT BACK(S3B) M10X19 		8-94427-095-2 10 1 9804-9906 ●
67 16.682 BOLT; FRT SEAT TO BODY
4X2 CREW CAB(TFB*W*) EXC. RR SEAT NON SPLIT BACK(S3B) M10X19 		8-94427-095-2 06 1 9804-9906 ●
67 16.682 BOLT; FRT SEAT TO BODY
4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) RR SEAT NON SPLIT BACK(S3B) M10X19 		8-94427-095-2 08 1 9804-9906 ●
67 16.682 BOLT; FRT SEAT TO BODY
RR SEAT NON SPLIT BACK(S3B) M10X19 		8-94427-095-2 08 1 9907- ●
67 16.682 BOLT; FRT SEAT TO BODY
4X2 SINGLE CAB(TFB*S*) EXC. RR SEAT NON SPLIT BACK(S3B) M10X19 		8-94427-095-2 04 1 9804-9906 ● ●
67 16.682 BOLT; FRT SEAT TO BODY
4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) EXC. RR SEAT NON SPLIT BACK(S3B) M10X19 		8-94427-095-2 04 1 9907- ● ●
71 16.682 BOLT; ADJ TO SEAT
BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 11.377 M8X22 W/LK WASHER 		8-94171-739-0 04 1 9804- ●
71 16.682 BOLT; ADJ TO SEAT
RR SEAT NON SPLIT BACK(S3B) 11.377 M8X22 W/LK WASHER 		8-94171-739-0 08 1 9804- ● ●
90 16.682 COVER; SEAT ADJ BRKT
4X2 CREW CAB(TFB*W*) EXC. RR SEAT NON SPLIT BACK(S3B) 16.714 GRAY 		8-97150-709-2 02 1 9804- ● ●
90 16.682 COVER; SEAT ADJ BRKT
4X2 SPACE CAB LONG(TFB6CF) 4X2 CREW CAB LONG(TFB6WF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 CREW CAB LONG(TFS6WF) RR SEAT NON SPLIT BACK(S3B) 16.714 GRAY 		8-97150-709-2 04 1 9804- ● ●
95 16.682 WIRE; EXT,SEAT ADJ
BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (C) 		8-94473-469-2 01 1 9804- ●
95 16.682 WIRE; EXT,SEAT ADJ
RR SEAT NON SPLIT BACK(S3B) (A) 		8-94473-502-0 02 1 9804- ● ●
95 16.682 WIRE; EXT,SEAT ADJ
SPACE CAB(TF**C*) (B) 		8-97041-948-0 01 1 9804- ● ●
95 16.682 WIRE; EXT,SEAT ADJ
SPACE CAB(TF**C*) EXC. HEATER IN SEAT<6QQ> (B) 		8-97041-949-0 01 1 9804-0208 ● ●
95 16.682 WIRE; EXT,SEAT ADJ
SPACE CAB(TF**C*) 		8-97041-949-0 01 1 0209- ● ●
96 16.716 NUT; LK,HINGE
RR SEAT NON SPLIT BACK(S3B) 11.377 M8 FLANGE 		8-94152-886-0 02 1 9804- ● ●
98 16.716 WASHER; HINGE
RR SEAT NON SPLIT BACK(S3B) 11.377 ID=8.4 OD=20 		8-94408-413-0 02 1 9804- ● ●
99 16.716 BUSHING; SEAT BACK
RR SEAT NON SPLIT BACK(S3B) 11.377 DRIVER & RASSENGER 		8-94408-414-0 02 1 9804- ● ●
100 16.686 COVER; HINGE
BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97156-062-1 01 1 9804- ●
100 16.686 COVER; HINGE
BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97156-061-1 01 1 9804- ●
100 16.686 COVER; HINGE
RR SEAT NON SPLIT BACK(S3B) GRAY 		8-97152-914-1 02 1 9804- ● ●
170 16.716 HEATER ASM; FRT SEAT CUSHION
HEATER IN SEAT<6QQ> 		8-94365-929-2 02 1 9804-0208 ● ●
171 16.720 HEATER ASM; FRT SEAT BACK
HEATER IN SEAT<6QQ> 		8-94365-928-1 02 1 9804-0208 ● ●
214 16.682 SCREW; SIDE COVER
RR SEAT NON SPLIT BACK(S3B) 16.802 (A) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 9804- ● ●
214 16.682 SCREW; SIDE COVER
RR SEAT NON SPLIT BACK(S3B) (B) 		8-94478-733-0 02 1 9804- ● ●
257 16.682 BOLT; RECLINING DEVICE
RR SEAT NON SPLIT BACK(S3B) M10X20 W/LK WASHER 		8-94317-654-0 08 1 9804- ● ●
264 16.716 BAND; FRT SEAT
4X2 SINGLE CAB(TFB*S*) HEATER IN SEAT<6QQ> BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (A) L=129.5 		8-94368-493-0 02 1 9804-0208 ● ●
264 16.716 BAND; FRT SEAT
4X2 SINGLE CAB(TFB*S*) HEATER IN SEAT<6QQ> BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (B) 		8-94383-438-0 02 1 9804-0208 ● ●
264 16.716 BAND; FRT SEAT
4X2 SPACE CAB LONG(TFB6CF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB LONG(TFS6WF) HEATER IN SEAT<6QQ> (A) L=129.5 		8-94368-493-0 06 1 9804-0208 ● ●
264 16.716 BAND; FRT SEAT
4X2 SINGLE CAB(TFB*S*) RR SEAT NON SPLIT BACK(S3B) HEATER IN SEAT<6QQ> (A) L=129.5 		8-94368-493-0 06 1 9804-0208 ● ●
264 16.716 BAND; FRT SEAT
4X2 CREW CAB(TFB*W*) RR SEAT NON SPLIT BACK(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) HEATER IN SEAT<6QQ> (A) L=129.5 		8-94368-493-0 06 1 9804-0208 ● ●

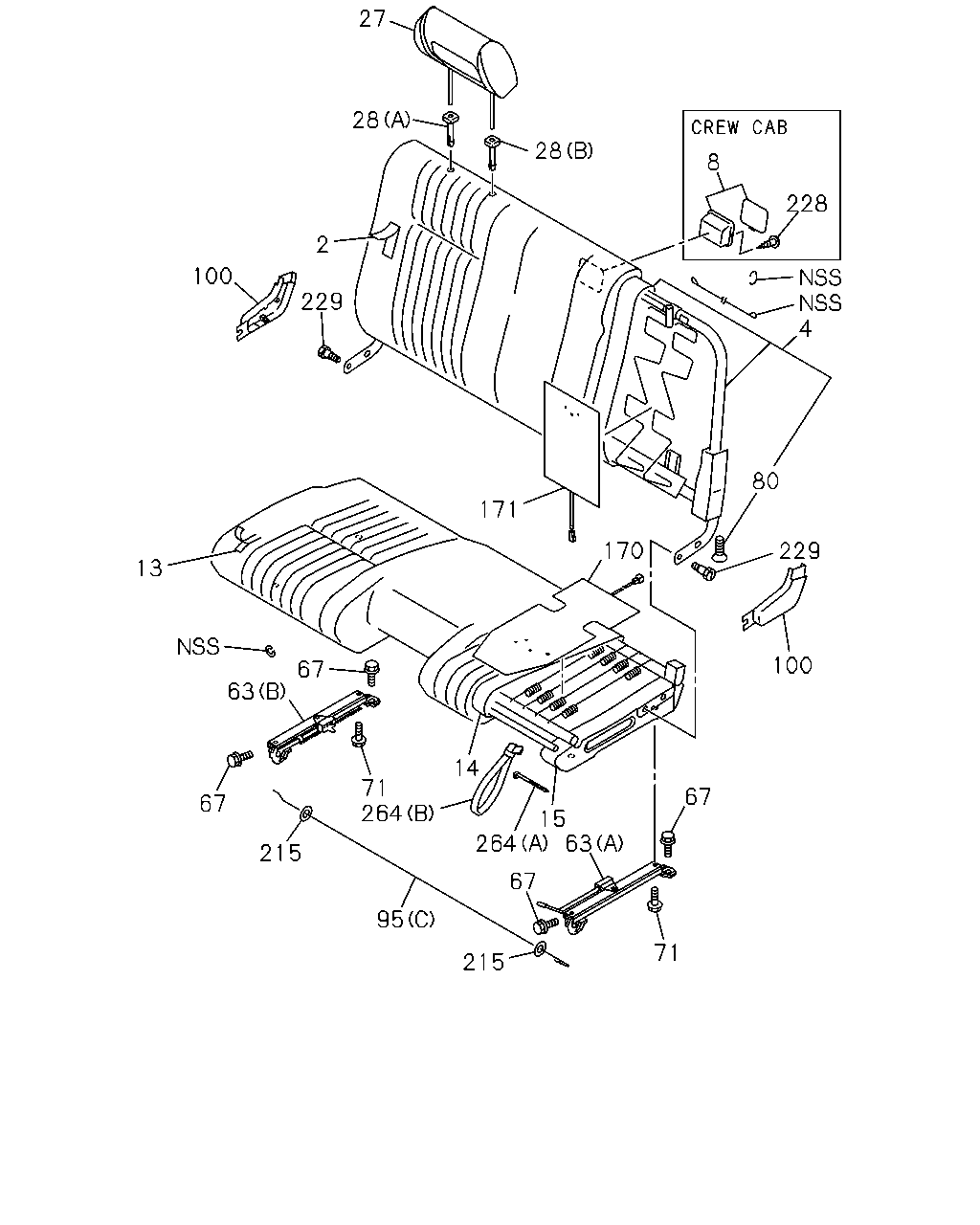

çizim 64240
27 28 28 8 228 2 100 4 229 80 171 170 229 13 100 67 63 14 71 264 67 67 15 63 264 215 67 95 71 215
BalonParca AdiParca NoAdetTipApplied Date A B
2 16.724 COVER; TRIM,FRT SEAT,BACK
CREW CAB(TF**W*) RR SEAT NON SPLIT BACK(S3B) GRAY 		8-97197-196-0 01 1 9804-9906 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
CREW CAB(TF**W*) RR SEAT NON SPLIT BACK(S3B) GRAY 		8-97197-196-0 01 1 9907-0012 ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
CREW CAB(TF**W*) RR SEAT NON SPLIT BACK(S3B) GRAY 		8-97297-097-1 01 1 0101-0107 ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
CREW CAB(TF**W*) RR SEAT NON SPLIT BACK(S3B) GRAY 		8-97197-193-0 01 1 9804-9906 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
CREW CAB(TF**W*) RR SEAT NON SPLIT BACK(S3B) GRAY 		8-97197-193-0 01 1 9907-0012 ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
CREW CAB(TF**W*) RR SEAT NON SPLIT BACK(S3B) GRAY 		8-97297-096-2 01 1 0101- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
4X2 CREW CAB(TFB*W*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97197-148-0 01 1 9804-9906 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
4X2 CREW CAB(TFB*W*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97197-148-0 01 1 9907-0012 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
4X2 CREW CAB(TFB*W*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97297-099-1 01 1 0101- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) RR SEAT NON SPLIT BACK(S3B) GRAY 		8-97197-168-0 01 1 9804-0012 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) RR SEAT NON SPLIT BACK(S3B) GRAY 		8-97297-095-1 01 1 0101-0107 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
RR SEAT NON SPLIT BACK(S3B) GRAY 		8-97297-095-2 01 1 0108- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) RR SEAT NON SPLIT BACK(S3B) GRAY 		8-97197-163-0 01 1 9804-0012 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) RR SEAT NON SPLIT BACK(S3B) GRAY 		8-97297-094-2 01 1 0101- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
4X2 SINGLE CAB(TFB*S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97197-215-0 01 1 9804-0012 ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
4X2 SINGLE CAB(TFB*S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97297-093-0 01 1 0101-0107 ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
4X2 SINGLE CAB(TFB*S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97297-093-1 01 1 0108- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
4X2 CREW CAB(TFB*W*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97297-098-0 01 1 0101-0107 ●
4 16.720 FRAME ASM; FRT SEAT
RR SEAT NON SPLIT BACK(S3B) 		8-94317-775-1 01 1 9804- ● ●
4 16.720 FRAME ASM; FRT SEAT
RR SEAT NON SPLIT BACK(S3B) 		8-94317-774-1 01 1 9804- ● ●
4 16.720 FRAME ASM; FRT SEAT
4X2 CREW CAB(TFB*W*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-97137-726-1 01 1 9804- ●
4 16.720 FRAME ASM; FRT SEAT
4X2 SINGLE CAB(TFB*S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-94441-860-5 01 1 9804-0107 ● ●
4 16.720 FRAME ASM; FRT SEAT
4X2 SINGLE CAB(TFB*S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-94441-860-5 01 1 0108- ● ●
8 16.120 TRAY ASM; ASH,FRT SEAT
4X2 CREW CAB(TFB*W*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97150-683-1 01 1 9804- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
RR SEAT NON SPLIT BACK(S3B) HEATER IN SEAT<6QQ> GRAY 		8-97197-182-0 01 1 9804-9906 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
RR SEAT NON SPLIT BACK(S3B) HEATER IN SEAT<6QQ> GRAY 		8-97197-182-0 01 1 9907-0012 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
RR SEAT NON SPLIT BACK(S3B) HEATER IN SEAT<6QQ> GRAY 		8-97297-089-1 01 1 0101-0208 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
RR SEAT NON SPLIT BACK(S3B) HEATER IN SEAT<6QQ> GRAY 		8-97197-178-0 01 1 9804-9906 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
RR SEAT NON SPLIT BACK(S3B) HEATER IN SEAT<6QQ> GRAY 		8-97197-178-0 01 1 9907-0012 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
RR SEAT NON SPLIT BACK(S3B) HEATER IN SEAT<6QQ> GRAY 		8-97297-088-1 01 1 0101-0208 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
RR SEAT NON SPLIT BACK(S3B) EXC. HEATER IN SEAT<6QQ> GRAY 		8-97197-170-0 01 1 9804-9906 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
RR SEAT NON SPLIT BACK(S3B) EXC. HEATER IN SEAT<6QQ> GRAY 		8-97197-170-0 01 1 9907-0012 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
RR SEAT NON SPLIT BACK(S3B) EXC. HEATER IN SEAT<6QQ> GRAY 		8-97297-087-1 01 1 0101-0208 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
RR SEAT NON SPLIT BACK(S3B) GRAY 		8-97297-087-1 01 1 0209- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
RR SEAT NON SPLIT BACK(S3B) EXC. HEATER IN SEAT<6QQ> GRAY 		8-97197-165-0 01 1 9804-9906 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
RR SEAT NON SPLIT BACK(S3B) EXC. HEATER IN SEAT<6QQ> GRAY 		8-97197-165-0 01 1 9907-0012 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
RR SEAT NON SPLIT BACK(S3B) EXC. HEATER IN SEAT<6QQ> GRAY 		8-97297-086-1 01 1 0101-0208 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
RR SEAT NON SPLIT BACK(S3B) GRAY 		8-97297-086-1 01 1 0209- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
4X2 CREW CAB(TFB*W*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) EXC. HEATER IN SEAT<6QQ> GRAY 		8-97197-155-0 01 1 9804-0012 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
4X2 CREW CAB(TFB*W*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) EXC. HEATER IN SEAT<6QQ> GRAY 		8-97297-090-1 01 1 0101-0208 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
4X2 CREW CAB(TFB*W*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97297-090-1 01 1 0209- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
4X2 CREW CAB(TFB*W*) HEATER IN SEAT<6QQ> BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97197-160-0 01 1 9804-0012 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
4X2 CREW CAB(TFB*W*) HEATER IN SEAT<6QQ> BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97297-091-1 01 1 0101-0208 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
4X2 SINGLE CAB(TFB*S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) EXC. HEATER IN SEAT<6QQ> GRAY 		8-97197-217-0 01 1 9804-0012 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
4X2 SINGLE CAB(TFB*S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) EXC. HEATER IN SEAT<6QQ> GRAY 		8-97297-084-1 01 1 0101-0208 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
4X2 SINGLE CAB(TFB*S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97297-084-1 01 1 0209- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
4X2 SINGLE CAB(TFB*S*) HEATER IN SEAT<6QQ> BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97197-222-0 01 1 9804-0012 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
4X2 SINGLE CAB(TFB*S*) HEATER IN SEAT<6QQ> BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97297-085-1 01 1 0101-0208 ● ●
14 16.716 PAD; FRT SEAT CUSHION
BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-97137-927-0 01 1 9804- ●
14 16.716 PAD; FRT SEAT CUSHION
RR SEAT NON SPLIT BACK(S3B) 		8-94473-493-4 02 1 9804- ● ●
15 16.716 FRAME; CUSHION,FRT SEAT
RR SEAT NON SPLIT BACK(S3B) 		8-94441-871-2 01 1 9804- ● ●
15 16.716 FRAME; CUSHION,FRT SEAT
RR SEAT NON SPLIT BACK(S3B) 		8-94441-872-2 01 1 9804- ● ●
15 16.716 FRAME; CUSHION,FRT SEAT
4X2 CREW CAB(TFB*W*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-97039-162-1 01 1 9804- ●
15 16.716 FRAME; CUSHION,FRT SEAT
4X2 SINGLE CAB(TFB*S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-97039-159-0 01 1 9804-0107 ● ●
15 16.716 FRAME; CUSHION,FRT SEAT
4X2 SINGLE CAB(TFB*S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-97039-159-1 01 1 0108- ● ●
27 16.718 REST; HD,FRT SEAT
RR SEAT NON SPLIT BACK(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97152-911-1 02 1 9804-0107 ● ●
27 16.718 REST; HD,FRT SEAT
4X2 SPACE CAB LONG(TFB6CF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB LONG(TFS6WF) GRAY 		8-97152-911-1 02 1 0108- ● ●
27 16.718 REST; HD,FRT SEAT
4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) RR SEAT NON SPLIT BACK(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97152-911-1 02 1 0108- ● ●
27 16.718 REST; HD,FRT SEAT
4X2 CREW CAB(TFB*W*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97155-404-0 02 1 0108-0208 ●
28 16.718 HOLDER; GUIDE,HD REST
CREW CAB(TF**W*) RR SEAT NON SPLIT BACK(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (A) FREE GRAY 		8-97152-906-1 04 1 9804- ● ●
28 16.718 HOLDER; GUIDE,HD REST
CREW CAB(TF**W*) RR SEAT NON SPLIT BACK(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (B) LOCK GRAY 		8-97152-907-1 04 1 9804- ● ●
28 16.718 HOLDER; GUIDE,HD REST
4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) RR SEAT NON SPLIT BACK(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (A) FREE GRAY 		8-97152-906-1 02 1 9804- ● ●
28 16.718 HOLDER; GUIDE,HD REST
4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) RR SEAT NON SPLIT BACK(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (B) LOCK GRAY 		8-97152-907-1 02 1 9804- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 SINGLE CAB(TFB*S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) EXC. HEATER IN SEAT<6QQ> (A) 		8-97130-689-0 01 1 0108-0208 ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 SINGLE CAB(TFB*S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (A) 		8-97130-689-0 01 1 0209- ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 SINGLE CAB(TFB*S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) EXC. HEATER IN SEAT<6QQ> (B) 		8-97130-691-0 01 1 0108-0208 ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 SINGLE CAB(TFB*S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (B) 		8-97130-691-0 01 1 0209- ●
63 16.682 ADJUSTER; SEAT SLIDE
BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (B) 		8-97130-690-0 01 1 9804-0012 ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 SINGLE CAB(TFB*S*) HEATER IN SEAT<6QQ> BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (B) 		8-97130-690-0 01 1 0101-0208 ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 CREW CAB(TFB*W*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (B) 		8-97130-690-0 01 1 0101-0208 ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 CREW CAB(TFB*W*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (B) 		8-97130-690-0 01 1 0209- ●
63 16.682 ADJUSTER; SEAT SLIDE
BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (A) 		8-97130-693-0 01 1 9804-0012 ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 SINGLE CAB(TFB*S*) HEATER IN SEAT<6QQ> BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (A) 		8-97130-693-0 01 1 0101-0208 ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 CREW CAB(TFB*W*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (A) 		8-97130-693-0 01 1 0101-0208 ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 CREW CAB(TFB*W*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (A) 		8-97130-693-0 01 1 0209- ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 SINGLE CAB(TFB*S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) EXC. HEATER IN SEAT<6QQ> (A) 		8-97130-689-0 01 1 0101-0107 ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 SINGLE CAB(TFB*S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) EXC. HEATER IN SEAT<6QQ> (B) 		8-97130-691-0 01 1 0101-0107 ●
63 16.682 ADJUSTER; SEAT SLIDE
SPACE CAB(TF**C*) (B) 		8-97127-471-1 01 1 9804- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SPACE CAB(TF**C*) (B) 		8-97127-470-1 01 1 9804- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SPACE CAB(TF**C*) (A) 		8-97127-473-1 01 1 9804- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SPACE CAB(TF**C*) HEATER IN SEAT<6QQ> (A) 		8-97130-694-0 01 1 9804-0208 ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SPACE CAB(TF**C*) EXC. HEATER IN SEAT<6QQ> (A) 		8-97127-472-1 01 1 9804-0208 ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SPACE CAB(TF**C*) (A) 		8-97127-472-1 01 1 0209- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB LONG(TFS6WF) RR SEAT NON SPLIT BACK(S3B) (B) 		8-97128-280-0 01 1 9804- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB LONG(TFS6WF) RR SEAT NON SPLIT BACK(S3B) (B) 		8-97128-279-0 01 1 9804- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB LONG(TFS6WF) RR SEAT NON SPLIT BACK(S3B) (A) 		8-97128-281-0 01 1 9804- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB LONG(TFS6WF) RR SEAT NON SPLIT BACK(S3B) (A) 		8-97128-282-0 01 1 9804- ● ●
67 16.682 BOLT; FRT SEAT TO BODY
CREW CAB(TF**W*) RR SEAT NON SPLIT BACK(S3B) M10X19 		8-94427-095-2 10 1 9804-9906 ●
67 16.682 BOLT; FRT SEAT TO BODY
4X2 CREW CAB(TFB*W*) EXC. RR SEAT NON SPLIT BACK(S3B) M10X19 		8-94427-095-2 06 1 9804-9906 ●
67 16.682 BOLT; FRT SEAT TO BODY
4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) RR SEAT NON SPLIT BACK(S3B) M10X19 		8-94427-095-2 08 1 9804-9906 ●
67 16.682 BOLT; FRT SEAT TO BODY
RR SEAT NON SPLIT BACK(S3B) M10X19 		8-94427-095-2 08 1 9907- ●
67 16.682 BOLT; FRT SEAT TO BODY
4X2 SINGLE CAB(TFB*S*) EXC. RR SEAT NON SPLIT BACK(S3B) M10X19 		8-94427-095-2 04 1 9804-9906 ● ●
67 16.682 BOLT; FRT SEAT TO BODY
4X2 SINGLE CAB LONG(TFB6SF) 4X2 CREW CAB LONG(TFB6WF) EXC. RR SEAT NON SPLIT BACK(S3B) M10X19 		8-94427-095-2 04 1 9907- ● ●
71 16.682 BOLT; ADJ TO SEAT
BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 11.377 M8X22 W/LK WASHER 		8-94171-739-0 04 1 9804- ●
71 16.682 BOLT; ADJ TO SEAT
RR SEAT NON SPLIT BACK(S3B) 11.377 M8X22 W/LK WASHER 		8-94171-739-0 08 1 9804- ● ●
80 16.686 RUBBER; STOPPER
4X2 SINGLE CAB(TFB*S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 16.715 		8-94388-310-0 02 1 9804-0107 ● ●
80 16.686 RUBBER; STOPPER
4X2 SINGLE CAB(TFB*S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 16.715 		8-94388-310-0 02 1 0108- ● ●
95 16.682 WIRE; EXT,SEAT ADJ
BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (C) 		8-94473-469-2 01 1 9804- ●
95 16.682 WIRE; EXT,SEAT ADJ
RR SEAT NON SPLIT BACK(S3B) (A) 		8-94473-502-0 02 1 9804- ● ●
95 16.682 WIRE; EXT,SEAT ADJ
SPACE CAB(TF**C*) (B) 		8-97041-948-0 01 1 9804- ● ●
95 16.682 WIRE; EXT,SEAT ADJ
SPACE CAB(TF**C*) EXC. HEATER IN SEAT<6QQ> (B) 		8-97041-949-0 01 1 9804-0208 ● ●
95 16.682 WIRE; EXT,SEAT ADJ
SPACE CAB(TF**C*) 		8-97041-949-0 01 1 0209- ● ●
100 16.686 COVER; HINGE
BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97156-062-1 01 1 9804- ●
100 16.686 COVER; HINGE
BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97156-061-1 01 1 9804- ●
100 16.686 COVER; HINGE
RR SEAT NON SPLIT BACK(S3B) GRAY 		8-97152-914-1 02 1 9804- ● ●
170 16.716 HEATER ASM; FRT SEAT CUSHION
HEATER IN SEAT<6QQ> 		8-94365-929-2 02 1 9804-0208 ● ●
171 16.720 HEATER ASM; FRT SEAT BACK
HEATER IN SEAT<6QQ> 		8-94365-928-1 02 1 9804-0208 ● ●
215 16.682 WASHER; PL,CONT CABLE
BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 04.930 ID=4.3 OD=10 		9-09160-604-0 02 1 9804- ●
228 16.714 SCREW; KNOB
4X2 CREW CAB(TFB*W*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 08.977 M4X16 TAPPING OVAL-HEAD 		0-70580-416-0 02 1 9804- ●
229 16.716 BOLT; HINGE,FRT SEAT
4X2 CREW CAB(TFB*W*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) M10X26 		8-94473-683-0 04 1 9804- ●
229 16.716 BOLT; HINGE,FRT SEAT
4X2 SINGLE CAB(TFB*S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) M10X26 		8-94473-683-0 02 1 9804-0107 ● ●
229 16.716 BOLT; HINGE,FRT SEAT
4X2 SINGLE CAB(TFB*S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) M10X26 		8-94473-683-0 02 1 0108- ● ●
264 16.716 BAND; FRT SEAT
4X2 SINGLE CAB(TFB*S*) HEATER IN SEAT<6QQ> BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (A) L=129.5 		8-94368-493-0 02 1 9804-0208 ● ●
264 16.716 BAND; FRT SEAT
4X2 SINGLE CAB(TFB*S*) HEATER IN SEAT<6QQ> BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (B) 		8-94383-438-0 02 1 9804-0208 ● ●
264 16.716 BAND; FRT SEAT
4X2 SPACE CAB LONG(TFB6CF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) 4X4 CREW CAB LONG(TFS6WF) HEATER IN SEAT<6QQ> (A) L=129.5 		8-94368-493-0 06 1 9804-0208 ● ●
264 16.716 BAND; FRT SEAT
4X2 SINGLE CAB(TFB*S*) RR SEAT NON SPLIT BACK(S3B) HEATER IN SEAT<6QQ> (A) L=129.5 		8-94368-493-0 06 1 9804-0208 ● ●
264 16.716 BAND; FRT SEAT
4X2 CREW CAB(TFB*W*) RR SEAT NON SPLIT BACK(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) HEATER IN SEAT<6QQ> (A) L=129.5 		8-94368-493-0 06 1 9804-0208 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
