7-45 — CONSOLE BOX (#45112) — 539 parça

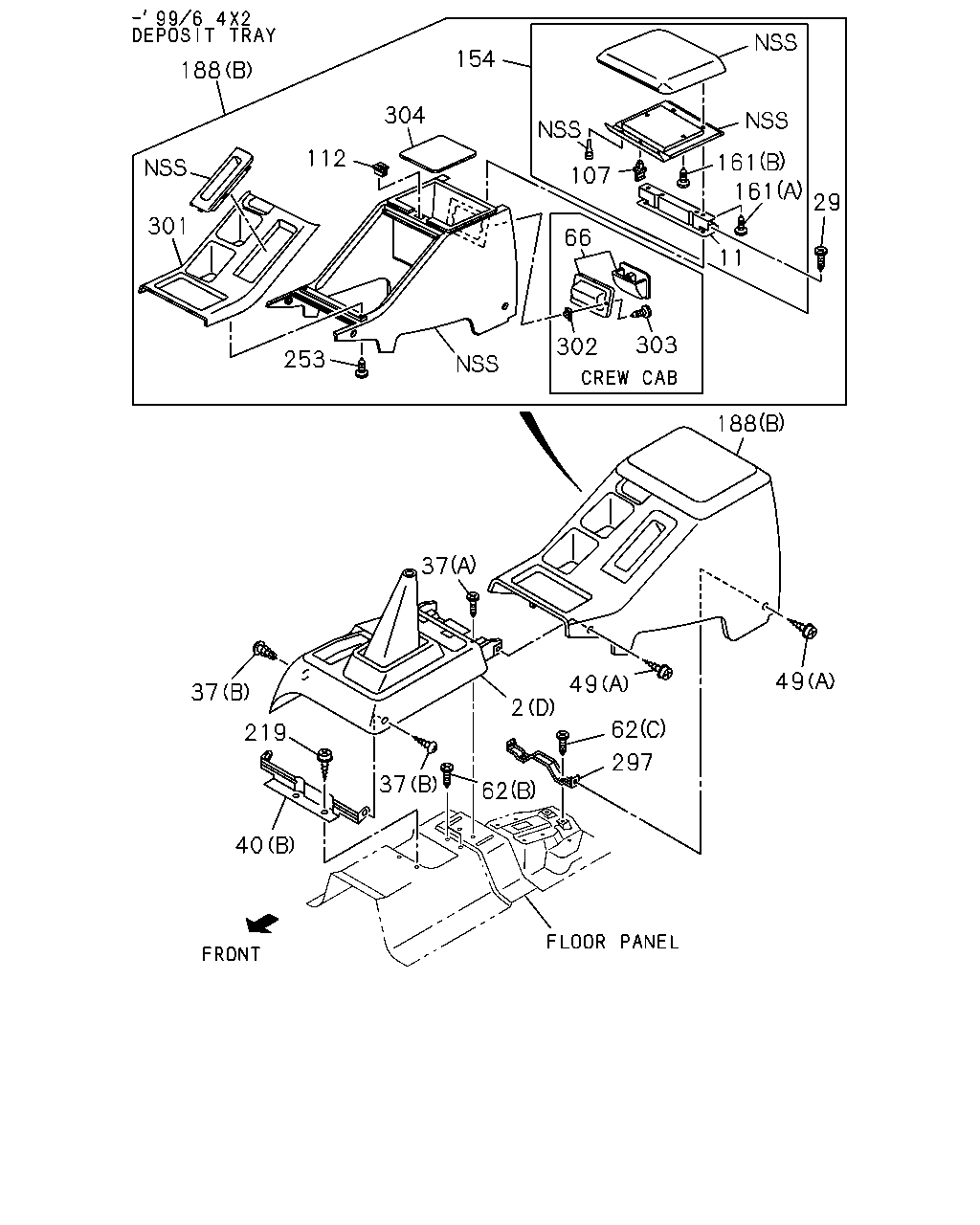

çizim 63768
154 188 161 161 29 304 107 112 11 301 66 253 188 37 49 37 49 2 37 62 297 219 62 40 302 303
BalonParca AdiParca NoAdetTipApplied Date A B
2 16.081 CONSOLE; CENTER
4X2(TFB***) CENTER CONSOLE<D63> (D) GRAY 		8-97158-517-0 01 1 9804-9906 ●
2 16.081 CONSOLE; CENTER
4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) FLOOR CONSOLE ONE PIECE TYPE<7WG> (D) GRAY 		8-97158-517-0 01 1 9907- ● ●
2 16.081 CONSOLE; CENTER
4X2 CREW CAB(TFB*W*) FLOOR REMOTE SHIFT<M11> FLOOR CONSOLE ONE PIECE TYPE<7WG> (D) GRAY 		8-97158-517-0 01 1 9907- ● ●
2 16.081 CONSOLE; CENTER
4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. CENTER CONSOLE<D63> (A) GRAY 		8-97156-743-0 01 1 9804-9906 ●
2 16.081 CONSOLE; CENTER
4X2(TFB***) FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> (A) GRAY 		8-97156-743-0 01 1 9907- ●
2 16.081 CONSOLE; CENTER
4X2 CREW CAB(TFB*W*) A/T AISIN(RMD) FLOOR CONSOLE SEPARATE TYPE<7WF> (E) GRAY 		8-97150-578-3 01 1 9907- ●
2 16.081 CONSOLE; CENTER
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) UP GRADE PACKAGE<7MA> (C) GRAY 		8-97155-554-1 01 1 9804-9906 ●
2 16.081 CONSOLE; CENTER
4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) FLOOR CONSOLE ONE PIECE TYPE<7WG> (C) GRAY 		8-97155-554-1 01 1 9907- ● ●
2 16.081 CONSOLE; CENTER
4X4 CREW CAB(TFS*W*) FLOOR REMOTE SHIFT<M11> FLOOR CONSOLE ONE PIECE TYPE<7WG> (C) GRAY 		8-97155-554-1 01 1 9907- ● ●
2 16.081 CONSOLE; CENTER
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. UP GRADE PACKAGE<7MA> (B) GRAY 		8-97156-745-0 01 1 9804-9906 ●
2 16.081 CONSOLE; CENTER
4X4(TFS***) FLOOR CONSOLE SEPARATE TYPE<7WF> (B) GRAY 		8-97156-745-0 01 1 9907-0012 ●
2 16.081 CONSOLE; CENTER
4X4(TFS***) FLOOR CONSOLE SEPARATE TYPE<7WF> FLOOR REMOTE SHIFT<M11> (B) GRAY 		8-97156-745-0 01 1 0101- ●
2 16.081 CONSOLE; CENTER
4X4 CREW CAB(TFS*W*) A/T AISIN(RMD) (G) GRAY 		8-97152-692-1 01 1 9806-9906 ●
2 16.081 CONSOLE; CENTER
4X4 CREW CAB(TFS*W*) A/T AISIN(RMD) FLOOR CONSOLE ONE PIECE TYPE<7WG> (G) GRAY 		8-97152-692-1 01 1 9907- ● ●
2 16.081 CONSOLE; CENTER
4X4 CREW CAB(TFS*W*) A/T AISIN(RMD) FLOOR CONSOLE SEPARATE TYPE<7WF> (F) GRAY 		8-97154-030-2 01 1 0101- ●
2 16.081 CONSOLE; CENTER
4X2 CREW CAB(TFB*W*) A/T AISIN(RMD) FLOOR CONSOLE ONE PIECE TYPE<7WG> (G) GRAY 		8-97159-160-0 01 1 9907- ● ●
11 16.650 HINGE; CONSOLE LID
4X2(TFB***) CENTER CONSOLE<D63> 		8-97069-668-1 01 1 9804-9805 ●
11 16.650 HINGE; CONSOLE LID
4X4(TFS***) UP GRADE PACKAGE<7MA> 		8-97069-668-1 01 1 9804-9805 ●
11 16.650 HINGE; CONSOLE LID
4X2(TFB***) CENTER CONSOLE<D63> 		8-97069-668-1 01 1 9806-9807 ●
11 16.650 HINGE; CONSOLE LID
4X4(TFS***) UP GRADE PACKAGE<7MA> 		8-97069-668-1 01 1 9806-9807 ●
11 16.650 HINGE; CONSOLE LID
4X4(TFS***) A/T AISIN(RMD) 		8-97069-668-1 01 1 9806-9807 ●
11 16.650 HINGE; CONSOLE LID
4X2(TFB***) CENTER CONSOLE<D63> 		8-97069-668-1 01 1 9808-9906 ●
11 16.650 HINGE; CONSOLE LID
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) UP GRADE PACKAGE<7MA> 		8-97069-668-1 01 1 9808-9906 ●
11 16.650 HINGE; CONSOLE LID
4X4(TFS***) A/T AISIN(RMD) 		8-97069-668-1 01 1 9808-9906 ●
11 16.650 HINGE; CONSOLE LID
FLOOR CONSOLE ONE PIECE TYPE<7WG> 		8-97069-668-1 01 1 9907- ● ●
29 16.650 SCREW; HINGE
4X2(TFB***) CENTER CONSOLE<D63> 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 9804-9805 ●
29 16.650 SCREW; HINGE
4X4(TFS***) UP GRADE PACKAGE<7MA> 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 9804-9805 ●
29 16.650 SCREW; HINGE
4X2(TFB***) CENTER CONSOLE<D63> 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 9806-9807 ●
29 16.650 SCREW; HINGE
4X4(TFS***) UP GRADE PACKAGE<7MA> 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 9806-9807 ●
29 16.650 SCREW; HINGE
4X4(TFS***) A/T AISIN(RMD) 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 9806-9807 ●
29 16.650 SCREW; HINGE
4X2(TFB***) CENTER CONSOLE<D63> 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 9808-9906 ●
29 16.650 SCREW; HINGE
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) UP GRADE PACKAGE<7MA> 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 9808-9906 ●
29 16.650 SCREW; HINGE
4X4(TFS***) A/T AISIN(RMD) 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 9808-9906 ●
29 16.650 SCREW; HINGE
FLOOR CONSOLE ONE PIECE TYPE<7WG> 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 9907- ● ●
37 16.650 SCREW; CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> 15.222 (A) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9804-9805 ●
37 16.650 SCREW; CONSOLE
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) UP GRADE PACKAGE<7MA> 15.222 (A) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9804-9805 ●
37 16.650 SCREW; CONSOLE
4X4 CREW CAB(TFS*W*) A/T AISIN(RMD) 15.222 (A) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9806-9906 ● ●
37 16.650 SCREW; CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> 15.222 (A) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9806-9906 ●
37 16.650 SCREW; CONSOLE
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) UP GRADE PACKAGE<7MA> 15.222 (A) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9806-9906 ●
37 16.650 SCREW; CONSOLE
FLOOR CONSOLE ONE PIECE TYPE<7WG> 15.222 (A) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9907- ● ●
37 16.650 SCREW; CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9804-9805 ●
37 16.650 SCREW; CONSOLE
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) UP GRADE PACKAGE<7MA> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9804-9805 ●
37 16.650 SCREW; CONSOLE
4X4 CREW CAB(TFS*W*) A/T AISIN(RMD) 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9806-9906 ● ●
37 16.650 SCREW; CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9806-9906 ●
37 16.650 SCREW; CONSOLE
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) UP GRADE PACKAGE<7MA> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9806-9906 ●
37 16.650 SCREW; CONSOLE
FLOOR CONSOLE ONE PIECE TYPE<7WG> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9907- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> (B) 		8-97072-944-0 01 1 9804-9906 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) UP GRADE PACKAGE<7MA> (B) 		8-97072-944-0 01 1 9804-9906 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
FLOOR REMOTE SHIFT<M11> FLOOR CONSOLE ONE PIECE TYPE<7WG> (B) 		8-97072-944-1 01 1 9907- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. CENTER CONSOLE<D63> (A) 		8-94463-384-0 01 1 9804-9906 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. UP GRADE PACKAGE<7MA> (A) 		8-94463-384-0 01 1 9804-9906 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> (A) 		8-94463-384-0 01 1 9907-0012 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> (A) 		8-94463-384-1 01 1 0101- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. CENTER CONSOLE<D63> (B) 		8-94479-072-1 01 1 9804-9906 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. UP GRADE PACKAGE<7MA> (B) 		8-94479-072-1 01 1 9804-9906 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> (B) 		8-94479-072-1 01 1 9907-0012 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> (B) 		8-94479-072-2 01 1 0101- ● ●
49 04.017 SCREW; CONSOLE
CENTER CONSOLE<D63> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9804-9906 ●
49 04.017 SCREW; CONSOLE
FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9907- ● ●
49 04.017 SCREW; CONSOLE
4X4 CREW CAB(TFS*W*) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. UP GRADE PACKAGE<7MA> 16.850 (B) M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9804-9906 ●
49 04.017 SCREW; CONSOLE
CREW CAB(TF**W*) FLOOR CONSOLE SEPARATE TYPE<7WF> PARKING BRAKE FLOOR<7XW> 16.850 (B) M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9907- ●
62 16.650 SCREW; BRKT
CENTER CONSOLE<D63> 15.222 (C) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9804-9906 ●
62 16.650 SCREW; BRKT
FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> 15.222 (C) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9907- ● ●
62 16.650 SCREW; BRKT
4X2(TFB***) CENTER CONSOLE<D63> (B) M8X14 		9-03900-814-0 02 1 9804-9906 ●
62 16.650 SCREW; BRKT
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) UP GRADE PACKAGE<7MA> (B) M8X14 		9-03900-814-0 02 1 9804-9906 ●
62 16.650 SCREW; BRKT
FLOOR REMOTE SHIFT<M11> FLOOR CONSOLE ONE PIECE TYPE<7WG> (B) M8X14 		9-03900-814-0 02 1 9907- ● ●
62 16.650 SCREW; BRKT
4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. CENTER CONSOLE<D63> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9804-9906 ●
62 16.650 SCREW; BRKT
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. UP GRADE PACKAGE<7MA> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9804-9906 ●
62 16.650 SCREW; BRKT
FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9907-0012 ●
62 16.650 SCREW; BRKT
FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 0101- ●
62 16.650 SCREW; BRKT
CREW CAB(TF**W*) A/T AISIN(RMD) FLOOR CONSOLE SEPARATE TYPE<7WF> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 0101- ●
66 16.120 TRAY ASM; ASH
CREW CAB(TF**W*) CENTER CONSOLE<D63> GRAY 		8-97150-683-1 01 1 9804-9906 ●
66 16.120 TRAY ASM; ASH
4X2 CREW CAB(TFB*W*) FLOOR CONSOLE ONE PIECE TYPE<7WG> EXC. PARKING BRAKE FLOOR<7XW> GRAY 		8-97150-683-1 01 1 9907- ● ●
66 16.120 TRAY ASM; ASH
4X4 CREW CAB(TFS*W*) FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> GRAY 		8-97150-683-1 01 1 9907- ● ●
66 16.120 TRAY ASM; ASH
4X2 CREW CAB(TFB*W*) FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> GRAY 		8-97150-683-1 01 1 9907- ● ●
107 16.650 LOCK; LID,RR CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> 		8-94110-961-1 01 1 9804-9805 ●
107 16.650 LOCK; LID,RR CONSOLE
4X4(TFS***) UP GRADE PACKAGE<7MA> 		8-94110-961-1 01 1 9804-9805 ●
107 16.650 LOCK; LID,RR CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> 		8-94110-961-1 01 1 9806-9807 ●
107 16.650 LOCK; LID,RR CONSOLE
4X4(TFS***) UP GRADE PACKAGE<7MA> 		8-94110-961-1 01 1 9806-9807 ●
107 16.650 LOCK; LID,RR CONSOLE
4X4(TFS***) A/T AISIN(RMD) 		8-94110-961-1 01 1 9806-9807 ●
107 16.650 LOCK; LID,RR CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> 		8-94110-961-1 01 1 9808-9906 ●
107 16.650 LOCK; LID,RR CONSOLE
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) UP GRADE PACKAGE<7MA> 		8-94110-961-1 01 1 9808-9906 ●
107 16.650 LOCK; LID,RR CONSOLE
4X4(TFS***) A/T AISIN(RMD) 		8-94110-961-1 01 1 9808-9906 ●
107 16.650 LOCK; LID,RR CONSOLE
FLOOR CONSOLE ONE PIECE TYPE<7WG> 		8-94110-961-1 01 1 9907- ● ●
112 16.650 LOCK; HOLE,RR CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> 		8-94110-962-1 01 1 9804-9805 ●
112 16.650 LOCK; HOLE,RR CONSOLE
4X4(TFS***) UP GRADE PACKAGE<7MA> 		8-94110-962-1 01 1 9804-9805 ●
112 16.650 LOCK; HOLE,RR CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> 		8-94110-962-1 01 1 9806-9807 ●
112 16.650 LOCK; HOLE,RR CONSOLE
4X4(TFS***) UP GRADE PACKAGE<7MA> 		8-94110-962-1 01 1 9806-9807 ●
112 16.650 LOCK; HOLE,RR CONSOLE
4X4(TFS***) A/T AISIN(RMD) 		8-94110-962-1 01 1 9806-9807 ●
112 16.650 LOCK; HOLE,RR CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> 		8-94110-962-1 01 1 9808-9906 ●
112 16.650 LOCK; HOLE,RR CONSOLE
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) UP GRADE PACKAGE<7MA> 		8-94110-962-1 01 1 9808-9906 ●
112 16.650 LOCK; HOLE,RR CONSOLE
4X4(TFS***) A/T AISIN(RMD) 		8-94110-962-1 01 1 9808-9906 ●
112 16.650 LOCK; HOLE,RR CONSOLE
FLOOR CONSOLE ONE PIECE TYPE<7WG> 		8-94110-962-1 01 1 9907- ● ●
154 16.650 LID ASM; RR CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> GRAY 		8-97152-895-1 01 1 9804-9906 ●
154 16.650 LID ASM; RR CONSOLE
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) UP GRADE PACKAGE<7MA> GRAY 		8-97152-895-1 01 1 9804-9906 ●
154 16.650 LID ASM; RR CONSOLE
4X4(TFS***) A/T AISIN(RMD) GRAY 		8-97152-895-1 01 1 9804-9906 ●
154 16.650 LID ASM; RR CONSOLE
FLOOR CONSOLE ONE PIECE TYPE<7WG> GRAY 		8-97152-895-1 01 1 9907- ● ●
161 16.650 SCREW; RR CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> (A) 		0-70080-031-0 04 1 9804-9805 ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) UP GRADE PACKAGE<7MA> (A) 		0-70080-031-0 04 1 9804-9805 ●
161 16.650 SCREW; RR CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> (A) 		0-70080-031-0 04 1 9806-9807 ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) UP GRADE PACKAGE<7MA> (A) 		0-70080-031-0 04 1 9806-9807 ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) A/T AISIN(RMD) (A) 		0-70080-031-0 04 1 9806-9807 ●
161 16.650 SCREW; RR CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> (A) 		0-70080-031-0 04 1 9808-9906 ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) UP GRADE PACKAGE<7MA> (A) 		0-70080-031-0 04 1 9808-9906 ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) A/T AISIN(RMD) (A) 		0-70080-031-0 04 1 9808-9906 ●
161 16.650 SCREW; RR CONSOLE
FLOOR CONSOLE ONE PIECE TYPE<7WG> (A) 		0-70080-031-0 04 1 9907- ● ●
161 16.650 SCREW; RR CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9804-9805 ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) UP GRADE PACKAGE<7MA> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9804-9805 ●
161 16.650 SCREW; RR CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9806-9807 ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) UP GRADE PACKAGE<7MA> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9806-9807 ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) A/T AISIN(RMD) 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9806-9807 ●
161 16.650 SCREW; RR CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9808-9906 ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) UP GRADE PACKAGE<7MA> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9808-9906 ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) A/T AISIN(RMD) 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9808-9906 ●
161 16.650 SCREW; RR CONSOLE
FLOOR CONSOLE ONE PIECE TYPE<7WG> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9907- ● ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. UP GRADE PACKAGE<7MA> 15.222 (C) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9804-9906 ●
161 16.650 SCREW; RR CONSOLE
FLOOR CONSOLE SEPARATE TYPE<7WF> 15.222 (C) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9907- ●
188 16.650 CONSOLE; RR
4X2 CREW CAB(TFB*W*) CENTER CONSOLE<D63> (B) GRAY 		8-97159-991-1 01 1 9804-9906 ●
188 16.650 CONSOLE; RR
4X2 CREW CAB(TFB*W*) FLOOR CONSOLE ONE PIECE TYPE<7WG> EXC. PARKING BRAKE FLOOR<7XW> (B) GRAY 		8-97159-991-1 01 1 9907- ● ●
188 16.650 CONSOLE; RR
4X4(TFS***) UP GRADE PACKAGE<7MA> (B) GRAY 		8-97159-988-1 01 1 9804-9805 ●
188 16.650 CONSOLE; RR
4X4(TFS***) UP GRADE PACKAGE<7MA> (B) GRAY 		8-97159-988-1 01 1 9806-9807 ●
188 16.650 CONSOLE; RR
4X4(TFS***) A/T AISIN(RMD) (B) GRAY 		8-97159-988-1 01 1 9806-9807 ●
188 16.650 CONSOLE; RR
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) UP GRADE PACKAGE<7MA> (B) GRAY 		8-97159-988-1 01 1 9808-9906 ●
188 16.650 CONSOLE; RR
4X4(TFS***) A/T AISIN(RMD) ISRAEL EQUIPMENT(7LX) (B) GRAY 		8-97159-988-1 01 1 9808-9906 ●
188 16.650 CONSOLE; RR
4X2 CREW CAB(TFB*W*) FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> (B) GRAY 		8-97159-988-1 01 1 9907- ● ●
188 16.650 CONSOLE; RR
4X4 CREW CAB(TFS*W*) FLOOR CONSOLE ONE PIECE TYPE<7WG> (B) GRAY 		8-97159-988-1 01 1 9907- ● ●
188 16.650 CONSOLE; RR
4X4 CREW CAB(TFS*W*) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. UP GRADE PACKAGE<7MA> (A) GRAY 		8-97154-600-3 01 1 9804-9906 ●
188 16.650 CONSOLE; RR
CREW CAB(TF**W*) FLOOR CONSOLE SEPARATE TYPE<7WF> PARKING BRAKE FLOOR<7XW> (A) GRAY 		8-97154-600-3 01 1 9907- ●
188 16.650 CONSOLE; RR
4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) CENTER CONSOLE<D63> (B) GRAY 		8-97159-992-1 01 1 9804-9906 ● ●
188 16.650 CONSOLE; RR
4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) FLOOR CONSOLE ONE PIECE TYPE<7WG> EXC. PARKING BRAKE FLOOR<7XW> (B) GRAY 		8-97159-992-1 01 1 9907- ● ●
188 16.650 CONSOLE; RR
4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> (B) GRAY 		8-97159-990-1 01 1 9907- ● ●
188 16.650 CONSOLE; RR
4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) FLOOR CONSOLE ONE PIECE TYPE<7WG> (B) GRAY 		8-97159-990-1 01 1 9907- ● ●
219 16.650 SCREW; BRKT TO CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> M8X14 		9-03900-814-0 02 1 9804-9906 ●
219 16.650 SCREW; BRKT TO CONSOLE
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) UP GRADE PACKAGE<7MA> M8X14 		9-03900-814-0 02 1 9804-9906 ●
219 16.650 SCREW; BRKT TO CONSOLE
FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> M8X14 		9-03900-814-0 04 1 9907-0012 ●
219 16.650 SCREW; BRKT TO CONSOLE
FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> M8X14 		9-03900-814-0 04 1 0101- ● ●
219 16.650 SCREW; BRKT TO CONSOLE
4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. CENTER CONSOLE<D63> M8X14 		9-03900-814-0 04 1 9804-9906 ●
219 16.650 SCREW; BRKT TO CONSOLE
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. UP GRADE PACKAGE<7MA> M8X14 		9-03900-814-0 04 1 9804-9906 ●
219 16.650 SCREW; BRKT TO CONSOLE
FLOOR REMOTE SHIFT<M11> FLOOR CONSOLE ONE PIECE TYPE<7WG> M8X14 		9-03900-814-0 02 1 9907- ● ●
253 09.744 SCREW; BEZEL
4X2(TFB***) CENTER CONSOLE<D63> 16.085 M5X16 TAPPING 		9-09829-323-1 03 1 9804-9805 ●
253 09.744 SCREW; BEZEL
4X4(TFS***) UP GRADE PACKAGE<7MA> 16.085 M5X16 TAPPING 		9-09829-323-1 03 1 9804-9805 ●
253 09.744 SCREW; BEZEL
4X2(TFB***) CENTER CONSOLE<D63> 16.085 M5X16 TAPPING 		9-09829-323-1 03 1 9806-9807 ●
253 09.744 SCREW; BEZEL
4X4(TFS***) UP GRADE PACKAGE<7MA> 16.085 M5X16 TAPPING 		9-09829-323-1 03 1 9806-9807 ●
253 09.744 SCREW; BEZEL
4X4(TFS***) A/T AISIN(RMD) 16.085 M5X16 TAPPING 		9-09829-323-1 03 1 9806-9807 ●
253 09.744 SCREW; BEZEL
4X2(TFB***) CENTER CONSOLE<D63> 16.085 M5X16 TAPPING 		9-09829-323-1 03 1 9808-9906 ●
253 09.744 SCREW; BEZEL
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) UP GRADE PACKAGE<7MA> 16.085 M5X16 TAPPING 		9-09829-323-1 03 1 9808-9906 ●
253 09.744 SCREW; BEZEL
4X4(TFS***) A/T AISIN(RMD) 16.085 M5X16 TAPPING 		9-09829-323-1 03 1 9808-9906 ●
253 09.744 SCREW; BEZEL
FLOOR CONSOLE ONE PIECE TYPE<7WG> 16.085 M5X16 TAPPING 		9-09829-323-1 03 1 9907-9909 ● ●
253 09.744 SCREW; BEZEL
FLOOR CONSOLE ONE PIECE TYPE<7WG> 16.085 M5X16 TAPPING 		9-09829-323-1 04 1 9910- ● ●
297 16.650 BRACKET; RR CONSOLE
CENTER CONSOLE<D63> 		8-97069-670-0 01 1 9804-9906 ●
297 16.650 BRACKET; RR CONSOLE
FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> 		8-97069-670-2 01 1 9907- ● ●
301 16.650 BEZEL; CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> GRAY 		8-97199-098-0 01 1 9804-9906 ●
301 16.650 BEZEL; CONSOLE
FLOOR CONSOLE ONE PIECE TYPE<7WG> EXC. PARKING BRAKE FLOOR<7XW> GRAY 		8-97199-098-0 01 1 9907- ● ●
301 16.650 BEZEL; CONSOLE
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) UP GRADE PACKAGE<7MA> GRAY 		8-97199-096-0 01 1 9804-9906 ●
301 16.650 BEZEL; CONSOLE
4X4(TFS***) A/T AISIN(RMD) ISRAEL EQUIPMENT(7LX) GRAY 		8-97199-096-0 01 1 9804-9906 ●
301 16.650 BEZEL; CONSOLE
FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> GRAY 		8-97199-096-0 01 1 9907- ● ●
302 16.650 RETAINER; ASH TRAY
4X4 CREW CAB(TFS*W*) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. UP GRADE PACKAGE<7MA> 		8-94123-300-5 02 1 9804-9808 ●
302 16.650 RETAINER; ASH TRAY
CREW CAB(TF**W*) CENTER CONSOLE<D63> 		8-94123-300-5 02 1 9809-9906 ●
302 16.650 RETAINER; ASH TRAY
4X2 CREW CAB(TFB*W*) FLOOR CONSOLE ONE PIECE TYPE<7WG> EXC. PARKING BRAKE FLOOR<7XW> 		8-94123-300-5 02 1 9907- ● ●
302 16.650 RETAINER; ASH TRAY
4X4 CREW CAB(TFS*W*) FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> 		8-94123-300-5 02 1 9907- ● ●
302 16.650 RETAINER; ASH TRAY
4X2 CREW CAB(TFB*W*) FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> 		8-94123-300-5 02 1 9907- ● ●
303 16.650 SCREW; ASH TRAY
4X2 CREW CAB(TFB*W*) CENTER CONSOLE<D63> 16.850 M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9804-9805 ●
303 16.650 SCREW; ASH TRAY
4X4 CREW CAB(TFS*W*) UP GRADE PACKAGE<7MA> 16.850 M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9804-9805 ●
303 16.650 SCREW; ASH TRAY
4X2 CREW CAB(TFB*W*) CENTER CONSOLE<D63> 16.850 M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9806-9807 ●
303 16.650 SCREW; ASH TRAY
4X4 CREW CAB(TFS*W*) UP GRADE PACKAGE<7MA> 16.850 M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9806-9807 ●
303 16.650 SCREW; ASH TRAY
4X4 CREW CAB(TFS*W*) A/T AISIN(RMD) 16.850 M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9806-9807 ●
303 16.650 SCREW; ASH TRAY
4X2 CREW CAB(TFB*W*) CENTER CONSOLE<D63> 16.850 M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9808-9906 ●
303 16.650 SCREW; ASH TRAY
4X4 CREW CAB(TFS*W*) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) UP GRADE PACKAGE<7MA> 16.850 M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9808-9906 ●
303 16.650 SCREW; ASH TRAY
4X4 CREW CAB(TFS*W*) A/T AISIN(RMD) 16.850 M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9808-9906 ●
303 16.650 SCREW; ASH TRAY
CREW CAB(TF**W*) FLOOR CONSOLE ONE PIECE TYPE<7WG> 16.850 M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9907- ● ●
304 16.650 PAD; CONSOLE BOX
4X2(TFB***) CENTER CONSOLE<D63> 		8-97088-559-0 01 1 9804-9805 ●
304 16.650 PAD; CONSOLE BOX
4X4(TFS***) UP GRADE PACKAGE<7MA> 		8-97088-559-0 01 1 9804-9805 ●

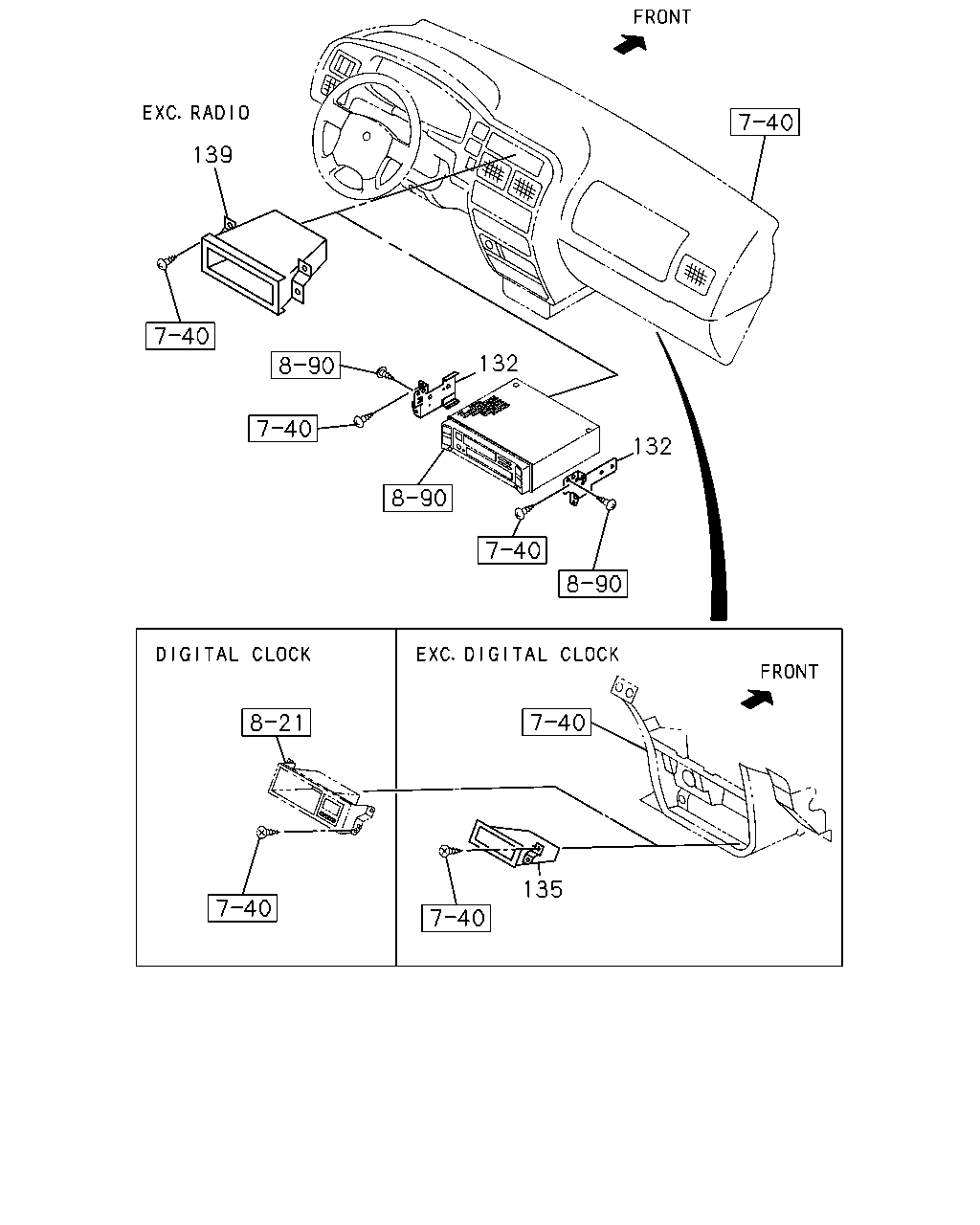

çizim 63905
139 132 132 135
BalonParca AdiParca NoAdetTipApplied Date A B
132 16.650 BRACKET; AUDIO BOX
RADIO AM ASIA/OCEANIA BAND(7AQ),AM/FM W/CASSETTE ALL AREA BAND 2SPEAKERS(7ND) 		8-97107-583-2 01 1 9804-9906 ●
132 16.650 BRACKET; AUDIO BOX
AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4),RADIO AM ASIA/OCEANIA BAND(7AQ),AM/FM W/CASSETTE ALL AREA BAND 2SPEAKERS(7ND) 		8-97107-583-2 01 1 9907- ● ●
132 16.650 BRACKET; AUDIO BOX
RADIO AM ASIA/OCEANIA BAND(7AQ),AM/FM W/CASSETTE ALL AREA BAND 2SPEAKERS(7ND) 		8-97107-582-2 01 1 9804-9906 ●
132 16.650 BRACKET; AUDIO BOX
AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4),RADIO AM ASIA/OCEANIA BAND(7AQ),AM/FM W/CASSETTE ALL AREA BAND 2SPEAKERS(7ND) 		8-97107-582-2 01 1 9907- ● ●
135 16.650 BOX; CONSOLE,LWR
EXC. DIGITAL CLOCK<UE8> 		8-97114-757-0 01 1 9804- ● ●
139 16.650 BOX; CONSOLE,UPR
EXC. RADIO AM ASIA/OCEANIA BAND(7AQ), AM/FM W/CASSETTE ALL AREA BAND 2SPEAKERS(7ND) ,INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-97114-757-0 01 1 9804-9906 ●
139 16.650 BOX; CONSOLE,UPR
EXC. AM/FM W/CASSETTE 4 SPEAKERS(UM6), AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4), RADIO AM ASIA/OCEANIA BAND(7AQ),AM/FM W/CAS SETTE ALL AREA BAND 2SPEAKERS(7ND),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-97114-757-0 01 1 9907- ● ●

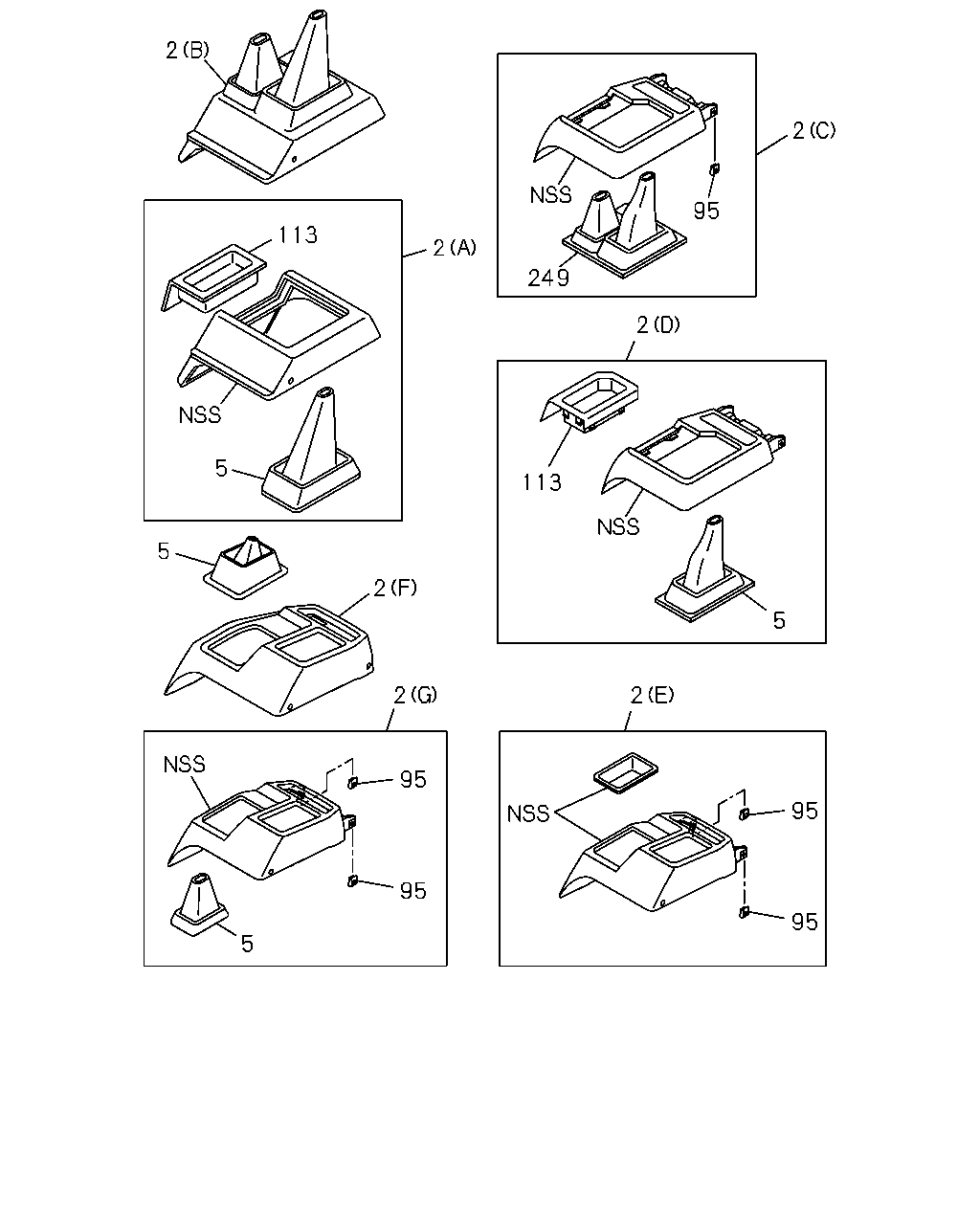

çizim 63941
2 2 95 113 2 249 2 5 113 5 2 5 2 2 95 2 95 95 95 5
BalonParca AdiParca NoAdetTipApplied Date A B
2 16.081 CONSOLE; CENTER
4X2(TFB***) CENTER CONSOLE<D63> (D) GRAY 		8-97158-517-0 01 1 9804-9906 ●
2 16.081 CONSOLE; CENTER
4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) FLOOR CONSOLE ONE PIECE TYPE<7WG> (D) GRAY 		8-97158-517-0 01 1 9907- ● ●
2 16.081 CONSOLE; CENTER
4X2 CREW CAB(TFB*W*) FLOOR REMOTE SHIFT<M11> FLOOR CONSOLE ONE PIECE TYPE<7WG> (D) GRAY 		8-97158-517-0 01 1 9907- ● ●
2 16.081 CONSOLE; CENTER
4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. CENTER CONSOLE<D63> (A) GRAY 		8-97156-743-0 01 1 9804-9906 ●
2 16.081 CONSOLE; CENTER
4X2(TFB***) FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> (A) GRAY 		8-97156-743-0 01 1 9907- ●
2 16.081 CONSOLE; CENTER
4X2 CREW CAB(TFB*W*) A/T AISIN(RMD) FLOOR CONSOLE SEPARATE TYPE<7WF> (E) GRAY 		8-97150-578-3 01 1 9907- ●
2 16.081 CONSOLE; CENTER
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) UP GRADE PACKAGE<7MA> (C) GRAY 		8-97155-554-1 01 1 9804-9906 ●
2 16.081 CONSOLE; CENTER
4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) FLOOR CONSOLE ONE PIECE TYPE<7WG> (C) GRAY 		8-97155-554-1 01 1 9907- ● ●
2 16.081 CONSOLE; CENTER
4X4 CREW CAB(TFS*W*) FLOOR REMOTE SHIFT<M11> FLOOR CONSOLE ONE PIECE TYPE<7WG> (C) GRAY 		8-97155-554-1 01 1 9907- ● ●
2 16.081 CONSOLE; CENTER
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. UP GRADE PACKAGE<7MA> (B) GRAY 		8-97156-745-0 01 1 9804-9906 ●
2 16.081 CONSOLE; CENTER
4X4(TFS***) FLOOR CONSOLE SEPARATE TYPE<7WF> (B) GRAY 		8-97156-745-0 01 1 9907-0012 ●
2 16.081 CONSOLE; CENTER
4X4(TFS***) FLOOR CONSOLE SEPARATE TYPE<7WF> FLOOR REMOTE SHIFT<M11> (B) GRAY 		8-97156-745-0 01 1 0101- ●
2 16.081 CONSOLE; CENTER
4X4 CREW CAB(TFS*W*) A/T AISIN(RMD) (G) GRAY 		8-97152-692-1 01 1 9806-9906 ●
2 16.081 CONSOLE; CENTER
4X4 CREW CAB(TFS*W*) A/T AISIN(RMD) FLOOR CONSOLE ONE PIECE TYPE<7WG> (G) GRAY 		8-97152-692-1 01 1 9907- ● ●
2 16.081 CONSOLE; CENTER
4X4 CREW CAB(TFS*W*) A/T AISIN(RMD) FLOOR CONSOLE SEPARATE TYPE<7WF> (F) GRAY 		8-97154-030-2 01 1 0101- ●
2 16.081 CONSOLE; CENTER
4X2 CREW CAB(TFB*W*) A/T AISIN(RMD) FLOOR CONSOLE ONE PIECE TYPE<7WG> (G) GRAY 		8-97159-160-0 01 1 9907- ● ●
5 16.650 COVER; SHIFT LEVER
4X2(TFB***) CENTER CONSOLE<D63> 		8-97162-353-0 01 1 9804-9906 ●
5 16.650 COVER; SHIFT LEVER
4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) FLOOR CONSOLE ONE PIECE TYPE<7WG> 		8-97162-353-0 01 1 9907- ● ●
5 16.650 COVER; SHIFT LEVER
4X2 CREW CAB(TFB*W*) FLOOR REMOTE SHIFT<M11> FLOOR CONSOLE ONE PIECE TYPE<7WG> 		8-97162-353-0 01 1 9907- ● ●
5 16.650 COVER; SHIFT LEVER
4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. CENTER CONSOLE<D63> 		8-97147-044-0 01 1 9804-9906 ●
5 16.650 COVER; SHIFT LEVER
4X2(TFB***) FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> 		8-97147-044-0 01 1 9907- ●
5 16.650 COVER; SHIFT LEVER
4X4 CREW CAB(TFS*W*) A/T AISIN(RMD) BLACK 		8-97155-687-0 01 1 9806-9906 ●
5 16.650 COVER; SHIFT LEVER
4X4 CREW CAB(TFS*W*) A/T AISIN(RMD) FLOOR CONSOLE ONE PIECE TYPE<7WG> BLACK 		8-97155-687-0 01 1 9907- ● ●
5 16.650 COVER; SHIFT LEVER
4X4 CREW CAB(TFS*W*) A/T AISIN(RMD) FLOOR CONSOLE SEPARATE TYPE<7WF> GRAY 		8-97154-032-0 01 1 0101- ●
95 16.650 NUT; SPIRE,RR PNL TO CONSOLE
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) UP GRADE PACKAGE<7MA> 09.262 M5 SPIRE NUT 		8-94217-271-0 02 1 9804-9805 ●
95 16.650 NUT; SPIRE,RR PNL TO CONSOLE
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) UP GRADE PACKAGE<7MA> 09.262 M5 SPIRE NUT 		8-94217-271-0 02 1 9806-9906 ●
95 16.650 NUT; SPIRE,RR PNL TO CONSOLE
4X4 CREW CAB(TFS*W*) A/T AISIN(RMD) 09.262 M5 SPIRE NUT 		8-94217-271-0 02 1 9806-9906 ●
95 16.650 NUT; SPIRE,RR PNL TO CONSOLE
CREW CAB(TF**W*) A/T AISIN(RMD) FLOOR CONSOLE ONE PIECE TYPE<7WG> 09.262 M5 SPIRE NUT 		8-94217-271-0 02 1 9907- ● ●
95 16.650 NUT; SPIRE,RR PNL TO CONSOLE
4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) FLOOR CONSOLE ONE PIECE TYPE<7WG> 09.262 M5 SPIRE NUT 		8-94217-271-0 02 1 9907- ● ●
95 16.650 NUT; SPIRE,RR PNL TO CONSOLE
4X4 CREW CAB(TFS*W*) FLOOR REMOTE SHIFT<M11> FLOOR CONSOLE ONE PIECE TYPE<7WG> 09.262 M5 SPIRE NUT 		8-94217-271-0 02 1 9907- ● ●
113 04.015 BOX; CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> BLACK 		8-97097-007-1 01 1 9804-9906 ●
113 04.015 BOX; CONSOLE
4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) FLOOR CONSOLE ONE PIECE TYPE<7WG> BLACK 		8-97097-007-1 01 1 9907- ● ●
113 04.015 BOX; CONSOLE
4X2 CREW CAB(TFB*W*) FLOOR REMOTE SHIFT<M11> FLOOR CONSOLE ONE PIECE TYPE<7WG> BLACK 		8-97097-007-1 01 1 9907- ● ●
113 04.015 BOX; CONSOLE
4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. CENTER CONSOLE<D63> BLACK 		8-94373-417-2 01 1 9804-9906 ●
113 04.015 BOX; CONSOLE
4X2(TFB***) FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> BLACK 		8-94373-417-2 01 1 9907- ●
249 16.674 COVER
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) UP GRADE PACKAGE<7MA> BLACK 		8-97155-555-1 01 1 9804-9906 ●
249 16.674 COVER
4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) FLOOR CONSOLE ONE PIECE TYPE<7WG> BLACK 		8-97155-555-1 01 1 9907- ● ●
249 16.674 COVER
4X4 CREW CAB(TFS*W*) FLOOR REMOTE SHIFT<M11> FLOOR CONSOLE ONE PIECE TYPE<7WG> BLACK 		8-97155-555-1 01 1 9907- ● ●

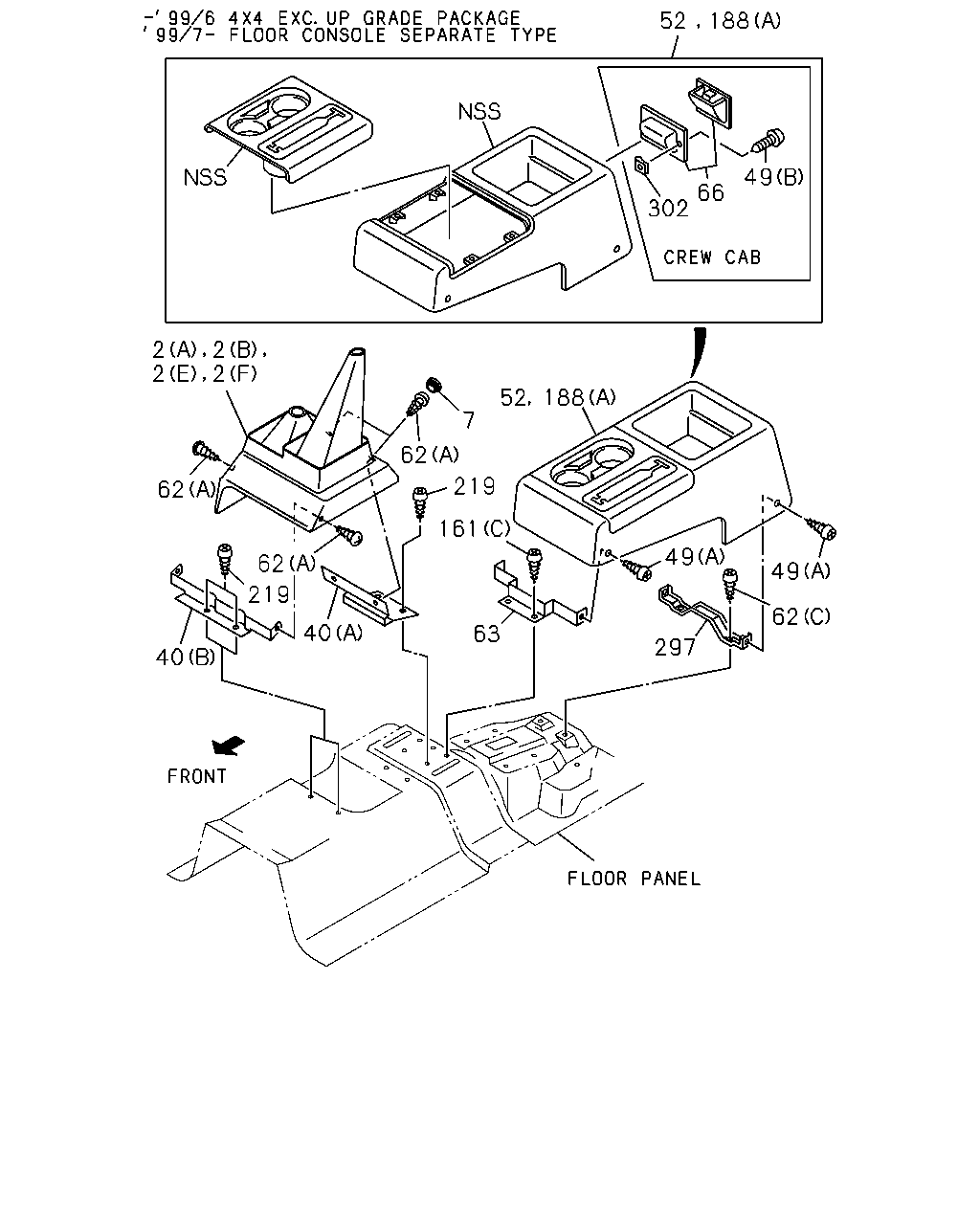

çizim 63943
52 188 49 66 302 52 188 7 62 219 62 161 49 62 219 49 62 40 63 297 40 2 2 2 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 16.081 CONSOLE; CENTER
4X2(TFB***) CENTER CONSOLE<D63> (D) GRAY 		8-97158-517-0 01 1 9804-9906 ●
2 16.081 CONSOLE; CENTER
4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) FLOOR CONSOLE ONE PIECE TYPE<7WG> (D) GRAY 		8-97158-517-0 01 1 9907- ● ●
2 16.081 CONSOLE; CENTER
4X2 CREW CAB(TFB*W*) FLOOR REMOTE SHIFT<M11> FLOOR CONSOLE ONE PIECE TYPE<7WG> (D) GRAY 		8-97158-517-0 01 1 9907- ● ●
2 16.081 CONSOLE; CENTER
4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. CENTER CONSOLE<D63> (A) GRAY 		8-97156-743-0 01 1 9804-9906 ●
2 16.081 CONSOLE; CENTER
4X2(TFB***) FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> (A) GRAY 		8-97156-743-0 01 1 9907- ●
2 16.081 CONSOLE; CENTER
4X2 CREW CAB(TFB*W*) A/T AISIN(RMD) FLOOR CONSOLE SEPARATE TYPE<7WF> (E) GRAY 		8-97150-578-3 01 1 9907- ●
2 16.081 CONSOLE; CENTER
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) UP GRADE PACKAGE<7MA> (C) GRAY 		8-97155-554-1 01 1 9804-9906 ●
2 16.081 CONSOLE; CENTER
4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) FLOOR CONSOLE ONE PIECE TYPE<7WG> (C) GRAY 		8-97155-554-1 01 1 9907- ● ●
2 16.081 CONSOLE; CENTER
4X4 CREW CAB(TFS*W*) FLOOR REMOTE SHIFT<M11> FLOOR CONSOLE ONE PIECE TYPE<7WG> (C) GRAY 		8-97155-554-1 01 1 9907- ● ●
2 16.081 CONSOLE; CENTER
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. UP GRADE PACKAGE<7MA> (B) GRAY 		8-97156-745-0 01 1 9804-9906 ●
2 16.081 CONSOLE; CENTER
4X4(TFS***) FLOOR CONSOLE SEPARATE TYPE<7WF> (B) GRAY 		8-97156-745-0 01 1 9907-0012 ●
2 16.081 CONSOLE; CENTER
4X4(TFS***) FLOOR CONSOLE SEPARATE TYPE<7WF> FLOOR REMOTE SHIFT<M11> (B) GRAY 		8-97156-745-0 01 1 0101- ●
2 16.081 CONSOLE; CENTER
4X4 CREW CAB(TFS*W*) A/T AISIN(RMD) (G) GRAY 		8-97152-692-1 01 1 9806-9906 ●
2 16.081 CONSOLE; CENTER
4X4 CREW CAB(TFS*W*) A/T AISIN(RMD) FLOOR CONSOLE ONE PIECE TYPE<7WG> (G) GRAY 		8-97152-692-1 01 1 9907- ● ●
2 16.081 CONSOLE; CENTER
4X4 CREW CAB(TFS*W*) A/T AISIN(RMD) FLOOR CONSOLE SEPARATE TYPE<7WF> (F) GRAY 		8-97154-030-2 01 1 0101- ●
2 16.081 CONSOLE; CENTER
4X2 CREW CAB(TFB*W*) A/T AISIN(RMD) FLOOR CONSOLE ONE PIECE TYPE<7WG> (G) GRAY 		8-97159-160-0 01 1 9907- ● ●
7 16.650 COVER; HOLE,FLOOR CONSOLE
4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. CENTER CONSOLE<D63> GRAY 		8-97150-582-1 02 1 9804-9906 ●
7 16.650 COVER; HOLE,FLOOR CONSOLE
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. UP GRADE PACKAGE<7MA> GRAY 		8-97150-582-1 02 1 9804-9906 ●
7 16.650 COVER; HOLE,FLOOR CONSOLE
FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> GRAY 		8-97150-582-1 02 1 9907- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> (B) 		8-97072-944-0 01 1 9804-9906 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) UP GRADE PACKAGE<7MA> (B) 		8-97072-944-0 01 1 9804-9906 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
FLOOR REMOTE SHIFT<M11> FLOOR CONSOLE ONE PIECE TYPE<7WG> (B) 		8-97072-944-1 01 1 9907- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. CENTER CONSOLE<D63> (A) 		8-94463-384-0 01 1 9804-9906 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. UP GRADE PACKAGE<7MA> (A) 		8-94463-384-0 01 1 9804-9906 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> (A) 		8-94463-384-0 01 1 9907-0012 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> (A) 		8-94463-384-1 01 1 0101- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. CENTER CONSOLE<D63> (B) 		8-94479-072-1 01 1 9804-9906 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. UP GRADE PACKAGE<7MA> (B) 		8-94479-072-1 01 1 9804-9906 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> (B) 		8-94479-072-1 01 1 9907-0012 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> (B) 		8-94479-072-2 01 1 0101- ● ●
49 04.017 SCREW; CONSOLE
CENTER CONSOLE<D63> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9804-9906 ●
49 04.017 SCREW; CONSOLE
FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9907- ● ●
49 04.017 SCREW; CONSOLE
4X4 CREW CAB(TFS*W*) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. UP GRADE PACKAGE<7MA> 16.850 (B) M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9804-9906 ●
49 04.017 SCREW; CONSOLE
CREW CAB(TF**W*) FLOOR CONSOLE SEPARATE TYPE<7WF> PARKING BRAKE FLOOR<7XW> 16.850 (B) M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9907- ●
52 16.650 CONSOLE; FRT
4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) EXC. UP GRADE PACKAGE<7MA> GRAY 		8-97154-601-3 01 1 9804-9906 ●
52 16.650 CONSOLE; FRT
4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) 4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) FLOOR CONSOLE SEPARATE TYPE<7WF> PARKING BRAKE FLOOR<7XW> GRAY 		8-97154-601-3 01 1 9907- ●
62 16.650 SCREW; BRKT
CENTER CONSOLE<D63> 15.222 (C) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9804-9906 ●
62 16.650 SCREW; BRKT
FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> 15.222 (C) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9907- ● ●
62 16.650 SCREW; BRKT
4X2(TFB***) CENTER CONSOLE<D63> (B) M8X14 		9-03900-814-0 02 1 9804-9906 ●
62 16.650 SCREW; BRKT
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) UP GRADE PACKAGE<7MA> (B) M8X14 		9-03900-814-0 02 1 9804-9906 ●
62 16.650 SCREW; BRKT
FLOOR REMOTE SHIFT<M11> FLOOR CONSOLE ONE PIECE TYPE<7WG> (B) M8X14 		9-03900-814-0 02 1 9907- ● ●
62 16.650 SCREW; BRKT
4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. CENTER CONSOLE<D63> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9804-9906 ●
62 16.650 SCREW; BRKT
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. UP GRADE PACKAGE<7MA> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9804-9906 ●
62 16.650 SCREW; BRKT
FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9907-0012 ●
62 16.650 SCREW; BRKT
FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 0101- ●
62 16.650 SCREW; BRKT
CREW CAB(TF**W*) A/T AISIN(RMD) FLOOR CONSOLE SEPARATE TYPE<7WF> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 0101- ●
63 16.650 BRACKET; FRT CONSOLE
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. UP GRADE PACKAGE<7MA> 		8-97115-115-0 01 1 9804-9906 ●
63 16.650 BRACKET; FRT CONSOLE
FLOOR CONSOLE SEPARATE TYPE<7WF> 		8-97115-115-0 01 1 9907- ●
66 16.120 TRAY ASM; ASH
CREW CAB(TF**W*) CENTER CONSOLE<D63> GRAY 		8-97150-683-1 01 1 9804-9906 ●
66 16.120 TRAY ASM; ASH
4X2 CREW CAB(TFB*W*) FLOOR CONSOLE ONE PIECE TYPE<7WG> EXC. PARKING BRAKE FLOOR<7XW> GRAY 		8-97150-683-1 01 1 9907- ● ●
66 16.120 TRAY ASM; ASH
4X4 CREW CAB(TFS*W*) FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> GRAY 		8-97150-683-1 01 1 9907- ● ●
66 16.120 TRAY ASM; ASH
4X2 CREW CAB(TFB*W*) FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> GRAY 		8-97150-683-1 01 1 9907- ● ●
161 16.650 SCREW; RR CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> (A) 		0-70080-031-0 04 1 9804-9805 ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) UP GRADE PACKAGE<7MA> (A) 		0-70080-031-0 04 1 9804-9805 ●
161 16.650 SCREW; RR CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> (A) 		0-70080-031-0 04 1 9806-9807 ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) UP GRADE PACKAGE<7MA> (A) 		0-70080-031-0 04 1 9806-9807 ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) A/T AISIN(RMD) (A) 		0-70080-031-0 04 1 9806-9807 ●
161 16.650 SCREW; RR CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> (A) 		0-70080-031-0 04 1 9808-9906 ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) UP GRADE PACKAGE<7MA> (A) 		0-70080-031-0 04 1 9808-9906 ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) A/T AISIN(RMD) (A) 		0-70080-031-0 04 1 9808-9906 ●
161 16.650 SCREW; RR CONSOLE
FLOOR CONSOLE ONE PIECE TYPE<7WG> (A) 		0-70080-031-0 04 1 9907- ● ●
161 16.650 SCREW; RR CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9804-9805 ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) UP GRADE PACKAGE<7MA> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9804-9805 ●
161 16.650 SCREW; RR CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9806-9807 ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) UP GRADE PACKAGE<7MA> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9806-9807 ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) A/T AISIN(RMD) 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9806-9807 ●
161 16.650 SCREW; RR CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9808-9906 ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) UP GRADE PACKAGE<7MA> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9808-9906 ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) A/T AISIN(RMD) 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9808-9906 ●
161 16.650 SCREW; RR CONSOLE
FLOOR CONSOLE ONE PIECE TYPE<7WG> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9907- ● ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. UP GRADE PACKAGE<7MA> 15.222 (C) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9804-9906 ●
161 16.650 SCREW; RR CONSOLE
FLOOR CONSOLE SEPARATE TYPE<7WF> 15.222 (C) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9907- ●
188 16.650 CONSOLE; RR
4X2 CREW CAB(TFB*W*) CENTER CONSOLE<D63> (B) GRAY 		8-97159-991-1 01 1 9804-9906 ●
188 16.650 CONSOLE; RR
4X2 CREW CAB(TFB*W*) FLOOR CONSOLE ONE PIECE TYPE<7WG> EXC. PARKING BRAKE FLOOR<7XW> (B) GRAY 		8-97159-991-1 01 1 9907- ● ●
188 16.650 CONSOLE; RR
4X4(TFS***) UP GRADE PACKAGE<7MA> (B) GRAY 		8-97159-988-1 01 1 9804-9805 ●
188 16.650 CONSOLE; RR
4X4(TFS***) UP GRADE PACKAGE<7MA> (B) GRAY 		8-97159-988-1 01 1 9806-9807 ●
188 16.650 CONSOLE; RR
4X4(TFS***) A/T AISIN(RMD) (B) GRAY 		8-97159-988-1 01 1 9806-9807 ●
188 16.650 CONSOLE; RR
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) UP GRADE PACKAGE<7MA> (B) GRAY 		8-97159-988-1 01 1 9808-9906 ●
188 16.650 CONSOLE; RR
4X4(TFS***) A/T AISIN(RMD) ISRAEL EQUIPMENT(7LX) (B) GRAY 		8-97159-988-1 01 1 9808-9906 ●
188 16.650 CONSOLE; RR
4X2 CREW CAB(TFB*W*) FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> (B) GRAY 		8-97159-988-1 01 1 9907- ● ●
188 16.650 CONSOLE; RR
4X4 CREW CAB(TFS*W*) FLOOR CONSOLE ONE PIECE TYPE<7WG> (B) GRAY 		8-97159-988-1 01 1 9907- ● ●
188 16.650 CONSOLE; RR
4X4 CREW CAB(TFS*W*) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. UP GRADE PACKAGE<7MA> (A) GRAY 		8-97154-600-3 01 1 9804-9906 ●
188 16.650 CONSOLE; RR
CREW CAB(TF**W*) FLOOR CONSOLE SEPARATE TYPE<7WF> PARKING BRAKE FLOOR<7XW> (A) GRAY 		8-97154-600-3 01 1 9907- ●
188 16.650 CONSOLE; RR
4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) CENTER CONSOLE<D63> (B) GRAY 		8-97159-992-1 01 1 9804-9906 ● ●
188 16.650 CONSOLE; RR
4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) FLOOR CONSOLE ONE PIECE TYPE<7WG> EXC. PARKING BRAKE FLOOR<7XW> (B) GRAY 		8-97159-992-1 01 1 9907- ● ●
188 16.650 CONSOLE; RR
4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> (B) GRAY 		8-97159-990-1 01 1 9907- ● ●
188 16.650 CONSOLE; RR
4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) FLOOR CONSOLE ONE PIECE TYPE<7WG> (B) GRAY 		8-97159-990-1 01 1 9907- ● ●
219 16.650 SCREW; BRKT TO CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> M8X14 		9-03900-814-0 02 1 9804-9906 ●
219 16.650 SCREW; BRKT TO CONSOLE
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) UP GRADE PACKAGE<7MA> M8X14 		9-03900-814-0 02 1 9804-9906 ●
219 16.650 SCREW; BRKT TO CONSOLE
FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> M8X14 		9-03900-814-0 04 1 9907-0012 ●
219 16.650 SCREW; BRKT TO CONSOLE
FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> M8X14 		9-03900-814-0 04 1 0101- ● ●
219 16.650 SCREW; BRKT TO CONSOLE
4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. CENTER CONSOLE<D63> M8X14 		9-03900-814-0 04 1 9804-9906 ●
219 16.650 SCREW; BRKT TO CONSOLE
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. UP GRADE PACKAGE<7MA> M8X14 		9-03900-814-0 04 1 9804-9906 ●
219 16.650 SCREW; BRKT TO CONSOLE
FLOOR REMOTE SHIFT<M11> FLOOR CONSOLE ONE PIECE TYPE<7WG> M8X14 		9-03900-814-0 02 1 9907- ● ●
297 16.650 BRACKET; RR CONSOLE
CENTER CONSOLE<D63> 		8-97069-670-0 01 1 9804-9906 ●
297 16.650 BRACKET; RR CONSOLE
FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> 		8-97069-670-2 01 1 9907- ● ●
302 16.650 RETAINER; ASH TRAY
4X4 CREW CAB(TFS*W*) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. UP GRADE PACKAGE<7MA> 		8-94123-300-5 02 1 9804-9808 ●
302 16.650 RETAINER; ASH TRAY
CREW CAB(TF**W*) CENTER CONSOLE<D63> 		8-94123-300-5 02 1 9809-9906 ●
302 16.650 RETAINER; ASH TRAY
4X2 CREW CAB(TFB*W*) FLOOR CONSOLE ONE PIECE TYPE<7WG> EXC. PARKING BRAKE FLOOR<7XW> 		8-94123-300-5 02 1 9907- ● ●
302 16.650 RETAINER; ASH TRAY
4X4 CREW CAB(TFS*W*) FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> 		8-94123-300-5 02 1 9907- ● ●
302 16.650 RETAINER; ASH TRAY
4X2 CREW CAB(TFB*W*) FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> 		8-94123-300-5 02 1 9907- ● ●

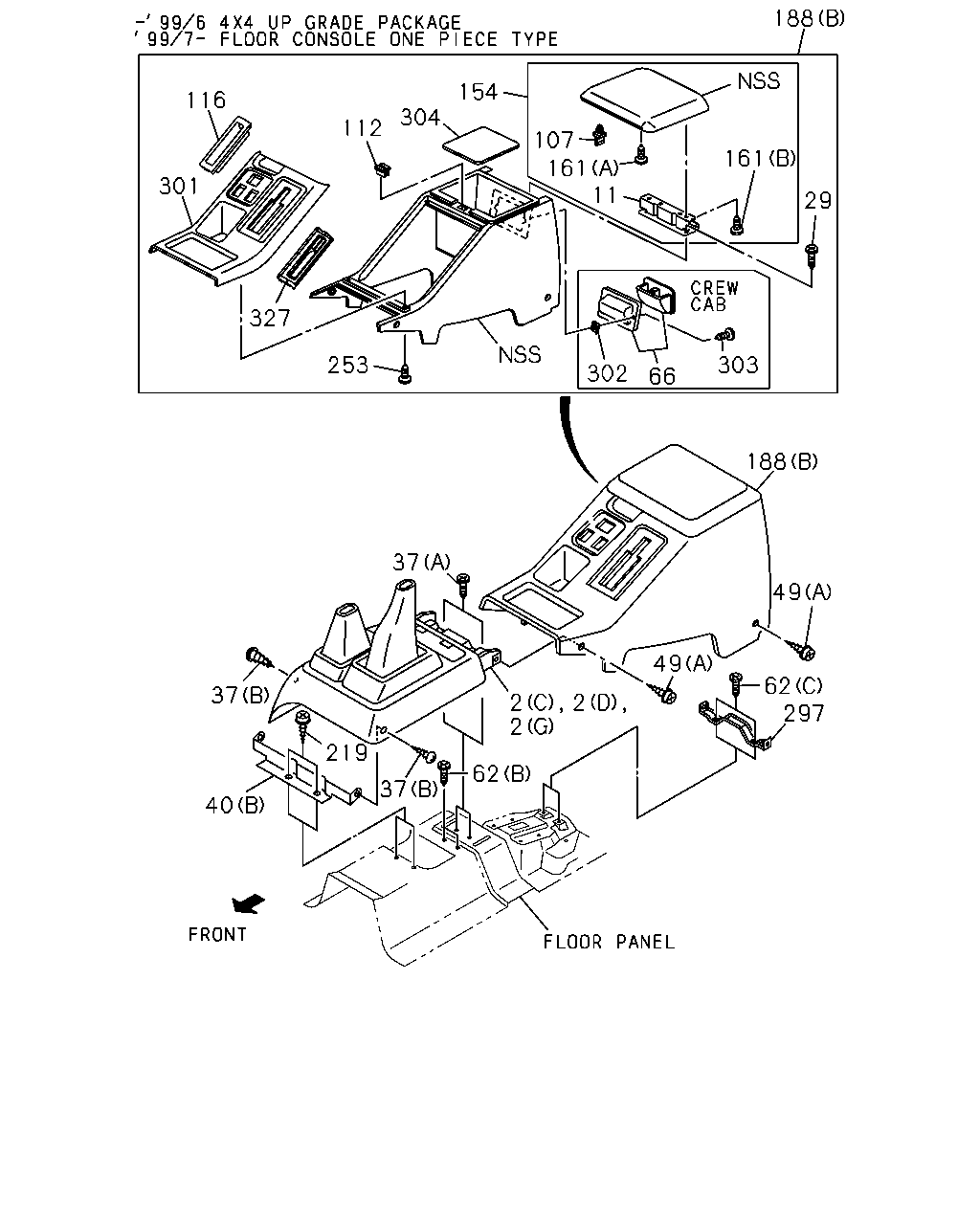

çizim 63996
188 154 116 304 112 107 161 11 161 301 29 327 253 303 302 66 188 37 49 49 37 62 297 219 2 2 2 37 62 40
BalonParca AdiParca NoAdetTipApplied Date A B
2 16.081 CONSOLE; CENTER
4X2(TFB***) CENTER CONSOLE<D63> (D) GRAY 		8-97158-517-0 01 1 9804-9906 ●
2 16.081 CONSOLE; CENTER
4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) FLOOR CONSOLE ONE PIECE TYPE<7WG> (D) GRAY 		8-97158-517-0 01 1 9907- ● ●
2 16.081 CONSOLE; CENTER
4X2 CREW CAB(TFB*W*) FLOOR REMOTE SHIFT<M11> FLOOR CONSOLE ONE PIECE TYPE<7WG> (D) GRAY 		8-97158-517-0 01 1 9907- ● ●
2 16.081 CONSOLE; CENTER
4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. CENTER CONSOLE<D63> (A) GRAY 		8-97156-743-0 01 1 9804-9906 ●
2 16.081 CONSOLE; CENTER
4X2(TFB***) FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> (A) GRAY 		8-97156-743-0 01 1 9907- ●
2 16.081 CONSOLE; CENTER
4X2 CREW CAB(TFB*W*) A/T AISIN(RMD) FLOOR CONSOLE SEPARATE TYPE<7WF> (E) GRAY 		8-97150-578-3 01 1 9907- ●
2 16.081 CONSOLE; CENTER
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) UP GRADE PACKAGE<7MA> (C) GRAY 		8-97155-554-1 01 1 9804-9906 ●
2 16.081 CONSOLE; CENTER
4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) FLOOR CONSOLE ONE PIECE TYPE<7WG> (C) GRAY 		8-97155-554-1 01 1 9907- ● ●
2 16.081 CONSOLE; CENTER
4X4 CREW CAB(TFS*W*) FLOOR REMOTE SHIFT<M11> FLOOR CONSOLE ONE PIECE TYPE<7WG> (C) GRAY 		8-97155-554-1 01 1 9907- ● ●
2 16.081 CONSOLE; CENTER
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. UP GRADE PACKAGE<7MA> (B) GRAY 		8-97156-745-0 01 1 9804-9906 ●
2 16.081 CONSOLE; CENTER
4X4(TFS***) FLOOR CONSOLE SEPARATE TYPE<7WF> (B) GRAY 		8-97156-745-0 01 1 9907-0012 ●
2 16.081 CONSOLE; CENTER
4X4(TFS***) FLOOR CONSOLE SEPARATE TYPE<7WF> FLOOR REMOTE SHIFT<M11> (B) GRAY 		8-97156-745-0 01 1 0101- ●
2 16.081 CONSOLE; CENTER
4X4 CREW CAB(TFS*W*) A/T AISIN(RMD) (G) GRAY 		8-97152-692-1 01 1 9806-9906 ●
2 16.081 CONSOLE; CENTER
4X4 CREW CAB(TFS*W*) A/T AISIN(RMD) FLOOR CONSOLE ONE PIECE TYPE<7WG> (G) GRAY 		8-97152-692-1 01 1 9907- ● ●
2 16.081 CONSOLE; CENTER
4X4 CREW CAB(TFS*W*) A/T AISIN(RMD) FLOOR CONSOLE SEPARATE TYPE<7WF> (F) GRAY 		8-97154-030-2 01 1 0101- ●
2 16.081 CONSOLE; CENTER
4X2 CREW CAB(TFB*W*) A/T AISIN(RMD) FLOOR CONSOLE ONE PIECE TYPE<7WG> (G) GRAY 		8-97159-160-0 01 1 9907- ● ●
11 16.650 HINGE; CONSOLE LID
4X2(TFB***) CENTER CONSOLE<D63> 		8-97069-668-1 01 1 9804-9805 ●
11 16.650 HINGE; CONSOLE LID
4X4(TFS***) UP GRADE PACKAGE<7MA> 		8-97069-668-1 01 1 9804-9805 ●
11 16.650 HINGE; CONSOLE LID
4X2(TFB***) CENTER CONSOLE<D63> 		8-97069-668-1 01 1 9806-9807 ●
11 16.650 HINGE; CONSOLE LID
4X4(TFS***) UP GRADE PACKAGE<7MA> 		8-97069-668-1 01 1 9806-9807 ●
11 16.650 HINGE; CONSOLE LID
4X4(TFS***) A/T AISIN(RMD) 		8-97069-668-1 01 1 9806-9807 ●
11 16.650 HINGE; CONSOLE LID
4X2(TFB***) CENTER CONSOLE<D63> 		8-97069-668-1 01 1 9808-9906 ●
11 16.650 HINGE; CONSOLE LID
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) UP GRADE PACKAGE<7MA> 		8-97069-668-1 01 1 9808-9906 ●
11 16.650 HINGE; CONSOLE LID
4X4(TFS***) A/T AISIN(RMD) 		8-97069-668-1 01 1 9808-9906 ●
11 16.650 HINGE; CONSOLE LID
FLOOR CONSOLE ONE PIECE TYPE<7WG> 		8-97069-668-1 01 1 9907- ● ●
29 16.650 SCREW; HINGE
4X2(TFB***) CENTER CONSOLE<D63> 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 9804-9805 ●
29 16.650 SCREW; HINGE
4X4(TFS***) UP GRADE PACKAGE<7MA> 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 9804-9805 ●
29 16.650 SCREW; HINGE
4X2(TFB***) CENTER CONSOLE<D63> 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 9806-9807 ●
29 16.650 SCREW; HINGE
4X4(TFS***) UP GRADE PACKAGE<7MA> 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 9806-9807 ●
29 16.650 SCREW; HINGE
4X4(TFS***) A/T AISIN(RMD) 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 9806-9807 ●
29 16.650 SCREW; HINGE
4X2(TFB***) CENTER CONSOLE<D63> 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 9808-9906 ●
29 16.650 SCREW; HINGE
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) UP GRADE PACKAGE<7MA> 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 9808-9906 ●
29 16.650 SCREW; HINGE
4X4(TFS***) A/T AISIN(RMD) 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 9808-9906 ●
29 16.650 SCREW; HINGE
FLOOR CONSOLE ONE PIECE TYPE<7WG> 16.085 M5X16 TAPPING 		9-09829-323-1 02 1 9907- ● ●
37 16.650 SCREW; CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> 15.222 (A) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9804-9805 ●
37 16.650 SCREW; CONSOLE
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) UP GRADE PACKAGE<7MA> 15.222 (A) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9804-9805 ●
37 16.650 SCREW; CONSOLE
4X4 CREW CAB(TFS*W*) A/T AISIN(RMD) 15.222 (A) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9806-9906 ● ●
37 16.650 SCREW; CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> 15.222 (A) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9806-9906 ●
37 16.650 SCREW; CONSOLE
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) UP GRADE PACKAGE<7MA> 15.222 (A) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9806-9906 ●
37 16.650 SCREW; CONSOLE
FLOOR CONSOLE ONE PIECE TYPE<7WG> 15.222 (A) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9907- ● ●
37 16.650 SCREW; CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9804-9805 ●
37 16.650 SCREW; CONSOLE
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) UP GRADE PACKAGE<7MA> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9804-9805 ●
37 16.650 SCREW; CONSOLE
4X4 CREW CAB(TFS*W*) A/T AISIN(RMD) 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9806-9906 ● ●
37 16.650 SCREW; CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9806-9906 ●
37 16.650 SCREW; CONSOLE
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) UP GRADE PACKAGE<7MA> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9806-9906 ●
37 16.650 SCREW; CONSOLE
FLOOR CONSOLE ONE PIECE TYPE<7WG> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9907- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> (B) 		8-97072-944-0 01 1 9804-9906 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) UP GRADE PACKAGE<7MA> (B) 		8-97072-944-0 01 1 9804-9906 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
FLOOR REMOTE SHIFT<M11> FLOOR CONSOLE ONE PIECE TYPE<7WG> (B) 		8-97072-944-1 01 1 9907- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. CENTER CONSOLE<D63> (A) 		8-94463-384-0 01 1 9804-9906 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. UP GRADE PACKAGE<7MA> (A) 		8-94463-384-0 01 1 9804-9906 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> (A) 		8-94463-384-0 01 1 9907-0012 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> (A) 		8-94463-384-1 01 1 0101- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. CENTER CONSOLE<D63> (B) 		8-94479-072-1 01 1 9804-9906 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. UP GRADE PACKAGE<7MA> (B) 		8-94479-072-1 01 1 9804-9906 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> (B) 		8-94479-072-1 01 1 9907-0012 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> (B) 		8-94479-072-2 01 1 0101- ● ●
49 04.017 SCREW; CONSOLE
CENTER CONSOLE<D63> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9804-9906 ●
49 04.017 SCREW; CONSOLE
FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9907- ● ●
49 04.017 SCREW; CONSOLE
4X4 CREW CAB(TFS*W*) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. UP GRADE PACKAGE<7MA> 16.850 (B) M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9804-9906 ●
49 04.017 SCREW; CONSOLE
CREW CAB(TF**W*) FLOOR CONSOLE SEPARATE TYPE<7WF> PARKING BRAKE FLOOR<7XW> 16.850 (B) M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9907- ●
62 16.650 SCREW; BRKT
CENTER CONSOLE<D63> 15.222 (C) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9804-9906 ●
62 16.650 SCREW; BRKT
FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> 15.222 (C) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9907- ● ●
62 16.650 SCREW; BRKT
4X2(TFB***) CENTER CONSOLE<D63> (B) M8X14 		9-03900-814-0 02 1 9804-9906 ●
62 16.650 SCREW; BRKT
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) UP GRADE PACKAGE<7MA> (B) M8X14 		9-03900-814-0 02 1 9804-9906 ●
62 16.650 SCREW; BRKT
FLOOR REMOTE SHIFT<M11> FLOOR CONSOLE ONE PIECE TYPE<7WG> (B) M8X14 		9-03900-814-0 02 1 9907- ● ●
62 16.650 SCREW; BRKT
4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. CENTER CONSOLE<D63> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9804-9906 ●
62 16.650 SCREW; BRKT
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. UP GRADE PACKAGE<7MA> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9804-9906 ●
62 16.650 SCREW; BRKT
FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9907-0012 ●
62 16.650 SCREW; BRKT
FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 0101- ●
62 16.650 SCREW; BRKT
CREW CAB(TF**W*) A/T AISIN(RMD) FLOOR CONSOLE SEPARATE TYPE<7WF> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 0101- ●
66 16.120 TRAY ASM; ASH
CREW CAB(TF**W*) CENTER CONSOLE<D63> GRAY 		8-97150-683-1 01 1 9804-9906 ●
66 16.120 TRAY ASM; ASH
4X2 CREW CAB(TFB*W*) FLOOR CONSOLE ONE PIECE TYPE<7WG> EXC. PARKING BRAKE FLOOR<7XW> GRAY 		8-97150-683-1 01 1 9907- ● ●
66 16.120 TRAY ASM; ASH
4X4 CREW CAB(TFS*W*) FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> GRAY 		8-97150-683-1 01 1 9907- ● ●
66 16.120 TRAY ASM; ASH
4X2 CREW CAB(TFB*W*) FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> GRAY 		8-97150-683-1 01 1 9907- ● ●
107 16.650 LOCK; LID,RR CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> 		8-94110-961-1 01 1 9804-9805 ●
107 16.650 LOCK; LID,RR CONSOLE
4X4(TFS***) UP GRADE PACKAGE<7MA> 		8-94110-961-1 01 1 9804-9805 ●
107 16.650 LOCK; LID,RR CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> 		8-94110-961-1 01 1 9806-9807 ●
107 16.650 LOCK; LID,RR CONSOLE
4X4(TFS***) UP GRADE PACKAGE<7MA> 		8-94110-961-1 01 1 9806-9807 ●
107 16.650 LOCK; LID,RR CONSOLE
4X4(TFS***) A/T AISIN(RMD) 		8-94110-961-1 01 1 9806-9807 ●
107 16.650 LOCK; LID,RR CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> 		8-94110-961-1 01 1 9808-9906 ●
107 16.650 LOCK; LID,RR CONSOLE
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) UP GRADE PACKAGE<7MA> 		8-94110-961-1 01 1 9808-9906 ●
107 16.650 LOCK; LID,RR CONSOLE
4X4(TFS***) A/T AISIN(RMD) 		8-94110-961-1 01 1 9808-9906 ●
107 16.650 LOCK; LID,RR CONSOLE
FLOOR CONSOLE ONE PIECE TYPE<7WG> 		8-94110-961-1 01 1 9907- ● ●
112 16.650 LOCK; HOLE,RR CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> 		8-94110-962-1 01 1 9804-9805 ●
112 16.650 LOCK; HOLE,RR CONSOLE
4X4(TFS***) UP GRADE PACKAGE<7MA> 		8-94110-962-1 01 1 9804-9805 ●
112 16.650 LOCK; HOLE,RR CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> 		8-94110-962-1 01 1 9806-9807 ●
112 16.650 LOCK; HOLE,RR CONSOLE
4X4(TFS***) UP GRADE PACKAGE<7MA> 		8-94110-962-1 01 1 9806-9807 ●
112 16.650 LOCK; HOLE,RR CONSOLE
4X4(TFS***) A/T AISIN(RMD) 		8-94110-962-1 01 1 9806-9807 ●
112 16.650 LOCK; HOLE,RR CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> 		8-94110-962-1 01 1 9808-9906 ●
112 16.650 LOCK; HOLE,RR CONSOLE
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) UP GRADE PACKAGE<7MA> 		8-94110-962-1 01 1 9808-9906 ●
112 16.650 LOCK; HOLE,RR CONSOLE
4X4(TFS***) A/T AISIN(RMD) 		8-94110-962-1 01 1 9808-9906 ●
112 16.650 LOCK; HOLE,RR CONSOLE
FLOOR CONSOLE ONE PIECE TYPE<7WG> 		8-94110-962-1 01 1 9907- ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
FLOOR CONSOLE ONE PIECE TYPE<7WG> EXC. PARKING BRAKE FLOOR<7XW> GRAY 		8-97199-099-0 01 1 9907- ● ●
154 16.650 LID ASM; RR CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> GRAY 		8-97152-895-1 01 1 9804-9906 ●
154 16.650 LID ASM; RR CONSOLE
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) UP GRADE PACKAGE<7MA> GRAY 		8-97152-895-1 01 1 9804-9906 ●
154 16.650 LID ASM; RR CONSOLE
4X4(TFS***) A/T AISIN(RMD) GRAY 		8-97152-895-1 01 1 9804-9906 ●
154 16.650 LID ASM; RR CONSOLE
FLOOR CONSOLE ONE PIECE TYPE<7WG> GRAY 		8-97152-895-1 01 1 9907- ● ●
161 16.650 SCREW; RR CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> (A) 		0-70080-031-0 04 1 9804-9805 ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) UP GRADE PACKAGE<7MA> (A) 		0-70080-031-0 04 1 9804-9805 ●
161 16.650 SCREW; RR CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> (A) 		0-70080-031-0 04 1 9806-9807 ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) UP GRADE PACKAGE<7MA> (A) 		0-70080-031-0 04 1 9806-9807 ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) A/T AISIN(RMD) (A) 		0-70080-031-0 04 1 9806-9807 ●
161 16.650 SCREW; RR CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> (A) 		0-70080-031-0 04 1 9808-9906 ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) UP GRADE PACKAGE<7MA> (A) 		0-70080-031-0 04 1 9808-9906 ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) A/T AISIN(RMD) (A) 		0-70080-031-0 04 1 9808-9906 ●
161 16.650 SCREW; RR CONSOLE
FLOOR CONSOLE ONE PIECE TYPE<7WG> (A) 		0-70080-031-0 04 1 9907- ● ●
161 16.650 SCREW; RR CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9804-9805 ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) UP GRADE PACKAGE<7MA> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9804-9805 ●
161 16.650 SCREW; RR CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9806-9807 ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) UP GRADE PACKAGE<7MA> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9806-9807 ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) A/T AISIN(RMD) 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9806-9807 ●
161 16.650 SCREW; RR CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9808-9906 ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) UP GRADE PACKAGE<7MA> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9808-9906 ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) A/T AISIN(RMD) 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9808-9906 ●
161 16.650 SCREW; RR CONSOLE
FLOOR CONSOLE ONE PIECE TYPE<7WG> 16.085 (B) M5X16 TAPPING 		9-09829-323-1 02 1 9907- ● ●
161 16.650 SCREW; RR CONSOLE
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. UP GRADE PACKAGE<7MA> 15.222 (C) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9804-9906 ●
161 16.650 SCREW; RR CONSOLE
FLOOR CONSOLE SEPARATE TYPE<7WF> 15.222 (C) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9907- ●
188 16.650 CONSOLE; RR
4X2 CREW CAB(TFB*W*) CENTER CONSOLE<D63> (B) GRAY 		8-97159-991-1 01 1 9804-9906 ●
188 16.650 CONSOLE; RR
4X2 CREW CAB(TFB*W*) FLOOR CONSOLE ONE PIECE TYPE<7WG> EXC. PARKING BRAKE FLOOR<7XW> (B) GRAY 		8-97159-991-1 01 1 9907- ● ●
188 16.650 CONSOLE; RR
4X4(TFS***) UP GRADE PACKAGE<7MA> (B) GRAY 		8-97159-988-1 01 1 9804-9805 ●
188 16.650 CONSOLE; RR
4X4(TFS***) UP GRADE PACKAGE<7MA> (B) GRAY 		8-97159-988-1 01 1 9806-9807 ●
188 16.650 CONSOLE; RR
4X4(TFS***) A/T AISIN(RMD) (B) GRAY 		8-97159-988-1 01 1 9806-9807 ●
188 16.650 CONSOLE; RR
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) UP GRADE PACKAGE<7MA> (B) GRAY 		8-97159-988-1 01 1 9808-9906 ●
188 16.650 CONSOLE; RR
4X4(TFS***) A/T AISIN(RMD) ISRAEL EQUIPMENT(7LX) (B) GRAY 		8-97159-988-1 01 1 9808-9906 ●
188 16.650 CONSOLE; RR
4X2 CREW CAB(TFB*W*) FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> (B) GRAY 		8-97159-988-1 01 1 9907- ● ●
188 16.650 CONSOLE; RR
4X4 CREW CAB(TFS*W*) FLOOR CONSOLE ONE PIECE TYPE<7WG> (B) GRAY 		8-97159-988-1 01 1 9907- ● ●
188 16.650 CONSOLE; RR
4X4 CREW CAB(TFS*W*) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. UP GRADE PACKAGE<7MA> (A) GRAY 		8-97154-600-3 01 1 9804-9906 ●
188 16.650 CONSOLE; RR
CREW CAB(TF**W*) FLOOR CONSOLE SEPARATE TYPE<7WF> PARKING BRAKE FLOOR<7XW> (A) GRAY 		8-97154-600-3 01 1 9907- ●
188 16.650 CONSOLE; RR
4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) CENTER CONSOLE<D63> (B) GRAY 		8-97159-992-1 01 1 9804-9906 ● ●
188 16.650 CONSOLE; RR
4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) FLOOR CONSOLE ONE PIECE TYPE<7WG> EXC. PARKING BRAKE FLOOR<7XW> (B) GRAY 		8-97159-992-1 01 1 9907- ● ●
188 16.650 CONSOLE; RR
4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> (B) GRAY 		8-97159-990-1 01 1 9907- ● ●
188 16.650 CONSOLE; RR
4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) FLOOR CONSOLE ONE PIECE TYPE<7WG> (B) GRAY 		8-97159-990-1 01 1 9907- ● ●
219 16.650 SCREW; BRKT TO CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> M8X14 		9-03900-814-0 02 1 9804-9906 ●
219 16.650 SCREW; BRKT TO CONSOLE
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) UP GRADE PACKAGE<7MA> M8X14 		9-03900-814-0 02 1 9804-9906 ●
219 16.650 SCREW; BRKT TO CONSOLE
FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> M8X14 		9-03900-814-0 04 1 9907-0012 ●
219 16.650 SCREW; BRKT TO CONSOLE
FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> M8X14 		9-03900-814-0 04 1 0101- ● ●
219 16.650 SCREW; BRKT TO CONSOLE
4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. CENTER CONSOLE<D63> M8X14 		9-03900-814-0 04 1 9804-9906 ●
219 16.650 SCREW; BRKT TO CONSOLE
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. UP GRADE PACKAGE<7MA> M8X14 		9-03900-814-0 04 1 9804-9906 ●
219 16.650 SCREW; BRKT TO CONSOLE
FLOOR REMOTE SHIFT<M11> FLOOR CONSOLE ONE PIECE TYPE<7WG> M8X14 		9-03900-814-0 02 1 9907- ● ●
253 09.744 SCREW; BEZEL
4X2(TFB***) CENTER CONSOLE<D63> 16.085 M5X16 TAPPING 		9-09829-323-1 03 1 9804-9805 ●
253 09.744 SCREW; BEZEL
4X4(TFS***) UP GRADE PACKAGE<7MA> 16.085 M5X16 TAPPING 		9-09829-323-1 03 1 9804-9805 ●
253 09.744 SCREW; BEZEL
4X2(TFB***) CENTER CONSOLE<D63> 16.085 M5X16 TAPPING 		9-09829-323-1 03 1 9806-9807 ●
253 09.744 SCREW; BEZEL
4X4(TFS***) UP GRADE PACKAGE<7MA> 16.085 M5X16 TAPPING 		9-09829-323-1 03 1 9806-9807 ●
253 09.744 SCREW; BEZEL
4X4(TFS***) A/T AISIN(RMD) 16.085 M5X16 TAPPING 		9-09829-323-1 03 1 9806-9807 ●
253 09.744 SCREW; BEZEL
4X2(TFB***) CENTER CONSOLE<D63> 16.085 M5X16 TAPPING 		9-09829-323-1 03 1 9808-9906 ●
253 09.744 SCREW; BEZEL
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) UP GRADE PACKAGE<7MA> 16.085 M5X16 TAPPING 		9-09829-323-1 03 1 9808-9906 ●
253 09.744 SCREW; BEZEL
4X4(TFS***) A/T AISIN(RMD) 16.085 M5X16 TAPPING 		9-09829-323-1 03 1 9808-9906 ●
253 09.744 SCREW; BEZEL
FLOOR CONSOLE ONE PIECE TYPE<7WG> 16.085 M5X16 TAPPING 		9-09829-323-1 03 1 9907-9909 ● ●
253 09.744 SCREW; BEZEL
FLOOR CONSOLE ONE PIECE TYPE<7WG> 16.085 M5X16 TAPPING 		9-09829-323-1 04 1 9910- ● ●
297 16.650 BRACKET; RR CONSOLE
CENTER CONSOLE<D63> 		8-97069-670-0 01 1 9804-9906 ●
297 16.650 BRACKET; RR CONSOLE
FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> 		8-97069-670-2 01 1 9907- ● ●
301 16.650 BEZEL; CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> GRAY 		8-97199-098-0 01 1 9804-9906 ●
301 16.650 BEZEL; CONSOLE
FLOOR CONSOLE ONE PIECE TYPE<7WG> EXC. PARKING BRAKE FLOOR<7XW> GRAY 		8-97199-098-0 01 1 9907- ● ●
301 16.650 BEZEL; CONSOLE
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) UP GRADE PACKAGE<7MA> GRAY 		8-97199-096-0 01 1 9804-9906 ●
301 16.650 BEZEL; CONSOLE
4X4(TFS***) A/T AISIN(RMD) ISRAEL EQUIPMENT(7LX) GRAY 		8-97199-096-0 01 1 9804-9906 ●
301 16.650 BEZEL; CONSOLE
FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> GRAY 		8-97199-096-0 01 1 9907- ● ●
302 16.650 RETAINER; ASH TRAY
4X4 CREW CAB(TFS*W*) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. UP GRADE PACKAGE<7MA> 		8-94123-300-5 02 1 9804-9808 ●
302 16.650 RETAINER; ASH TRAY
CREW CAB(TF**W*) CENTER CONSOLE<D63> 		8-94123-300-5 02 1 9809-9906 ●
302 16.650 RETAINER; ASH TRAY
4X2 CREW CAB(TFB*W*) FLOOR CONSOLE ONE PIECE TYPE<7WG> EXC. PARKING BRAKE FLOOR<7XW> 		8-94123-300-5 02 1 9907- ● ●
302 16.650 RETAINER; ASH TRAY
4X4 CREW CAB(TFS*W*) FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> 		8-94123-300-5 02 1 9907- ● ●
302 16.650 RETAINER; ASH TRAY
4X2 CREW CAB(TFB*W*) FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> 		8-94123-300-5 02 1 9907- ● ●
303 16.650 SCREW; ASH TRAY
4X2 CREW CAB(TFB*W*) CENTER CONSOLE<D63> 16.850 M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9804-9805 ●
303 16.650 SCREW; ASH TRAY
4X4 CREW CAB(TFS*W*) UP GRADE PACKAGE<7MA> 16.850 M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9804-9805 ●
303 16.650 SCREW; ASH TRAY
4X2 CREW CAB(TFB*W*) CENTER CONSOLE<D63> 16.850 M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9806-9807 ●
303 16.650 SCREW; ASH TRAY
4X4 CREW CAB(TFS*W*) UP GRADE PACKAGE<7MA> 16.850 M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9806-9807 ●
303 16.650 SCREW; ASH TRAY
4X4 CREW CAB(TFS*W*) A/T AISIN(RMD) 16.850 M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9806-9807 ●
303 16.650 SCREW; ASH TRAY
4X2 CREW CAB(TFB*W*) CENTER CONSOLE<D63> 16.850 M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9808-9906 ●
303 16.650 SCREW; ASH TRAY
4X4 CREW CAB(TFS*W*) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) UP GRADE PACKAGE<7MA> 16.850 M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9808-9906 ●
303 16.650 SCREW; ASH TRAY
4X4 CREW CAB(TFS*W*) A/T AISIN(RMD) 16.850 M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9808-9906 ●
303 16.650 SCREW; ASH TRAY
CREW CAB(TF**W*) FLOOR CONSOLE ONE PIECE TYPE<7WG> 16.850 M4X16 TAPPING OVAL-HEAD 		9-07037-416-0 02 1 9907- ● ●
304 16.650 PAD; CONSOLE BOX
4X2(TFB***) CENTER CONSOLE<D63> 		8-97088-559-0 01 1 9804-9805 ●
304 16.650 PAD; CONSOLE BOX
4X4(TFS***) UP GRADE PACKAGE<7MA> 		8-97088-559-0 01 1 9804-9805 ●
327 16.650 STRIPE; HAND BRAKE
FLOOR CONSOLE ONE PIECE TYPE<7WG> PARKING BRAKE FLOOR<7XW> 		8-97072-047-1 01 1 9907- ● ●
çizim 65420
7 2 62 62 62 219 219 40 40
BalonParca AdiParca NoAdetTipApplied Date A B
2 16.081 CONSOLE; CENTER
4X2(TFB***) CENTER CONSOLE<D63> (D) GRAY 		8-97158-517-0 01 1 9804-9906 ●
2 16.081 CONSOLE; CENTER
4X2 SPACE CAB LONG(TFB6CF) 4X2 SINGLE CAB LONG(TFB6SF) FLOOR CONSOLE ONE PIECE TYPE<7WG> (D) GRAY 		8-97158-517-0 01 1 9907- ● ●
2 16.081 CONSOLE; CENTER
4X2 CREW CAB(TFB*W*) FLOOR REMOTE SHIFT<M11> FLOOR CONSOLE ONE PIECE TYPE<7WG> (D) GRAY 		8-97158-517-0 01 1 9907- ● ●
2 16.081 CONSOLE; CENTER
4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. CENTER CONSOLE<D63> (A) GRAY 		8-97156-743-0 01 1 9804-9906 ●
2 16.081 CONSOLE; CENTER
4X2(TFB***) FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> (A) GRAY 		8-97156-743-0 01 1 9907- ●
2 16.081 CONSOLE; CENTER
4X2 CREW CAB(TFB*W*) A/T AISIN(RMD) FLOOR CONSOLE SEPARATE TYPE<7WF> (E) GRAY 		8-97150-578-3 01 1 9907- ●
2 16.081 CONSOLE; CENTER
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) UP GRADE PACKAGE<7MA> (C) GRAY 		8-97155-554-1 01 1 9804-9906 ●
2 16.081 CONSOLE; CENTER
4X4 SPACE CAB LONG(TFS6CF) 4X4 SINGLE CAB LONG(TFS6SF) FLOOR CONSOLE ONE PIECE TYPE<7WG> (C) GRAY 		8-97155-554-1 01 1 9907- ● ●
2 16.081 CONSOLE; CENTER
4X4 CREW CAB(TFS*W*) FLOOR REMOTE SHIFT<M11> FLOOR CONSOLE ONE PIECE TYPE<7WG> (C) GRAY 		8-97155-554-1 01 1 9907- ● ●
2 16.081 CONSOLE; CENTER
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. UP GRADE PACKAGE<7MA> (B) GRAY 		8-97156-745-0 01 1 9804-9906 ●
2 16.081 CONSOLE; CENTER
4X4(TFS***) FLOOR CONSOLE SEPARATE TYPE<7WF> (B) GRAY 		8-97156-745-0 01 1 9907-0012 ●
2 16.081 CONSOLE; CENTER
4X4(TFS***) FLOOR CONSOLE SEPARATE TYPE<7WF> FLOOR REMOTE SHIFT<M11> (B) GRAY 		8-97156-745-0 01 1 0101- ●
2 16.081 CONSOLE; CENTER
4X4 CREW CAB(TFS*W*) A/T AISIN(RMD) (G) GRAY 		8-97152-692-1 01 1 9806-9906 ●
2 16.081 CONSOLE; CENTER
4X4 CREW CAB(TFS*W*) A/T AISIN(RMD) FLOOR CONSOLE ONE PIECE TYPE<7WG> (G) GRAY 		8-97152-692-1 01 1 9907- ● ●
2 16.081 CONSOLE; CENTER
4X4 CREW CAB(TFS*W*) A/T AISIN(RMD) FLOOR CONSOLE SEPARATE TYPE<7WF> (F) GRAY 		8-97154-030-2 01 1 0101- ●
2 16.081 CONSOLE; CENTER
4X2 CREW CAB(TFB*W*) A/T AISIN(RMD) FLOOR CONSOLE ONE PIECE TYPE<7WG> (G) GRAY 		8-97159-160-0 01 1 9907- ● ●
7 16.650 COVER; HOLE,FLOOR CONSOLE
4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. CENTER CONSOLE<D63> GRAY 		8-97150-582-1 02 1 9804-9906 ●
7 16.650 COVER; HOLE,FLOOR CONSOLE
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. UP GRADE PACKAGE<7MA> GRAY 		8-97150-582-1 02 1 9804-9906 ●
7 16.650 COVER; HOLE,FLOOR CONSOLE
FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> GRAY 		8-97150-582-1 02 1 9907- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> (B) 		8-97072-944-0 01 1 9804-9906 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) UP GRADE PACKAGE<7MA> (B) 		8-97072-944-0 01 1 9804-9906 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
FLOOR REMOTE SHIFT<M11> FLOOR CONSOLE ONE PIECE TYPE<7WG> (B) 		8-97072-944-1 01 1 9907- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. CENTER CONSOLE<D63> (A) 		8-94463-384-0 01 1 9804-9906 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. UP GRADE PACKAGE<7MA> (A) 		8-94463-384-0 01 1 9804-9906 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> (A) 		8-94463-384-0 01 1 9907-0012 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> (A) 		8-94463-384-1 01 1 0101- ● ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. CENTER CONSOLE<D63> (B) 		8-94479-072-1 01 1 9804-9906 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. UP GRADE PACKAGE<7MA> (B) 		8-94479-072-1 01 1 9804-9906 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> (B) 		8-94479-072-1 01 1 9907-0012 ●
40 16.650 BRACKET; SUPPORT,CENTER CONSOLE
FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> (B) 		8-94479-072-2 01 1 0101- ● ●
62 16.650 SCREW; BRKT
CENTER CONSOLE<D63> 15.222 (C) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9804-9906 ●
62 16.650 SCREW; BRKT
FLOOR CONSOLE SEPARATE TYPE<7WF>,FLOOR CONSOLE ONE PIECE TYPE<7WG> 15.222 (C) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9907- ● ●
62 16.650 SCREW; BRKT
4X2(TFB***) CENTER CONSOLE<D63> (B) M8X14 		9-03900-814-0 02 1 9804-9906 ●
62 16.650 SCREW; BRKT
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) UP GRADE PACKAGE<7MA> (B) M8X14 		9-03900-814-0 02 1 9804-9906 ●
62 16.650 SCREW; BRKT
FLOOR REMOTE SHIFT<M11> FLOOR CONSOLE ONE PIECE TYPE<7WG> (B) M8X14 		9-03900-814-0 02 1 9907- ● ●
62 16.650 SCREW; BRKT
4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. CENTER CONSOLE<D63> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9804-9906 ●
62 16.650 SCREW; BRKT
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. UP GRADE PACKAGE<7MA> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9804-9906 ●
62 16.650 SCREW; BRKT
FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 9907-0012 ●
62 16.650 SCREW; BRKT
FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 0101- ●
62 16.650 SCREW; BRKT
CREW CAB(TF**W*) A/T AISIN(RMD) FLOOR CONSOLE SEPARATE TYPE<7WF> 16.085 (A) M5X16 TAPPING 		9-09829-323-1 04 1 0101- ●
219 16.650 SCREW; BRKT TO CONSOLE
4X2(TFB***) CENTER CONSOLE<D63> M8X14 		9-03900-814-0 02 1 9804-9906 ●
219 16.650 SCREW; BRKT TO CONSOLE
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) UP GRADE PACKAGE<7MA> M8X14 		9-03900-814-0 02 1 9804-9906 ●
219 16.650 SCREW; BRKT TO CONSOLE
FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> M8X14 		9-03900-814-0 04 1 9907-0012 ●
219 16.650 SCREW; BRKT TO CONSOLE
FRONT CONSOLE<D55>,FLOOR CONSOLE SEPARATETYPE<7WF> FLOOR REMOTE SHIFT<M11> M8X14 		9-03900-814-0 04 1 0101- ● ●
219 16.650 SCREW; BRKT TO CONSOLE
4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. CENTER CONSOLE<D63> M8X14 		9-03900-814-0 04 1 9804-9906 ●
219 16.650 SCREW; BRKT TO CONSOLE
4X4(TFS***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. UP GRADE PACKAGE<7MA> M8X14 		9-03900-814-0 04 1 9804-9906 ●
219 16.650 SCREW; BRKT TO CONSOLE
FLOOR REMOTE SHIFT<M11> FLOOR CONSOLE ONE PIECE TYPE<7WG> M8X14 		9-03900-814-0 02 1 9907- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
