Isuzu WW
▶
PICKUP
▶
TFR
▶
50802 - TFR/TFS(EUROPE)-LHD
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-43 - SUN VISOR AND ASSIST GRIP
▶
7-43 — SUN VISOR AND ASSIST GRIP
(#45111) — 26 parça
Tümü
A - GRADE S
B - GRADE LS
◀

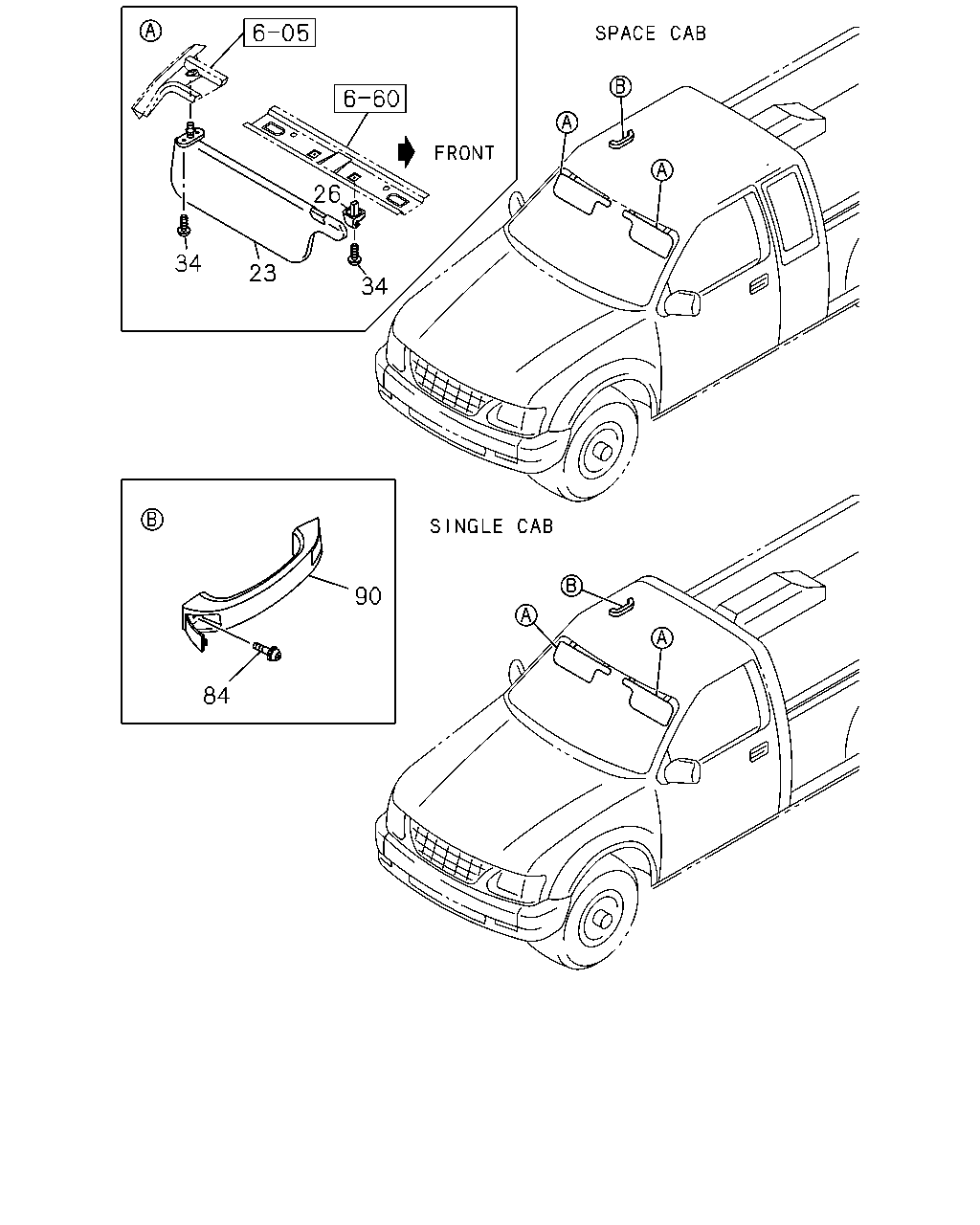

[743A] SPACE CAB,SINGLE CAB (12 parça)

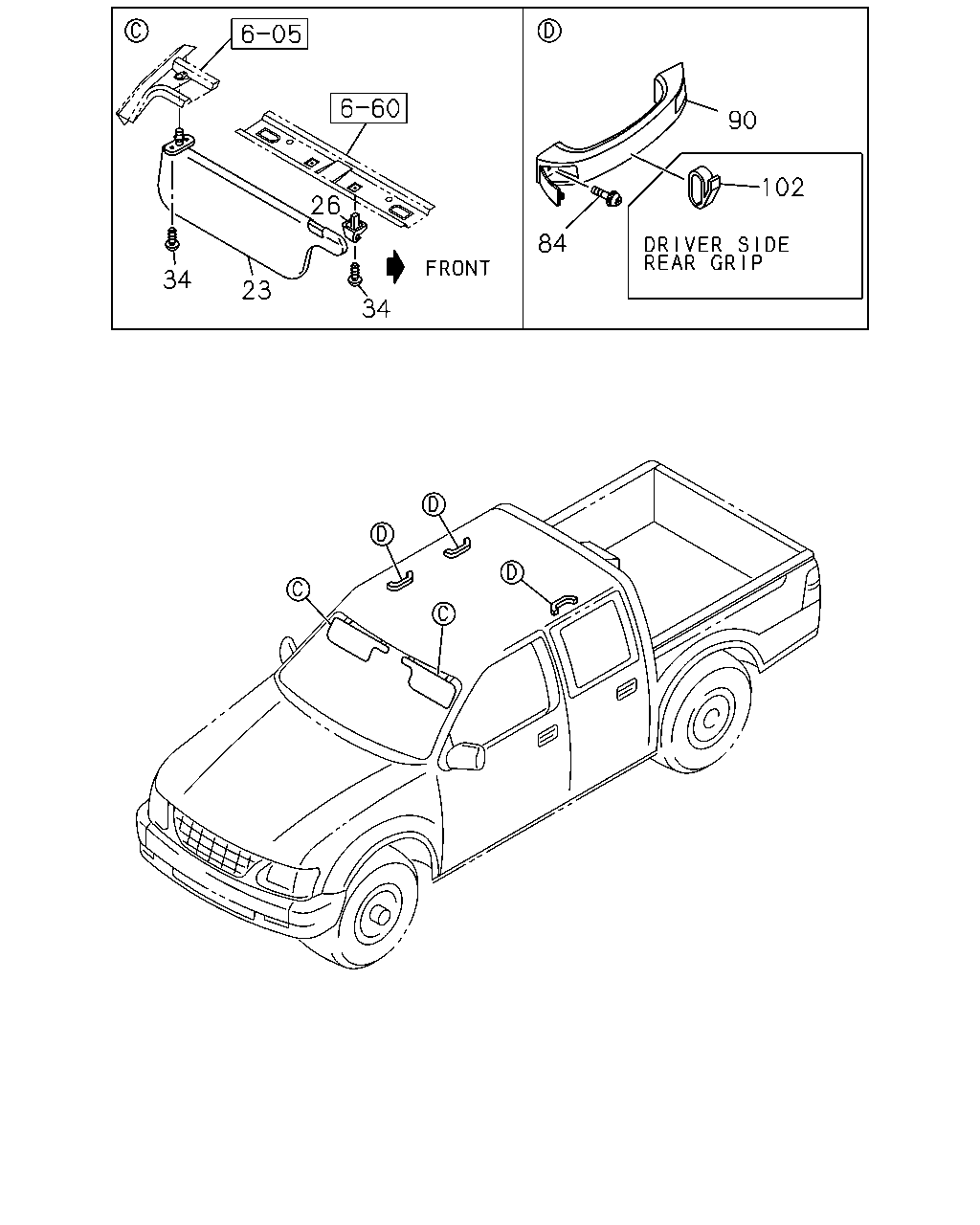

[743A] CREW CAB (14 parça)
▶
26
34
23
34
90
84
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
23
16.070 SUN VISOR
LIGHT GRAY
8-97154-098-0
01
1
9804-9811
●
●
23
16.070 SUN VISOR
LIGHT GRAY
8-97199-833-0
01
1
9812-
●
●
23
16.070 SUN VISOR
LIGHT GRAY
8-97154-616-0
01
1
9804-9811
●
●
23
16.070 SUN VISOR
LIGHT GRAY
8-97199-843-0
01
1
9812-
●
●
26
16.070 HOLDER; SUN VISOR
LIGHT GRAY
8-97153-244-2
02
1
9804-
●
●
34
16.070 SCREW; SUN VISOR
08.977 M4X16 TAPPING OVAL-HEAD
0-70580-416-0
06
1
9804-
●
●
84
16.450 SCREW; ASSIST GRIP
ASSIST GRIP PASSENGER<EG5> 16.650 FRONT M6X20 W/LK&PL WASHER
1-09981-073-0
02
1
9804-0104
●
●
84
16.450 SCREW; ASSIST GRIP
ASSIST GRIP PASSENGER<EG5> M6X32
8-97811-323-0
02
1
0105-
●
●
84
16.450 SCREW; ASSIST GRIP
CREW CAB(TF**W*) ASSIST GRIP PASSENGER<EG5> 16.650 REAR M6X20 W/LK&PL WASHER
1-09981-073-0
04
1
9804-0104
●
●
84
16.450 SCREW; ASSIST GRIP
CREW CAB(TF**W*) ASSIST GRIP PASSENGER<EG5> M6X32
8-97811-323-0
04
1
0105-
●
●
90
16.450 GRIP; ASSIST,ROOF
ASSIST GRIP PASSENGER<EG5> FRONT GRAY
8-97152-650-2
01
1
9804-
●
●
90
16.450 GRIP; ASSIST,ROOF
CREW CAB(TF**W*) ASSIST GRIP PASSENGER<EG5> REAR GRAY
8-97152-650-2
02
1
9804-
●
●
90
102
26
84
34
23
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
23
16.070 SUN VISOR
LIGHT GRAY
8-97154-098-0
01
1
9804-9811
●
●
23
16.070 SUN VISOR
LIGHT GRAY
8-97199-833-0
01
1
9812-
●
●
23
16.070 SUN VISOR
LIGHT GRAY
8-97154-616-0
01
1
9804-9811
●
●
23
16.070 SUN VISOR
LIGHT GRAY
8-97199-843-0
01
1
9812-
●
●
26
16.070 HOLDER; SUN VISOR
LIGHT GRAY
8-97153-244-2
02
1
9804-
●
●
34
16.070 SCREW; SUN VISOR
08.977 M4X16 TAPPING OVAL-HEAD
0-70580-416-0
06
1
9804-
●
●
84
16.450 SCREW; ASSIST GRIP
ASSIST GRIP PASSENGER<EG5> 16.650 FRONT M6X20 W/LK&PL WASHER
1-09981-073-0
02
1
9804-0104
●
●
84
16.450 SCREW; ASSIST GRIP
ASSIST GRIP PASSENGER<EG5> M6X32
8-97811-323-0
02
1
0105-
●
●
84
16.450 SCREW; ASSIST GRIP
CREW CAB(TF**W*) ASSIST GRIP PASSENGER<EG5> 16.650 REAR M6X20 W/LK&PL WASHER
1-09981-073-0
04
1
9804-0104
●
●
84
16.450 SCREW; ASSIST GRIP
CREW CAB(TF**W*) ASSIST GRIP PASSENGER<EG5> M6X32
8-97811-323-0
04
1
0105-
●
●
90
16.450 GRIP; ASSIST,ROOF
ASSIST GRIP PASSENGER<EG5> FRONT GRAY
8-97152-650-2
01
1
9804-
●
●
90
16.450 GRIP; ASSIST,ROOF
CREW CAB(TF**W*) ASSIST GRIP PASSENGER<EG5> REAR GRAY
8-97152-650-2
02
1
9804-
●
●
102
16.450 HOOK; COAT HANGER
CREW CAB(TF**W*) ASSIST GRIP PASSENGER<EG5> REAR GRAY
8-97150-620-1
01
1
9804-9906
●
102
16.450 HOOK; COAT HANGER
CREW CAB(TF**W*) ASSIST GRIP PASSENGER<EG5> REAR GRAY
8-97150-620-1
01
1
9907-
●
●
