7-40 — INSTRUMENT PANEL AND BOX (#45109) — 197 parça

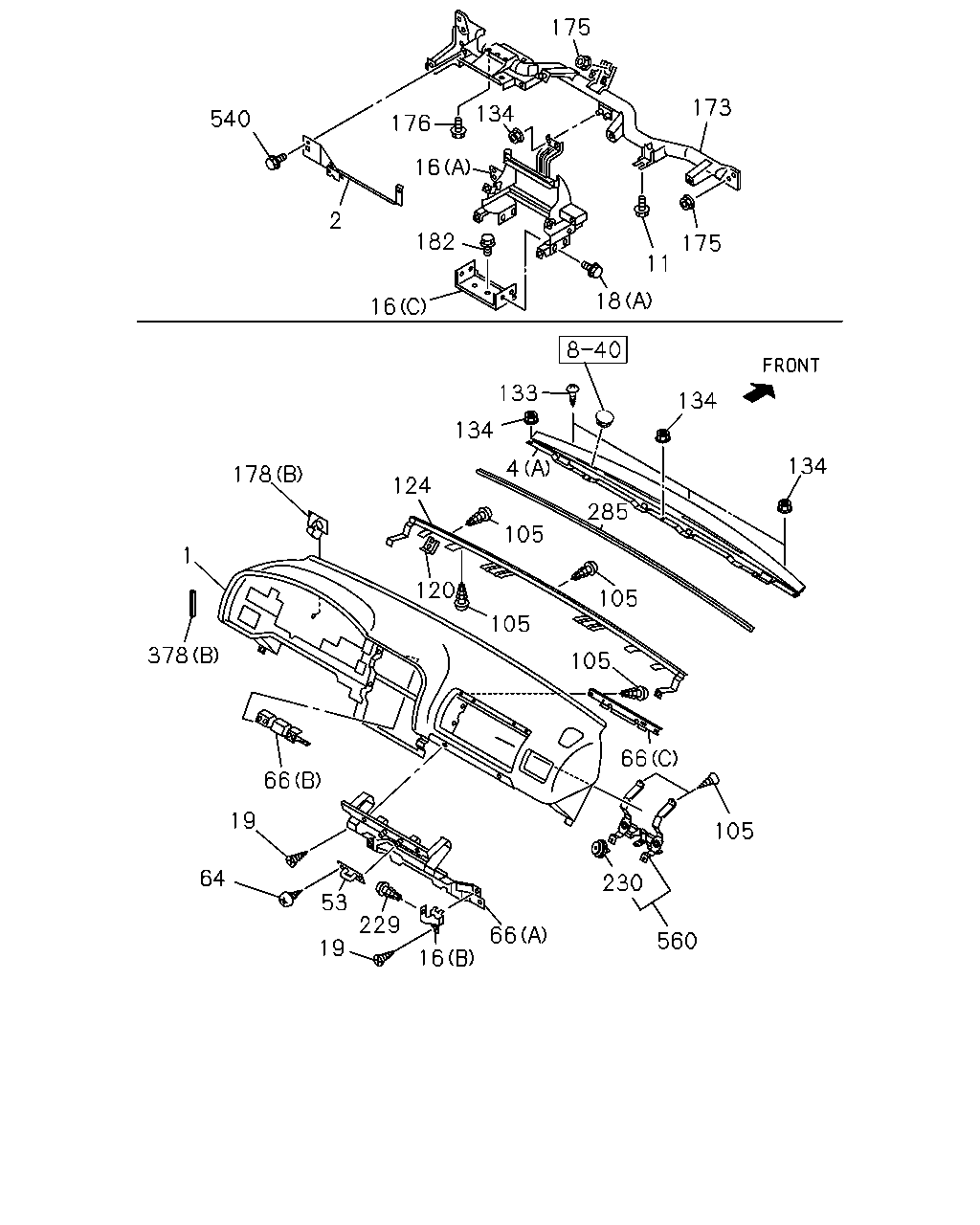

çizim 15626
175 173 176 134 540 16 2 182 175 11 18 16 133 134 134 134 4 178 124 285 105 1 105 120 105 378 105 66 66 19 105 64 230 53 229 19 66 560 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.080 PANEL; INST
GRAY 		8-97156-099-2 01 1 9804- ● ● ● ● ● ●
2 16.081 REINFORCEMENT; INST PNL,LWR 8-97187-497-0 01 1 9804-9808 ● ● ● ● ● ●
2 16.081 REINFORCEMENT; INST PNL,LWR
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-97187-497-0 01 1 9809-9906 ● ● ● ● ● ●
2 16.081 REINFORCEMENT; INST PNL,LWR
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. AIR BAG DRIVER(AJ3) 		8-97187-497-0 01 1 9907-9907 ● ● ● ● ● ●
2 16.081 REINFORCEMENT; INST PNL,LWR
4JG2 ENG(RJC) A/T AISIN(RMD) 		8-97112-305-3 01 1 9809-9906 ●
2 16.081 REINFORCEMENT; INST PNL,LWR
AIR BAG DRIVER(AJ3) 		8-97112-305-3 01 1 9907-9907 ● ● ● ● ● ●
2 16.081 REINFORCEMENT; INST PNL,LWR
A/T AISIN(RMD) EXC. AIR BAG DRIVER(AJ3) 		8-97112-305-3 01 1 9907-9907 ● ●
2 16.081 REINFORCEMENT; INST PNL,LWR 8-97112-305-4 01 1 9908- ● ● ● ● ● ●
4 16.080 COVER; INST PNL
(A) 		8-97101-621-3 01 1 9804-0112 ● ● ● ● ● ●
4 16.080 COVER; INST PNL
(A) 		8-97327-855-0 01 1 0201- ● ● ● ● ● ●
4 16.080 COVER; INST PNL
(B) GRAY 		8-97154-483-2 01 1 9804- ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
08.015 M6X20 W/WASHER 		8-94112-987-1 08 1 9804-9910 ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
AIR BAG PASSENGER(7FA) 08.015 M6X20 W/WASHER 		8-94112-987-1 08 1 9911- ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
EXC. AIR BAG PASSENGER(7FA) 08.015 M6X20 W/WASHER 		8-94112-987-1 07 1 9911- ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
(B) 		8-97114-331-1 01 1 9804- ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
(A) 		8-97132-077-0 01 1 9804-9906 ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
4JG2 ENG(RJC),4JA1 ENG(RLE) EXC. AIR BAG DRIVER(AJ3) (A) 		8-97132-077-0 01 1 9907-0107 ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
4JG2 ENG(RJC) EXC. AIR BAG DRIVER(AJ3) (A) 		8-97132-077-0 01 1 0108- ● ● ● ●
16 16.085 BRACKET; INST PNL
4JA1 ENG(RLE) EXC. AIR BAG DRIVER(AJ3),CHARGE AIR COOLER<6PL> (A) 		8-97132-077-0 01 1 0108- ● ● ● ●
16 16.085 BRACKET; INST PNL
(C) 		8-97180-785-0 01 1 0105-0105 ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
EXC. PARKING BRAKE FLOOR<7XW> (C) 		8-97180-785-0 01 1 0106- ● ●
16 16.085 BRACKET; INST PNL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. FLOOR REMOTE SHIFT<M11> (C) 		8-97180-785-0 01 1 0106- ● ●
16 16.085 BRACKET; INST PNL
FLOOR REMOTE SHIFT<M11> EXC. PARKING BRAKE FLOOR<7XW> (C) 		8-97180-785-0 01 1 0106- ●
16 16.085 BRACKET; INST PNL
AIR BAG DRIVER(AJ3) (A) 		8-97107-579-6 01 1 9907-0107 ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
(A) 		8-97107-579-6 01 1 0108- ●
16 16.085 BRACKET; INST PNL
AIR BAG DRIVER(AJ3) (A) 		8-97107-579-6 01 1 0108- ● ● ● ● ●
16 16.085 BRACKET; INST PNL
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. AIR BAG DRIVER(AJ3) (A) 		8-97107-579-6 01 1 0108- ● ●
16 16.085 BRACKET; INST PNL
4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EXC. AIR BAG DRIVER(AJ3) (A) 		8-97107-579-6 01 1 0108- ● ●
16 16.085 BRACKET; INST PNL
4JA1 ENG(RLE) EXC. AIR BAG DRIVER(AJ3) (A) 		8-97107-579-6 01 1 0108- ●
16 16.085 BRACKET; INST PNL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) (C) 		8-97112-446-1 01 1 9804-9805 ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
(C) 		8-97112-446-1 01 1 9806-9906 ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
EXC. PARKING BRAKE FLOOR<7XW> (C) 		8-97112-446-1 01 1 9907-0104 ● ●
16 16.085 BRACKET; INST PNL
FLOOR REMOTE SHIFT<M11> EXC. PARKING BRAKE FLOOR<7XW> (C) 		8-97112-446-1 01 1 9907-0104 ●
16 16.085 BRACKET; INST PNL
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. AIR BAG DRIVER(AJ3),FLOOR REMOTESHIFT<M11> (A) 		8-97180-784-1 01 1 0108- ● ●
18 16.085 BOLT; BRKT
08.080 (A) M6X16 FLANGE 		8-97803-298-0 04 1 9804-0111 ● ● ● ● ● ●
18 16.085 BOLT; BRKT
16.325 (A) M6X16 FLANGE 		8-97808-792-1 04 1 0112- ● ● ● ● ● ●
18 16.085 BOLT; BRKT
AIR BAG PASSENGER(7FA) 16.328 (B) M6X18 W/LK&PL WASHER 		8-97060-719-0 04 1 9907- ● ● ● ● ● ●
19 16.081 SCREW; BRKT
09.787 M5X14 TAPPING 		9-07066-514-0 09 1 9804-9902 ● ● ● ● ● ●
19 16.081 SCREW; BRKT
09.787 M5X14 TAPPING 		9-07066-514-0 05 1 9903-9906 ● ● ● ● ● ●
19 16.081 SCREW; BRKT
AIR BAG PASSENGER(7FA) 09.787 M5X14 TAPPING 		9-07066-514-0 09 1 9907- ● ● ● ● ● ●
19 16.081 SCREW; BRKT
06.514 M5X14 TAPPING 		9-07076-514-0 01 1 9804- ● ● ● ● ● ●
19 16.081 SCREW; BRKT
EXC. AIR BAG PASSENGER(7FA) 09.787 M5X14 TAPPING 		9-07066-514-0 05 1 9907- ● ● ● ● ● ●
53 16.115 STRIKER; GLOVE BOX 8-97125-756-0 01 1 9804- ● ● ● ● ● ●
64 16.085 SCREW; STRIKER
09.787 M5X14 TAPPING 		9-07066-514-0 02 1 9804- ● ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
(B) 		8-97114-725-0 01 1 9804- ● ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
(A) 		8-97134-474-1 01 1 9804-9902 ● ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
(A) 		8-97217-988-0 01 1 9903-9906 ● ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
EXC. AIR BAG PASSENGER(7FA) (A) 		8-97217-988-1 01 1 9907- ● ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
AIR BAG PASSENGER(7FA) (A) 		8-97107-571-8 01 1 9907- ● ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
AIR BAG PASSENGER(7FA) (C) 		8-97114-724-1 01 1 9907- ● ● ● ● ● ●
105 16.115 SCREW; REINF
16.175 M4X12 TAPPING 		9-07066-412-0 16 1 9804-9807 ● ● ● ● ● ●
105 16.115 SCREW; REINF
16.650 M4X12 		8-94279-351-0 16 1 9808-9902 ● ● ● ● ● ●
105 16.115 SCREW; REINF
16.650 M4X12 		8-94279-351-0 11 1 9903-9906 ● ● ● ● ● ●
105 16.115 SCREW; REINF
EXC. AIR BAG PASSENGER(7FA) 16.650 M4X12 		8-94279-351-0 11 1 9907- ● ● ● ● ● ●
105 16.115 SCREW; REINF
08.010 M5X12 TAPPING 		9-07066-512-0 08 1 9804-9807 ● ● ● ● ● ●
105 16.115 SCREW; REINF
09.787 M5X14 TAPPING 		9-07066-514-0 04 1 9804- ● ● ● ● ● ●
105 16.115 SCREW; REINF
AIR BAG PASSENGER(7FA) 16.175 M4X12 TAPPING 		9-07066-412-0 16 1 9907- ● ● ● ● ● ●
105 16.115 SCREW; REINF
AIR BAG PASSENGER(7FA) 08.010 M5X12 TAPPING 		9-07066-512-0 08 1 9907- ● ● ● ● ● ●
120 09.262 NUT; SPIRE,INST PNL
M5 SPIRE NUT 		8-94217-271-0 08 1 9804-9902 ● ● ● ● ● ●
120 09.262 NUT; SPIRE,INST PNL
M5 SPIRE NUT 		8-94217-271-0 06 1 9903-9906 ● ● ● ● ● ●
120 09.262 NUT; SPIRE,INST PNL
AIR BAG PASSENGER(7FA) M5 SPIRE NUT 		8-94217-271-0 08 1 9907- ● ● ● ● ● ●
120 09.262 NUT; SPIRE,INST PNL
EXC. AIR BAG PASSENGER(7FA) M5 SPIRE NUT 		8-94217-271-0 06 1 9907- ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR 8-97134-514-0 01 1 9804-9902 ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR 8-97218-067-0 01 1 9903-9906 ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
EXC. AIR BAG PASSENGER(7FA) 		8-97218-067-0 01 1 9907- ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
AIR BAG PASSENGER(7FA) 		8-97107-029-4 01 1 9907- ● ● ● ● ● ●
133 16.081 SCREW; COVER,INST PNL
08.155 M6X16 		8-94479-534-0 05 1 9804- ● ● ● ● ● ●
134 16.081 NUT; FRT COVER,INST PANEL
07.833 M6 FLANGE 		8-97063-399-0 03 1 9804- ● ● ● ● ● ●
134 16.081 NUT; FRT COVER,INST PANEL
07.833 M6 FLANGE 		8-97063-399-0 03 1 9804- ● ● ● ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL 8-97187-520-0 01 1 9804-9901 ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL 8-97219-003-0 01 1 9902-9906 ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
EXC. PARKING BRAKE FLOOR<7XW> 		8-97219-003-0 01 1 9907-0012 ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
EXC. AIR BAG PASSENGER(7FA),PARKING BRAKE FLOOR<7XW> 		8-97256-737-0 01 1 0101-0101 ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
EXC. AIR BAG DRIVER(AJ3),PARKING BRAKE FLOOR<7XW> 		8-97256-737-0 01 1 0102-0102 ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
EXC. AIR BAG PASSENGER(7FA),PARKING BRAKE FLOOR<7XW> 		8-97312-021-0 01 1 0103- ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
AIR BAG PASSENGER(7FA) PARKING BRAKE FLOOR<7XW> 		8-97213-960-1 01 1 9907-0012 ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
AIR BAG PASSENGER(7FA) 		8-97213-960-1 01 1 9907-0012 ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
AIR BAG PASSENGER(7FA) PARKING BRAKE FLOOR<7XW> 		8-97256-735-0 01 1 0101-0101 ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
AIR BAG PASSENGER(7FA) 		8-97256-735-0 01 1 0101-0101 ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
AIR BAG DRIVER(AJ3) PARKING BRAKE FLOOR<7XW> 		8-97256-735-0 01 1 0102-0102 ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
AIR BAG DRIVER(AJ3) 		8-97256-735-0 01 1 0102-0102 ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
AIR BAG DRIVER(AJ3) AIR BAG PASSENGER(7FA) PARKING BRAKE FLOOR<7XW> 		8-97256-735-0 01 1 0103- ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
AIR BAG DRIVER(AJ3) AIR BAG PASSENGER(7FA) 		8-97256-735-0 01 1 0103- ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL 8-97187-556-0 01 1 9804-9901 ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL 8-97218-271-0 01 1 9902-9906 ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
PARKING BRAKE FLOOR<7XW> EXC. AIR BAG PASSENGER(7FA) 		8-97218-271-0 01 1 9907-0012 ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
EXC. AIR BAG PASSENGER(7FA) 		8-97218-271-0 01 1 9907-0012 ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
PARKING BRAKE FLOOR<7XW> EXC. AIR BAG PASSENGER(7FA) 		8-97256-736-0 01 1 0101-0101 ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
EXC. AIR BAG PASSENGER(7FA) 		8-97256-736-0 01 1 0101-0101 ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
PARKING BRAKE FLOOR<7XW> EXC. AIR BAG DRIVER(AJ3) 		8-97256-736-0 01 1 0102-0102 ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
EXC. AIR BAG DRIVER(AJ3) 		8-97256-736-0 01 1 0102-0102 ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
PARKING BRAKE FLOOR<7XW> EXC. AIR BAG PASSENGER(7FA) 		8-97312-020-0 01 1 0103- ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
EXC. AIR BAG PASSENGER(7FA) 		8-97312-020-0 01 1 0103- ● ● ●
175 16.085 NUT; CROSS BEAM
09.011 M8 W/LK WASHER 		8-97065-435-0 04 1 9804- ● ● ● ● ● ●
176 16.085 BOLT; CROSS BEAM
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9804- ● ● ● ● ● ●
178 16.085 NUT; INST PANEL
09.262 (C) M5 SPIRE NUT 		8-94217-271-0 02 1 9804-9906 ● ● ●
178 16.085 NUT; INST PANEL
EXC. PARKING BRAKE FLOOR<7XW> 09.262 (C) M5 SPIRE NUT 		8-94217-271-0 02 1 9907-0010 ● ● ●
178 16.085 NUT; INST PANEL
09.262 (C) M5 SPIRE NUT 		8-94217-271-0 02 1 0011- ● ● ● ● ● ●
178 16.085 NUT; INST PANEL
(D) 		8-97185-780-0 08 1 9804-9807 ● ● ●
178 16.085 NUT; INST PANEL
07.833 (A) M6 W/DISHED WASHER 		8-94170-192-0 03 1 9804- ● ● ● ● ● ●
178 16.085 NUT; INST PANEL
(B) 		8-97185-781-0 12 1 9804- ● ● ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
08.080 M6X16 FLANGE 		8-97803-298-0 02 1 9804-9906 ● ● ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
EXC. PARKING BRAKE FLOOR<7XW> 08.080 M6X16 FLANGE 		8-97803-298-0 02 1 9907- ● ● ●
229 09.744 SCREW; BOX,INST
09.787 M5X14 TAPPING 		9-07066-514-0 06 1 9804- ● ● ● ● ● ●
230 09.744 CLIP; INST
16.165 H=16.7 		8-97022-017-0 01 1 9804-9902 ● ● ● ● ● ●
230 09.744 CLIP; INST
AIR BAG PASSENGER(7FA) 16.165 H=16.7 		8-97022-017-0 01 1 9907- ● ● ● ● ● ●
285 16.085 FINISHER; INST PANEL 8-97142-524-0 01 1 9804- ● ● ● ● ● ●
378 09.743 SEAL; INST PANEL
(B) 		8-97204-877-0 01 1 9804- ● ● ● ● ● ●
378 09.743 SEAL; INST PANEL
(A) 		8-97120-129-0 01 1 9804-9906 ● ● ●
378 09.743 SEAL; INST PANEL
PARKING BRAKE FLOOR<7XW> (A) 		8-97120-129-0 01 1 9907-0010 ● ● ●
378 09.743 SEAL; INST PANEL
(A) 		8-97120-129-0 01 1 9907-0010 ● ● ●
540 16.085 BOLT; REINFORCEMENT
08.015 M6X20 W/WASHER 		8-94112-987-1 02 1 9804- ● ● ● ● ● ●
560 16.085 BRACKET 8-97166-913-0 01 1 9804-9902 ● ● ● ● ● ●
560 16.085 BRACKET
AIR BAG PASSENGER(7FA) 		8-97166-913-0 01 1 9907- ● ● ● ● ● ●

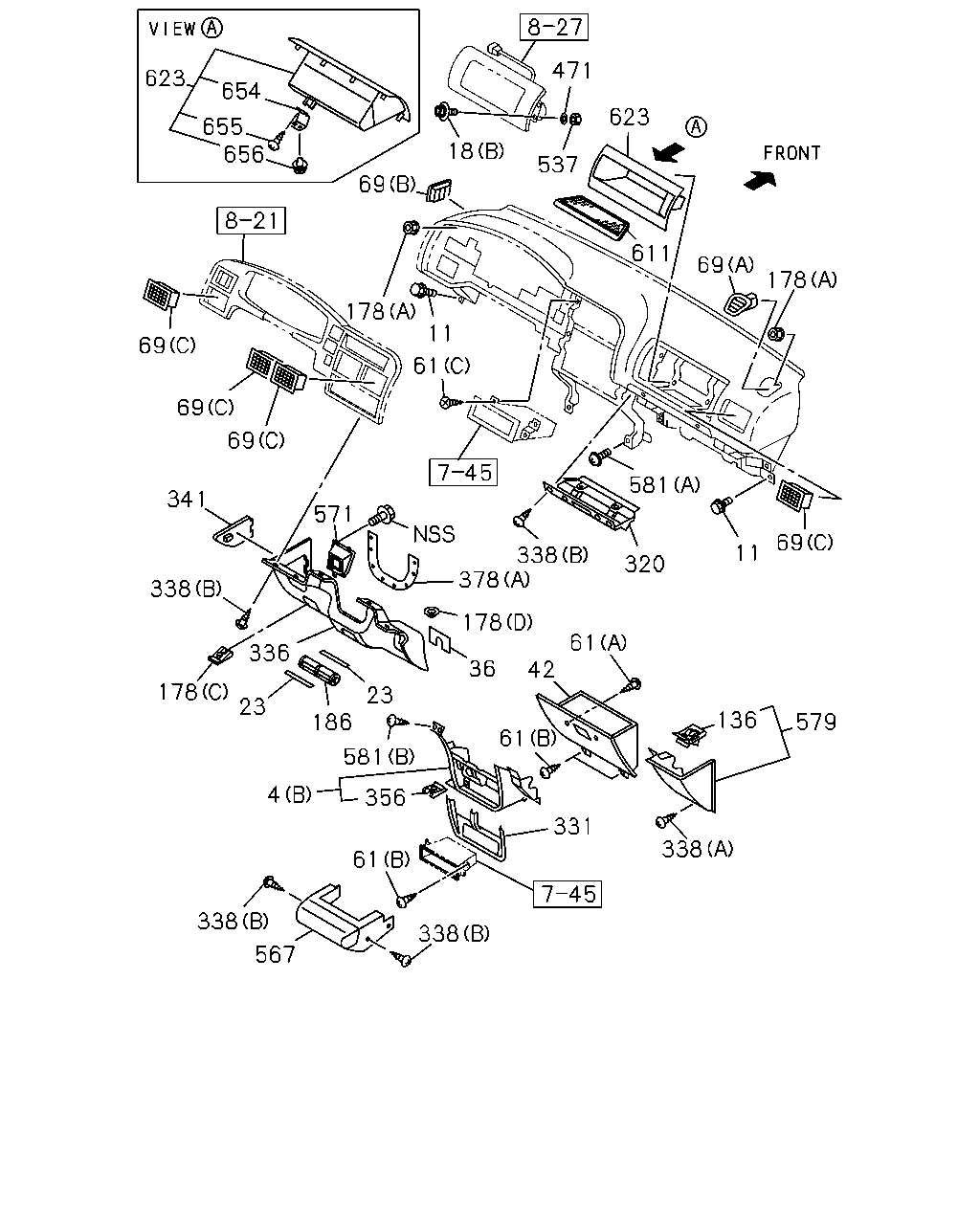

çizim 15646
471 623 654 623 655 656 18 537 69 611 69 178 178 11 61 69 69 69 581 571 341 69 11 338 378 320 338 178 336 61 42 36 178 23 23 186 61 136 579 581 4 356 331 338 61 338 567 338
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
4 16.080 COVER; INST PNL
(A) 		8-97101-621-3 01 1 9804-0112 ● ● ● ● ● ●
4 16.080 COVER; INST PNL
(A) 		8-97327-855-0 01 1 0201- ● ● ● ● ● ●
4 16.080 COVER; INST PNL
(B) GRAY 		8-97154-483-2 01 1 9804- ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
08.015 M6X20 W/WASHER 		8-94112-987-1 08 1 9804-9910 ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
AIR BAG PASSENGER(7FA) 08.015 M6X20 W/WASHER 		8-94112-987-1 08 1 9911- ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
EXC. AIR BAG PASSENGER(7FA) 08.015 M6X20 W/WASHER 		8-94112-987-1 07 1 9911- ● ● ● ● ● ●
18 16.085 BOLT; BRKT
08.080 (A) M6X16 FLANGE 		8-97803-298-0 04 1 9804-0111 ● ● ● ● ● ●
18 16.085 BOLT; BRKT
16.325 (A) M6X16 FLANGE 		8-97808-792-1 04 1 0112- ● ● ● ● ● ●
18 16.085 BOLT; BRKT
AIR BAG PASSENGER(7FA) 16.328 (B) M6X18 W/LK&PL WASHER 		8-97060-719-0 04 1 9907- ● ● ● ● ● ●
23 16.085 CUSHION; INST,PANEL 8-97185-832-0 02 1 9804-9906 ● ● ●
23 16.085 CUSHION; INST,PANEL
EXC. PARKING BRAKE FLOOR<7XW> 		8-97185-832-0 02 1 9907-0010 ● ● ●
23 16.085 CUSHION; INST,PANEL 8-97185-832-0 02 1 0011- ● ● ● ● ● ●
36 09.743 BEZEL; INST SIDE CLUSTER
GRAY 		8-97156-097-0 01 1 9804-9906 ● ● ●
36 09.743 BEZEL; INST SIDE CLUSTER
EXC. PARKING BRAKE FLOOR<7XW> GRAY 		8-97156-097-0 01 1 9907- ● ● ●
42 16.100 BOX; GLOVE,INST PNL
GRAY 		8-97152-826-2 01 1 9804- ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
16.085 M5X16 TAPPING 		9-09829-323-1 02 1 0212- ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
16.115 (B) M5X16 		8-94279-312-0 02 1 9804-0211 ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
16.115 (B) M5X16 		8-94279-312-0 02 1 9804-0211 ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
16.115 M5X16 		8-94279-312-0 02 1 0212- ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
(A) M4X14 TAPPING 		8-97111-555-0 02 1 9804- ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
EXC. INST PANEL FOR DIN E SIZE AUDIO(7QL) 16.085 (C) M5X16 TAPPING 		9-09829-323-1 04 1 9804- ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(A) SIDE DEFF ASSIST GRAY 		8-97150-594-5 01 1 9804-0107 ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(A) SIDE DEFF ASSIST BLACK 		8-97154-869-5 01 1 0108- ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(B) SIDE DEFF DRIVER GRAY 		8-97150-595-1 01 1 9804-0107 ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(B) SIDE DEFF DRIVER BLACK 		8-97154-871-1 01 1 0108- ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(C) VENTILATION BLACK 		8-97152-701-1 04 1 9804- ● ● ● ● ● ●
136 16.085 CLIP; INST COVER
16.100 		8-97148-012-0 01 1 9804-9906 ● ● ● ● ● ●
136 16.085 CLIP; INST COVER
16.100 		8-97148-012-0 01 1 9804-9906 ● ● ●
136 16.085 CLIP; INST COVER
16.100 		8-97148-012-0 01 1 9907- ● ● ● ● ● ●
136 16.085 CLIP; INST COVER
EXC. PARKING BRAKE FLOOR<7XW> 16.100 		8-97148-012-0 01 1 9907- ● ● ●
178 16.085 NUT; INST PANEL
09.262 (C) M5 SPIRE NUT 		8-94217-271-0 02 1 9804-9906 ● ● ●
178 16.085 NUT; INST PANEL
EXC. PARKING BRAKE FLOOR<7XW> 09.262 (C) M5 SPIRE NUT 		8-94217-271-0 02 1 9907-0010 ● ● ●
178 16.085 NUT; INST PANEL
09.262 (C) M5 SPIRE NUT 		8-94217-271-0 02 1 0011- ● ● ● ● ● ●
178 16.085 NUT; INST PANEL
(D) 		8-97185-780-0 08 1 9804-9807 ● ● ●
178 16.085 NUT; INST PANEL
07.833 (A) M6 W/DISHED WASHER 		8-94170-192-0 03 1 9804- ● ● ● ● ● ●
178 16.085 NUT; INST PANEL
(B) 		8-97185-781-0 12 1 9804- ● ● ● ● ● ●
186 09.264 GRILLE; LAP VENTILATOR
BLACK 		8-97806-851-2 01 1 9804-9906 ● ● ●
186 09.264 GRILLE; LAP VENTILATOR
EXC. PARKING BRAKE FLOOR<7XW> BLACK 		8-97806-851-2 01 1 9907-0206 ● ● ●
186 09.264 GRILLE; LAP VENTILATOR
EXC. PARKING BRAKE FLOOR<7XW> BLACK 		8-97394-945-0 01 1 0207- ● ● ●
186 09.264 GRILLE; LAP VENTILATOR
BLACK 		8-97123-442-0 01 1 9804-9906 ● ● ●
186 09.264 GRILLE; LAP VENTILATOR
PARKING BRAKE FLOOR<7XW> BLACK 		8-97123-442-0 01 1 9907-0107 ● ● ●
186 09.264 GRILLE; LAP VENTILATOR
BLACK 		8-97123-442-0 01 1 9907-0107 ● ● ●
320 16.081 COVER; GLOVE BOX
GRAY 		8-97150-599-4 01 1 9804- ● ● ● ● ● ●
331 09.743 CLUSTER; INST SIDE 8-97131-756-1 01 1 9804- ● ● ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
GRAY 		8-97156-095-1 01 1 9804-9906 ● ● ●
336 16.081 COVER; INST PANEL SIDE
EXC. PARKING BRAKE FLOOR<7XW> GRAY 		8-97156-095-1 01 1 9907- ● ● ●
336 16.081 COVER; INST PANEL SIDE
GRAY 		8-97153-209-4 01 1 9804-9906 ● ● ●
336 16.081 COVER; INST PANEL SIDE
PARKING BRAKE FLOOR<7XW> GRAY 		8-97153-209-4 01 1 9907- ● ● ●
336 16.081 COVER; INST PANEL SIDE
GRAY 		8-97153-209-4 01 1 9907- ● ● ●
338 16.081 SCREW; COVER
16.115 (A) M5X16 		8-94279-312-0 01 1 9804-0211 ● ● ● ● ● ●
338 16.081 SCREW; COVER
16.085 (B) M5X16 TAPPING 		9-09829-323-1 12 1 9804-0211 ● ● ● ● ● ●
338 16.081 SCREW; COVER
16.085 M5X16 TAPPING 		9-09829-323-1 13 1 0212- ● ● ● ● ● ●
338 16.081 SCREW; COVER
AIR BAG DRIVER(AJ3) 16.085 (B) M5X16 TAPPING 		9-09829-323-1 04 1 9907-0107 ● ● ● ● ● ●
338 16.081 SCREW; COVER
AIR BAG DRIVER(AJ3) 16.085 (B) M5X16 TAPPING 		9-09829-323-1 04 1 0108- ● ● ● ● ● ●
338 16.081 SCREW; COVER
CHARGE AIR COOLER<6PL> EXC. AIR BAG DRIVER(AJ3) 16.085 (B) M5X16 TAPPING 		9-09829-323-1 04 1 0108- ● ● ● ● ● ●
341 16.110 LID; FUSE BOX
GRAY 		8-97153-210-2 01 1 9804- ● ● ● ● ● ●
356 16.085 NUT; COVER
09.262 M5 SPIRE NUT 		8-94217-271-0 01 1 9804- ● ● ● ● ● ●
378 09.743 SEAL; INST PANEL
(B) 		8-97204-877-0 01 1 9804- ● ● ● ● ● ●
378 09.743 SEAL; INST PANEL
(A) 		8-97120-129-0 01 1 9804-9906 ● ● ●
378 09.743 SEAL; INST PANEL
PARKING BRAKE FLOOR<7XW> (A) 		8-97120-129-0 01 1 9907-0010 ● ● ●
378 09.743 SEAL; INST PANEL
(A) 		8-97120-129-0 01 1 9907-0010 ● ● ●
471 16.115 WASHER; PL
AIR BAG PASSENGER(7FA) 06.760 		1-09503-075-0 02 1 9907- ● ● ● ● ● ●
537 16.085 NUT; BRKT
AIR BAG PASSENGER(7FA) 07.833 M6 W/DISHED WASHER 		8-94170-192-0 02 1 9907- ● ● ● ● ● ●
567 16.081 COVER; CONT UNIT
AIR BAG DRIVER(AJ3) GRAY 		8-97150-597-6 01 1 9907-0107 ● ● ● ● ● ●
567 16.081 COVER; CONT UNIT
AIR BAG DRIVER(AJ3) GRAY 		8-97150-597-6 01 1 0108- ● ● ● ● ● ●
567 16.081 COVER; CONT UNIT
CHARGE AIR COOLER<6PL> EXC. AIR BAG DRIVER(AJ3) GRAY 		8-97150-597-6 01 1 0108- ● ● ● ● ● ●
571 09.743 BEZEL; POCKET
GRAY 		8-97153-211-0 01 1 9804-9906 ● ● ●
571 09.743 BEZEL; POCKET
PARKING BRAKE FLOOR<7XW> GRAY 		8-97153-211-0 01 1 9907- ● ● ●
571 09.743 BEZEL; POCKET
GRAY 		8-97153-211-0 01 1 9907- ● ● ●
579 16.080 COVER; INST PNL
GRAY 		8-97150-598-3 01 1 9804- ● ● ● ● ● ●
581 09.744 SCREW
15.100 (A) M5X16 TAPPING W/PL WASHER 		0-74115-516-0 02 1 9804- ● ● ● ● ● ●
581 09.744 SCREW
16.115 (B) M5X16 		8-94279-312-0 07 1 9804- ● ● ● ● ● ●
611 16.081 SHEET
GRADE LS(RBD) EXC. AIR BAG PASSENGER(7FA) BLACK 		8-97198-544-0 01 1 9907- ● ● ● ●
623 16.100 BOX; UTILITY
GRAY 		8-97154-858-0 01 1 9804-9902 ● ● ● ● ● ●
623 16.100 BOX; UTILITY
GRAY 		8-97199-868-0 01 1 9903-9906 ● ● ● ● ● ●
623 16.100 BOX; UTILITY
EXC. AIR BAG PASSENGER(7FA) GRAY 		8-97199-868-1 01 1 9907- ● ● ● ● ● ●
623 16.100 BOX; UTILITY
AIR BAG PASSENGER(7FA) GRAY 		8-97154-858-0 01 1 9907- ● ● ● ● ● ●
654 16.100 BRACKET; UTILITY BOX 8-97218-109-0 01 1 9903-9906 ● ● ● ● ● ●
654 16.100 BRACKET; UTILITY BOX
EXC. AIR BAG PASSENGER(7FA) 		8-97218-109-0 01 1 9907- ● ● ● ● ● ●
655 16.100 SCREW; BRKT,UTILITY BOX
09.787 M5X14 TAPPING 		9-07066-514-0 02 1 9903-9906 ● ● ● ● ● ●
655 16.100 SCREW; BRKT,UTILITY BOX
EXC. AIR BAG PASSENGER(7FA) 09.787 M5X14 TAPPING 		9-07066-514-0 02 1 9907- ● ● ● ● ● ●
656 16.100 CLIP; TRIM
16.165 H=16.7 		8-97022-017-0 01 1 9903-9906 ● ● ● ● ● ●
656 16.100 CLIP; TRIM
EXC. AIR BAG PASSENGER(7FA) 16.165 H=16.7 		8-97022-017-0 01 1 9907- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
