◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50802 - TFR/TFS(EUROPE)-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶
7-30 — LOCK CYLINDER SET (#45108) — 71 parça

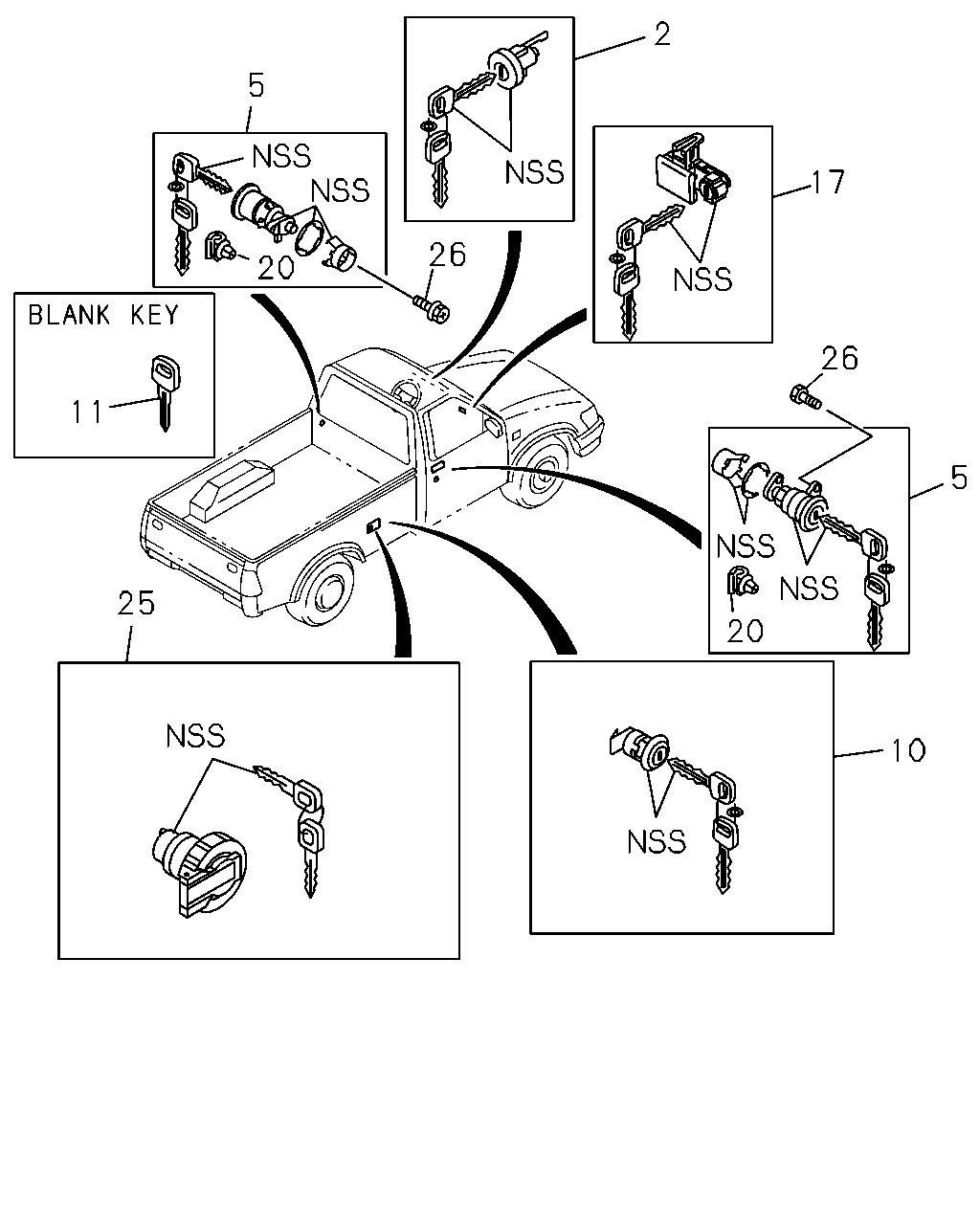

çizim 63914
2 5 17 26 20 26 11 5 20 25 10
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 02.188 BARREL ASM; W/KEY,STRG LOCK 8-97123-116-0 01 1 9804-0012 ● ● ● ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
RR BODY DBL WALL CTR PULL(6MW) 		8-97254-666-0 01 1 0101-0107 ● ● ● ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
4JG2 ENG(RJC),4JA1 ENG(RLE) EXC. RR BODY DBL WALL CTR PULL(6MW) 		8-97254-666-0 01 1 0101-0107 ● ● ● ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
4JG2 ENG(RJC),4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> 		8-97254-666-1 01 1 0108- ● ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> 		8-97300-969-1 01 1 0108- ● ● ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK 8-97040-781-0 01 1 9804-0012 ● ● ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
RR BODY DBL WALL CTR PULL(6MW) 		8-97254-664-0 01 1 0101-0107 ● ● ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
4JG2 ENG(RJC),4JA1 ENG(RLE) EXC. RR BODY DBL WALL CTR PULL(6MW) 		8-97254-664-0 01 1 0101-0107 ● ● ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
4JG2 ENG(RJC),4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> 		8-97254-664-1 01 1 0108- ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK 8-97040-780-0 01 1 9804-0012 ● ● ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
RR BODY DBL WALL CTR PULL(6MW) 		8-97254-663-0 01 1 0101-0107 ● ● ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
4JG2 ENG(RJC),4JA1 ENG(RLE) EXC. RR BODY DBL WALL CTR PULL(6MW) 		8-97254-663-0 01 1 0101-0107 ● ● ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
4JG2 ENG(RJC),4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> 		8-97254-663-1 01 1 0108- ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> 		8-97300-967-1 01 1 0108- ● ● ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> 		8-97300-966-1 01 1 0108- ● ● ● ● ● ●
10 12.945 CYLINDER ASM; W/KEY,FUEL FILLER
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 		8-97042-990-0 01 1 9804-9906 ● ● ● ● ● ●
10 12.945 CYLINDER ASM; W/KEY,FUEL FILLER
RR BODY DBL WALL CTR PULL(6MW) 		8-97042-990-0 01 1 9907-0012 ● ● ● ●
10 12.945 CYLINDER ASM; W/KEY,FUEL FILLER
4JG2 ENG(RJC),4JA1 ENG(RLE) EXC. RR BODY DBL WALL CTR PULL(6MW) 		8-97261-895-0 01 1 0101-0107 ● ● ● ● ● ●
11 02.187 KEY; BLANK
WO/NOTCH 		8-97045-966-0 AR 1 9804-0012 ● ● ● ● ● ●
11 02.187 KEY; BLANK
RR BODY DBL WALL CTR PULL(6MW) WO/NOTCH 		8-97170-680-0 AR 1 0101-0107 ● ● ● ● ● ●
11 02.187 KEY; BLANK
4JG2 ENG(RJC),4JA1 ENG(RLE) EXC. RR BODY DBL WALL CTR PULL(6MW) WO/NOTCH 		8-97170-680-0 AR 1 0101-0107 ● ● ● ● ● ●
11 02.187 KEY; BLANK
4JG2 ENG(RJC),4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> WO/NOTCH 		8-97170-680-0 AR 1 0108- ● ● ● ●
11 02.187 KEY; BLANK
W/NOTCH 		8-97045-967-0 AR 1 9804-0012 ● ● ● ● ● ●
11 02.187 KEY; BLANK
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> 		8-97300-164-0 AR 1 0108- ● ● ● ● ● ●
17 16.110 CYLINDER ASM; W/KEY,GLOVE BOX LO 5-87410-587-0 01 1 9804-0012 ● ● ● ● ● ●
17 16.110 CYLINDER ASM; W/KEY,GLOVE BOX LO
RR BODY DBL WALL CTR PULL(6MW) 		5-87410-725-0 01 1 0101-0107 ● ● ● ● ● ●
17 16.110 CYLINDER ASM; W/KEY,GLOVE BOX LO
4JG2 ENG(RJC),4JA1 ENG(RLE) EXC. RR BODY DBL WALL CTR PULL(6MW) 		5-87410-725-0 01 1 0101-0107 ● ● ● ● ● ●
17 16.110 CYLINDER ASM; W/KEY,GLOVE BOX LO
4JG2 ENG(RJC),4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> 		5-87410-725-1 01 1 0108- ● ● ● ●
17 16.110 CYLINDER ASM; W/KEY,GLOVE BOX LO
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> 		5-87410-788-1 01 1 0108- ● ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
RR BODY DBL WALL CTR PULL(6MW) 10.474 YELLOW 		8-97040-452-0 01 1 9804-0107 ● ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
4JG2 ENG(RJC),4JA1 ENG(RLE) EXC. RR BODY DBL WALL CTR PULL(6MW) 10.474 YELLOW 		8-97040-452-0 01 1 9804-0107 ● ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
10.474 YELLOW 		8-97040-452-0 01 1 0108- ●
20 16.328 SNAP; DOOR LOCK CYL
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> 10.474 YELLOW 		8-97040-452-0 01 1 0108- ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
4JG2 ENG(RJC),4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> 10.474 YELLOW 		8-97040-452-0 01 1 0108- ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
4JA1 ENG(RLE) 10.474 YELLOW 		8-97040-452-0 01 1 0108- ●
20 16.328 SNAP; DOOR LOCK CYL
RR BODY DBL WALL CTR PULL(6MW) 10.474 BROWN 		8-97040-453-0 01 1 9804-0107 ● ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
4JG2 ENG(RJC),4JA1 ENG(RLE) EXC. RR BODY DBL WALL CTR PULL(6MW) 10.474 BROWN 		8-97040-453-0 01 1 9804-0107 ● ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
10.474 BROWN 		8-97040-453-0 01 1 0108- ●
20 16.328 SNAP; DOOR LOCK CYL
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> 10.474 BROWN 		8-97040-453-0 01 1 0108- ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
4JG2 ENG(RJC),4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> 10.474 BROWN 		8-97040-453-0 01 1 0108- ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
4JA1 ENG(RLE) 10.474 BROWN 		8-97040-453-0 01 1 0108- ●
25 03.028 CAP; FUEL TANK,W/KEY
4JG2 ENG(RJC),4JA1 ENG(RLE) EXC. RR BODY DBL WALL CTR PULL(6MW), CHARGE AIR COOLER<6PL> 12.945 		8-97261-895-1 01 1 0108- ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY
EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 		8-97042-991-0 01 1 9804-9906 ● ● ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY
EXC. RR BODY DBL WALL CTR PULL(6MW) 		8-97042-991-0 01 1 9907-0012 ● ● ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. RR BODY DBL WALL CTR PULL(6MW) 		8-97300-971-1 01 1 0108-0204 ● ● ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. RR BODY DBL WALL CTR PULL(6MW) 		8-97300-971-1 01 1 0205- ● ● ● ● ●
26 16.328 BOLT; KEY CYL,DOOR
M6X8 FLANGE 		8-97175-668-0 02 1 9804- ● ● ● ● ● ●

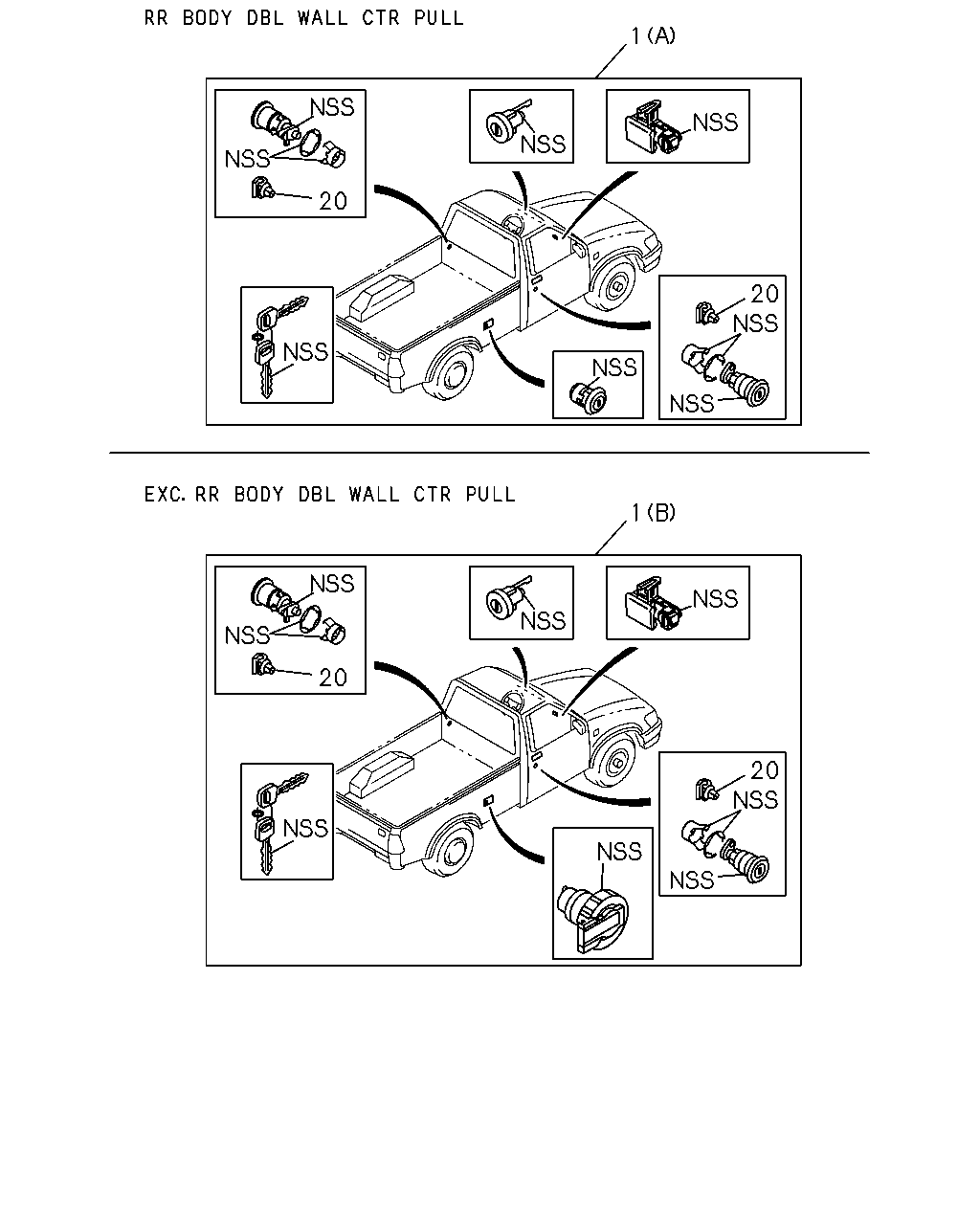

çizim 65403
1 20 20 1 20 20
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.188 CYLINDER SET; CAR LOCK
RR BODY DOUBLE WALL SIDE LOCK OUTER H OOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (A) GRAY 		8-97154-720-0 01 1 9804-9906 ● ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
RR BODY DBL WALL CTR PULL(6MW) (A) GRAY 		8-97154-720-0 01 1 9907-0012 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
RR BODY DBL WALL CTR PULL(6MW) (A) GRAY 		8-97292-587-1 01 1 0101-0107 ● ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
4JG2 ENG(RJC),4JA1 ENG(RLE) RR BODY DBL WALL CTR PULL(6MW) EXC. CHARGE AIR COOLER<6PL> (A) GRAY 		8-97292-587-2 01 1 0108- ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) (B) GRAY 		8-97154-722-0 01 1 9804-9906 ● ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
EXC. RR BODY DBL WALL CTR PULL(6MW) (B) GRAY 		8-97154-722-0 01 1 9907-0012 ● ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
4JG2 ENG(RJC),4JA1 ENG(RLE) EXC. RR BODY DBL WALL CTR PULL(6MW) (B) GRAY 		8-97296-662-0 01 1 0101-0107 ● ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
4JG2 ENG(RJC),4JA1 ENG(RLE) EXC. RR BODY DBL WALL CTR PULL(6MW), CHARGE AIR COOLER<6PL> (B) GRAY 		8-97296-662-1 01 1 0108- ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> RR BODY DBL WALL CTR PULL(6MW) (A) GRAY 		8-97298-090-1 01 1 0108- ● ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. RR BODY DBL WALL CTR PULL(6MW) (B) GRAY 		8-97298-092-1 01 1 0108-0204 ● ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. RR BODY DBL WALL CTR PULL(6MW) (B) GRAY 		8-97298-092-1 01 1 0205- ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
RR BODY DBL WALL CTR PULL(6MW) (A) GRAY 		8-97199-794-0 01 1 9907-0012 ● ●
20 16.328 SNAP; DOOR LOCK CYL
RR BODY DBL WALL CTR PULL(6MW) 10.474 YELLOW 		8-97040-452-0 01 1 9804-0107 ● ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
4JG2 ENG(RJC),4JA1 ENG(RLE) EXC. RR BODY DBL WALL CTR PULL(6MW) 10.474 YELLOW 		8-97040-452-0 01 1 9804-0107 ● ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
10.474 YELLOW 		8-97040-452-0 01 1 0108- ●
20 16.328 SNAP; DOOR LOCK CYL
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> 10.474 YELLOW 		8-97040-452-0 01 1 0108- ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
4JG2 ENG(RJC),4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> 10.474 YELLOW 		8-97040-452-0 01 1 0108- ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
4JA1 ENG(RLE) 10.474 YELLOW 		8-97040-452-0 01 1 0108- ●
20 16.328 SNAP; DOOR LOCK CYL
RR BODY DBL WALL CTR PULL(6MW) 10.474 BROWN 		8-97040-453-0 01 1 9804-0107 ● ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
4JG2 ENG(RJC),4JA1 ENG(RLE) EXC. RR BODY DBL WALL CTR PULL(6MW) 10.474 BROWN 		8-97040-453-0 01 1 9804-0107 ● ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
10.474 BROWN 		8-97040-453-0 01 1 0108- ●
20 16.328 SNAP; DOOR LOCK CYL
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> 10.474 BROWN 		8-97040-453-0 01 1 0108- ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
4JG2 ENG(RJC),4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> 10.474 BROWN 		8-97040-453-0 01 1 0108- ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
4JA1 ENG(RLE) 10.474 BROWN 		8-97040-453-0 01 1 0108- ●
