Isuzu WW
▶
PICKUP
▶
TFR
▶
50802 - TFR/TFS(EUROPE)-LHD
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-20 - MIRROR AND MIRROR STAY
▶

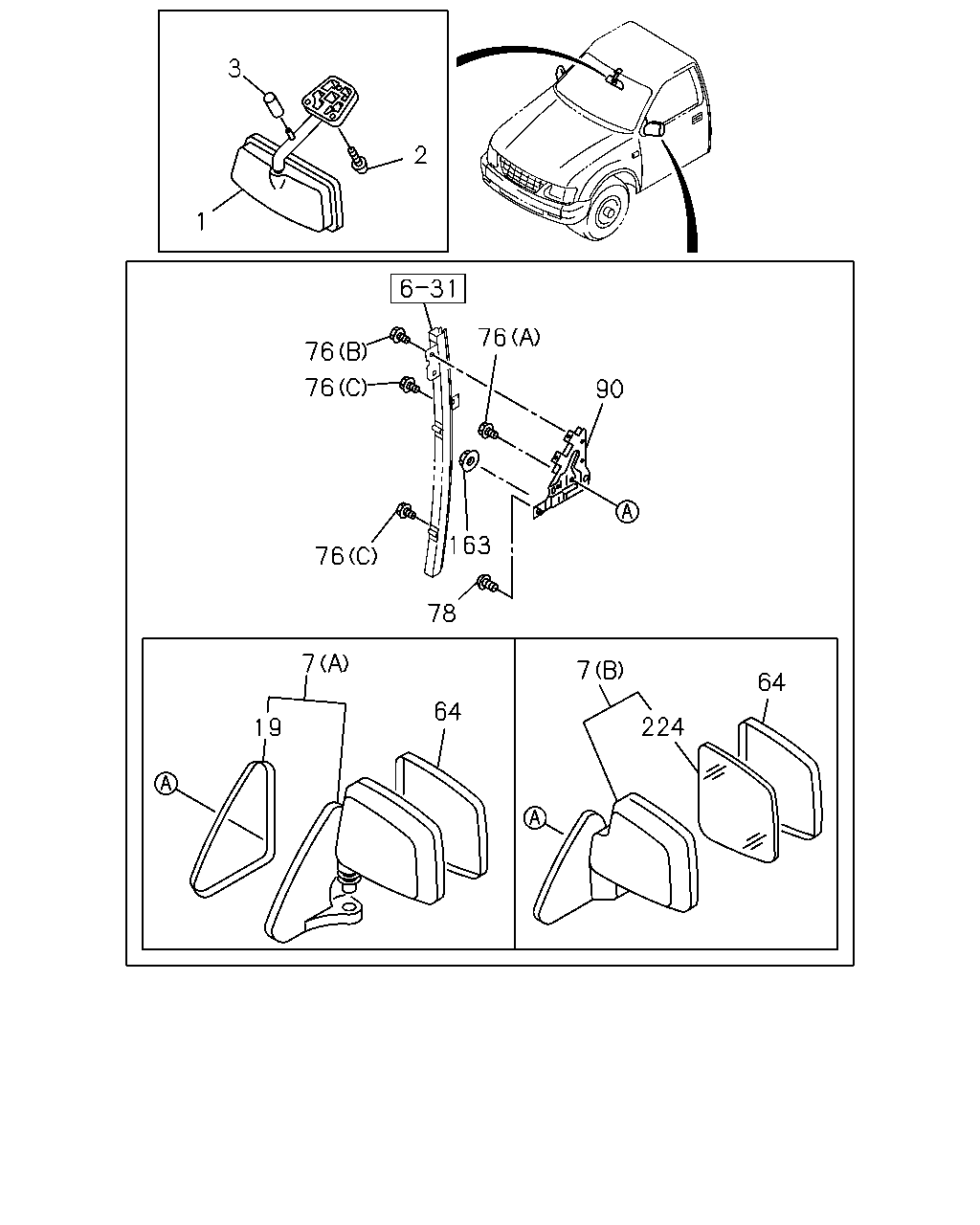

7-20 — MIRROR AND MIRROR STAY
(#45107) — 30 parça
Tümü
A - TFB6CF
B - TFB6SF
C - TFB6WF
D - TFS6CF
E - TFS6SF
F - TFS6WF
3
2
1
76
76
76
90
163
76
78
7
7
64
64
224
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
1
16.068 MIRROR; ROOM
GRAY
8-97158-659-0
01
1
9804-
●
●
●
●
●
●
2
16.069 SCREW; MIRROR TO BODY
08.977 M4X16 TAPPING OVAL-HEAD
0-70580-416-0
03
1
9804-
●
●
●
●
●
●
3
16.069 STOPPER; RR VIEW MIRROR
8-94239-390-0
01
1
9804-
●
●
●
●
●
●
7
16.068 MIRROR ASM; DOOR
(A)
8-97112-266-0
01
1
9804-9906
●
●
●
●
●
●
7
16.068 MIRROR ASM; DOOR
(A)
8-97112-266-0
01
1
9907-
●
●
7
16.068 MIRROR ASM; DOOR
DOOR MIRROR<RT9> (A)
8-97112-266-0
01
1
9907-
●
●
●
●
7
16.068 MIRROR ASM; DOOR
(A)
8-97115-700-0
01
1
9804-9906
●
●
●
●
●
●
7
16.068 MIRROR ASM; DOOR
(A)
8-97115-700-0
01
1
9907-
●
●
7
16.068 MIRROR ASM; DOOR
DOOR MIRROR<RT9> (A)
8-97115-700-0
01
1
9907-
●
●
●
●
7
16.068 MIRROR ASM; DOOR
DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (B)
8-97214-961-2
01
1
9907-0107
●
●
●
●
7
16.068 MIRROR ASM; DOOR
DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (B)
8-97314-029-1
01
1
0108-
●
●
●
●
7
16.068 MIRROR ASM; DOOR
DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (B)
8-97214-962-2
01
1
9907-0107
●
●
●
●
7
16.068 MIRROR ASM; DOOR
DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> (B)
8-97314-030-1
01
1
0108-
●
●
●
●
19
10.186 GASKET; MIRROR
8-97165-412-0
01
1
9804-9906
●
●
●
●
●
●
19
10.186 GASKET; MIRROR
8-97165-412-0
01
1
9907-
●
●
19
10.186 GASKET; MIRROR
DOOR MIRROR<RT9>
8-97165-412-0
01
1
9907-
●
●
●
●
19
10.186 GASKET; MIRROR
8-97165-411-0
01
1
9804-9906
●
●
●
●
●
●
19
10.186 GASKET; MIRROR
8-97165-411-0
01
1
9907-
●
●
19
10.186 GASKET; MIRROR
DOOR MIRROR<RT9>
8-97165-411-0
01
1
9907-
●
●
●
●
64
16.069 SEAL; MIRROR
8-97085-132-1
02
1
9804-
●
●
●
●
●
●
76
16.069 BOLT; STAY BRKT
10.701 (B) M6X8
8-94155-893-0
04
1
9804-
●
●
●
●
●
●
76
16.069 BOLT; STAY BRKT
16.585 (A) M6X14 FLANGE
8-94327-380-0
06
1
9804-
●
●
●
●
●
●
76
16.069 BOLT; STAY BRKT
07.833 (C) M6X14 W/LK&PL WASHER
8-94382-066-1
04
1
9804-
●
●
●
●
●
●
78
16.069 SCREW; BRKT FIX
16.175 M6X14
8-94113-240-1
02
1
9804-
●
●
●
●
●
●
78
16.069 SCREW; BRKT FIX
16.173 M4X12 OVAL-HEAD
9-93297-412-0
04
1
9804-
●
●
●
●
●
●
90
16.069 BRACKET; MIRROR STAY
8-97081-415-3
01
1
9804-0504
●
●
●
●
●
●
90
16.069 BRACKET; MIRROR STAY
8-97081-414-3
01
1
9804-0504
●
●
●
●
●
●
163
06.069 NUT; MIRROR BRKT
07.829 M6 FLANGE
5-09440-004-0
02
1
9804-
●
●
●
●
●
●
224
16.068 MIRROR; DOOR
DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>
8-97228-243-0
01
1
9907-
●
●
●
●
224
16.068 MIRROR; DOOR
DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>
8-97228-244-0
01
1
9907-
●
●
●
●
