◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50802 - TFR/TFS(EUROPE)-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#45106) — 110 parça
çizim 15697
38 94 59 90 4 261
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
4 00.004 LABEL; ENG MAINTENANCE
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> CAUTION SPANISH<YN1> (A) 		8-97353-503-0 01 1 0207- ● ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JA1 ENG(RLE) CAUTION SPANISH<YN1> EXC. CHARGE AIR COOLER<6PL> (A) 		8-94332-267-0 01 1 0207- ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JA1 ENG(RLE) CAUTION SPANISH<YN1> (A) 		8-94332-267-0 01 1 0201-0202 ● ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
CHARGE AIR COOLER<6PL> (A) 		8-97301-091-0 01 1 0108-0206 ● ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. CAUTION SPANISH<YN1> (A) 		8-97301-091-0 01 1 0207- ● ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JA1 ENG(RLE) (A) 		8-97044-279-0 01 1 9804-9910 ● ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JA1 ENG(RLE) (A) 		8-97241-536-0 01 1 9911-0107 ● ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97241-536-0 01 1 0108- ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JG2 ENG(RJC) (B) 		8-97039-223-1 01 1 9804-0107 ● ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JG2 ENG(RJC) (B) 		8-97039-223-1 01 1 0108- ● ● ● ●
38 08.808 PLATE; CAUTION,LSV 8-97132-100-0 01 1 9804- ●
38 08.808 PLATE; CAUTION,LSV
4JG2 ENG(RJC),4JA1 ENG(RLE) 		8-97132-100-0 01 1 9804- ● ●
38 08.808 PLATE; CAUTION,LSV 8-97132-098-1 01 1 9804- ● ● ●
59 08.808 PLATE; CAUTION,BATTERY
10 PER 1 SHEET 		8-97116-760-0 01 1 9804- ● ● ● ● ● ●
90 08.808 LABEL; CAUTION,TIMING BELT
4JG2 ENG(RJC),4JA1 ENG(RLE) 		8-94481-501-0 01 1 9804-0107 ● ● ● ● ● ●
90 08.808 LABEL; CAUTION,TIMING BELT
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) 		8-94481-501-0 01 1 0108- ● ● ● ● ● ●
94 08.808 PLATE; CAUTION,EGR PIPE
4JG2 ENG(RJC),4JA1 ENG(RLE) 		8-97113-154-0 01 1 9804-0107 ● ● ● ● ● ●
94 08.808 PLATE; CAUTION,EGR PIPE
4JG2 ENG(RJC) 		8-97113-154-0 01 1 0108-0110 ● ● ● ●
94 08.808 PLATE; CAUTION,EGR PIPE
TURKISH EQUIPMENT(S6S),ISRAEL EQUIPMENT(7LX) 		8-97113-154-0 01 1 0111- ● ● ● ● ● ●
261 08.808 PLATE; CAUTION,FUEL SYSTEM
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> CAUTION SPANISH<YN1> 		8-97353-504-0 01 1 0207- ● ● ● ● ● ●
261 08.808 PLATE; CAUTION,FUEL SYSTEM
CHARGE AIR COOLER<6PL> 		8-97317-718-0 01 1 0108-0206 ● ● ● ● ● ●
261 08.808 PLATE; CAUTION,FUEL SYSTEM
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. CAUTION SPANISH<YN1> 		8-97317-718-0 01 1 0207- ● ● ● ● ● ●
çizim 63920
107 1 214 1 21 9 190 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.017 PLATE; CAUTION,SHIFT PATTERN
CAUTION SPANISH<YN1> SHIFT ON THE FLY(7EX) (A) 		8-97131-711-0 01 1 0207- ● ● ●
1 04.017 PLATE; CAUTION,SHIFT PATTERN
A/T AISIN(RMD) CAUTION SPANISH<YN1> (B) 		8-97108-716-1 01 1 0207- ●
1 04.017 PLATE; CAUTION,SHIFT PATTERN
CAUTION SPANISH<YN1> SHIFT ON THE FLY(7EX) (A) 		8-97131-711-0 01 1 0201-0202 ● ● ●
1 04.017 PLATE; CAUTION,SHIFT PATTERN
A/T AISIN(RMD) CAUTION SPANISH<YN1> (B) 		8-97108-716-0 01 1 0201-0202 ●
1 04.017 PLATE; CAUTION,SHIFT PATTERN
SHIFT ON THE FLY(7EX) (A) 		8-97131-709-0 01 1 0108-0112 ● ● ●
1 04.017 PLATE; CAUTION,SHIFT PATTERN
SHIFT ON THE FLY(7EX) EXC. CAUTION SPANISH<YN1> (A) 		8-97131-709-0 01 1 0201-0202 ● ● ●
1 04.017 PLATE; CAUTION,SHIFT PATTERN
SHIFT ON THE FLY(7EX) (A) 		8-97131-709-0 01 1 0203-0206 ● ● ●
1 04.017 PLATE; CAUTION,SHIFT PATTERN
SHIFT ON THE FLY(7EX) EXC. CAUTION SPANISH<YN1> (A) 		8-97131-709-0 01 1 0207- ● ● ●
1 04.017 PLATE; CAUTION,SHIFT PATTERN
A/T AISIN(RMD) (B) 		8-97108-715-0 01 1 0106-0112 ●
1 04.017 PLATE; CAUTION,SHIFT PATTERN
A/T AISIN(RMD) EXC. CAUTION SPANISH<YN1> (B) 		8-97108-715-0 01 1 0201-0202 ●
1 04.017 PLATE; CAUTION,SHIFT PATTERN
A/T AISIN(RMD) (B) 		8-97108-715-0 01 1 0203-0206 ●
1 04.017 PLATE; CAUTION,SHIFT PATTERN
A/T AISIN(RMD) EXC. CAUTION SPANISH<YN1> (B) 		8-97108-715-0 01 1 0207- ●
9 08.808 PLATE; NAME,SPD RANGE
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> CAUTION SPANISH<YN1> (A) 		8-94381-055-0 01 1 0207- ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) CAUTION SPANISH<YN1> (A) 		8-94331-887-0 01 1 0207- ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> CAUTION SPANISH<YN1> (B) 		8-97039-424-0 01 1 0207- ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JA1 ENG(RLE) CAUTION SPANISH<YN1> EXC. CHARGE AIR COOLER<6PL> (B) 		8-94331-889-0 01 1 0207- ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JA1 ENG(RLE) M/T MSG 5 SPEED(M75) CAUTION SPANISH<YN1> (A) 		8-94331-887-0 01 1 0201-0202 ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JA1 ENG(RLE) CAUTION SPANISH<YN1> (B) 		8-94331-889-0 01 1 0201-0202 ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
(A) 		8-94381-054-0 01 1 9804-9907 ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JG2 ENG(RJC) M/T MUA 5 SPEED(RMN) (A) 		8-94381-054-0 01 1 9908-0107 ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JA1 ENG(RLE) (A) 		8-94381-054-0 01 1 9908-0107 ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
(A) 		8-94381-054-0 01 1 0108-0206 ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> (A) 		8-94381-054-0 01 1 0108-0206 ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JA1 ENG(RLE) EXC. CAUTION SPANISH<YN1> (A) 		8-94381-054-0 01 1 0207- ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JG2 ENG(RJC) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) (A) 		8-94381-054-0 01 1 0207- ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JA1 ENG(RLE) (B) 		8-94331-888-0 01 1 9804-0107 ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> (B) 		8-94331-888-0 01 1 0108-0112 ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JA1 ENG(RLE) EXC. CAUTION SPANISH<YN1>,CHARGE AIR COOLER<6PL> (B) 		8-94331-888-0 01 1 0201-0202 ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> (B) 		8-94331-888-0 01 1 0203-0206 ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JA1 ENG(RLE) EXC. CAUTION SPANISH<YN1>,CHARGE AIR COOLER<6PL> (B) 		8-94331-888-0 01 1 0207- ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JG2 ENG(RJC) (B) 		8-97039-423-0 01 1 9804-9805 ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JG2 ENG(RJC) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) (B) 		8-97039-423-0 01 1 9806-0107 ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> (B) 		8-97039-423-0 01 1 0108-0206 ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JG2 ENG(RJC) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) (B) 		8-97039-423-0 01 1 0108-0206 ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. CAUTION SPANISH<YN1> (B) 		8-97039-423-0 01 1 0207- ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JG2 ENG(RJC) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) (B) 		8-97039-423-0 01 1 0207- ● ●
21 16.328 PLATE; CAUTION,CHILD LOCK 8-97176-092-0 02 1 9804- ● ●
107 08.808 LABEL; FREE WHEEL HUB
MANUAL LOCKING HUB(ED2) CAUTION SPANISH<YN1> 		8-97108-674-2 01 1 0207- ● ● ●
107 08.808 LABEL; FREE WHEEL HUB
AUTO LOCKING HUB(S1Y) CAUTION SPANISH<YN1> 		8-97108-671-1 01 1 0207- ● ●
107 08.808 LABEL; FREE WHEEL HUB
MANUAL LOCKING HUB(ED2) CAUTION SPANISH<YN1> 		8-97108-674-1 01 1 0201-0202 ● ● ●
107 08.808 LABEL; FREE WHEEL HUB
AUTO LOCKING HUB(S1Y) CAUTION SPANISH<YN1> 		8-97108-671-1 01 1 0201-0202 ● ●
107 08.808 LABEL; FREE WHEEL HUB
AUTO LOCKING HUB(S1Y) 		8-97108-672-1 01 1 9804-0107 ● ● ●
107 08.808 LABEL; FREE WHEEL HUB
AUTO LOCKING HUB(S1Y) 		8-97108-672-1 01 1 0108-0112 ● ●
107 08.808 LABEL; FREE WHEEL HUB
AUTO LOCKING HUB(S1Y) EXC. CAUTION SPANISH<YN1> 		8-97108-672-1 01 1 0201-0202 ● ●
107 08.808 LABEL; FREE WHEEL HUB
AUTO LOCKING HUB(S1Y) 		8-97108-672-1 01 1 0203-0206 ● ●
107 08.808 LABEL; FREE WHEEL HUB
AUTO LOCKING HUB(S1Y) EXC. CAUTION SPANISH<YN1> 		8-97108-672-1 01 1 0207- ● ●
107 08.808 LABEL; FREE WHEEL HUB
MANUAL LOCKING HUB(ED2) 		8-97108-673-1 01 1 9804-0112 ● ● ●
107 08.808 LABEL; FREE WHEEL HUB
MANUAL LOCKING HUB(ED2) EXC. CAUTION SPANISH<YN1> 		8-97108-673-1 01 1 0201-0202 ● ● ●
107 08.808 LABEL; FREE WHEEL HUB
MANUAL LOCKING HUB(ED2) 		8-97108-673-1 01 1 0203-0206 ● ● ●
107 08.808 LABEL; FREE WHEEL HUB
MANUAL LOCKING HUB(ED2) EXC. CAUTION SPANISH<YN1> 		8-97108-673-1 01 1 0207- ● ● ●
190 08.808 PLATE; CAUTION,OIL CHANGE
4JG2 ENG(RJC) LIMITED SLIP DIFF(G80) 		8-97200-740-0 01 1 0008-0107 ● ● ● ● ● ●
190 08.808 PLATE; CAUTION,OIL CHANGE
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> LIMITED SLIP DIFF(G80) 		8-97200-740-0 01 1 0108- ● ● ● ● ● ●
190 08.808 PLATE; CAUTION,OIL CHANGE
4JG2 ENG(RJC) LIMITED SLIP DIFF(G80) 		8-97200-740-0 01 1 0108- ● ● ● ● ●
214 08.808 LABEL; JACK 8-97175-050-0 01 1 9805- ● ● ● ● ● ●

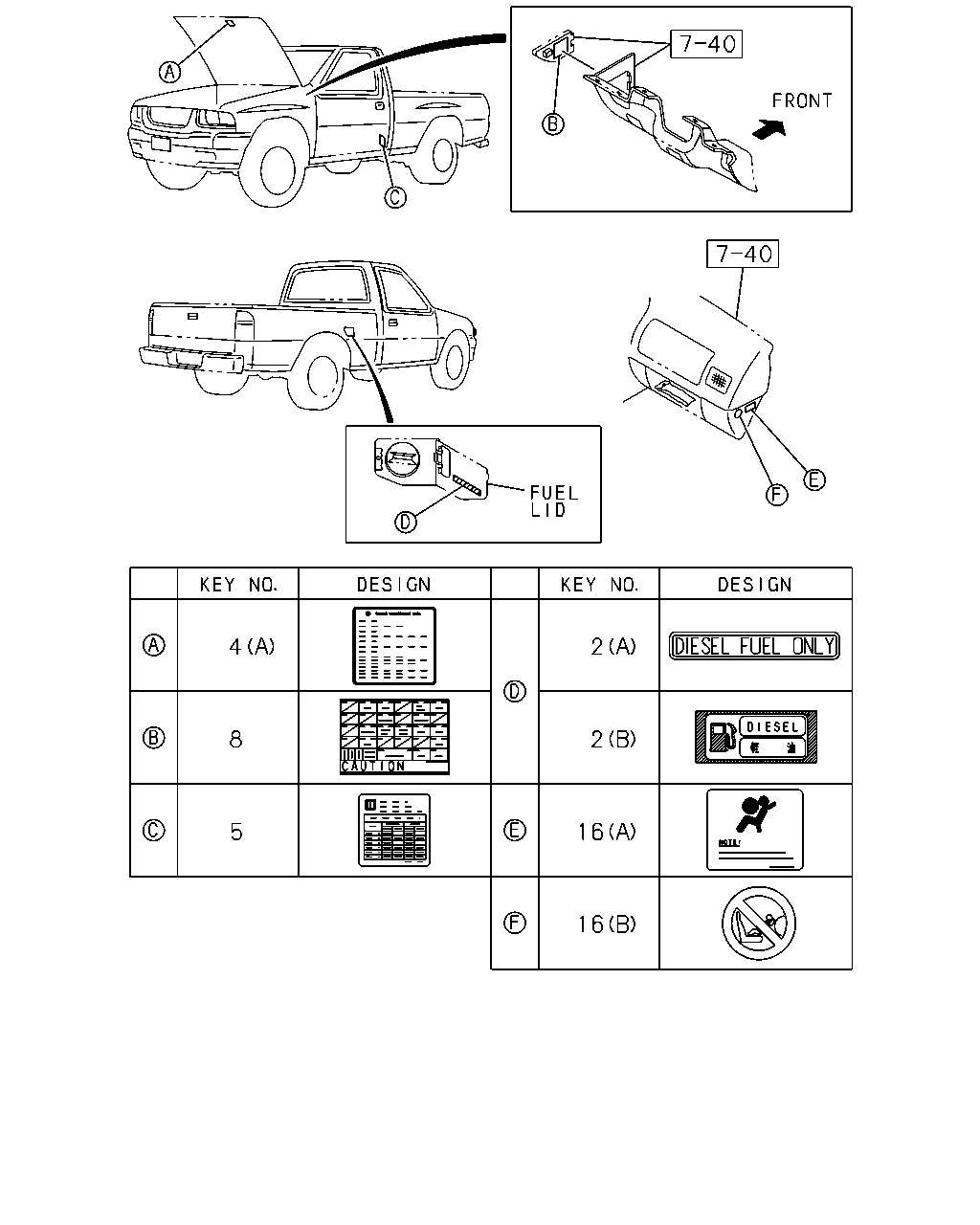

çizim 64271
2 4 8 2 5 16 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 03.680 LABEL; FUEL CAUTION
(A) DIESEL FUEL ONLY 		8-97135-605-0 01 1 9804-9808 ● ● ● ● ● ●
2 03.680 LABEL; FUEL CAUTION
(B) DIESEL 		8-97203-837-0 01 1 9809- ● ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> CAUTION SPANISH<YN1> (A) 		8-97353-503-0 01 1 0207- ● ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JA1 ENG(RLE) CAUTION SPANISH<YN1> EXC. CHARGE AIR COOLER<6PL> (A) 		8-94332-267-0 01 1 0207- ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JA1 ENG(RLE) CAUTION SPANISH<YN1> (A) 		8-94332-267-0 01 1 0201-0202 ● ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
CHARGE AIR COOLER<6PL> (A) 		8-97301-091-0 01 1 0108-0206 ● ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. CAUTION SPANISH<YN1> (A) 		8-97301-091-0 01 1 0207- ● ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JA1 ENG(RLE) (A) 		8-97044-279-0 01 1 9804-9910 ● ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JA1 ENG(RLE) (A) 		8-97241-536-0 01 1 9911-0107 ● ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97241-536-0 01 1 0108- ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JG2 ENG(RJC) (B) 		8-97039-223-1 01 1 9804-0107 ● ● ● ● ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JG2 ENG(RJC) (B) 		8-97039-223-1 01 1 0108- ● ● ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
CAUTION SPANISH<YN1> 		8-97327-716-0 01 1 0207- ● ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
CAUTION SPANISH<YN1> 		8-97327-718-0 01 1 0207- ● ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
CAUTION SPANISH<YN1> 		8-97327-716-0 01 1 0201-0202 ● ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
CAUTION SPANISH<YN1> 		8-97327-718-0 01 1 0201-0202 ● ● ●
5 05.880 LABEL; TIRE AIR PRESSURE 8-97145-372-0 01 1 9804-9906 ● ● ●
5 05.880 LABEL; TIRE AIR PRESSURE 8-97216-725-0 01 1 9907-0012 ● ● ●
5 05.880 LABEL; TIRE AIR PRESSURE 8-97302-085-0 01 1 0101-0109 ● ● ●
5 05.880 LABEL; TIRE AIR PRESSURE 8-97327-715-0 01 1 0110-0112 ● ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
EXC. CAUTION SPANISH<YN1> 		8-97327-715-0 01 1 0201-0202 ● ● ●
5 05.880 LABEL; TIRE AIR PRESSURE 8-97327-715-0 01 1 0203-0206 ● ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
EXC. CAUTION SPANISH<YN1> 		8-97327-715-0 01 1 0207- ● ● ●
5 05.880 LABEL; TIRE AIR PRESSURE 8-97148-680-0 01 1 9804-0107 ● ● ●
5 05.880 LABEL; TIRE AIR PRESSURE 8-97301-207-0 01 1 0108-0109 ● ● ●
5 05.880 LABEL; TIRE AIR PRESSURE 8-97327-717-0 01 1 0110-0112 ● ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
EXC. CAUTION SPANISH<YN1> 		8-97327-717-0 01 1 0201-0202 ● ● ●
5 05.880 LABEL; TIRE AIR PRESSURE 8-97327-717-0 01 1 0203-0206 ● ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
EXC. CAUTION SPANISH<YN1> 		8-97327-717-0 01 1 0207- ● ● ●
8 03.680 LABEL; FUSE 8-97167-122-0 01 1 9804-9906 ● ● ● ● ● ●
8 03.680 LABEL; FUSE 8-97182-388-0 01 1 9907- ● ● ● ● ● ●
16 08.808 PLATE; CAUTION,SIR
AIR BAG DRIVER(AJ3) AIR BAG PASSENGER(7FA) (A) 		8-97145-557-0 02 1 9907- ● ● ● ● ● ●
16 08.808 PLATE; CAUTION,SIR
AIR BAG DRIVER(AJ3) EXC. AIR BAG PASSENGER(7FA) (A) 		8-97145-557-0 01 1 9907- ● ● ● ● ● ●
16 08.808 PLATE; CAUTION,SIR
AIR BAG PASSENGER(7FA) (B) 		8-97145-558-0 01 1 9907- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
