6-90 — REAR BUMPER (#45104) — 58 parça

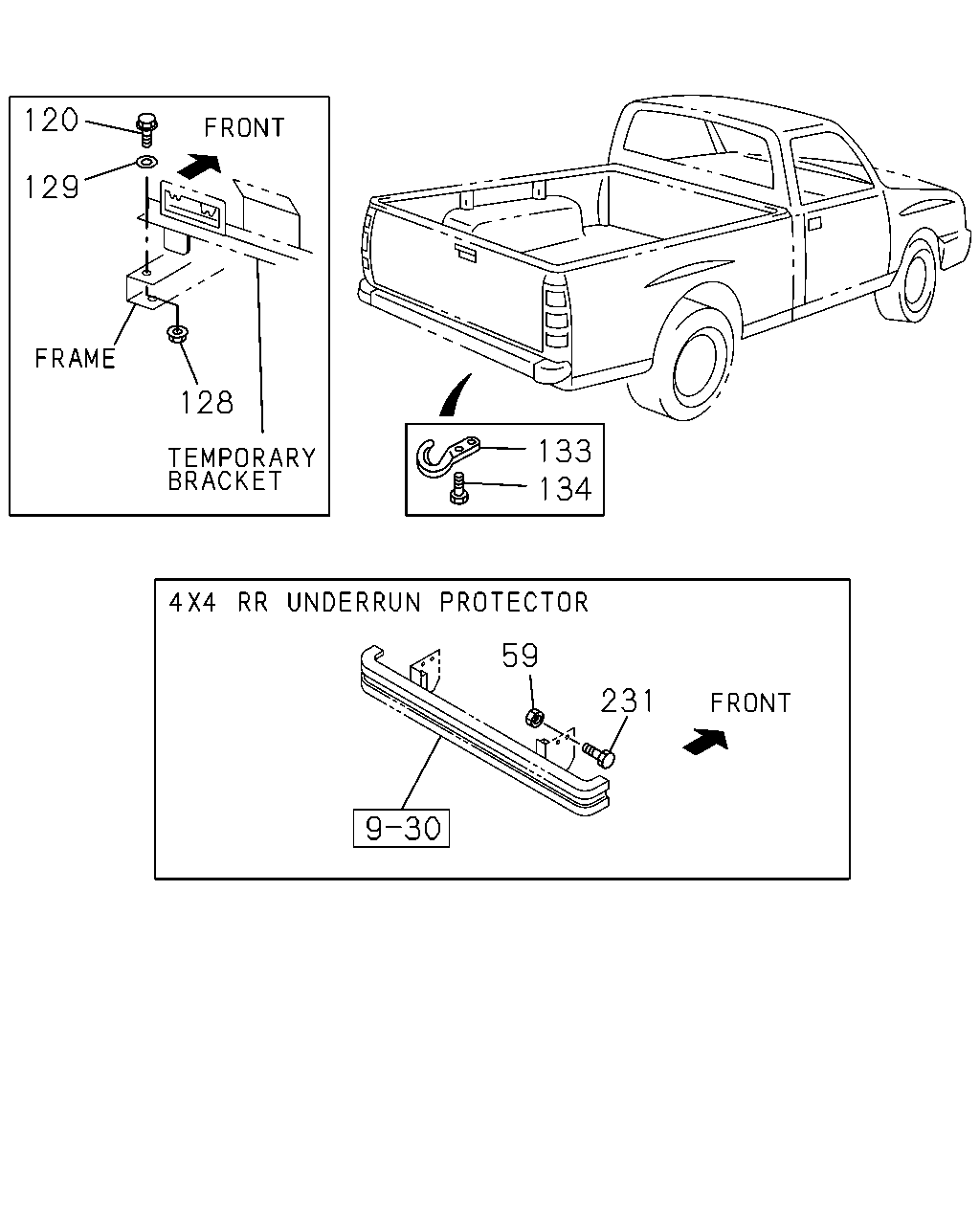

çizim 15599
120 129 128 133 134 59 231
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
59 07.833 NUT; PROTECTOR
RR UNDERRUN PROTECTOR(6DY) 09.011 M12 FLANGE 		8-97028-764-0 04 1 9804- ● ● ●
120 07.800 BOLT
EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 9804-9906 ● ● ● ● ● ●
120 07.800 BOLT
EXC. RR BODY DBL WALL CTR PULL(6MW) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 9907-0204 ● ● ● ● ● ●
120 07.800 BOLT
EXC. RR BODY DBL WALL CTR PULL(6MW) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0205- ● ● ● ● ●
128 02.662 NUT; CROSS PLATE
EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 07.633 M8 FLANGE 		0-91150-108-0 02 1 9804-9906 ● ● ● ● ● ●
128 02.662 NUT; CROSS PLATE
EXC. RR BODY DBL WALL CTR PULL(6MW) 07.633 M8 FLANGE 		0-91150-108-0 02 1 9907-0204 ● ● ● ● ● ●
128 02.662 NUT; CROSS PLATE
EXC. RR BODY DBL WALL CTR PULL(6MW) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0205- ● ● ● ● ●
129 03.162 WASHER; PL,CROSS PLATE
EXC. RR BODY DOUBLE WALL SIDE LOCK OU TER HOOK(S7S),RR BODY DBL WALL CTR PULL(6MW) 06.760 ID=8.4 OD=22 		9-09160-708-0 02 1 9804-9906 ● ● ● ● ● ●
129 03.162 WASHER; PL,CROSS PLATE
EXC. RR BODY DBL WALL CTR PULL(6MW) 06.760 ID=8.4 OD=22 		9-09160-708-0 02 1 9907-0204 ● ● ● ● ● ●
129 03.162 WASHER; PL,CROSS PLATE
EXC. RR BODY DBL WALL CTR PULL(6MW) 06.760 ID=8.4 OD=22 		9-09160-708-0 02 1 0205- ● ● ● ● ●
133 07.112 HOOK
TOW HOOK RR ONLY<7TK> 07.068 		8-94361-852-0 01 1 9804-9906 ● ● ● ● ● ●
133 07.112 HOOK
TOW HOOK FRT & RR<V70> EXC. REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1),RR UNDERRUN PROTECTOR(6DY) 07.068 		8-94361-852-0 01 1 9804-9906 ● ● ● ● ● ●
133 07.112 HOOK
TOW HOOK RR ONLY<7TK> 07.068 		8-94361-852-0 01 1 9907-0207 ● ● ● ● ● ●
133 07.112 HOOK
TOW HOOK RR ONLY<7TK> 07.330 		8-94183-262-0 01 1 0208- ● ● ● ● ● ●
134 07.068 BOLT; HOOK
TOW HOOK FRT & RR<V70>,TOW HOOK RR ONLY<7TK> EXC. REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 00.004 M10X45 W/LK WASHER 		0-50041-045-0 02 1 9804-9810 ● ● ●
134 07.068 BOLT; HOOK
TOW HOOK FRT & RR<V70>,TOW HOOK RR ONLY<7TK> EXC. REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1),RR UNDERRUN PROTECTOR(6DY) 00.004 M10X45 W/LK WASHER 		0-50041-045-0 02 1 9804-9810 ● ● ●
134 07.068 BOLT; HOOK
TOW HOOK FRT & RR<V70> EXC. REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1),RR UNDERRUN PROTECTOR(6DY),TOW HOOK RR ONLY<7TK> 00.004 M10X45 W/LK WASHER 		0-50041-045-0 02 1 9811-9906 ● ● ● ● ● ●
134 07.068 BOLT; HOOK
TOW HOOK RR ONLY<7TK> EXC. REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1),RR UNDERRUN PROTECTOR(6DY) 00.004 M10X45 W/LK WASHER 		0-50041-045-0 02 1 9811-9906 ● ● ● ● ● ●
134 07.068 BOLT; HOOK
TOW HOOK RR ONLY<7TK> 00.004 M10X45 W/LK WASHER 		0-50041-045-0 02 1 9907- ● ● ● ● ● ●
231 04.510 BOLT; PROTECTOR,RR BODY
RR UNDERRUN PROTECTOR(6DY) 07.874 M12X30 FLANGE 		0-28691-230-0 04 1 9804- ● ● ●

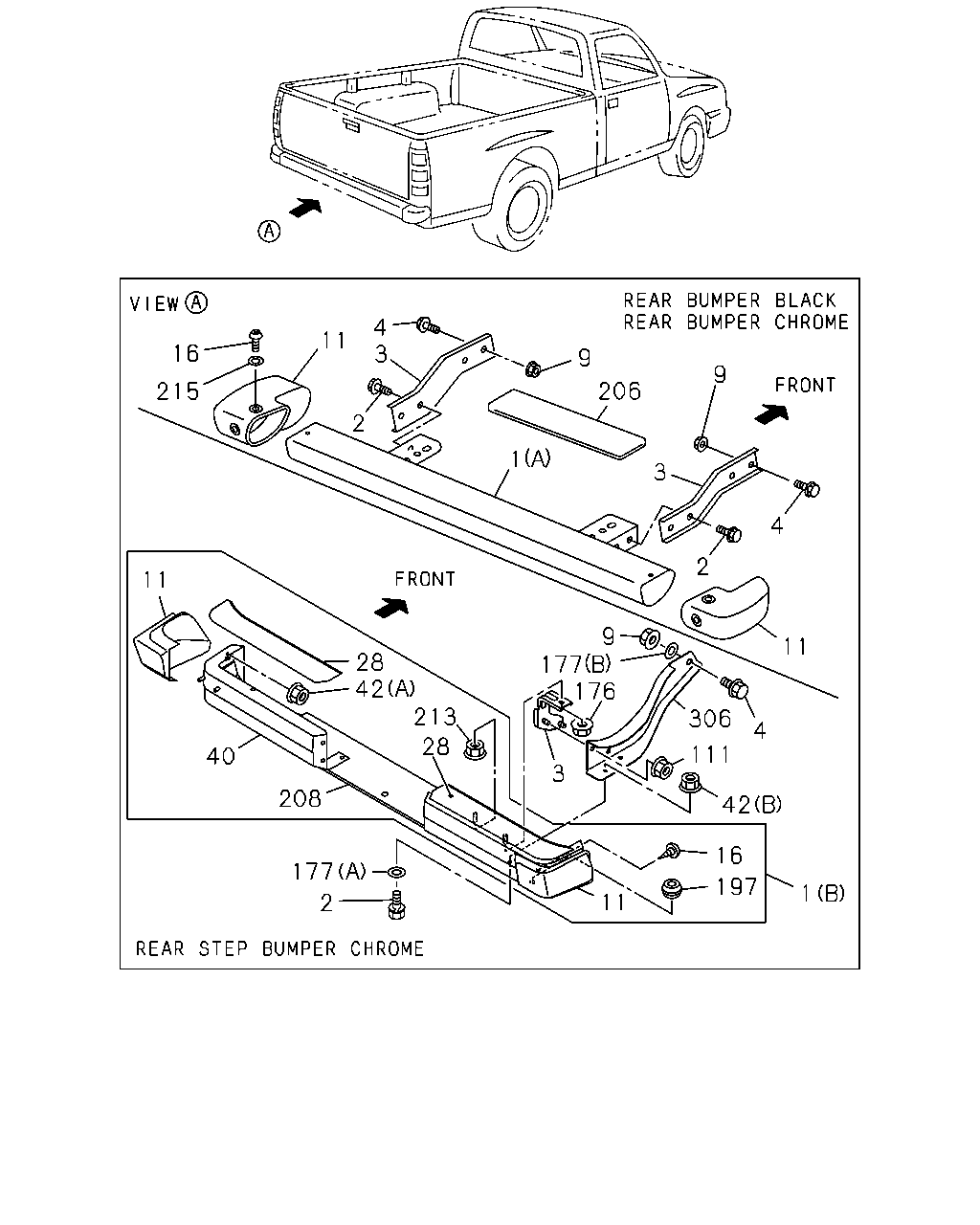

çizim 15693
4 3 11 16 9 9 206 215 2 1 3 4 2 11 9 177 176 11 28 42 213 306 4 28 111 40 3 208 42 16 177 197 1 11 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 07.070 BUMPER; RR
REAR BUMPER BLACK(EY1) (A) 		8-94462-368-2 01 1 9804- ● ● ● ● ● ●
1 07.070 BUMPER; RR
REAR BUMPER CHROME(VF1) (A) 		8-94462-369-2 01 1 9804- ● ● ● ● ● ●
1 07.070 BUMPER; RR
REAR STEP BUMPER CHROME(VB3) (B) 		8-97136-798-5 01 1 0010- ●
2 07.874 BOLT; BACK BAR
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) M12X30 FLANGE 		0-28691-230-0 04 1 9804- ● ● ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR STEP BUMPER CHROME(VB3) 02.762 M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0010- ●
3 07.875 BRACKET; BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 07.070 		8-94462-371-2 01 1 9804- ● ● ● ● ● ●
3 07.875 BRACKET; BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 07.070 		8-94462-370-2 01 1 9804- ● ● ● ● ● ●
3 07.875 BRACKET; BUMPER
REAR STEP BUMPER CHROME(VB3) 		8-97136-763-0 01 1 0010- ●
3 07.875 BRACKET; BUMPER
REAR STEP BUMPER CHROME(VB3) 		8-97136-762-0 01 1 0010- ●
4 07.070 BOLT; BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 07.874 M12X30 FLANGE 		0-28691-230-0 04 1 9804-0009 ● ● ● ● ● ●
4 07.070 BOLT; BUMPER
REAR BUMPER BLACK(EY1),REAR STEP BUMPER CHROME(VB3),REAR BUMPER CHROME(VF1) 07.874 M12X30 FLANGE 		0-28691-230-0 04 1 0010- ● ● ● ● ● ●
9 07.070 NUT; BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 09.011 M12 FLANGE 		8-97028-764-0 04 1 9804-0009 ● ● ● ● ● ●
9 07.070 NUT; BUMPER
REAR BUMPER BLACK(EY1),REAR STEP BUMPER CHROME(VB3),REAR BUMPER CHROME(VF1) 09.011 M12 FLANGE 		8-97028-764-0 04 1 0010- ● ● ● ● ● ●
11 07.829 CAP; RR BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 		8-94462-373-1 01 1 9804- ● ● ● ● ● ●
11 07.829 CAP; RR BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 		8-94462-372-1 01 1 9804- ● ● ● ● ● ●
11 07.829 CAP; RR BUMPER
REAR STEP BUMPER CHROME(VB3) 		8-97136-765-1 01 1 0010- ●
11 07.829 CAP; RR BUMPER
REAR STEP BUMPER CHROME(VB3) 		8-97136-764-1 01 1 0010- ●
16 07.070 SCREW; RR BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) M6X20 		8-94324-557-0 06 1 9804- ● ● ● ● ● ●
16 07.070 SCREW; RR BUMPER
REAR STEP BUMPER CHROME(VB3) 16.802 M5X16 TAPPING W/PL WASHER 		0-74110-516-0 04 1 0010- ●
28 07.875 STEP ASM; RR
REAR STEP BUMPER CHROME(VB3) 		8-97136-760-0 01 1 0010- ●
28 07.875 STEP ASM; RR
REAR STEP BUMPER CHROME(VB3) 		8-97136-759-0 01 1 0010- ●
40 07.831 BUMPER; RR SIDE
REAR STEP BUMPER CHROME(VB3) 		8-97136-756-0 01 1 0010- ●
40 07.831 BUMPER; RR SIDE
REAR STEP BUMPER CHROME(VB3) 		8-97136-755-0 01 1 0010- ●
42 07.874 NUT; RR SIDE BUMPER
REAR STEP BUMPER CHROME(VB3) 16.547 (B) M6 W/DISHED WASHER 		8-97018-399-1 04 1 0010- ●
42 07.874 NUT; RR SIDE BUMPER
REAR STEP BUMPER CHROME(VB3) (A) M5 FLANGE 		8-97183-011-0 04 1 0010- ●
111 02.662 NUT; FLANGE
REAR STEP BUMPER CHROME(VB3) 07.874 M10 FLANGE 		5-09440-006-0 04 1 0010- ●
176 07.068 NUT
REAR STEP BUMPER CHROME(VB3) 04.594 M6 FLANGE 		0-91150-106-0 02 1 0010- ●
177 07.070 WASHER; PL
REAR STEP BUMPER CHROME(VB3) 10.685 		8-94474-927-0 04 1 0108-0108 ●
177 07.070 WASHER; PL
REAR STEP BUMPER CHROME(VB3) 10.685 (A) 		8-94474-927-0 04 1 0010-0106 ●
177 07.070 WASHER; PL
REAR STEP BUMPER CHROME(VB3) 07.633 (B) ID=12.5 OD=32 		9-09164-712-0 04 1 0010- ●
197 07.832 GROMMET; SCREW,RR BUMPER
REAR STEP BUMPER CHROME(VB3) 		8-97183-012-0 02 1 0010- ●
206 07.831 SHEET; NON SLIP,RR BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) BLACK 		8-94298-100-1 01 1 9804- ● ● ● ● ● ●
208 07.833 PLATE; RR BUMPER STAY
REAR STEP BUMPER CHROME(VB3) 		8-97136-791-1 01 1 0010- ●
213 07.832 NUT; STEP
REAR STEP BUMPER CHROME(VB3) 		8-97183-033-0 20 1 0010-0012 ●
213 07.832 NUT; STEP
REAR STEP BUMPER CHROME(VB3) 		8-97183-033-0 18 1 0101- ●
215 07.070 WASHER; PL,BUMPER RR
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) ID=6 OD=18 		8-94324-671-0 06 1 9804- ● ● ● ● ● ●
306 07.836 BAR; BACK,RR
REAR STEP BUMPER CHROME(VB3) 		8-97136-767-0 01 1 0010- ●
306 07.836 BAR; BACK,RR
REAR STEP BUMPER CHROME(VB3) 		8-97136-766-0 01 1 0010- ●
