◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50802 - TFR/TFS(EUROPE)-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-86 - TRUNK OPENER AND FUEL LID ▶
6-86 — TRUNK OPENER AND FUEL LID (#45103) — 33 parça

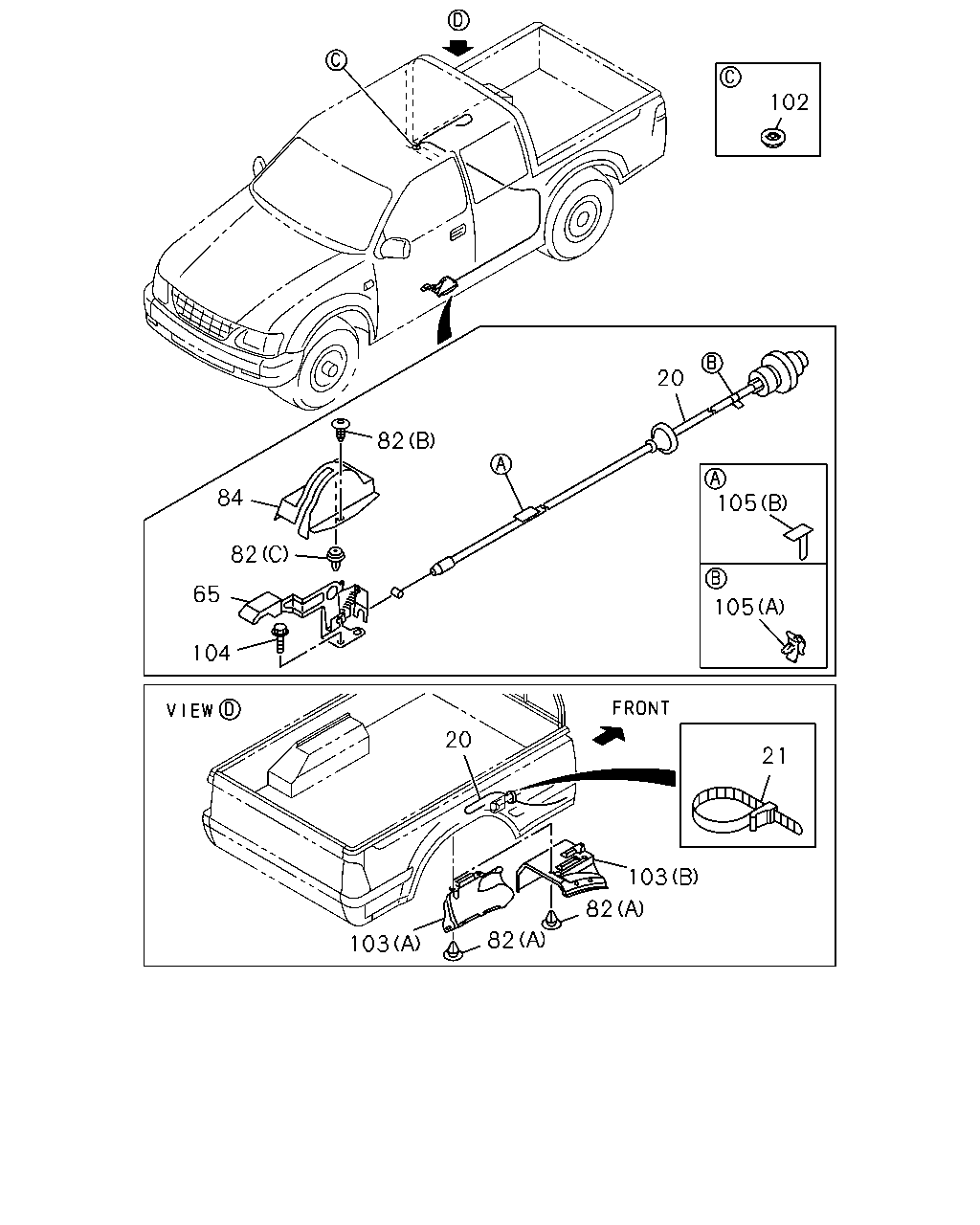

çizim 64118
102 20 82 105 84 82 105 65 104 20 21 103 82 82 103
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
20 17.505 CABLE; TRUNK LID & FUEL FILLER
RR BODY DBL WALL CTR PULL(6MW) 		8-97260-607-2 01 1 0101- ● ●
20 17.505 CABLE; TRUNK LID & FUEL FILLER
RR BODY DBL WALL CTR PULL(6MW) 		8-97260-605-1 01 1 0101-0106 ● ●
20 17.505 CABLE; TRUNK LID & FUEL FILLER
RR BODY DBL WALL CTR PULL(6MW) 		8-97315-435-0 01 1 0107- ● ●
20 17.505 CABLE; TRUNK LID & FUEL FILLER
RR BODY DBL WALL CTR PULL(6MW) 		8-97217-263-3 01 1 9907- ● ●
21 17.090 CLIP; CABLE,TAIL GATE
RR BODY DBL WALL CTR PULL(6MW) 03.008 L=330 		5-09709-118-0 01 1 0101-0209 ● ● ● ●
21 17.090 CLIP; CABLE,TAIL GATE
RR BODY DBL WALL CTR PULL(6MW) 03.008 L=330 		5-09709-118-0 01 1 0210- ● ● ● ● ● ●
21 17.090 CLIP; CABLE,TAIL GATE
RR BODY DBL WALL CTR PULL(6MW) 02.559 L=250 		5-09707-030-1 01 1 9907-0209 ● ●
65 17.505 KNOB; FUEL FILLER DOOR
RR BODY DBL WALL CTR PULL(6MW) 		8-94351-222-1 01 1 9907-0012 ● ●
65 17.505 KNOB; FUEL FILLER DOOR
RR BODY DBL WALL CTR PULL(6MW) 		8-94351-222-1 01 1 0101- ● ● ● ● ● ●
82 16.345 CLIP; COVER
RR BODY DBL WALL CTR PULL(6MW) (A) 		1-09987-203-0 05 1 0101- ● ● ● ●
82 16.345 CLIP; COVER
RR BODY DBL WALL CTR PULL(6MW) (A) 		1-09987-203-0 03 1 9907- ● ●
82 16.345 CLIP; COVER
RR BODY DBL WALL CTR PULL(6MW) 08.155 (B) OD=16 L=11 		1-76378-155-0 01 1 9907-0012 ● ●
82 16.345 CLIP; COVER
RR BODY DBL WALL CTR PULL(6MW) 08.155 (B) OD=16 L=11 		1-76378-155-0 01 1 0101- ● ● ● ● ● ●
82 16.345 CLIP; COVER
RR BODY DBL WALL CTR PULL(6MW) 16.166 (C) 		8-97019-200-0 01 1 9907-0012 ● ●
82 16.345 CLIP; COVER
RR BODY DBL WALL CTR PULL(6MW) 16.166 (C) 		8-97019-200-0 01 1 0101-0101 ● ● ● ● ● ●
82 16.345 CLIP; COVER
RR BODY DBL WALL CTR PULL(6MW) 14.683 (C) H=19.1 		8-94385-553-0 01 1 0102- ● ● ● ● ● ●
84 17.185 COVER; BRKT
RR BODY DBL WALL CTR PULL(6MW) 		8-97199-787-1 01 1 9907-0012 ● ●
84 17.185 COVER; BRKT
RR BODY DBL WALL CTR PULL(6MW) 		8-97199-787-1 01 1 0101- ● ● ● ● ● ●
102 17.505 GROMMET
EXC. RR BODY DBL WALL CTR PULL(6MW) 		8-97287-711-0 01 1 0101-0204 ● ●
102 17.505 GROMMET
EXC. RR BODY DBL WALL CTR PULL(6MW) 		8-97287-711-0 01 1 0205- ●
102 17.505 GROMMET
EXC. RR BODY DBL WALL CTR PULL(6MW) 12.491 OD=24 		8-94119-796-0 01 1 9907-0010 ● ●
102 17.505 GROMMET
12.491 OD=24 		8-94119-796-0 01 1 0011-0012 ● ●
102 17.505 GROMMET
EXC. RR BODY DBL WALL CTR PULL(6MW) 12.491 OD=24 		8-94119-796-0 01 1 0011-0012 ● ●
102 17.505 GROMMET
EXC. RR BODY DBL WALL CTR PULL(6MW) 12.491 OD=24 		8-94119-796-0 01 1 0101- ● ● ● ●
103 17.505 COVER; CABLE,FUEL LID OPENER
RR BODY DBL WALL CTR PULL(6MW) (B) 		8-97260-602-0 01 1 0101- ● ● ● ●
103 17.505 COVER; CABLE,FUEL LID OPENER
RR BODY DBL WALL CTR PULL(6MW) (A) 		8-97221-217-3 01 1 9907- ● ●
104 17.505 BOLT; KNOB
RR BODY DBL WALL CTR PULL(6MW) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9907-0012 ● ●
104 17.505 BOLT; KNOB
RR BODY DBL WALL CTR PULL(6MW) 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0101- ● ● ● ● ● ●
105 17.505 CLIP; CABLE,FUEL LID OPENER
RR BODY DBL WALL CTR PULL(6MW) 09.647 (A) ID=4.8 		8-94128-483-0 03 1 0101- ● ● ● ●
105 17.505 CLIP; CABLE,FUEL LID OPENER
RR BODY DBL WALL CTR PULL(6MW) 02.480 (B) 		8-94138-987-0 03 1 0101- ● ● ● ●
105 17.505 CLIP; CABLE,FUEL LID OPENER
RR BODY DBL WALL CTR PULL(6MW) 09.647 (A) ID=4.8 		8-94128-483-0 01 1 9907- ● ●
105 17.505 CLIP; CABLE,FUEL LID OPENER
RR BODY DBL WALL CTR PULL(6MW) 09.647 (A) ID=4.8 		8-94128-483-0 01 1 9907- ● ●
105 17.505 CLIP; CABLE,FUEL LID OPENER
RR BODY DBL WALL CTR PULL(6MW) 02.480 (B) 		8-94138-987-0 04 1 9907- ● ●
