9-01 — TOOLS (#4510) — 158 parça

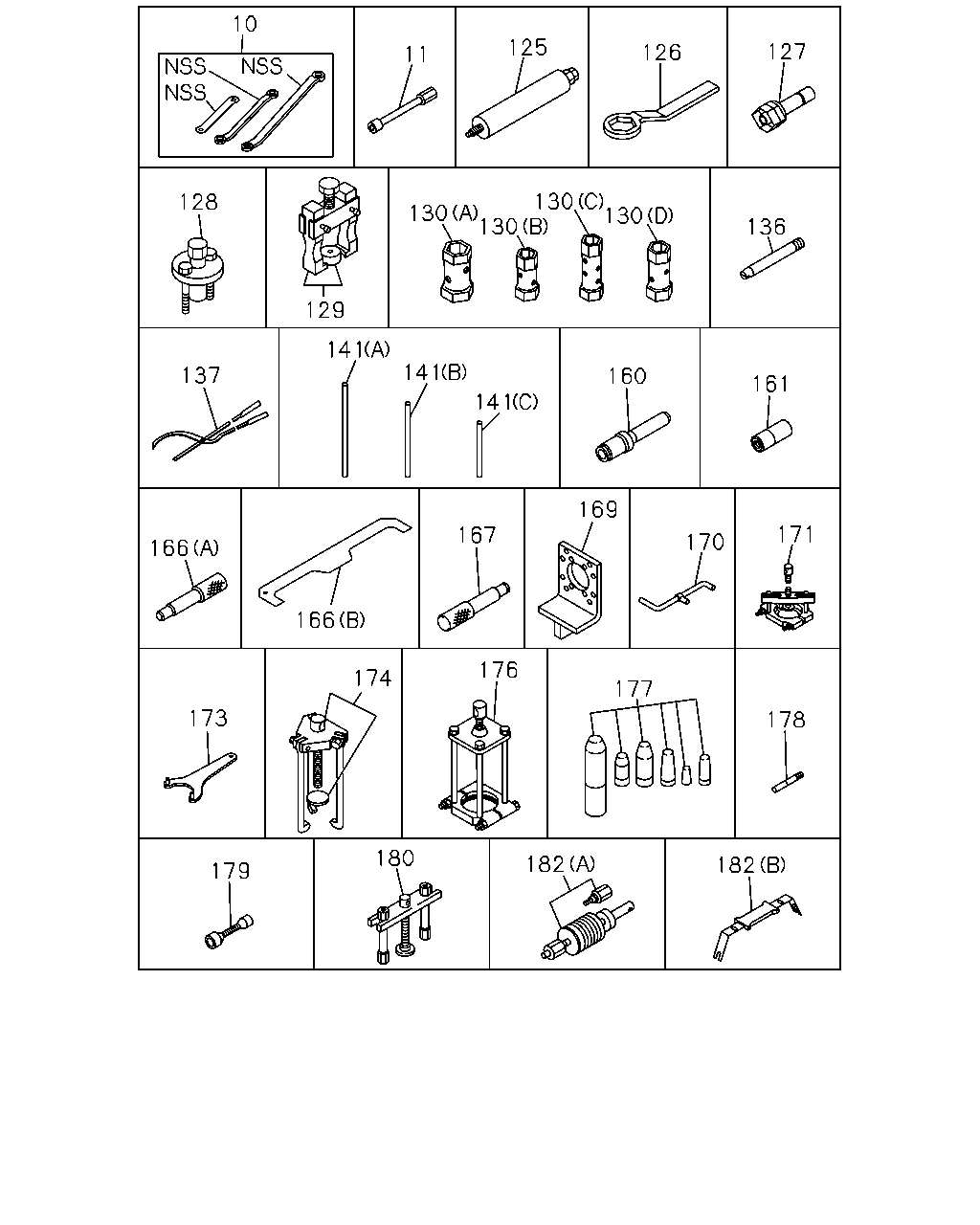

10 125 127 126 11 130 130 130 128 130 136 129 141 141 137 160 161 141 169 171 167 170 166 166 176 174 177 173 178 180 182 182 179

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	WRENCH KIT; BRK ADJ 14X17,24X27,36X27	9-85110-013-0	01	1	9101-	●	●
11	SOCKET; FLEX PLATE MT643 A/T ALLISON(PR7)	1-85115-017-0	01	1	9101-9504	●	●
125	PULLER ASM; KING PIN L=360	9-85210-151-0	01	1	9101-0203	●	●
126	WRENCH; FRT HUB BRG NUT L=257 B=63	9-85111-373-0	01	1	9101-0203	●	●
127	WRENCH ASM; HUB BRG NUT B=98 L=305	9-85113-533-2	01	1	9101-	●	●
128	PULLER ASM; STRG WHEEL	9-85210-099-0	01	1	9101-	●	●
129	PULLER ASM; PITMAN ARM	1-85210-011-0	01	1	9101-9504	●	●
129	PULLER ASM; PITMAN ARM BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-85210-011-0	01	1	9101-9504	●	●
129	PULLER ASM; PITMAN ARM	1-85210-011-0	02	1	9505-	●	●
130	WRENCH; BOX (D) A=46 B=54 L=165	9-85112-320-0	01	1	9101-0203	●	●
130	WRENCH; BOX (A) A=32 B=41 L=150	9-85112-322-0	01	1	9101-0203	●	●
130	WRENCH; BOX (B) A=36 B=41 L=200	9-85112-330-0	01	1	9101-0203	●	●
130	WRENCH; BOX (C) A=41 B=46 L=165	9-85113-401-0	01	1	9101-0203	●	●
136	TOOL; PILOT,A/T MT643 A/T ALLISON(PR7) L=120	1-85221-021-0	01	1	9101-9504	●	●
136	TOOL; PILOT,A/T MT643 A/T ALLISON(PR7) L=75	1-85221-022-0	01	1	9101-9504	●	●
137	PLIER; SHOE,RETURN SPRING	9-85220-026-0	01	1	9101-0203	●	●
141	HANDLE; WRENCH (A) OD=25 L=480	1-85116-011-0	01	1	9101-1501	●	●
141	HANDLE; WRENCH (A) OD=25 L=480	8-98257-407-0	01	1	1502-	●	●
141	HANDLE; WRENCH (C) HANDLE OD=19 L=400	9-85114-306-0	01	1	9101-0203	●	●
141	HANDLE; WRENCH (B) OD=16 L=300	9-85114-307-0	01	1	9101-0203	●	●
160	REMOVER; NEEDLE BRG L=228	1-85238-010-0	01	1	9101-	●	●
161	REMOVER; TIE ROD ARM	9-85141-603-0	01	1	9101-0203	●	●
166	ALIGNER; CLU RELEASE LEVER (A) L=185	1-85253-008-0	01	1	9101-9609	●	●
166	ALIGNER; CLU RELEASE LEVER (B) L=480 C=6	1-85253-023-0	01	1	9610-	●	●
166	ALIGNER; CLU RELEASE LEVER (B) L=480 C=9	1-85253-011-0	01	1	9101-9609	●	●
167	ALIGNER; CLU PILOT L=185	1-85253-008-0	01	1	9610-	●	●
169	BRACKET; SPLINE YOKE	9-85221-243-1	01	1	9101-0203	●	●
170	HANDLE; TURNING,FINAL	9-85251-121-0	01	1	9101-0203	●	●
171	PULLER ASM; PINION BRG	9-85210-152-0	01	1	9101-	●	●
173	WRENCH; COUPLING DRIVER	9-85111-942-0	01	1	9101-0203	●	●
174	PULLER ASM; MAIN CLU SHAFT	9-85210-148-0	01	1	9101-	●	●
176	PULLER ASM; COUNTER SHAFT MAIN	9-85210-169-0	01	1	9101-	●	●
177	SETTING TOOL KIT	9-85220-040-0	01	1	9101-0203	●	●
178	BAR; TRANS GUIDE	9-85291-203-0	01	1	9101-	●	●
179	PULLER; SPD METER GEAR	9-85210-181-0	01	1	9101-0203	●	●
180	PULLER; FRT & RR HUB	1-85210-002-0	01	1	9101-	●	●
182	REMOVER ASM (A)	9-85210-095-0	01	1	9101-0203	●	●
182	REMOVER ASM (B) NYLON TUBE	1-85239-008-0	01	1	9507-	●	●

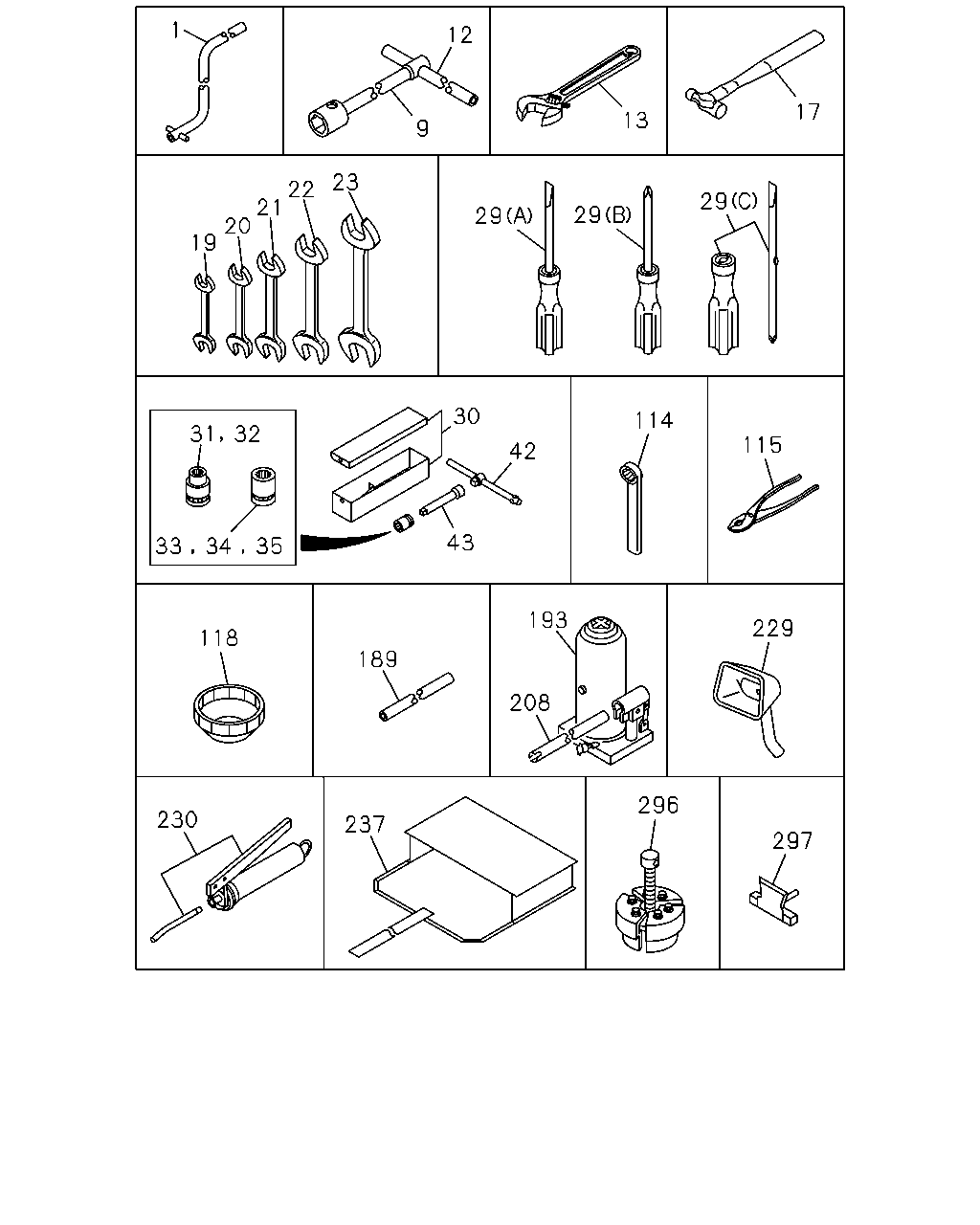

1 12 17 13 9 23 22 21 20 19 29 29 29 30 114 31 32 115 42 43 33 34 35 193 229 118 189 208 296 230 237 297

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER FRAME SIDE(P13),SPARE TIRE CARRIER LIFTING TYPE(SY8)	9-23110-018-0	01	1	9101-9504	●	●
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER(SFB)	9-23110-018-0	01	1	9505-9509	●	●
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER(SFB) EXC. BUS BODY MAKER FUJIJUKO<Y07>	9-23110-018-0	01	1	9510-0203	●	●
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER(SFB)	9-23110-018-0	01	1	0204-	●	●
9	WRENCH; WHEEL PIN B=41X21 L=440	1-85113-015-1	01	1	9505-9805	●	●
9	WRENCH; WHEEL PIN EXC. INTERNATIONAL STD ISO<B3V>,TOOL KIT DELETE(V68) B=41X21 L=440	1-85113-015-1	01	1	9806-1601	●	●
9	WRENCH; WHEEL PIN EXC. INTERNATIONAL STD ISO<B3V>,TOOL KIT DELETE(V68) B=41X21 L=445	8-98316-703-0	01	1	1602-	●	●
9	WRENCH; WHEEL PIN INTERNATIONAL STD ISO<B3V> EXC. TOOL KIT DELETE(V68) B=33X30 L=450	1-85111-033-1	01	1	9806-1601	●	●
9	WRENCH; WHEEL PIN INTERNATIONAL STD ISO<B3V> EXC. TOOL KIT DELETE(V68) B=33X30 L=450	8-98316-700-0	01	1	1602-	●	●
12	HANDLE; WRENCH,WHEEL PIN EXC. TOOL KIT DELETE(V68) OD=25 L=480	1-85116-011-0	01	1	9505-0203	●	●
12	HANDLE; WRENCH,WHEEL PIN EXC. TOOL KIT DELETE(V68) OD=25 L=480	1-85116-011-0	01	1	0204-1501	●	●
12	HANDLE; WRENCH,WHEEL PIN EXC. TOOL KIT DELETE(V68) OD=25 L=480	8-98257-407-0	01	1	1502-	●	●
13	WRENCH; MONKEY EXC. TOOL A KIT(SK9)	1-85117-003-1	01	1	9101-9304	●	●
13	WRENCH; MONKEY EXC. TOOL A KIT(SK9) L=255	1-85117-002-1	01	1	9305-9504	●	●
13	WRENCH; MONKEY EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) L=255	1-85117-002-1	01	1	9505-0907	●	●
13	WRENCH; MONKEY EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) L=247	1-85117-006-0	01	1	0908-1407	●	●
13	WRENCH; MONKEY EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) L=255	8-98270-303-0	01	1	1408-	●	●
17	HAMMER EXC. TOOL A KIT(SK9) L=310	9-85121-406-0	01	1	9101-9504	●	●
17	HAMMER EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) L=310	9-85121-406-0	01	1	9505-	●	●
19	WRENCH; 7X8 EXC. TOOL A KIT(SK9) 7X8	9-09592-107-0	01	1	9101-9504	●	●
19	WRENCH; 7X8 EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) 7X8	9-09592-107-0	01	1	9505-	●	●
20	WRENCH; 10X12 EXC. TOOL A KIT(SK9) 10X12	9-09592-110-0	01	1	9101-9504	●	●
20	WRENCH; 10X12 EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) 10X12	9-09592-110-0	01	1	9505-0607	●	●
20	WRENCH; 10X12 EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) 10X12	0-95902-510-0	01	1	0608-	●	●
21	WRENCH; 14X17 EXC. TOOL A KIT(SK9) 14X17	9-09592-114-0	01	1	9101-9504	●	●
21	WRENCH; 14X17 EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) 14X17	9-09592-114-0	01	1	9505-0607	●	●
21	WRENCH; 14X17 EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) 14X17	0-95902-514-0	01	1	0608-	●	●
22	WRENCH; 19X22 EXC. TOOL A KIT(SK9) 19X22	9-99592-119-0	01	1	9101-9504	●	●
22	WRENCH; 19X22 EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) 19X22	9-99592-119-0	01	1	9505-0607	●	●
22	WRENCH; 19X22 EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) 19X22	0-95902-519-0	01	1	0608-	●	●
23	WRENCH; 24X27 EXC. TOOL A KIT(SK9) 24X27	9-09592-124-0	01	1	9101-9504	●	●
23	WRENCH; 24X27 EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) 24X27	9-09592-124-0	01	1	9505-0607	●	●
23	WRENCH; 24X27 EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) 24X27	0-95902-524-0	01	1	0608-	●	●
29	DRIVER; SCREW EXC. TOOL A KIT(SK9) (C) <+>,<-> L=160	8-94242-798-1	01	1	9101-9504	●	●
29	DRIVER; SCREW EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) (C) <+>,<-> L=160	8-94242-798-1	01	1	9505-	●	●
29	DRIVER; SCREW EXC. TOOL A KIT(SK9) (B) <+> L=270	9-09595-523-0	01	1	9101-9504	●	●
29	DRIVER; SCREW EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) (B) <+> L=270	9-09595-523-0	01	1	9505-	●	●
29	DRIVER; SCREW EXC. TOOL A KIT(SK9) (A) <-> L=320	9-09595-729-0	01	1	9101-9504	●	●
29	DRIVER; SCREW EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) (A) <-> L=320	9-09595-729-0	01	1	9505-	●	●
30	BOX; SOCKET WRENCH EXC. TOOL A KIT(SK9)	9-85581-260-0	01	1	9101-9503	●	●
31	WRENCH; 12 EXC. TOOL A KIT(SK9)	9-09590-012-0	01	1	9101-9503	●	●
32	WRENCH; 14 EXC. TOOL A KIT(SK9)	9-09590-014-0	01	1	9101-9503	●	●
33	WRENCH; 17 EXC. TOOL A KIT(SK9)	9-09590-017-0	01	1	9101-9503	●	●
34	WRENCH; 19 EXC. TOOL A KIT(SK9)	9-09590-019-0	01	1	9101-9503	●	●
35	WRENCH; 22 EXC. TOOL A KIT(SK9)	9-09590-022-0	01	1	9101-9503	●	●
42	HANDLE; SLIDING EXC. TOOL A KIT(SK9)	9-09590-512-0	01	1	9101-9503	●	●
43	BAR; EXTENSION,SOCKET WRENCH EXC. TOOL A KIT(SK9)	9-09590-812-0	01	1	9101-9503	●	●
114	WRENCH; INJ PUMP 6HE1 TCC ENG(76L)	1-85112-002-0	01	1	9703-9709	●	●
114	WRENCH; INJ PUMP 6HE1 TC ENG(57L),6HE1 TCC ENG(76L)	1-85112-002-0	01	1	9710-	●	●
115	PLIER EXC. TOOL A KIT(SK9)	5-85171-001-0	01	1	9101-9504	●	●
115	PLIER EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68)	5-85171-001-0	01	1	9505-0212	●	●
115	PLIER EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68)	5-85171-002-0	01	1	0301-1410	●	●
115	PLIER EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68)	8-98282-845-0	01	1	1411-	●	●
118	WRENCH; OIL FILTER	1-85221-097-0	01	1	9505-0203	●	●
189	TUBE; AIR BREATHER EXC. TOOL A KIT(SK9) L=460	9-85291-414-0	01	1	9101-9504	●	●
189	TUBE; AIR BREATHER EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68) L=460	9-85291-414-0	01	1	9505-	●	●
193	JACK ASM 10TON	1-85510-013-0	01	1	9101-9504	●	●
193	JACK ASM EXC. TOOL KIT DELETE(V68) 10TON	1-85510-013-1	01	1	9505-0504	●	●
193	JACK ASM EXC. TOOL KIT DELETE(V68) 10TON	8-97607-599-0	01	1	0505-	●	●
208	HANDLE; JACK L=680	1-85515-004-0	01	1	9101-9405	●	●
208	HANDLE; JACK L=600	1-85515-008-0	01	1	9406-9504	●	●
208	HANDLE; JACK EXC. TOOL KIT DELETE(V68) L=600	1-85515-008-0	01	1	9505-0105	●	●
208	HANDLE; JACK EXC. TOOL KIT DELETE(V68) L=600	1-85515-009-0	01	1	0106-1107	●	●
208	HANDLE; JACK EXC. TOOL KIT DELETE(V68) L=600	8-98181-437-0	01	1	1108-	●	●
229	FUNNEL; RAD EXC. TOOL A KIT(SK9)	9-85531-110-0	01	1	9101-9504	●	●
229	FUNNEL; RAD INTERNATIONAL STD ISO<B3V> EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68)	9-85531-110-1	01	1	9505-	●	●
230	PUMP; GREASE EXC. TOOL A KIT(SK9)	1-85556-007-2	01	1	9101-9504	●	●
230	PUMP; GREASE EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68)	1-85556-007-5	01	1	9505-	●	●
237	BAG; TOOL EXC. TOOL A KIT(SK9)	8-94367-102-0	01	1	9101-9504	●	●
237	BAG; TOOL EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68)	8-94367-102-0	01	1	9505-9509	●	●
237	BAG; TOOL EXC. TOOL A KIT(SK9),TOOL KIT DELETE(V68)	8-97130-902-1	01	1	9510-	●	●
296	REPLACER; SLINGER	8-94396-858-0	01	1	9505-0203	●	●
297	CUTTER; SEAL,OIL PAN	8-94393-112-0	01	1	9505-0203	●	●

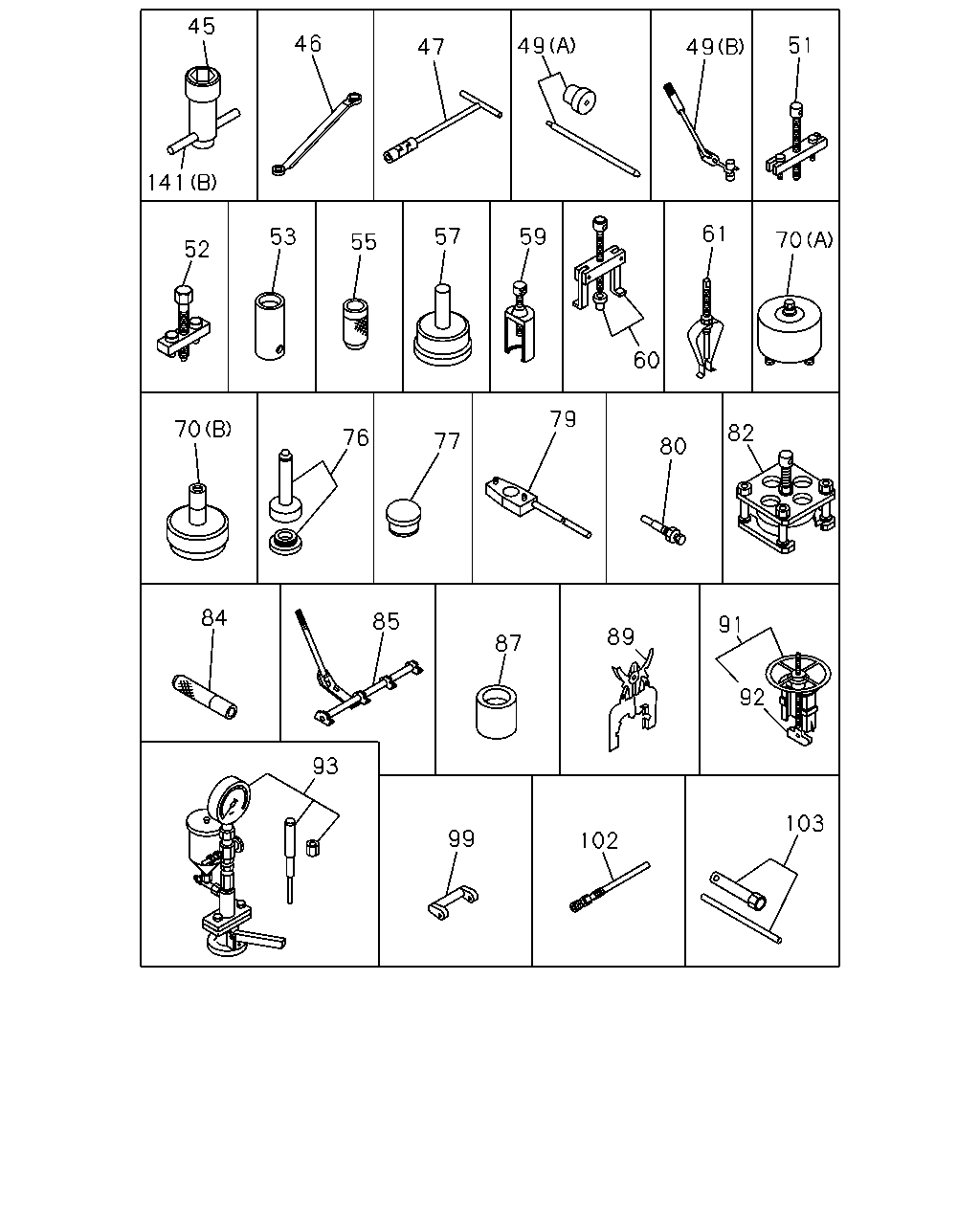

45 46 51 49 47 49 141 61 59 53 57 70 55 52 60 79 70 82 76 77 80 84 85 91 89 87 92 93 103 99 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
45	WRENCH; FRT NUT STAMP 54	1-85111-001-0	01	1	9101-9504	●	●
46	WRENCH; OFFSET,INJ PUMP 6BD1 STD ENG(L21) STAMP 17	1-85112-001-0	01	1	9101-9504	●	●
47	WRENCH ASM; UNIVERSAL,INJ PUMP	9-85113-702-0	01	1	9101-9504	●	●
49	REPLACER ASM; VALVE (A)	9-85231-818-0	01	1	9101-9504	●	●
49	REPLACER ASM; VALVE 6BD1 STD ENG(L21),6BD1 TC ENG(L29) (B)	1-85235-006-0	01	1	9101-9504	●	●
51	PULLER ASM; WATER PUMP	9-85210-120-0	01	1	9101-9504	●	●
52	REMOVER; WATER PUMP	9-85210-097-0	01	1	9101-9504	●	●
53	PULLER; TAPER BUSHING BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=185	1-85210-052-0	01	1	9101-9504	●	●
53	PULLER; TAPER BUSHING EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=127	9-85210-122-0	01	1	9101-9504	●	●
55	SETTING TOOL; TIMING GEAR	9-85220-033-0	01	1	9101-9504	●	●
57	TOOL; SETTING CRANK GEAR ID=134.5	8-94396-819-0	01	1	9505-0203	●	●
59	PULLER ASM; TIMING GEAR	9-85210-141-0	01	1	9101-9504	●	●
60	PULLER; TIMING GEAR	9-85210-505-0	01	1	9101-9504	●	●
61	PULLER ASM; PILOT BRG	9-85210-157-0	01	1	9505-0203	●	●
70	TOOL; SETTING,OIL SEAL (A)	5-85220-044-0	01	1	9101-9504	●	●
70	TOOL; SETTING,OIL SEAL (B)	8-94396-856-0	01	1	9505-0203	●	●
76	TOOL; SETTING,SEAL	9-85220-034-0	01	1	9101-9504	●	●
77	TOOL; SETTING,CYL LINER 6BD1 STD ENG(L21),6BD1 TC ENG(L29) OD=111	9-85232-554-0	01	1	9101-9504	●	●
77	TOOL; SETTING,CYL LINER 6BG1 STD ENG(16L) OD=115	5-85221-018-0	01	1	9101-9504	●	●
77	TOOL; SETTING,CYL LINER 6HE1 TCC ENG(76L)	8-94396-816-0	01	1	9703-9709	●	●
77	TOOL; SETTING,CYL LINER 6HE1 TC ENG(57L),6HE1 TCC ENG(76L)	8-94396-816-0	01	1	9710-	●	●
79	RETAINER; AUTO TIMER	9-85111-930-0	01	1	9101-9504	●	●
80	PULLER ASM; AUTO TIMER	9-85210-154-0	01	1	9101-9504	●	●
82	PULLER ASM; CR/SHF GEAR	8-94396-818-0	01	1	9505-0203	●	●
84	REPLACER; VALVE SEAL OD=21 L=105	1-85221-005-0	01	1	9101-9504	●	●
84	REPLACER; VALVE SEAL OD=24 L=130	8-94396-815-0	01	1	9505-	●	●
85	REPLACER ASM; VALVE SPR	8-94396-861-0	01	1	9505-0203	●	●
87	TOOL; PISTON 6BD1 STD ENG(L21),6BD1 TC ENG(L29) OD=116 L=100	9-85221-172-0	01	1	9101-9504	●	●
87	TOOL; PISTON 6BG1 STD ENG(16L) OD=119 L=100	9-85221-173-0	01	1	9101-9504	●	●
89	TOOL; PISTON RING	1-85221-029-0	01	1	9505-0203	●	●
91	REPLACER ASM; CYL LINER	8-94396-849-0	01	1	9505-	●	●
91	REPLACER ASM; CYL LINER 6BD1 STD ENG(L21),6BD1 TC ENG(L29) OR	1-85231-002-0	01	1	9101-9504	●	●
91	REPLACER ASM; CYL LINER 6BD1 STD ENG(L21),6BD1 TC ENG(L29) OR	1-85231-003-0	01	1	9101-9504	●	●
91	REPLACER ASM; CYL LINER 6BD1 STD ENG(L21),6BD1 TC ENG(L29) OR	9-85232-555-0	01	1	9101-9504	●	●
91	REPLACER ASM; CYL LINER 6BG1 STD ENG(16L)	5-85231-005-0	01	1	9101-9504	●	●
92	ANKLE; REPLACER,CYL LINER 6BD1 STD ENG(L21),6BD1 TC ENG(L29) OD=104.5	9-85232-557-0	03	1	9101-9504	●	●
92	ANKLE; REPLACER,CYL LINER OD=112.7	8-94396-821-0	01	1	9505-	●	●
92	ANKLE; REPLACER,CYL LINER 6BG1 STD ENG(16L) OD=106.7	5-85231-004-0	01	1	9101-9504	●	●
93	SETTING KIT; VALVE GUIDE 6BD1 STD ENG(L21),6BD1 TC ENG(L29)	1-85220-001-0	01	1	9101-9504	●	●
93	SETTING KIT; VALVE GUIDE	1-85220-001-0	01	1	9505-	●	●
99	WRENCH; CYL HD BOLT 6BD1 STD ENG(L21),6BD1 TC ENG(L29)	1-85111-003-0	01	1	9101-9504	●	●
102	ADAPTER; COMP GAGE 6BD1 STD ENG(L21),6BD1 TC ENG(L29)	5-85317-001-0	01	1	9101-9504	●	●
103	SPANNER; BOX,OIL PRESSURE 6BD1 STD ENG(L21),6BD1 TC ENG(L29)	9-85163-102-0	01	1	9101-9504	●	●
141	HANDLE; WRENCH (A) OD=25 L=480	1-85116-011-0	01	1	9101-1501	●	●
141	HANDLE; WRENCH (A) OD=25 L=480	8-98257-407-0	01	1	1502-	●	●
141	HANDLE; WRENCH (C) HANDLE OD=19 L=400	9-85114-306-0	01	1	9101-0203	●	●
141	HANDLE; WRENCH (B) OD=16 L=300	9-85114-307-0	01	1	9101-0203	●	●
