0-60B — ENGINE ELECTRICAL CONTROL PARTS (#451) — 53 parça

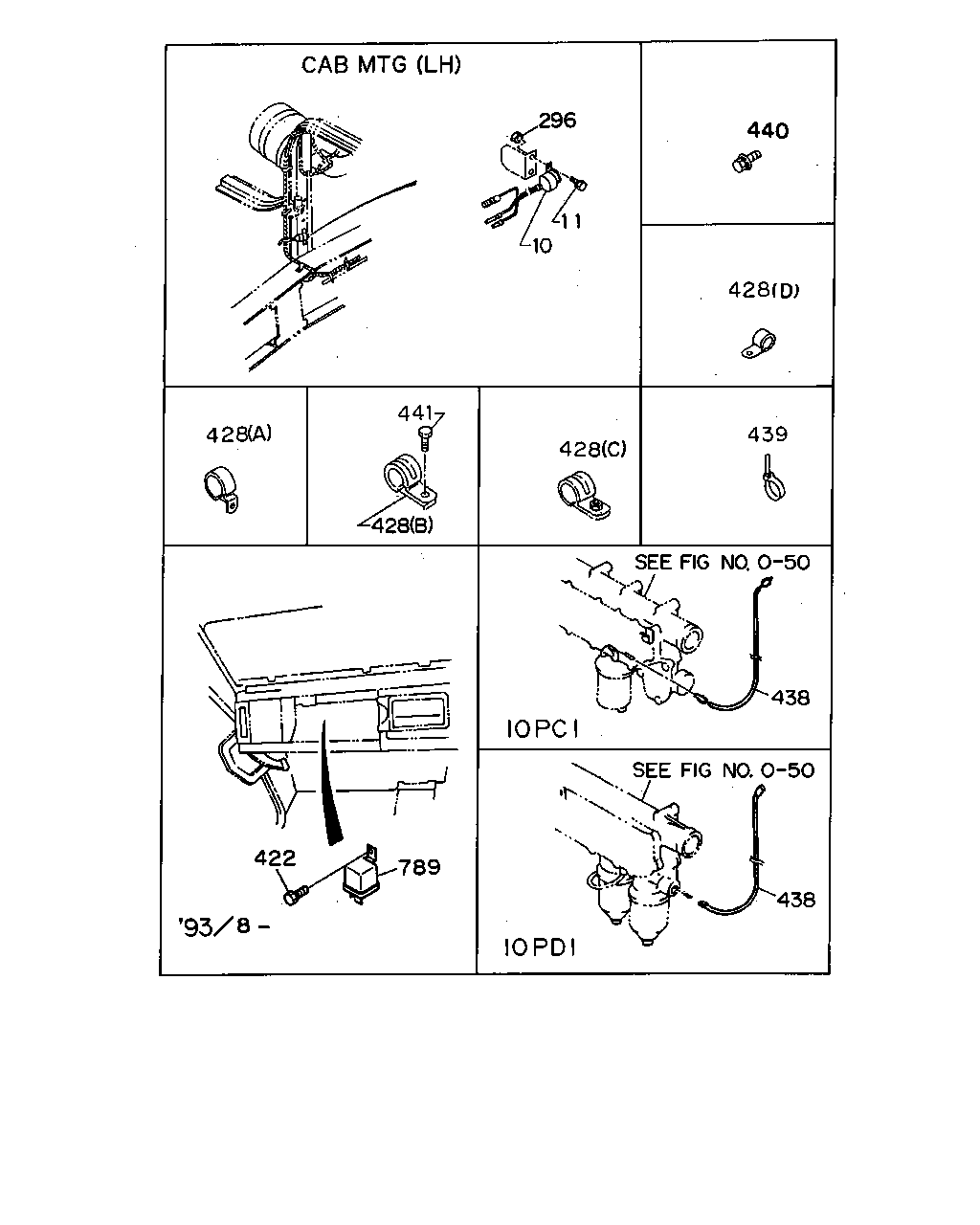

296 10 11 440 428 439 428 441 428 428 422 789 438 438

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	RELAY; STARTER NIKKO	1-81171-034-1	01	1	8712-9001	●
10	RELAY; STARTER	1-81171-060-0	01	1	9002-9103		●
10	RELAY; STARTER NIKKO	1-81171-071-0	01	1	9104-		●
11	BOLT; RELAY STARTER M8X25 W/LK WASHER	9-01900-825-0	02	1	8712-9204	●	●
11	BOLT; RELAY STARTER M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302		●
11	BOLT; RELAY STARTER M8X25 FLANGE	0-28080-825-0	02	1	9303-		●
296	NUT; RELAY,STARTER M8	9-09110-408-0	02	1	8712-	●	●
422	SCREW; RELAY M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9308-		●
428	CLIP; HARNESS (A) ID=27 L=24 H=23	1-09700-401-0	01	1	9002-		●
428	CLIP; HARNESS (B) ID=27 L=32	1-09700-884-0	01	1	9002-		●
428	CLIP; HARNESS (D) ID=27 L=32	1-09700-712-1	01	1	9202-9402		●
428	CLIP; HARNESS (D) ID=27 L=32	1-09700-712-1	01	1	9403-		●
428	CLIP; HARNESS AUTO CAB TILT<WV2> (C) ID=35 L=35 W/NUT	1-09700-727-0	01	1	9002-		●
428	CLIP; HARNESS EXC. AUTO CAB TILT<WV2> (D) ID=27 L=32	1-09700-712-0	01	1	9002-9011		●
428	CLIP; HARNESS (D) ID=27 L=32	1-09700-712-0	02	1	9012-9201		●
438	CABLE; OIL FILTER SW	1-82657-042-0	01	1	8712-9306	●	●
438	CABLE; OIL FILTER SW	1-82657-062-0	01	1	9307-		●
439	CLIP; BAND AXLE HARNESS RR L=250	5-09707-030-0	01	1	9002-		●
440	BOLT; CAB GROMMET M6X18 W/LK WASHER	9-01900-618-0	02	1	9002-9204		●
440	BOLT; CAB GROMMET M6X18 W/LK WASHER	0-50040-618-0	02	1	9205-9302		●
440	BOLT; CAB GROMMET M6X20 FLANGE	0-28080-620-0	02	1	9303-		●
441	BOLT; HARNESS TO FRAME M6X22 W/LK&PL WASHER	8-94122-770-0	01	1	9309-		●
441	BOLT; HARNESS TO FRAME M6X22 FLANGE	0-28210-622-0	01	1	9002-9011		●
441	BOLT; HARNESS TO FRAME M6X22 FLANGE	0-28210-622-0	02	1	9012-9204		●
441	BOLT; HARNESS TO FRAME M6X22	0-28280-622-0	02	1	9205-		●
789	RELAY; ENG STOP BLACK	5-82550-030-0	01	1	9308-		●

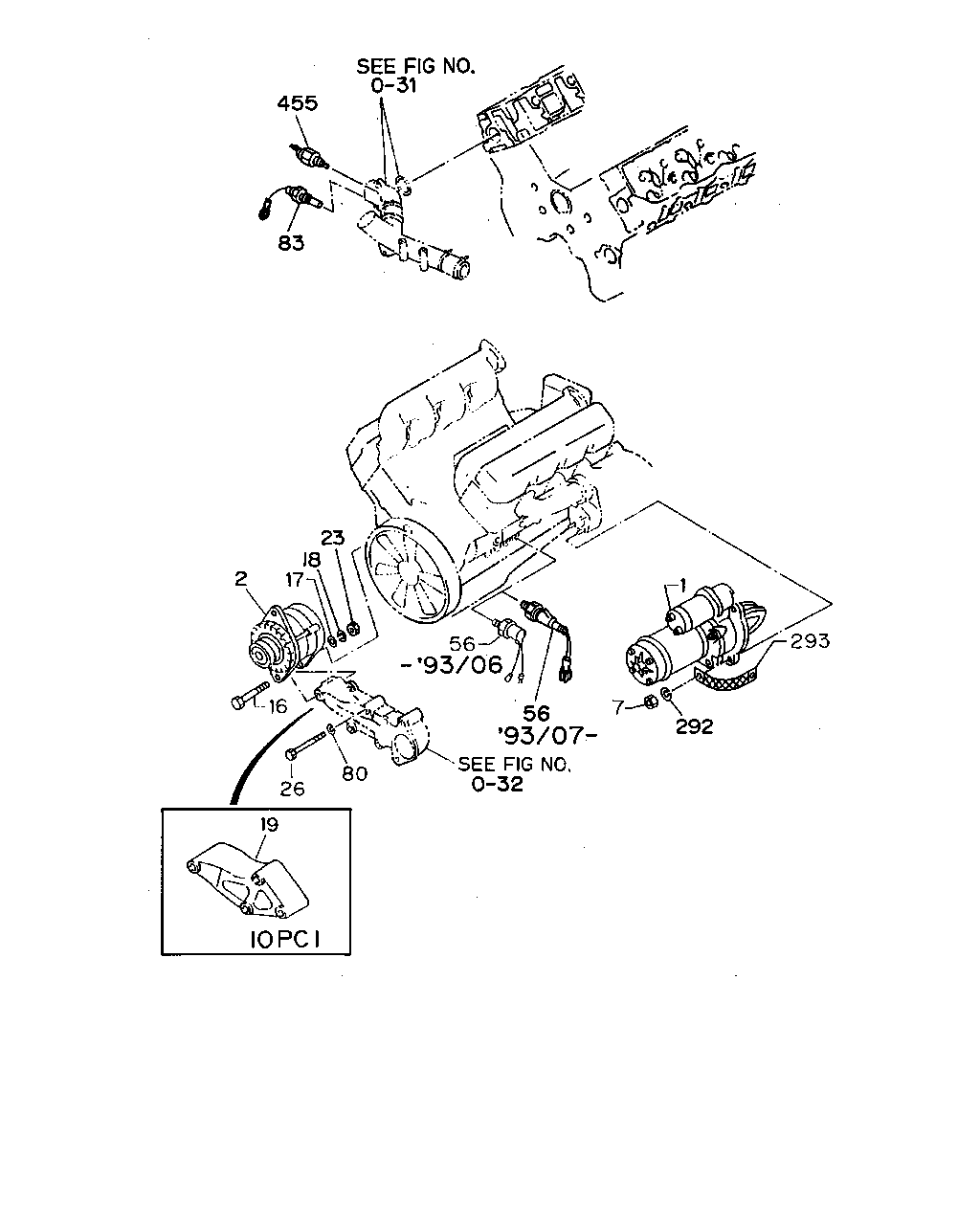

455 83 23 18 2 17 16 26 80 19 56 56 7 292 293 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 7.4KW NIKKO	1-81100-216-1	01	1	8712-9001	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 7.4KW NIKKO	1-81100-275-1	01	1	9002-		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-40A 1KW(SC5) 24V 40A NIKKO	1-81200-249-3	01	1	8712-9001	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO	1-81200-420-2	01	1	9002-		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR NIKKO 24V-25A 600W(SB9) 24V25A	1-81200-359-0	01	1	8712-9001	●
7	NUT; STARTER M14	9-99110-414-0	03	1	8712-9001	●
7	NUT; STARTER M14 FLANGE	0-91150-114-0	03	1	9002-		●
16	BOLT; GEN M14X123	9-09801-204-1	01	1	8712-	●	●
17	WASHER; PL,GEN ID=15	9-09160-514-0	01	1	8712-9306	●	●
17	WASHER; PL,GEN ID=15	9-09160-514-0	01	1	9307-		●
18	WASHER; LK,GEN ID=14.2	9-09150-514-0	01	1	8712-9001	●
19	BRACKET; GEN	1-19711-024-1	01	1	8712-9001	●
23	NUT; GEN M14	9-99110-414-0	01	1	8712-9001	●
23	NUT; GEN M14 FLANGE	0-91150-114-0	01	1	9002-		●
26	BOLT; GEN BRKT M10X125	9-09804-207-0	03	1	8712-9001	●
26	BOLT; GEN BRKT M10X70	9-01666-070-0	01	1	9002-		●
56	SWITCH; OIL PRESSURE WARNING PT1/4	1-82410-094-0	01	1	8712-9306	●	●
56	SWITCH; OIL PRESSURE WARNING	1-82410-138-0	01	1	9307-9502		●
56	SWITCH; OIL PRESSURE WARNING	1-82410-163-0	01	1	9503-		●
80	WASHER; LK,DUCT & BRKT ID=10.2	9-09150-610-0	03	1	8712-	●	●
83	THERMOMETER UNIT	1-83161-019-1	01	1	8712-9306	●	●
83	THERMOMETER UNIT	1-83161-031-1	01	1	9307-		●
292	WASHER; LK,STARTER ID=14.2	9-09150-514-0	03	1	8712-9001	●
293	CABLE; STARTER EARTH L=650	1-82650-118-0	01	1	8712-9001	●
293	CABLE; STARTER EARTH L=350	1-82650-026-0	01	1	9002-9012		●
293	CABLE; STARTER EARTH L=350	1-82650-235-0	01	1	9101-		●
455	SWITCH; ENG OVER HEAT,WATER	1-82450-013-0	01	1	8712-	●	●
