◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50947 - NPR/NQR LHDEXC.EURO4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-02 - PROPELLER SHAFT GUARD ▶
4-02 — PROPELLER SHAFT GUARD (#45096) — 18 parça

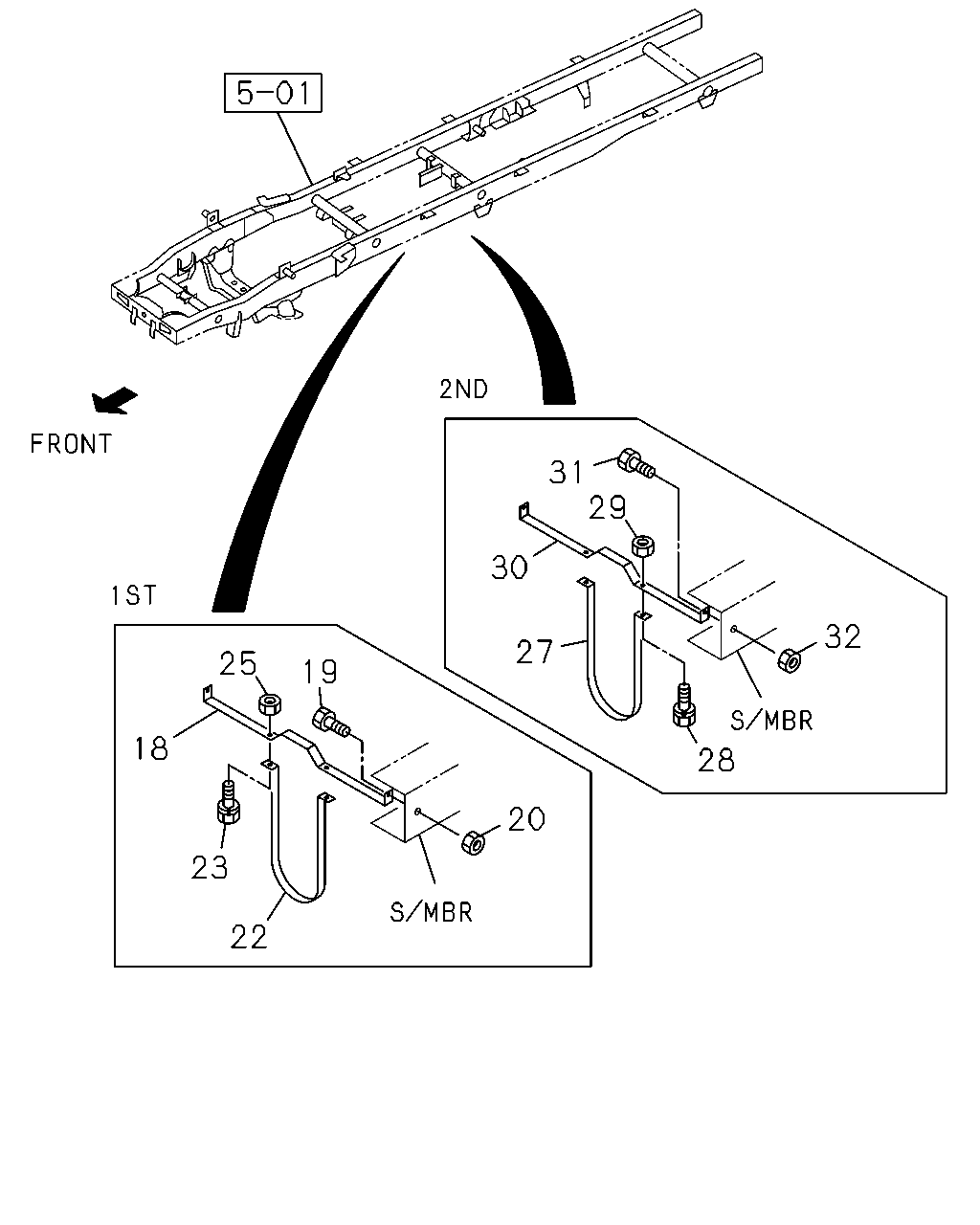

çizim 55373
31 29 30 32 27 25 19 18 28 20 23 22
BalonParca AdiParca NoAdetTipApplied Date A B
18 05.546 BRACKET; PROP SHAFT GUARD
GUARD PROP SHAFT<7NK> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97081-627-0 01 1 0211-0501 ●
18 05.546 BRACKET; PROP SHAFT GUARD
FRAME STRAIGHT TYPE<7KJ> GUARD PROP SHAFT<7NK> 		8-97109-379-1 02 1 0211-0501 ● ●
18 05.546 BRACKET; PROP SHAFT GUARD
GUARD PROP SHAFT<7NK> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94406-963-2 01 1 0211-0501 ●
19 05.546 BOLT; BRKT,PROP SHAFT GUARD
GUARD PROP SHAFT<7NK> 03.405 M10X30 FLANGE 		0-28681-030-0 02 1 0211-0501 ●
19 05.546 BOLT; BRKT,PROP SHAFT GUARD
FRAME STRAIGHT TYPE<7KJ> GUARD PROP SHAFT<7NK> 03.405 M10X30 FLANGE 		0-28681-030-0 02 1 0211-0501 ●
19 05.546 BOLT; BRKT,PROP SHAFT GUARD
GUARD PROP SHAFT<7NK> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10X35 FLANGE 		0-28681-035-0 02 1 0211-0501 ●
20 05.546 NUT; BRKT,PROP SHAFT GUARD
GUARD PROP SHAFT<7NK> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0211-0501 ● ●
22 05.546 GUARD; PROP SHAFT
FRAME STRAIGHT TYPE<7KJ> GUARD PROP SHAFT<7NK> L=160 		5-53493-064-1 01 1 0211-0501 ● ●
22 05.546 GUARD; PROP SHAFT
GUARD PROP SHAFT<7NK> EXC. FRAME STRAIGHT TYPE<7KJ> L=170 		8-94116-994-1 01 1 0211-0501 ● ●
23 05.546 BOLT; GUARD
GUARD PROP SHAFT<7NK> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0211-0501 ● ●
25 05.546 NUT; GUARD
GUARD PROP SHAFT<7NK> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0501 ● ●
27 05.546 GUARD; PROP SHAFT,2ND
FRAME STRAIGHT TYPE<7KJ> GUARD PROP SHAFT<7NK> L=240 		8-97081-592-0 01 1 0211-0501 ● ●
27 05.546 GUARD; PROP SHAFT,2ND
GUARD PROP SHAFT<7NK> EXC. FRAME STRAIGHT TYPE<7KJ> L=227 		8-94116-995-1 01 1 0211-0501 ● ●
28 05.546 BOLT; GUARD,PROP SHAFT,2ND
GUARD PROP SHAFT<7NK> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0211-0501 ● ●
29 05.546 NUT; GUARD,PROP SHAFT,2ND
GUARD PROP SHAFT<7NK> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0501 ● ●
30 05.546 BRACKET; PROP SHAFT,2ND
GUARD PROP SHAFT<7NK> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97081-627-0 01 1 0211-0501 ● ●
31 05.546 BOLT; BRKT,PROP SHAFT,2ND,GUARD
GUARD PROP SHAFT<7NK> 03.405 M10X30 FLANGE 		0-28681-030-0 02 1 0211-0501 ● ●
32 05.546 NUT; BRKT,PROP SHAFT,2ND,GUARD
GUARD PROP SHAFT<7NK> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0211-0501 ● ●
