◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50947 - NPR/NQR LHDEXC.EURO4 ▶ 3 - Brakes, Brake System ▶ 3-50 - BRAKE PIPING; OIL,MASTER CYLINDER ▶
3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#45090) — 697 parça
çizim 12567
193 22 192 195 194
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
22 04.685 CLIP
HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) ID=11 L=16 		9-09525-025-0 02 1 0211-0212 ● ● ●
22 04.685 CLIP
02.559 (A) ID=11 L=16 		9-09525-025-0 02 1 0211-0212 ●
22 04.685 CLIP
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) ID=11 L=16 		9-09525-025-0 02 1 0301-0501 ● ● ●
22 04.685 CLIP
02.559 (A) ID=11 L=16 		9-09525-025-0 02 1 0301-0501 ●
22 04.685 CLIP
4HE1-TCN ENG(RDR) HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) ID=11 L=16 		9-09525-025-0 02 1 0502-0506 ●
22 04.685 CLIP
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) ID=11 L=16 		9-09525-025-0 02 1 0502-0506 ● ● ●
22 04.685 CLIP
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) ID=11 L=16 		9-09525-025-0 02 1 0507-0606 ● ● ● ●
22 04.685 CLIP
4HE1-TCN ENG(RDR) HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) ID=11 L=16 		9-09525-025-0 02 1 0607-0607 ●
22 04.685 CLIP
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) ID=11 L=16 		9-09525-025-0 02 1 0607-0607 ●
22 04.685 CLIP
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) ID=11 L=16 		9-09525-025-0 02 1 0607-0607 ● ●
22 04.685 CLIP
4HE1-TCN ENG(RDR) HYDRO BRAKE BOOSTER<7QQ> (A) ID=11 L=16 		0-95235-025-0 02 1 0607- ●
22 04.685 CLIP
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) HYDRO BRAKE BOOSTER<7QQ> (A) ID=11 L=16 		0-95235-025-0 02 1 0607- ●
22 04.685 CLIP
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> (A) ID=11 L=16 		0-95235-025-0 02 1 0607- ● ●
22 04.685 CLIP
HYDRO BRAKE BOOSTER<7QQ> 02.343 (D) ID=10 & 16 		8-94413-325-0 01 1 0408-0501 ● ● ●
22 04.685 CLIP
02.343 (D) ID=10 & 16 		8-94413-325-0 01 1 0408-0501 ●
22 04.685 CLIP
HYDRO BRAKE BOOSTER<7QQ> 02.343 (D) ID=10 & 16 		8-94413-325-0 01 1 0502- ● ● ● ●
22 04.685 CLIP
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) ID=19 L=20 		9-09525-836-0 01 1 0211-0501 ● ● ●
22 04.685 CLIP
02.559 (B) ID=19 L=20 		9-09525-836-0 01 1 0211-0501 ●
22 04.685 CLIP
4HE1-TCN ENG(RDR) HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) ID=19 L=20 		9-09525-836-0 01 1 0502-0506 ●
22 04.685 CLIP
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) ID=19 L=20 		9-09525-836-0 01 1 0502-0506 ● ● ●
22 04.685 CLIP
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) ID=19 L=20 		9-09525-836-0 01 1 0507-0606 ● ● ● ●
22 04.685 CLIP
4HE1-TCN ENG(RDR) HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) ID=19 L=20 		9-09525-836-0 01 1 0607-0607 ●
22 04.685 CLIP
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) ID=19 L=20 		9-09525-836-0 01 1 0607-0607 ●
22 04.685 CLIP
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) ID=19 L=20 		9-09525-836-0 01 1 0607-0607 ● ●
22 04.685 CLIP
4HE1-TCN ENG(RDR) HYDRO BRAKE BOOSTER<7QQ> (B) ID=19 L=20 		0-95235-836-0 01 1 0607- ●
22 04.685 CLIP
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) HYDRO BRAKE BOOSTER<7QQ> (B) ID=19 L=20 		0-95235-836-0 01 1 0607- ●
22 04.685 CLIP
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> (B) ID=19 L=20 		0-95235-836-0 01 1 0607- ● ●
22 04.685 CLIP
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 02.559 (C) L=250 		5-09707-030-1 01 1 0211-0212 ● ● ●
22 04.685 CLIP
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 02.559 (C) L=250 		5-09707-030-1 01 1 0211-0212 ● ●
22 04.685 CLIP
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 02.559 (C) L=250 		5-09707-030-1 01 1 0211-0212 ●
22 04.685 CLIP
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 02.559 (C) L=250 		5-09707-030-1 02 1 0301-0501 ● ●
22 04.685 CLIP
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 02.559 (C) L=250 		5-09707-030-1 02 1 0301-0501 ●
22 04.685 CLIP
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> 02.559 (C) L=250 		5-09707-030-1 02 1 0502- ● ● ● ●
22 04.685 CLIP
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 08.846 (B) ID=19 L=32 		9-09525-866-0 01 1 0211-0501 ● ● ●
22 04.685 CLIP
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 02.559 (C) L=250 		5-09707-030-1 01 1 0301-0501 ● ● ●
192 04.685 PIPE; PRESSURE
HYDRO BRAKE BOOSTER<7QQ> 		8-97148-805-2 01 1 0211-0501 ● ● ●
192 04.685 PIPE; PRESSURE 8-97148-805-2 01 1 0211-0501 ●
192 04.685 PIPE; PRESSURE
HYDRO BRAKE BOOSTER<7QQ> 		8-97148-805-2 01 1 0502- ● ● ● ●
193 04.685 PIPE; RETURN
HYDRO BRAKE BOOSTER<7QQ> 		8-97171-016-2 01 1 0211-0501 ● ● ●
193 04.685 PIPE; RETURN 8-97171-016-2 01 1 0211-0501 ●
193 04.685 PIPE; RETURN
HYDRO BRAKE BOOSTER<7QQ> 		8-97171-016-2 01 1 0502- ● ● ● ●
194 04.681 HOSE; CAB TO PIPE
HYDRO BRAKE BOOSTER<7QQ> 		8-97201-847-3 01 1 0211-0501 ● ● ●
194 04.681 HOSE; CAB TO PIPE 8-97201-847-3 01 1 0211-0501 ●
194 04.681 HOSE; CAB TO PIPE
HYDRO BRAKE BOOSTER<7QQ> 		8-97201-847-3 01 1 0502- ● ● ● ●
195 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER<7QQ> 04.686 ID=11-19.5 		8-94426-597-0 01 1 0211-0501 ● ● ●
195 04.681 CLIP; HOSE
04.686 ID=11-19.5 		8-94426-597-0 01 1 0211-0501 ●
195 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER<7QQ> 04.686 ID=11-19.5 		8-94426-597-0 01 1 0502-1005 ● ● ● ●
195 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER<7QQ> ID=11-17 		8-98173-762-1 01 1 1006- ● ● ● ●

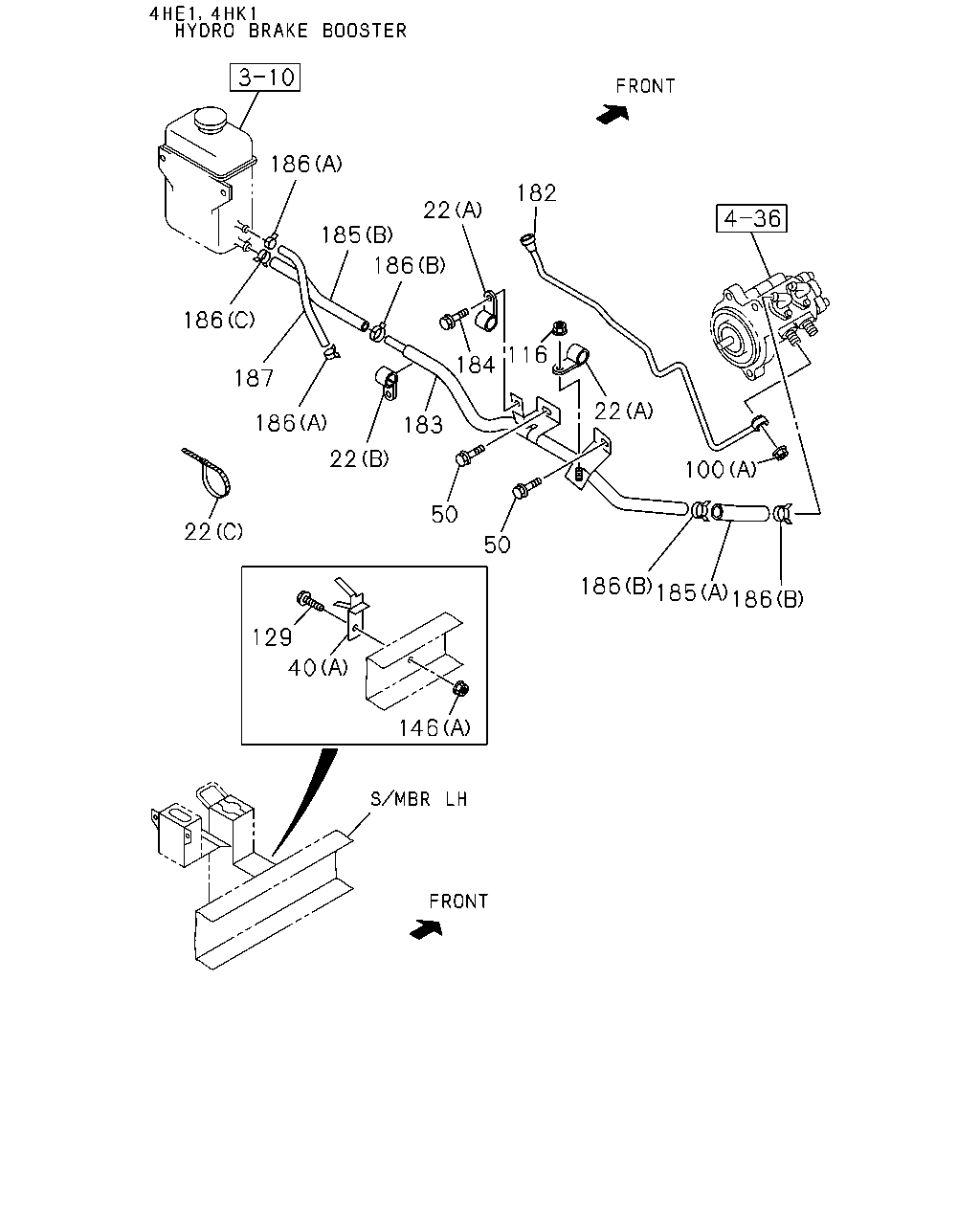

çizim 50730
186 182 22 185 186 186 116 184 187 22 186 183 22 100 50 22 50 186 185 186 129 40 146
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
22 04.685 CLIP
HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) ID=11 L=16 		9-09525-025-0 02 1 0211-0212 ● ● ●
22 04.685 CLIP
02.559 (A) ID=11 L=16 		9-09525-025-0 02 1 0211-0212 ●
22 04.685 CLIP
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) ID=11 L=16 		9-09525-025-0 02 1 0301-0501 ● ● ●
22 04.685 CLIP
02.559 (A) ID=11 L=16 		9-09525-025-0 02 1 0301-0501 ●
22 04.685 CLIP
4HE1-TCN ENG(RDR) HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) ID=11 L=16 		9-09525-025-0 02 1 0502-0506 ●
22 04.685 CLIP
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) ID=11 L=16 		9-09525-025-0 02 1 0502-0506 ● ● ●
22 04.685 CLIP
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) ID=11 L=16 		9-09525-025-0 02 1 0507-0606 ● ● ● ●
22 04.685 CLIP
4HE1-TCN ENG(RDR) HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) ID=11 L=16 		9-09525-025-0 02 1 0607-0607 ●
22 04.685 CLIP
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) ID=11 L=16 		9-09525-025-0 02 1 0607-0607 ●
22 04.685 CLIP
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) ID=11 L=16 		9-09525-025-0 02 1 0607-0607 ● ●
22 04.685 CLIP
4HE1-TCN ENG(RDR) HYDRO BRAKE BOOSTER<7QQ> (A) ID=11 L=16 		0-95235-025-0 02 1 0607- ●
22 04.685 CLIP
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) HYDRO BRAKE BOOSTER<7QQ> (A) ID=11 L=16 		0-95235-025-0 02 1 0607- ●
22 04.685 CLIP
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> (A) ID=11 L=16 		0-95235-025-0 02 1 0607- ● ●
22 04.685 CLIP
HYDRO BRAKE BOOSTER<7QQ> 02.343 (D) ID=10 & 16 		8-94413-325-0 01 1 0408-0501 ● ● ●
22 04.685 CLIP
02.343 (D) ID=10 & 16 		8-94413-325-0 01 1 0408-0501 ●
22 04.685 CLIP
HYDRO BRAKE BOOSTER<7QQ> 02.343 (D) ID=10 & 16 		8-94413-325-0 01 1 0502- ● ● ● ●
22 04.685 CLIP
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) ID=19 L=20 		9-09525-836-0 01 1 0211-0501 ● ● ●
22 04.685 CLIP
02.559 (B) ID=19 L=20 		9-09525-836-0 01 1 0211-0501 ●
22 04.685 CLIP
4HE1-TCN ENG(RDR) HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) ID=19 L=20 		9-09525-836-0 01 1 0502-0506 ●
22 04.685 CLIP
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) ID=19 L=20 		9-09525-836-0 01 1 0502-0506 ● ● ●
22 04.685 CLIP
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) ID=19 L=20 		9-09525-836-0 01 1 0507-0606 ● ● ● ●
22 04.685 CLIP
4HE1-TCN ENG(RDR) HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) ID=19 L=20 		9-09525-836-0 01 1 0607-0607 ●
22 04.685 CLIP
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) ID=19 L=20 		9-09525-836-0 01 1 0607-0607 ●
22 04.685 CLIP
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) ID=19 L=20 		9-09525-836-0 01 1 0607-0607 ● ●
22 04.685 CLIP
4HE1-TCN ENG(RDR) HYDRO BRAKE BOOSTER<7QQ> (B) ID=19 L=20 		0-95235-836-0 01 1 0607- ●
22 04.685 CLIP
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) HYDRO BRAKE BOOSTER<7QQ> (B) ID=19 L=20 		0-95235-836-0 01 1 0607- ●
22 04.685 CLIP
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> (B) ID=19 L=20 		0-95235-836-0 01 1 0607- ● ●
22 04.685 CLIP
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 02.559 (C) L=250 		5-09707-030-1 01 1 0211-0212 ● ● ●
22 04.685 CLIP
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 02.559 (C) L=250 		5-09707-030-1 01 1 0211-0212 ● ●
22 04.685 CLIP
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 02.559 (C) L=250 		5-09707-030-1 01 1 0211-0212 ●
22 04.685 CLIP
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 02.559 (C) L=250 		5-09707-030-1 02 1 0301-0501 ● ●
22 04.685 CLIP
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 02.559 (C) L=250 		5-09707-030-1 02 1 0301-0501 ●
22 04.685 CLIP
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> 02.559 (C) L=250 		5-09707-030-1 02 1 0502- ● ● ● ●
22 04.685 CLIP
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 08.846 (B) ID=19 L=32 		9-09525-866-0 01 1 0211-0501 ● ● ●
22 04.685 CLIP
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 02.559 (C) L=250 		5-09707-030-1 01 1 0301-0501 ● ● ●
40 04.690 BRACKET
4HG1 ENG(RJH),4HF1-S ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> EXC. TURBOCHARGER(K51) (C) 		8-97334-384-0 01 1 0211-0306 ● ●
40 04.690 BRACKET
4HG1 ENG(RJH) HYDRO BRAKE BOOSTER<7QQ> EXC. TURBOCHARGER(K51) (C) 		8-97334-384-0 01 1 0211-0306 ●
40 04.690 BRACKET
4HG1 ENG(RJH),4HF1-S ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> EXC. TURBOCHARGER(K51) (C) 		8-97370-408-0 01 1 0307-0501 ● ●
40 04.690 BRACKET
4HG1 ENG(RJH) HYDRO BRAKE BOOSTER<7QQ> EXC. TURBOCHARGER(K51) (C) 		8-97370-408-0 01 1 0307-0501 ●
40 04.690 BRACKET
4HG1 ENG(RJH),4HF1-S ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> (C) 		8-97370-408-0 01 1 0502- ● ● ● ●
40 04.690 BRACKET
HYDRO MASTER<7LT> (B) 		8-97145-247-1 01 1 0211-0501 ● ● ●
40 04.690 BRACKET
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97188-262-0 01 1 0211-0501 ● ● ●
50 04.710 BOLT; PIPE
HYDRO BRAKE BOOSTER<7QQ> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0211-0501 ● ● ●
50 04.710 BOLT; PIPE
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0211-0501 ●
50 04.710 BOLT; PIPE
HYDRO BRAKE BOOSTER<7QQ> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0502-0512 ● ● ● ●
50 04.710 BOLT; PIPE
HYDRO BRAKE BOOSTER<7QQ> 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ● ● ●
100 04.730 NUT; HYDRAULIC UNIT
HYDRO BRAKE BOOSTER<7QQ> 06.606 (A) M12 SELF LOCK 		8-97028-390-1 01 1 0211-0501 ● ● ●
100 04.730 NUT; HYDRAULIC UNIT
06.606 (A) M12 SELF LOCK 		8-97028-390-1 01 1 0211-0501 ●
100 04.730 NUT; HYDRAULIC UNIT
HYDRO BRAKE BOOSTER<7QQ> 06.606 (A) M12 SELF LOCK 		8-97028-390-1 01 1 0502- ● ● ● ●
100 04.730 NUT; HYDRAULIC UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 (B) M8 FLANGE 		0-91150-108-0 03 1 0211-0308 ● ● ●
100 04.730 NUT; HYDRAULIC UNIT
07.633 (B) M8 FLANGE 		0-91150-108-0 03 1 0211-0308 ●
100 04.730 NUT; HYDRAULIC UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 (B) M8 FLANGE 		0-91150-108-0 03 1 0309-0501 ● ● ● ●
100 04.730 NUT; HYDRAULIC UNIT
07.633 (B) M8 FLANGE 		0-91150-108-0 03 1 0309-0501 ●
100 04.730 NUT; HYDRAULIC UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 (B) M8 FLANGE 		0-91150-108-0 03 1 0502-0602 ● ● ●
100 04.730 NUT; HYDRAULIC UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (B) M8 FLANGE 		0-91180-108-0 03 1 0603-0612 ● ● ●
100 04.730 NUT; HYDRAULIC UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (B) M8 FLANGE 		0-91180-108-0 03 1 0701- ● ● ● ●
116 04.686 NUT
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 04.594 M6 FLANGE 		0-91150-106-0 02 1 0301-0501 ● ●
116 04.686 NUT
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 04.594 M6 FLANGE 		0-91150-106-0 02 1 0301-0501 ●
116 04.686 NUT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> 04.594 M6 FLANGE 		0-91150-106-0 02 1 0502-0602 ● ● ● ●
116 04.686 NUT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> 01.062 M6 FLANGE 		0-91180-106-0 02 1 0603- ● ● ● ●
116 04.686 NUT
A/T 4 SPEED-AISIN(RNJ) HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ● ● ●
116 04.686 NUT
07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ●
116 04.686 NUT
4HE1-TCS ENG(RDS) A/T 4 SPEED-AISIN(RNJ) HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ●
116 04.686 NUT
4HE1-TCS ENG(RDS) A/T 4 SPEED-AISIN(RNJ) HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603- ●
116 04.686 NUT
FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0212 ● ● ●
116 04.686 NUT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0301-0501 ● ● ●
116 04.686 NUT
4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0506 ● ● ●
116 04.686 NUT
4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0507-0602 ● ● ●
116 04.686 NUT
4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0507-0602 ●
116 04.686 NUT
4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-0606 ● ● ●
116 04.686 NUT
4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-0606 ●
116 04.686 NUT
4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0607-1001 ● ● ●
116 04.686 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0607-1001 ● ●
116 04.686 NUT
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1002- ● ● ● ●
116 04.686 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1002- ● ●
129 04.710 BOLT; BRKT
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ● ● ●
146 04.685 NUT; BRKT
07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 0211-0501 ● ● ● ● ● ●
146 04.685 NUT; BRKT
4HG1 ENG(RJH),4HF1-S ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> EXC. TURBOCHARGER(K51) 07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 0211-0501 ● ● ●
146 04.685 NUT; BRKT
07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 0502-0602 ● ● ● ● ●
146 04.685 NUT; BRKT
4HG1 ENG(RJH),4HF1-S ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> 07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 0502-0602 ● ● ● ●
146 04.685 NUT; BRKT
01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ● ●
146 04.685 NUT; BRKT
4HG1 ENG(RJH),4HF1-S ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ●
146 04.685 NUT; BRKT
HYDRO MASTER<7LT> 04.785 (B) M10 FLANGE 		0-91150-110-0 03 1 0211-0501 ● ● ●
146 04.685 NUT; BRKT
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ● ● ●
182 04.685 PIPE; HYDRAULIC BRK BOOSTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 		8-97334-118-1 01 1 0211-0501 ● ●
182 04.685 PIPE; HYDRAULIC BRK BOOSTER
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 		8-97334-118-1 01 1 0211-0501 ●
182 04.685 PIPE; HYDRAULIC BRK BOOSTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> 		8-97334-118-1 01 1 0502- ● ● ● ●
182 04.685 PIPE; HYDRAULIC BRK BOOSTER
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) HYDRO BRAKE BOOSTER<7QQ> 		8-97311-386-2 01 1 0211-0501 ● ● ●
182 04.685 PIPE; HYDRAULIC BRK BOOSTER 8-97311-386-2 01 1 0211-0501 ●
182 04.685 PIPE; HYDRAULIC BRK BOOSTER
4HE1-TCS ENG(RDS) A/T 4 SPEED-AISIN(RNJ) HYDRO BRAKE BOOSTER<7QQ> 		8-97311-386-2 01 1 0502- ●
182 04.685 PIPE; HYDRAULIC BRK BOOSTER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 		8-97328-692-0 01 1 0211-0501 ● ● ●
182 04.685 PIPE; HYDRAULIC BRK BOOSTER
4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 		8-97328-692-0 01 1 0502-0506 ● ● ●
182 04.685 PIPE; HYDRAULIC BRK BOOSTER
4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 		8-97328-692-0 01 1 0507-0606 ● ● ●
182 04.685 PIPE; HYDRAULIC BRK BOOSTER
4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 		8-97328-692-0 01 1 0507-0606 ●
182 04.685 PIPE; HYDRAULIC BRK BOOSTER
4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 		8-97328-692-0 01 1 0607-1001 ● ● ●
182 04.685 PIPE; HYDRAULIC BRK BOOSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 		8-97328-692-0 01 1 0607-1001 ● ●
182 04.685 PIPE; HYDRAULIC BRK BOOSTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 		8-97328-692-0 01 1 1002- ● ● ● ●
182 04.685 PIPE; HYDRAULIC BRK BOOSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 		8-97328-692-0 01 1 1002- ● ●
183 04.685 PIPE; SUCTION
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 		8-97334-119-1 01 1 0211-0306 ● ●
183 04.685 PIPE; SUCTION
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 		8-97334-119-1 01 1 0211-0306 ●
183 04.685 PIPE; SUCTION
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 		8-97370-410-0 01 1 0307-0501 ● ●
183 04.685 PIPE; SUCTION
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 		8-97370-410-0 01 1 0307-0501 ●
183 04.685 PIPE; SUCTION
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> 		8-97370-410-0 01 1 0502- ● ● ● ●
183 04.685 PIPE; SUCTION
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97311-387-1 01 1 0211-0501 ● ● ●
183 04.685 PIPE; SUCTION 8-97311-387-1 01 1 0211-0501 ●
183 04.685 PIPE; SUCTION
4HE1-TCS ENG(RDS) A/T 4 SPEED-AISIN(RNJ) HYDRO BRAKE BOOSTER<7QQ> 		8-97311-387-1 01 1 0502- ●
183 04.685 PIPE; SUCTION
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97328-693-0 01 1 0211-0501 ● ● ●
183 04.685 PIPE; SUCTION
4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 		8-97328-693-0 01 1 0502-0506 ● ● ●
183 04.685 PIPE; SUCTION
4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 		8-97328-693-0 01 1 0507-0606 ● ● ●
183 04.685 PIPE; SUCTION
4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 		8-97328-693-0 01 1 0507-0606 ●
183 04.685 PIPE; SUCTION
4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 		8-97328-693-0 01 1 0607-1001 ● ● ●
183 04.685 PIPE; SUCTION
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 		8-97328-693-0 01 1 0607-1001 ● ●
183 04.685 PIPE; SUCTION
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 		8-97328-693-0 01 1 1002- ● ● ● ●
183 04.685 PIPE; SUCTION
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 		8-97328-693-0 01 1 1002- ● ●
183 04.685 PIPE; SUCTION
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 		8-97328-694-0 01 1 0211-0501 ● ● ●
184 04.681 BOLT; CLIP
A/T 4 SPEED-AISIN(RNJ) HYDRO BRAKE BOOSTER<7QQ> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0211-0501 ● ● ●
184 04.681 BOLT; CLIP
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0211-0501 ● ● ●
184 04.681 BOLT; CLIP
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0211-0501 ●
184 04.681 BOLT; CLIP
4HE1-TCS ENG(RDS) A/T 4 SPEED-AISIN(RNJ) HYDRO BRAKE BOOSTER<7QQ> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0502-0512 ●
184 04.681 BOLT; CLIP
4HE1-TCS ENG(RDS) A/T 4 SPEED-AISIN(RNJ) HYDRO BRAKE BOOSTER<7QQ> 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
185 04.681 HOSE; RUBBER,SUCTION
4HG1 ENG(RJH),4HF1-S ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97334-259-1 01 1 0211-0501 ● ●
185 04.681 HOSE; RUBBER,SUCTION
4HG1 ENG(RJH) HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97334-259-1 01 1 0211-0501 ●
185 04.681 HOSE; RUBBER,SUCTION
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97334-259-1 01 1 0502- ● ● ● ●
185 04.681 HOSE; RUBBER,SUCTION
HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97330-513-0 01 1 0211-0501 ● ● ●
185 04.681 HOSE; RUBBER,SUCTION
(A) 		8-97330-513-0 01 1 0211-0501 ●
185 04.681 HOSE; RUBBER,SUCTION
HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97330-513-0 01 1 0502- ● ● ● ●
185 04.681 HOSE; RUBBER,SUCTION
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 06.670 (B) SERVICED BY L=300 		0-09814-300-0 01 1 0211-0501 ● ● ●
185 04.681 HOSE; RUBBER,SUCTION
06.670 (B) SERVICED BY L=300 		0-09814-300-0 01 1 0211-0501 ●
185 04.681 HOSE; RUBBER,SUCTION
4HE1-TCN ENG(RDR) HYDRO BRAKE BOOSTER<7QQ> 06.670 (B) SERVICED BY L=300 		0-09814-300-0 01 1 0502-0506 ●
185 04.681 HOSE; RUBBER,SUCTION
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) HYDRO BRAKE BOOSTER<7QQ> 06.670 (B) SERVICED BY L=300 		0-09814-300-0 01 1 0502-0506 ● ● ●
185 04.681 HOSE; RUBBER,SUCTION
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 06.670 (B) SERVICED BY L=300 		0-09814-300-0 01 1 0507-0606 ● ● ● ●
185 04.681 HOSE; RUBBER,SUCTION
4HE1-TCN ENG(RDR) HYDRO BRAKE BOOSTER<7QQ> 06.670 (B) SERVICED BY L=300 		0-09814-300-0 01 1 0607- ●
185 04.681 HOSE; RUBBER,SUCTION
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) HYDRO BRAKE BOOSTER<7QQ> 06.670 (B) SERVICED BY L=300 		0-09814-300-0 01 1 0607- ●
185 04.681 HOSE; RUBBER,SUCTION
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 06.670 (B) SERVICED BY L=300 		0-09814-300-0 01 1 0607- ● ●
185 04.681 HOSE; RUBBER,SUCTION
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97188-851-0 01 1 0211-0501 ● ● ●
186 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER<7QQ> 04.930 (A) ID=16 		8-94238-568-0 02 1 0211-0501 ● ● ●
186 04.681 CLIP; HOSE
04.930 (A) ID=16 		8-94238-568-0 02 1 0211-0501 ●
186 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER<7QQ> 04.930 (A) ID=16 		8-94238-568-0 02 1 0502-0911 ● ● ● ●
186 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER<7QQ> 03.162 (A) ID=16 		8-98008-098-0 02 1 0912- ● ● ● ●
186 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER<7QQ> 06.672 (B) ID=21 		8-94242-034-0 03 1 0211-0501 ● ● ●
186 04.681 CLIP; HOSE
06.672 (B) ID=21 		8-94242-034-0 03 1 0211-0501 ●
186 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER<7QQ> 06.672 (B) ID=21 		8-94242-034-0 03 1 0502-0911 ● ● ● ●
186 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER<7QQ> (B) ID=21 		8-98150-355-0 03 1 0912- ● ● ● ●
186 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER<7QQ> 08.846 (C) ID=22 		8-94382-401-0 01 1 0211-0501 ● ● ●
186 04.681 CLIP; HOSE
08.846 (C) ID=22 		8-94382-401-0 01 1 0211-0501 ●
186 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER<7QQ> 08.846 (C) ID=22 		8-94382-401-0 01 1 0502-1003 ● ● ● ●
186 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER<7QQ> 03.278 (C) ID=22 		8-97359-141-0 01 1 1004- ● ● ● ●
187 04.681 HOSE; RUBBER,OIL TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> 		8-97358-026-0 01 1 0301-0306 ● ●
187 04.681 HOSE; RUBBER,OIL TANK
4HG1 ENG(RJH) HYDRO BRAKE BOOSTER<7QQ> 		8-97358-026-0 01 1 0301-0306 ●
187 04.681 HOSE; RUBBER,OIL TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> 		8-97370-427-0 01 1 0307-0501 ● ●
187 04.681 HOSE; RUBBER,OIL TANK
4HG1 ENG(RJH) HYDRO BRAKE BOOSTER<7QQ> 		8-97370-427-0 01 1 0307-0501 ●
187 04.681 HOSE; RUBBER,OIL TANK
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> 		8-97370-427-0 01 1 0502- ● ● ● ●
187 04.681 HOSE; RUBBER,OIL TANK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> L=270 		0-09809-270-0 01 1 0211-0501 ● ● ●
187 04.681 HOSE; RUBBER,OIL TANK
L=270 		0-09809-270-0 01 1 0211-0501 ●
187 04.681 HOSE; RUBBER,OIL TANK
4HE1-TCN ENG(RDR) HYDRO BRAKE BOOSTER<7QQ> 06.671 L=270 SERVICED BY L=3000 		0-19809-300-0 01 1 0502-0506 ●
187 04.681 HOSE; RUBBER,OIL TANK
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) HYDRO BRAKE BOOSTER<7QQ> 06.671 L=270 SERVICED BY L=3000 		0-19809-300-0 01 1 0502-0506 ● ● ●
187 04.681 HOSE; RUBBER,OIL TANK
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 06.671 L=270 SERVICED BY L=3000 		0-19809-300-0 01 1 0507-0606 ● ● ● ●
187 04.681 HOSE; RUBBER,OIL TANK
4HE1-TCN ENG(RDR) HYDRO BRAKE BOOSTER<7QQ> 06.671 L=270 SERVICED BY L=3000 		0-19809-300-0 01 1 0607- ●
187 04.681 HOSE; RUBBER,OIL TANK
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) HYDRO BRAKE BOOSTER<7QQ> 06.671 L=270 SERVICED BY L=3000 		0-19809-300-0 01 1 0607- ●
187 04.681 HOSE; RUBBER,OIL TANK
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 06.671 L=270 SERVICED BY L=3000 		0-19809-300-0 01 1 0607- ● ●
187 04.681 HOSE; RUBBER,OIL TANK
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 		8-97181-961-2 01 1 0211-0212 ● ● ●
187 04.681 HOSE; RUBBER,OIL TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> 		8-97181-961-2 01 1 0211-0212 ● ●
187 04.681 HOSE; RUBBER,OIL TANK
4HG1 ENG(RJH) HYDRO BRAKE BOOSTER<7QQ> 		8-97181-961-2 01 1 0211-0212 ●
187 04.681 HOSE; RUBBER,OIL TANK
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 		8-97181-961-2 01 1 0301-0501 ● ● ●

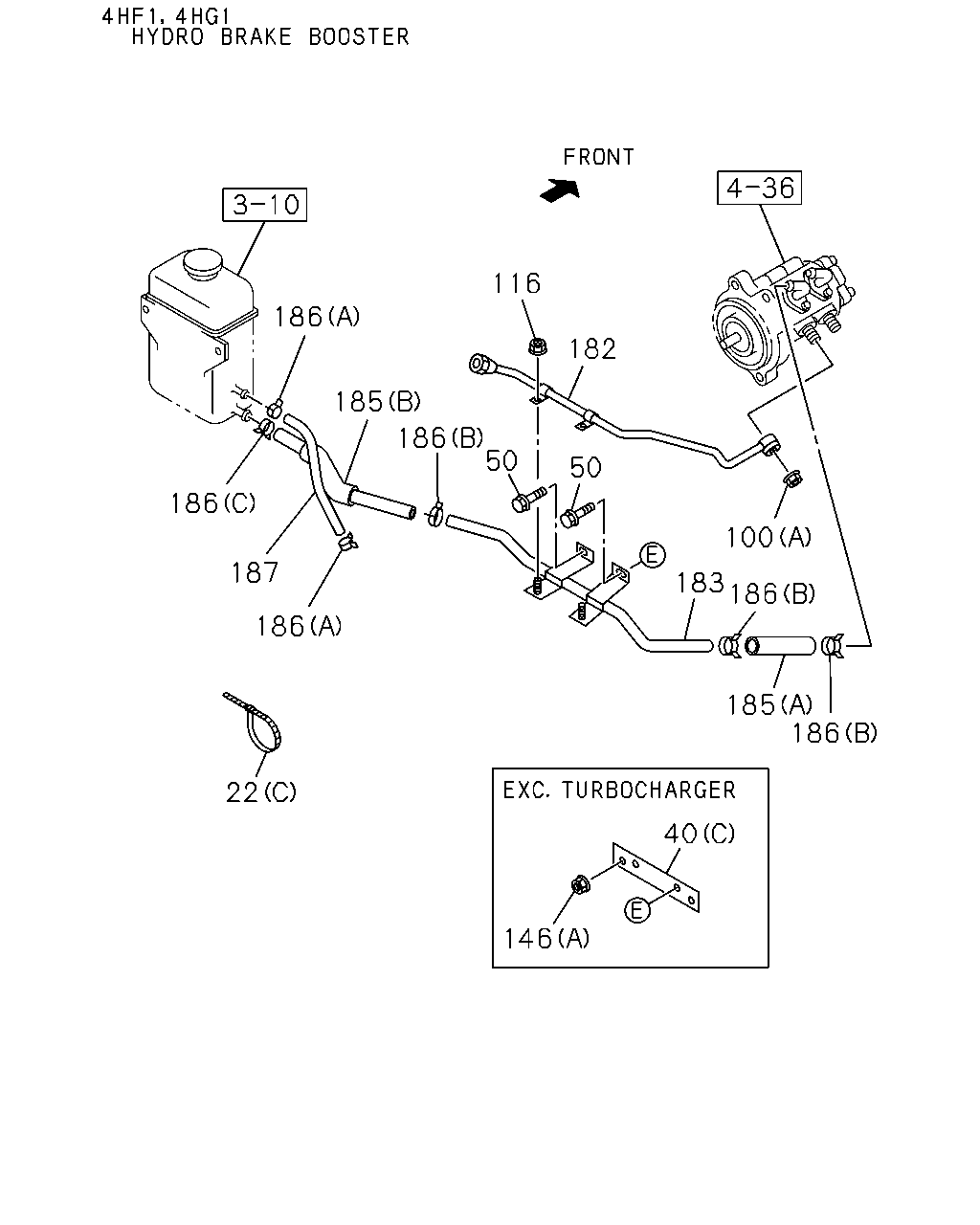

çizim 52753
116 186 182 185 186 50 50 186 100 187 183 186 186 185 186 22 40 146
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
22 04.685 CLIP
HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) ID=11 L=16 		9-09525-025-0 02 1 0211-0212 ● ● ●
22 04.685 CLIP
02.559 (A) ID=11 L=16 		9-09525-025-0 02 1 0211-0212 ●
22 04.685 CLIP
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) ID=11 L=16 		9-09525-025-0 02 1 0301-0501 ● ● ●
22 04.685 CLIP
02.559 (A) ID=11 L=16 		9-09525-025-0 02 1 0301-0501 ●
22 04.685 CLIP
4HE1-TCN ENG(RDR) HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) ID=11 L=16 		9-09525-025-0 02 1 0502-0506 ●
22 04.685 CLIP
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) ID=11 L=16 		9-09525-025-0 02 1 0502-0506 ● ● ●
22 04.685 CLIP
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) ID=11 L=16 		9-09525-025-0 02 1 0507-0606 ● ● ● ●
22 04.685 CLIP
4HE1-TCN ENG(RDR) HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) ID=11 L=16 		9-09525-025-0 02 1 0607-0607 ●
22 04.685 CLIP
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) ID=11 L=16 		9-09525-025-0 02 1 0607-0607 ●
22 04.685 CLIP
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) ID=11 L=16 		9-09525-025-0 02 1 0607-0607 ● ●
22 04.685 CLIP
4HE1-TCN ENG(RDR) HYDRO BRAKE BOOSTER<7QQ> (A) ID=11 L=16 		0-95235-025-0 02 1 0607- ●
22 04.685 CLIP
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) HYDRO BRAKE BOOSTER<7QQ> (A) ID=11 L=16 		0-95235-025-0 02 1 0607- ●
22 04.685 CLIP
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> (A) ID=11 L=16 		0-95235-025-0 02 1 0607- ● ●
22 04.685 CLIP
HYDRO BRAKE BOOSTER<7QQ> 02.343 (D) ID=10 & 16 		8-94413-325-0 01 1 0408-0501 ● ● ●
22 04.685 CLIP
02.343 (D) ID=10 & 16 		8-94413-325-0 01 1 0408-0501 ●
22 04.685 CLIP
HYDRO BRAKE BOOSTER<7QQ> 02.343 (D) ID=10 & 16 		8-94413-325-0 01 1 0502- ● ● ● ●
22 04.685 CLIP
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) ID=19 L=20 		9-09525-836-0 01 1 0211-0501 ● ● ●
22 04.685 CLIP
02.559 (B) ID=19 L=20 		9-09525-836-0 01 1 0211-0501 ●
22 04.685 CLIP
4HE1-TCN ENG(RDR) HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) ID=19 L=20 		9-09525-836-0 01 1 0502-0506 ●
22 04.685 CLIP
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) ID=19 L=20 		9-09525-836-0 01 1 0502-0506 ● ● ●
22 04.685 CLIP
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) ID=19 L=20 		9-09525-836-0 01 1 0507-0606 ● ● ● ●
22 04.685 CLIP
4HE1-TCN ENG(RDR) HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) ID=19 L=20 		9-09525-836-0 01 1 0607-0607 ●
22 04.685 CLIP
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) ID=19 L=20 		9-09525-836-0 01 1 0607-0607 ●
22 04.685 CLIP
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 02.559 (B) ID=19 L=20 		9-09525-836-0 01 1 0607-0607 ● ●
22 04.685 CLIP
4HE1-TCN ENG(RDR) HYDRO BRAKE BOOSTER<7QQ> (B) ID=19 L=20 		0-95235-836-0 01 1 0607- ●
22 04.685 CLIP
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) HYDRO BRAKE BOOSTER<7QQ> (B) ID=19 L=20 		0-95235-836-0 01 1 0607- ●
22 04.685 CLIP
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> (B) ID=19 L=20 		0-95235-836-0 01 1 0607- ● ●
22 04.685 CLIP
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 02.559 (C) L=250 		5-09707-030-1 01 1 0211-0212 ● ● ●
22 04.685 CLIP
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 02.559 (C) L=250 		5-09707-030-1 01 1 0211-0212 ● ●
22 04.685 CLIP
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 02.559 (C) L=250 		5-09707-030-1 01 1 0211-0212 ●
22 04.685 CLIP
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 02.559 (C) L=250 		5-09707-030-1 02 1 0301-0501 ● ●
22 04.685 CLIP
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 02.559 (C) L=250 		5-09707-030-1 02 1 0301-0501 ●
22 04.685 CLIP
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> 02.559 (C) L=250 		5-09707-030-1 02 1 0502- ● ● ● ●
22 04.685 CLIP
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 08.846 (B) ID=19 L=32 		9-09525-866-0 01 1 0211-0501 ● ● ●
22 04.685 CLIP
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 02.559 (C) L=250 		5-09707-030-1 01 1 0301-0501 ● ● ●

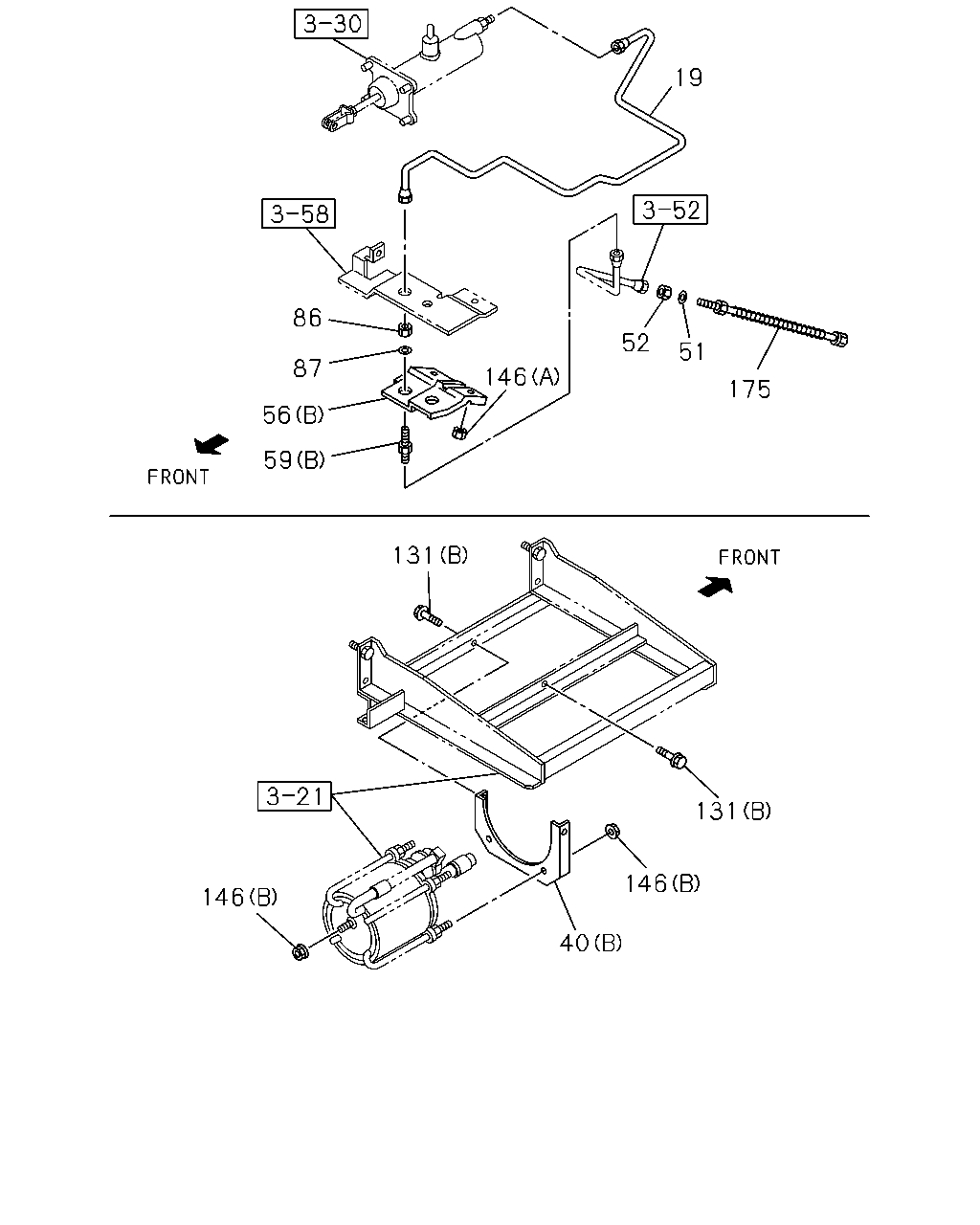

40 04.690 BRACKET
4HG1 ENG(RJH),4HF1-S ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> EXC. TURBOCHARGER(K51) (C) 		8-97334-384-0 01 1 0211-0306 ● ●
40 04.690 BRACKET
4HG1 ENG(RJH) HYDRO BRAKE BOOSTER<7QQ> EXC. TURBOCHARGER(K51) (C) 		8-97334-384-0 01 1 0211-0306 ●
40 04.690 BRACKET
4HG1 ENG(RJH),4HF1-S ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> EXC. TURBOCHARGER(K51) (C) 		8-97370-408-0 01 1 0307-0501 ● ●
40 04.690 BRACKET
4HG1 ENG(RJH) HYDRO BRAKE BOOSTER<7QQ> EXC. TURBOCHARGER(K51) (C) 		8-97370-408-0 01 1 0307-0501 ●
40 04.690 BRACKET
4HG1 ENG(RJH),4HF1-S ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> (C) 		8-97370-408-0 01 1 0502- ● ● ● ●
40 04.690 BRACKET
HYDRO MASTER<7LT> (B) 		8-97145-247-1 01 1 0211-0501 ● ● ●
40 04.690 BRACKET
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97188-262-0 01 1 0211-0501 ● ● ●
50 04.710 BOLT; PIPE
HYDRO BRAKE BOOSTER<7QQ> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0211-0501 ● ● ●
50 04.710 BOLT; PIPE
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0211-0501 ●
50 04.710 BOLT; PIPE
HYDRO BRAKE BOOSTER<7QQ> 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0502-0512 ● ● ● ●
50 04.710 BOLT; PIPE
HYDRO BRAKE BOOSTER<7QQ> 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ● ● ●

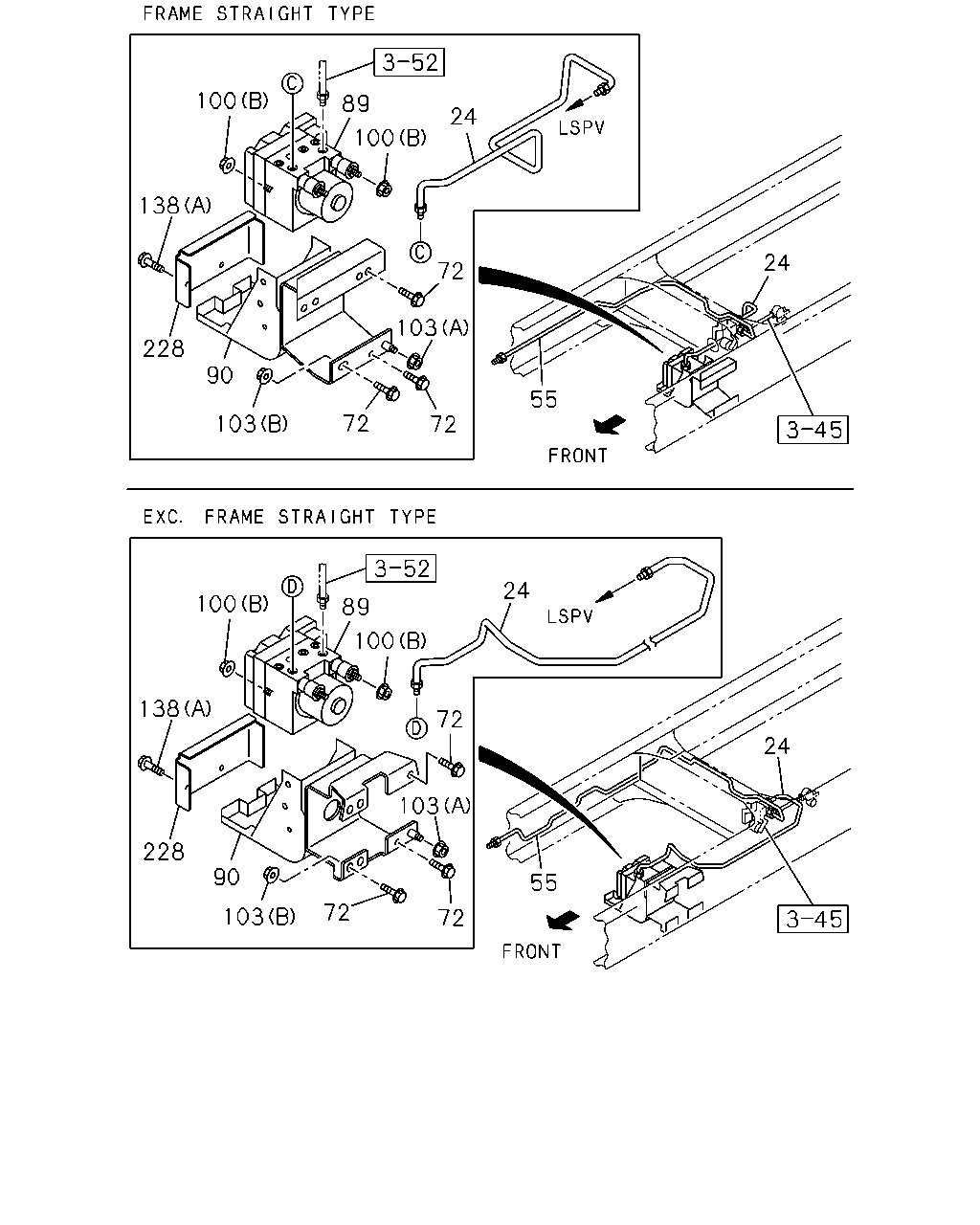

100 04.730 NUT; HYDRAULIC UNIT
HYDRO BRAKE BOOSTER<7QQ> 06.606 (A) M12 SELF LOCK 		8-97028-390-1 01 1 0211-0501 ● ● ●
100 04.730 NUT; HYDRAULIC UNIT
06.606 (A) M12 SELF LOCK 		8-97028-390-1 01 1 0211-0501 ●
100 04.730 NUT; HYDRAULIC UNIT
HYDRO BRAKE BOOSTER<7QQ> 06.606 (A) M12 SELF LOCK 		8-97028-390-1 01 1 0502- ● ● ● ●
100 04.730 NUT; HYDRAULIC UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 (B) M8 FLANGE 		0-91150-108-0 03 1 0211-0308 ● ● ●
100 04.730 NUT; HYDRAULIC UNIT
07.633 (B) M8 FLANGE 		0-91150-108-0 03 1 0211-0308 ●
100 04.730 NUT; HYDRAULIC UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 (B) M8 FLANGE 		0-91150-108-0 03 1 0309-0501 ● ● ● ●
100 04.730 NUT; HYDRAULIC UNIT
07.633 (B) M8 FLANGE 		0-91150-108-0 03 1 0309-0501 ●
100 04.730 NUT; HYDRAULIC UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 (B) M8 FLANGE 		0-91150-108-0 03 1 0502-0602 ● ● ●
100 04.730 NUT; HYDRAULIC UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (B) M8 FLANGE 		0-91180-108-0 03 1 0603-0612 ● ● ●
100 04.730 NUT; HYDRAULIC UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (B) M8 FLANGE 		0-91180-108-0 03 1 0701- ● ● ● ●
116 04.686 NUT
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 04.594 M6 FLANGE 		0-91150-106-0 02 1 0301-0501 ● ●
116 04.686 NUT
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 04.594 M6 FLANGE 		0-91150-106-0 02 1 0301-0501 ●
116 04.686 NUT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> 04.594 M6 FLANGE 		0-91150-106-0 02 1 0502-0602 ● ● ● ●
116 04.686 NUT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> 01.062 M6 FLANGE 		0-91180-106-0 02 1 0603- ● ● ● ●
116 04.686 NUT
A/T 4 SPEED-AISIN(RNJ) HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ● ● ●
116 04.686 NUT
07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ●
116 04.686 NUT
4HE1-TCS ENG(RDS) A/T 4 SPEED-AISIN(RNJ) HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ●
116 04.686 NUT
4HE1-TCS ENG(RDS) A/T 4 SPEED-AISIN(RNJ) HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603- ●
116 04.686 NUT
FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0212 ● ● ●
116 04.686 NUT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0301-0501 ● ● ●
116 04.686 NUT
4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0506 ● ● ●
116 04.686 NUT
4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0507-0602 ● ● ●
116 04.686 NUT
4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0507-0602 ●
116 04.686 NUT
4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-0606 ● ● ●
116 04.686 NUT
4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-0606 ●
116 04.686 NUT
4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0607-1001 ● ● ●
116 04.686 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0607-1001 ● ●
116 04.686 NUT
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1002- ● ● ● ●
116 04.686 NUT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1002- ● ●

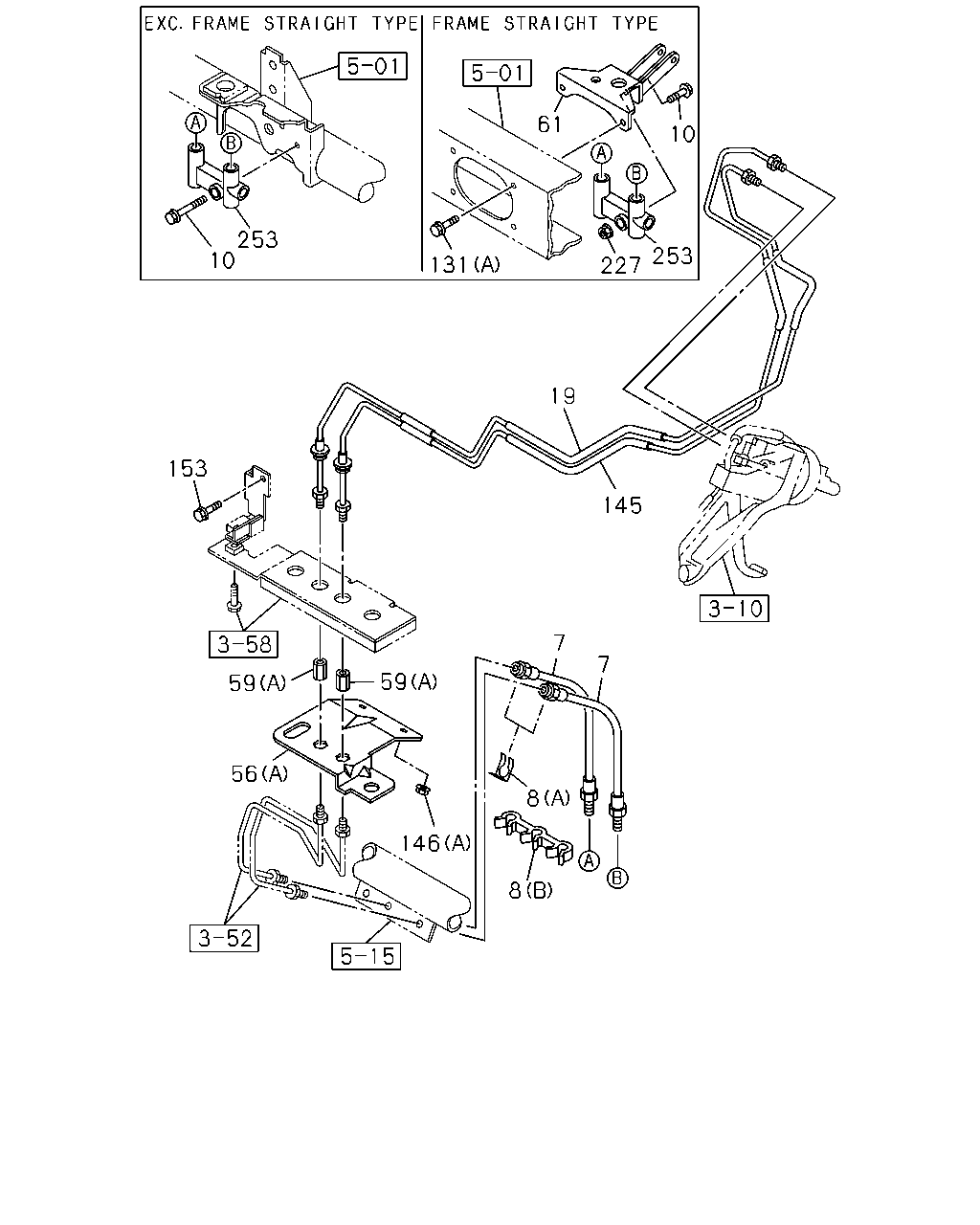

146 04.685 NUT; BRKT
07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 0211-0501 ● ● ● ● ● ●
146 04.685 NUT; BRKT
4HG1 ENG(RJH),4HF1-S ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> EXC. TURBOCHARGER(K51) 07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 0211-0501 ● ● ●
146 04.685 NUT; BRKT
07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 0502-0602 ● ● ● ● ●
146 04.685 NUT; BRKT
4HG1 ENG(RJH),4HF1-S ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> 07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 0502-0602 ● ● ● ●
146 04.685 NUT; BRKT
01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ● ●
146 04.685 NUT; BRKT
4HG1 ENG(RJH),4HF1-S ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ●
146 04.685 NUT; BRKT
HYDRO MASTER<7LT> 04.785 (B) M10 FLANGE 		0-91150-110-0 03 1 0211-0501 ● ● ●
146 04.685 NUT; BRKT
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ● ● ●
182 04.685 PIPE; HYDRAULIC BRK BOOSTER
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 		8-97334-118-1 01 1 0211-0501 ● ●
182 04.685 PIPE; HYDRAULIC BRK BOOSTER
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 		8-97334-118-1 01 1 0211-0501 ●
182 04.685 PIPE; HYDRAULIC BRK BOOSTER
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> 		8-97334-118-1 01 1 0502- ● ● ● ●
182 04.685 PIPE; HYDRAULIC BRK BOOSTER
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) HYDRO BRAKE BOOSTER<7QQ> 		8-97311-386-2 01 1 0211-0501 ● ● ●
182 04.685 PIPE; HYDRAULIC BRK BOOSTER 8-97311-386-2 01 1 0211-0501 ●
182 04.685 PIPE; HYDRAULIC BRK BOOSTER
4HE1-TCS ENG(RDS) A/T 4 SPEED-AISIN(RNJ) HYDRO BRAKE BOOSTER<7QQ> 		8-97311-386-2 01 1 0502- ●
182 04.685 PIPE; HYDRAULIC BRK BOOSTER
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 		8-97328-692-0 01 1 0211-0501 ● ● ●
182 04.685 PIPE; HYDRAULIC BRK BOOSTER
4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 		8-97328-692-0 01 1 0502-0506 ● ● ●
182 04.685 PIPE; HYDRAULIC BRK BOOSTER
4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 		8-97328-692-0 01 1 0507-0606 ● ● ●
182 04.685 PIPE; HYDRAULIC BRK BOOSTER
4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 		8-97328-692-0 01 1 0507-0606 ●
182 04.685 PIPE; HYDRAULIC BRK BOOSTER
4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 		8-97328-692-0 01 1 0607-1001 ● ● ●
182 04.685 PIPE; HYDRAULIC BRK BOOSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 		8-97328-692-0 01 1 0607-1001 ● ●
182 04.685 PIPE; HYDRAULIC BRK BOOSTER
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 		8-97328-692-0 01 1 1002- ● ● ● ●
182 04.685 PIPE; HYDRAULIC BRK BOOSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 		8-97328-692-0 01 1 1002- ● ●
183 04.685 PIPE; SUCTION
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 		8-97334-119-1 01 1 0211-0306 ● ●
183 04.685 PIPE; SUCTION
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 		8-97334-119-1 01 1 0211-0306 ●
183 04.685 PIPE; SUCTION
4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 		8-97370-410-0 01 1 0307-0501 ● ●
183 04.685 PIPE; SUCTION
4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 		8-97370-410-0 01 1 0307-0501 ●
183 04.685 PIPE; SUCTION
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> 		8-97370-410-0 01 1 0502- ● ● ● ●
183 04.685 PIPE; SUCTION
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97311-387-1 01 1 0211-0501 ● ● ●
183 04.685 PIPE; SUCTION 8-97311-387-1 01 1 0211-0501 ●
183 04.685 PIPE; SUCTION
4HE1-TCS ENG(RDS) A/T 4 SPEED-AISIN(RNJ) HYDRO BRAKE BOOSTER<7QQ> 		8-97311-387-1 01 1 0502- ●
183 04.685 PIPE; SUCTION
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97328-693-0 01 1 0211-0501 ● ● ●
183 04.685 PIPE; SUCTION
4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 		8-97328-693-0 01 1 0502-0506 ● ● ●
183 04.685 PIPE; SUCTION
4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 		8-97328-693-0 01 1 0507-0606 ● ● ●
183 04.685 PIPE; SUCTION
4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 		8-97328-693-0 01 1 0507-0606 ●
183 04.685 PIPE; SUCTION
4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 		8-97328-693-0 01 1 0607-1001 ● ● ●
183 04.685 PIPE; SUCTION
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 		8-97328-693-0 01 1 0607-1001 ● ●
183 04.685 PIPE; SUCTION
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 		8-97328-693-0 01 1 1002- ● ● ● ●
183 04.685 PIPE; SUCTION
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 		8-97328-693-0 01 1 1002- ● ●
183 04.685 PIPE; SUCTION
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 		8-97328-694-0 01 1 0211-0501 ● ● ●
185 04.681 HOSE; RUBBER,SUCTION
4HG1 ENG(RJH),4HF1-S ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97334-259-1 01 1 0211-0501 ● ●
185 04.681 HOSE; RUBBER,SUCTION
4HG1 ENG(RJH) HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97334-259-1 01 1 0211-0501 ●
185 04.681 HOSE; RUBBER,SUCTION
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97334-259-1 01 1 0502- ● ● ● ●
185 04.681 HOSE; RUBBER,SUCTION
HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97330-513-0 01 1 0211-0501 ● ● ●
185 04.681 HOSE; RUBBER,SUCTION
(A) 		8-97330-513-0 01 1 0211-0501 ●
185 04.681 HOSE; RUBBER,SUCTION
HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97330-513-0 01 1 0502- ● ● ● ●
185 04.681 HOSE; RUBBER,SUCTION
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 06.670 (B) SERVICED BY L=300 		0-09814-300-0 01 1 0211-0501 ● ● ●
185 04.681 HOSE; RUBBER,SUCTION
06.670 (B) SERVICED BY L=300 		0-09814-300-0 01 1 0211-0501 ●
185 04.681 HOSE; RUBBER,SUCTION
4HE1-TCN ENG(RDR) HYDRO BRAKE BOOSTER<7QQ> 06.670 (B) SERVICED BY L=300 		0-09814-300-0 01 1 0502-0506 ●
185 04.681 HOSE; RUBBER,SUCTION
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) HYDRO BRAKE BOOSTER<7QQ> 06.670 (B) SERVICED BY L=300 		0-09814-300-0 01 1 0502-0506 ● ● ●
185 04.681 HOSE; RUBBER,SUCTION
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 06.670 (B) SERVICED BY L=300 		0-09814-300-0 01 1 0507-0606 ● ● ● ●
185 04.681 HOSE; RUBBER,SUCTION
4HE1-TCN ENG(RDR) HYDRO BRAKE BOOSTER<7QQ> 06.670 (B) SERVICED BY L=300 		0-09814-300-0 01 1 0607- ●
185 04.681 HOSE; RUBBER,SUCTION
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) HYDRO BRAKE BOOSTER<7QQ> 06.670 (B) SERVICED BY L=300 		0-09814-300-0 01 1 0607- ●
185 04.681 HOSE; RUBBER,SUCTION
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 06.670 (B) SERVICED BY L=300 		0-09814-300-0 01 1 0607- ● ●
185 04.681 HOSE; RUBBER,SUCTION
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97188-851-0 01 1 0211-0501 ● ● ●
186 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER<7QQ> 04.930 (A) ID=16 		8-94238-568-0 02 1 0211-0501 ● ● ●
186 04.681 CLIP; HOSE
04.930 (A) ID=16 		8-94238-568-0 02 1 0211-0501 ●
186 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER<7QQ> 04.930 (A) ID=16 		8-94238-568-0 02 1 0502-0911 ● ● ● ●
186 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER<7QQ> 03.162 (A) ID=16 		8-98008-098-0 02 1 0912- ● ● ● ●
186 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER<7QQ> 06.672 (B) ID=21 		8-94242-034-0 03 1 0211-0501 ● ● ●
186 04.681 CLIP; HOSE
06.672 (B) ID=21 		8-94242-034-0 03 1 0211-0501 ●
186 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER<7QQ> 06.672 (B) ID=21 		8-94242-034-0 03 1 0502-0911 ● ● ● ●
186 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER<7QQ> (B) ID=21 		8-98150-355-0 03 1 0912- ● ● ● ●
186 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER<7QQ> 08.846 (C) ID=22 		8-94382-401-0 01 1 0211-0501 ● ● ●
186 04.681 CLIP; HOSE
08.846 (C) ID=22 		8-94382-401-0 01 1 0211-0501 ●
186 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER<7QQ> 08.846 (C) ID=22 		8-94382-401-0 01 1 0502-1003 ● ● ● ●
186 04.681 CLIP; HOSE
HYDRO BRAKE BOOSTER<7QQ> 03.278 (C) ID=22 		8-97359-141-0 01 1 1004- ● ● ● ●
187 04.681 HOSE; RUBBER,OIL TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> 		8-97358-026-0 01 1 0301-0306 ● ●
187 04.681 HOSE; RUBBER,OIL TANK
4HG1 ENG(RJH) HYDRO BRAKE BOOSTER<7QQ> 		8-97358-026-0 01 1 0301-0306 ●
187 04.681 HOSE; RUBBER,OIL TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> 		8-97370-427-0 01 1 0307-0501 ● ●
187 04.681 HOSE; RUBBER,OIL TANK
4HG1 ENG(RJH) HYDRO BRAKE BOOSTER<7QQ> 		8-97370-427-0 01 1 0307-0501 ●
187 04.681 HOSE; RUBBER,OIL TANK
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> 		8-97370-427-0 01 1 0502- ● ● ● ●
187 04.681 HOSE; RUBBER,OIL TANK
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> L=270 		0-09809-270-0 01 1 0211-0501 ● ● ●
187 04.681 HOSE; RUBBER,OIL TANK
L=270 		0-09809-270-0 01 1 0211-0501 ●
187 04.681 HOSE; RUBBER,OIL TANK
4HE1-TCN ENG(RDR) HYDRO BRAKE BOOSTER<7QQ> 06.671 L=270 SERVICED BY L=3000 		0-19809-300-0 01 1 0502-0506 ●
187 04.681 HOSE; RUBBER,OIL TANK
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) HYDRO BRAKE BOOSTER<7QQ> 06.671 L=270 SERVICED BY L=3000 		0-19809-300-0 01 1 0502-0506 ● ● ●
187 04.681 HOSE; RUBBER,OIL TANK
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 06.671 L=270 SERVICED BY L=3000 		0-19809-300-0 01 1 0507-0606 ● ● ● ●
187 04.681 HOSE; RUBBER,OIL TANK
4HE1-TCN ENG(RDR) HYDRO BRAKE BOOSTER<7QQ> 06.671 L=270 SERVICED BY L=3000 		0-19809-300-0 01 1 0607- ●
187 04.681 HOSE; RUBBER,OIL TANK
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) HYDRO BRAKE BOOSTER<7QQ> 06.671 L=270 SERVICED BY L=3000 		0-19809-300-0 01 1 0607- ●
187 04.681 HOSE; RUBBER,OIL TANK
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 06.671 L=270 SERVICED BY L=3000 		0-19809-300-0 01 1 0607- ● ●
187 04.681 HOSE; RUBBER,OIL TANK
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 		8-97181-961-2 01 1 0211-0212 ● ● ●
187 04.681 HOSE; RUBBER,OIL TANK
4HG1 ENG(RJH),4HF1-S ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> 		8-97181-961-2 01 1 0211-0212 ● ●
187 04.681 HOSE; RUBBER,OIL TANK
4HG1 ENG(RJH) HYDRO BRAKE BOOSTER<7QQ> 		8-97181-961-2 01 1 0211-0212 ●
187 04.681 HOSE; RUBBER,OIL TANK
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 		8-97181-961-2 01 1 0301-0501 ● ● ●

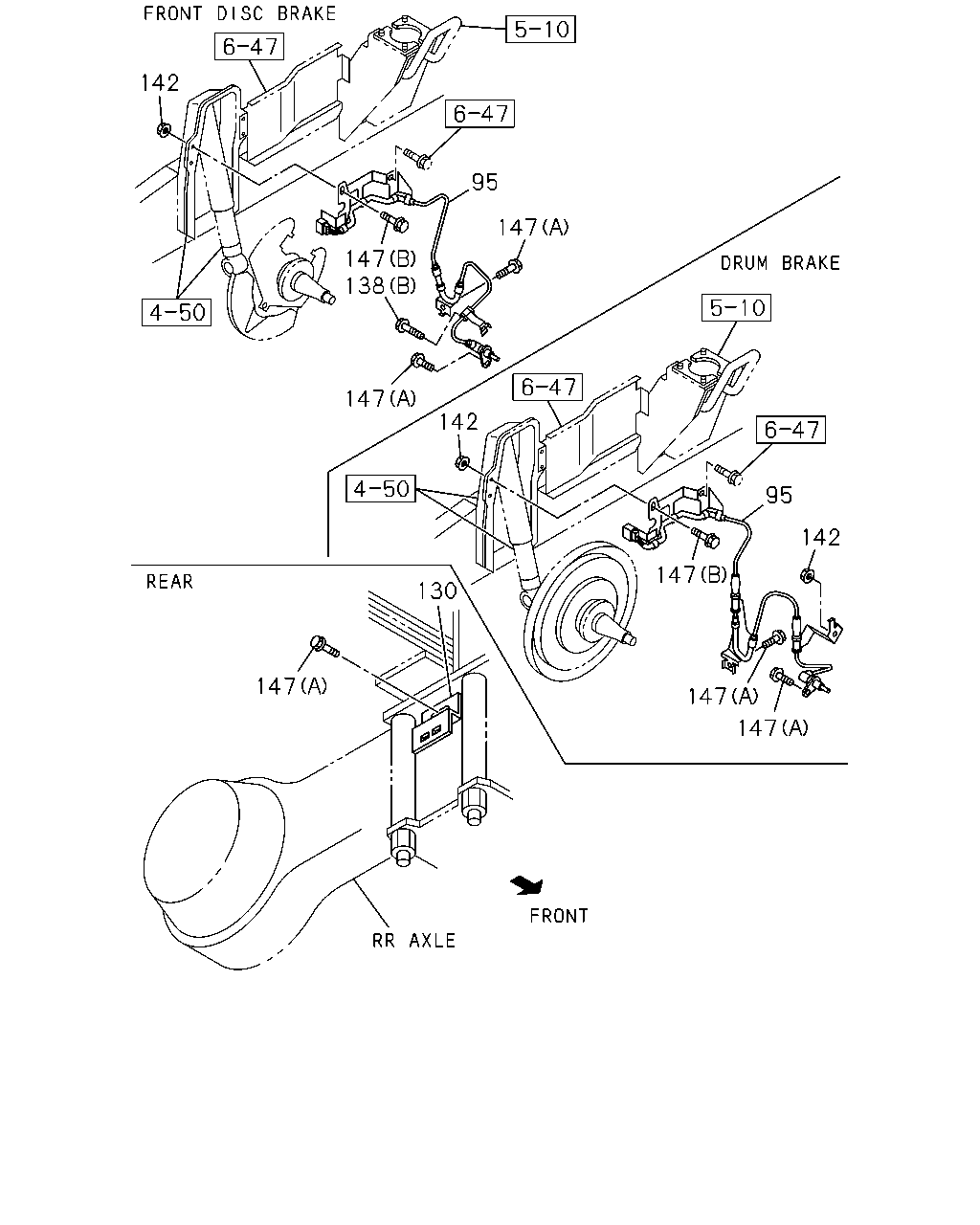

çizim 53718
142 95 147 147 138 147 142 95 142 147 130 147 147 147
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER<7QQ> 		8-97249-056-2 01 1 0211-0211 ● ●
95 04.710 SENSOR; SPD,FRT WHEEL 8-97249-056-2 01 1 0211-0211 ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> HYDRO BRAKE BOOSTER<7QQ> 		8-97249-056-2 01 1 0212-0501 ● ●
95 04.710 SENSOR; SPD,FRT WHEEL 8-97249-056-2 01 1 0212-0501 ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97256-623-2 01 1 0211-0211 ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97256-623-2 01 1 0211-0211 ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97256-623-2 01 1 0212-0501 ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 		8-97256-623-2 01 1 0212-0501 ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97256-622-3 01 1 0211-0211 ● ● ●
95 04.710 SENSOR; SPD,FRT WHEEL 8-97256-622-3 01 1 0211-0211 ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 		8-97256-622-3 01 1 0212-0501 ● ● ●
95 04.710 SENSOR; SPD,FRT WHEEL 8-97256-622-3 01 1 0212-0501 ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> 		8-97349-768-0 01 1 0212-0305 ● ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> 		8-97349-768-1 01 1 0306-0308 ● ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> 		8-97349-768-1 01 1 0309-0501 ● ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97349-768-1 01 1 0309-0501 ●
95 04.710 SENSOR; SPD,FRT WHEEL
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97349-768-1 01 1 0502-0612 ● ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97349-768-1 01 1 0701- ● ● ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> 		8-97349-767-1 01 1 0212-0308 ● ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> 		8-97349-767-1 01 1 0309-0501 ● ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97349-767-1 01 1 0309-0501 ●
95 04.710 SENSOR; SPD,FRT WHEEL
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97349-767-1 01 1 0502-0612 ● ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97349-767-1 01 1 0701- ● ● ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52> 		8-97370-317-0 01 1 0306-0308 ● ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. DISC BRAKE FRT<J52> 		8-97370-317-0 01 1 0309-0501 ● ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97370-317-0 01 1 0309-0501 ●
95 04.710 SENSOR; SPD,FRT WHEEL
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97370-317-0 01 1 0502-0612 ● ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97370-317-0 01 1 0701- ● ● ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97349-220-2 01 1 0507-0606 ●
95 04.710 SENSOR; SPD,FRT WHEEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97349-220-2 01 1 0607-0612 ●
95 04.710 SENSOR; SPD,FRT WHEEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97349-220-2 01 1 0701- ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97349-219-2 01 1 0507-0606 ●
95 04.710 SENSOR; SPD,FRT WHEEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97349-219-2 01 1 0607-0612 ●
95 04.710 SENSOR; SPD,FRT WHEEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97349-219-2 01 1 0701- ● ●
130 04.686 BRACKET; SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97080-060-2 02 1 0211-0308 ● ● ●
130 04.686 BRACKET; SPEED SENSOR 8-97080-060-2 02 1 0211-0308 ●
130 04.686 BRACKET; SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97080-060-2 02 1 0309-0501 ● ● ● ●
130 04.686 BRACKET; SPEED SENSOR 8-97080-060-2 02 1 0309-0501 ●
130 04.686 BRACKET; SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97080-060-2 02 1 0502-0612 ● ● ●
130 04.686 BRACKET; SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97080-060-2 02 1 0701- ● ● ● ●
138 04.720 BOLT; COVER
4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0211-0308 ● ● ●
138 04.720 BOLT; COVER
08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0211-0308 ●
138 04.720 BOLT; COVER
4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0309-0501 ● ● ● ●
138 04.720 BOLT; COVER
08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0309-0501 ●
138 04.720 BOLT; COVER
4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0502-0512 ● ● ●
138 04.720 BOLT; COVER
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 (A) M8X12 FLANGE 		0-28050-812-0 02 1 0601-0612 ● ● ●
138 04.720 BOLT; COVER
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 (A) M8X12 FLANGE 		0-28050-812-0 02 1 0701- ● ● ● ●
138 04.720 BOLT; COVER
4 WHEEL ANTI LOCK BRAKE<JE5> 04.640 (B) M10X12 FLANGE 		0-28081-012-0 02 1 0211-0211 ● ● ●
138 04.720 BOLT; COVER
04.640 (B) M10X12 FLANGE 		0-28081-012-0 02 1 0211-0211 ●
138 04.720 BOLT; COVER
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 04.640 (B) M10X12 FLANGE 		0-28081-012-0 02 1 0212-0501 ● ● ●
138 04.720 BOLT; COVER
04.640 (B) M10X12 FLANGE 		0-28081-012-0 02 1 0212-0501 ●
142 04.710 NUT; SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0211 ● ● ●
142 04.710 NUT; SPEED SENSOR
07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0211 ●
142 04.710 NUT; SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0212-0308 ● ● ●
142 04.710 NUT; SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0212-0308 ● ● ●
142 04.710 NUT; SPEED SENSOR
07.633 M8 FLANGE 		0-91150-108-0 02 1 0212-0308 ●
142 04.710 NUT; SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0309-0501 ● ● ● ●
142 04.710 NUT; SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0309-0501 ● ● ●
142 04.710 NUT; SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0309-0501 ●
142 04.710 NUT; SPEED SENSOR
07.633 M8 FLANGE 		0-91150-108-0 02 1 0309-0501 ●
142 04.710 NUT; SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0602 ● ● ●
142 04.710 NUT; SPEED SENSOR
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0602 ● ● ●
142 04.710 NUT; SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-0612 ● ● ●
142 04.710 NUT; SPEED SENSOR
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-0612 ● ● ●
142 04.710 NUT; SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0701- ● ● ● ●
142 04.710 NUT; SPEED SENSOR
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0701- ● ● ● ●
147 04.710 BOLT; SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 (A) M8X12 FLANGE 		0-28080-812-0 06 1 0211-0308 ● ● ●
147 04.710 BOLT; SPEED SENSOR
08.900 (A) M8X12 FLANGE 		0-28080-812-0 06 1 0211-0308 ●
147 04.710 BOLT; SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 (A) M8X12 FLANGE 		0-28080-812-0 06 1 0309-0501 ● ● ● ●
147 04.710 BOLT; SPEED SENSOR
08.900 (A) M8X12 FLANGE 		0-28080-812-0 06 1 0309-0501 ●
147 04.710 BOLT; SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 (A) M8X12 FLANGE 		0-28080-812-0 06 1 0502-0512 ● ● ●
147 04.710 BOLT; SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 (A) M8X12 FLANGE 		0-28050-812-0 06 1 0601-0612 ● ● ●
147 04.710 BOLT; SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 (A) M8X12 FLANGE 		0-28050-812-0 06 1 0701- ● ● ● ●
147 04.710 BOLT; SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 02.664 (B) M8X20 FLANGE 		0-28680-820-0 02 1 0211-0308 ● ● ●
147 04.710 BOLT; SPEED SENSOR
02.664 (B) M8X20 FLANGE 		0-28680-820-0 02 1 0211-0308 ●
147 04.710 BOLT; SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 02.664 (B) M8X20 FLANGE 		0-28680-820-0 02 1 0309-0501 ● ● ● ●
147 04.710 BOLT; SPEED SENSOR
02.664 (B) M8X20 FLANGE 		0-28680-820-0 02 1 0309-0501 ●
147 04.710 BOLT; SPEED SENSOR
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 4 WHEEL ANTI LOCK BRAKE<JE5> 02.664 (B) M8X20 FLANGE 		0-28680-820-0 02 1 0502-0512 ● ● ●
147 04.710 BOLT; SPEED SENSOR
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 4 WHEEL ANTI LOCK BRAKE<JE5> 01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 0601-0612 ● ● ●
147 04.710 BOLT; SPEED SENSOR
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 4 WHEEL ANTI LOCK BRAKE<JE5> 01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 0701- ● ● ● ●
147 04.710 BOLT; SPEED SENSOR
4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 02 1 0507-0512 ●
147 04.710 BOLT; SPEED SENSOR
4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 02 1 0601-0606 ●
147 04.710 BOLT; SPEED SENSOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 02 1 0607-0612 ●
147 04.710 BOLT; SPEED SENSOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 02 1 0701- ● ●
çizim 53794
19 86 52 51 87 146 175 56 59 131 131 146 146 40
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
19 04.685 PIPE; BRK,M/CYL TO UNION
REAR 		8-97314-593-0 01 1 0211-0501 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> REAR 		8-97314-593-0 01 1 0211-0501 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. HYDRO BRAKE BOOSTER<7QQ> REAR 		8-97314-593-0 01 1 0502- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
REAR 		8-97314-593-0 01 1 0502- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HYDRO BRAKE BOOSTER<7QQ> REAR 		8-97119-830-0 01 1 0211-0501 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
REAR 		8-97119-830-0 01 1 0211-0501 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HYDRO BRAKE BOOSTER<7QQ> REAR 		8-97119-830-0 01 1 0502- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HYDRO MASTER<7LT> REAR 		8-97129-522-0 01 1 0211-0501 ● ● ●
40 04.690 BRACKET
4HG1 ENG(RJH),4HF1-S ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> EXC. TURBOCHARGER(K51) (C) 		8-97334-384-0 01 1 0211-0306 ● ●
40 04.690 BRACKET
4HG1 ENG(RJH) HYDRO BRAKE BOOSTER<7QQ> EXC. TURBOCHARGER(K51) (C) 		8-97334-384-0 01 1 0211-0306 ●
40 04.690 BRACKET
4HG1 ENG(RJH),4HF1-S ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> EXC. TURBOCHARGER(K51) (C) 		8-97370-408-0 01 1 0307-0501 ● ●
40 04.690 BRACKET
4HG1 ENG(RJH) HYDRO BRAKE BOOSTER<7QQ> EXC. TURBOCHARGER(K51) (C) 		8-97370-408-0 01 1 0307-0501 ●
40 04.690 BRACKET
4HG1 ENG(RJH),4HF1-S ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> (C) 		8-97370-408-0 01 1 0502- ● ● ● ●
40 04.690 BRACKET
HYDRO MASTER<7LT> (B) 		8-97145-247-1 01 1 0211-0501 ● ● ●
40 04.690 BRACKET
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97188-262-0 01 1 0211-0501 ● ● ●
51 04.681 WASHER; LK,FLEX HOSE
HYDRO MASTER<7LT> 00.796 ID=14.2 		9-09150-514-0 02 1 0211-0501 ● ● ●
52 04.681 NUT; FLEX HOSE
HYDRO MASTER<7LT> 06.232 M14 		9-99110-414-0 02 1 0211-0501 ● ● ●
56 04.686 BRACKET; UNION,BRK
(A) 		8-97171-017-1 01 1 0211-0501 ● ● ●
56 04.686 BRACKET; UNION,BRK
EXC. HYDRO MASTER<7LT> (A) 		8-97171-017-1 01 1 0211-0501 ● ● ●
56 04.686 BRACKET; UNION,BRK
(A) 		8-97171-017-1 01 1 0502- ● ● ● ● ●
56 04.686 BRACKET; UNION,BRK
HYDRO MASTER<7LT> (B) 		1-71998-934-2 01 1 0211-0501 ● ● ●
59 04.686 UNION; BRK PIPE
08.963 (A) M10 STRAIGHT 		9-09227-005-0 02 1 0211-0501 ● ● ●
59 04.686 UNION; BRK PIPE
EXC. HYDRO MASTER<7LT> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 02 1 0211-0501 ● ● ●
59 04.686 UNION; BRK PIPE
08.963 (A) M10 STRAIGHT 		9-09227-005-0 02 1 0502-0607 ● ● ● ● ●
59 04.686 UNION; BRK PIPE
(A) M10 STRAIGHT 		0-92107-005-0 02 1 0608- ● ● ● ● ●
59 04.686 UNION; BRK PIPE
HYDRO MASTER<7LT> 04.866 (B) M14 		9-09223-308-1 01 1 0211-0501 ● ● ●
86 04.681 NUT; UNION
HYDRO MASTER<7LT> 06.172 M14 		9-99111-414-0 01 1 0211-0501 ● ● ●
87 04.681 WASHER; LK,UNION
HYDRO MASTER<7LT> 00.796 ID=14.2 		9-09150-514-0 01 1 0211-0501 ● ● ●
131 04.710 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 0211-0501 ● ●
131 04.710 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 0211-0501 ● ● ●
131 04.710 BOLT; BRKT
02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 0211-0501 ●
131 04.710 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 0502-0512 ● ● ● ●
131 04.710 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ● ● ●
131 04.710 BOLT; BRKT
HYDRO MASTER<7LT> 02.664 (B) M8X20 FLANGE 		0-28680-820-0 02 1 0211-0501 ● ● ●
146 04.685 NUT; BRKT
07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 0211-0501 ● ● ● ● ● ●
146 04.685 NUT; BRKT
4HG1 ENG(RJH),4HF1-S ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> EXC. TURBOCHARGER(K51) 07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 0211-0501 ● ● ●
146 04.685 NUT; BRKT
07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 0502-0602 ● ● ● ● ●
146 04.685 NUT; BRKT
4HG1 ENG(RJH),4HF1-S ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> 07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 0502-0602 ● ● ● ●
146 04.685 NUT; BRKT
01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ● ●
146 04.685 NUT; BRKT
4HG1 ENG(RJH),4HF1-S ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ●
146 04.685 NUT; BRKT
HYDRO MASTER<7LT> 04.785 (B) M10 FLANGE 		0-91150-110-0 03 1 0211-0501 ● ● ●
146 04.685 NUT; BRKT
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ● ● ●
175 04.681 HOSE; FLEX
HYDRO MASTER<7LT> 00.785 L=420 		1-09364-615-0 01 1 0211-0501 ● ● ●
çizim 55313
100 89 24 100 138 24 72 103 228 90 55 72 103 72 24 100 89 100 138 72 24 103 228 90 55 72 103 72
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
24 04.685 PIPE; BRK,PROPORTIONING VLV
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-98005-304-0 01 1 0507- ●
24 04.685 PIPE; BRK,PROPORTIONING VLV
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97247-875-1 01 1 0211-0308 ● ● ●
24 04.685 PIPE; BRK,PROPORTIONING VLV 8-97247-875-1 01 1 0211-0308 ●
24 04.685 PIPE; BRK,PROPORTIONING VLV
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97247-875-1 01 1 0309-0501 ● ● ● ●
24 04.685 PIPE; BRK,PROPORTIONING VLV 8-97247-875-1 01 1 0309-0501 ●
24 04.685 PIPE; BRK,PROPORTIONING VLV
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97247-875-1 01 1 0502-0506 ● ● ●
24 04.685 PIPE; BRK,PROPORTIONING VLV
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97247-875-1 01 1 0507-0612 ● ●
24 04.685 PIPE; BRK,PROPORTIONING VLV
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97247-875-1 01 1 0701- ● ● ●
24 04.685 PIPE; BRK,PROPORTIONING VLV
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97247-865-4 01 1 0211-0308 ● ● ●
24 04.685 PIPE; BRK,PROPORTIONING VLV
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97247-865-4 01 1 0309-0501 ● ● ● ●
24 04.685 PIPE; BRK,PROPORTIONING VLV
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97247-865-4 01 1 0502-0612 ● ● ●
24 04.685 PIPE; BRK,PROPORTIONING VLV
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97247-865-4 01 1 0701- ● ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> REAR 		8-97247-894-0 01 1 0701- ●
55 04.686 PIPE; BRK,VLV TO UNION
BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> REAR SERVICED BY L=3035 		5-47411-789-0 01 1 0701- ●
55 04.686 PIPE; BRK,VLV TO UNION
BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> REAR 		5-47411-784-0 01 1 0211-0501 ● ●
55 04.686 PIPE; BRK,VLV TO UNION
BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> REAR 		5-47411-784-0 01 1 0502- ●
55 04.686 PIPE; BRK,VLV TO UNION
BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> REAR 		8-97325-785-0 01 1 0211-0501 ● ●
55 04.686 PIPE; BRK,VLV TO UNION
BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> REAR 		8-97325-785-0 01 1 0502- ●
55 04.686 PIPE; BRK,VLV TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> REAR 		5-47411-784-0 01 1 0211-0501 ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> REAR 		5-47411-784-0 01 1 0502-0506 ●
55 04.686 PIPE; BRK,VLV TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> REAR 		8-98005-302-0 01 1 0507-0612 ●
55 04.686 PIPE; BRK,VLV TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> REAR 		8-98042-891-1 01 1 0701- ●
55 04.686 PIPE; BRK,VLV TO UNION
BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.685 REAR 		5-47411-786-0 01 1 0211- ●
55 04.686 PIPE; BRK,VLV TO UNION
BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> REAR 		8-97325-786-0 01 1 0211- ●
55 04.686 PIPE; BRK,VLV TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 04.685 REAR 		5-47411-786-0 01 1 0211- ●
55 04.686 PIPE; BRK,VLV TO UNION
REAR 		5-47411-790-0 01 1 0211-0501 ●
72 04.686 BOLT; BRKT TO BODY
4 WHEEL ANTI LOCK BRAKE<JE5> 03.405 M10X25 FLANGE 		0-28681-025-0 03 1 0211-0308 ● ● ●
72 04.686 BOLT; BRKT TO BODY
03.405 M10X25 FLANGE 		0-28681-025-0 03 1 0211-0308 ●
72 04.686 BOLT; BRKT TO BODY
4 WHEEL ANTI LOCK BRAKE<JE5> 03.405 M10X25 FLANGE 		0-28681-025-0 03 1 0309-0501 ● ● ● ●
72 04.686 BOLT; BRKT TO BODY
03.405 M10X25 FLANGE 		0-28681-025-0 03 1 0309-0501 ●
72 04.686 BOLT; BRKT TO BODY
4 WHEEL ANTI LOCK BRAKE<JE5> 03.405 M10X25 FLANGE 		0-28681-025-0 03 1 0502-0512 ● ● ●
72 04.686 BOLT; BRKT TO BODY
4 WHEEL ANTI LOCK BRAKE<JE5> 00.029 M10X25 FLANGE 		0-28651-025-0 03 1 0601-0612 ● ● ●
72 04.686 BOLT; BRKT TO BODY
4 WHEEL ANTI LOCK BRAKE<JE5> 00.029 M10X25 FLANGE 		0-28651-025-0 03 1 0701- ● ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> VOLTAGE 24V<7AE> 		8-97327-076-1 01 1 0211-0308 ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK 8-97327-076-1 01 1 0211-0308 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97327-076-1 01 1 0211-0308 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> VOLTAGE 24V<7AE> 		8-97327-076-1 01 1 0309-0501 ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK 8-97327-076-1 01 1 0309-0501 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97327-076-1 01 1 0309-0501 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97327-076-3 01 1 0502-0612 ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97327-076-3 01 1 0701-1006 ● ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98155-356-1 01 1 1007- ● ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. VOLTAGE 24V<7AE> 		8-97327-075-1 01 1 0211-0308 ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. VOLTAGE 24V<7AE> 		8-97327-075-1 01 1 0309-0501 ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. VOLTAGE 24V<7AE> 		8-97327-075-3 01 1 0502-0612 ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. VOLTAGE 24V<7AE> 		8-97327-075-3 01 1 0701-1006 ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. VOLTAGE 24V<7AE> 		8-98155-358-1 01 1 1007- ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98002-693-3 01 1 0507-0606 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98002-693-3 01 1 0607-0612 ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98002-693-3 01 1 0701-1006 ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98157-972-1 01 1 1007- ● ●
90 04.730 BRACKET; HYDRAULIC UNIT,ABS
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97245-500-4 01 1 0502- ●
90 04.730 BRACKET; HYDRAULIC UNIT,ABS
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97260-303-0 01 1 0502- ●
90 04.730 BRACKET; HYDRAULIC UNIT,ABS
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97245-497-4 01 1 0211-0308 ● ● ●
90 04.730 BRACKET; HYDRAULIC UNIT,ABS 8-97245-497-4 01 1 0211-0308 ●
90 04.730 BRACKET; HYDRAULIC UNIT,ABS
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97245-497-4 01 1 0309-0501 ● ● ● ●
90 04.730 BRACKET; HYDRAULIC UNIT,ABS 8-97245-497-4 01 1 0309-0501 ●
90 04.730 BRACKET; HYDRAULIC UNIT,ABS
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97245-497-4 01 1 0502-0612 ● ●
90 04.730 BRACKET; HYDRAULIC UNIT,ABS
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97245-497-4 01 1 0701- ● ● ●
90 04.730 BRACKET; HYDRAULIC UNIT,ABS
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97245-499-1 01 1 0211-0308 ● ● ●
90 04.730 BRACKET; HYDRAULIC UNIT,ABS
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97245-499-1 01 1 0309-0501 ● ● ● ●
90 04.730 BRACKET; HYDRAULIC UNIT,ABS
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97245-499-1 01 1 0502-0612 ● ●
90 04.730 BRACKET; HYDRAULIC UNIT,ABS
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97245-499-1 01 1 0701- ● ● ●
100 04.730 NUT; HYDRAULIC UNIT
HYDRO BRAKE BOOSTER<7QQ> 06.606 (A) M12 SELF LOCK 		8-97028-390-1 01 1 0211-0501 ● ● ●
100 04.730 NUT; HYDRAULIC UNIT
06.606 (A) M12 SELF LOCK 		8-97028-390-1 01 1 0211-0501 ●
100 04.730 NUT; HYDRAULIC UNIT
HYDRO BRAKE BOOSTER<7QQ> 06.606 (A) M12 SELF LOCK 		8-97028-390-1 01 1 0502- ● ● ● ●
100 04.730 NUT; HYDRAULIC UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 (B) M8 FLANGE 		0-91150-108-0 03 1 0211-0308 ● ● ●
100 04.730 NUT; HYDRAULIC UNIT
07.633 (B) M8 FLANGE 		0-91150-108-0 03 1 0211-0308 ●
100 04.730 NUT; HYDRAULIC UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 (B) M8 FLANGE 		0-91150-108-0 03 1 0309-0501 ● ● ● ●
100 04.730 NUT; HYDRAULIC UNIT
07.633 (B) M8 FLANGE 		0-91150-108-0 03 1 0309-0501 ●
100 04.730 NUT; HYDRAULIC UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 (B) M8 FLANGE 		0-91150-108-0 03 1 0502-0602 ● ● ●
100 04.730 NUT; HYDRAULIC UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (B) M8 FLANGE 		0-91180-108-0 03 1 0603-0612 ● ● ●
100 04.730 NUT; HYDRAULIC UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (B) M8 FLANGE 		0-91180-108-0 03 1 0701- ● ● ● ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 04.785 (B) M10 FLANGE 		0-91150-110-0 01 1 0502-0602 ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0603- ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 04.785 (B) M10 FLANGE 		0-91150-110-0 02 1 0211-0308 ● ● ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
04.785 (B) M10 FLANGE 		0-91150-110-0 02 1 0211-0308 ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 04.785 (B) M10 FLANGE 		0-91150-110-0 02 1 0309-0501 ● ● ● ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
04.785 (B) M10 FLANGE 		0-91150-110-0 02 1 0309-0501 ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 04.785 (B) M10 FLANGE 		0-91150-110-0 02 1 0502-0602 ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 04.785 (B) M10 FLANGE 		0-91150-110-0 02 1 0502-0602 ● ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0603-0612 ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0603-0612 ● ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0701- ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0701- ● ● ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0211-0308 ● ● ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0211-0308 ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0309-0501 ● ● ● ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0309-0501 ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ● ● ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 0603-0612 ● ● ●
103 04.730 NUT; HYDRAULIC UNIT BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 0701- ● ● ● ●
138 04.720 BOLT; COVER
4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0211-0308 ● ● ●
138 04.720 BOLT; COVER
08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0211-0308 ●
138 04.720 BOLT; COVER
4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0309-0501 ● ● ● ●
138 04.720 BOLT; COVER
08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0309-0501 ●
138 04.720 BOLT; COVER
4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0502-0512 ● ● ●
138 04.720 BOLT; COVER
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 (A) M8X12 FLANGE 		0-28050-812-0 02 1 0601-0612 ● ● ●
138 04.720 BOLT; COVER
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 (A) M8X12 FLANGE 		0-28050-812-0 02 1 0701- ● ● ● ●
138 04.720 BOLT; COVER
4 WHEEL ANTI LOCK BRAKE<JE5> 04.640 (B) M10X12 FLANGE 		0-28081-012-0 02 1 0211-0211 ● ● ●
138 04.720 BOLT; COVER
04.640 (B) M10X12 FLANGE 		0-28081-012-0 02 1 0211-0211 ●
138 04.720 BOLT; COVER
4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> 04.640 (B) M10X12 FLANGE 		0-28081-012-0 02 1 0212-0501 ● ● ●
138 04.720 BOLT; COVER
04.640 (B) M10X12 FLANGE 		0-28081-012-0 02 1 0212-0501 ●
228 04.730 COVER; ABS
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97233-083-0 01 1 0211-0308 ● ● ●
228 04.730 COVER; ABS 8-97233-083-0 01 1 0211-0308 ●
228 04.730 COVER; ABS
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97233-083-0 01 1 0309-0501 ● ● ● ●
228 04.730 COVER; ABS 8-97233-083-0 01 1 0309-0501 ●
228 04.730 COVER; ABS
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97233-083-0 01 1 0502-0611 ● ● ●
228 04.730 COVER; ABS
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-760-0 01 1 0612-0612 ● ● ●
228 04.730 COVER; ABS
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97359-760-0 01 1 0701- ● ● ● ●
çizim 55520
61 10 253 10 253 131 227 19 153 145 7 7 59 59 56 8 146 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
7 04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT 8-97171-031-0 02 1 0211-0501 ● ● ●
7 04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT
EXC. HYDRO MASTER<7LT> 		8-97171-031-0 02 1 0211-0501 ● ● ●
7 04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT 8-97171-031-0 02 1 0502- ● ● ● ● ●
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
00.785 (A) 		8-94167-006-0 02 1 0211-0501 ● ● ●
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
EXC. HYDRO MASTER<7LT> 00.785 (A) 		8-94167-006-0 02 1 0211-0501 ● ● ●
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
00.785 (A) 		8-94167-006-0 02 1 0502-0610 ● ● ● ● ●
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
(A) 		8-97365-304-0 02 1 0611- ● ● ● ● ●
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
04.686 (B) 		8-97076-471-0 01 1 0211-0501 ● ● ●
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
EXC. HYDRO MASTER<7LT> 04.686 (B) 		8-97076-471-0 01 1 0211-0501 ● ● ●
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
04.686 (B) 		8-97076-471-0 01 1 0502- ● ● ● ● ●
10 04.686 BOLT; JOINT
03.163 M6X40 FLANGE 		0-28680-640-0 01 1 0211-0501 ● ● ●
10 04.686 BOLT; JOINT
EXC. HYDRO MASTER<7LT> 03.163 M6X40 FLANGE 		0-28680-640-0 01 1 0211-0501 ● ● ●
10 04.686 BOLT; JOINT
03.163 M6X40 FLANGE 		0-28680-640-0 01 1 0502-0512 ● ● ● ● ●
10 04.686 BOLT; JOINT
00.685 M6X40 FLANGE 		0-28650-640-0 01 1 0601- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
REAR 		8-97314-593-0 01 1 0211-0501 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> REAR 		8-97314-593-0 01 1 0211-0501 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. HYDRO BRAKE BOOSTER<7QQ> REAR 		8-97314-593-0 01 1 0502- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
REAR 		8-97314-593-0 01 1 0502- ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HYDRO BRAKE BOOSTER<7QQ> REAR 		8-97119-830-0 01 1 0211-0501 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
REAR 		8-97119-830-0 01 1 0211-0501 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HYDRO BRAKE BOOSTER<7QQ> REAR 		8-97119-830-0 01 1 0502- ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
HYDRO MASTER<7LT> REAR 		8-97129-522-0 01 1 0211-0501 ● ● ●
56 04.686 BRACKET; UNION,BRK
(A) 		8-97171-017-1 01 1 0211-0501 ● ● ●
56 04.686 BRACKET; UNION,BRK
EXC. HYDRO MASTER<7LT> (A) 		8-97171-017-1 01 1 0211-0501 ● ● ●
56 04.686 BRACKET; UNION,BRK
(A) 		8-97171-017-1 01 1 0502- ● ● ● ● ●
56 04.686 BRACKET; UNION,BRK
HYDRO MASTER<7LT> (B) 		1-71998-934-2 01 1 0211-0501 ● ● ●
59 04.686 UNION; BRK PIPE
08.963 (A) M10 STRAIGHT 		9-09227-005-0 02 1 0211-0501 ● ● ●
59 04.686 UNION; BRK PIPE
EXC. HYDRO MASTER<7LT> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 02 1 0211-0501 ● ● ●
59 04.686 UNION; BRK PIPE
08.963 (A) M10 STRAIGHT 		9-09227-005-0 02 1 0502-0607 ● ● ● ● ●
59 04.686 UNION; BRK PIPE
(A) M10 STRAIGHT 		0-92107-005-0 02 1 0608- ● ● ● ● ●
59 04.686 UNION; BRK PIPE
HYDRO MASTER<7LT> 04.866 (B) M14 		9-09223-308-1 01 1 0211-0501 ● ● ●
61 04.686 BRACKET; 5 WAY JOINT
FRAME STRAIGHT TYPE<7KJ> 		8-97170-632-0 01 1 0211-0501 ● ●
61 04.686 BRACKET; 5 WAY JOINT
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97170-632-0 01 1 0211-0501 ● ● ●
61 04.686 BRACKET; 5 WAY JOINT 8-97170-632-0 01 1 0211-0501 ●
61 04.686 BRACKET; 5 WAY JOINT
FRAME STRAIGHT TYPE<7KJ> 		8-97170-632-0 01 1 0502- ● ● ● ●
131 04.710 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 0211-0501 ● ●
131 04.710 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 0211-0501 ● ● ●
131 04.710 BOLT; BRKT
02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 0211-0501 ●
131 04.710 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 0502-0512 ● ● ● ●
131 04.710 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ● ● ●
131 04.710 BOLT; BRKT
HYDRO MASTER<7LT> 02.664 (B) M8X20 FLANGE 		0-28680-820-0 02 1 0211-0501 ● ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
FRONT 		8-97314-586-0 01 1 0211-0501 ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> FRONT 		8-97314-586-0 01 1 0211-0501 ● ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
EXC. HYDRO BRAKE BOOSTER<7QQ> FRONT 		8-97314-586-0 01 1 0502- ● ● ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
FRONT 		8-97314-586-0 01 1 0502- ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
HYDRO BRAKE BOOSTER<7QQ> FRONT 		8-97119-829-0 01 1 0211-0501 ● ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
FRONT 		8-97119-829-0 01 1 0211-0501 ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
HYDRO BRAKE BOOSTER<7QQ> FRONT 		8-97119-829-0 01 1 0502- ● ● ● ●
146 04.685 NUT; BRKT
07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 0211-0501 ● ● ● ● ● ●
146 04.685 NUT; BRKT
4HG1 ENG(RJH),4HF1-S ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> EXC. TURBOCHARGER(K51) 07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 0211-0501 ● ● ●
146 04.685 NUT; BRKT
07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 0502-0602 ● ● ● ● ●
146 04.685 NUT; BRKT
4HG1 ENG(RJH),4HF1-S ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> 07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 0502-0602 ● ● ● ●
146 04.685 NUT; BRKT
01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ● ●
146 04.685 NUT; BRKT
4HG1 ENG(RJH),4HF1-S ENG(RLS) HYDRO BRAKE BOOSTER<7QQ> 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ●
146 04.685 NUT; BRKT
HYDRO MASTER<7LT> 04.785 (B) M10 FLANGE 		0-91150-110-0 03 1 0211-0501 ● ● ●
146 04.685 NUT; BRKT
4HE1 ENG(RLY) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ● ● ●
153 04.730 SCREW; BRKT FIX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0211-0501 ● ● ●
153 04.730 SCREW; BRKT FIX
EXC. HYDRO MASTER<7LT> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0211-0501 ● ● ●
153 04.730 SCREW; BRKT FIX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0502-0604 ● ● ● ● ●
153 04.730 SCREW; BRKT FIX
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 01 1 0605- ● ● ● ● ●
227 04.685 NUT; JOINT
FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ● ●
227 04.685 NUT; JOINT
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ● ● ●
227 04.685 NUT; JOINT
04.594 M6 FLANGE 		0-91150-106-0 01 1 0211-0501 ●
227 04.685 NUT; JOINT
FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0502-0602 ● ● ● ●
227 04.685 NUT; JOINT
FRAME STRAIGHT TYPE<7KJ> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0603- ● ● ● ●
253 04.840 JOINT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH>,HYDRO MASTER<7LT> 04.686 		5-47456-009-1 01 1 0211-0501 ● ● ● ● ●
253 04.840 JOINT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<6PH> 04.686 		5-47456-009-1 01 1 0502- ● ● ● ● ●
253 04.840 JOINT
BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.686 		8-97120-033-2 01 1 0211-0501 ● ● ●
253 04.840 JOINT
BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.686 		8-97120-033-2 01 1 0502-0612 ● ●
253 04.840 JOINT
BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.686 		8-97120-033-2 01 1 0701- ● ● ●
253 04.840 JOINT
4 WHEEL ANTI LOCK BRAKE<JE5> 04.686 		8-97139-922-1 01 1 0211-0308 ● ● ●
253 04.840 JOINT
04.686 		8-97139-922-1 01 1 0211-0308 ●
253 04.840 JOINT
4 WHEEL ANTI LOCK BRAKE<JE5> 04.686 		8-97139-922-1 01 1 0309-0501 ● ● ● ●
253 04.840 JOINT
04.686 		8-97139-922-1 01 1 0309-0501 ●
253 04.840 JOINT
4 WHEEL ANTI LOCK BRAKE<JE5> 04.686 		8-97139-922-1 01 1 0502-0612 ● ● ●
253 04.840 JOINT
4 WHEEL ANTI LOCK BRAKE<JE5> 04.686 		8-97139-922-1 01 1 0701- ● ● ● ●
çizim 55542
55
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
55 04.686 PIPE; BRK,VLV TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> REAR 		8-97247-894-0 01 1 0701- ●
55 04.686 PIPE; BRK,VLV TO UNION
BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> REAR SERVICED BY L=3035 		5-47411-789-0 01 1 0701- ●
55 04.686 PIPE; BRK,VLV TO UNION
BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> REAR 		5-47411-784-0 01 1 0211-0501 ● ●
55 04.686 PIPE; BRK,VLV TO UNION
BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> REAR 		5-47411-784-0 01 1 0502- ●
55 04.686 PIPE; BRK,VLV TO UNION
BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> REAR 		8-97325-785-0 01 1 0211-0501 ● ●
55 04.686 PIPE; BRK,VLV TO UNION
BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> REAR 		8-97325-785-0 01 1 0502- ●
55 04.686 PIPE; BRK,VLV TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> REAR 		5-47411-784-0 01 1 0211-0501 ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> REAR 		5-47411-784-0 01 1 0502-0506 ●
55 04.686 PIPE; BRK,VLV TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> REAR 		8-98005-302-0 01 1 0507-0612 ●
55 04.686 PIPE; BRK,VLV TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> REAR 		8-98042-891-1 01 1 0701- ●
55 04.686 PIPE; BRK,VLV TO UNION
BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.685 REAR 		5-47411-786-0 01 1 0211- ●
55 04.686 PIPE; BRK,VLV TO UNION
BRK WHL LK CONT LSPV<6PH> EXC. FRAME STRAIGHT TYPE<7KJ> REAR 		8-97325-786-0 01 1 0211- ●
55 04.686 PIPE; BRK,VLV TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> FRAME STRAIGHT TYPE<7KJ> 04.685 REAR 		5-47411-786-0 01 1 0211- ●
55 04.686 PIPE; BRK,VLV TO UNION
REAR 		5-47411-790-0 01 1 0211-0501 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
