Isuzu WW
▶
TRUCKS
▶
NPR
▶
50947 - NPR/NQR LHDEXC.EURO4
▶
3 - Brakes, Brake System
▶
3-47 - SAFETY VALVE
▶

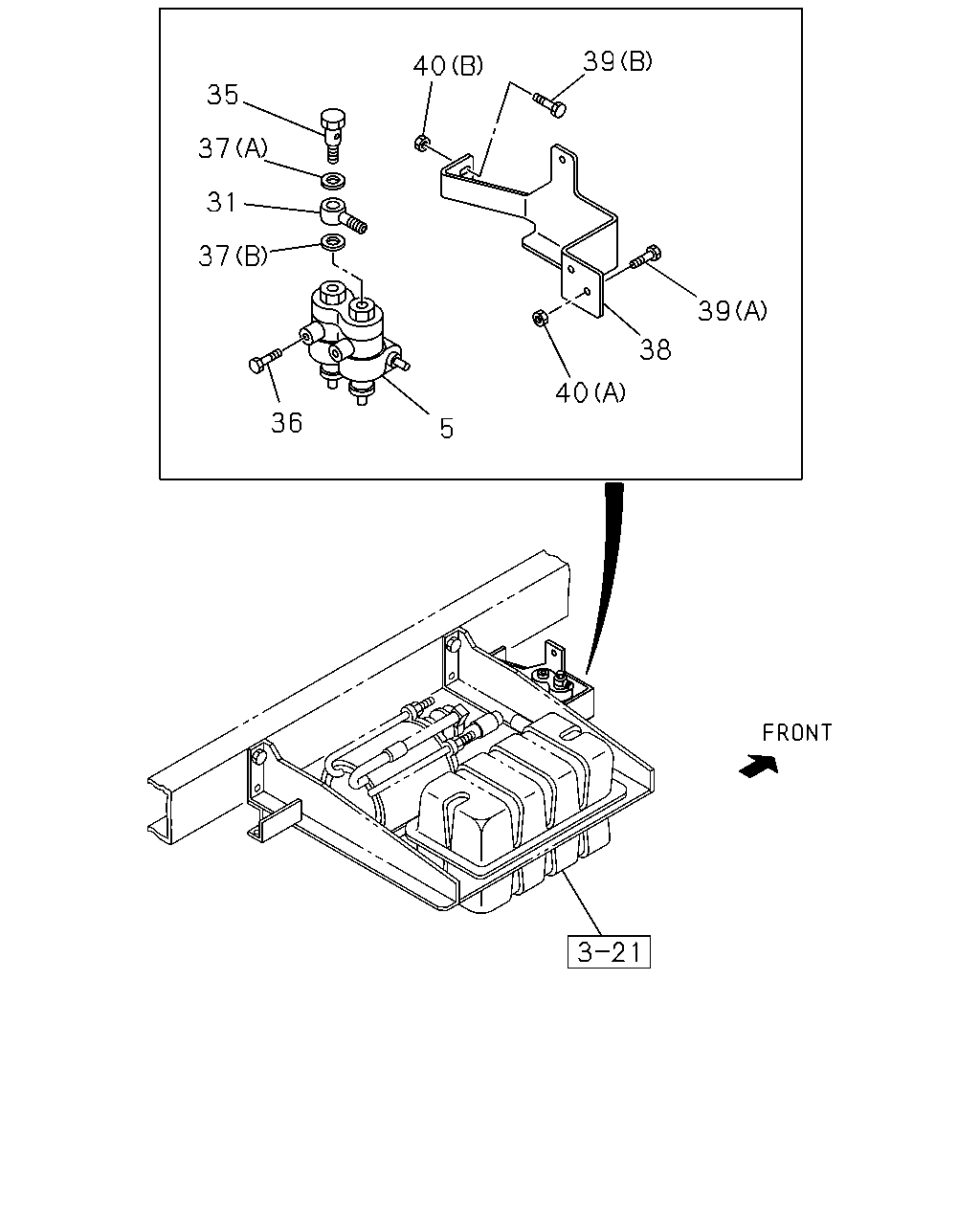

3-47 — SAFETY VALVE
(#45089) — 11 parça
Tümü
A - NPC6SF
B - NPC6SK
C - NPC6SN
39
40
35
37
31
37
39
38
40
36
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
5
04.640 VALVE ASM; TWIN SAFETY,BRK
HYDRO MASTER<7LT>
8-97129-513-0
01
1
0211-0501
●
●
●
31
04.640 JOINT; EYE,SAFETY VLV
HYDRO MASTER<7LT>
9-09907-442-1
01
1
0211-0501
●
●
●
35
04.640 BOLT; EYE
HYDRO MASTER<7LT>
1-09675-035-0
01
1
0211-0501
●
●
●
36
04.640 BOLT
HYDRO MASTER<7LT> M10X12 FLANGE
0-28081-012-0
02
1
0211-0501
●
●
●
37
04.640 GASKET
HYDRO MASTER<7LT> (B) ID=12
1-09630-030-0
01
1
0211-0501
●
●
●
37
04.640 GASKET
HYDRO MASTER<7LT> (A) ID=17
9-09920-289-0
01
1
0211-0501
●
●
●
38
04.640 COVER; SEFETY VLV
HYDRO MASTER<7LT>
8-97170-893-0
01
1
0211-0501
●
●
●
39
04.640 BOLT; COVER
HYDRO MASTER<7LT> 02.664 (A) M8X20 FLANGE
0-28680-820-0
02
1
0211-0501
●
●
●
39
04.640 BOLT; COVER
HYDRO MASTER<7LT> 03.405 (B) M10X25 FLANGE
0-28681-025-0
01
1
0211-0501
●
●
●
40
04.640 NUT; COVER
HYDRO MASTER<7LT> 07.633 (A) M8 FLANGE
0-91150-108-0
02
1
0211-0501
●
●
●
40
04.640 NUT; COVER
HYDRO MASTER<7LT> 04.785 (B) M10 FLANGE
0-91150-110-0
01
1
0211-0501
●
●
●
