3-31 — BRAKE MASTER VAC AND BRAKE BOOSTER (#45086) — 92 parça

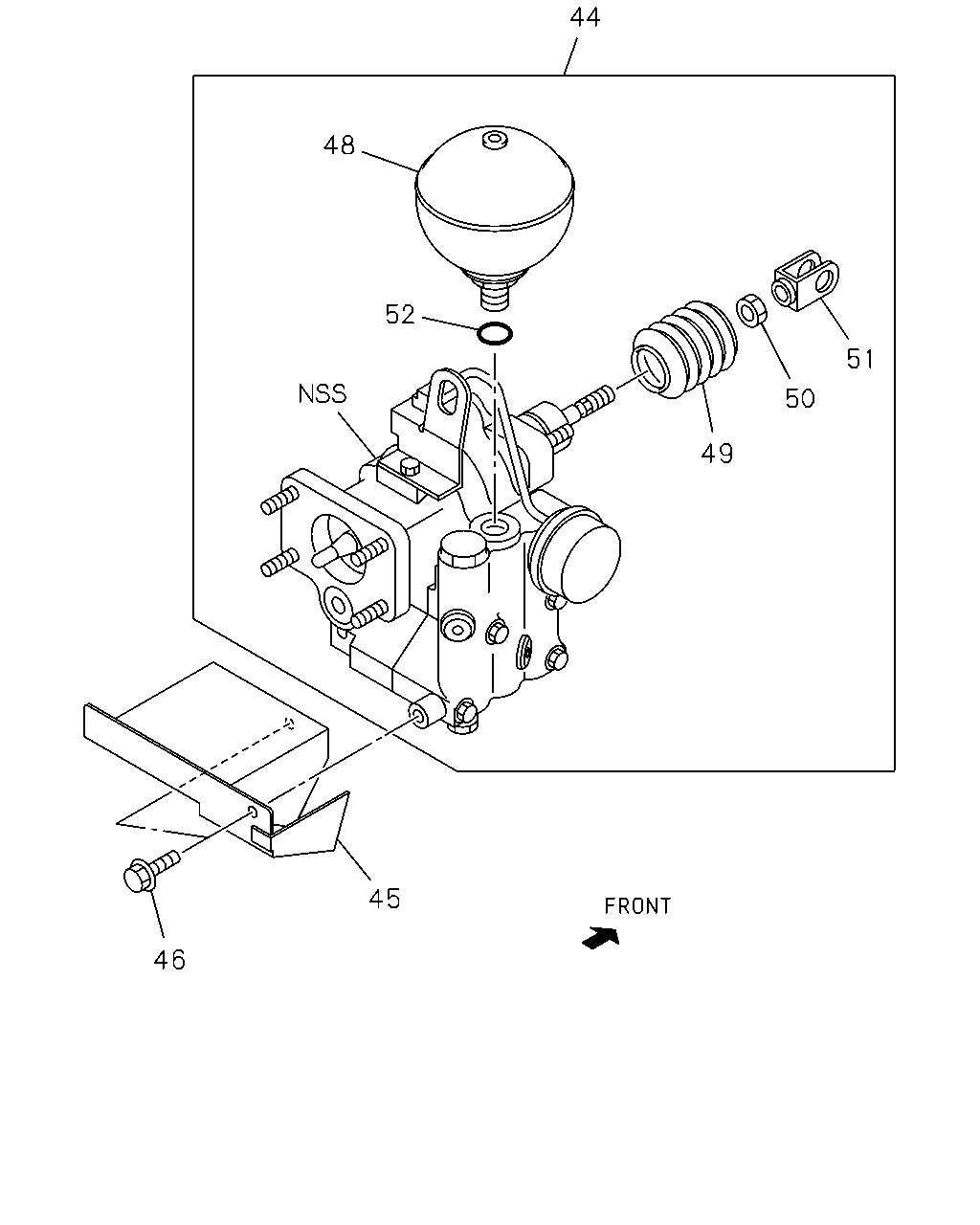

çizim 52855
44 48 52 51 50 49 45 46
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
44 04.901 BOOSTER; HYDRAULIC BRK
HYDRO BRAKE BOOSTER<7QQ> 		8-97209-212-0 01 1 0211-0501 ● ● ●
44 04.901 BOOSTER; HYDRAULIC BRK 8-97209-212-0 01 1 0211-0501 ●
44 04.901 BOOSTER; HYDRAULIC BRK
HYDRO BRAKE BOOSTER<7QQ> 		8-97209-212-0 01 1 0502-0610 ● ● ● ●
44 04.901 BOOSTER; HYDRAULIC BRK
HYDRO BRAKE BOOSTER<7QQ> 		8-98031-414-0 01 1 0611- ● ● ● ●
45 04.901 PROTECTOR; HEAT
HYDRO BRAKE BOOSTER<7QQ> 		8-97182-354-1 01 1 0211-0501 ● ● ●
45 04.901 PROTECTOR; HEAT 8-97182-354-1 01 1 0211-0501 ●
45 04.901 PROTECTOR; HEAT
HYDRO BRAKE BOOSTER<7QQ> 		8-97182-354-1 01 1 0502- ● ● ● ●
46 04.901 BOLT; HEAT PROTECTOR
HYDRO BRAKE BOOSTER<7QQ> 02.500 M6X10 FLANGE 		0-28080-610-0 02 1 0211-0501 ● ● ●
46 04.901 BOLT; HEAT PROTECTOR
02.500 M6X10 FLANGE 		0-28080-610-0 02 1 0211-0501 ●
46 04.901 BOLT; HEAT PROTECTOR
HYDRO BRAKE BOOSTER<7QQ> 02.500 M6X10 FLANGE 		0-28080-610-0 02 1 0502-0512 ● ● ● ●
46 04.901 BOLT; HEAT PROTECTOR
HYDRO BRAKE BOOSTER<7QQ> 03.671 M6X10 FLANGE 		0-28050-610-0 02 1 0601- ● ● ● ●
48 04.906 ACCUMULATOR; HYDRO BOOSTER
HYDRO BRAKE BOOSTER<7QQ> 		8-97191-040-0 01 1 0211-0501 ● ● ●
48 04.906 ACCUMULATOR; HYDRO BOOSTER 8-97191-040-0 01 1 0211-0501 ●
48 04.906 ACCUMULATOR; HYDRO BOOSTER
HYDRO BRAKE BOOSTER<7QQ> 		8-97191-040-0 01 1 0502-0610 ● ● ● ●
48 04.906 ACCUMULATOR; HYDRO BOOSTER
HYDRO BRAKE BOOSTER<7QQ> 		8-98038-346-0 01 1 0611- ● ● ● ●
49 04.906 GUARD; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER<7QQ> 		8-97191-043-0 01 1 0211-0501 ● ● ●
49 04.906 GUARD; HYDRO BRK BOOSTER 8-97191-043-0 01 1 0211-0501 ●
49 04.906 GUARD; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER<7QQ> 		8-97191-043-0 01 1 0502- ● ● ● ●
50 04.906 NUT; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER<7QQ> 04.662 		8-97191-042-0 01 1 0211-0501 ● ● ●
50 04.906 NUT; HYDRO BRK BOOSTER
04.662 		8-97191-042-0 01 1 0211-0501 ●
50 04.906 NUT; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER<7QQ> 04.662 		8-97191-042-0 01 1 0502-0610 ● ● ● ●
50 04.906 NUT; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER<7QQ> 		8-98038-349-0 01 1 0611- ● ● ● ●
51 04.906 CLEVIS; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER<7QQ> 04.662 		8-97191-041-0 01 1 0211-0501 ● ● ●
51 04.906 CLEVIS; HYDRO BRK BOOSTER
04.662 		8-97191-041-0 01 1 0211-0501 ●
51 04.906 CLEVIS; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER<7QQ> 04.662 		8-97191-041-0 01 1 0502-0610 ● ● ● ●
51 04.906 CLEVIS; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER<7QQ> 		8-98038-347-0 01 1 0611- ● ● ● ●
52 04.906 GASKET; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER<7QQ> 04.910 		8-97191-038-0 01 1 0211-0501 ● ● ●
52 04.906 GASKET; HYDRO BRK BOOSTER
04.910 		8-97191-038-0 01 1 0211-0501 ●
52 04.906 GASKET; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER<7QQ> 04.910 		8-97191-038-0 01 1 0502- ● ● ● ●
çizim 54874
1 17 16 24 15 12 11 23 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.901 MASTER VAC ASM; BRK
G.V.W. 6.0-6.5TON(RPV) 		8-97162-798-1 01 1 0211-0401 ●
1 04.901 MASTER VAC ASM; BRK
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97162-798-1 01 1 0211-0401 ● ●
1 04.901 MASTER VAC ASM; BRK
EXC. DISC BRAKE FRT<J52> 		8-97162-798-1 01 1 0211-0401 ●
1 04.901 MASTER VAC ASM; BRK
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97162-798-1 01 1 0402-0501 ● ● ● ●
1 04.901 MASTER VAC ASM; BRK
G.V.W. 3.5-4.0TON(RPQ) EXC. DISC BRAKE FRT<J52>,TURKISH EQUIPMENT(S6S),HYDRO MASTER<7LT>,HYDRO BR AKE BOOSTER<7QQ> 		8-97162-798-1 01 1 0402-0501 ●
1 04.901 MASTER VAC ASM; BRK
G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97162-798-1 01 1 0502- ● ● ● ●
1 04.901 MASTER VAC ASM; BRK
G.V.W. 3.5-4.0TON(RPQ) EXC. TURKISH EQUIPMENT(S6S),HYDRO BRAKE BOOSTER<7QQ> 		8-97162-798-1 01 1 0502- ●
1 04.901 MASTER VAC ASM; BRK
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97162-800-1 01 1 0211-0401 ● ● ● ●
1 04.901 MASTER VAC ASM; BRK
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97162-800-1 01 1 0211-0401 ● ● ●
1 04.901 MASTER VAC ASM; BRK
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97162-800-1 01 1 0402-0501 ● ● ● ●
1 04.901 MASTER VAC ASM; BRK
DISC BRAKE FRT<J52> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97162-800-1 01 1 0402-0501 ● ● ● ●
1 04.901 MASTER VAC ASM; BRK
G.V.W. 3.5-4.0TON(RPQ) TURKISH EQUIPMENT(S6S) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97162-800-1 01 1 0402-0501 ●
1 04.901 MASTER VAC ASM; BRK
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97162-800-1 01 1 0502- ● ● ● ●
1 04.901 MASTER VAC ASM; BRK
G.V.W. 3.5-4.0TON(RPQ) TURKISH EQUIPMENT(S6S) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97162-800-1 01 1 0502- ●
3 04.906 RETAINER; FRT SHELL,M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		9-83315-319-0 01 1 0211-0401 ● ● ● ●
3 04.906 RETAINER; FRT SHELL,M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		9-83315-319-0 01 1 0211-0401 ● ● ●
3 04.906 RETAINER; FRT SHELL,M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		9-83315-319-0 01 1 0402-0501 ● ● ● ●
3 04.906 RETAINER; FRT SHELL,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV) EXC. TURKISH EQUIPMENT(S6S),HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		9-83315-319-0 01 1 0402-0501 ● ● ● ●
3 04.906 RETAINER; FRT SHELL,M/VAC
EXC. HYDRO BRAKE BOOSTER<7QQ> 		9-83315-319-0 01 1 0502- ● ● ● ● ●
11 04.906 FILTER; M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97205-576-0 01 1 0211-0401 ● ● ● ●
11 04.906 FILTER; M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97205-576-0 01 1 0211-0401 ● ● ●
11 04.906 FILTER; M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97205-576-0 01 1 0402-0501 ● ● ● ●
11 04.906 FILTER; M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV) EXC. TURKISH EQUIPMENT(S6S),HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97205-576-0 01 1 0402-0501 ● ● ● ●
11 04.906 FILTER; M/VAC
EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97205-576-0 01 1 0502- ● ● ● ● ●
12 04.906 SILENCER; M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97205-577-0 01 1 0211-0401 ● ● ● ●
12 04.906 SILENCER; M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97205-577-0 01 1 0211-0401 ● ● ●
12 04.906 SILENCER; M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97205-577-0 01 1 0402-0501 ● ● ● ●
12 04.906 SILENCER; M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV) EXC. TURKISH EQUIPMENT(S6S),HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97205-577-0 01 1 0402-0501 ● ● ● ●
12 04.906 SILENCER; M/VAC
EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97205-577-0 01 1 0502- ● ● ● ● ●
15 04.906 RETAINER; GUARD,M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-94375-083-0 01 1 0211-0401 ● ● ● ●
15 04.906 RETAINER; GUARD,M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-94375-083-0 01 1 0211-0401 ● ● ●
15 04.906 RETAINER; GUARD,M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-94375-083-0 01 1 0402-0501 ● ● ● ●
15 04.906 RETAINER; GUARD,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV) EXC. TURKISH EQUIPMENT(S6S),HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-94375-083-0 01 1 0402-0501 ● ● ● ●
15 04.906 RETAINER; GUARD,M/VAC
EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-94375-083-0 01 1 0502- ● ● ● ● ●
16 04.662 NUT; VLV ROD,M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> M10 		1-52139-008-0 01 1 0211-0401 ● ● ● ●
16 04.662 NUT; VLV ROD,M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> M10 		1-52139-008-0 01 1 0211-0401 ● ● ●
16 04.662 NUT; VLV ROD,M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> M10 		1-52139-008-0 01 1 0402-0501 ● ● ● ●
16 04.662 NUT; VLV ROD,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV) EXC. TURKISH EQUIPMENT(S6S),HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> M10 		1-52139-008-0 01 1 0402-0501 ● ● ● ●
16 04.662 NUT; VLV ROD,M/VAC
EXC. HYDRO BRAKE BOOSTER<7QQ> M10 		1-52139-008-0 01 1 0502- ● ● ● ● ●
17 04.662 CLEVIS; YOKE,M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97224-610-0 01 1 0211-0401 ● ● ● ●
17 04.662 CLEVIS; YOKE,M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97224-610-0 01 1 0211-0401 ● ● ●
17 04.662 CLEVIS; YOKE,M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97224-610-0 01 1 0402-0501 ● ● ● ●
17 04.662 CLEVIS; YOKE,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV) EXC. TURKISH EQUIPMENT(S6S),HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97224-610-0 01 1 0402-0501 ● ● ● ●
17 04.662 CLEVIS; YOKE,M/VAC
EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97224-610-0 01 1 0502- ● ● ● ● ●
23 04.910 SEAL; M/VAC
G.V.W. 6.0-6.5TON(RPV) 		8-97261-943-0 01 1 0211-0401 ●
23 04.910 SEAL; M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97261-943-0 01 1 0211-0401 ● ●
23 04.910 SEAL; M/VAC
EXC. DISC BRAKE FRT<J52> 		8-97261-943-0 01 1 0211-0401 ●
23 04.910 SEAL; M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97261-943-0 01 1 0402-0501 ● ● ● ●
23 04.910 SEAL; M/VAC
G.V.W. 3.5-4.0TON(RPQ) EXC. DISC BRAKE FRT<J52>,TURKISH EQUIPMENT(S6S),HYDRO MASTER<7LT>,HYDRO BR AKE BOOSTER<7QQ> 		8-97261-943-0 01 1 0402-0501 ●
23 04.910 SEAL; M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97261-943-0 01 1 0502- ● ● ● ●
23 04.910 SEAL; M/VAC
G.V.W. 3.5-4.0TON(RPQ) EXC. TURKISH EQUIPMENT(S6S),HYDRO BRAKE BOOSTER<7QQ> 		8-97261-943-0 01 1 0502- ●
23 04.910 SEAL; M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97079-350-0 01 1 0211-0401 ● ● ● ●
23 04.910 SEAL; M/VAC
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97079-350-0 01 1 0211-0401 ● ● ●
23 04.910 SEAL; M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97079-350-0 01 1 0402-0501 ● ● ● ●
23 04.910 SEAL; M/VAC
DISC BRAKE FRT<J52> G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97079-350-0 01 1 0402-0501 ● ● ● ●
23 04.910 SEAL; M/VAC
G.V.W. 3.5-4.0TON(RPQ) TURKISH EQUIPMENT(S6S) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97079-350-0 01 1 0402-0501 ●
23 04.910 SEAL; M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97079-350-0 01 1 0502- ● ● ● ●
23 04.910 SEAL; M/VAC
G.V.W. 3.5-4.0TON(RPQ) TURKISH EQUIPMENT(S6S) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97079-350-0 01 1 0502- ●
24 04.906 GUARD; VLV BODY,M/VAC
G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97205-578-0 01 1 0211-0401 ● ● ● ●
24 04.906 GUARD; VLV BODY,M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97205-578-0 01 1 0211-0401 ● ● ●
24 04.906 GUARD; VLV BODY,M/VAC
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) EXC. DISC BRAKE FRT<J52>,HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97205-578-0 01 1 0402-0501 ● ● ● ●
24 04.906 GUARD; VLV BODY,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV) EXC. TURKISH EQUIPMENT(S6S),HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97205-578-0 01 1 0402-0501 ● ● ● ●
24 04.906 GUARD; VLV BODY,M/VAC
EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97205-578-0 01 1 0502- ● ● ● ● ●
