Sayfa 3-21 - Isuzu EPC

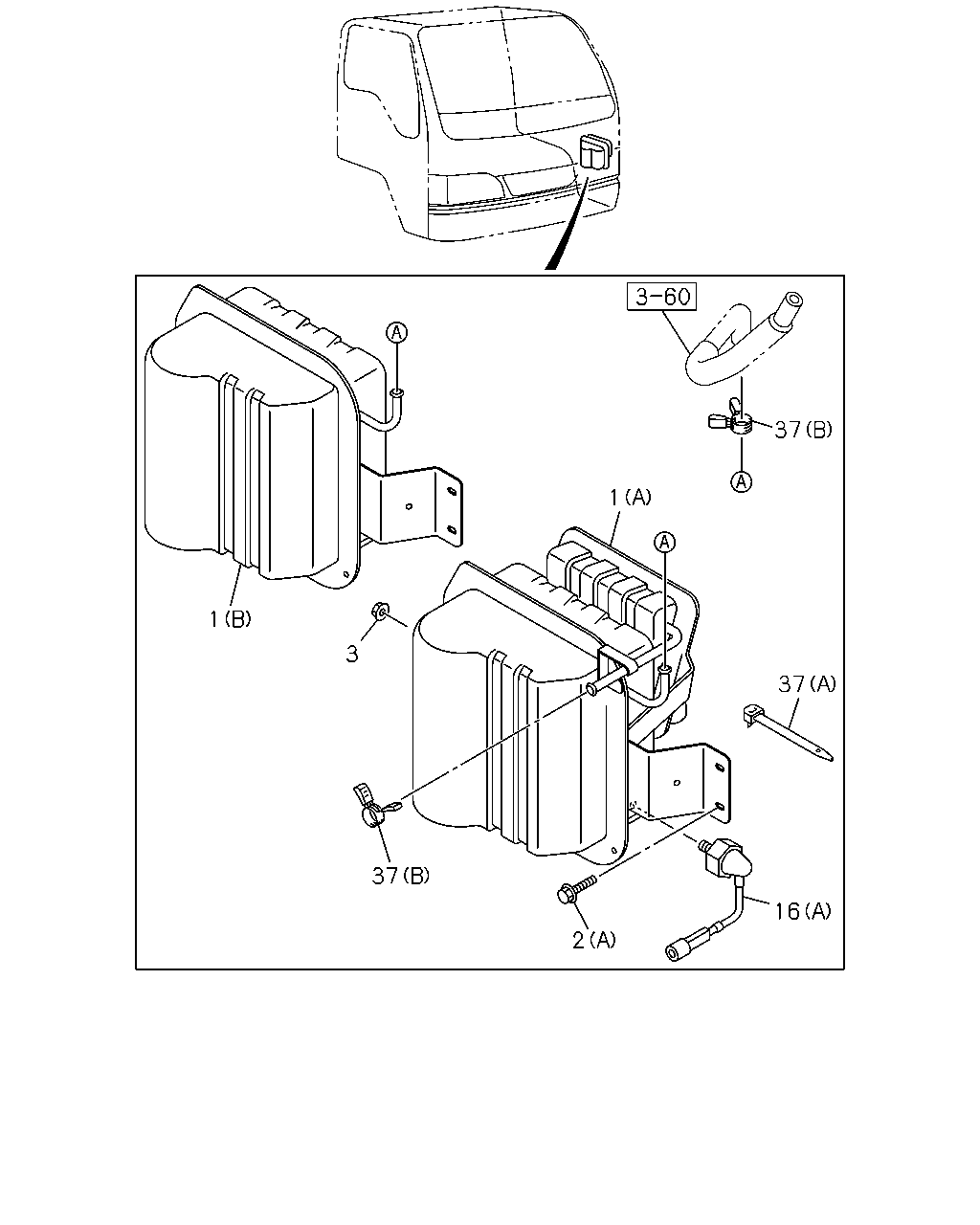

3-21 — VACUUM TANK (#45084) — 133 parça

1 3 37 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) (A)	8-97078-215-2	01	1	0211-0501	●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A)	8-97078-215-2	01	1	0211-0501			●	●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97078-215-2	01	1	0502-	●		●	●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) (A)	8-97078-215-2	01	1	0502-		●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97078-216-2	01	1	0211-0501	●	●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T),HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (B)	8-97078-216-2	01	1	0211-0501			●	●	●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> (B)	8-97078-216-2	01	1	0502-	●		●	●	●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97078-216-2	01	1	0502-		●
1	04.902 TANK; VAC,MAIN HYDRO MASTER<7LT> (D)	8-97355-424-0	01	1	0211-0501			●	●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (C)	8-97172-123-1	01	1	0211-0501			●	●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> (C)	8-97172-123-1	01	1	0502-	●		●	●	●
2	04.902 BOLT; VAC TANK 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0211-0501	●	●
2	04.902 BOLT; VAC TANK POWER ASSIST CLUTCH(S2T) 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0211-0501			●	●	●
2	04.902 BOLT; VAC TANK EXC. POWER ASSIST CLUTCH(S2T),HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0211-0501			●	●	●
2	04.902 BOLT; VAC TANK POWER ASSIST CLUTCH(S2T) 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0502-0512	●		●	●	●
2	04.902 BOLT; VAC TANK EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0502-0512	●		●	●	●
2	04.902 BOLT; VAC TANK 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0502-0512		●
2	04.902 BOLT; VAC TANK POWER ASSIST CLUTCH(S2T) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●		●	●	●
2	04.902 BOLT; VAC TANK EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●		●	●	●
2	04.902 BOLT; VAC TANK 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
2	04.902 BOLT; VAC TANK HYDRO MASTER<7LT> 02.664 (B) M8X20 FLANGE	0-28680-820-0	06	1	0211-0501			●	●	●
2	04.902 BOLT; VAC TANK HYDRO MASTER<7LT> 03.405 (C) M10X30 FLANGE	0-28681-030-0	02	1	0211-0501			●	●	●
3	04.902 NUT; VAC TANK TO BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0212	●	●
3	04.902 NUT; VAC TANK TO BRKT POWER ASSIST CLUTCH(S2T) 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0212			●	●	●
3	04.902 NUT; VAC TANK TO BRKT EXC. POWER ASSIST CLUTCH(S2T),HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0212			●	●	●
3	04.902 NUT; VAC TANK TO BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0301-0501	●	●
3	04.902 NUT; VAC TANK TO BRKT POWER ASSIST CLUTCH(S2T) 07.633 M8 FLANGE	0-91150-108-0	01	1	0301-0501			●	●	●
3	04.902 NUT; VAC TANK TO BRKT EXC. POWER ASSIST CLUTCH(S2T),HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0301-0501			●	●	●
3	04.902 NUT; VAC TANK TO BRKT POWER ASSIST CLUTCH(S2T) 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602	●		●	●	●
3	04.902 NUT; VAC TANK TO BRKT EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602	●		●	●	●
3	04.902 NUT; VAC TANK TO BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602		●
3	04.902 NUT; VAC TANK TO BRKT POWER ASSIST CLUTCH(S2T) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-	●		●	●	●
3	04.902 NUT; VAC TANK TO BRKT EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-	●		●	●	●
3	04.902 NUT; VAC TANK TO BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-		●
37	04.902 CLIP; RUBBER HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	8-94238-568-0	01	1	0211-0501	●	●	●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	8-94238-568-0	01	1	0211-0501			●	●	●
37	04.902 CLIP; RUBBER HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	8-94238-568-0	01	1	0502-	●		●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	8-94238-568-0	01	1	0502-	●		●	●	●
37	04.902 CLIP; RUBBER HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	01	1	0502-		●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) 02.559 (A) L=219.5	1-09987-136-0	01	1	0211-0501	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) L=219.5	1-09987-136-0	01	1	0211-0501			●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) L=219.5	1-09987-136-0	01	1	0502-	●		●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) 02.559 (A) L=219.5	1-09987-136-0	01	1	0502-		●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0211-0501	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	8-94238-568-0	02	1	0211-0501			●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	8-94238-568-0	02	1	0502-	●		●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0502-		●

2 16 50 2 1 6 6 2 6 24 2 6 6 2 6 2 24 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) (A)	8-97078-215-2	01	1	0211-0501	●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A)	8-97078-215-2	01	1	0211-0501			●	●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97078-215-2	01	1	0502-	●		●	●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) (A)	8-97078-215-2	01	1	0502-		●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97078-216-2	01	1	0211-0501	●	●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T),HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (B)	8-97078-216-2	01	1	0211-0501			●	●	●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> (B)	8-97078-216-2	01	1	0502-	●		●	●	●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97078-216-2	01	1	0502-		●
1	04.902 TANK; VAC,MAIN HYDRO MASTER<7LT> (D)	8-97355-424-0	01	1	0211-0501			●	●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (C)	8-97172-123-1	01	1	0211-0501			●	●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> (C)	8-97172-123-1	01	1	0502-	●		●	●	●
2	04.902 BOLT; VAC TANK 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0211-0501	●	●
2	04.902 BOLT; VAC TANK POWER ASSIST CLUTCH(S2T) 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0211-0501			●	●	●
2	04.902 BOLT; VAC TANK EXC. POWER ASSIST CLUTCH(S2T),HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0211-0501			●	●	●
2	04.902 BOLT; VAC TANK POWER ASSIST CLUTCH(S2T) 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0502-0512	●		●	●	●
2	04.902 BOLT; VAC TANK EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0502-0512	●		●	●	●
2	04.902 BOLT; VAC TANK 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0502-0512		●
2	04.902 BOLT; VAC TANK POWER ASSIST CLUTCH(S2T) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●		●	●	●
2	04.902 BOLT; VAC TANK EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●		●	●	●
2	04.902 BOLT; VAC TANK 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
2	04.902 BOLT; VAC TANK HYDRO MASTER<7LT> 02.664 (B) M8X20 FLANGE	0-28680-820-0	06	1	0211-0501			●	●	●
2	04.902 BOLT; VAC TANK HYDRO MASTER<7LT> 03.405 (C) M10X30 FLANGE	0-28681-030-0	02	1	0211-0501			●	●	●
6	04.902 NUT; BRKT HYDRO MASTER<7LT> 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0211-0501			●	●	●
6	04.902 NUT; BRKT HYDRO MASTER<7LT> 04.785 (B) M10 FLANGE	0-91150-110-0	04	1	0211-0501			●	●	●
7	04.880 HYDROMASTER ASM; BRK SEE FIG-NO 3-32 FOR COMPONENT. HYDRO MASTER<7LT> 04.740	8-97129-512-0	01	1	0211-0501			●	●	●
16	04.906 SWITCH; VAC (A)	8-97073-374-1	01	1	0211-0501	●	●
16	04.906 SWITCH; VAC EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A)	8-97073-374-1	01	1	0211-0501			●	●	●
16	04.906 SWITCH; VAC EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97073-374-1	01	1	0502-	●		●	●	●
16	04.906 SWITCH; VAC (A)	8-97073-374-1	01	1	0502-		●
16	04.906 SWITCH; VAC HYDRO MASTER<7LT> (B)	1-82420-006-4	01	1	0211-0501			●	●	●
24	04.902 BRACKET; VAC TANK HYDRO MASTER<7LT> (A)	8-97145-245-1	01	1	0211-0501			●	●	●
24	04.902 BRACKET; VAC TANK HYDRO MASTER<7LT> (B)	8-97145-246-2	01	1	0211-0211			●	●	●
24	04.902 BRACKET; VAC TANK HYDRO MASTER<7LT> (B)	8-97363-083-0	01	1	0212-0501			●	●	●
50	04.902 VALVE; CHECK HYDRO MASTER<7LT> 04.955	1-48410-083-0	01	1	0211-0501			●	●	●

37 1 1 3 37 37 16 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) (A)	8-97078-215-2	01	1	0211-0501	●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A)	8-97078-215-2	01	1	0211-0501			●	●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97078-215-2	01	1	0502-	●		●	●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) (A)	8-97078-215-2	01	1	0502-		●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97078-216-2	01	1	0211-0501	●	●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T),HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (B)	8-97078-216-2	01	1	0211-0501			●	●	●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> (B)	8-97078-216-2	01	1	0502-	●		●	●	●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97078-216-2	01	1	0502-		●
1	04.902 TANK; VAC,MAIN HYDRO MASTER<7LT> (D)	8-97355-424-0	01	1	0211-0501			●	●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (C)	8-97172-123-1	01	1	0211-0501			●	●	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> (C)	8-97172-123-1	01	1	0502-	●		●	●	●
2	04.902 BOLT; VAC TANK 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0211-0501	●	●
2	04.902 BOLT; VAC TANK POWER ASSIST CLUTCH(S2T) 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0211-0501			●	●	●
2	04.902 BOLT; VAC TANK EXC. POWER ASSIST CLUTCH(S2T),HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0211-0501			●	●	●
2	04.902 BOLT; VAC TANK POWER ASSIST CLUTCH(S2T) 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0502-0512	●		●	●	●
2	04.902 BOLT; VAC TANK EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0502-0512	●		●	●	●
2	04.902 BOLT; VAC TANK 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0502-0512		●
2	04.902 BOLT; VAC TANK POWER ASSIST CLUTCH(S2T) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●		●	●	●
2	04.902 BOLT; VAC TANK EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●		●	●	●
2	04.902 BOLT; VAC TANK 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
2	04.902 BOLT; VAC TANK HYDRO MASTER<7LT> 02.664 (B) M8X20 FLANGE	0-28680-820-0	06	1	0211-0501			●	●	●
2	04.902 BOLT; VAC TANK HYDRO MASTER<7LT> 03.405 (C) M10X30 FLANGE	0-28681-030-0	02	1	0211-0501			●	●	●
3	04.902 NUT; VAC TANK TO BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0212	●	●
3	04.902 NUT; VAC TANK TO BRKT POWER ASSIST CLUTCH(S2T) 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0212			●	●	●
3	04.902 NUT; VAC TANK TO BRKT EXC. POWER ASSIST CLUTCH(S2T),HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0212			●	●	●
3	04.902 NUT; VAC TANK TO BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0301-0501	●	●
3	04.902 NUT; VAC TANK TO BRKT POWER ASSIST CLUTCH(S2T) 07.633 M8 FLANGE	0-91150-108-0	01	1	0301-0501			●	●	●
3	04.902 NUT; VAC TANK TO BRKT EXC. POWER ASSIST CLUTCH(S2T),HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0301-0501			●	●	●
3	04.902 NUT; VAC TANK TO BRKT POWER ASSIST CLUTCH(S2T) 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602	●		●	●	●
3	04.902 NUT; VAC TANK TO BRKT EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602	●		●	●	●
3	04.902 NUT; VAC TANK TO BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602		●
3	04.902 NUT; VAC TANK TO BRKT POWER ASSIST CLUTCH(S2T) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-	●		●	●	●
3	04.902 NUT; VAC TANK TO BRKT EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-	●		●	●	●
3	04.902 NUT; VAC TANK TO BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-		●
16	04.906 SWITCH; VAC (A)	8-97073-374-1	01	1	0211-0501	●	●
16	04.906 SWITCH; VAC EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A)	8-97073-374-1	01	1	0211-0501			●	●	●
16	04.906 SWITCH; VAC EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97073-374-1	01	1	0502-	●		●	●	●
16	04.906 SWITCH; VAC (A)	8-97073-374-1	01	1	0502-		●
16	04.906 SWITCH; VAC HYDRO MASTER<7LT> (B)	1-82420-006-4	01	1	0211-0501			●	●	●
37	04.902 CLIP; RUBBER HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	8-94238-568-0	01	1	0211-0501	●	●	●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	8-94238-568-0	01	1	0211-0501			●	●	●
37	04.902 CLIP; RUBBER HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	8-94238-568-0	01	1	0502-	●		●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	8-94238-568-0	01	1	0502-	●		●	●	●
37	04.902 CLIP; RUBBER HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	01	1	0502-		●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) 02.559 (A) L=219.5	1-09987-136-0	01	1	0211-0501	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) L=219.5	1-09987-136-0	01	1	0211-0501			●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> 02.559 (A) L=219.5	1-09987-136-0	01	1	0502-	●		●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) 02.559 (A) L=219.5	1-09987-136-0	01	1	0502-		●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0211-0501	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	8-94238-568-0	02	1	0211-0501			●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> 04.930 (B) ID=16	8-94238-568-0	02	1	0502-	●		●	●	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0502-		●
