3-11 — PARKING BRAKE CONTROL (#45082) — 328 parça

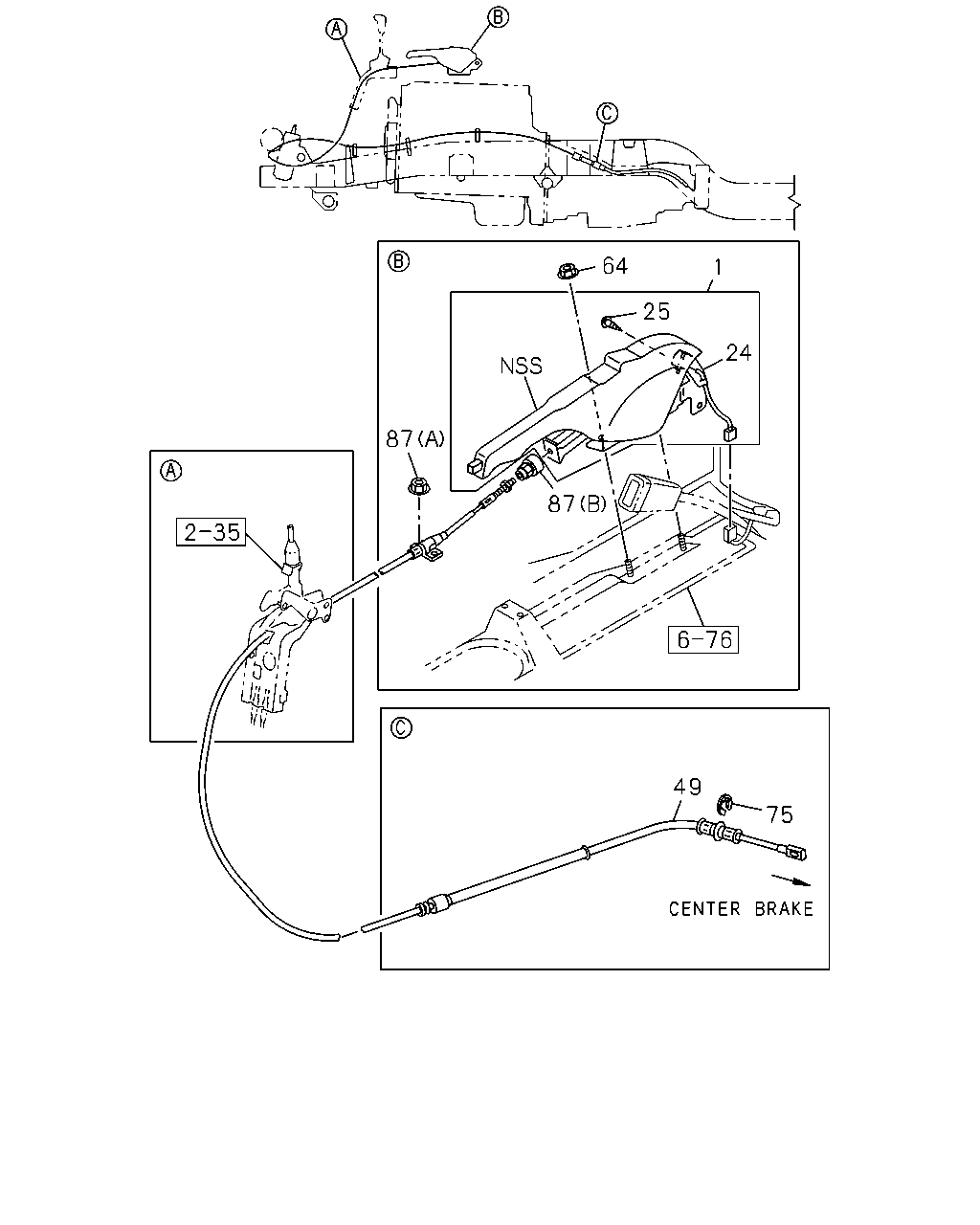

çizim 12426
64 1 25 24 87 87 49 75
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97996-543-2 01 1 0211-0501 ● ● ● ● ● ●
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97585-445-2 01 1 0502-0610 ● ● ● ● ●
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97409-385-0 01 1 0611-1305 ● ● ● ● ●
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97427-522-0 01 1 1306- ● ● ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 0211-0501 ● ● ● ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 0502-1305 ● ● ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-98238-611-0 01 1 1306- ● ● ● ● ●
25 04.589 SCREW; SW,PARKING BRK 8-98152-463-0 01 1 0502- ● ● ● ● ●
49 04.779 CABLE; PARKING BRK
4HE1 ENG(RLY) M/T MYY5T(RSM) CHARGE AIR COOLER<6PL> 		8-97350-535-0 01 1 0211-0501 ● ● ● ● ●
49 04.779 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1-S ENG(RLS) M/T MYY6P(RSJ) FRAME STRAIGHT TYPE<7KJ> 		8-97350-535-0 01 1 0211-0501 ● ●
49 04.779 CABLE; PARKING BRK
4HE1-TCN ENG(RDR) FRAME STRAIGHT TYPE<7KJ> 		8-97350-535-0 01 1 0502-0502 ●
49 04.779 CABLE; PARKING BRK
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> 		8-97350-535-0 01 1 0502-0502 ● ● ●
49 04.779 CABLE; PARKING BRK
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S ENG(RLS) M/T MYY6P(RSJ) FRAME STRAIGHT TYPE<7KJ> 		8-97350-535-0 01 1 0502-0502 ● ●
49 04.779 CABLE; PARKING BRK
4HE1-TCN ENG(RDR) FRAME STRAIGHT TYPE<7KJ> 		8-98010-844-0 01 1 0502- ●
49 04.779 CABLE; PARKING BRK
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> 		8-98010-844-0 01 1 0502- ● ● ●
49 04.779 CABLE; PARKING BRK
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S ENG(RLS) M/T MYY6P(RSJ) FRAME STRAIGHT TYPE<7KJ> 		8-98010-844-0 01 1 0502- ● ●
49 04.779 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1-S ENG(RLS) M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> 		8-97350-534-0 01 1 0211-0501 ● ● ● ● ●
49 04.779 CABLE; PARKING BRK
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S ENG(RLS) M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> 		8-97350-534-0 01 1 0502- ● ● ● ●
49 04.779 CABLE; PARKING BRK
4HG1 ENG(RJH),4HF1-S ENG(RLS) M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97350-538-1 01 1 0211-0501 ● ● ● ● ●
49 04.779 CABLE; PARKING BRK
M/T MYY5T(RSM) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97350-538-1 01 1 0502- ● ● ● ● ●
49 04.779 CABLE; PARKING BRK
4HE1 ENG(RLY) M/T MYY6P(RSJ) CHARGE AIR COOLER<6PL> 		8-97350-536-0 01 1 0211-0501 ● ●
49 04.779 CABLE; PARKING BRK
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) M/T MYY6P(RSJ) 		8-97350-536-0 01 1 0502-0502 ● ●
49 04.779 CABLE; PARKING BRK
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) M/T MYY6P(RSJ) 		8-98010-845-0 01 1 0502- ● ●
49 04.779 CABLE; PARKING BRK
4HK1-TCS ENG(RJS) M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> 		8-97376-922-1 01 1 0507-0606 ●
49 04.779 CABLE; PARKING BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> 		8-97376-922-1 01 1 0607- ● ●
64 04.595 NUT; PARKING BRK
07.833 M8 W/LK WASHER 		8-94327-073-0 02 1 0211-0501 ● ● ● ● ● ●
64 04.595 NUT; PARKING BRK
07.833 M8 W/LK WASHER 		8-94327-073-0 02 1 0502-0610 ● ● ● ● ●
64 04.595 NUT; PARKING BRK
16.682 M8 LOCK NUT FLANGE 		0-91380-008-0 02 1 0611- ● ● ● ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
4HG1 ENG(RJH),4HF1-S ENG(RLS) 04.681 ID=12 		9-09185-412-0 01 1 0211-0302 ● ● ● ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
4HE1 ENG(RLY) M/T MYY5T(RSM) 04.681 ID=12 		9-09185-412-0 01 1 0211-0302 ● ● ● ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
4HG1 ENG(RJH),4HF1-S ENG(RLS) 04.681 ID=12 		9-09185-412-0 01 1 0303-0501 ● ● ● ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
4HE1 ENG(RLY) M/T MYY6P(RSJ),M/T MYY5T(RSM) 04.681 ID=12 		9-09185-412-0 01 1 0303-0501 ● ● ● ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.681 ID=12 		9-09185-412-0 01 1 0502-0506 ● ● ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) M/T MYY6P(RSJ),M/T MYY5T(RSM) 04.681 ID=12 		9-09185-412-0 01 1 0502-0506 ● ● ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) M/T MYY6P(RSJ),M/T MYY5T(RSM) 04.681 ID=12 		9-09185-412-0 01 1 0507-0604 ● ● ● ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) 04.681 ID=12 		9-09185-412-0 01 1 0507-0604 ● ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) M/T MYY6P(RSJ),M/T MYY5T(RSM) ID=12 		0-91805-512-0 01 1 0605-0606 ● ● ● ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=12 		0-91805-512-0 01 1 0605-0606 ● ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) M/T MYY6P(RSJ),M/T MYY5T(RSM) ID=12 		0-91805-512-0 01 1 0607- ● ● ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) ID=12 		0-91805-512-0 01 1 0607- ● ● ● ●
87 04.785 NUT
07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 0211-0501 ● ● ● ● ● ●
87 04.785 NUT
07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 0502-0602 ● ● ● ● ●
87 04.785 NUT
01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ● ●
87 04.785 NUT
(B) M6 		8-97088-730-1 01 1 0211-0310 ● ● ● ● ● ●
87 04.785 NUT
(B) M6 		1-71996-312-0 01 1 0311-0501 ● ● ● ● ● ●
87 04.785 NUT
(B) M6 		1-71996-312-0 01 1 0502-0611 ● ● ● ● ●
87 04.785 NUT
(B) M6 		8-98034-313-1 01 1 0612- ● ● ● ● ●

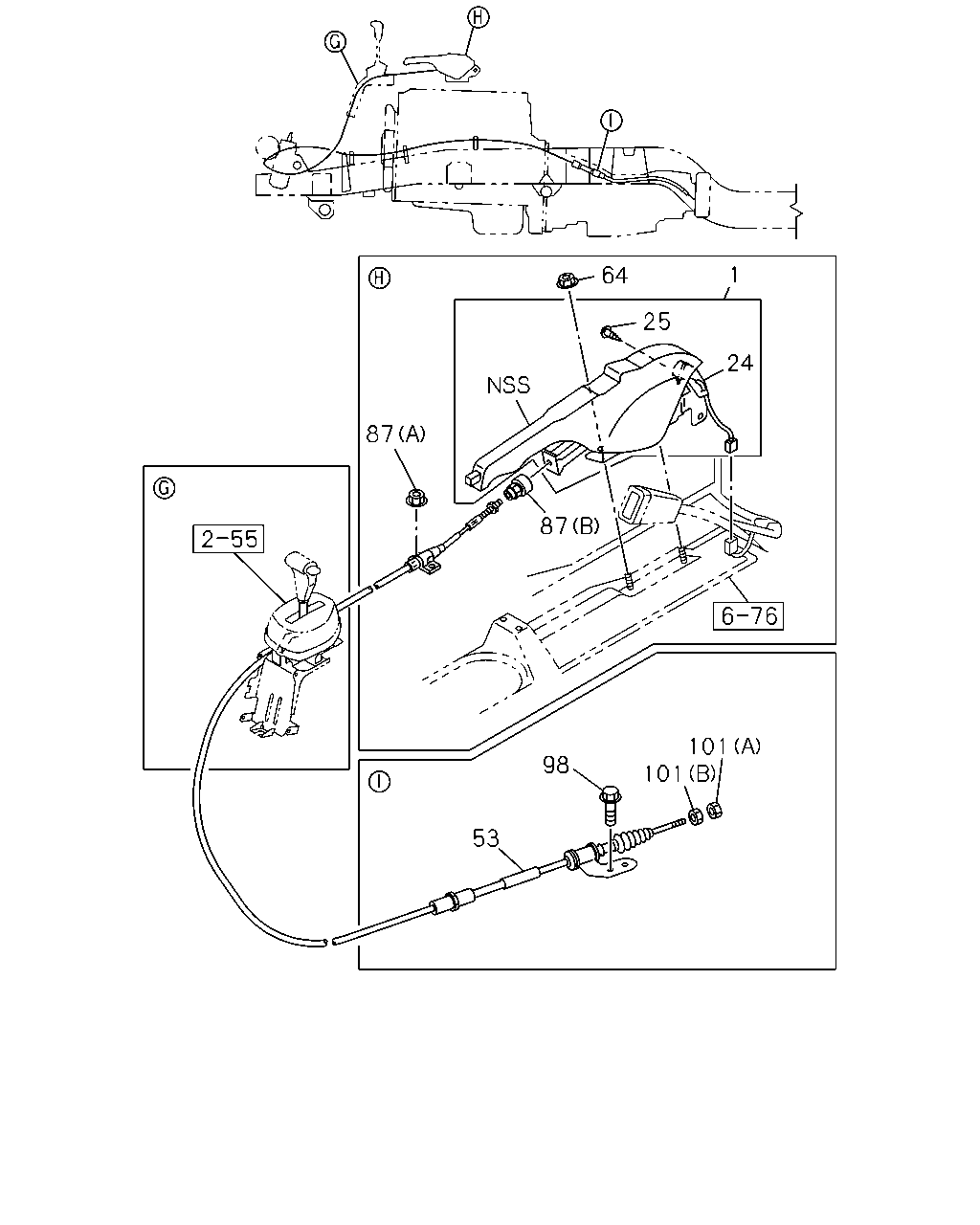

çizim 53621
64 1 25 24 87 87 101 101 98 53
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97996-543-2 01 1 0211-0501 ● ● ● ● ● ●
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97585-445-2 01 1 0502-0610 ● ● ● ● ●
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97409-385-0 01 1 0611-1305 ● ● ● ● ●
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97427-522-0 01 1 1306- ● ● ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 0211-0501 ● ● ● ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 0502-1305 ● ● ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-98238-611-0 01 1 1306- ● ● ● ● ●
25 04.589 SCREW; SW,PARKING BRK 8-98152-463-0 01 1 0502- ● ● ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97148-609-4 01 1 0211-0211 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97148-609-4 01 1 0211-0501 ● ● ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> 		8-97357-180-3 01 1 0502-0506 ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> 		8-97357-180-3 01 1 0507-0606 ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> 		8-97357-180-3 01 1 0607- ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97096-461-3 01 1 0211-0501 ● ●
64 04.595 NUT; PARKING BRK
07.833 M8 W/LK WASHER 		8-94327-073-0 02 1 0211-0501 ● ● ● ● ● ●
64 04.595 NUT; PARKING BRK
07.833 M8 W/LK WASHER 		8-94327-073-0 02 1 0502-0610 ● ● ● ● ●
64 04.595 NUT; PARKING BRK
16.682 M8 LOCK NUT FLANGE 		0-91380-008-0 02 1 0611- ● ● ● ● ●
87 04.785 NUT
07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 0211-0501 ● ● ● ● ● ●
87 04.785 NUT
07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 0502-0602 ● ● ● ● ●
87 04.785 NUT
01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ● ●
87 04.785 NUT
(B) M6 		8-97088-730-1 01 1 0211-0310 ● ● ● ● ● ●
87 04.785 NUT
(B) M6 		1-71996-312-0 01 1 0311-0501 ● ● ● ● ● ●
87 04.785 NUT
(B) M6 		1-71996-312-0 01 1 0502-0611 ● ● ● ● ●
87 04.785 NUT
(B) M6 		8-98034-313-1 01 1 0612- ● ● ● ● ●
98 04.785 BOLT; RR COVER
A/T 4 SPEED-AISIN(RNJ) 03.405 M10X30 FLANGE 		0-28681-030-0 02 1 0211-0501 ● ●
98 04.785 BOLT; RR COVER
A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) 03.405 M10X30 FLANGE 		0-28681-030-0 02 1 0211-0501 ● ●
98 04.785 BOLT; RR COVER
03.405 M10X30 FLANGE 		0-28681-030-0 02 1 0211-0501 ●
98 04.785 BOLT; RR COVER
M/T MZZ6U(RSF) 03.405 M10X30 FLANGE 		0-28681-030-0 02 1 0502-0512 ● ●
98 04.785 BOLT; RR COVER
A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) 03.405 M10X30 FLANGE 		0-28681-030-0 02 1 0502-0512 ●
98 04.785 BOLT; RR COVER
M/T MZZ6U(RSF) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0601- ● ●
98 04.785 BOLT; RR COVER
A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0601- ●
101 04.785 NUT; CABLE TO LEVER
A/T 4 SPEED-AISIN(RNJ) 02.559 (A) M8 		9-09110-408-0 01 1 0211-0501 ● ●
101 04.785 NUT; CABLE TO LEVER
A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) 02.559 (A) M8 		9-09110-408-0 01 1 0211-0501 ● ●
101 04.785 NUT; CABLE TO LEVER
02.559 (A) M8 		9-09110-408-0 01 1 0211-0501 ●
101 04.785 NUT; CABLE TO LEVER
M/T MZZ6U(RSF) 02.559 (A) M8 		9-09110-408-0 01 1 0502-0512 ● ●
101 04.785 NUT; CABLE TO LEVER
A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) 02.559 (A) M8 		9-09110-408-0 01 1 0502-0512 ●
101 04.785 NUT; CABLE TO LEVER
M/T MZZ6U(RSF) 02.334 (A) M8 		0-91110-508-0 01 1 0601- ● ●
101 04.785 NUT; CABLE TO LEVER
A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) 02.334 (A) M8 		0-91110-508-0 01 1 0601- ●
101 04.785 NUT; CABLE TO LEVER
A/T 4 SPEED-AISIN(RNJ) (B) M8 FLANGE 		9-46259-016-0 01 1 0211-0501 ● ●
101 04.785 NUT; CABLE TO LEVER
A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) (B) M8 FLANGE 		9-46259-016-0 01 1 0211-0501 ● ●
101 04.785 NUT; CABLE TO LEVER
(B) M8 FLANGE 		9-46259-016-0 01 1 0211-0501 ●
101 04.785 NUT; CABLE TO LEVER
M/T MZZ6U(RSF) (B) M8 FLANGE 		9-46259-016-0 01 1 0502- ● ●
101 04.785 NUT; CABLE TO LEVER
A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) (B) M8 FLANGE 		9-46259-016-0 01 1 0502- ●

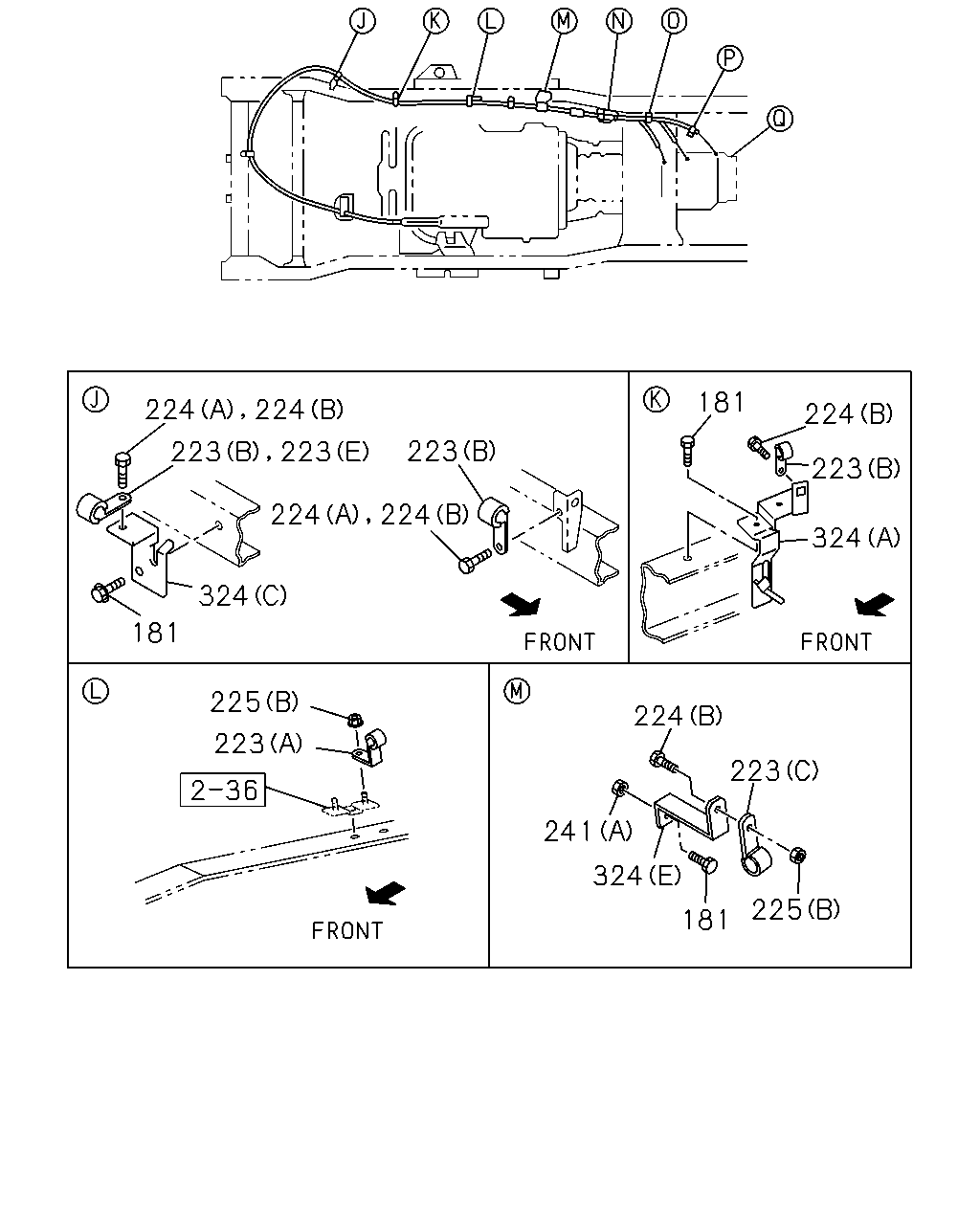

çizim 54103
181 224 224 223 223 224 324 324 181 225 224 223 223 324 241 225 181 224 223 223 224
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
181 04.785 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE 		0-28681-030-0 01 1 0211-0501 ● ● ● ● ●
181 04.785 BOLT; BRKT
03.405 M10X30 FLANGE 		0-28681-030-0 01 1 0211-0501 ●
181 04.785 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE 		0-28681-030-0 01 1 0502-0512 ● ● ● ●
181 04.785 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0601- ● ● ● ●
181 04.785 BOLT; BRKT
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ● ● ● ● ●
181 04.785 BOLT; BRKT
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ● ● ● ● ●
181 04.785 BOLT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ● ● ● ● ●
181 04.785 BOLT; BRKT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ● ● ● ● ●
181 04.785 BOLT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ● ● ●
181 04.785 BOLT; BRKT
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> 01.531 (C) ID=16 L=28 		9-09525-556-0 01 1 0211-0501 ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
01.531 (C) ID=16 L=28 		9-09525-556-0 01 1 0211-0501 ●
223 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> 01.531 (C) ID=16 L=28 		9-09525-556-0 01 1 0502-0606 ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> 06.672 (C) ID=16 L=28 		0-95235-556-0 01 1 0607- ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 09.001 (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 0211-0501 ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 09.001 (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 0211-0501 ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 09.001 (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 0502-0506 ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 09.001 (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 0502-0506 ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 09.001 (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 0507-0507 ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 09.001 (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 0508- ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 09.001 (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 0508- ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16 		1-09701-075-0 01 1 0211-0501 ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16 		1-09701-075-0 01 1 0502- ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 00.799 (D) ID=13 L=20 		1-09701-138-1 01 1 0211-0501 ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> 00.799 (D) ID=13 L=20 		1-09701-138-1 01 1 0502- ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
00.799 (D) ID=13 L=20 		1-09701-138-1 01 1 0502- ●
223 04.785 CLIP; PARKING BRK CABLE
4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=11 L=28 		9-09525-055-0 01 1 0211-0501 ●
223 04.785 CLIP; PARKING BRK CABLE
(E) ID=11 L=28 		9-09525-055-0 01 1 0502-0606 ●
223 04.785 CLIP; PARKING BRK CABLE
02.559 (E) ID=11 L=28 		0-95235-055-0 01 1 0607- ●
224 04.785 BOLT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ● ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ● ● ● ●
224 04.785 BOLT; CABLE CLIP
A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ● ●
224 04.785 BOLT; CABLE CLIP
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ● ●
224 04.785 BOLT; CABLE CLIP
A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8X16 FLANGE 		0-28080-816-0 01 1 0211-0501 ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8X16 FLANGE 		0-28080-816-0 01 1 0502-0512 ● ● ● ●
224 04.785 BOLT; CABLE CLIP
01.062 (A) M8X16 FLANGE 		0-28080-816-0 01 1 0502-0512 ●
224 04.785 BOLT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ● ●
224 04.785 BOLT; CABLE CLIP
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 (C) M10X25 FLANGE 		0-28681-025-0 01 1 0211-0501 ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 (C) M10X25 FLANGE 		0-28681-025-0 01 1 0502-0512 ● ● ● ●
224 04.785 BOLT; CABLE CLIP
03.405 (C) M10X25 FLANGE 		0-28681-025-0 01 1 0502-0512 ●
224 04.785 BOLT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 (C) M10X25 FLANGE 		0-28651-025-0 01 1 0601- ● ● ● ●
224 04.785 BOLT; CABLE CLIP
00.029 (C) M10X25 FLANGE 		0-28651-025-0 01 1 0601- ●
225 04.785 NUT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ● ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ● ● ● ●
225 04.785 NUT; CABLE CLIP
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ● ●
225 04.785 NUT; CABLE CLIP
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) M10 FLANGE 		0-91150-110-0 01 1 0211-0501 ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) M10 FLANGE 		0-91150-110-0 01 1 0502-0602 ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 0603- ● ● ● ● ●
241 04.785 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> (A) M10 FLANGE 		0-91150-110-0 01 1 0211-0501 ● ● ● ● ●
241 04.785 NUT; BRKT
(A) M10 FLANGE 		0-91150-110-0 01 1 0211-0501 ●
241 04.785 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> (A) M10 FLANGE 		0-91150-110-0 01 1 0502-0602 ● ● ● ●
241 04.785 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> 03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 0603- ● ● ● ●
241 04.785 NUT; BRKT
4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ● ● ● ● ●
241 04.785 NUT; BRKT
4HE1 ENG(RLY) M/T MYY6P(RSJ),M/T MYY5T(RSM) 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ● ● ● ● ●
241 04.785 NUT; BRKT
M/T MYY6P(RSJ),M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ● ● ● ●
241 04.785 NUT; BRKT
M/T MYY6P(RSJ),M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> 01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ● ●
324 04.785 BRACKET
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97042-771-0 01 1 0211-0501 ● ● ● ●
324 04.785 BRACKET
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97042-771-0 01 1 0502- ● ● ● ●
324 04.785 BRACKET
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97188-151-0 01 1 0211-0501 ● ● ● ● ●
324 04.785 BRACKET
(A) 		8-97188-151-0 01 1 0211-0501 ●
324 04.785 BRACKET
4HE1-TCN ENG(RDR) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97188-151-0 01 1 0502-0506 ●
324 04.785 BRACKET
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97188-151-0 01 1 0502-0506 ● ● ●
324 04.785 BRACKET
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97188-151-0 01 1 0507-0606 ● ● ● ●
324 04.785 BRACKET
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97188-151-0 01 1 0607- ● ● ● ●
324 04.785 BRACKET
4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (E) 		8-97103-822-1 01 1 0211-0501 ● ● ● ● ●
324 04.785 BRACKET
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (E) 		8-97103-822-1 01 1 0211-0501 ● ● ● ● ●
324 04.785 BRACKET
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (E) 		8-97103-822-1 01 1 0502- ● ● ● ●
324 04.785 BRACKET
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97071-354-2 01 1 0211-0501 ● ● ● ● ●
324 04.785 BRACKET
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97071-354-2 01 1 0502- ● ● ● ● ●
324 04.785 BRACKET
A/T 4 SPEED-AISIN(RNJ) (B) 		8-97148-596-1 01 1 0211-0501 ● ● ● ●
324 04.785 BRACKET
(B) 		8-97148-596-1 01 1 0211-0501 ●
324 04.785 BRACKET
A/T 4 SPEED-AISIN(RNJ) (B) 		8-97148-596-1 01 1 0502- ●
324 04.785 BRACKET
M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> (D) 		8-97307-874-0 01 1 0211-0501 ● ●
324 04.785 BRACKET
M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> (D) 		8-97307-874-0 01 1 0502- ● ● ●
324 04.785 BRACKET
4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97329-909-0 01 1 0211-0501 ●
324 04.785 BRACKET
(C) 		8-97329-909-0 01 1 0502- ●

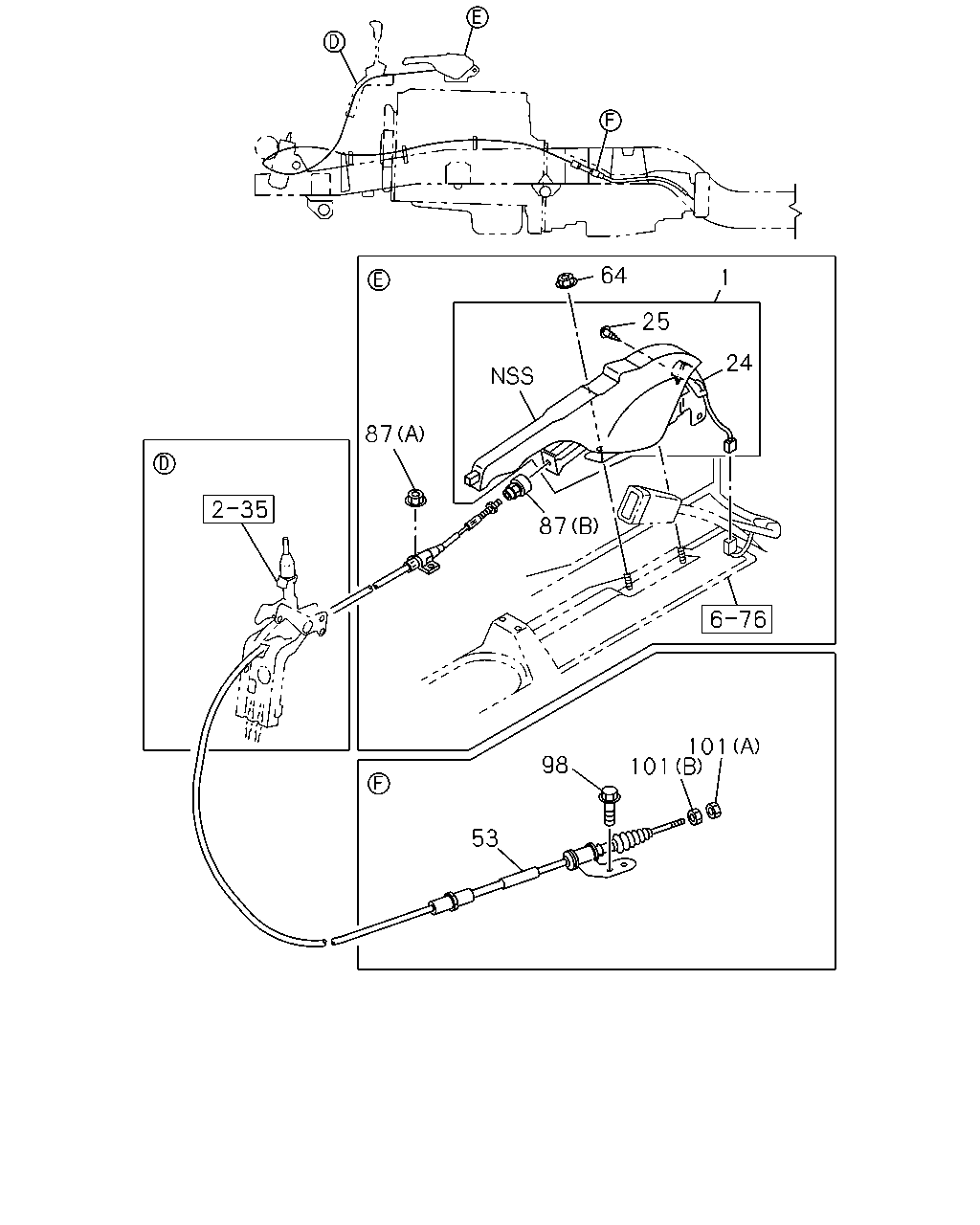

çizim 54800
64 1 25 24 87 87 101 101 98 53
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97996-543-2 01 1 0211-0501 ● ● ● ● ● ●
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97585-445-2 01 1 0502-0610 ● ● ● ● ●
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97409-385-0 01 1 0611-1305 ● ● ● ● ●
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97427-522-0 01 1 1306- ● ● ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 0211-0501 ● ● ● ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 0502-1305 ● ● ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-98238-611-0 01 1 1306- ● ● ● ● ●
25 04.589 SCREW; SW,PARKING BRK 8-98152-463-0 01 1 0502- ● ● ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97148-609-4 01 1 0211-0211 ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97148-609-4 01 1 0211-0501 ● ● ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> 		8-97357-180-3 01 1 0502-0506 ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> 		8-97357-180-3 01 1 0507-0606 ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> 		8-97357-180-3 01 1 0607- ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97096-461-3 01 1 0211-0501 ● ●
64 04.595 NUT; PARKING BRK
07.833 M8 W/LK WASHER 		8-94327-073-0 02 1 0211-0501 ● ● ● ● ● ●
64 04.595 NUT; PARKING BRK
07.833 M8 W/LK WASHER 		8-94327-073-0 02 1 0502-0610 ● ● ● ● ●
64 04.595 NUT; PARKING BRK
16.682 M8 LOCK NUT FLANGE 		0-91380-008-0 02 1 0611- ● ● ● ● ●
87 04.785 NUT
07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 0211-0501 ● ● ● ● ● ●
87 04.785 NUT
07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 0502-0602 ● ● ● ● ●
87 04.785 NUT
01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ● ●
87 04.785 NUT
(B) M6 		8-97088-730-1 01 1 0211-0310 ● ● ● ● ● ●
87 04.785 NUT
(B) M6 		1-71996-312-0 01 1 0311-0501 ● ● ● ● ● ●
87 04.785 NUT
(B) M6 		1-71996-312-0 01 1 0502-0611 ● ● ● ● ●
87 04.785 NUT
(B) M6 		8-98034-313-1 01 1 0612- ● ● ● ● ●
98 04.785 BOLT; RR COVER
A/T 4 SPEED-AISIN(RNJ) 03.405 M10X30 FLANGE 		0-28681-030-0 02 1 0211-0501 ● ●
98 04.785 BOLT; RR COVER
A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) 03.405 M10X30 FLANGE 		0-28681-030-0 02 1 0211-0501 ● ●
98 04.785 BOLT; RR COVER
03.405 M10X30 FLANGE 		0-28681-030-0 02 1 0211-0501 ●
98 04.785 BOLT; RR COVER
M/T MZZ6U(RSF) 03.405 M10X30 FLANGE 		0-28681-030-0 02 1 0502-0512 ● ●
98 04.785 BOLT; RR COVER
A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) 03.405 M10X30 FLANGE 		0-28681-030-0 02 1 0502-0512 ●
98 04.785 BOLT; RR COVER
M/T MZZ6U(RSF) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0601- ● ●
98 04.785 BOLT; RR COVER
A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0601- ●
101 04.785 NUT; CABLE TO LEVER
A/T 4 SPEED-AISIN(RNJ) 02.559 (A) M8 		9-09110-408-0 01 1 0211-0501 ● ●
101 04.785 NUT; CABLE TO LEVER
A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) 02.559 (A) M8 		9-09110-408-0 01 1 0211-0501 ● ●
101 04.785 NUT; CABLE TO LEVER
02.559 (A) M8 		9-09110-408-0 01 1 0211-0501 ●
101 04.785 NUT; CABLE TO LEVER
M/T MZZ6U(RSF) 02.559 (A) M8 		9-09110-408-0 01 1 0502-0512 ● ●
101 04.785 NUT; CABLE TO LEVER
A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) 02.559 (A) M8 		9-09110-408-0 01 1 0502-0512 ●
101 04.785 NUT; CABLE TO LEVER
M/T MZZ6U(RSF) 02.334 (A) M8 		0-91110-508-0 01 1 0601- ● ●
101 04.785 NUT; CABLE TO LEVER
A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) 02.334 (A) M8 		0-91110-508-0 01 1 0601- ●
101 04.785 NUT; CABLE TO LEVER
A/T 4 SPEED-AISIN(RNJ) (B) M8 FLANGE 		9-46259-016-0 01 1 0211-0501 ● ●
101 04.785 NUT; CABLE TO LEVER
A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) (B) M8 FLANGE 		9-46259-016-0 01 1 0211-0501 ● ●
101 04.785 NUT; CABLE TO LEVER
(B) M8 FLANGE 		9-46259-016-0 01 1 0211-0501 ●
101 04.785 NUT; CABLE TO LEVER
M/T MZZ6U(RSF) (B) M8 FLANGE 		9-46259-016-0 01 1 0502- ● ●
101 04.785 NUT; CABLE TO LEVER
A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) (B) M8 FLANGE 		9-46259-016-0 01 1 0502- ●

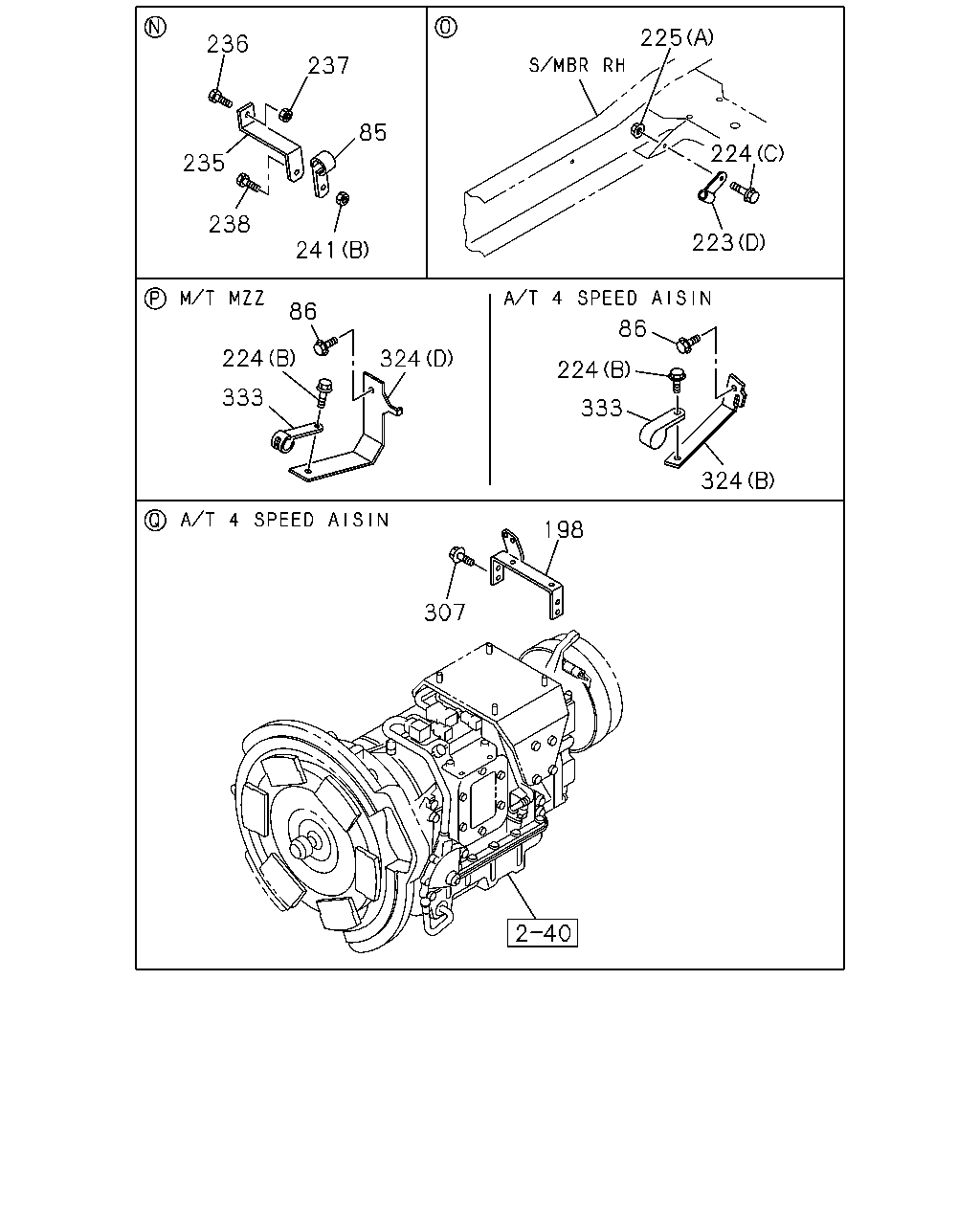

çizim 55243
225 236 237 85 224 235 238 223 241 86 86 224 324 224 333 333 324 198 307
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
85 04.785 CLIP; BRKT
4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> ID=12 L=70 		1-09700-097-1 01 1 0211-0501 ● ● ● ● ●
85 04.785 CLIP; BRKT
4HE1 ENG(RLY) M/T MYY6P(RSJ),M/T MYY5T(RSM) ID=12 L=70 		1-09700-097-1 01 1 0211-0501 ● ● ● ● ●
85 04.785 CLIP; BRKT
M/T MYY6P(RSJ),M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> ID=12 L=70 		1-09700-097-1 01 1 0502- ● ● ● ●
86 04.785 BOLT
A/T 4 SPEED-AISIN(RNJ) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ● ● ● ●
86 04.785 BOLT
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ●
86 04.785 BOLT
A/T 4 SPEED-AISIN(RNJ) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ●
86 04.785 BOLT
A/T 4 SPEED-AISIN(RNJ) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
86 04.785 BOLT
M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> 03.604 M10X16 FLANGE 		0-28181-016-0 01 1 0211-0501 ● ●
86 04.785 BOLT
M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> 03.604 M10X16 FLANGE 		0-28181-016-0 01 1 0502-0512 ● ● ●
86 04.785 BOLT
M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> 00.029 M10X16 FLANGE 		0-28151-016-0 01 1 0601- ● ● ●
198 04.785 BRACKET; CABLE
A/T 4 SPEED-AISIN(RNJ) 		8-97160-905-2 01 1 0211-0501 ● ● ● ●
198 04.785 BRACKET; CABLE 8-97160-905-2 01 1 0211-0501 ●
198 04.785 BRACKET; CABLE
A/T 4 SPEED-AISIN(RNJ) 		8-97160-905-2 01 1 0502- ●
223 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> 01.531 (C) ID=16 L=28 		9-09525-556-0 01 1 0211-0501 ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
01.531 (C) ID=16 L=28 		9-09525-556-0 01 1 0211-0501 ●
223 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> 01.531 (C) ID=16 L=28 		9-09525-556-0 01 1 0502-0606 ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> 06.672 (C) ID=16 L=28 		0-95235-556-0 01 1 0607- ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 09.001 (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 0211-0501 ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 09.001 (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 0211-0501 ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 09.001 (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 0502-0506 ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 09.001 (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 0502-0506 ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 09.001 (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 0507-0507 ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 09.001 (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 0508- ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 09.001 (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 0508- ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16 		1-09701-075-0 01 1 0211-0501 ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16 		1-09701-075-0 01 1 0502- ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 00.799 (D) ID=13 L=20 		1-09701-138-1 01 1 0211-0501 ● ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> 00.799 (D) ID=13 L=20 		1-09701-138-1 01 1 0502- ● ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
00.799 (D) ID=13 L=20 		1-09701-138-1 01 1 0502- ●
223 04.785 CLIP; PARKING BRK CABLE
4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (E) ID=11 L=28 		9-09525-055-0 01 1 0211-0501 ●
223 04.785 CLIP; PARKING BRK CABLE
(E) ID=11 L=28 		9-09525-055-0 01 1 0502-0606 ●
223 04.785 CLIP; PARKING BRK CABLE
02.559 (E) ID=11 L=28 		0-95235-055-0 01 1 0607- ●
224 04.785 BOLT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ● ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ● ● ● ●
224 04.785 BOLT; CABLE CLIP
A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ● ●
224 04.785 BOLT; CABLE CLIP
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ● ●
224 04.785 BOLT; CABLE CLIP
A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8X16 FLANGE 		0-28080-816-0 01 1 0211-0501 ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8X16 FLANGE 		0-28080-816-0 01 1 0502-0512 ● ● ● ●
224 04.785 BOLT; CABLE CLIP
01.062 (A) M8X16 FLANGE 		0-28080-816-0 01 1 0502-0512 ●
224 04.785 BOLT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ● ● ●
224 04.785 BOLT; CABLE CLIP
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
224 04.785 BOLT; CABLE CLIP
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 (C) M10X25 FLANGE 		0-28681-025-0 01 1 0211-0501 ● ● ● ● ●
224 04.785 BOLT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 03.405 (C) M10X25 FLANGE 		0-28681-025-0 01 1 0502-0512 ● ● ● ●
224 04.785 BOLT; CABLE CLIP
03.405 (C) M10X25 FLANGE 		0-28681-025-0 01 1 0502-0512 ●
224 04.785 BOLT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 (C) M10X25 FLANGE 		0-28651-025-0 01 1 0601- ● ● ● ●
224 04.785 BOLT; CABLE CLIP
00.029 (C) M10X25 FLANGE 		0-28651-025-0 01 1 0601- ●
225 04.785 NUT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ● ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ● ● ● ●
225 04.785 NUT; CABLE CLIP
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> 01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ● ●
225 04.785 NUT; CABLE CLIP
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) M10 FLANGE 		0-91150-110-0 01 1 0211-0501 ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) M10 FLANGE 		0-91150-110-0 01 1 0502-0602 ● ● ● ● ●
225 04.785 NUT; CABLE CLIP
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 0603- ● ● ● ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 		8-97325-052-0 01 1 0211-0501 ● ● ● ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4HE1 ENG(RLY) M/T MYY6P(RSJ),M/T MYY5T(RSM) 		8-97325-052-0 01 1 0211-0501 ● ● ● ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY6P(RSJ),M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> 		8-97325-052-0 01 1 0502- ● ● ● ●
236 04.785 BOLT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 03.162 M10X35 FLANGE 		0-28681-035-0 01 1 0211-0501 ● ● ● ● ●
236 04.785 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) M/T MYY6P(RSJ),M/T MYY5T(RSM) 03.162 M10X35 FLANGE 		0-28681-035-0 01 1 0211-0501 ● ● ● ● ●
236 04.785 BOLT; BRKT TO FRAME
M/T MYY6P(RSJ),M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> 03.162 M10X35 FLANGE 		0-28681-035-0 01 1 0502-0512 ● ● ● ●
236 04.785 BOLT; BRKT TO FRAME
M/T MYY6P(RSJ),M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> 02.277 M10X35 FLANGE 		0-28651-035-0 01 1 0601- ● ● ● ●
237 04.785 NUT; BRKT TO FRAME
4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> M10 FLANGE 		0-91150-110-0 01 1 0211-0501 ● ● ● ● ●
237 04.785 NUT; BRKT TO FRAME
4HE1 ENG(RLY) M/T MYY6P(RSJ),M/T MYY5T(RSM) M10 FLANGE 		0-91150-110-0 01 1 0211-0501 ● ● ● ● ●
237 04.785 NUT; BRKT TO FRAME
M/T MYY6P(RSJ),M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> M10 FLANGE 		0-91150-110-0 01 1 0502-0602 ● ● ● ●
237 04.785 NUT; BRKT TO FRAME
M/T MYY6P(RSJ),M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 0603- ● ● ● ●
238 04.785 BOLT; CLIP TO BRKT
4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ● ● ● ● ●
238 04.785 BOLT; CLIP TO BRKT
4HE1 ENG(RLY) M/T MYY6P(RSJ),M/T MYY5T(RSM) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0501 ● ● ● ● ●
238 04.785 BOLT; CLIP TO BRKT
M/T MYY6P(RSJ),M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ● ● ● ●
238 04.785 BOLT; CLIP TO BRKT
M/T MYY6P(RSJ),M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ● ●
241 04.785 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> (A) M10 FLANGE 		0-91150-110-0 01 1 0211-0501 ● ● ● ● ●
241 04.785 NUT; BRKT
(A) M10 FLANGE 		0-91150-110-0 01 1 0211-0501 ●
241 04.785 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> (A) M10 FLANGE 		0-91150-110-0 01 1 0502-0602 ● ● ● ●
241 04.785 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> 03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 0603- ● ● ● ●
241 04.785 NUT; BRKT
4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ● ● ● ● ●
241 04.785 NUT; BRKT
4HE1 ENG(RLY) M/T MYY6P(RSJ),M/T MYY5T(RSM) 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ● ● ● ● ●
241 04.785 NUT; BRKT
M/T MYY6P(RSJ),M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ● ● ● ●
241 04.785 NUT; BRKT
M/T MYY6P(RSJ),M/T MYY5T(RSM) FRAME STRAIGHT TYPE<7KJ> 01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ● ●
307 04.651 BOLT; BRKT,PARKING BRK CABLE
A/T 4 SPEED-AISIN(RNJ) 03.405 M10X25 FLANGE 		0-28681-025-0 04 1 0211-0501 ● ● ● ●
307 04.651 BOLT; BRKT,PARKING BRK CABLE
03.405 M10X25 FLANGE 		0-28681-025-0 04 1 0211-0501 ●
307 04.651 BOLT; BRKT,PARKING BRK CABLE
A/T 4 SPEED-AISIN(RNJ) 03.405 M10X25 FLANGE 		0-28681-025-0 04 1 0502-0512 ●
307 04.651 BOLT; BRKT,PARKING BRK CABLE
A/T 4 SPEED-AISIN(RNJ) 00.029 M10X25 FLANGE 		0-28651-025-0 04 1 0601- ●
324 04.785 BRACKET
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97042-771-0 01 1 0211-0501 ● ● ● ●
324 04.785 BRACKET
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97042-771-0 01 1 0502- ● ● ● ●
324 04.785 BRACKET
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97188-151-0 01 1 0211-0501 ● ● ● ● ●
324 04.785 BRACKET
(A) 		8-97188-151-0 01 1 0211-0501 ●
324 04.785 BRACKET
4HE1-TCN ENG(RDR) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97188-151-0 01 1 0502-0506 ●
324 04.785 BRACKET
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97188-151-0 01 1 0502-0506 ● ● ●
324 04.785 BRACKET
4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97188-151-0 01 1 0507-0606 ● ● ● ●
324 04.785 BRACKET
4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97188-151-0 01 1 0607- ● ● ● ●
324 04.785 BRACKET
4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (E) 		8-97103-822-1 01 1 0211-0501 ● ● ● ● ●
324 04.785 BRACKET
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (E) 		8-97103-822-1 01 1 0211-0501 ● ● ● ● ●
324 04.785 BRACKET
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-S ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (E) 		8-97103-822-1 01 1 0502- ● ● ● ●
324 04.785 BRACKET
4HG1 ENG(RJH),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97071-354-2 01 1 0211-0501 ● ● ● ● ●
324 04.785 BRACKET
4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97071-354-2 01 1 0502- ● ● ● ● ●
324 04.785 BRACKET
A/T 4 SPEED-AISIN(RNJ) (B) 		8-97148-596-1 01 1 0211-0501 ● ● ● ●
324 04.785 BRACKET
(B) 		8-97148-596-1 01 1 0211-0501 ●
324 04.785 BRACKET
A/T 4 SPEED-AISIN(RNJ) (B) 		8-97148-596-1 01 1 0502- ●
324 04.785 BRACKET
M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> (D) 		8-97307-874-0 01 1 0211-0501 ● ●
324 04.785 BRACKET
M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> (D) 		8-97307-874-0 01 1 0502- ● ● ●
324 04.785 BRACKET
4HF1-S ENG(RLS) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97329-909-0 01 1 0211-0501 ●
324 04.785 BRACKET
(C) 		8-97329-909-0 01 1 0502- ●
333 04.785 CLIP; CABLE
A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> ID=11 L=60 		9-09525-096-0 01 1 0211-0501 ● ● ● ● ●
333 04.785 CLIP; CABLE
A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> ID=11 L=60 		9-09525-096-0 01 1 0502-0606 ● ● ●
333 04.785 CLIP; CABLE
A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) FRAME STRAIGHT TYPE<7KJ> ID=11 L=60 		0-95235-096-0 01 1 0607- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
