◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 10676 - LT 111,112,132,133 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-80 - WINDSHIELD WIPER AND WASHER ▶
8-80 — WINDSHIELD WIPER AND WASHER (#4508) — 60 parça
çizim 36590
24 26 25 127 30 36 36 36 39 36 40 36 39
BalonParca AdiParca NoAdetTipApplied Date A B
24 TANK ASM; WASHER
WINDSHIELD WASHER<C11> 		1-83330-033-0 01 1 9101- ● ●
25 BRACKET; WASHER TANK
WINDSHIELD WASHER<C11> 		9-83561-926-0 01 1 9101- ● ●
26 HANGER; WASHER TANK
WINDSHIELD WASHER<C11> 		9-83561-925-0 01 1 9101- ● ●
30 MOTOR ASM; FRT WASHER TANK
WINDSHIELD WASHER<C11> 		9-83561-208-0 01 1 9101- ● ●
36 HOSE; WASHER
WINDSHIELD WASHER<C11> 		9-09914-906-0 01 1 9101- ● ●
39 NOZZLE; WINDSHIELD WASHER
WINDSHIELD WASHER<C11> 		1-83334-012-0 02 1 9101- ● ●
40 JOINT; WASHER HOSE
WINDSHIELD WASHER<C11> 		9-83565-006-0 01 1 9101- ● ●
127 BAND; WASHER TANK
WINDSHIELD WASHER<C11> 		9-83561-928-0 01 1 9101- ● ●

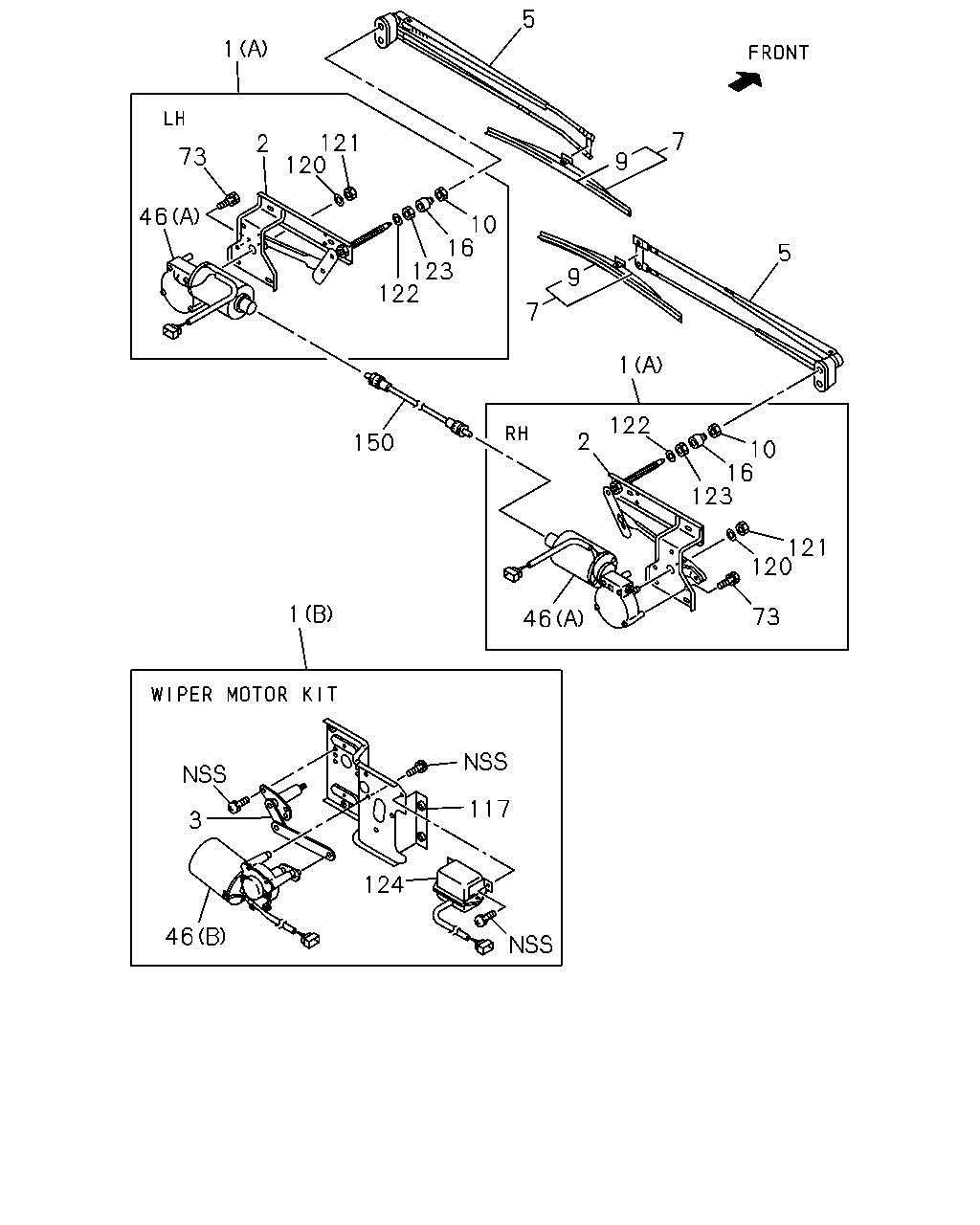

çizim 36845
5 1 7 121 120 2 73 9 46 10 16 123 122 5 9 7 1 122 2 150 10 16 123 121 120 1 73 46 117 3 124 46
BalonParca AdiParca NoAdetTipApplied Date A B
1 LINK ASM; FRT WIPER
WIPER BLADE LONG<YD4> (A) 		1-83310-071-0 01 1 9101-9504 ● ●
1 LINK ASM; FRT WIPER
WIPER BLADE LONG<YD4> (A) 		1-83310-070-0 01 1 9101-9504 ● ●
1 LINK ASM; FRT WIPER
WIPER MOTOR KIT<ST7> (B) 		9-83571-695-3 01 1 9101-9504 ● ●
1 LINK ASM; FRT WIPER
PARALLEL WIPER<SBT> (A) 		1-83310-071-0 01 1 9505- ● ●
1 LINK ASM; FRT WIPER
WIPER MOTOR KIT<ST7> (B) 		9-83571-694-4 01 1 9101-9504 ● ●
1 LINK ASM; FRT WIPER
PARALLEL WIPER<SBT> (A) 		1-83310-114-0 01 1 9505- ● ●
2 LINK; FRT WIPER
WIPER BLADE LONG<YD4> 		1-83314-117-0 01 1 9101-9504 ● ●
2 LINK; FRT WIPER
PARALLEL WIPER<SBT> 		1-83314-117-0 01 1 9505- ● ●
2 LINK; FRT WIPER
WIPER BLADE LONG<YD4> 		1-83314-116-0 01 1 9101-9504 ● ●
2 LINK; FRT WIPER
PARALLEL WIPER<SBT> 		1-83312-082-0 01 1 9505- ● ●
3 PIVOT ASM; FRT WIPER
WIPER MOTOR KIT<ST7> 		9-83572-728-0 04 1 9101-9504 ● ●
5 ARM; WIPER
WIPER BLADE LONG<YD4> 		1-83314-050-0 01 1 9101-9504 ● ●
5 ARM; WIPER
WIPER BLADE LONG<YD4> 		1-83314-051-0 01 1 9101-9504 ● ●
5 ARM; WIPER
WIPER MOTOR KIT<ST7> 		9-83572-649-0 01 1 9101-9504 ● ●
5 ARM; WIPER
PARALLEL WIPER<SBT> 		1-83314-121-0 01 1 9505- ● ●
5 ARM; WIPER
WIPER MOTOR KIT<ST7> 		9-83572-650-0 01 1 9101-9504 ● ●
5 ARM; WIPER
PARALLEL WIPER<SBT> 		1-83314-120-0 01 1 9505- ● ●
7 BLADE; WIPER
WIPER BLADE LONG<YD4> 		1-83315-024-1 02 1 9101-9504 ● ●
7 BLADE; WIPER
WIPER MOTOR KIT<ST7> 		1-83315-016-1 02 1 9101-9504 ● ●
7 BLADE; WIPER
PARALLEL WIPER<SBT> 		1-83315-033-0 02 1 9505-9602 ● ●
7 BLADE; WIPER
PARALLEL WIPER<SBT> 		1-83315-050-0 02 1 9603-9604 ● ●
7 BLADE; WIPER
PARALLEL WIPER<SBT> 		1-83315-039-0 02 1 9605- ● ●
9 RUBBER; FRT WIPER BLADE
PARALLEL WIPER<SBT> 		1-83355-007-0 02 1 9505-9602 ● ●
9 RUBBER; FRT WIPER BLADE
PARALLEL WIPER<SBT> L=550 		1-83355-020-0 02 1 9603-9604 ● ●
9 RUBBER; FRT WIPER BLADE
PARALLEL WIPER<SBT> L=563 		1-83355-009-0 02 1 9605- ● ●
10 NUT; WIPER ARM TO WIPER PIVOT
WIPER BLADE LONG<YD4> 		1-83318-049-0 02 1 9101-9504 ● ●
10 NUT; WIPER ARM TO WIPER PIVOT
PARALLEL WIPER<SBT> 		1-83318-049-0 02 1 9505- ● ●
16 SEAL; BALL JOINT
WIPER BLADE LONG<YD4> 		1-83318-048-0 02 1 9101-9504 ● ●
16 SEAL; BALL JOINT
PARALLEL WIPER<SBT> 		1-83318-048-0 02 1 9505- ● ●
46 MOTOR ASM; FRT WINDSHIELD WIPER
WIPER BLADE LONG<YD4> (A) 		1-83311-059-0 01 1 9101-9504 ● ●
46 MOTOR ASM; FRT WINDSHIELD WIPER
WIPER BLADE LONG<YD4> (A) 		1-83311-058-0 01 1 9101-9504 ● ●
46 MOTOR ASM; FRT WINDSHIELD WIPER
WIPER MOTOR KIT<ST7> (B) 		9-83571-394-0 01 1 9101-9504 ● ●
46 MOTOR ASM; FRT WINDSHIELD WIPER
PARALLEL WIPER<SBT> (A) 		1-83311-059-0 01 1 9505- ● ●
46 MOTOR ASM; FRT WINDSHIELD WIPER
WIPER MOTOR KIT<ST7> (B) 		9-83571-393-0 01 1 9101-9504 ● ●
46 MOTOR ASM; FRT WINDSHIELD WIPER
PARALLEL WIPER<SBT> (A) 		1-83311-065-0 01 1 9505- ● ●
73 BOLT
PARALLEL WIPER<SBT> 		1-83318-079-0 06 1 9101- ● ●
117 BRACKET; PIVOT FRT WIPER LINK
WIPER MOTOR KIT<ST7> 		9-83574-108-0 01 1 9101-9504 ● ●
117 BRACKET; PIVOT FRT WIPER LINK
WIPER MOTOR KIT<ST7> 		9-83574-109-0 01 1 9101-9504 ● ●
120 WASHER; ARM TO BRKT
PARALLEL WIPER<SBT> 		1-83318-077-0 01 1 9505- ● ●
120 WASHER; ARM TO BRKT
WIPER BLADE LONG<YD4> 		1-83318-045-0 02 1 9101-9504 ● ●
120 WASHER; ARM TO BRKT
PARALLEL WIPER<SBT> 		1-83318-045-0 01 1 9505- ● ●
121 NUT; ARM TO BRKT
PARALLEL WIPER<SBT> 		1-83318-078-0 01 1 9505- ● ●
121 NUT; ARM TO BRKT
WIPER BLADE LONG<YD4> 		1-83318-044-0 02 1 9101-9504 ● ●
121 NUT; ARM TO BRKT
PARALLEL WIPER<SBT> 		1-83318-044-0 01 1 9505- ● ●
122 WASHER; PIVOT FIX,FRT WIPER
WIPER BLADE LONG<YD4> 		1-83318-046-0 02 1 9101-9504 ● ●
122 WASHER; PIVOT FIX,FRT WIPER
PARALLEL WIPER<SBT> 		1-83318-046-0 02 1 9505- ● ●
123 NUT; PIVOT FIX,FRT WIPER
WIPER BLADE LONG<YD4> 		1-83318-050-0 01 1 9101-9504 ● ●
123 NUT; PIVOT FIX,FRT WIPER
PARALLEL WIPER<SBT> 		1-83318-050-0 02 1 9505- ● ●
123 NUT; PIVOT FIX,FRT WIPER
WIPER BLADE LONG<YD4> 		1-83318-047-0 01 1 9101-9504 ● ●
124 BOX ASM; CONT,WIPER LINK
WIPER MOTOR KIT<ST7> 		9-83575-014-2 02 1 9101-9504 ● ●
150 SHAFT; FLEX,WIPER MOTOR TO WIPER
WIPER BLADE LONG<YD4> L=1280 		1-83123-376-0 01 1 9101-9504 ● ●
150 SHAFT; FLEX,WIPER MOTOR TO WIPER
PARALLEL WIPER<SBT> L=950 		1-83124-080-0 01 1 9505- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
