◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50947 - NPR/NQR LHDEXC.EURO4 ▶ 3 - Brakes, Brake System ▶ 3-02 - FRONT DISC BRAKE CALIPER ▶
3-02 — FRONT DISC BRAKE CALIPER (#45078) — 30 parça

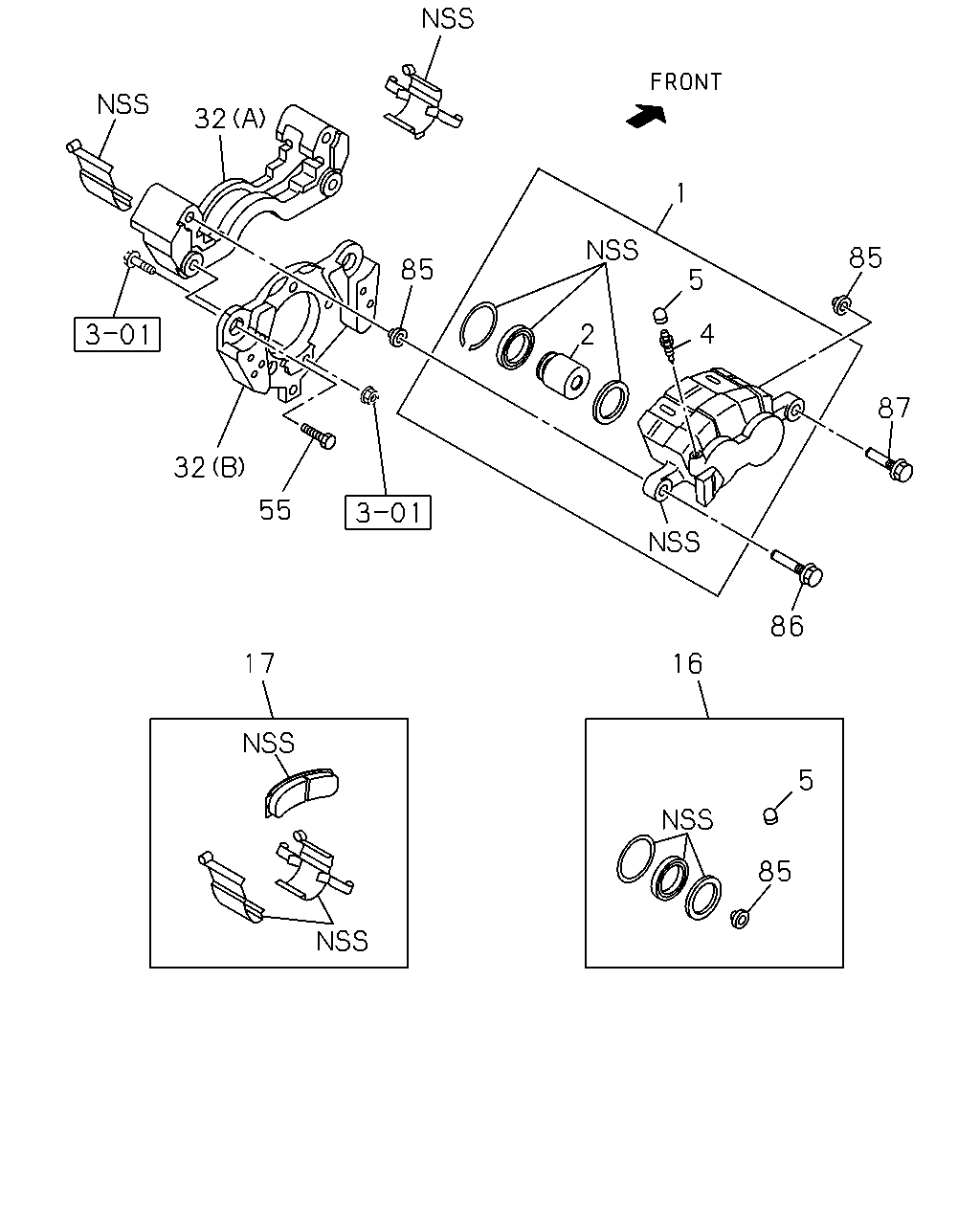

çizim 52854
32 1 85 85 5 2 4 87 32 55 86 17 16 5 85
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.665 CALIPER; FRT DISC BRK
G.V.W. 7.5-8.0TON(RPY) DISC BRAKE FRT<J52> 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97168-588-1 01 1 0211-0501 ● ● ●
1 04.665 CALIPER; FRT DISC BRK
G.V.W. 7.5-8.0TON(RPY) DISC BRAKE FRT<J52> 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97168-587-1 01 1 0211-0501 ● ● ●
1 04.665 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97228-625-1 01 1 0211-0501 ● ● ●
1 04.665 CALIPER; FRT DISC BRK
G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97228-625-1 01 1 0211-0501 ● ● ●
1 04.665 CALIPER; FRT DISC BRK
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97228-624-1 01 1 0211-0501 ● ● ●
1 04.665 CALIPER; FRT DISC BRK
G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97228-624-1 01 1 0211-0501 ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
G.V.W. 7.5-8.0TON(RPY) DISC BRAKE FRT<J52> 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97168-593-0 04 1 0211-0501 ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94468-350-0 04 1 0211-0501 ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-94468-350-0 04 1 0211-0501 ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
DISC BRAKE FRT<J52> 		1-47615-027-0 02 1 0211-0501 ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
DISC BRAKE FRT<J52> 		1-47619-009-0 02 1 0211-0501 ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
G.V.W. 7.5-8.0TON(RPY) DISC BRAKE FRT<J52> 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97168-636-0 01 1 0211-0501 ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97168-635-0 01 1 0211-0501 ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97168-635-0 01 1 0211-0501 ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
G.V.W. 7.5-8.0TON(RPY) DISC BRAKE FRT<J52> 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97168-634-0 01 1 0211-0501 ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97329-266-0 01 1 0211-0501 ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97329-266-0 01 1 0211-0501 ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
G.V.W. 7.5-8.0TON(RPY) DISC BRAKE FRT<J52> 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97168-599-1 02 1 0211-0501 ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) DISC BRAKE FRT<J52> 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97168-584-2 01 1 0211-0501 ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
DISC BRAKE FRT<J52> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97168-584-2 01 1 0211-0501 ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) DISC BRAKE FRT<J52> 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97168-583-2 01 1 0211-0501 ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
DISC BRAKE FRT<J52> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97168-583-2 01 1 0211-0501 ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
DISC BRAKE FRT<J52> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97228-630-1 02 1 0211-0501 ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
G.V.W. 6.0-6.5TON(RPV) DISC BRAKE FRT<J52> 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97228-630-1 02 1 0211-0501 ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
DISC BRAKE FRT<J52> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (B) 		8-97179-592-1 01 1 0211-0501 ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
DISC BRAKE FRT<J52> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (B) 		8-97179-591-1 01 1 0211-0501 ● ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
DISC BRAKE FRT<J52> 		8-97168-639-0 04 1 0211-0501 ● ● ● ●
85 04.665 BOOT; PIN
DISC BRAKE FRT<J52> 		8-97168-612-0 04 1 0211-0501 ● ● ● ●
86 04.665 PIN; GUIDE
DISC BRAKE FRT<J52> 		8-97168-609-1 02 1 0211-0501 ● ● ● ●
87 04.665 PIN; LOCK
DISC BRAKE FRT<J52> 		8-97168-611-1 02 1 0211-0501 ● ● ● ●
