Sayfa 2-85 - Isuzu EPC

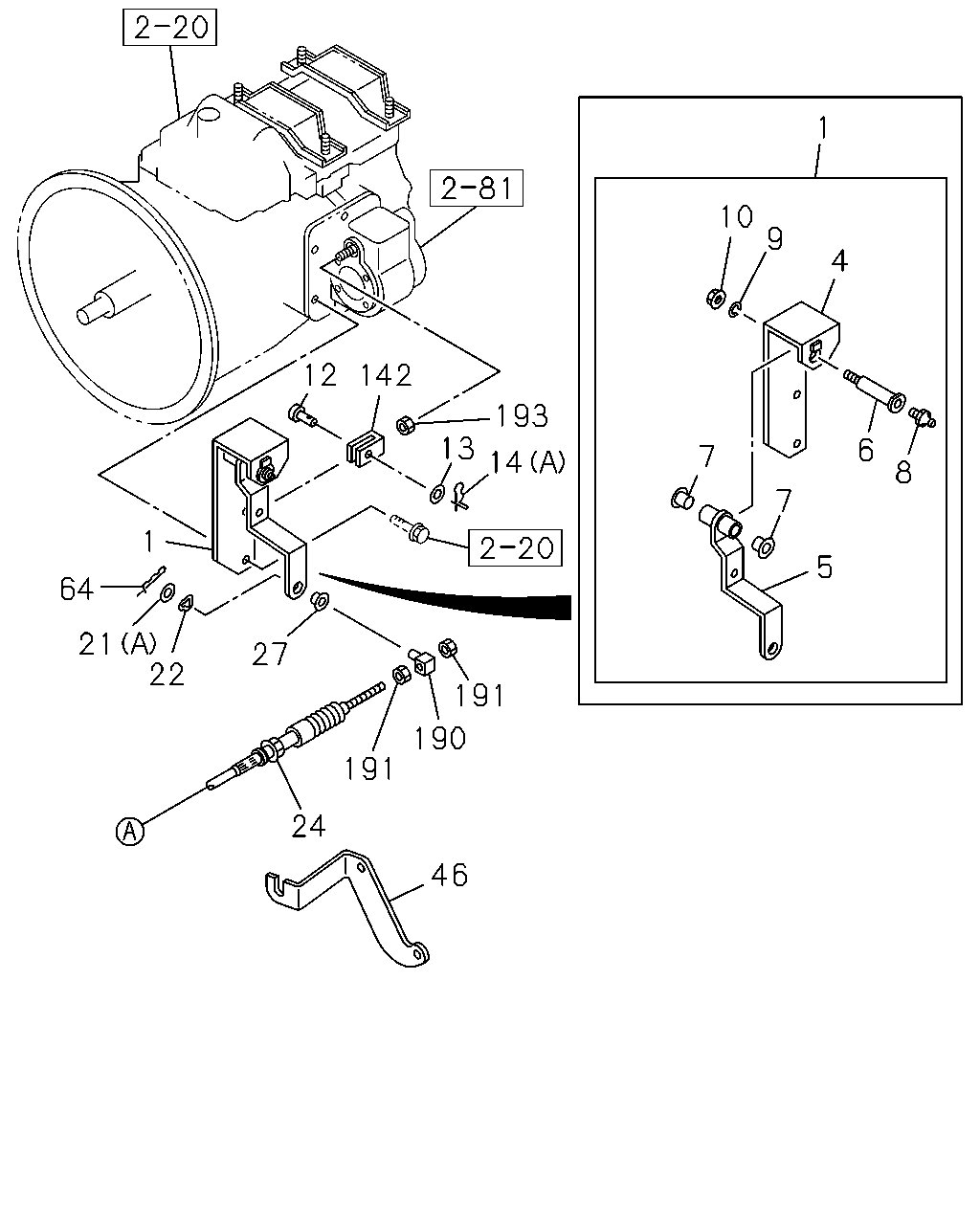

2-85 — POWER TAKE OFF CONTROL (#45076) — 138 parça

24 173 172 172 172 172 173 173 172 195 195 195 195 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	04.439 CABLE; PTO CONT . FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3340	8-97329-045-1	01	1	0211-0501	●
24	04.439 CABLE; PTO CONT . PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> L=3340	8-97329-045-2	01	1	0502-	●
24	04.439 CABLE; PTO CONT . FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3294	8-97329-044-0	01	1	0211-0501	●
24	04.439 CABLE; PTO CONT . 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3057	8-97352-390-0	01	1	0211-0501		●	●
24	04.439 CABLE; PTO CONT . 4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> L=3057	8-97352-390-1	01	1	0502-0506			●
24	04.439 CABLE; PTO CONT . 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> L=3057	8-97352-390-1	01	1	0507-0606		●	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> L=3057	8-97352-390-1	01	1	0607-		●	●
24	04.439 CABLE; PTO CONT . 4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> L=2881	8-97352-392-0	01	1	0211-0501		●	●
24	04.439 CABLE; PTO CONT . 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> L=2881	8-97352-392-1	01	1	0502-	●	●	●
24	04.439 CABLE; PTO CONT . 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3027	8-97352-393-0	01	1	0211-0501		●	●
24	04.439 CABLE; PTO CONT . 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> L=3027	8-97352-393-1	01	1	0502-		●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	0211-0501	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	0502-0512	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0601-	●
172	04.439 BOLT; BRKT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0211-0501	●	●	●
172	04.439 BOLT; BRKT 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0502-0504	●	●	●
172	04.439 BOLT; BRKT 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0505-0506	●	●	●
172	04.439 BOLT; BRKT 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0507-0512	●	●	●
172	04.439 BOLT; BRKT 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0606	●	●	●
172	04.439 BOLT; BRKT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ) ,4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0607-	●	●	●
172	04.439 BOLT; BRKT 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501	●	●	●
172	04.439 BOLT; BRKT 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0501		●	●
172	04.439 BOLT; BRKT 4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0501		●	●
172	04.439 BOLT; BRKT 4HG1-T ENG(RDP),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0512		●	●
172	04.439 BOLT; BRKT 4HG1-T ENG(RDP),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-		●	●
172	04.439 BOLT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0505-0512		●	●
172	04.439 BOLT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0601-		●	●
173	04.439 NUT; BRKT PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE	0-91150-110-0	01	1	0211-0501	●
173	04.439 NUT; BRKT PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE	0-91150-110-0	01	1	0502-0602	●
173	04.439 NUT; BRKT PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-	●
173	04.439 NUT; BRKT FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501	●	●	●
173	04.439 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0504		●	●
173	04.439 NUT; BRKT 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0505-0506	●	●	●
173	04.439 NUT; BRKT 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602	●	●	●
173	04.439 NUT; BRKT 4HG1-T ENG(RDP),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0606	●	●	●
173	04.439 NUT; BRKT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS),4HG1 ENG(RJH),4HK1-TCS ENG(RJS),4HF1-N ENG(RJZ) ,4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-	●	●	●
173	04.439 NUT; BRKT 4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0501		●	●
173	04.439 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602		●	●
173	04.439 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-		●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C)	8-97231-502-0	01	1	0211-0501	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> (C)	8-97231-502-0	01	1	0502-	●
195	04.439 BRACKET; CONT CABLE FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> (E)	8-97229-563-0	01	1	0211-0501	●	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> (E)	8-97229-563-0	01	1	0502-	●	●	●
195	04.439 BRACKET; CONT CABLE FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97079-559-2	01	1	0211-0501	●	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97079-559-2	01	1	0502-	●	●	●
195	04.439 BRACKET; CONT CABLE 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B)	8-97085-695-3	01	1	0211-0501	●	●	●
195	04.439 BRACKET; CONT CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> (B)	8-97085-695-3	01	1	0502-		●	●
195	04.439 BRACKET; CONT CABLE 4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97079-560-3	01	1	0211-0501		●	●
195	04.439 BRACKET; CONT CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97079-560-3	01	1	0502-		●	●

15 70 71 79 245 256 79 121 83 19 18 16 24 31 14 192 256 222 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) 08.938 (B) OD=2.8 L=18	9-08113-018-0	01	1	0211-0606	●
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) (B) OD=2.8 L=18	0-81123-018-0	01	1	0607-	●
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) 09.003 (A)	1-09987-158-1	01	1	0211-0805		●	●
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) (A)	8-97581-216-0	01	1	0806-		●	●
15	04.439 LEVER ASM; PTO CONT FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66)	8-97143-217-1	01	1	0211-0708	●	●	●
16	04.439 CLIP; CABLE,PTO FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) 04.027	8-94152-900-0	01	1	0211-	●	●	●
18	04.439 PIN; SNAP,PTO CABLE FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) 00.833 L=27.7	8-94111-137-0	01	1	0211-	●	●	●
19	04.439 WASHER; PL,PTO CABLE FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) 16.674 ID=8.4	9-09160-508-0	01	1	0211-0605	●	●	●
19	04.439 WASHER; PL,PTO CABLE FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	0606-	●	●	●
21	04.439 WASHER; PL,CONT LEVER FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) 06.760 (B) ID=8.4 OD=22	9-09160-708-0	01	1	0211-0605	●	●	●
21	04.439 WASHER; PL,CONT LEVER FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) 04.595 (B) ID=8.4 OD=22	0-91610-708-0	01	1	0606-	●	●	●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 07.633 (A) ID=8.4 OD=22	9-09164-708-0	01	1	0211-0605		●	●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 02.277 (A) ID=8.4 OD=22	0-91614-708-0	01	1	0606-		●	●
24	04.439 CABLE; PTO CONT . FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3340	8-97329-045-1	01	1	0211-0501	●
24	04.439 CABLE; PTO CONT . PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> L=3340	8-97329-045-2	01	1	0502-	●
24	04.439 CABLE; PTO CONT . FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3294	8-97329-044-0	01	1	0211-0501	●
24	04.439 CABLE; PTO CONT . 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3057	8-97352-390-0	01	1	0211-0501		●	●
24	04.439 CABLE; PTO CONT . 4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> L=3057	8-97352-390-1	01	1	0502-0506			●
24	04.439 CABLE; PTO CONT . 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> L=3057	8-97352-390-1	01	1	0507-0606		●	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> L=3057	8-97352-390-1	01	1	0607-		●	●
24	04.439 CABLE; PTO CONT . 4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> L=2881	8-97352-392-0	01	1	0211-0501		●	●
24	04.439 CABLE; PTO CONT . 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> L=2881	8-97352-392-1	01	1	0502-	●	●	●
24	04.439 CABLE; PTO CONT . 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3027	8-97352-393-0	01	1	0211-0501		●	●
24	04.439 CABLE; PTO CONT . 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> L=3027	8-97352-393-1	01	1	0502-		●	●
31	04.439 CLIP; BAND,CABLE FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 L=300	1-09707-001-1	01	1	0211-0501	●	●	●
31	04.439 CLIP; BAND,CABLE PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 L=300	1-09707-001-1	01	1	0502-	●	●	●
31	04.439 CLIP; BAND,CABLE FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-1	01	1	0211-0501	●	●	●
31	04.439 CLIP; BAND,CABLE 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-1	01	1	0211-0501	●		●
31	04.439 CLIP; BAND,CABLE 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-1	01	1	0502-0504	●		●
31	04.439 CLIP; BAND,CABLE 4HG1-T ENG(RDP),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-1	01	1	0502-0504		●	●
31	04.439 CLIP; BAND,CABLE 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-1	01	1	0505-0606	●		●
31	04.439 CLIP; BAND,CABLE 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> 02.559 L=250	5-09707-030-1	01	1	0607-	●	●	●
70	04.439 KNOB; DUMP CONT FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66)	8-94147-332-1	01	1	0211-0708	●	●	●
71	04.439 LEVER; PTO CONT FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66)	8-97143-218-0	01	1	0211-0708	●	●	●
79	04.439 BUSHING; CONT LEVER FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) 04.792	8-94238-596-0	02	1	0211-0708	●	●	●
83	04.439 BRACKET; CONT LEVER FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66)	8-97118-977-0	01	1	0211-0708	●	●	●
121	04.439 RING; SNAP FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) 08.934 ID=10	9-09185-410-0	01	1	0211-0604	●	●	●
121	04.439 RING; SNAP FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) 04.008 ID=10	0-91805-510-0	01	1	0605-0708	●	●	●
192	04.439 BOLT; PTO BRKT FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) M6X16 FLANGE	0-28680-616-0	01	1	0211-0512	●	●	●
192	04.439 BOLT; PTO BRKT FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) 02.343 M6X16 FLANGE	0-28650-616-0	01	1	0601-0708	●	●	●
222	04.439 BOLT; LEVER FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) 00.662 M8X14 FLANGE	0-28080-814-0	02	1	0211-	●	●	●
245	04.439 SCREW; COVER,CONT LEVER BRKT FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) 03.320 M4X10 W/LK&PL WASHER	9-03920-410-0	01	1	0211-0604	●	●	●
245	04.439 SCREW; COVER,CONT LEVER BRKT FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	0605-0708	●	●	●
256	04.439 PLATE; LOCK FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) (B)	8-97118-983-0	01	1	0211-0708	●	●	●
256	04.439 PLATE; LOCK FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) (A)	8-97142-947-0	01	1	0211-0708	●	●	●

1 10 9 4 12 142 193 13 6 7 14 8 7 1 5 64 21 22 27 191 190 191 24 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66)	8-97310-741-0	01	1	0211-		●	●
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97310-740-0	01	1	0211-		●	●
5	04.439 LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66)	8-97310-747-0	01	1	0211-		●	●
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97204-596-0	01	1	0211-		●	●
7	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66)	5-33659-053-0	02	1	0211-		●	●
8	04.439 NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0211-0607		●	●
8	04.439 NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	0608-		●	●
9	04.439 WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) 00.002 ID=8.2	9-09150-508-0	01	1	0211-0603		●	●
9	04.439 WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) ID=8.2	0-91510-508-0	01	1	0604-		●	●
10	04.439 NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) 02.559 M8	9-09110-408-0	01	1	0211-0512		●	●
10	04.439 NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) 02.334 M8	0-91110-508-0	01	1	0601-		●	●
12	04.439 JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66)	8-94174-099-0	01	1	0211-0610		●	●
12	04.439 JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66)	8-98031-692-0	01	1	0611-		●	●
13	04.439 WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) 03.430 ID=12.5	9-09160-512-0	01	1	0211-0605		●	●
13	04.439 WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) ID=12.5 OD=22	0-91610-512-0	01	1	0606-		●	●
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) 08.938 (B) OD=2.8 L=18	9-08113-018-0	01	1	0211-0606	●
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) (B) OD=2.8 L=18	0-81123-018-0	01	1	0607-	●
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) 09.003 (A)	1-09987-158-1	01	1	0211-0805		●	●
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) (A)	8-97581-216-0	01	1	0806-		●	●
21	04.439 WASHER; PL,CONT LEVER FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) 06.760 (B) ID=8.4 OD=22	9-09160-708-0	01	1	0211-0605	●	●	●
21	04.439 WASHER; PL,CONT LEVER FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) 04.595 (B) ID=8.4 OD=22	0-91610-708-0	01	1	0606-	●	●	●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 07.633 (A) ID=8.4 OD=22	9-09164-708-0	01	1	0211-0605		●	●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 02.277 (A) ID=8.4 OD=22	0-91614-708-0	01	1	0606-		●	●
22	04.439 WASHER; LK,LEVER PTO TRANSMISSION SIDE(V66) 04.037 ID=8.5 T=0.3	5-09509-001-0	01	1	0211-		●	●
24	04.439 CABLE; PTO CONT . FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3340	8-97329-045-1	01	1	0211-0501	●
24	04.439 CABLE; PTO CONT . PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> L=3340	8-97329-045-2	01	1	0502-	●
24	04.439 CABLE; PTO CONT . FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3294	8-97329-044-0	01	1	0211-0501	●
24	04.439 CABLE; PTO CONT . 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3057	8-97352-390-0	01	1	0211-0501		●	●
24	04.439 CABLE; PTO CONT . 4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> L=3057	8-97352-390-1	01	1	0502-0506			●
24	04.439 CABLE; PTO CONT . 4HE1-TCN ENG(RDR),4HE1-TCS ENG(RDS), 4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> L=3057	8-97352-390-1	01	1	0507-0606		●	●
24	04.439 CABLE; PTO CONT . 4HK1-TCN ENG(RDQ),4HE1-TCN ENG(RDR), 4HE1-TCS ENG(RDS),4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> L=3057	8-97352-390-1	01	1	0607-		●	●
24	04.439 CABLE; PTO CONT . 4HG1 ENG(RJH),4HF1-S ENG(RLS) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> L=2881	8-97352-392-0	01	1	0211-0501		●	●
24	04.439 CABLE; PTO CONT . 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) EXC. FRAME STRAIGHT TYPE<7KJ> L=2881	8-97352-392-1	01	1	0502-	●	●	●
24	04.439 CABLE; PTO CONT . 4HG1 ENG(RJH),4HF1-S ENG(RLS),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> L=3027	8-97352-393-0	01	1	0211-0501		●	●
24	04.439 CABLE; PTO CONT . 4HG1-T ENG(RDP),4HG1 ENG(RJH),4HF1-N ENG(RJZ),4HF1-S ENG(RLS) PTO TRANSMISSION SIDE(V66) FRAME STRAIGHT TYPE<7KJ> L=3027	8-97352-393-1	01	1	0502-		●	●
27	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66) 04.042	8-94367-367-0	01	1	0211-		●	●
46	04.439 BRACKET; PTO,TRANS SIDE PTO TRANSMISSION SIDE(V66)	8-97264-954-1	01	1	0211-		●	●
64	04.439 PIN; SNAP,CONT CABLE JOINT PTO TRANSMISSION SIDE(V66) 00.833 L=27.7	8-94111-137-0	01	1	0211-		●	●
142	04.439 CLEVIS; CONT BOX PTO TRANSMISSION SIDE(V66)	8-97327-588-0	01	1	0211-		●	●
190	04.439 BOSS; LEVER,PTO PTO TRANSMISSION SIDE(V66) 04.307	8-94366-842-2	01	1	0211-		●	●
191	04.439 NUT; BOSS PTO TRANSMISSION SIDE(V66) 00.413 M6	9-09110-506-0	02	1	0211-0512		●	●
191	04.439 NUT; BOSS PTO TRANSMISSION SIDE(V66) 03.330 M6	0-91110-506-0	02	1	0601-		●	●
193	04.439 NUT PTO TRANSMISSION SIDE(V66) 07.347 M12	9-99111-412-0	01	1	0211-0512		●	●
193	04.439 NUT PTO TRANSMISSION SIDE(V66) M12	0-91111-512-0	01	1	0601-		●	●
